While aftermarket gauges may often be seen as mere cosmetic enhancements, their true importance goes far beyond aesthetics, especially in vehicles with tuned engines.
In the early 2000s, I was working for Škoda, and we got our hands on the new-generation Fabia for the first time. As I was all hyped about it while turning the ignition key, I noticed something was missing. There was no coolant temperature gauge. Like none at all! The car had to be delivered, and I was swiftly turning the manual pages, but the owner was eager to get his new car and came early.
I delivered the car to the happy customer and got back to the manual, but the owner outran me. “There is a blue light on the dashboard,” said the voice on the other side of the line on my Nokia 3310. “Like some kind of blue thermometer.” I was just on a page of the owner’s manual explaining that, in this new model, Škoda had replaced the analog coolant temperature gauge with a digital indicator. Upon starting the car, the indicator turns blue when the coolant is below the ideal working temperature, i.e., when the engine is cold, and turns off completely when in the optimal range. The orange indicator is for hot, and the red is for stop. I was completely in the dark, not knowing what was in-between, and at that moment, I understood the importance of proper gauges.
And we are talking about your daily commuter. Now imagine the importance of gauges in protecting your high-revving engine while honing it with the pedal to the metal! For that, you’ll need aftermarket gauges, and here we’ll explain everything about them.
What’s the Use of Aftermarket Gauges?
If you are a car guy and want more insights into your engine than the usual rev meter, speedometer, and fuel gauge, using aftermarket gauges is essential. You see, maybe there is no need to know how is the air/fuel ratio while driving Miss Daisy with her 1946 Chrysler Windsor, but you definitely need to have that information next time you hit the track with your STi.
As there are various digital bands, watches, rings, and trackers that can monitor your heart condition while doing your daily workout, aftermarket gauges monitor your engine’s condition the same way. It’s important to know what boost pressure your turbo shoots into the cylinder head, how high the oil pressure is, or how rich or lean your air/fuel ratio is.
Manufacturers don’t want to overcrowd (read “spend money”) the instrument cluster and keep it simple with basic instruments. And that’s more than enough for the average Joe. But if you are a guy or a gal that tends to rev their car higher than average or a little more sideways than recommended, then you need more info than what the manufacturer usually provides you with.

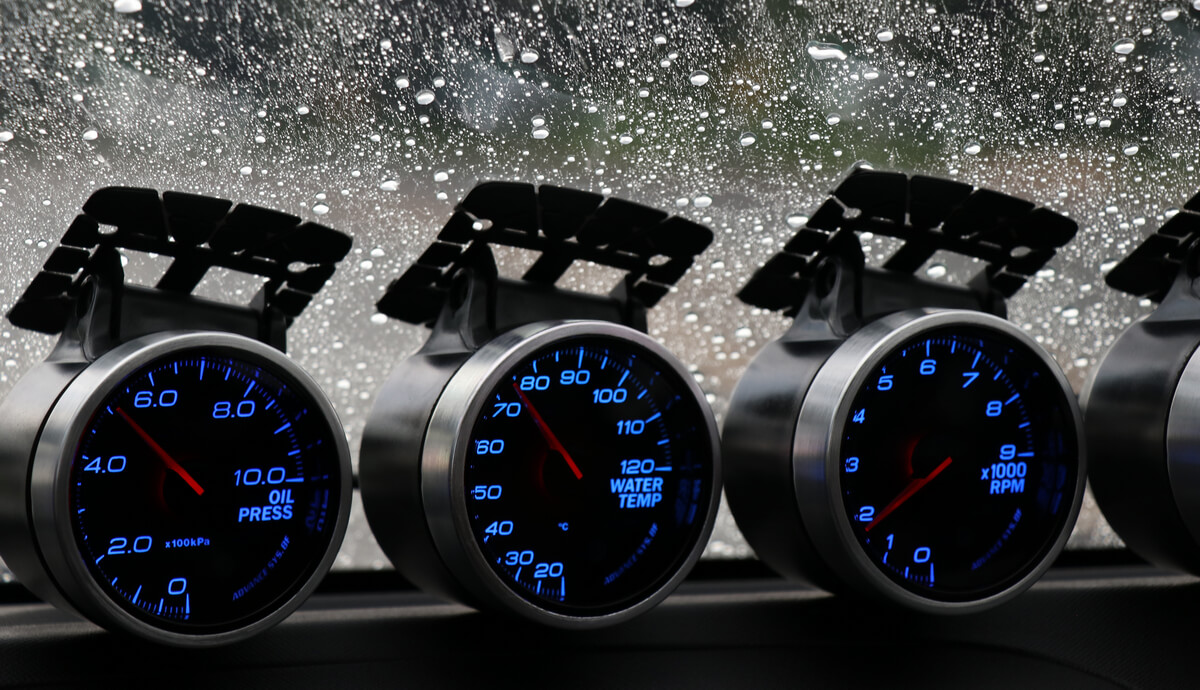

Most Common Aftermarket Gauges: A Closer Look
In the quest for peak automotive performance, understanding your car’s operating conditions is crucial. Here, we spotlight three indispensable gauges that offer a window into the heart of your engine’s performance dynamics. They not only reveal what’s happening under the hood but can also signify potential issues before they escalate. Let’s delve into the mechanics and significance of these gauges:
Boost Pressure Gauges
Boost pressure gauges are quintessential for anyone running a forced induction system in their vehicle, whether it’s turbocharged or supercharged. They measure the amount of pressure being forced into the intake manifold by the turbo or supercharger, which is typically measured in pounds per square inch (psi) or bar in some countries.
The core component in controlling this pressure in a turbocharged system is a wastegate actuator. The wastegate actuator is a valve that diverts exhaust gases away from the turbine wheel in the turbocharger, controlling the speed of the turbine and, consequently, the amount of boost the turbocharger creates. The wastegate can be either internal or external to the turbocharger assembly. When the pressure reaches a predetermined level, the wastegate actuator opens the wastegate valve, allowing some of the exhaust gases to bypass the turbine, thus controlling the boost level.
The readings on your boost gauge provide real-time feedback on the efficiency and health of your turbocharging system. For instance, if the boost level is lower than expected, it could indicate a malfunction within the turbocharger itself, a leak in the air intake or exhaust system, or an issue with the wastegate actuator not functioning correctly. Conversely, a higher-than-expected boost level could indicate a wastegate malfunction or a tuning issue, which could potentially lead to engine damage due to overboost.
Stock boost gauges installed by the manufacturer usually have a limited range and are calibrated based on the factory boost settings. They are not designed to provide precise readings beyond the factory-set boost levels and, hence, may max out or provide inaccurate readings if the boost level is increased beyond the factory settings.
On the other hand, aftermarket boost gauges offer a wider range of readings, providing precise measurements even at higher boost levels. They often have additional features like a vacuum reading, which measures the vacuum in the intake manifold when the throttle is closed. This can be crucial for diagnosing issues like vacuum leaks or improper throttle operation.
Some sophisticated aftermarket boost gauges also provide features like programmable warning lights, peak recall, and sometimes even data logging capabilities. These features allow the driver to set a warning light at a specific boost level to prevent overboosting, recall the highest boost level reached during a drive or track session, and log boost data for later analysis, which can be invaluable for tuning and troubleshooting purposes.
Moreover, the aftermarket boost gauges can be analog or digital, with digital gauges often offering more features like multiple display options, color-changing displays based on boost level or warning thresholds, and easier readability.
Additionally, when it comes to installation, aftermarket boost pressure gauges require a proper vacuum hose connection to the intake manifold or a boost source and electrical connection for power, lighting, and sometimes sending units if they are electrically operated. Ensuring airtight connections is crucial to get accurate readings and to prevent any vacuum leaks that could affect engine performance.
In summary, a boost pressure gauge is an indispensable tool for monitoring and managing the forced induction system in your vehicle, providing vital information that can help prevent engine damage, improve performance, and enhance your understanding of how your engine is operating under different conditions.
Download over 5,000,000+ car repair manuals here!
Oil Pressure Gauges
Oil Pressure Gauges are fundamental instruments for monitoring the health and efficiency of an engine’s lubrication system. They measure the pressure at which oil circulates through the engine, which is typically denoted in pounds per square inch (psi) or bar. The oil pressure is crucial as it signifies the effectiveness of the oil in reaching all necessary components to reduce friction, cool down heated parts, and ensure smooth operation.
The operation of an oil pressure gauge is contingent on the type of gauge – mechanical or electrical. Mechanical gauges operate using a tube that runs directly from the engine to the gauge, transporting oil to move the needle. On the other hand, electrical gauges utilize a sensor placed in the engine that sends electronic signals to the gauge, translating the pressure reading into a visual display on the gauge.
The oil pressure in an engine is generated by the oil pump, which circulates oil. The reading on the gauge reflects the resistance to the oil flow in the passages. High readings indicate good resistance, which implies that the passages are not excessively worn. Low readings could signal worn passages or a malfunctioning oil pump, among other issues.
It’s vital to understand the baseline oil pressure of your engine when it’s operating optimally. Deviations from this baseline could signify potential issues. For example, a sudden drop in oil pressure could be indicative of a severe problem such as a major oil leak, a malfunctioning oil pump, or blockages in the oil passages.
Modern vehicles equipped with an Oil Pressure Warning Light provide a simplified signal if the oil pressure falls below a safe level. However, this is a rudimentary warning system and does not provide detailed information about the actual oil pressure, which can be crucial for preventing damage before it becomes severe.
Aftermarket oil pressure gauges often offer more precise readings compared to stock gauges. They may come with additional features like warning lights for low or high pressure, peak recall functions, and even data logging in some high-end models. These features are invaluable for maintaining engine longevity, especially in performance or heavily modified engines where optimal oil pressure is crucial for engine survival.
Besides, the installation of mechanical oil pressure gauges can be more complex due to the need for running an oil line into the cabin. Electrical gauges, however, are easier and safer to install as they require just a sensor installed in the engine and wiring to the gauge, eliminating the need for oil to be transported to the gauge itself.
In essence, oil pressure gauges serve as a vigilant guard, providing real-time data on the engine’s lubrication status. By alerting to deviations from the norm, they play a pivotal role in averting potential engine damage, thus ensuring the vehicle remains in prime operational condition.

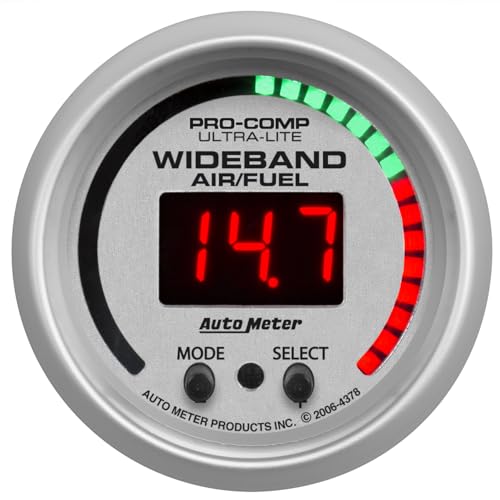

Wideband Air-Fuel Ratio Gauges
Wideband Air-Fuel Ratio (AFR) Gauges are crucial for individuals keen on achieving optimal performance, fuel efficiency, and emissions control in their vehicles. They are designed to measure the ratio of air to fuel in the engine’s combustion chambers, a critical aspect for ensuring efficient combustion. The ideal air-fuel ratio for gasoline combustion engines is 14.7:1, signifying 14.7 parts of air to 1 part of fuel, known as the stoichiometric ratio. However, performance-oriented vehicles often operate outside this stoichiometric ratio to meet specific performance goals, which is where wideband AFR gauges come into play.
The operational principle of a wideband AFR gauge hinges on an oxygen sensor, often termed as a wideband O2 sensor or lambda sensor. Unlike narrowband O2 sensors that only indicate if the air-fuel mixture is lean, stoic, or rich, wideband O2 sensors provide continuous output, reflecting the exact air-fuel ratio. This continuous feedback is invaluable as it allows for precise tuning and accurate monitoring of the engine’s combustion environment.
Real-time monitoring of the air-fuel ratio is essential, especially in performance or modified engines. The readings from a wideband AFR gauge assist in identifying various issues such as incorrect injector sizing, fuel system malfunctions, vacuum leaks, or even problems with the vehicle’s mass air flow sensor, which could adversely affect the air-fuel ratio and, consequently, engine performance and efficiency.
Tuning and performance optimization are other areas where wideband AFR gauges prove indispensable. They allow for meticulous tuning of the engine’s fuel maps, ensuring the engine operates at peak efficiency and performance across a myriad of operating conditions. For track-oriented or performance vehicles, achieving a specific air-fuel ratio can be critical for reaching desired performance objectives, whether it’s higher top speed, quicker acceleration, or even fuel efficiency in some cases.
Additionally, on vehicles with significant modifications such as larger turbos or superchargers, the stock fuel system may struggle to maintain the desired air-fuel ratio, especially at higher speeds or loads. In such scenarios, a wideband AFR gauge becomes a vital tool for monitoring the air-fuel ratio in real-time, ensuring the engine operates within safe parameters.
Furthermore, installing a wideband air-fuel ratio gauge requires a connection to a wideband oxygen sensor, which is usually installed in the exhaust system. The sensor’s readings are then relayed to the gauge, providing the driver with real-time data on the air-fuel mixture. Some wideband gauges also offer data logging capabilities, allowing for a more detailed analysis, which can be instrumental in fine-tuning the engine for better performance or diagnosing issues.
Put simply, a wideband air-fuel ratio gauge is more than just a monitoring tool. It’s a critical companion for those keen on understanding their engine’s operational dynamics, improving performance, and ensuring the longevity and reliability of their engine, especially under demanding driving conditions. If you want to go fast, you’ll need one—simple as that!
Importance of Gauges: Tuned vs. Factory Cars
The realm of automotive gauges presents a vivid contrast when comparing tuned cars to their factory-standard counterparts. Here’s a dive into the significance of gauges in both scenarios:
Factory Cars
In factory cars, the gauges are primarily designed to monitor basic operational parameters such as speed, fuel level, and engine temperature. These gauges aim to keep the driver informed about the essential functions of the car, ensuring a safe and efficient driving experience. The simplicity and ease of interpretation are the hallmarks of the gauges you find in factory cars. They are meant to cater to the average driver who requires straightforward information to keep the vehicle running smoothly.
Tuned Cars
On the flip side, tuned cars, often being the prized possessions of enthusiasts and racers, demand a different level of engagement and understanding. Tuned cars are modified to achieve higher performance levels and, thus, require a more detailed monitoring system to ensure they are operating within safe and optimal parameters. This is where aftermarket gauges come into play.
Aftermarket gauges in tuned cars provide a plethora of information that goes beyond the basics. They delve into the nitty-gritty of engine operations, such as boost pressure, oil pressure, and air-fuel ratios. These gauges are indispensable for anyone looking to push their vehicle’s performance to the limit, as they provide real-time data that can be crucial for preventing engine damage and achieving desired performance goals.
Furthermore, the customizable nature of aftermarket gauges allows for a tailored driving experience. Enthusiasts can choose gauges that align with their performance goals and aesthetic preferences, creating a more personalized and informed driving environment.
The installation of aftermarket gauges in tuned cars also signifies a willingness to engage with the mechanical and operational intricacies of the vehicle. It’s a step towards a more hands-on and informed approach to car maintenance and performance tuning. This level of engagement can lead to a deeper understanding and appreciation of the automotive world, making the driving experience much more enriching and enjoyable.
In short, while the basic gauges in factory cars suffice for everyday driving, the advanced aftermarket gauges are almost a necessity in tuned cars to ensure optimal performance, safety, and a deeper engagement with the vehicle’s operational dynamics.
How to Install Gauges in a Car?
Boost Pressure Gauges
Turbo gauges are usually pretty straightforward to install. First, you’ll need wire cutters and splicers, electrical tape, a rubber grommet, a three-way T-adapter, and a vacuum hose (all of this should be included if you bought your boost pressure gauge in a kit).
After finding the ideal position to put the gauge, you’ll need to plan your installation of the hose through the firewall and into the engine bay. You’ll have to avoid sharp metal edges and contact with the engine block or exhaust pipes, as it can puncture or melt the hose, resulting in leaks and, ultimately, incorrect readings.
In most cases, all you’ll need to do is connect the hose to the air intake, and your gauge will do the rest. However, specific models may also come with an external sensor, so make sure you follow the manufacturer’s instructions here.
Oil Pressure Gauges
Oil pressure gauges require the same tools. If you go with mechanical gauges, the installation is complicated as it requires installing small oil lines and fittings into the engine bay through the firewall. You’ll have to be extra careful as you can imagine the consequences of a bad installation and the risk of loose or damaged oil pipes. You really don’t want to have the gauge fitting leaking here. There is a lot of pressure in a lubrication system, and a leaking fitting will cause a huge mess and may spray engine oil all over the cabin.
The safest bet here is to go with a digital oil gauge as they don’t require any mechanical connection and will simply require you to connect a couple of electrical wires to your stock oil sensor. Some more high-end models even come with piggyback plug-n-play connectors that you can just connect to your car’s PCM.
Air-Fuel Ratio Gauges
Air-fuel ratio gauges are the easiest to install from the lot if you go with a narrowband model. It uses the car’s factory oxygen sensor, so you’ll only have to install and connect the gauge wire to the sensor.
If your engine-swapped Frankencar does not have an oxygen sensor or you are willing to install a wideband air/fuel sensor, be ready for more drilling and welding to install the new sensor onto the exhaust manifold, followed by some wiring as well. If you don’t know what you are doing here, you might be better off seeking professional help.
Mechanical vs. Electric Gauges
When speaking about mechanical or electrical gauges, we refer to how they are receiving data from your engine, not whether they are analog or digital instruments. It’s widely considered that mechanical gauges are more precise than electrical, but there are some pros and cons on both sides.
A mechanical turbo gauge is more precise than an electric one as it uses the vacuum hose for reading and reacts instantly to the change in boost pressure. Meanwhile, electrical boost gauges are far easier to install.
Same as for turbo gauges, installing a mechanical oil pressure gauge can be more complicated than its electric counterpart. The other drawback of the mechanical oil pressure gauge is that the pipes end in the cabin connected to the gauge, meaning oil can leak inside if some damage occurs. However, regarding the precision, they are both pretty much comparable.
Air-fuel ratio gauges are always electric but are generally divided into two types. Narrowband gauges only measure if the mixture is lean or rich, while wideband models measure the actual value. However, when it comes to performance-oriented vehicles, only wideband gauges are worth it. Narrowband units will only give you a good idea of the combustion in your engine but are simply not precise enough to allow any kind of fine-tuning.
Last Words
The intricacies of tuning a car extend beyond mere mechanical adjustments. Having a clear insight into your engine’s operation through aftermarket gauges, such as Boost Pressure, Oil Pressure, and Wideband Air-Fuel Ratio Gauges, is imperative for maintaining optimal performance and longevity. These gauges are to a car what vital signs are to a patient; they offer a real-time analysis, detecting anomalies before they escalate into major problems.
The installation of these gauges might demand a bit of effort, but the payoff is substantial. They provide a more detailed narrative of what’s occurring under the hood, especially crucial for those who have ventured beyond the stock setup. The contrast between the rudimentary monitoring in factory cars and the detailed insight provided by aftermarket gauges in tuned cars is stark and for a good reason.
As you delve deeper into tuning, the need for precise, real-time data becomes paramount. Making informed decisions based on accurate readings could be the difference between a well-tuned machine and an impending engine failure. The gauges are your companions in this venture, offering a glimpse into the engine’s behavior under various conditions, aiding in fine-tuning, and ensuring everything runs as it should.
Investing in quality aftermarket gauges is not just about chasing performance metrics; it’s about fostering a well-informed, proactive approach to car maintenance and tuning. This proactive approach not only helps in achieving desired performance goals but also in averting potential disasters, making the investment in these gauges a wise and practical choice for any serious car enthusiast or mechanic.
What’s been your experience with aftermarket gauges? Do you have a favorite brand or a particular gauge that proved to be a game-changer in tuning your vehicle? Share your insights and experiences in the comments below. Your feedback could be invaluable to someone just starting their tuning journey.
