9003 and H4 bulbs look quite similar on the outside, and in some forums, you’ll read that they are the same, while on others that they are different. So, what’s the catch? Here is the whole story.
So, you searched for 9003 bulbs online, and many of the options also carry the H4 marking? It must be a mistake, right? Well, it is and isn’t. See, H4 and 9003 are similar on the outside, so many confuse them — and rightly so. The background of these bulbs is tightly intertwined, and they are used differently in North America and Europe, so yeah, it can be a bit confusing.
Still, there are several differences between H4 and 9003, though, and they can be really important or not depending on the usage. To set this question straight once and for all, this article will cover everything similar or distinct about those bulbs, so you can decide if that makes a difference for you. More importantly, it will also cover the legal implications of interchanging these bulbs — yup, that’s also a thing!
I hope it helps the next time a bulb on your vehicle burns out.
What is an H4 Bulb, and What is it Used for?
An H4 is an automotive and motorcycle headlight bulb, frequently halogen, but LED models are also available. In halogen models, the bulb itself contains two filaments, providing both dipped and main beams. Hence, even when one filament goes out (usually the dipped beam one), you’ll need to replace the whole unit. However, it also means you won’t need to purchase two separate bulbs.
Interestingly, the H4 was initially developed for race cars but was later used in Europe on road-going vehicles. However, it also found its way to North America, albeit only for use in motorcycles’ headlights, where the two filaments meant a simpler system, more suitable for the smaller housing.
The H4 has a three-pronged attachment that you’ll use to connect to your vehicle’s wiring harness, a unique feature among other H-branded bulbs. It also produces quite an intense light at 1,650 / 1,000 lumens (main / dipped), making it more powerful than similar bulbs.
Nonetheless, since it’s quite an old technology, the H4 isn’t built to very tight tolerances. Thus, the beam it produces isn’t always appropriately directed. That’s one of the bulb’s main disadvantages and a reason why 9003 bulbs were developed in the first place. Let’s get into more detail.
What is a 9003 Bulb, and What is it Used for?
9003 bulbs, also known as HB2 (European designation), were developed to replace H4s in the North American market. In fact, after H4 bulbs saw widespread use in Europe in the 80s, carmakers soon wanted to start installing them in US-spec models.
However, the Department of Transportation (DOT) didn’t approve H4 bulbs for use in the US, as it considered there was too much variance in the filament placement. According to the DOT, H4 bulbs had too much beam intensity and pattern variance and could blind oncoming drivers.
Consequently, 9003 bulbs were designed and manufactured using much tighter tolerances, making them applicable for American automotive headlights. As a result, 9003 bulbs are easier to position in the housing without spoiling the beam pattern. Meanwhile, if you don’t place H4 bulbs right, there is indeed a risk they could blind other drivers. Still, due to the higher tolerances, H4s are actually better for use in motorcycles, where the bulb has to withstand much more vibrations.
Interestingly, 9003 bulbs are quite similar to H4s, also featuring a three-pronged attachment and the same dual-filament arrangement, although manufactured under tighter tolerances. Thus, you can easily fit a 9003 bulb into an H4 housing and vice versa. Whether or not you should, though, is a totally different matter altogether.
Let’s discuss.

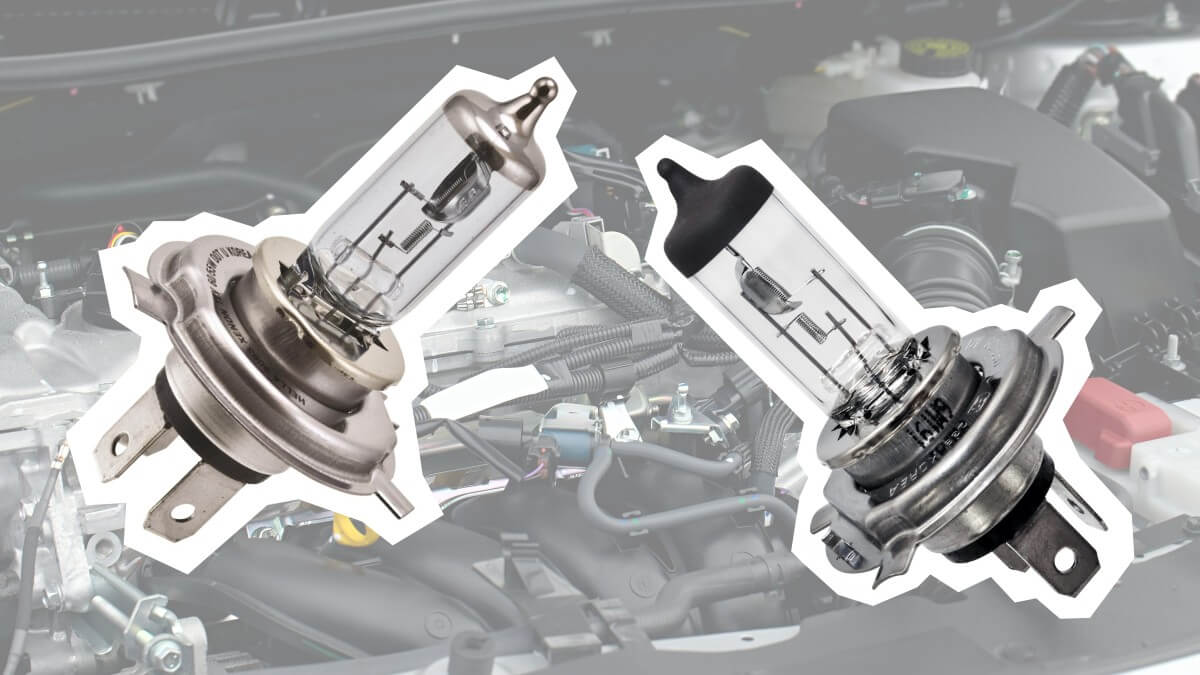

Difference Between H4 and 9003 Bulbs
On the outside, there is absolutely no difference between H4 and 9003. Both share the same housing, the same dual-filament internals, and the same three-pronged connection. So, of course, they are interchangeable, i.e., installing a 9003 bulb in a vehicle equipped with H4s, and vice-versa.
However, since 9003s are made under tighter tolerances, it’s much easier to aim them right. I’ve had some experience positioning H4s, and they are a true nightmare — it’s no coincidence that US regulators banned them for road use. With 9003 bulbs, the problem is almost non-existent.
People often confuse both because of how companies are branding these bulbs — there are many products marked as both 9003 and H4. From what I’ve experienced in the last few years, though, all of these bulbs are actually 9003/HB2 in disguise. The H4 is only there to show motorcycle owners that they can also use them (and indeed they can).
So, my advice is always to purchase 9003 bulbs, even if you own a motorcycle. That way, you won’t have to worry about directing the beam, and any modern bulb is sturdy enough to endure the increased vibrations created by a motorcycle.
There’s simply no real good reason to buy H4s anymore.
Frequently Asked Questions (FAQs)
Are H4 vs. 9003 bulbs interchangeable?
Yes, they are interchangeable. However, 9003 bulbs are manufactured under much tighter tolerances. Hence, even if you own a motorcycle/car that recommends H4s, we recommend going for 9003/HB2 bulbs anyway — they’re simply better.
Meanwhile, if your vehicle already requires 9003 bulbs, just stick with those. Going for bulbs branded as 9003/H4 will also work without any issue.
Which one is the brightest?
The beam’s brightness doesn’t depend on the bulb’s type, as both 9003 and H4 can produce similar light outputs and are offered in different lumen ratings. Also, keep in mind that LED bulbs are usually brighter, although they aren’t legal everywhere.
What kind of vehicle uses 9003 bulbs?
In North America, 9003 bulbs are used for headlights in passenger cars and SUVs, covering both main and dipped beams.
What kind of vehicle uses H4 bulbs?
In North America, H4 bulbs are only used in motorcycles, where the higher tolerances are beneficial due to the vibrations. However, they are also utilized in European cars for the main headlight.
What is the difference between HID and halogen bulbs?
Halogen bulbs work similarly to regular incandescent light, as they have a tungsten filament that lights up when current flows through it. However, in this case, the filament is sealed inside a quartz capsule filled with halogen gas (iodine or bromine).
Meanwhile, HID (high-intensity discharge) is a much more advanced technology. Inside an HID bulb, the electric current flows between two electrodes through an ionized gas (plasma). In the automotive industry, almost all HID bulbs are filled with Xenon (noble gas), so most people refer to these bulbs as ‘Xenon lights.’
HIDs produce a brighter and more direct beam than halogen bulbs, and they are also more durable. Still, they work best with headlight designs built explicitly for such bulbs (usually projector headlights), and aftermarket models are usually prohibited pretty much everywhere.
Last Words
I hope this article clarified things for you, especially after reading all those confusing ‘tips’ found online (you’ll find the best and the worst on there). And just in case you didn’t read all of the above that carefully, when it comes to H4 and 9003 bulbs in this day and age, they are interchangeable, and you can’t really go wrong with either one. Besides, most of them are branded 9003 and H4, anyway. Just make sure that you purchase high-quality bulbs from reputable manufacturers, and you’ll be just fine.
