2007 Jeep Commander XK Parts Manual

VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 2 = Manufactured By DaimlerChrysler Canada Inc. 1 = Manufactured By DaimlerChrysler Corporation 3 = Manufactured By DaimlerChrysler De Mexico 2 Assembler J = Jeep 3 Vehicle Type 7 = Truck Less Sales Code "CGS" Side Air Bags 4 GVWR & Pass. Safety D = 0001-3000 GVWR & Hyd. Brakes M = 10001-14000 GVWR & Hyd. Brakes E = 3001-4000 GVWR & Hyd. Brakes F = 4001-5000 GVWR & Hyd. Brakes G = 5001-6000 GVWR & Hyd. Brakes J = 7001-8000 GVWR & Hyd. Brakes K = 8001-9000 GVWR & Hyd. Brakes L = 9001-10000 GVWR & Hyd. Brakes H = 6001-7000 GVWR & Hyd. Brakes 5 Vehicle Line H = Commander Left Hand Drive (4x2) G = Commander Left Hand Drive (4x4) 6 Series 4 = Commander 5 = Commander Limited 7 Body Style 8 = XK-74 8 Engine K = 3.7L Magnum Gasoline N = 4.7L Magnum Gasoline 2 = 5.7L HEMI Multiple Displacement Gasoline P = 4.7L V8 CYL Flex Fuel (EVD) 9 Check Digit 0 = Check Digit 10 Model Year 7 = 2007 11 Assembly Plant C = Jefferson North Assembly 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

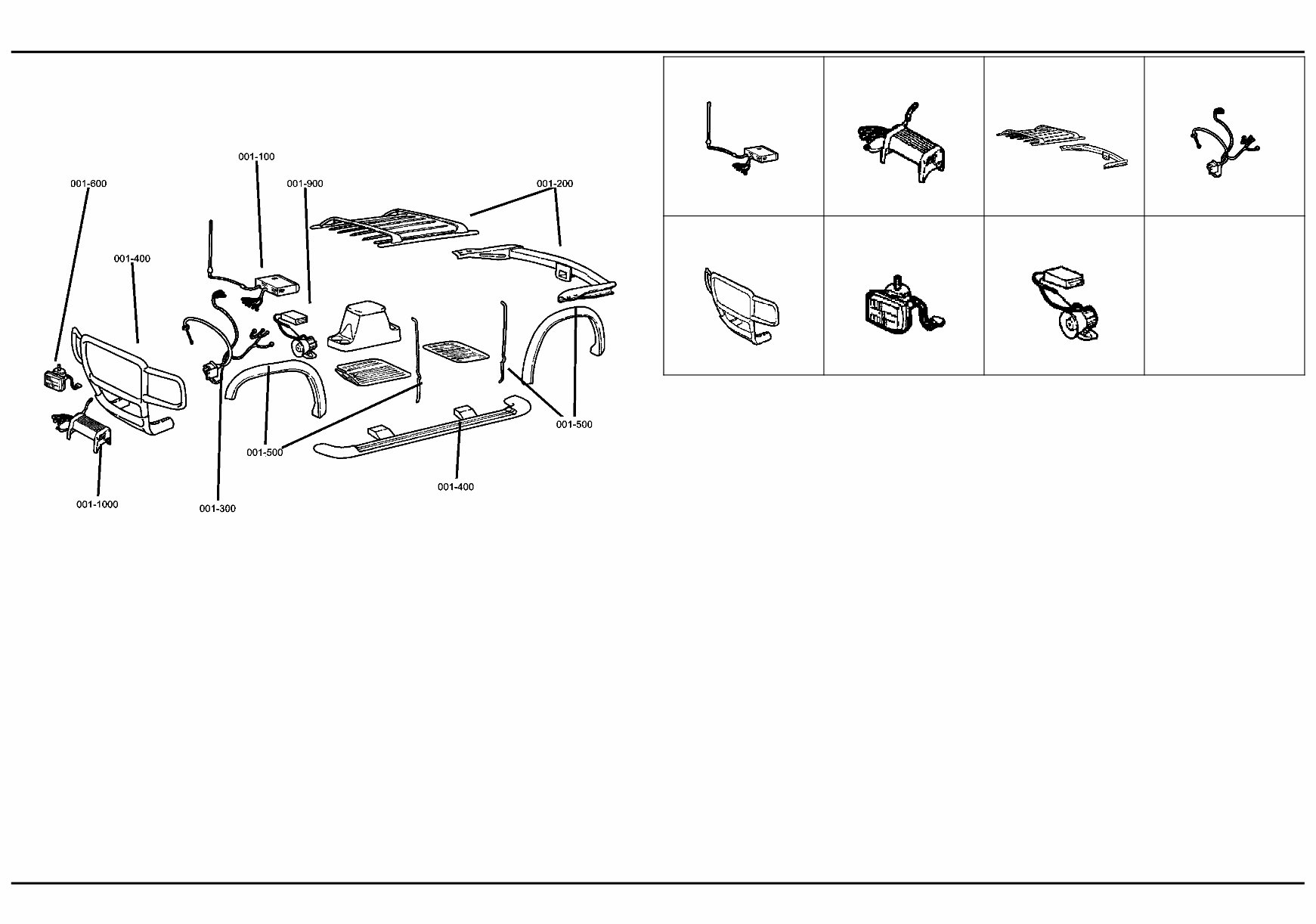

Group - 1 Component Parts for Mopar Accessories 001-100 Audio & Electronics 001-1000 4 - Wheeling & Off Road 001-200 Carriers & Cargo Hauling 001-300 Driving Convenience 001-400 Exterior Appearance 001-600 Fog Lights & Electrical 001-900 Security 2007 XK

Group - 1 Component Parts for Mopar Accessories Illustration Title Group-Fig. No. Audio & Electronics Satellite Receiver Kit ......................................................................................................................... Fig. 1 - 110 Install Kit Satellite Receiver ................................................................................................................. Fig. 1 - 120 Install Kit Satellite Receiver-GEN 2.5....................................................................................................... Fig. 1 - 125 Navigation Kit ................................................................................................................................. Fig. 1 - 130 Navus ......................................................................................................................................... Fig. 1 - 140 Rear Seat DVD Video System .............................................................................................................. Fig. 1 - 150 Backup Camera Kit .......................................................................................................................... Fig. 1 - 160 Module Kit - IPod Adapter ................................................................................................................... Fig. 1 - 170 Carriers & Cargo Hauling Bike Carrier - Hitch Mount Four Bikes ...................................................................................................... Fig. 1 - 210 Bike Carrier, Hitch Mount Two Bikes........................................................................................................ Fig. 1 - 220 Bike Carrier - Roof Mount- Fork ............................................................................................................. Fig. 1 - 230 Bike Carrier- Roof Mount -Upright .......................................................................................................... Fig. 1 - 240 Rack Kit - Multipurpose ...................................................................................................................... Fig. 1 - 245 Carrier Kit - Canoe ........................................................................................................................... Fig. 1 - 250 Carrier Kit - Watersports ..................................................................................................................... Fig. 1 - 260 Carrier Kit, Snowboard or Ski ............................................................................................................... Fig. 1 - 270 Luggage Carrier Roof Vinyl.................................................................................................................. Fig. 1 - 280 Carrier Kit / Luggage ......................................................................................................................... Fig. 1 - 285 Trailer Tow Harness-4 Way .................................................................................................................. Fig. 1 - 290 Trailer Tow Harness-7 Way .................................................................................................................. Fig. 1 - 295 Driving Convenience Remote Start ................................................................................................................................. Fig. 1 - 310 Hands Free Kit - Cellular Phone ............................................................................................................ Fig. 1 - 320 Exterior Appearance Wheels and Caps ............................................................................................................................ Fig. 1 - 410 Fog Lights & Electrical Heater Kit ..................................................................................................................................... Fig. 1 - 610 Light Kit - Fog................................................................................................................................. Fig. 1 - 620 Wiring Kit - Off Road Lamps................................................................................................................. Fig. 1 - 630 Wiring Kit - Off Road Lamps................................................................................................................. Fig. 1 - 640 Security Alarm Kit ...................................................................................................................................... Fig. 1 - 910 4 - Wheeling & Off Road Skid Plate - Fuel ............................................................................................................................. Fig. 1 - 1010 2007 XK

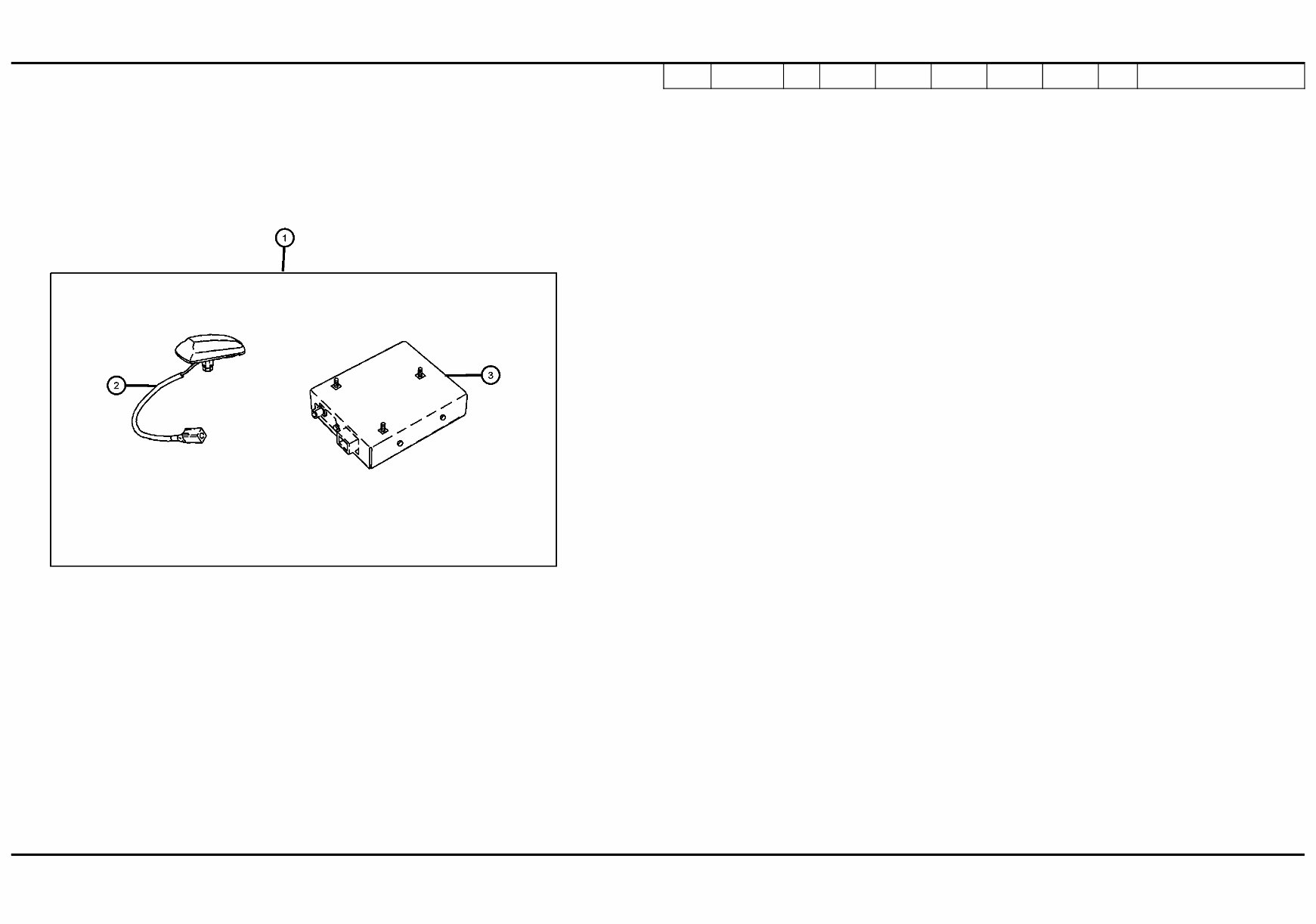

Satellite Receiver Kit Figure 1-110 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Satellite Receiver Kit SRK Note; For Warranty Repair On Item 3, Order Using Z Prex 1 82208881AA 1 RECEIVER, Satelite 2 05091504AB 1 ANTENNA, Satellite 3 05064002AJ 1 RECEIVER, Satellite COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX

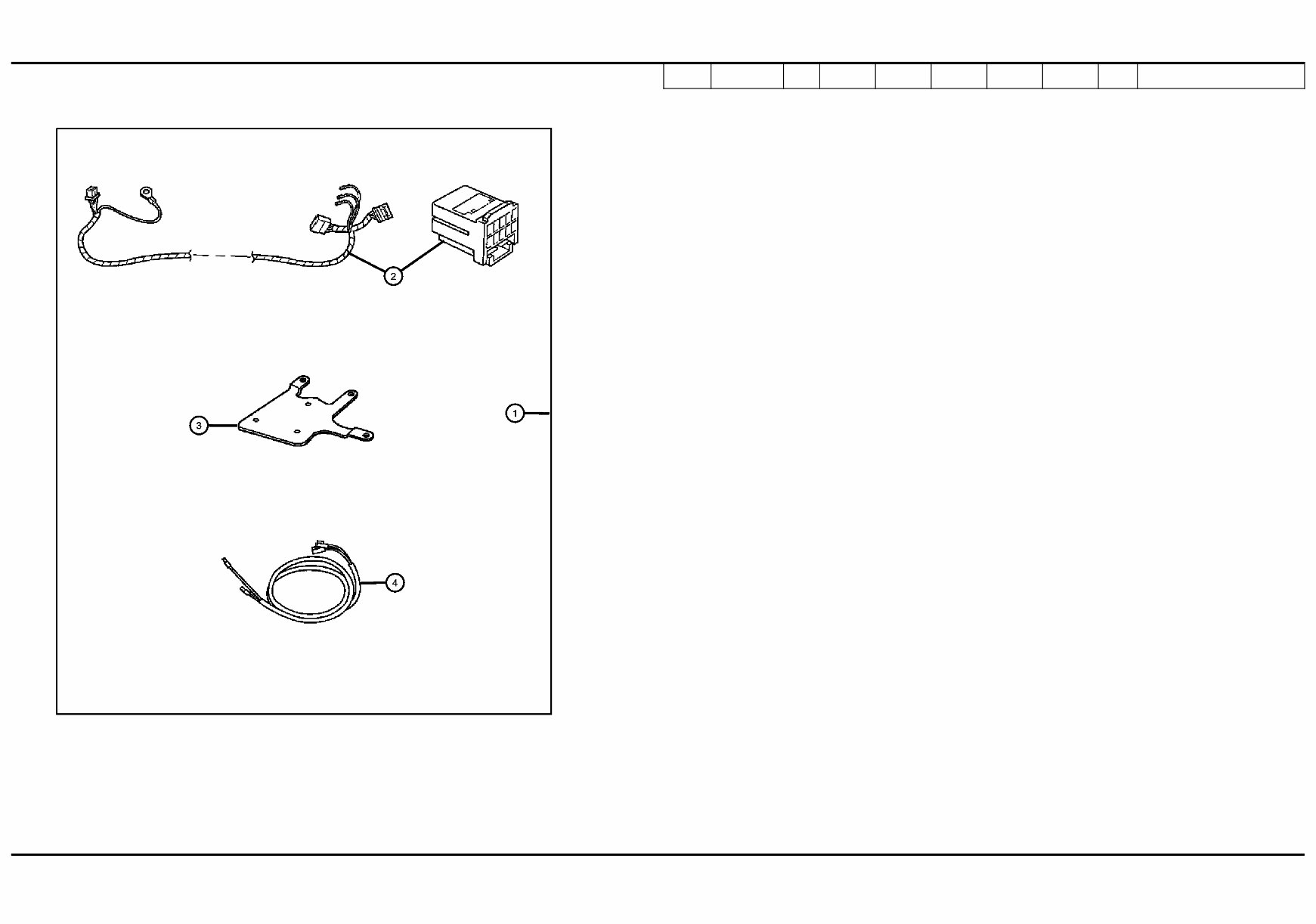

Install Kit Satellite Receiver Figure 1-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit Satellite Receiver 1 INSTALL KIT, Satelite Receiver 82209501 1 Sirius 82210405 1 2 05159035AA 1 HARNESS, Overlay 3 05159035AA 1 BRACKET, Satellite Receiver, (NOT SERVICED) 4 CABLE, Antenna 05066207AB 1 2 Meter 05183898AA 1 COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX

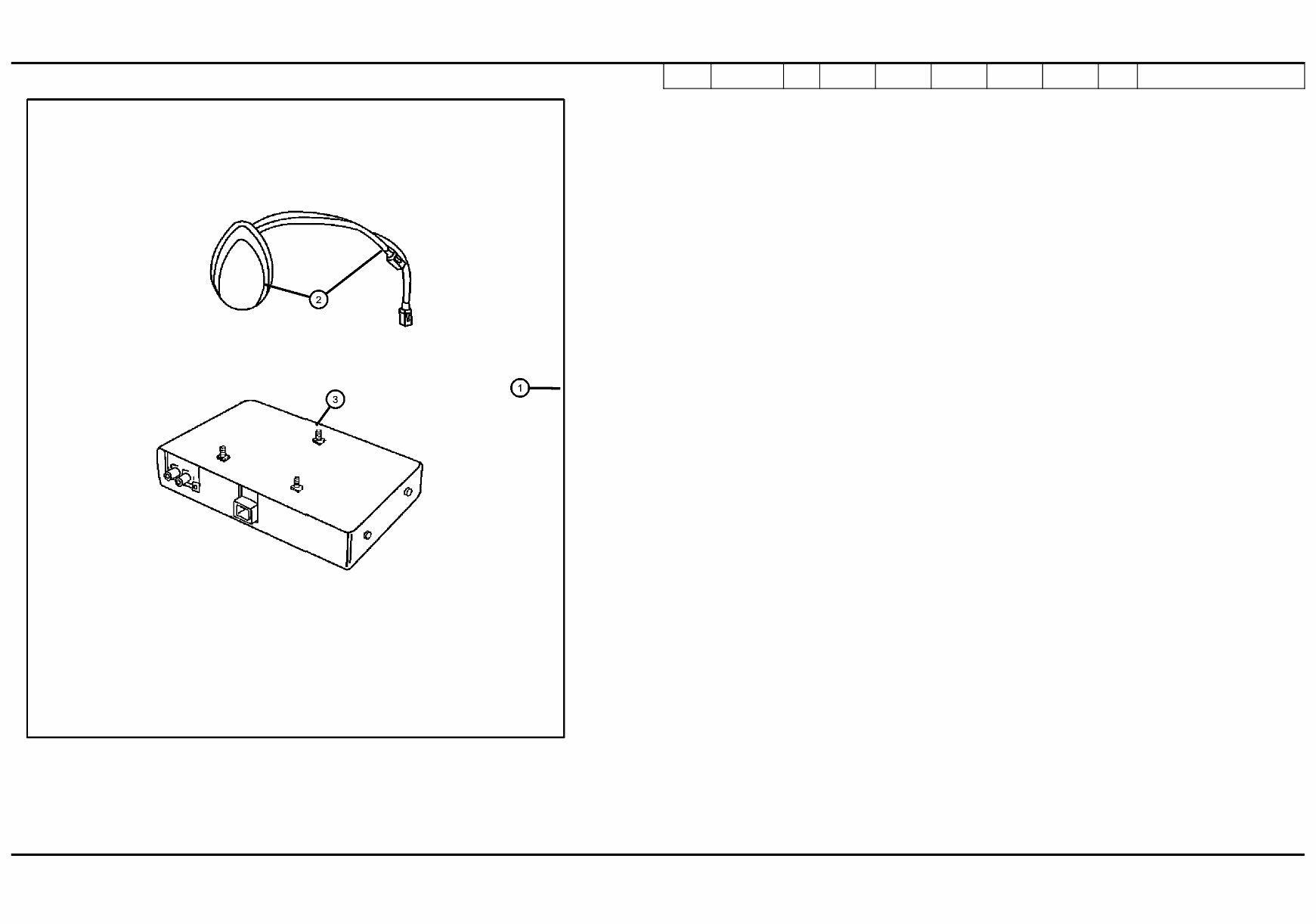

Install Kit Satellite Receiver-GEN 2.5 Figure 1-125 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit Satellite Receiver-GEN 2.5 IKSR-GEN 2.5 Note: For Warranty Repair On Item 3, Order Using Z Prex 1 82209719AB 1 RECEIVER, Satelite 2 05150048AB 1 ANTENNA, Satellite 3 68015147AD 1 RECEIVER, Satellite COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX

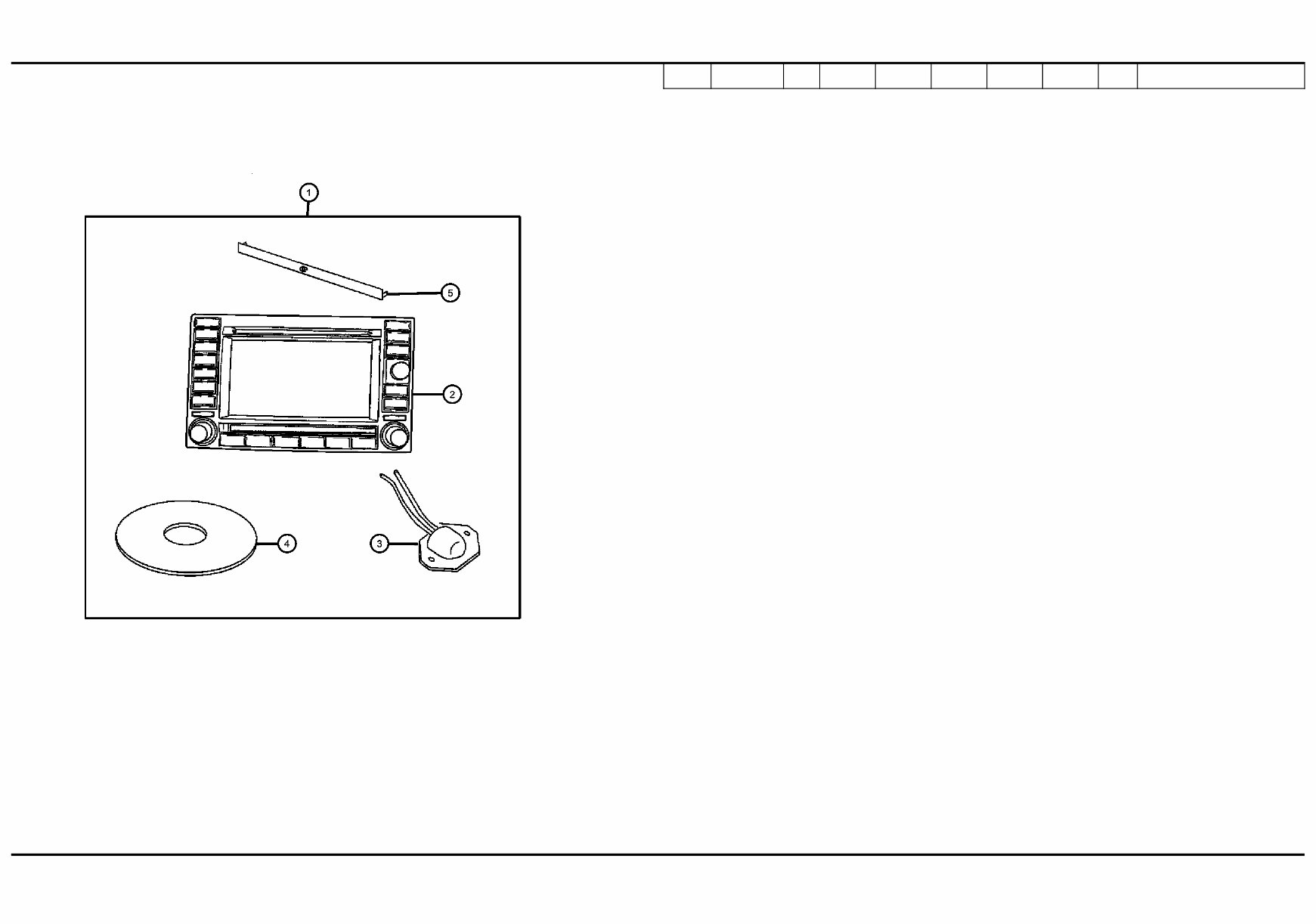

Navigation Kit Figure 1-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit NK Note: For Warranty Repair on Item 2, Order Using Z Prex 1 82208653AG 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 2 05064184AD 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 3 56038630AA 1 ANTENNA, GPS 4 05064033AD 1 DVD, Geographic Database 5 05161571AA 1 COVER, Radio COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX

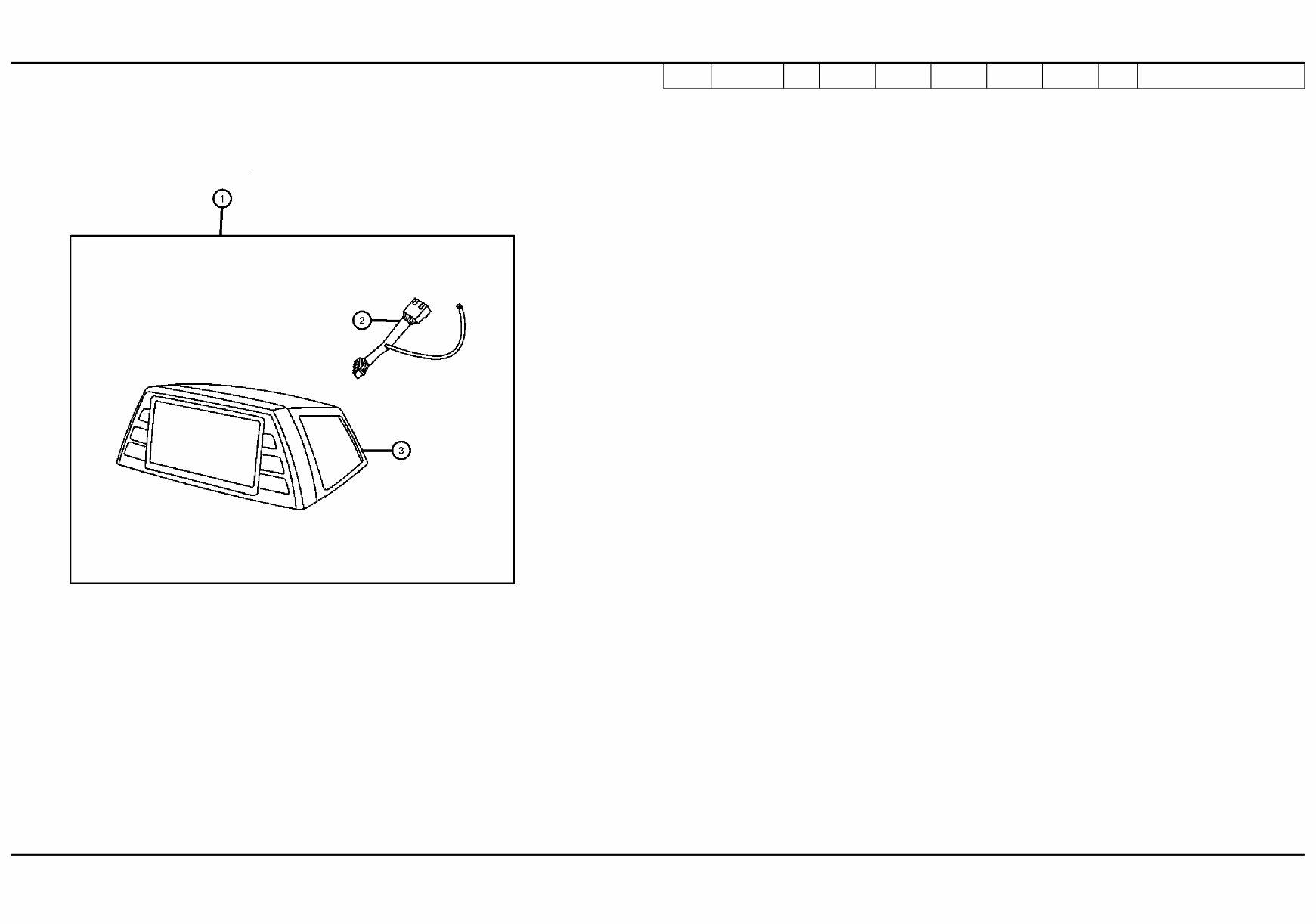

Navus Figure 1-140 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navus 1 82209847 1 NAVIGATION KIT, Vehicle 2 05175003AA 1 WIRING, Navigation Display 3 05175002AA 1 MODULE, Navigation Display -4 05175839AA 1 COVER, Radio -5 05175016AA 1 MEMORY CARD, Map Data COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX

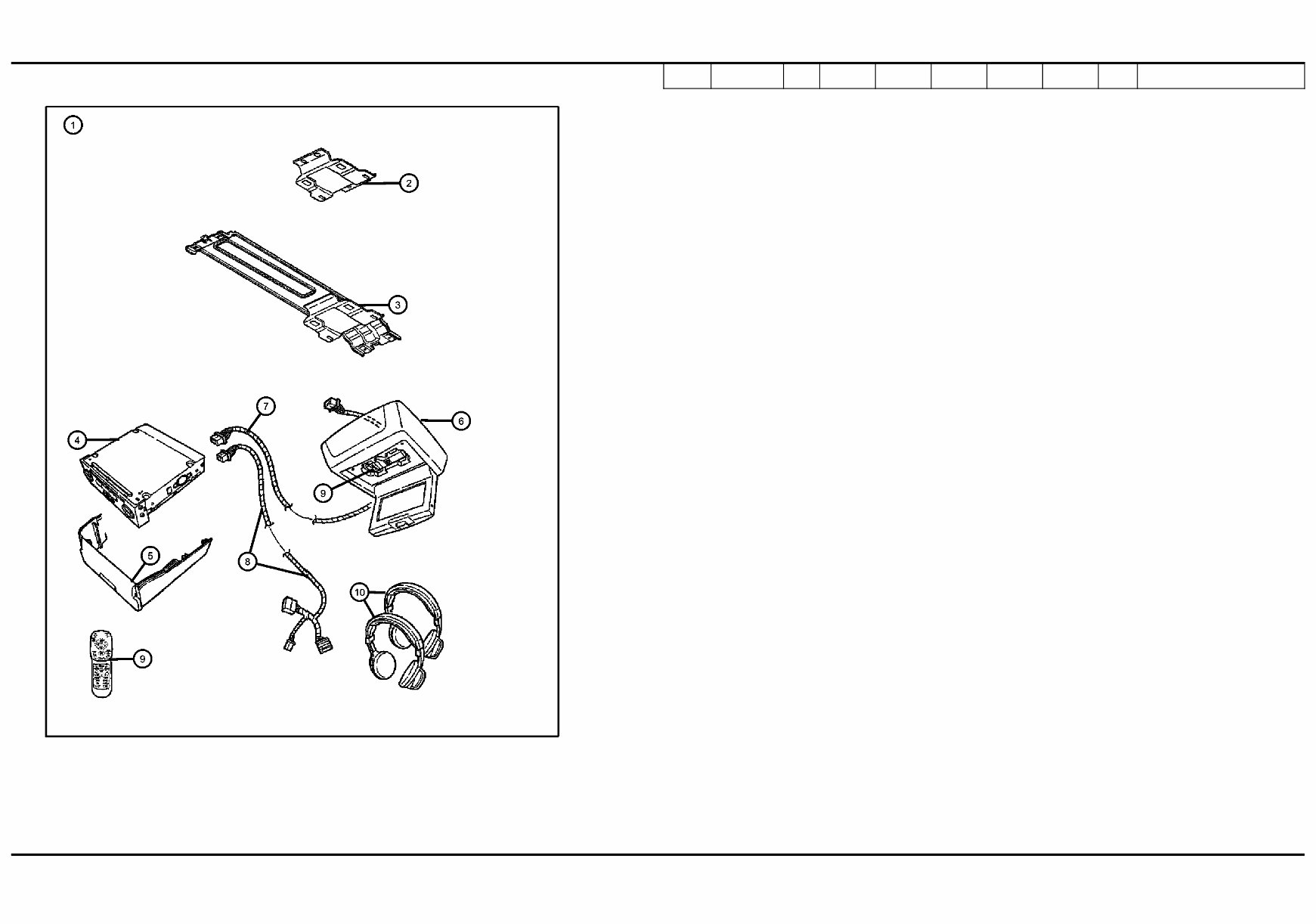

Rear Seat DVD Video System Figure 1-150 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Rear Seat DVD Video System RSDVD VS Note; For Warranty Repair On Items 4&6, Order Using Z Prex 1 82209905AD 1 MEDIA SYSTEM, Monitor with DVD, With and Without Sunroof 2 05064333AA 1 BRACKET ASSY, REAR SEAT VIDEO 3 05082098AC 1 BRACKET ASSY, REAR SEAT VIDEO 4 56038783AE 1 PLAYER, DVD 5 CAP, Floor Console End 1BK64BD1AA 1 J, T 74 [J1] 1BK64BD5AA 1 J, T 74 [D5] 1BK64ZJ3AA 1 J, T 74 [J3] 6 56038784AH 1 MEDIA SYSTEM, Monitor with DVD 7 05166771AA 1 WIRING, DVD to Screen 8 05166772AA 1 WIRING, DVD Jumper 9 56043231AA 1 REMOTE, Wireless Infrared 10 05064037AA 1 HEADPHONES, Wireless COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX

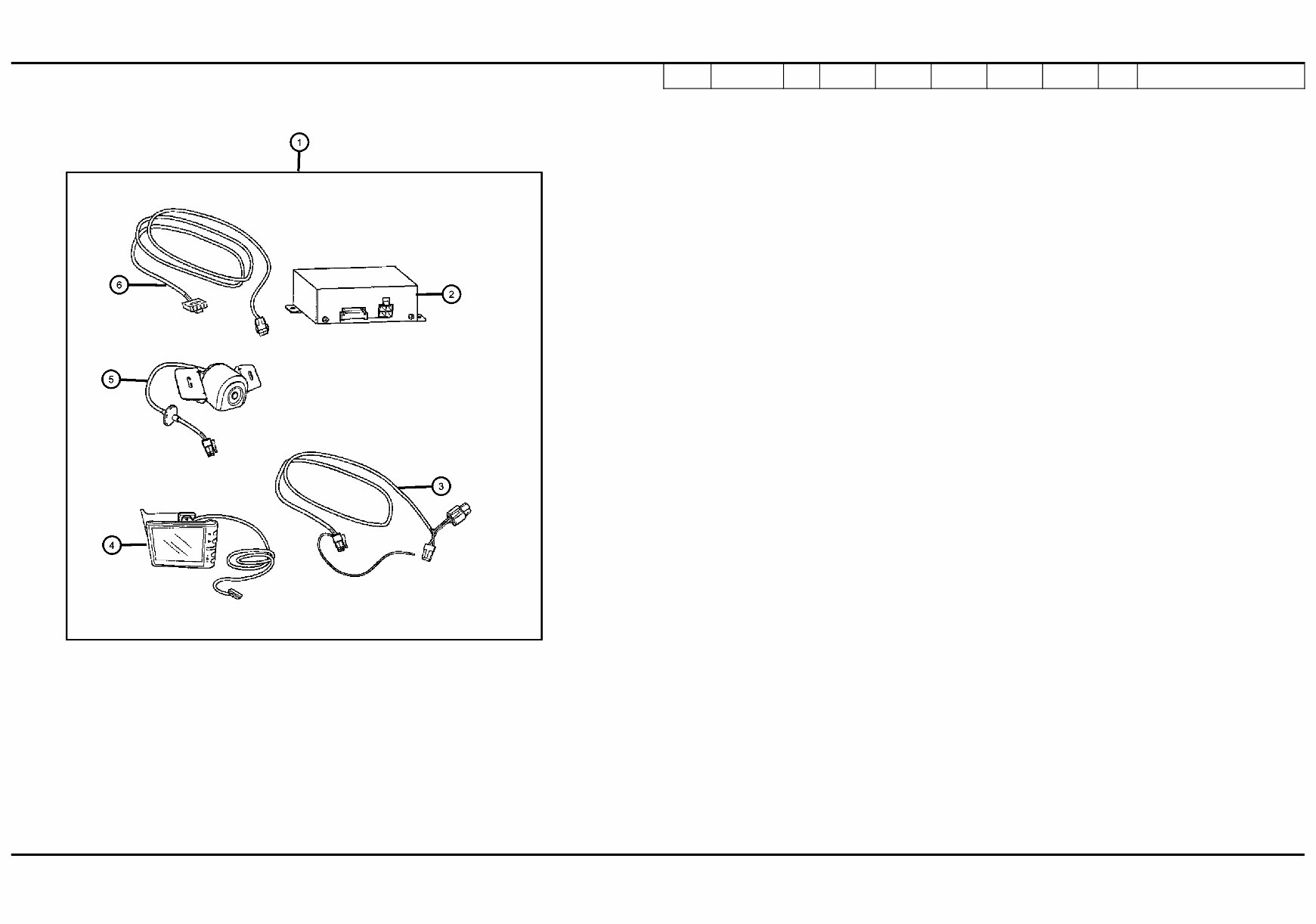

Backup Camera Kit Figure 1-160 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Backup Camera Kit 1 82210147 1 CAMERA KIT, Back Up 2 05191903AA 1 CONTROL MODULE, Receiver 3 05191905AA 1 HARNESS, Wiring 4 05191907AA 1 MONITOR, Back Up Camera 5 05191906AA 1 CAMERA 6 05191904AA 1 HARNESS, Wiring COMMANDER (XK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE P = PREMIUM S = SPORT T = JEEP - 2WD J = JEEP - 4WD 74 = SPORT UTILITY 4-DR TYPE #4 EKG = 3.7L V6 Engine EVA = 4.7L V8 MPI Engine EVD = 4.7L V8 FFV Engine EZB = 5.7L Hemi Multi Displacement Engine DGJ = 5-Speed Auto W5A580 Transmission DGQ = 5-Spd Automatic 545RFE Transmission AR = use ase required - = Non illustrrated part 2007 XK << RETURN TO GROUP INDEX
