2007 2008 Peterbilt truck 210 220 Electrical Wiring Schematics Manual

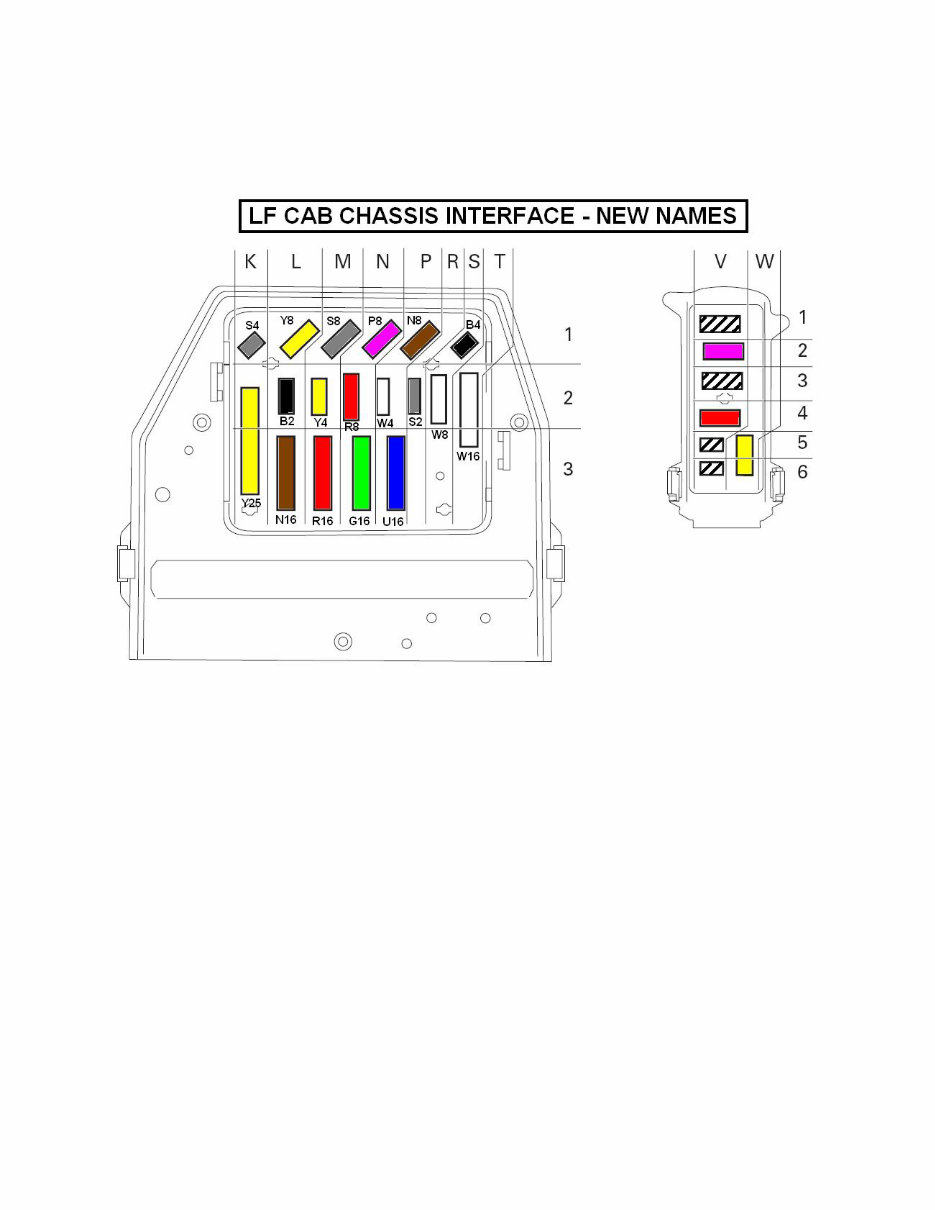

2007 Compliant Models 210 220 - Cab Chassis Interface Definition Connector: Yellow 25 pin Connector Identifier: Y25 Pin No. Schematic page Function DAF no. A1 M19A Fuel tank sender signal 3503 A2 M19AA Park brake 3402 A3 M05B Reverse Alarm (to buzzer) 5104 A4 M19C Diff lock solenoid 4517 A5 M01E Urea Heater (only if a design requirement) 1665 A6 M19C Brake wear 3406 A7 M05B Reverse light switch +ve - fuse 46 1217 A8 M05A Direction indicator LH truck 2036 A9 M05A Direction indicator RH truck 2037 A10 M04A Tail lamp LH 2170 A11 M04A Tail lamp RH 2169 A12 M04B Rear fog LH/RH 2152 A13 M05B Rear stop lamp LH/RH 4601 B1 M01D ABS trailer pin 2 and 24S trailer pin 6 +ve supply 1356 B2 M05B Reverse alarm from switch 4591 B3 M10A Battery supply +ve - Pin 4 Trailer Socket S 1110 B4 M03A Air drier +ve supply - ignition fuse F39 1240 B5 M03A Heated Sedimenter 5051 B6 M18A Alarm 3659 B7 M19A Direction indicator trailer LH - Pin 3 trailer socket N 2008 B8 M19A Direction indicator trailer RH - Pin 5 trailer socket N 2009 B9 M19C Diff lock switch 3408 B10 M15B ABS trailer warning light 3428 B11 M19AA Cab lock down 3412 B12 M10A Body light 2155 Connector: Brown 16 pin Connector Identifier: N16 Pin No. Schematic page Function DAF no. A1 M19A Air 2 transducer supply 3639 A2 M19A Air 1 transducer ground 3638A A3 M19A Air 1 transducer supply 3639A A4 M19A Air 1 transducer signal 3640 A5 M06A Tachograph sender -ve (pin 2 sender unit) 3020 A6 M06A Tachograph sender +ve (pin 1 sender unit) 3021 A7 M06A Tachograph sender signal 1 (pin 4 sender unit) 3018 A8 M06A Tachograph sender signal 2 (pin 3 sender unit) 3019 B1 M19A Gearbox protection solenoid range change 4030 B2 M18A Alarm 3660 B3 M19AA Gearbox neutral switch 4721 B4 M16A PTO solenoid output VIC 4596 B5 M03A W.I.F. warning light 5049 B6 N/C B7 M19A Air 2 transducer ground 3638 B8 M19A Air 2 transducer signal 3641 (5/08) PM618018 Page 1 of 6

2007 Compliant Models 210 220 - Cab Chassis Interface Definition Connector: Grey 2 pin Connector Identifier: S2 Pin No. Schematic page Function DAF no. 1 M02B Starter solenoid 4009 2 M15B Trailer ABS 1119 Connector: Green 16 pin Connector Identifier: G16 Pin No. Schematic page Function DAF no. A1 M04E Headlamp levelling pin 1 to motor 3 4953 A2 M04E Headlamp levelling pin 2 to motor 1 2169 A3 M04C Ground A4 M04C Ground A5 M04C Ground A6 M04B Front Fog Lamps 2142 A7 M04C Front Driving Lamps 2122 A8 N/C B1 M04B/BB Headlamp dip beam LH 2114 B2 M04B/BB Headlamp dip beam RH 2113 B3 M04B/BB Headlamp main beam LH 2122B B4 M04B/BB Headlamp main beam RH 2122A B5 M05A Horn 4535 B6 M04A Front side lamps LH & RH 2169 B7 M05A Direction indicator LH 2006 B8 M05A Direction indicator RH 2007 Connector: Red 16 pin Connector Identifier: R16 Pin No. Schematic page Function DAF no. A1 M20A/B/C/D ABS rear sensor LH - ecu pin 14 4629 A2 M20A/B/C/D ABS rear sensor LH - ecu pin 11 4628 A3 M20A/B/C/D ABS rear sensor RH - ecu pin 18 4631 A4 M20A/B/C/D ABS rear sensor RH - ecu pin 17 4630 A5 M20A/B/C/D ABS front sensor LH - ecu pin 15 4621 A6 M20A/B/C/D ABS front sensor LH - ecu pin 12 4620 A7 M20A/B/C/D ABS front sensor RH - ecu pin 13 4623 A8 M20A/B/C/D ABS front sensor RH - ecu pin 10 4622 B1 M20A/B/C/D ABS rear valve LH inlet - ecu pin 2 4641 B2 M20C/D ABS rear valve LH outlet - ecu pin 5 4640 B3 M20C/D ABS rear valve RH inlet - ecu pin 8 4643 B4 M20A/B/C/D ABS rear valve RH outlet - ecu pin 9 4642 B5 M20A/B/C/D ABS front valve LH inlet - ecu pin 3 4633 B6 M20B/C/D ABS front valve LH outlet - ecu pin 6 4632 B7 M20B/C/D ABS front valve RH inlet - ecu pin 1 4635 N/C B8 M20A/B/C/D ABS front valve RH outlet - ecu pin 4 4634 (5/08) PM618018 Page 2 of 6

2007 Compliant Models 210 220 - Cab Chassis Interface Definition Connector: Red 8 pin Connector Identifier: R8 Pin No. Schematic page Function DAF no. 1 M02A Isolation Switch - A5 1380 2 M02A Isolation Switch - A4 4179 3 M02A Battery isolation remote operation - A1 4176 4 M02A Battery isolation remote operation - A2 4177 5 M01CC Battery isolation before battery master isolation switch 1000 6 N/C 7 N/C 8 N/C Connector: Brown 8 pin Connector Identifier: N8 Pin No. Schematic page Function DAF no. 1 M27A CAN H - vcan 3701E 2 M27A CAN L - vcan 3700E 3 M01E Dosing Unit KL15 4265 4 M01E Dosing Unit KL30 1640 5 M27A Engine +ve supply fused battery 1177 6 M27A Engine +ve supply ignition 1211 7 M17B Air conditioning compressor +ve supply 5055 8 M01C Alternator W/L 1020 Connector: Grey 8 pin Connector Identifier: S8 Pin No. Schematic page Function DAF no. 1 M30A Switch Wire - Dashboard X003 2 M30A Switch Wire - Dashboard X004 3 M30A Switch Wire - Dashboard X005 4 M30A Switch Wire - Dashboard X006 5 M30A Switch Wire - Headershelf X007 6 M30A Switch Wire - Headershelf X008 7 M30A Switch Wire - Headershelf X009 8 M30A Switch Wire - Headershelf X010 Connector: Yellow 8 p Allison Gearbox MD3060 Connector Identifier: Y8 Pin No. Schematic page Function DAF no. 1 M25B KL30 supply - Automatic/Automated Gearbox 1163 2 M25B KL15 supply - Automatic/Automated Gearbox 1302 3 M25B Ground 4 M25B Allison Selector Direction Sense 5728 5 M25B MD3060 AGC Pin 43 4595 6 M25B MD3060 AGC Pin 30 5701 7 M25B MD3060 AGC Pin 1 & 17 5646 8 M25B MD3060 AGC Pin 45 5649 (5/08) PM618018 Page 3 of 6

2007 Compliant Models 210 220 - Cab Chassis Interface Definition Connector: Yellow 8 p Allison 1000/2000 - AsTronic Lite Connector Identifier: Y8 Pin No. Schematic page Function DAF no. 1 M25A/C KL30 supply - Automatic/Automated Gearbox 1163 2 M25A/C KL15 supply - Automatic/Automated Gearbox 1302 3 M25A/C Ground 4 N/C 5 M25C AsTronic gearbox module - ZF CAN - A5 3731 6 M25C AsTronic gearbox module - ZF CAN - A2 3732 7 N/C 8 N/C Connector: Black 4 pin Connector Identifier: B4 Pin No. Schematic page Function DAF no. 1 M17C Auxiliary Cab Heater Pump 4935 2 M17C Auxiliary Cab Heater Pump 4936 3 N/C 4 N/C Connector: White 8 pin Connector Identifier: W8 Pin No. Schematic page Function DAF no. 1 M27A Throttle pedal +ve supply - engine ecu pin J2-22 4677 2 M27A Throttle pedal signal - engine ecu pin J2-9 4679 3 M27A Throttle pedal common - engine ecu J2-23 4678 4 M27A Throttle pedal on-idle switch - engine ecu pin J2-11 4681 5 M27A Throttle pedal off-idle switch - engine ecu pin J2-1 4166 6 M27A Throttle pedal idle common - engine ecu pin J2-34 4680 7 N/C 8 M02A Grid Heater Warning 4014 Connector: Purple 8 pin Connector Identifier: P8 Pin No. Schematic page Function DAF no. 1 M28A/AA ECAS height sensor RH - ecu pin 7 4736 2 M28A/AA ECAS height sensor LH - ecu pin 19 4739 3 M28A/AA ECAS height sensor common - ecu pin 18 9009 4 M28A/AA ECAS valve RH - ecu pin 20 4742 5 M28A/AA ECAS valve LH - ecu pin 8 4741 6 M28A/AA ECAS valve exhaust - ecu pin 21 4740 7 N/C 8 N/C (5/08) PM618018 Page 4 of 6

2007 Compliant Models 210 220 - Cab Chassis Interface Definition Connector: White 4 pin Connector Identifier: P4 Pin No. Schematic page Function DAF no. 1 M18A Alarm Siren Pin 3 1229 2 M18A Alarm Siren Pin 2 3653 3 M18A Alarm Siren Pin 1 GROUND 4 N/C Connector: Grey 4 pin Connector Identifier: S4 Pin No. Schematic page Function DAF no. 1 M11A Windscreen washer pump 5161 2 M11A Ground 3 Headlamp wash pump (not required at present) 4 N/C Connector: Yellow 4 pin Connector Identifier: Y4 Pin No. Schematic page Function DAF no. 1 M20C ASR valve - ecu pin 7 4578 2 M20C ASR valve - ecu pin 16 5060 3 N/C 4 N/C Connector: Black 2 pin Connector Identifier: B2 Pin No. Schematic page Function DAF no. 1 N/C 2 N/C (5/08) PM618018 Page 5 of 6

2007 Compliant Models 210 220 - Cab Chassis Interface Definition Connector: Blue 16 pin Connector Identifier: U16 Pin No. Schematic page Function DAF no. A1 N/C A2 N/C A3 N/C A4 N/C A5 N/C A6 N/C A7 N/C A8 N/C B1 N/C B2 N/C B3 N/C B4 N/C B5 N/C B6 N/C B7 N/C B8 N/C Connector: White 16 pin Connector Identifier: W16 Pin No. Schematic page Function DAF no. A1 M22A FAN 'Stop' Lamp 3725 A2 M10A PTO status 3524 A3 M22A FAN 'Warning' Lamp 3726 A4 M30A Engine Running 3003 A5 M30A FAN K-Line 3646 A6 M30A Remote PTO 3420 A7 M30A Ignition Control Fuse - F35 2161 A8 M30A Cab lock down 3412 B1 M30A Ground B2 M30A Ground B3 M30A Enable ESC 3143 B4 M30A N1 ESC 3144 B5 M30A N2 ESC 3145 B6 M30A N3 ESC 3146 B7 M06A Tachograph speed signal B7 3514 B8 M30A Battery Control Fuse - F50 1600 (5/08) PM618018 Page 6 of 6

Electrical Schematics for Model 210 and 220 The content of the pages identified below is generic and not specific to Model 210/220 built after January 1, 2008. When working on the vehicle it is likely that terminated harnesses will be encountered where either an available option has not been specified or a feature is not available on the vehicle. Page No. System/Component M00 Electrical schematic information M01C Supply battery M01CC Supply battery (with isolator) M01D Supply fuses M01E Supply fuses (additional) M02A Grid heater / remote battery isolator M02B Starter M03A Heated sedimenter / Air drier / WIF (water in fuel) M04A Lighting M04B R. fog / F. fog / Main / Dip beam M04BB R. fog / Main / Dip beam M04C Driving lamps M04D Daytime running lamps M04E Headlamp levelling M05A Horn / Indicators M05B Stop / Reverse lights M05C Rotating beacons PM618018

M06A Tachograph / Speedo M07A Diagnostics M08B Central locking M08C Electric windows / sun roof M09A LHD heated & steerable mirrors M09B RHD heated & steerable mirrors M10A Interior & body light M11A Wiper, wash circuit M14A Accessories LHD M14AA Accessories RHD M14B Heated wind screen / seat M15A Trailer connections M15B Trailer ABS M16A Power Take Off M17B Heater & aircon M17C Auxiliary cab heater M18A Alarm M18B Immobiliser M19A VIC M19AA VIC (continued) M19B DIP / MMI (MCS) PM618018

M19C Brake wear / Diff lock M19D BBM M20A ABS version E 4S2M M20B ABS version E 4S3M M20C ABS / ASR version E M20D ABS version E 4S4M M21A Telephone M22A FAN model M23A Steering wheel (without air bag) M23BAA Steering wheel (With air bag) M24A Air bag / Pre-belt tensioner M25A Allison 2100 Auto gearbox M25B Allison 3000 Auto gearbox M25C ZF As-Tronic gearbox M27A Engine ECU CM2150 M28A ECAS (dual sensor) M28AA ECAS (single sensor) M30A Additional wiring M31A Regeneration PM618018
