2010 GMC TopKick Owner Manual M Seats and Restraint System ...................... 1-1 Front Seats ....................................... 1-2 Rear Seats ....................................... 1-9 Safety Belts ..................................... 1-11 Child Restraints ................................. 1-29 Airbag System .................................. 1-50 Restraint System Check ......................... 1-61 Features and Controls ............................ 2-1 Keys ............................................. 2-2 Doors and Locks ................................. 2-5 Windows ......................................... 2-7 Starting and Operating Your Vehicle .............. 2-9 Mirrors .......................................... 2-48 Storage Areas ................................... 2-50 Instrument Panel ................................. 3-1 Instrument Panel Overview ....................... 3-4 Climate Controls ................................ 3-18 Warning Lights, Gages, and Indicators .......... 3-21 Audio System(s) ................................ 3-44 Driving Your Vehicle .............................. 4-1 Your Driving, the Road, and the Vehicle .......... 4-2 Towing .......................................... 4-21 Service and Appearance Care ................... 5-1 Service ........................................... 5-3 Fuel .............................................. 5-6 Checking Things Under the Hood ............... 5-22 Rear Axle ....................................... 5-65 Four-Wheel Drive ............................... 5-66 Front Axle ....................................... 5-67 Noise Control System ........................... 5-68 Bulb Replacement .............................. 5-69 Windshield Wiper Blade Replacement ........... 5-69 Other Service Items ............................. 5-70 Tires ............................................ 5-73 Appearance Care ............................... 5-85 Vehicle Identification ............................ 5-91 Electrical System ................................ 5-92 Capacities and Specifications ................... 5-99 Normal Maintenance Replacement Parts .... . . 5-105 Maintenance Schedule ........................... 6-1 Maintenance Schedule ........................... 6-2 Customer Assistance Information ............... 7-1 Customer Assistance and Information ............ 7-2 Reporting Safety Defects ......................... 7-9 Vehicle Data Recording and Privacy ............. 7-12 Index .................................... i-1

GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Emblem, and the name TOPKICK are registered trademarks of General Motors Corporation. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for GMC wherever it appears in this manual. Keep this manual in the vehicle for quick reference. Canadian Owners Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer/retailer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante: Helm, Incorporated P.O. Box 07130 Detroit, MI 48207 1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com Index To quickly locate information about the vehicle, use the index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. ii Litho in the U.S.A. Part No. 25901003 A First Printing © 2009 General Motors Corporation. All rights Reserved.

Safety Warnings and Symbols Warning Messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death. { WARNING: These mean there is something that could hurt you or other people. Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty. A circle with a slash through it is a safety symbol which means “Do Not,”“Do not do this,” or “Do not let this happen.” Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gage, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information. iii

Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls or OnStar ® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps . : Fuel Gage + : Fuses i : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure } : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor F : Traction Control M : Windshield Washer Fluid iv

Section 1 Seats and Restraint System Front Seats ......................................... 1-2 Bucket Seats .................................... 1-2 Split Bench Seat (80/20 Split) ................... 1-6 Air Suspension Seats ........................... 1-6 Rear Seats ......................................... 1-9 Rear Seat Operation ............................ 1-9 Safety Belts ....................................... 1-11 Safety Belts: They Are for Everyone ........... 1-11 How to Wear Safety Belts Properly ............ 1-16 Lap-Shoulder Belt ............................. 1-25 Safety Belt Use During Pregnancy ............. 1-27 Lap Belt ....................................... 1-28 Safety Belt Extender ........................... 1-29 Child Restraints .................................. 1-29 Older Children ................................. 1-29 Infants and Young Children .................... 1-33 Child Restraint Systems ....................... 1-37 Where to Put the Restraint ..................... 1-40 Lower Anchors and Tethers for Children (LATCH) ..................................... 1-41 Securing a Child Restraint in a Rear Outside Seat Position (Crew Cab) .................... 1-42 Securing a Child Restraint in the Center Rear Seat Position (Crew Cab) .................... 1-44 Securing a Child Restraint in the Center Front Seat Position ................................ 1-46 Securing a Child Restraint in the Right Front Seat Position ................................ 1-46 Airbag System .................................... 1-50 Where Are the Airbags? ....................... 1-52 When Should an Airbag Inflate? ............... 1-53 What Makes an Airbag Inflate? ................ 1-54 How Does an Airbag Restrain? ................ 1-54 What Will You See After an Airbag Inflates? . . . 1-55 Airbag Off Switch .............................. 1-56 Servicing Your Airbag-Equipped Vehicle ....... 1-59 Adding Equipment to Your Airbag-Equipped Vehicle ...................................... 1-60 Restraint System Check ......................... 1-61 Checking the Restraint Systems ............... 1-61 Replacing Restraint System Parts After a Crash ........................................ 1-62 1-1

Front Seats Bucket Seats On vehicles with bucket seats, you can adjust the seats several different ways. Fore-and-Aft Adjustment { WARNING: You can lose control of the vehicle if you try to adjust the seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving. 1-2

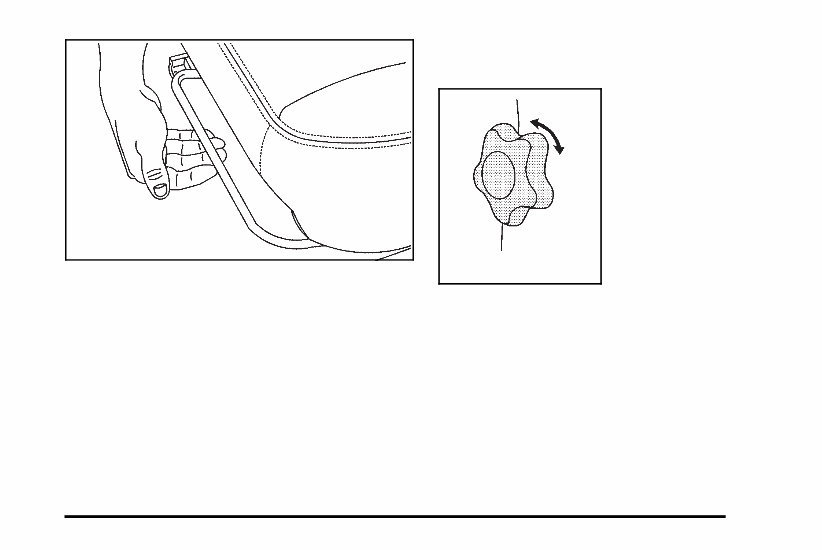

You can adjust the seat forward or rearward with the bar located under the front of the seat cushion. Lift the bar to unlock the seat. Slide the seat to where you want it and release the bar. Try to move the seat with your body to be sure the seat is locked in place. Lumbar Adjustment Your seats may have this feature. The lumbar adjustment knob is located on the seatback, on the inboard side of the driver's seat and on the outboard side of the passenger's seat. For more support to your lower back, turn the lumbar adjustment knob clockwise. To decrease the amount of lumbar support, turn the knob counterclockwise. 1-3

Seatback Adjustment { WARNING: You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving. { WARNING: If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked. The recline lever is located on the outboard side of the driver's and passenger's seat cushions. To recline the seatback, do the following: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked. 1-4

{ WARNING: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries. The lap belt cannot do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly. Do not have a seatback reclined if your vehicle is moving. 1-5

Split Bench Seat (80/20 Split) If your vehicle has a split bench seat, the passenger seat is not adjustable. There is a storage area underneath the seat cushion. See Storage Areas on page 2‑50. Air Suspension Seats Your vehicle may have a low-back or high-back air suspension seat. There are several ways to adjust the seat. Fore-and-Aft Adjustment If your vehicle has this lever it is located underneath the front of the driver's seat. To slide the seat forward or rearward, move the lever toward the outboard side of the seat. The seat will lock in at 1/2 inch (1.5 cm) increments. Try to move the seat with your body to be sure the seat is locked in place. Height Adjustment Seat Height Adjustment Lever On a vehicle with an air suspension seat height adjustment lever, it is located on the front inboard side of the seat. To adjust the height of the air suspension seat, pull the lever up to inflate. Push the lever down to deflate. Your seat cushion may also be able to be raised or lowered. 1-6
