SUZUKI LT A500F QUADMASTER Workshop Repair Manual 2002-2007

GROUP INDEX GENERAL INFORMATION 1 PERIODIC MAINTENANCE 2 ENGINE 3 DRIVE TRAIN 4 FUEL SYSTEM 5 COOLING AND LUBRICATION SYSTEM 6 CHASSIS 7 ELECTRICAL SYSTEM 8 SERVICING INFORMATION 9 FOREWORD This manual contains an introductory description on the SUZUKI LT-A500F and procedures for its inspection, service, and overhaul of its main compo- nents. Other information considered as generally known is not included. Read the GENERAL INFORMATION section to familiarize yourself with the vehicle and its maintenance. Use this section as well as other sections as a guide for proper inspection and service. This manual will help you know the vehicle better so that you can assure your customers of fast and reli- able service. © COPYRIGHT SUZUKI MOTOR CORPORATION 2001 * This manual has been prepared on the basis of the latest specifications at the time of publi- cation. If modifications have been made since then, differences may exist between the con- tent of this manual and the actual vehicle. * Illustrations in this manual are used to show the basic principles of operation and work procedures. They may not represent the actual vehicle exactly in detail. * This manual is written for persons who have enough knowledge, skills and tools, including special tools, for servicing SUZUKI vehicles. If you do not have the proper knowledge and tools, ask your authorized SUZUKI motorcy- cle dealer to help you. Inexperienced mechanics or mechanics without the proper tools and equipment may not be able to properly perform the services described in this manual. Improper repair may result in injury to the mechanic and may render the vehicle unsafe for the rider. 99500-44045-01E PartShark.com 877-999-5686

PartShark.com 877-999-5686

LT-A500FK3 (’03-MODEL) 10 LT-A500FK4 (’04-MODEL) 11 LT-A500FK5 (’05-MODEL) 12 13 LT-A500FK6 (’06-MODEL) 14 LT-A500FK7 (’07-MODEL) SUPPLEMENTS PartShark.com 877-999-5686

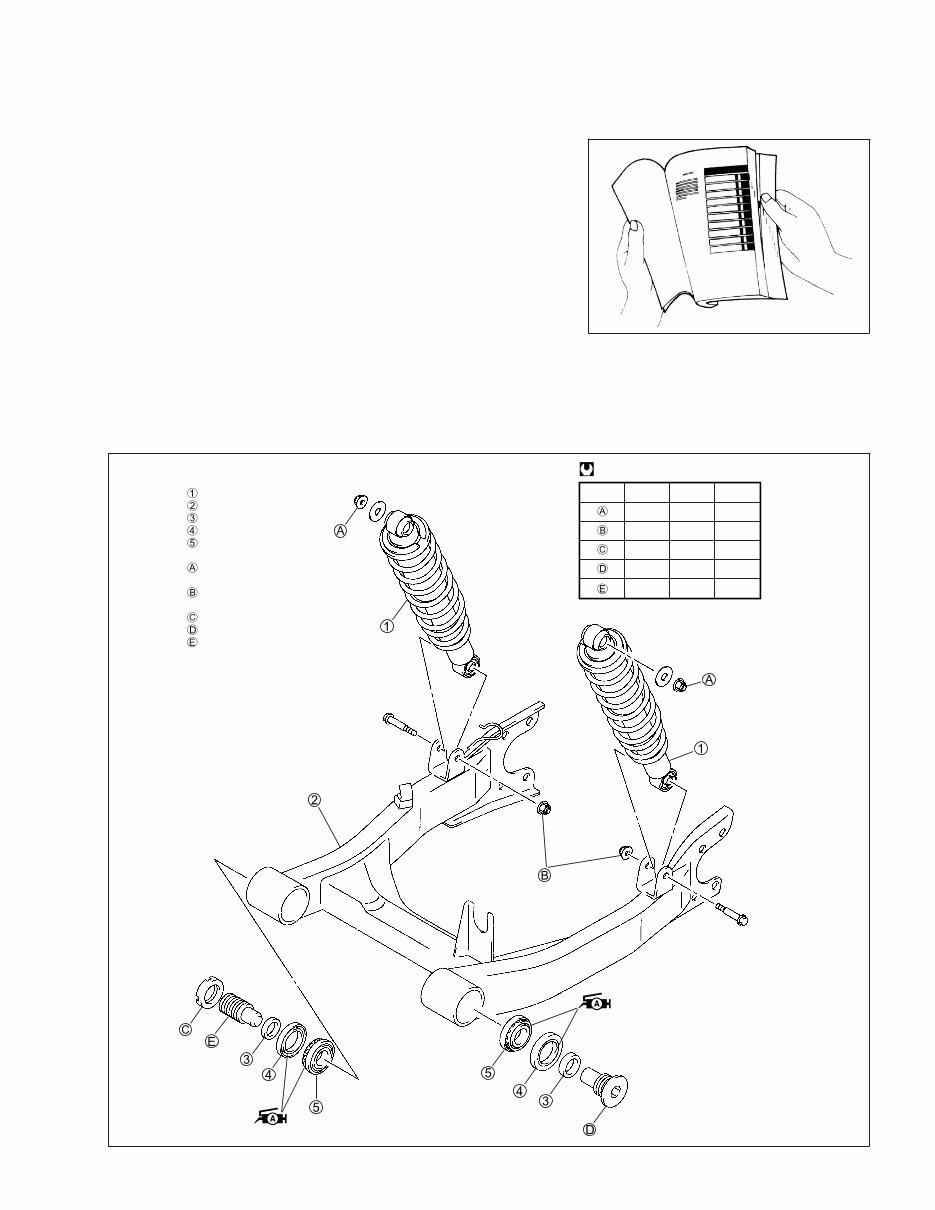

HOW TO USE THIS MANUAL TO LOCATE WHAT YOU ARE LOOKING FOR: 1. The text of this manual is divided into sections. 2. The section titles are listed in the GROUP INDEX. 3. Holding the manual as shown at the right will allow you to find the first page of the section easily. 4. The contents are listed on the first page of each section to help you find the item and page you need. COMPONENT PARTS AND WORK TO BE DONE Under the name of each system or unit there is an exploded view which provides work instructions and other service information (e.g.; tightening torque, lubricating points, and locking agent points). Example: Rear suspension ITEM N·m kgf-m lb-ft 34 3.4 24.5 60 6.0 43.5 100 10.0 72.5 100 10.0 72.5 9.5 1.0 7.0 Rear shock absorber Swingarm Spacer Dust seal Bearing Rear shock absorber monting upper nut Rear shock absorber monting lower nut Swingarm pivot locknut Swingarm pivot bolt (LH) Swingarm pivot bolt (RH) PartShark.com 877-999-5686

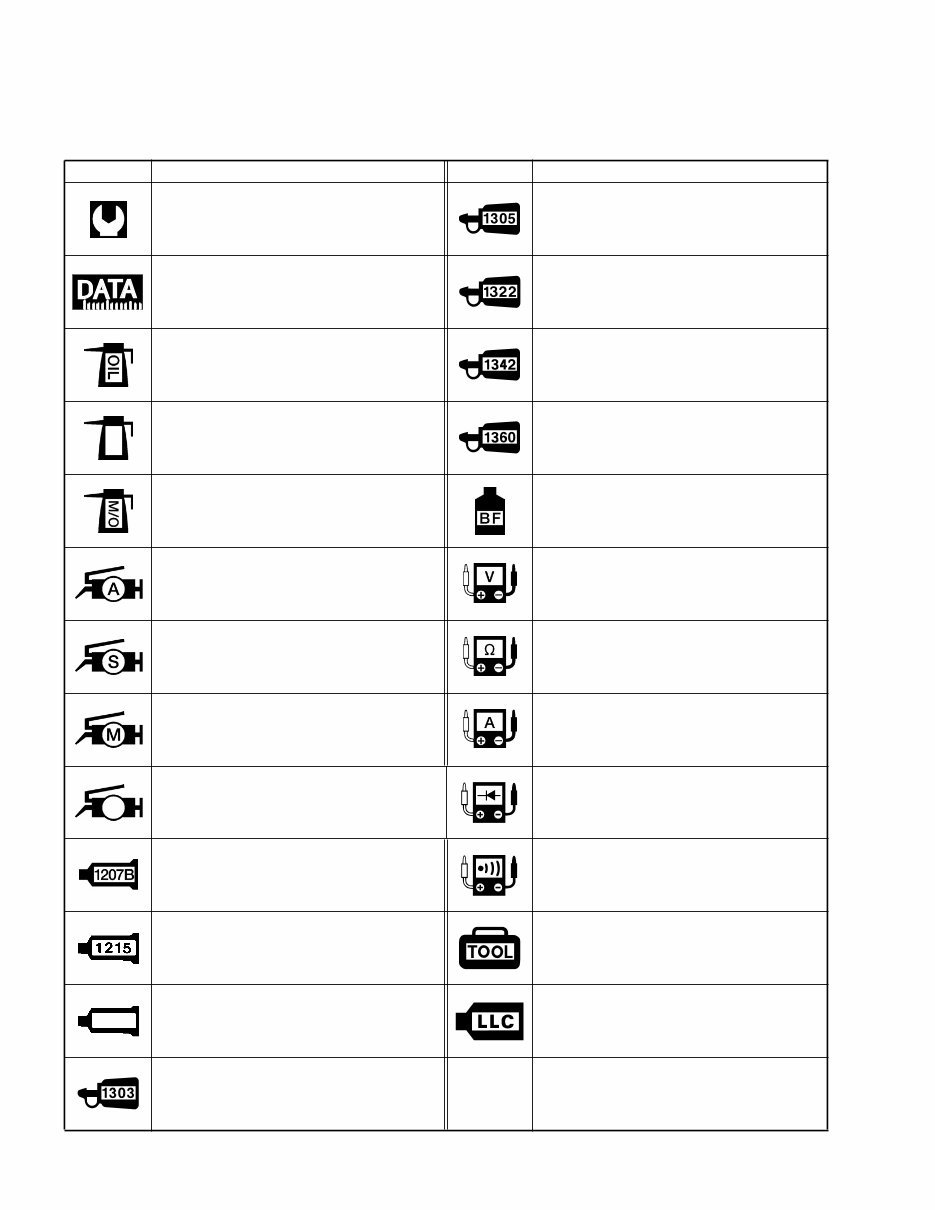

SYMBOL Listed in the table below are the symbols indicating instructions and other information necessary for servicing. The meaning of each symbol is also included in the table. SYMBOL DEFINITION SYMBOL DEFINITION Torque control required. Data beside it indicates specified torque. Apply THREAD LOCK SUPER “1305”. 99000-32100 Indicates service data. Apply THREAD LOCK SUPER “1322”. 99000-32110 (Except USA) Apply oil. Use engine oil unless otherwise specified. Apply THREAD LOCK “1342”. 99000-32050 Apply hypoid gear oil. Apply THREAD LOCK SUPER “1360”. 99000-32130 Apply molybdenum oil solution. (mixture of engine oil and SUZUKl MOLY PASTE in a ratio of 1 : 1) Apply or use brake fluid. Apply SUZUKI SUPER GREASE “A”. 99000-25030 (USA) 99000-25010 (Others) Measure in voltage range. Apply SUZUKI SILICONE GREASE. 99000-25100 Measure in resistance range. Apply SUZUKI MOLY PASTE. 99000-25140 Measure in current range. Apply WATER RESISTANCE GREASE. 99000-25160 Measure in diode test range. Apply SUZUKI BOND “1207B” 99104-31140 (USA) Measure in continuity test range. Apply SUZUKI BOND “1215”. 99000-31110 (Except USA) Use special tool. Apply SUZUKI BOND “1216B”. 99100-31230 Use engine coolant. 99000-99032-11X (Except USA) Apply THREAD LOCK SUPER “1303”. 99000-32030 H/O W 1216B PartShark.com 877-999-5686

PartShark.com 877-999-5686

1 GENERAL INFORMATION 1-1 CONTENTS GENERAL INFORMATION WARNING/CAUTION/NOTE .............................................................. 1- 2 GENERAL PRECAUTIONS ................................................................ 1- 2 SUZUKI LT-A500FK2 (2002-MODEL) ............................................... 1- 4 SERIAL NUMBER LOCATION ........................................................... 1- 4 FUEL, OIL AND ENGINE COOLANT RECOMMENDATION ............ 1- 4 FUEL ............................................................................................ 1- 4 ENGINE OIL ................................................................................. 1- 5 FRONT AND REAR DRIVE GEAR OIL ....................................... 1- 5 BRAKE FLUID ............................................................................. 1- 5 ENGINE COOLANT ..................................................................... 1- 5 BREAK-lN PROCEDURES ................................................................ 1- 6 INFORMATION LABELS .................................................................... 1- 7 SPECIFICATIONS .............................................................................. 1- 8 COUNTRY AND AREA CODES ......................................................... 1-10 PartShark.com 877-999-5686

1-2 GENERAL INFORMATION WARNING/CAUTION/NOTE Please read this manual and follow its instructions carefully. To emphasize special information, the symbol and the words WARNING, CAUTION and NOTE have special meanings. Pay special attention to the mes- sages highlighted by these signal words. Indicates a potential hazard that could result in death or injury. Indicates a potential hazard that could result in vehicle damage. NOTE: Indicates special information to make maintenance easier or instructions clearer. Please note, however, that the warnings and cautions contained in this manual cannot possibly cover all potential hazards relating to the servicing, or lack of servicing, of the vehicle. In addition to the WARNINGS and CAUTIONS stated, you must use good judgement and basic mechanical safety principles. If you are unsure about how to perform a particular service operation, ask a more experienced mechanic for advice. GENERAL PRECAUTIONS * Proper service and repair procedures are important for the safety of the service mechanic and the safety and reliability of the vehicle. * When two or more persons work together, pay attention to the safety of each other. * When it is necessary to run the engine indoors, make sure that exhaust gas is forced out- doors. * When working with toxic or flammable materials, make sure that the area you work in is well ventilated and that you follow all of the manufacturer’s instructions. * Never use gasoline as a cleaning solvent. * To avoid getting burned, do not touch the engine, engine oil, radiator, and exhaust system until they have cooled. * After servicing the fuel, oil, engine coolant, exhaust or brake systems, check all of the lines, and fittings related to the system for leaks. PartShark.com 877-999-5686

GENERAL INFORMATION 1-3 * If parts replacement is necessary, replace the parts with SUZUKI Genuine Parts or their equiv- alent. * When removing parts that are to be reused, keep them arranged in an orderly manner so that they may be reinstalled in the proper order. * Be sure to use special tools when instructed. * Make sure that all parts used in reassembly are clean. Lubricate them when specified. * Use the specified lubricants, bonds, or sealants. * When removing the battery, disconnect the battery lead wire first, then the battery lead wire. * When reconnecting the battery, connect the battery lead wire first, then the battery lead wire. Finally, cover the battery terminal with the terminal cover. * When performing service to electrical parts, disconnect the battery lead wire, unless the service procedure requires the battery power. * When tightening cylinder head and crankcase nuts and bolts, tighten the larger sizes first. Always tighten the nuts and bolts from the inside working out, diagnoally and to the specified torque. * Whenever you remove oil seals, gaskets, packing, O-rings, self-locking nuts, locking wash- ers, cotter pins, circlips, snap rings, and other specified parts, be sure to replace them with new ones. Also, before installing these new parts, be sure to remove any left over material from the mating surfaces. * Never reuse a circlip and snap ring. When installing a new snap ring, take care not to expand the end gap larger than required to slip the snap ring over the shaft. After installing a snap ring, always ensure it is completely seated in its groove and securely fitted. * Use a torque wrench to tighten fasteners to the specified torque. Wipe off grease and oil if a thread is smeared with them. * After reassembling, check parts for tightness and proper operation. * To protect the environment, do not unlawfully dispose of used motor oil, engine coolant, all other fluids, batteries, and tires. * To protect the earth’s natural resources, properly dispose of used vehicles and parts. PartShark.com 877-999-5686

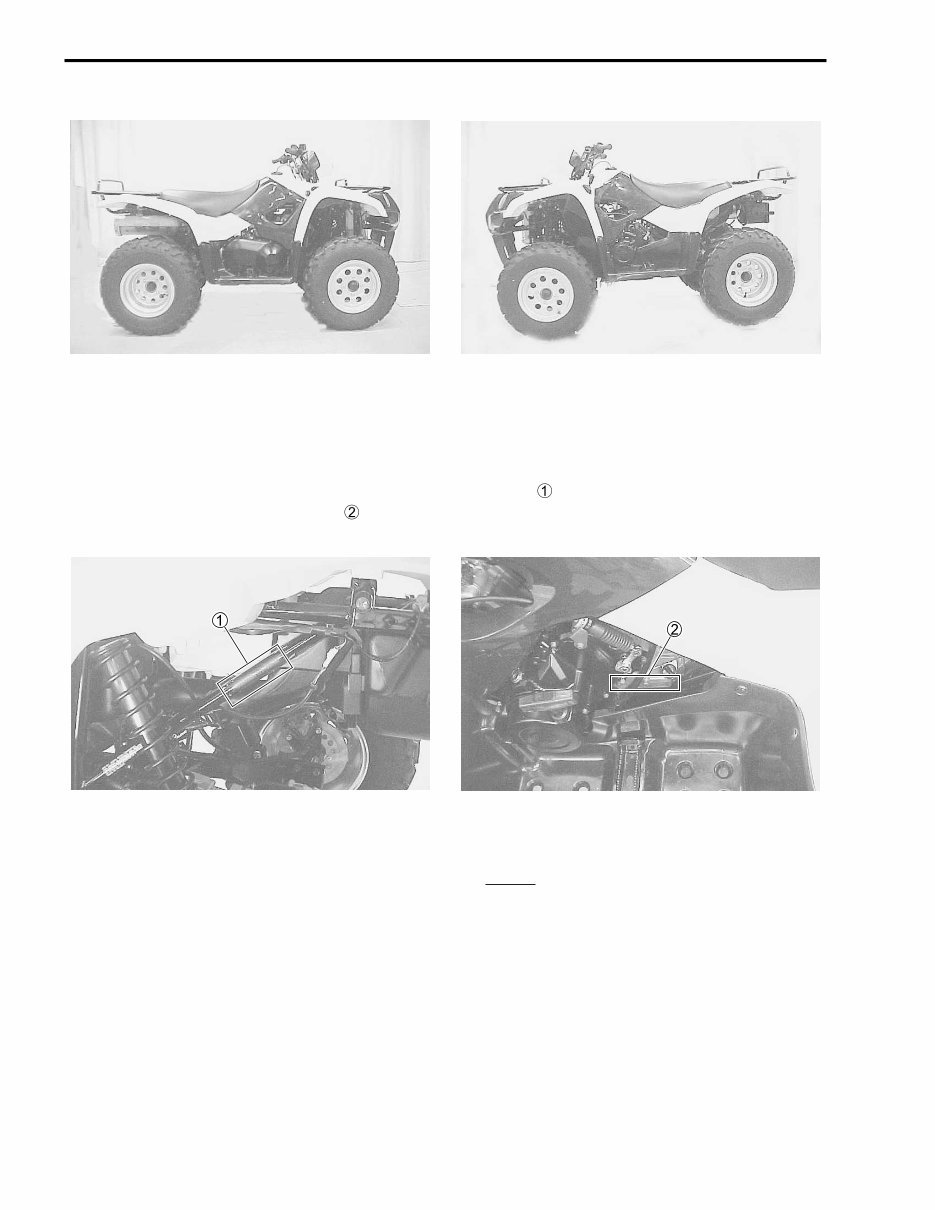

1-4 GENERAL INFORMATION SUZUKI LT-A500FK2 (2002-MODEL) * Difference between photographs and actual vehicles depends on the markets. SERIAL NUMBER LOCATION The frame serial number or V.I.N. (Vehicle Identification Number) is stamped on the left side of the rear frame pipe. The engine serial number is located on the left side of the crankcase. These numbers are required especially for registering the machine and ordering spare parts. FUEL, OIL AND ENGINE COOLANT RECOMMENDATION FUEL (For CANADA and USA) • Use only unleaded gasoline of at least 87 pump octane ( ) method or 91 octane or higher rated by the Research Method. • SUZUKI recommends that customers use alcohol-free unleaded gasoline whenever possible. • Use of blended gasoline containing MTBE (Methyl Tertiary Butyl Ether) is permitted. • Use of blended gasoline/alcohol fuel is permitted, provided that the fuel contains not more than 10% etha- nol. Gasoline/alcohol fuel may contain up to 5% methanol if appropriate cosolvents and corrosion inhibi- tors are present in it. • If the performance of the vehicle is unsatisfactory while using blended gasoline/alcohol fuel, you should switch to alcohol-free unleaded gasoline. • Failure to follow these guidelines could possibly void applicable warranty coverage. Check with your fuel supplier to make sure that the fuel you intend to use meets the requirements listed above. RIGHT SIDE LEFT SIDE 2 R + M PartShark.com 877-999-5686
