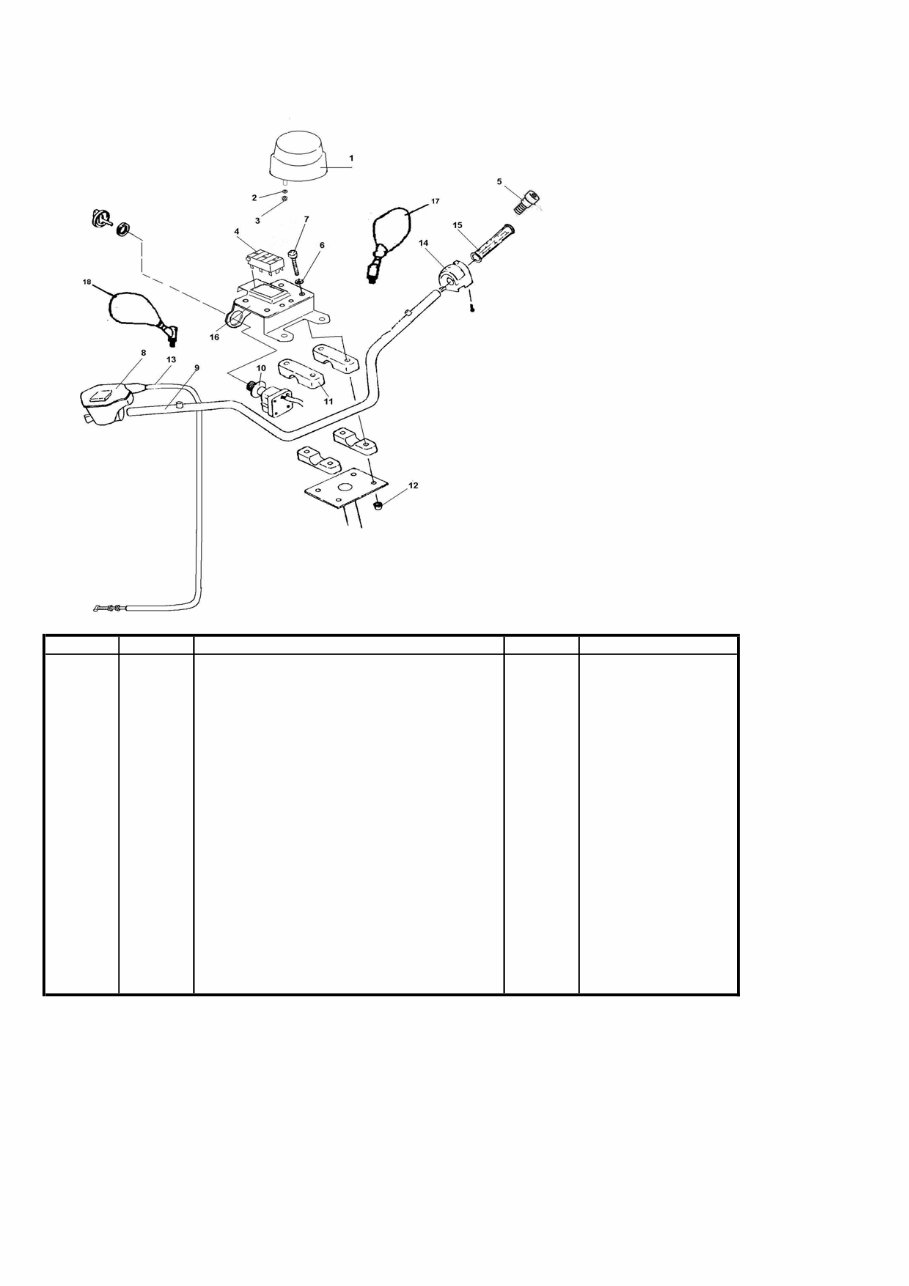

1 HANDLEBAR
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 30101 SPEEDOMETER 1 LH260ATV.19.15
2 10006 WASHER 6 2 GB/T97.1-6
3 10004 NUT M6 2 GB/T6187-M6
4 30104a WARNING LIGHT HIGH TEMP/DIRECTION 1 LH260ATV.19.14a
5 30119 GRIP END. 2 LH150T.11-1
6 10068 WASHER 8 4 GB/T97.1-8
7 10139 BOLT M8X65 4 GB/T5782-M8X65
8 20109 THROTTLE CONTROL 1 LH260ATV.5.2
9 30109 HANDLEBAR 1 LH260ATV.5-1a
10 30110 IGNITION SWITCH WITH KEY 1 LH260ATV.19.9B
11 20112a HANDLEBAR CLAMP 4 LH260ATV.5-2
12 10079 NUT M8 4 GB/T6187-M8
13 20114 THROTTLE CABLE 1 LH260ATV.5.3
14 30114 SWITCH ASSY 1 LH260ATV.19.6B
15 30515 GRIP 2
16 30116a WARNING LIGHT BRACKET 1 LH260ATV.5-3a
17 30117 REAR VIEW MIRROR LEFT 1
18 30118 REAR VIEW MIRROR RIGHT 1
www.MaxMekker.com
1 of 41

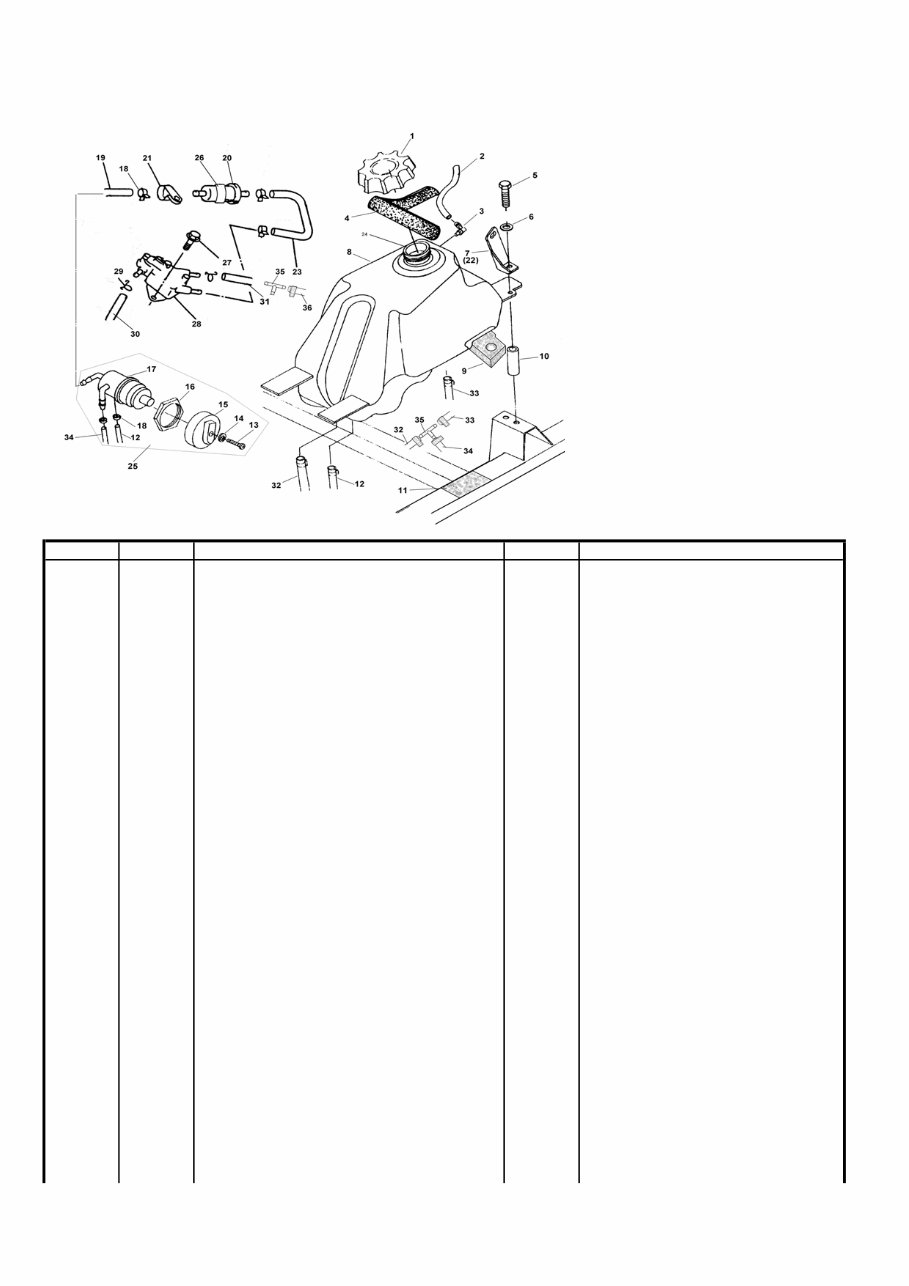

2 FUEL TANK
REF. No. PART NO. DESCRIPTION Q'TY SIZE
1 20201 FUEL CAP 1 LH260ATV.8.2
2 20202 VENT TUBE 1 LH260ATV.8-4
3 20203 VENT FITTING 1 LH260ATV.8-9
4 20204 FOAM GASKET 1 LH260ATV.8-3 460X70X20
5 10005 BOLT M6X60 2 GB/T5787-M6X60
6 10006 WASHER 6 2 GB/T97.1-6
7 20207 MOUNTING BRACKET LEFT 1 LH260ATV.8-7
8 20208a FUEL TANK 1 LH260ATV.8.1a
9 20209 FOAM PAD 1 LH260ATV.8-1
10 20210 SPACER 2 LH260ATV.8-2
11 20211 MOUNTING PAD 2 LH260ATV.1-12 100X22X5
12 20212 FUEL HOSE 1 LH260ATV.8.5
13 10007 SCREW M4 1 GB/T818-M4
14 10071 WASHER 4 1 GB/T97.1-4
15 20215 FUEL CONTROL KNOB 1 LH260ATV.8.3-1
16 20216 NUT 1 LH260ATV.8.3-2
17 20217 FUEL VALVE 1 LH260ATV.8.3.1
18 20218 HOSE CLAMP 1 9 LH250T.3-7
19 20219 FUEL LINE 2 1 LH260ATV.8.8
20 20220 FUEL FILTER 1 LH250T.3.4
21 20221 CLAMP 1 LH260ATV.8-5
22 20222 MOUNTING BRACKET RIGHT 1 LH260ATV.8-8
23 20223 FUEL LINE 1 1 LH260ATV.8.7a
24 20224 FUEL CAP WASHER 1 LH260ATV.1.8-10
25 20225 FUEL VALVE ASSY 1 LH260ATV.8.3
26 20226 FUEL FILTER PAD 1 LH260ATV.8-6
27 20227 BOLT M6X12 2 GB/T5787-M6X12 M6X12
28 20228 FUEL PUMP ASSY 1 LH250T.3.3
29 20229 HOSE CLAMP 2 7 LH250T-B.5-5 φ10.5
30 20230 FUEL LINE 3 1 LH260ATV.8.9
31 20231 PIPE 1 LH260ATV.8.10
32 30232 FUEL HOSE1 1 LH260ATV.8.11
33 30233 FUEL HOSE2 1 LH260ATV.8.12
www.MaxMekker.com
2 of 41
34 30234 FUEL HOSE3 1 LH260ATV.8.13
35 30235 FUEL HOSE COUPLER 2 170M-A.13-1
36 30236 PIPE 2 1 LH260ATV.8.14
www.MaxMekker.com
3 of 41

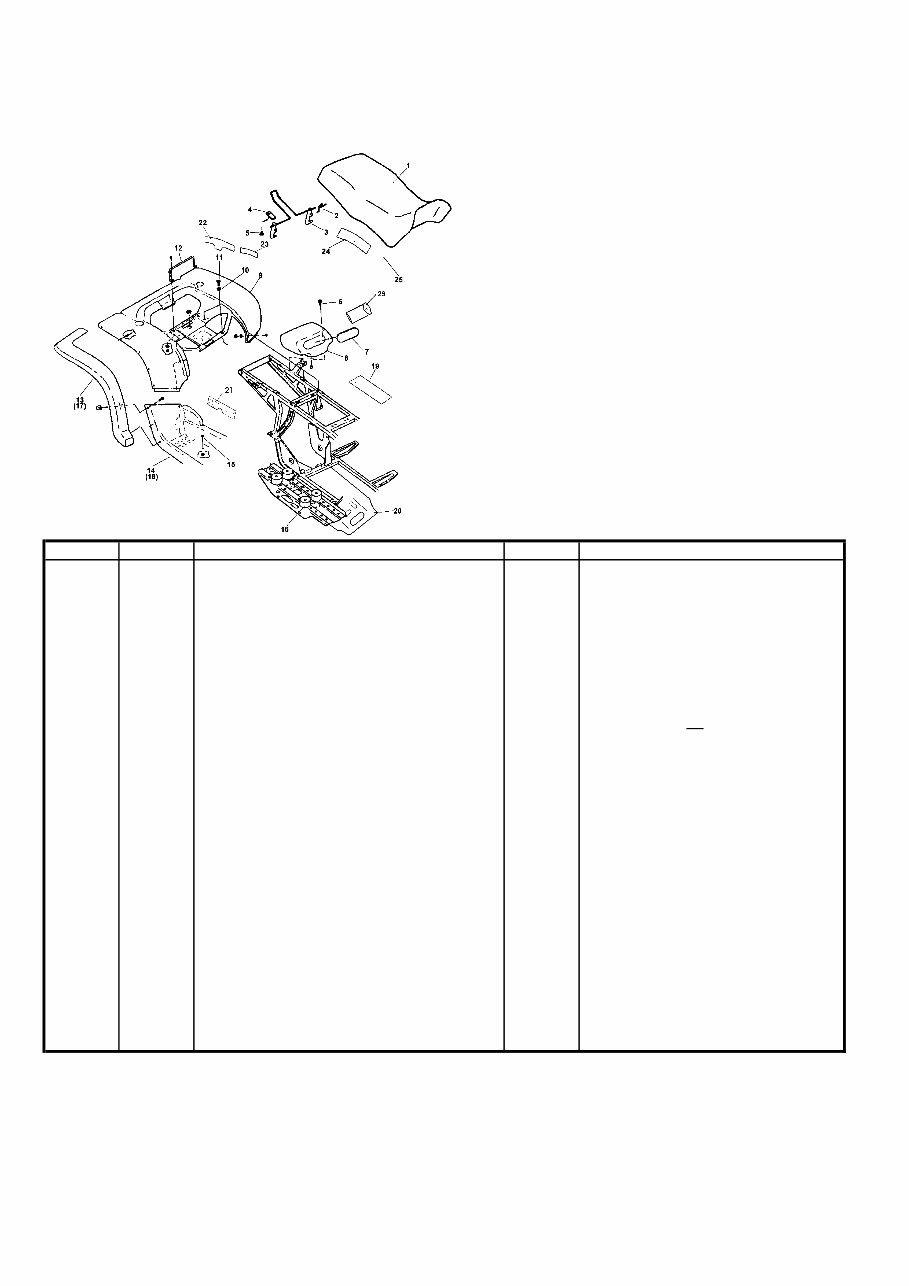

3 REAR FENDER
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 20301 SEAT 1 LH260ATV.9.1
2 20302 SPRING 1 LH260ATV.9-1
3 20303 LATCH ASSEMBLY 1 LH260ATV.9.2
4 20304 RETAINER CLIP 2 LH260ATV.9-2
5 10009 SCREW ST4.8X16 4 GB/T845-ST4.8X16
6 10010 BOLT M6X15 2 GB/T5787-M6X15
7 20307 STORAGE BOX COVER 1 LH260ATV.2-29
8 20308 STORAGE BOX 1 LH260ATV.2-28
9 20309 REAR FENDERS 1 LH260ATV.2-12
10 10011 WASHER 6 4 GB/T96-6
11 10010 BOLT M6X15 42 GB/T5787-M6X15
12 20312 LATCH BRACKET 1 LH260ATV.2-20
13 20313a REAR MUD GUARD RIGHT 1 LH260ATV.2-14a
14 20314a FOOTREST RIGHT 1 LH260ATV.2-16a
15 20315 BOLT M6X20 14 LH260ATV.2-23
16 20316 RUBBER PAD 14 LH260ATV.1.15
17 20317a REAR MUD GUARD LEFT 1 LH260ATV.2-13a
18 20318a FOOTREST LEFT 1 LH260ATV.2-15a
19 20319 BATTERY MOUNTING PAD 3 LH260ATV.1-11 160X30X5
20 20320 PLASTIC PLATE 1 LH260ATV.2-26
21 20321 FOOTREST RIGHT ADIABATIC PELLICLE 1 LH260ATV.2.3
22 20322 REAR MUD ADIABATIC PELLICLE A 2 LH260ATV.2.1
23 20323 REAR MUD ADIABATIC PELLICLE B 2 LH260ATV.2.2
24 20324 SEAT ADIABATIC PELLICLE 2 LH260ATV.9.3
25 20325 SEAT ASSY 1 LH260ATV.9
26 20326 TOOL 1
www.MaxMekker.com
4 of 41

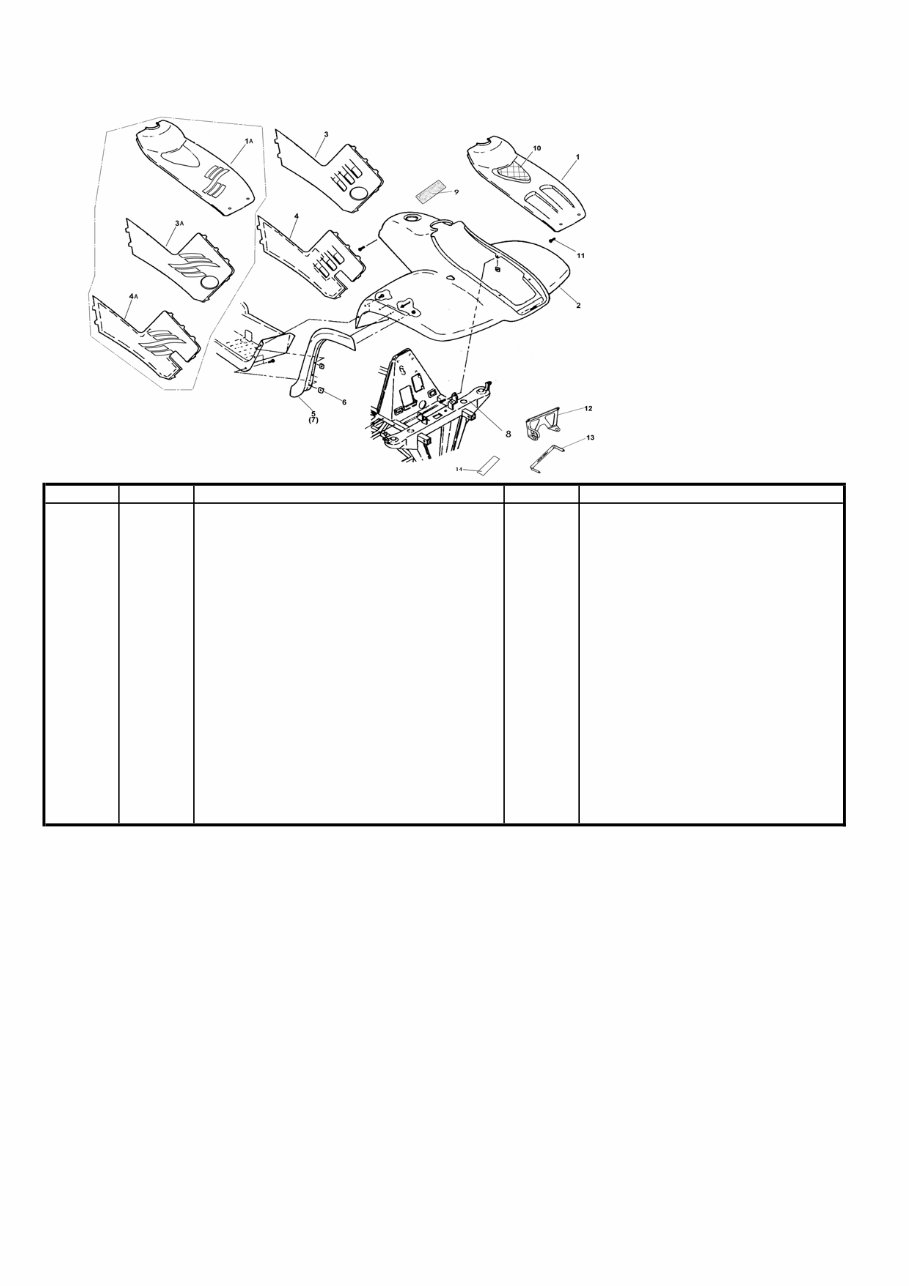

4 FRONT BODY FRAME
REF. No. PART NO. DESCRIPTION Q'TY SIZE
1 20401a FRONT COVER 1 LH260ATV.2-3a
1A 20401b FRONT COVER 1 LH260ATV.2-3b
2 20402BU FRONT BODY 1 LH260ATV.2-7
3 20403a SIDE COVER LEFT 1 LH260ATV.2-5a
3A 20403b SIDE COVER RIGHT 1 LH260ATV.2-5b
4 20404a SIDE COVER RIGHT 1 LH260ATV.2-6a
4A 20404b MUD GUARD RIGHT 1 LH260ATV.2-6b
5 20405a MUD GUARD RIGHT 1 LH260ATV.2-8a
6 10004 SPRING NUT 40 GB/T6187-M6
7 20407a MUD GUARD LEFT 1 LH260ATV.2-9a
8 20408 FRAME COMP. 1 LH260ATV.1.1
9 20409 FRONT BODY FOAM 1 LH260ATV.2-11 150X100X35
10 20410 SMALL FRONT COVER 1 LH260ATV.2-34
11 10009 SCREW ST4.8X16 2 GB/T845-ST4.8X16
12 20412 UP BRACKET RADIATOR 1 LH260ATV.1-2
13 20413a DOWN BRACKET RADIATOR 1 LH260ATV.1-1
14 20414 SPACER RUBBER 1 LH260ATV.1-10
www.MaxMekker.com
5 of 41

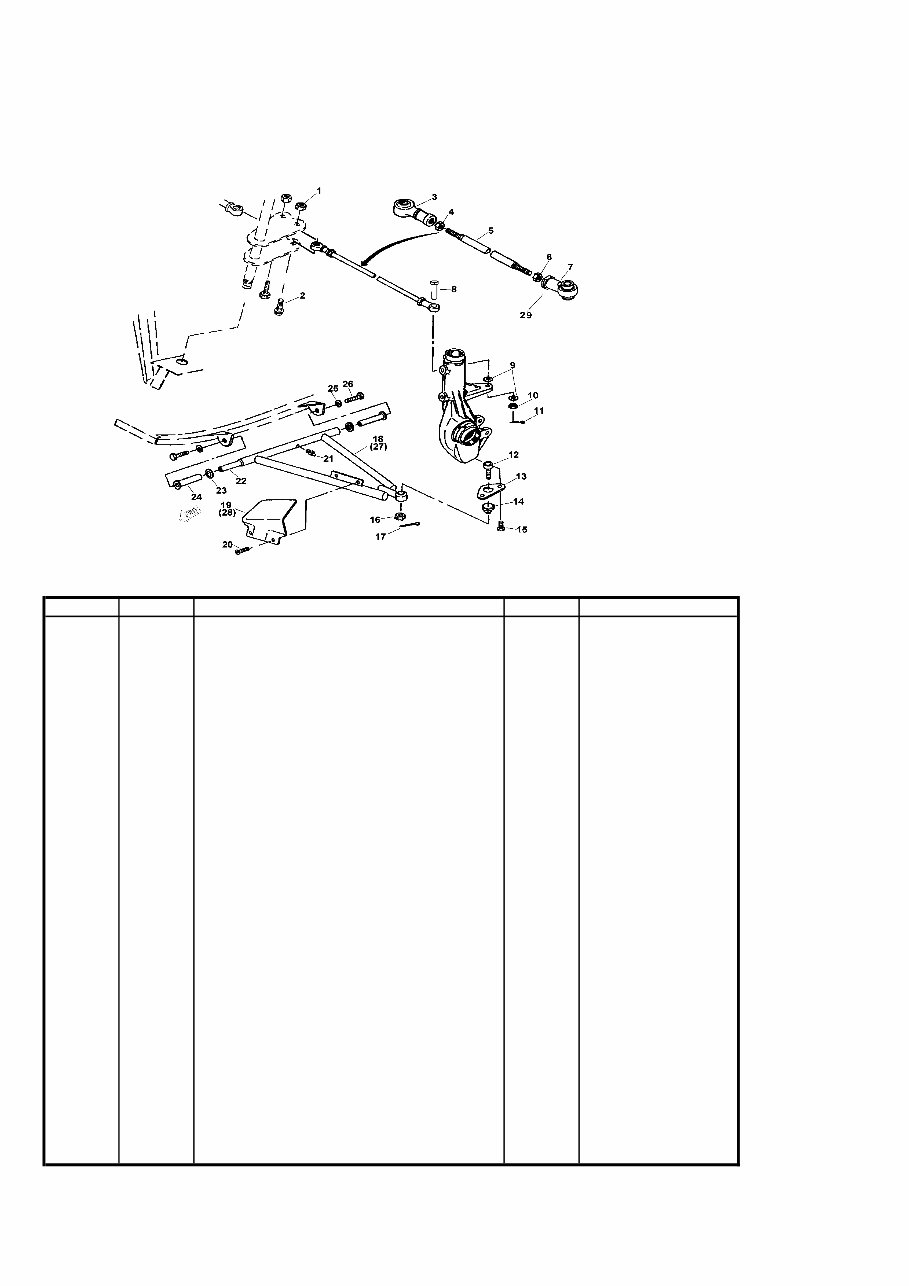

5 A-ARM
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 10015 NUT M10X1.25 2 GB/T6187-M10X1.25
2 10016 BOLT M10X1.25X55 2 GB/T5785-M10X1.25X55
3 20503 TIE ROD END A 2 LH260ATV.1.7.2-1
4 10017 JAM NUT(RIGHT) 2 GB/T6172-M12
5 20505 TIE ROD 2 LH260ATV.1.7.2-3
6 20506 JAM NUT(LEFT) 2 LH260ATV.1.7.2-5
7 20507 TIE ROD END B 2 LH260ATV.1.7.2-4
8 10018 BOLT M10X1.25X55 2 GB/T31.3-M10X1.25X55
9 10019 WASHER 4 GB/T97.1-10
10 10020 NUT M10X1.25 2 GB/T9458- M10X1.25
11 10021 COTTER PIN 2 GB/T91-2.5X20
12 20512 BALL JOINT STUD 2 LH260ATV.3.2.4
13 20513 BALL JOINT MOUNTING BRACKET 2 LH260ATV.3.2-1
14 20514 BALL JIONT CUP 2 LH260ATV.3.2.-2
15 10022 BOLT M6X12 4 GB/T819.1-M6X12
16 10023 NUT M10 2 GB/T9458-M10X1
17 10021 COTTER PIN 2 GB/T91-2.5X20
18 20518 A-ARM LEFT 1 LH260ATV.1.8.1
19 20519 A - ARM SHIELD LEFT 1 LH260ATV.2-21
20 10001 SCREW M5X12 4 GB/T818-M5X12
21 10026 GREASE FITTING 2 JB/T7940.1-M6
22 20522 A-ARM PIVOT SHAFT 2 LH260ATV.1.8-3
23 20523 SPACER 4 LH260ATV.1.8-2
24 20524 BUSHING 4 LH260ATV.1.8-1
25 10027 WASHER 10 4 GB/T93-10
26 10028 BOLT M10X25 4 GB/T5783-M10X25
27 20627 A-ARM RIGHT 1 LH260ATV.1.8.2
28 20628 A - ARM SHIELD RIGHT 1 LH260ATV.2-22
29 20629 TIE ROD ASSY 2 LH260ATV.1.7.2
www.MaxMekker.com
6 of 41

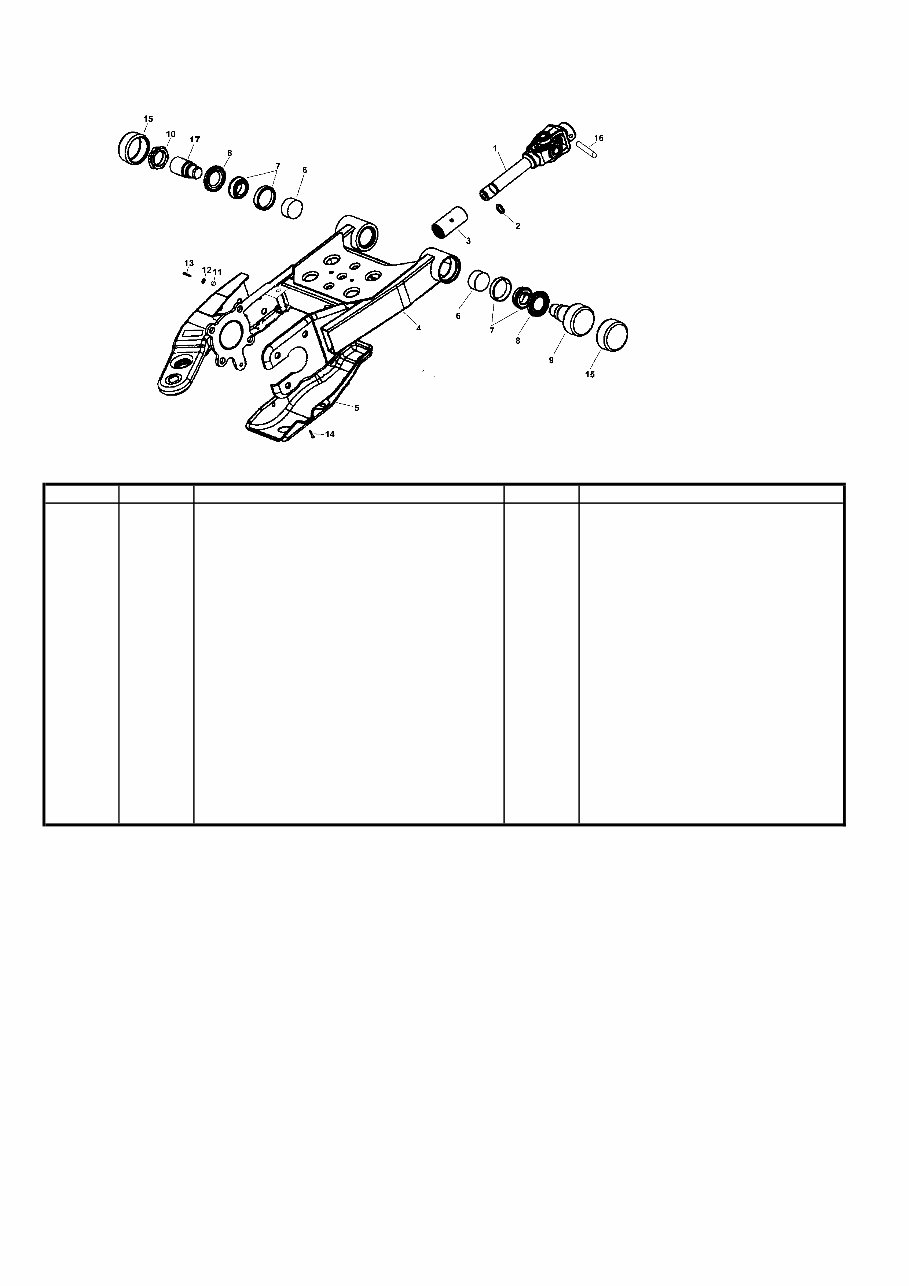

6 SWINGARM ASSY
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 20701 REAR PROPSHAFT ASSY 1 LH260ATV.13.1
2 10029 O-RING 1 GB3452.1-22.4X3.55
3 20703 COUPLING-PROP SHAFT GREASED 1 LH260ATV.13.2
4 30704 SWINGARM ASSY 1 LH260ATV.10.1.1e
5 20705 SKID PLATE REAR 1 LH260ATV.10-1
6 20706 SEAL-SWINGARM PIVOT 2 LH260ATV.10.1-2 4X5X20
7 10030 BRG TAPER ROLL 2 GB/T297-30205 3CC
8 20708 SEAL 2 LH260ATV.10.1.2 31.8X54X6.5
9 20709 SWING ARM PIVOT RIGHT 1 LH260ATV.10.1-4
10 20710 THREADED PIVOT 1 LH260ATV.10.1-5
11 10031 NUT M12 3 GB/T6187-M12
12 10032 WASHER 12 3 GB/T97.1-12
13 10033 BOLT M12X35 3 GB/T5783-M12X35
14 10034 BOLT M8X12 3 GB/T5787-M8X12
15 20715 CAP SWINGARM PIVOT 2 LH260ATV.2-33
16 20716 ROLL PIN 1 LH260ATV.13-1
17 20717 SWINGARM PIVOT LEFT 1 LH260ATV.10.1-3
www.MaxMekker.com
7 of 41

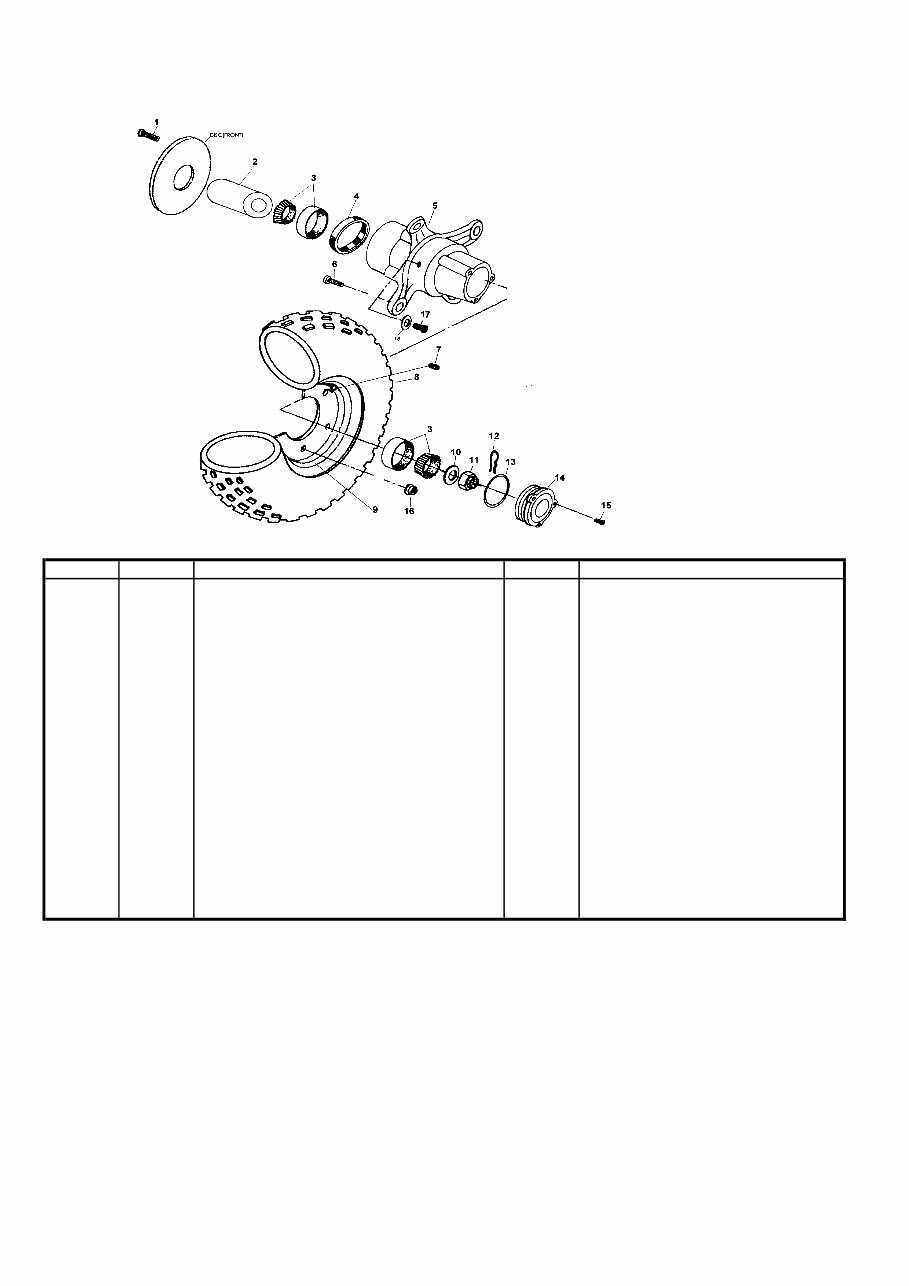

7 WHEEL FRONT
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 10035 BOLT M8X20 8 GB/T5783-M8X20
2 20802 SPACER 2 LH260ATV.6-4
3 10030 BEARING 4 GB/T297-30205 3CC
4 20804 SEAL SLEEVE 2 LH260ATV.6.4 66.6X82.5X12.8
5 20805 HUB ASSY SHRT 2 LH260ATV.6.3-1
6 20806 WHEEL STUD 8 LH260ATV.6-3
7 20807 PLUG PIPE 2 LH125T-8.2-3
8 30808 TIRE FRONT 2 LH260ATV.6.1.2a AT24X8-12
9 20809 WHEEL FRONT 2 LH260ATV.6.1.1
10 10037 WASHER 16 2 GB/T97.1-16
11 20811 SLOTTED NUT M16X1.5 2 LH260ATV.6-1 M16X1.5
12 10038 COTTER PIN 2 GB/T91-4X28
13 10039 O-RING 2 GB3452.1-46.5X2.65
14 20814 HUB CAP 2-LOBE AWD 2 LH260ATV.6-2
15 10040 SCREW M5X16 6 GB/T70.1-M5X16
16 10015 LUG NUT M10X1.25 8 GB/T6187-M10X1.25
17 20817 LUG 1 153FM.18-3
18 20818 WASHER 1 153FM.18-2
www.MaxMekker.com
8 of 41

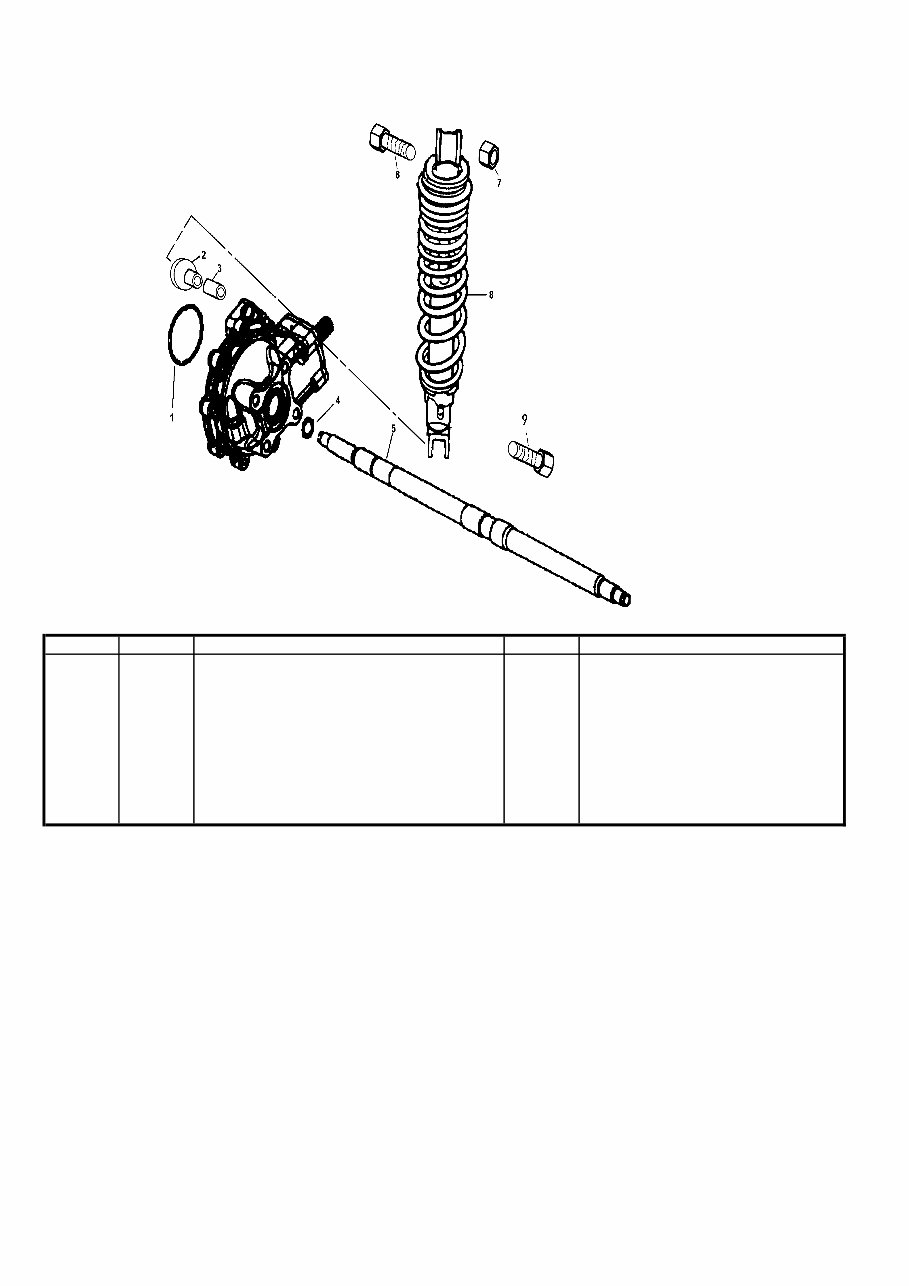

8 SHOCK ABSORBER REAR
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 20901 O-RING 1 LH260ATV.12-5 79X4
2 20902 CUSHION PAD 2 LH260ATV.4-4
3 20903 SPACER-BEARING 1 LH260ATV.4-3
4 10042 O-RING 1 GB3452.1-35.5X3.55
5 20905 REAR AXLE 1 LH260ATV.7-1
6 20906 UP BOLT M10X1.25X57 1 LH260ATV.4-1
7 10015 NUT M10X1.25 2 GB/T6187-M10X1.25
8 20908 SHOCK ABSORBER REAR 1 LH260ATV.4.1
9 20909 DOWN BOLT M10X1.25X57 1 LH260ATV.4-2
www.MaxMekker.com
9 of 41

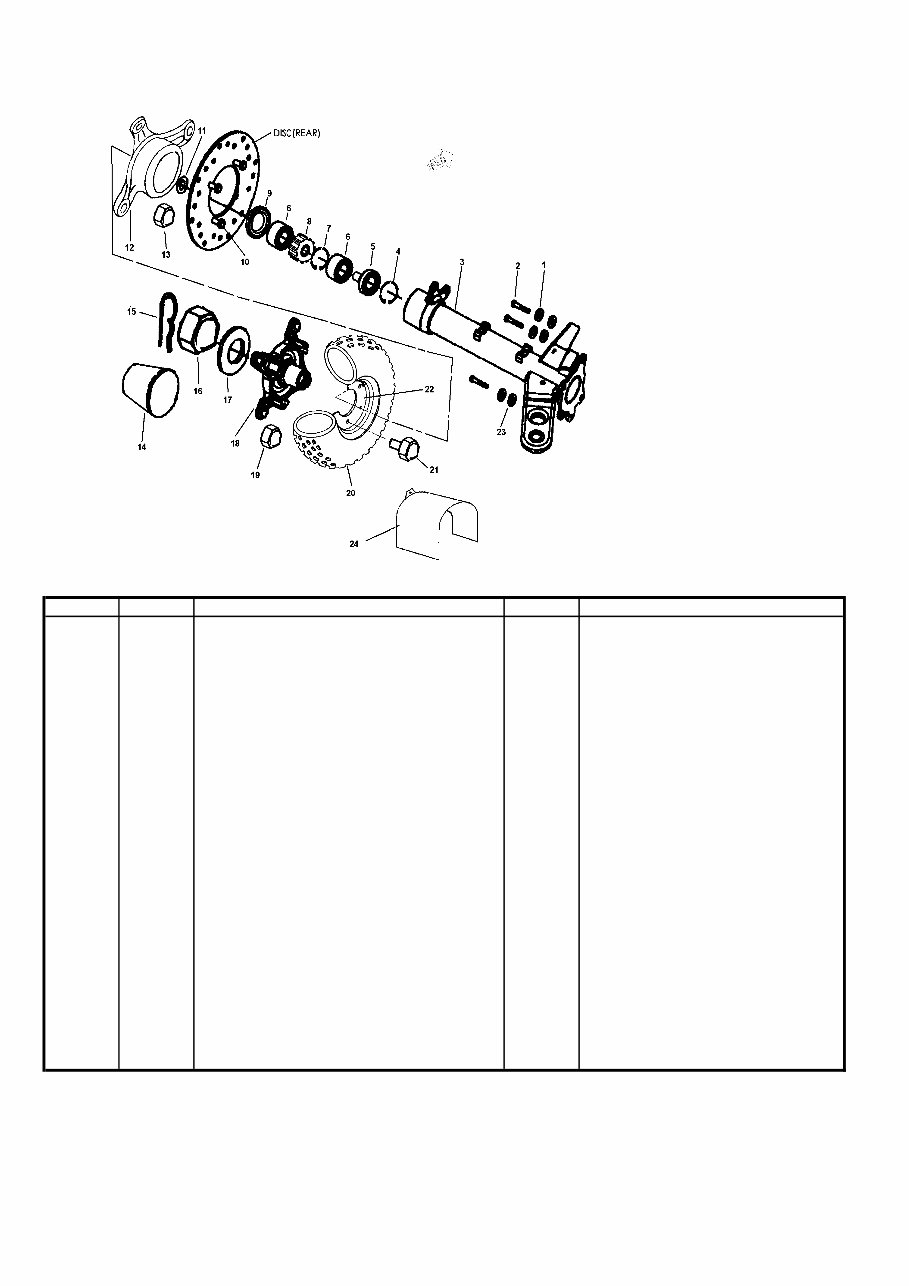

9 WHEEL REAR
REF. No. PART No. DESCRIPTION Q'TY SIZE
1 10032 WASHER 12 8 GB/T97.1-12
2 10045 BOLT M12X30 8 GB/T5783-M12X30
3 21003 AXLE TUBE AND HITCH ASSEMBLY 1 LH260ATV.10.2.1
4 21004 RING RETAINER INT 1 LH260ATV.7-2
5 21005 SPACER 1 LH260ATV.7-3
6 10046 BEARING BALL DBL SEAL 2 GB/T278-6206-2Z
7 10047 RING RETAINER INT 1 GB893.2-62
8 31008 SPACER-BEARING 1 LH260ATV.10.2-1a
9 21009 SEAL REAR AXLE 2 LH260ATV.10.2.2 36.5X62X7
10 10048 BOLTS M10X1.25X20 3 GB/T5786-M10X1.25X20
11 10029 O-RING 1 GB3452.1-22.4X3.55
12 21012 HUB BRAKE DISC MACH 1 LH260ATV.7-4
13 10050 N UT M10X1.25 3 GB/T6173-M10X1.25
14 21014 AXLE CAP 2 LH260ATV.2-32
15 10051 COTTER PIN 2 GB/T91-4X36
16 10142 NUT SLOTTED M20X2 2 GB/T9459-M20X2
17 21017 WASHER 2 LH260ATV.7-6
18 21018 WHEEL HUB 2 LH260ATV.7-5
19 21019 LUG NUT M12X1.25 2 LH260ATV.7-7 M12X1.25
20 31020 TIRE REAR 2 LH260ATV.7.1.2a AT24X11-10
21 10053 WHEEL STUD M12X1.25X45 8 GB/T5786-M12X1.25X45
22 21022 WHEEL REAR 2 LH260ATV.7.1.1
23 10054 WASHER 12 8 GB/T93-12
24 31024 BRAKE HOSE COVER 1 LH260ATV.2-31a
www.MaxMekker.com
10 of 41
