POS. PARTNUMBER DESCRIPTION QTY SRT
1 22401a CYLINDER HEAD ASSY 1
22401b CYLINDER HEAD ASSY （FOR ATV300） 1
2 22402 GUIDE INTAKE VALVE 2
3 10112 CIRCLIP 12 2
4 10128 BOLT M6X12 1
5 22405 GASKET 6 1
6 10014 BOLT STUD M8X25 2
7 22407 BREATHER ASSY 1
8 22408 O-RING 95X3.3 1
9 10008 BOLT SOCKET HEAD M6X20 2
10 22410 VALVE COVER INTAKE SIDE 1
11 22411 VALVE COVER EXHAUST SIDE 1
12 22412 O-RING 57.5X2.3 2
13 10008 BOLT SOCKET HEAD M6X20 5
14 22414 NUT CROWN M8 4
15 22415 WASHER PLATE 8 4
16 22416 GASKET CYLINDER HEAD1 1
22416a GASKET CYLINDER HEAD2 （FOR ATV300） 1
17 22417 PIN DOWEL 14X16 2
18 22418 BOLT FLANGE M6X120 2
19 22419 PLUG SPARK(NGK DR8EA) 1
20 22420 CYLINDER 1
22420a CYLINDER （FOR ATV300） 1
21 22421 GASKET CYLINDER 1
22 22422 PIN DOWEL 10X14 2
23 22423 PIPE BREATHER1 1
24 22424 CLIP 12MM 2

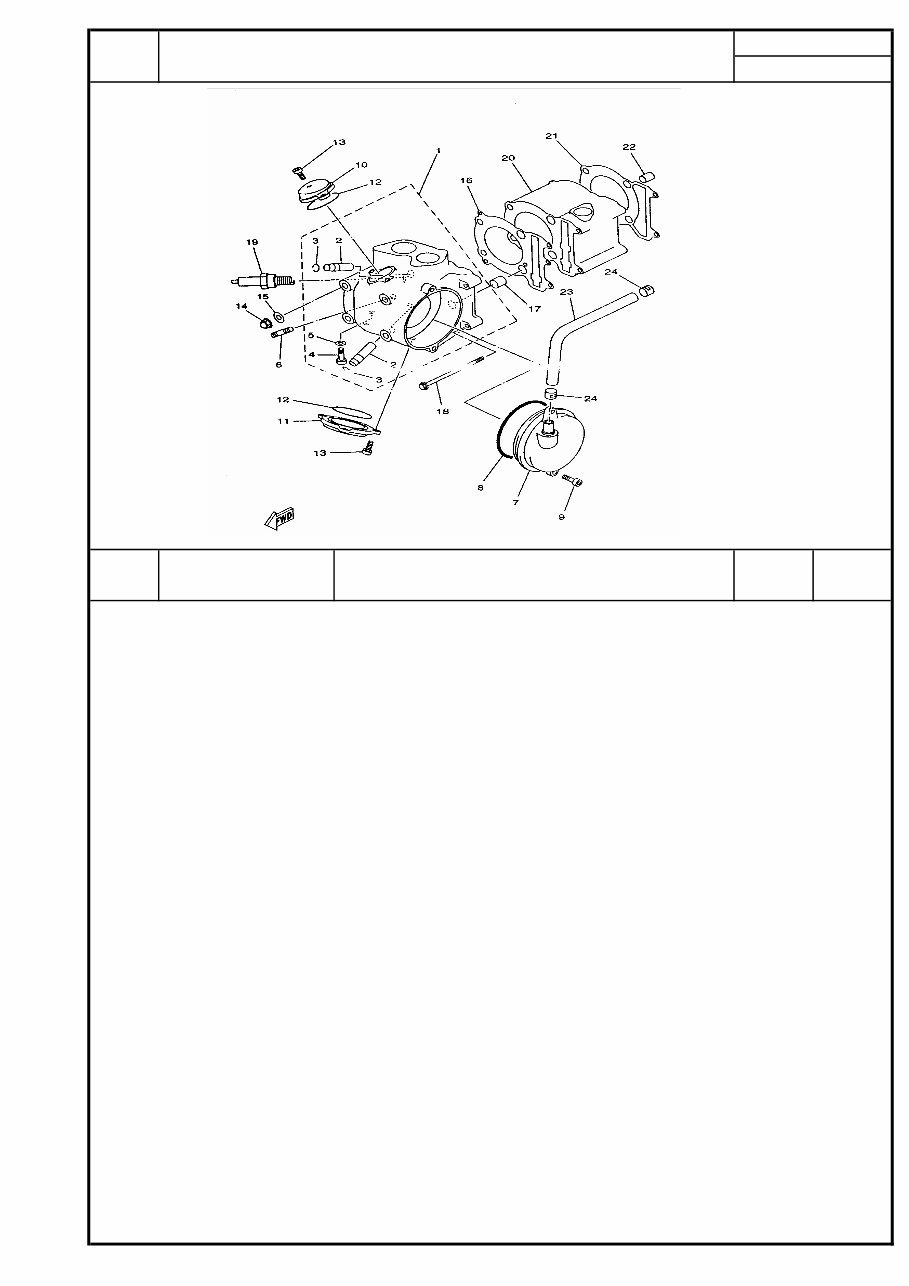

E01 CYLINDER
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 22501 CRANKSHAFT ASSY 1
2 22502 NUT M16X1 1
3 22503 WASHER PLATE 16 1
4 22504 KEY WOODRUFF 1
5 22505 PISTON 1
22505a PISTON（FOR ATV300） 1
6 22506 PISTON RING SET 1
22506a PISTON RING SET（FOR ATV300） 1
7 22507 PISTON PIN 1
8 22508 CLIP 2

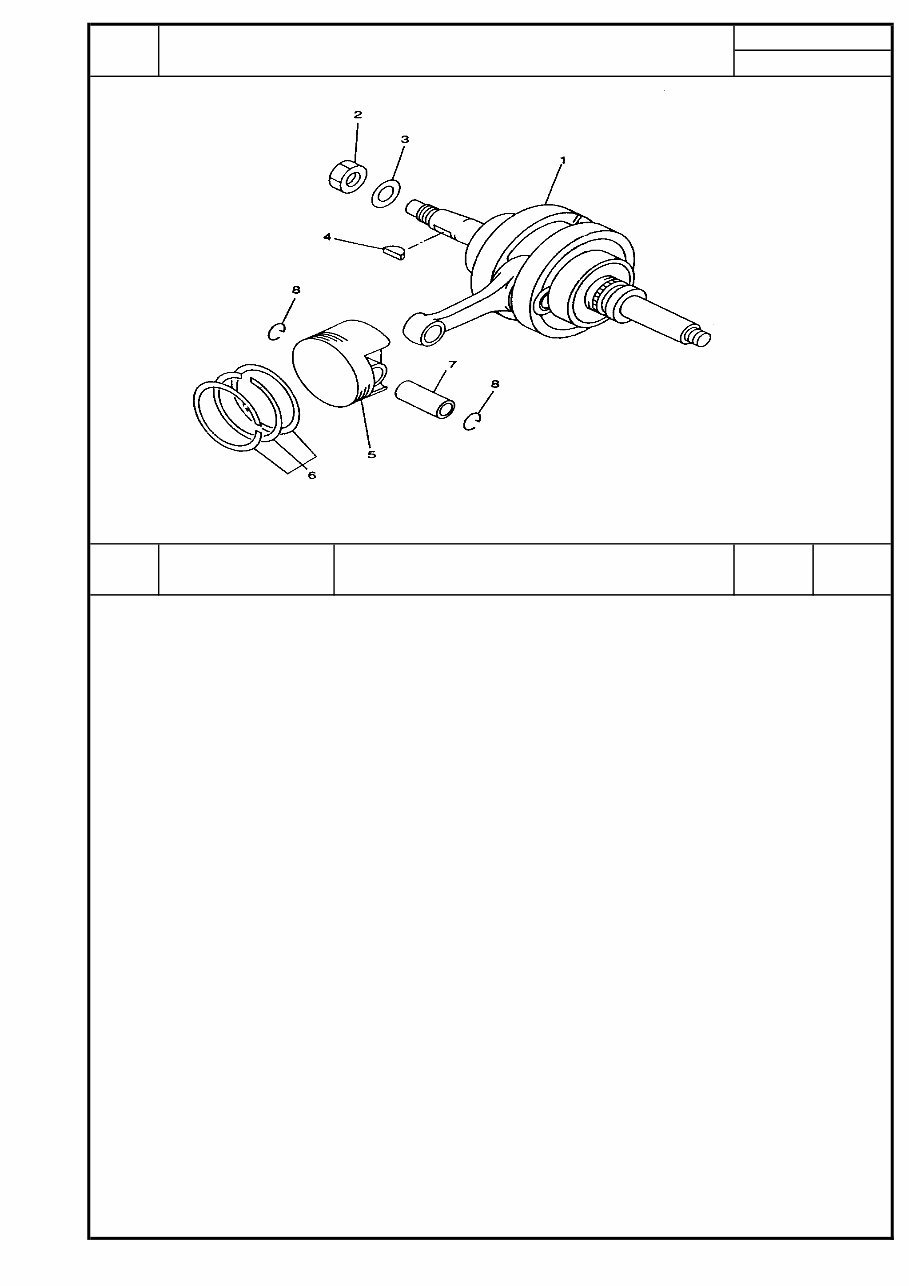

E02 CRANKSHAFT (300)
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 22601 INTAKE VALVE 1
2 22602 EXHAUST VALVE 1
3 22603 SEAT SPRING VALVE 2
4 22604 SPRING VALVE INNER 2
5 22605 SPRING VALVE OUTER 2
6 22606 SEAL VALVE STEM 2
7 22607 RETAINER SPRING VALVE 2
8 22608 COTTER VALVE 4
9 22609 ROCKER ARM VALVE 2
10 22610 EXHAUST ROCKER SHAFT 1
11 22611 INTAKE ROCKER SHAFT 1
12 22612 O-RING 9X2 1
13 22613 ADJUSTING SCREW VALVE 2
14 22614 NUT M6X0.75 2

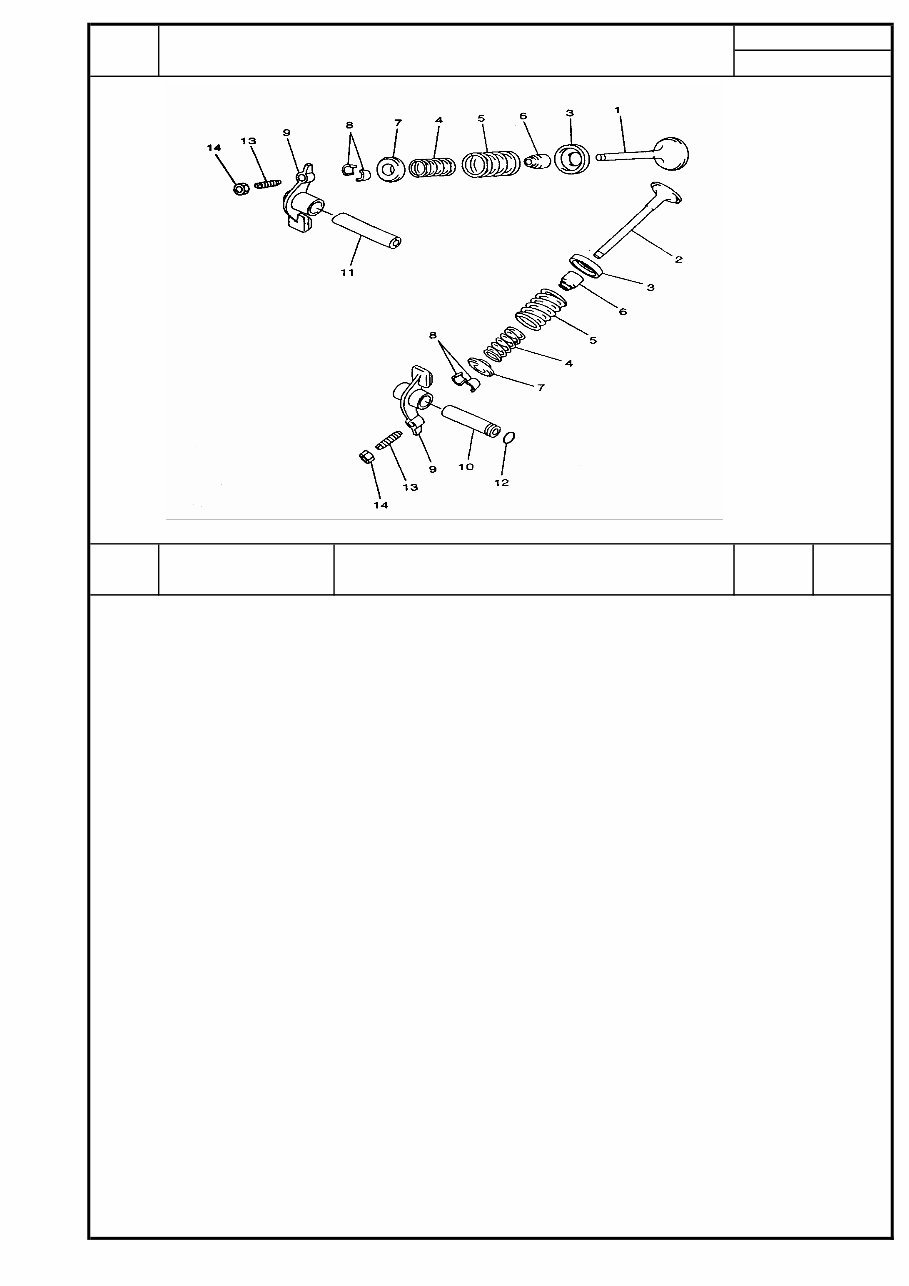

E02 VALVE
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 22701 CAMSHAFT ASSY1 1
2 10012 BEARING 1
3 10013 BEARING(B6202Z) 1
4 22704 PLATE 1
5 10128 BOLT M6X12 2
6 22706 LOCK WASHER 1
7 22707 CAM CHAIN SPROCKET 1
8 10024 DOWEL PIN B4X10 1
9 10025 BOLT M10X1.25X25 1
10 22710 WASHER PLATE 10 1
11 22711 BREATHER PLATE2 1
12 22712 CHAIN 1
13 22713 GUIDE STOPPER1 1
14 22714 GUIDE STOPPER2 1
15 22715 CAM CHAIN TENSIONER ASSY 1
16 22716 GASKET TENSIONER CASE 1
17 10036 SOCKET HEAD BOLT M6X14 2
18 22718 CHAIN TENSIONER PIVOT BOLT 1
19 22719 O-RING 14.5X1.8 1
20 22720 CAMSHAFT 1

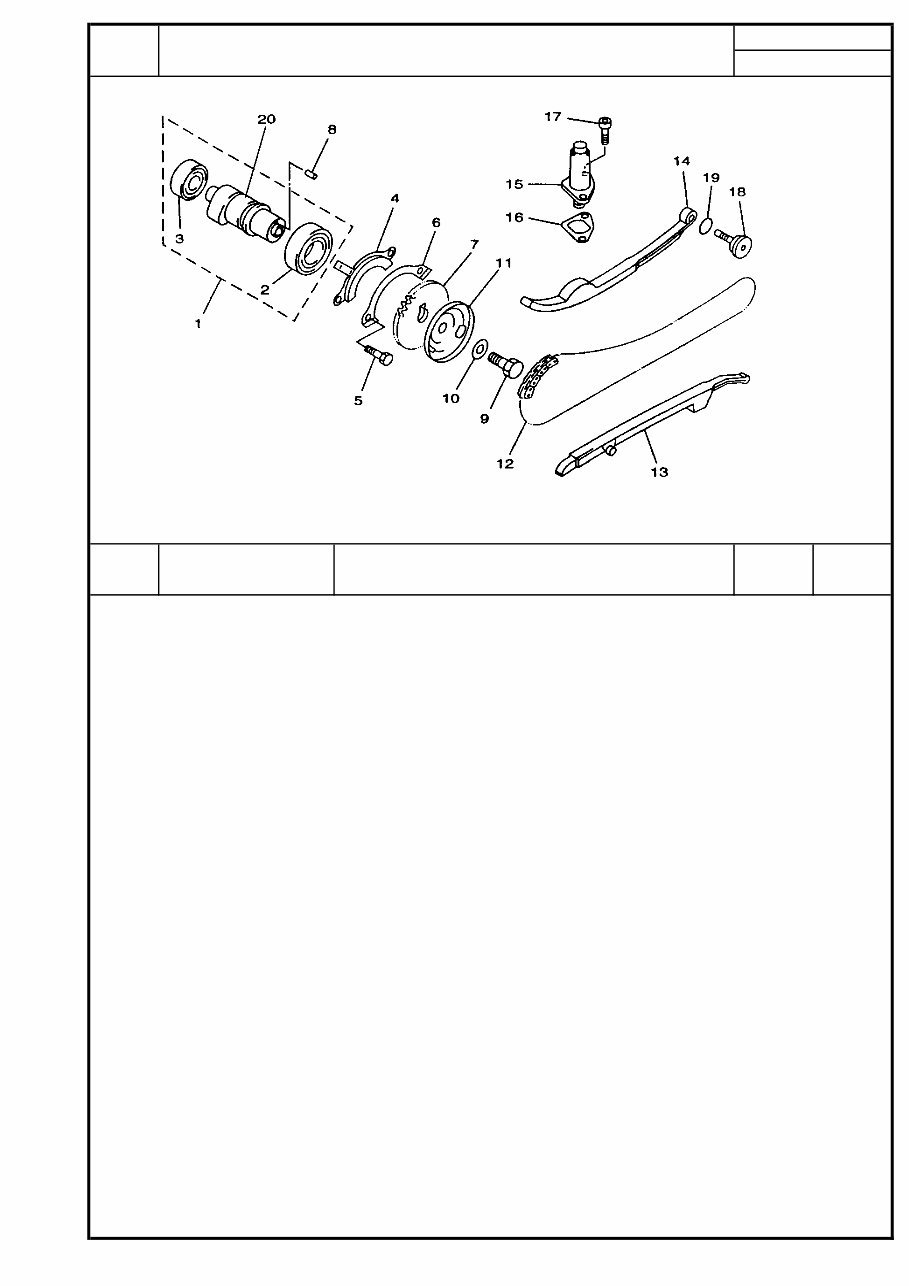

E03 CAMSHAFT
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 22801 IMPELLER SHAFT ASSY 1
2 22802 HOUSING COVER 1
3 22803 GASKET HOUSING COVER2 1
4 10041 SOCKET HEAD BOLT M6X35 3
5 10043 BEARING 1
6 22806 WATER PUMP HOUSING 1
7 22807 OIL SEAL 10X21X5 1
8 22808 MECHANICAL SEAL 1
9 10044 CIRCLIP 10 1
10 22810 GASKET 6 1
11 10049 O-RING 33.5X2.65 1
12 22812 SHAFT 1
13 10070 DOWEL PIN C3X22 1
14 22814 WASHER PLATE 8 2
15 22815 IMPELLER SHAFT GEAR 1
16 10072 CIRCLIP 8 1
17 22817 JOINT 1
18 10082 O-RING 15.5X2.5 2
19 10083 SOCKET HEAD BOLT M6X15 2
20 22820 WATER PUMP ASSY 1

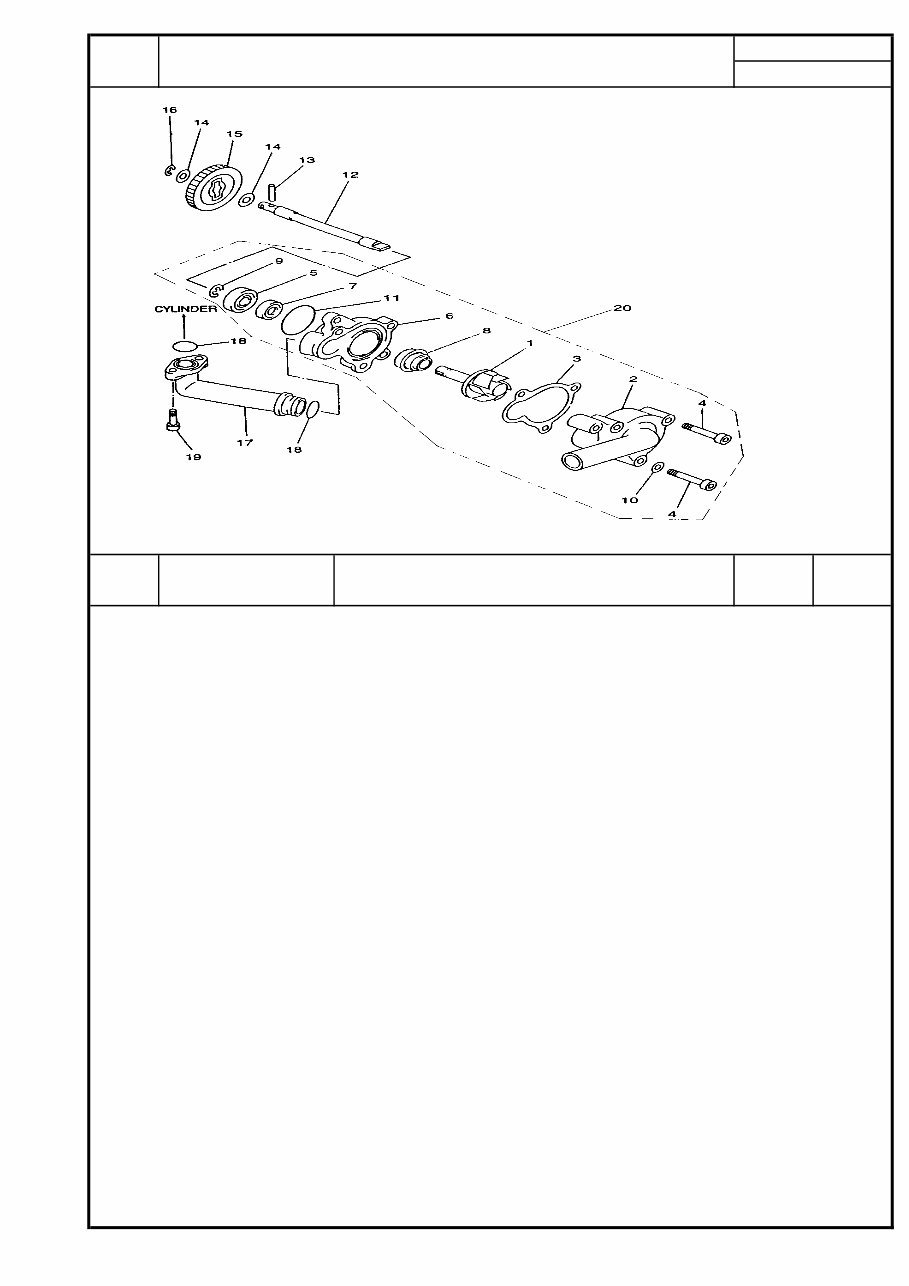

E04 WATER PUMP
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 22901 THERMOSTAT 1
2 22902 THERMOSTAT COVER 1
3 10085 SOCKET HEAD BOLT M6X25 2
4 22904T RADIATOR ASSY (THICKER) 1
5 22905T BLOWER ASSY 2
6 10087 FLANGE BOLT M6X9 6
7 22907a SAFETY VALVE 1
8 23028 PIPE 2 1
9 22909T RADIATOR FILLER HOSE 1
10 22910T RETURN HOSE 1
11 22911 FEED HOSE 1
12 22912 COMPRESSION SPRING 2
13 22913 HOSE CLAMP1 6
14 22914 HOSE CLAMP2 2
15 22915 HOSE1 1
16 10110 BOLT M6X20 2
17 22917 RADIATOR SIDE SUPT GROMMET 2
18 22918 COLLAR 2
19 22919 THERMOSTAT SWITCH ASSY 1
20 10004 NUT M6 2
21 10019 WASHER PLATE 10 2
22 10094 CLIP 2X20 2
23 22923 PIPE 1 1
24 22924 CLIP 2
25 22925 TANK RECOVERY 1
26 22926 CAP 1
27 10140 BOLT FLANGE M6X12 1

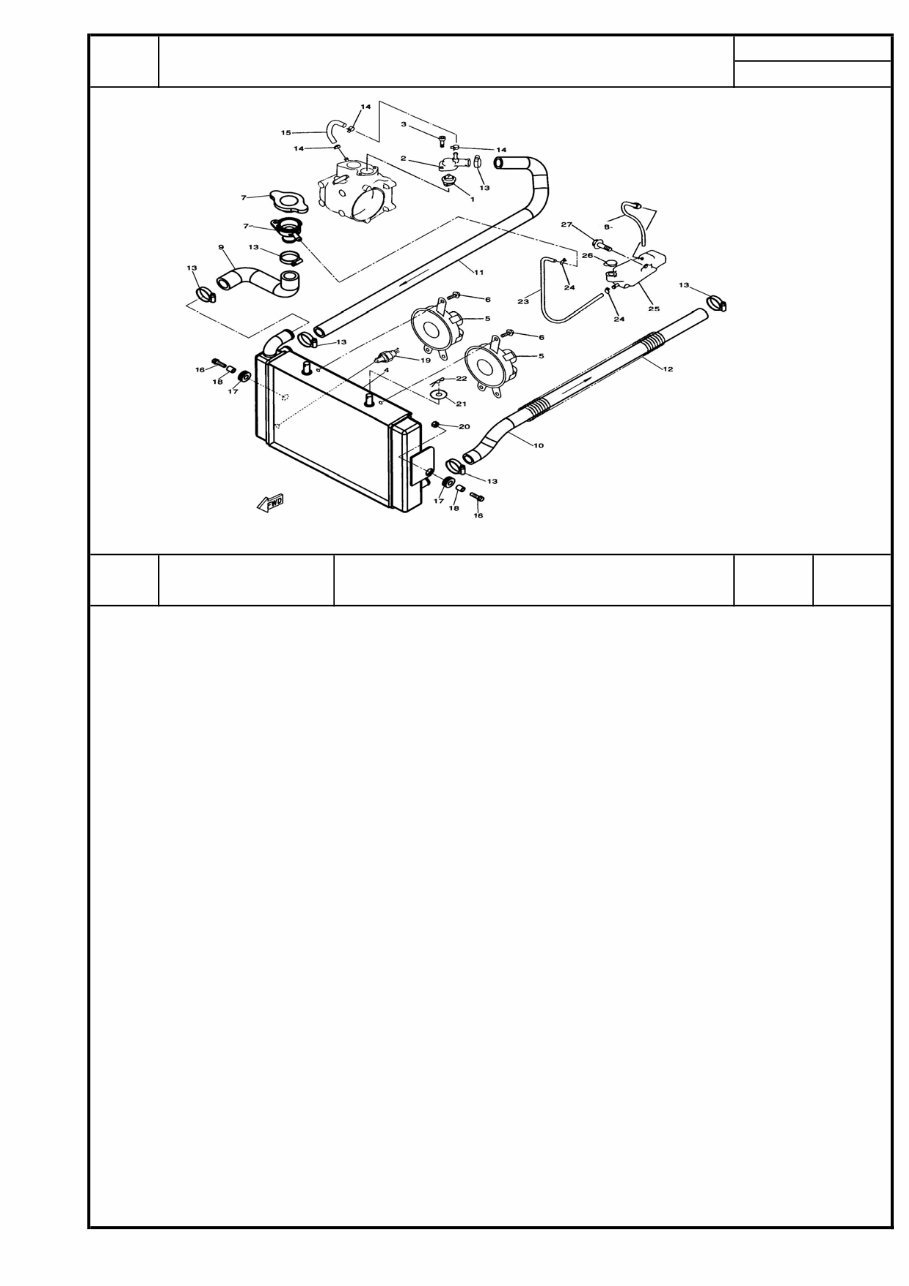

E05 RADIATOR
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 23101 OIL PUMP ASSY 1
2 10096 DOWEL PIN 3X12 2
3 23103 GEAR PUMP DRIVEN 1
4 10097 DOWEL PIN C3X22 1
5 22814 WASHER PLATE 1
6 10130 CIRCLIP 1
7 23107 GASKET 1
8 10098 SCREW M6X25 2
9 23109 OIL STRAINER 1
10 23110 COMPRESSION SPRING 1
11 23111 DRAIN PLUG 1
12 23112 O-RING 36X3.5 1

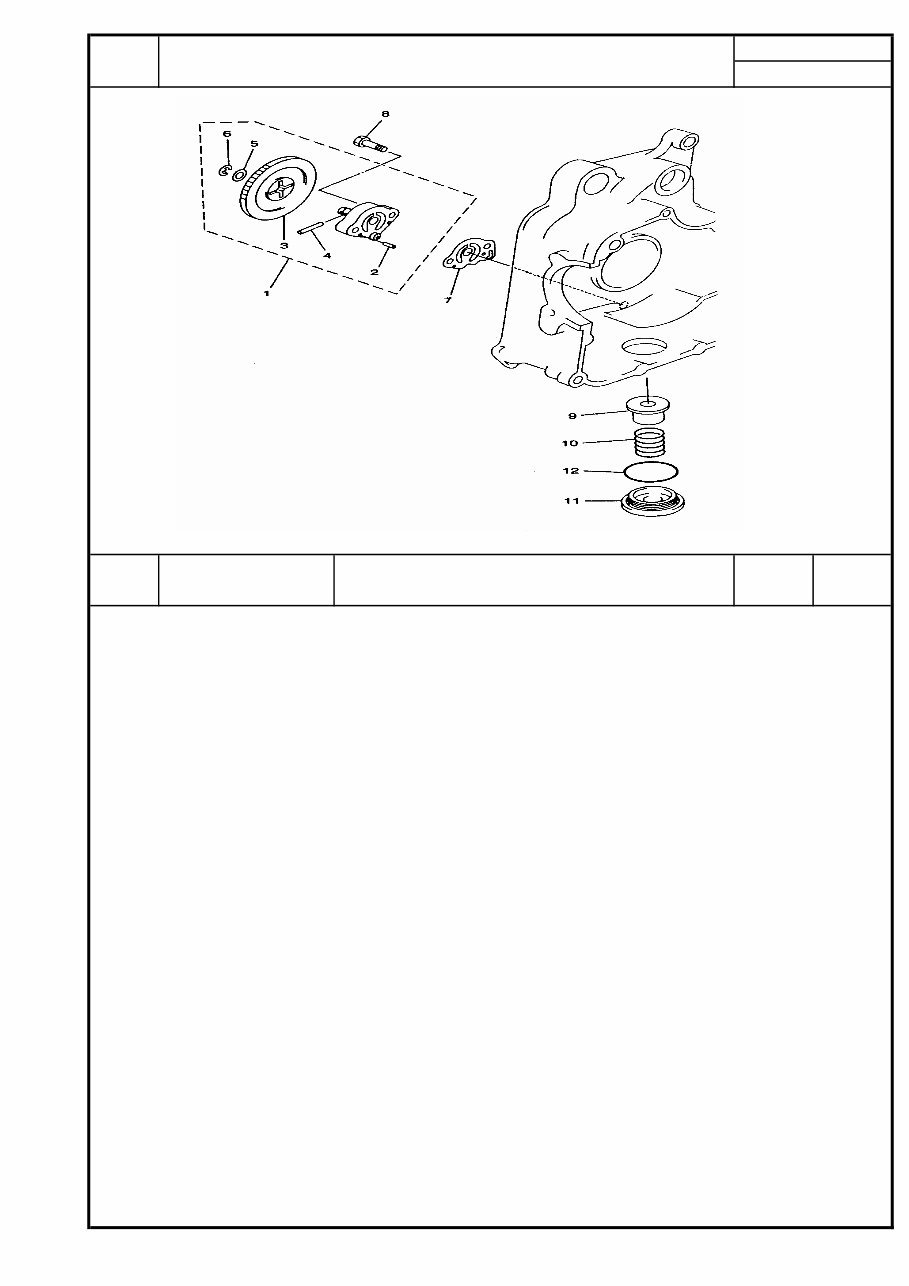

E06 OIL PUMP
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 23201 JOINT CARBURETOR 1 1
1A 23202a JOINT CARBURETOR 2 2
2 23202 O-RING 35X2 2
3 10085 SCOKET HEAD BOLT M6X25 2
4 23204 JOINT 1
5 23205 HOSE CLAMP D 1
6 23206 HOSE CLAMP C 1
7 23207 AIR CLEANER JOINT 1
8 23208 HOSE CLAMP B 1
9 23209 HOSE CLAMP A 1
10 23210 COVER AIR CLEANER 1
11 23211 AIR CLEANER CASE1 1
12 23212 ELEMENT COMP AIR CLEANER 1
13 23213 FILTER COVER 1
14 23214 CLIP 2
15 23215 HOSE 1
16 23216 PLUG 1
17 23217 AIR CLEANER ASSY 1
18 23218 AIR CLEANER COVER CLIP 6

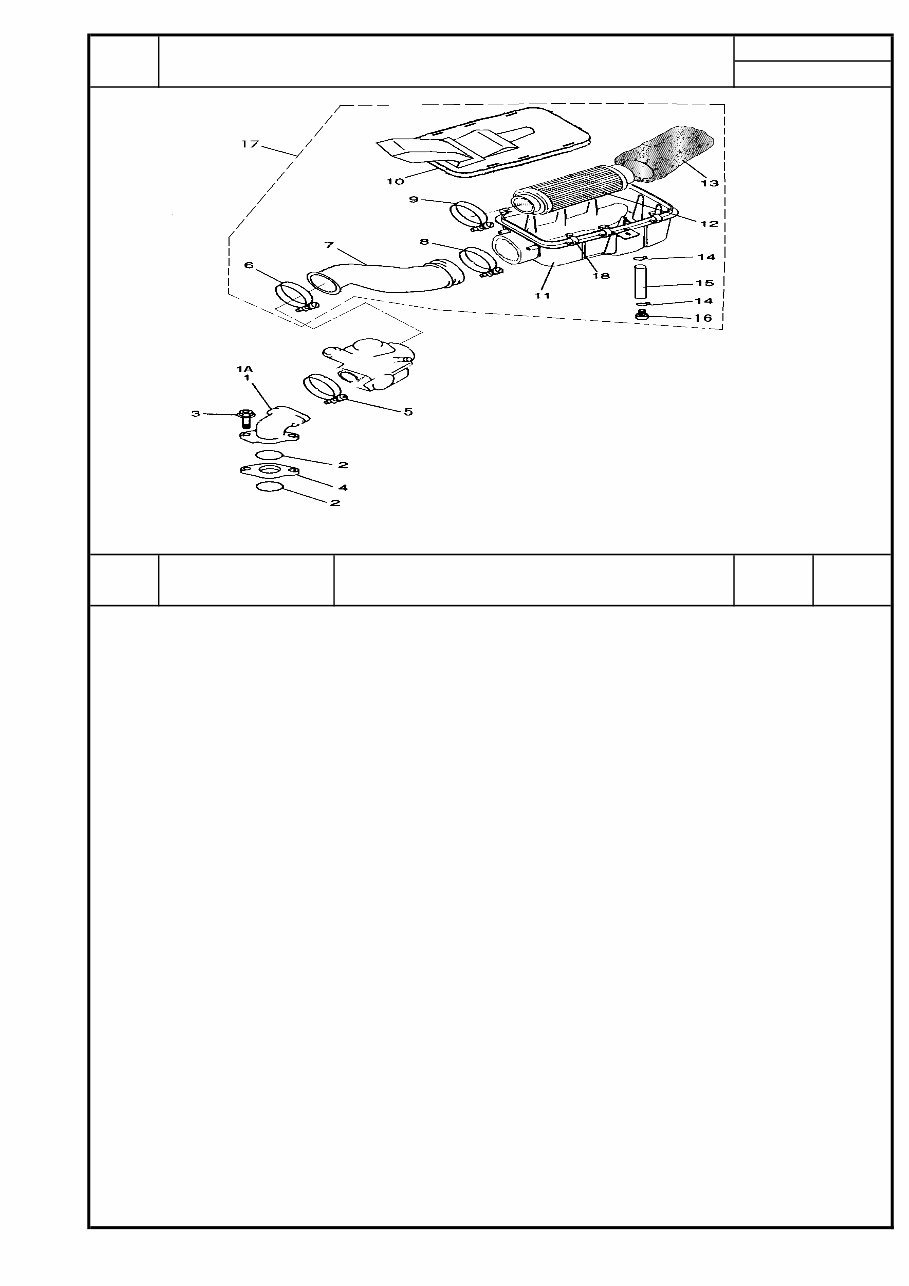

E07 AIR CLEANER
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 23301 CARBURETOR ASSY 1
1A 23301a CARBURETOR ASSY 1
2 23302 JET NEEDLE SET 1
3 23303 AUTO CHOKE ASSEM 1
4 23304 FLOAT ASSY 1
5 23305 BOWL GASKET 1
6 23306 MAIN JET 1
IDLE JET 1
7 30235 FUEL HOSE COUPLER 1
8 23308 HOSE Φ8X4.5X260 1
9 23309 HOSE Φ8X4.5X390 1
10 23310 HOSE Φ8X4.5X280 1

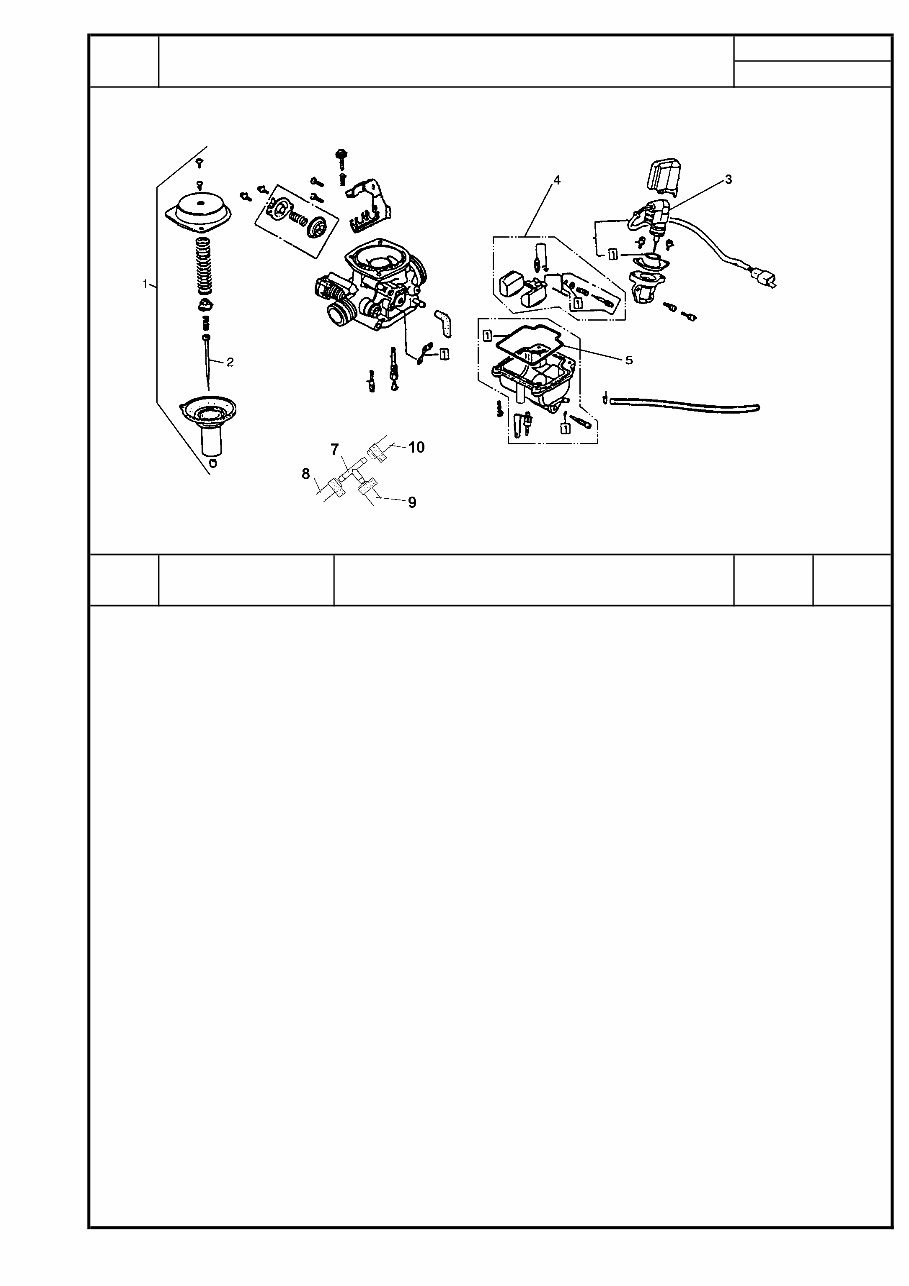

E07 CARBURETOR
LH 300
www.ClassicCycles.org
POS. PARTNUMBER DESCRIPTION QTY SRT
1 23433 EXHAUST PIPE 1 1
2 10099 NUT M8 2
3 23403 EXHAUST PIPE GASKET 3
4 10106 WASHER 8 3
5 10117 WASHER PLATE 10 1
6 10120 BOLT FLANGE M10X1.25X62 1
7 23415 MUFFLER SUPPORT 1
8 23408 SPRING 1
9 10099 NUT M8 2
10 23410 MUFFLER SUPPORT BOTTOM 1
11 23411 MUFFLER JOINT 2
12 33412 MUFFLER 1
13 10015 NUT M10X1.25 1
14 10117 WASHER PLATE 10 1
15 43510 WASHER 1
16 43511 HOSE 1
17 10004 NUT M6 2
18 43513 CLIP 16 1
19 43512 HOSE C 1
20 43514 CLIP 13 1
21 43525 HOSE B 1

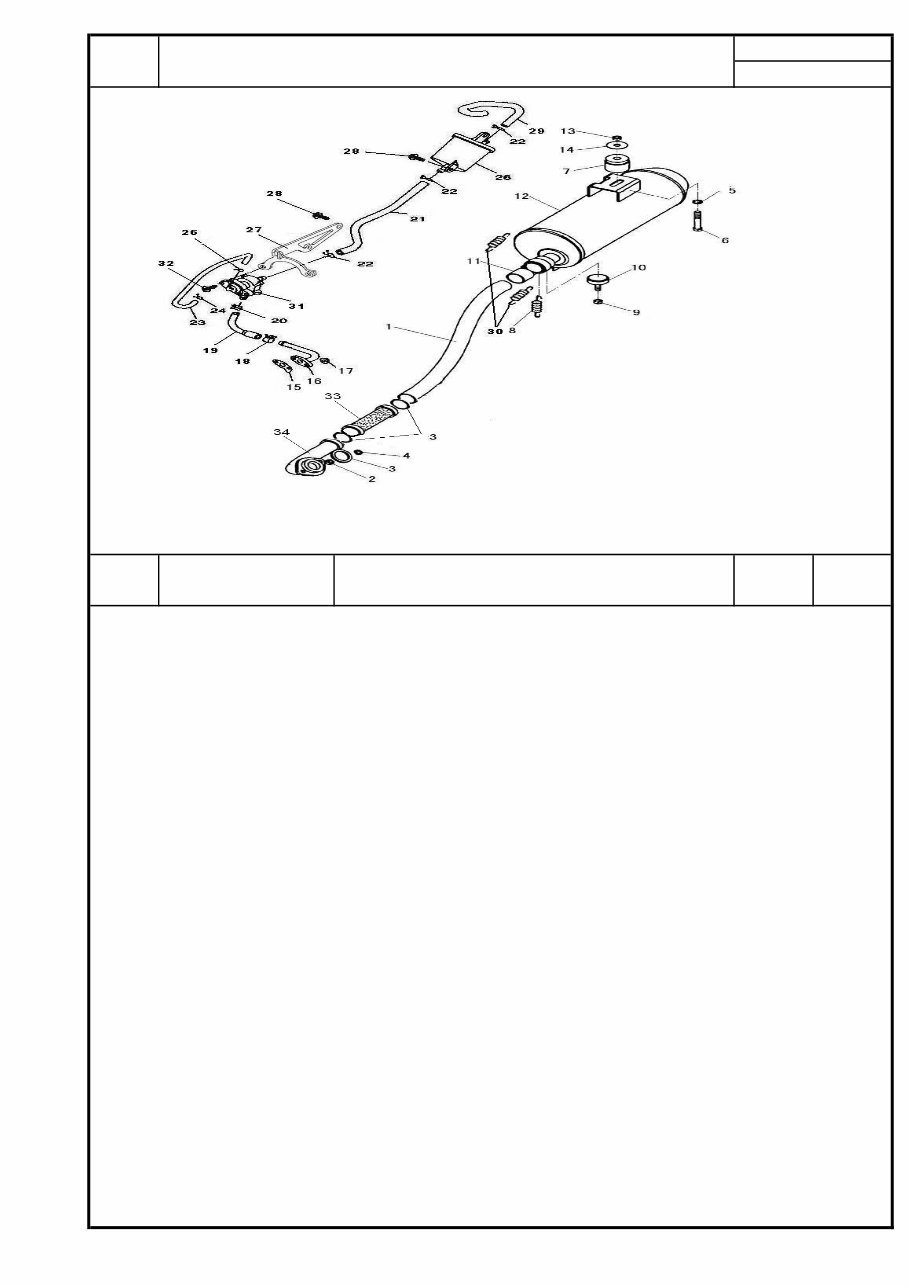

E08 EXHAUST
LH 300
www.ClassicCycles.org
