![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual]](https://cdm.emanualonline.com/media/catalog/product/cache/3fba745dcec88e97bfe808bedc471260/3/7/377663-1.jpg "Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual]")
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 1](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/1/1.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 1 of 90

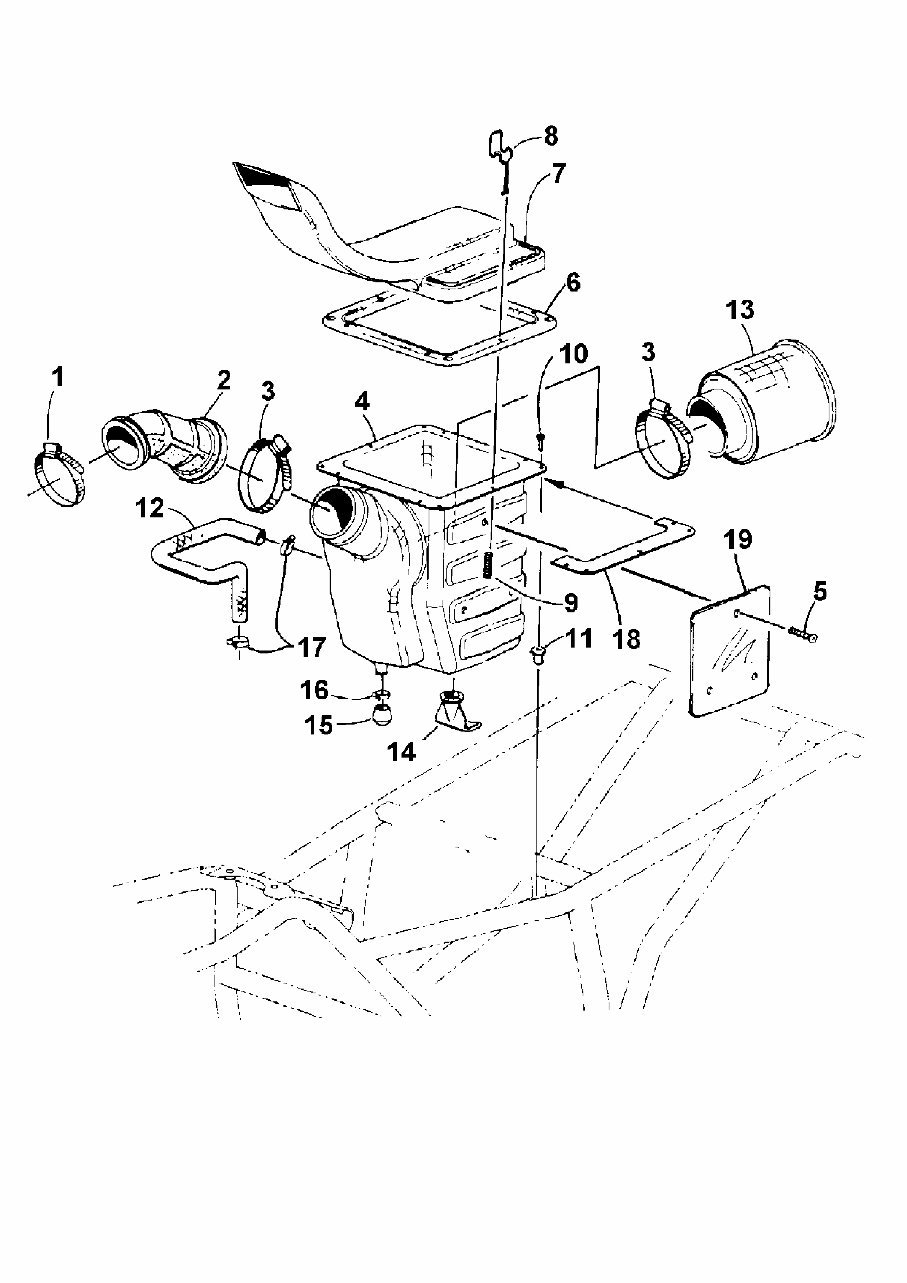

AIR INTAKE ASSEMBLY
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 2](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/2/2.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 2 of 90
AIR INTAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0423-019 Clamp 1
2 0470-382 Boot, Air Cleaner 1
3 0423-018 Clamp 2
4 0470-384 Housing, Air Cleaner 1
5 0623-301 Screw, Self-Tapping 3 /P
6 0470-343 Gasket, Air Cleaner 1
7 0470-383 Snorkel, Air Cleaner 1 /P
8 0470-307 Clamp, Air Cleaner 4
9 0423-037 Spring, Air Cleaner 4
10 0623-121 Screw, Machine 3
11 0123-010 Nut, Expansion 3 /P
12 0410-023 Hose, Crankcase Vent 1
13 0470-391 Filter, Air Cleaner 1 /P
14 0470-309 Valve, Air Cleaner 1 S
15 1673-272 Cap, Fitting - Air Cleaner 1 /P
16 0423-047 Clamp, Hose 1
17 0423-045 Clamp, Hose - Spring 2
18 0470-351 Support, Air Cleaner Flange 2
19 0406-540 Plate, Heat - Air Intake 1
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 3](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/3/3.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 3 of 90

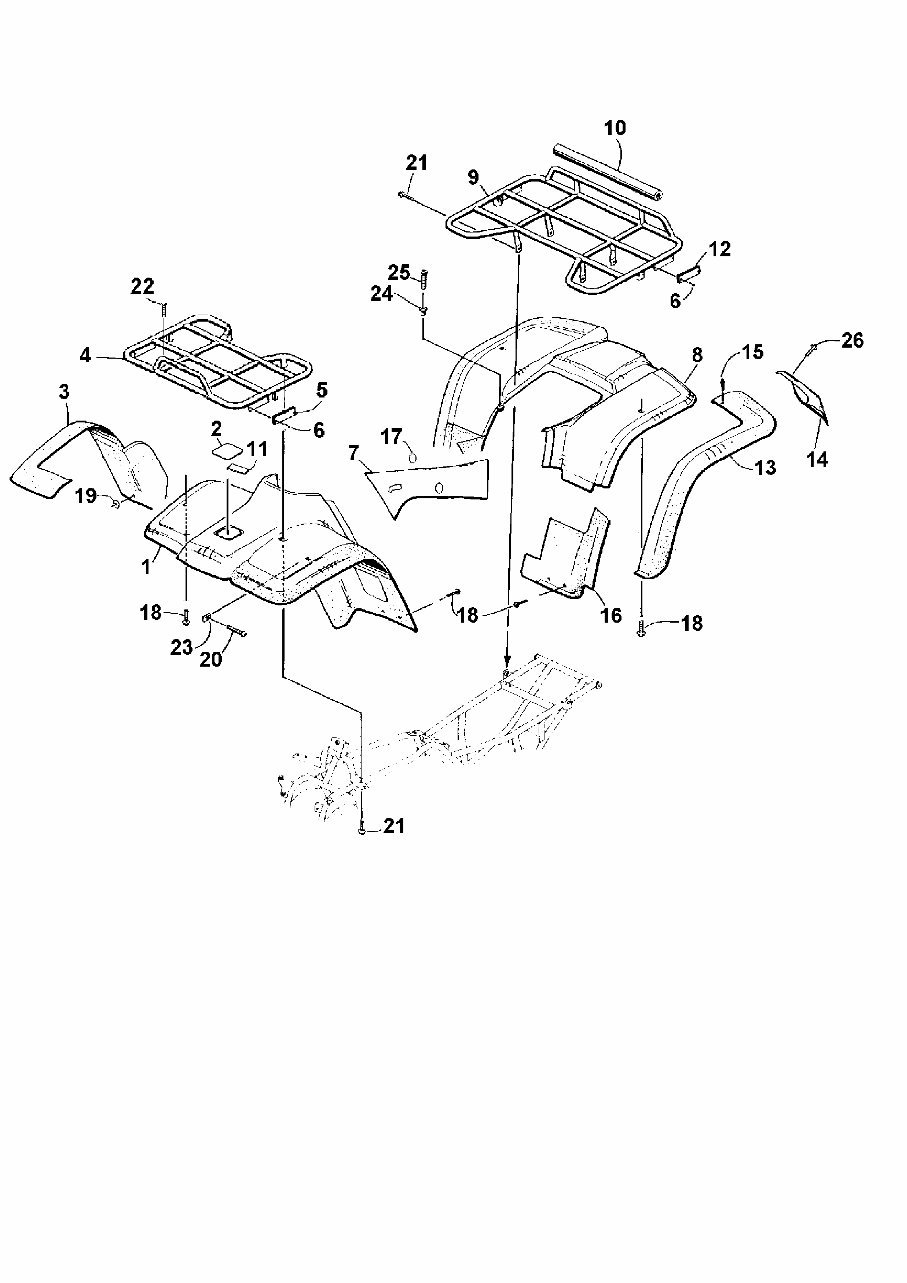

BODY PANEL ASSEMBLY
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 4](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/4/4.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 4 of 90
BODY PANEL ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0506-406 Panel, Fender - Front (Red) 1 /P
1 0506-405 Panel, Fender - Front (Green) 1 /P
2 0506-153 Cover, Access (Red) 1 S
2 0506-145 Cover, Access (Green) 1 S
3 0506-342 Flare, Front - Right 1
3 0506-343 Flare, Front - Left 1
4 0506-407 Rack - Front 1
5 0606-526 Reflector, Front - Yellow 2
6 0623-269 Clip, Retaining 8
7 0506-370 Panel, Side - Right (Red) 1
7 0506-243 Panel, Side - Left (Red) 1
7 0506-372 Panel, Side - Right (Green) 1
7 0506-165 Panel, Side - Left (Green) 1
8 0506-258 Panel, Fender - Rear (Red) 1 /P
8 0506-302 Panel, Fender - Rear (Green) 1 /P
9 0506-482 Rack - Rear 1 S
10 0406-293 Wrap, Tube - Rear Rack 1
11 0417-002 Foam, Access Panel 1
12 0606-029 Reflector, Rear - Red 2
13 0406-082 Flare, Rear - Right 1
13 0406-083 Flare, Rear - Left 1
14 0406-558 Mud Flap - Right 1
14 0406-559 Mud Flap - Left 1
15 0423-046 Rivet, Plastic AR
16 0506-336 Fender Extension - Rear - Right 1
16 0506-337 Fender Extension - Rear - Left 1
17 0470-404 Grommet, Fuel Shut-Off Valve Knob 1
18 0423-101 Screw, Body AR
19 8424-602 Nut, Flange 1 /P
20 8477-616 Screw, Machine 2
21 8409-020 Screw, Cap 6 /P
22 8477-612 Screw, Machine 2
23 0423-031 Nut, Speed 2
24 0123-010 Nut, Expansion 2 /P
25 0423-068 Screw, Machine 2
26 0423-168 Rivet 8
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 5](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/5/5.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 5 of 90

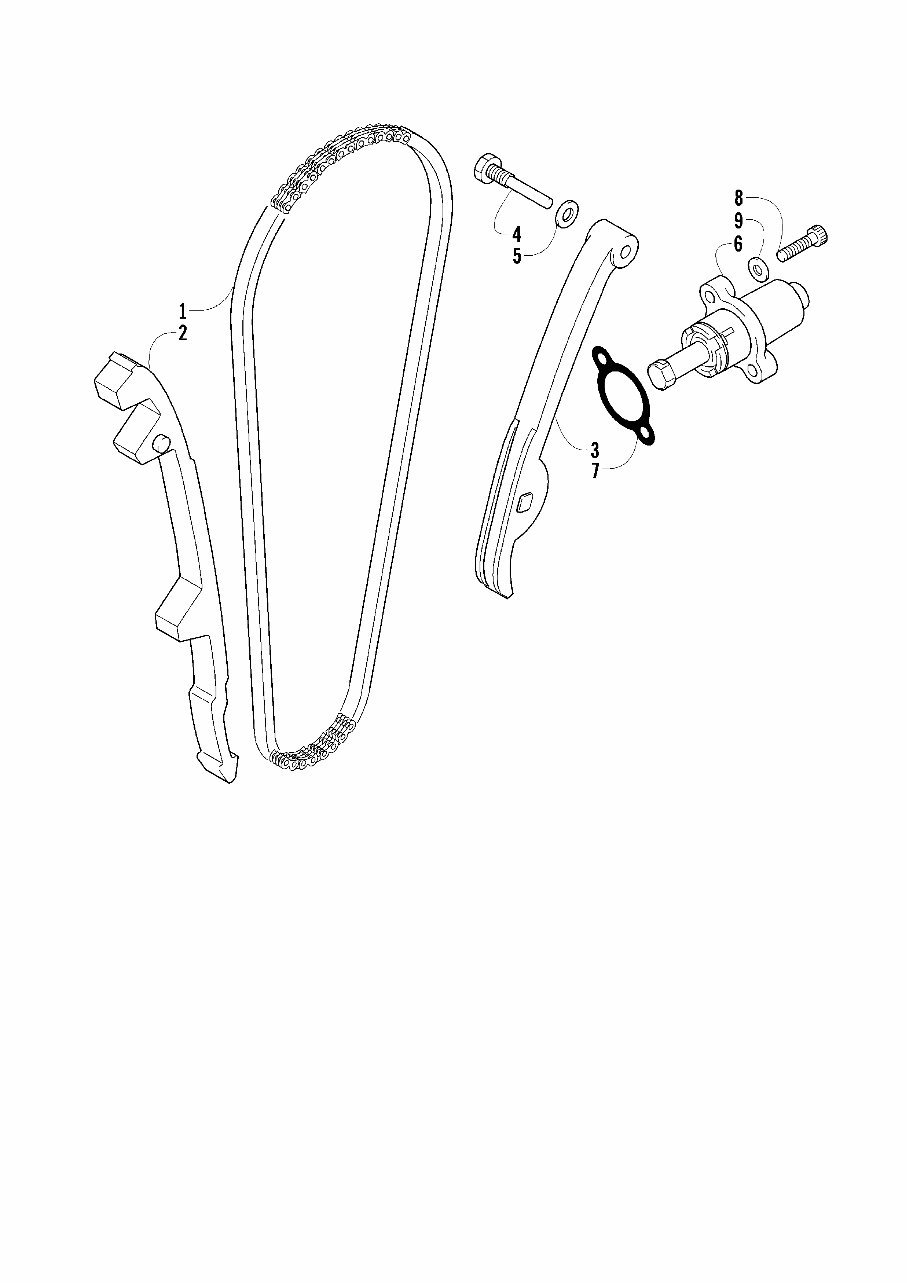

CAM CHAIN ASSEMBLY
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 6](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/6/6.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 6 of 90
CAM CHAIN ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-353 Chain, Cam 1
2 3402-355 Guide, Chain 1
3 3402-356 Tensioner, Chain 1
4 3423-074 Bolt 1
5 3003-188 Washer 1 S/P
6 3402-136 Adjuster, Tensioner - Assembly 1
7 3402-137 Gasket 1
8 3004-475 Bolt 2 S
9 3003-290 Gasket 2 /P
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 7](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/7/7.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 7 of 90

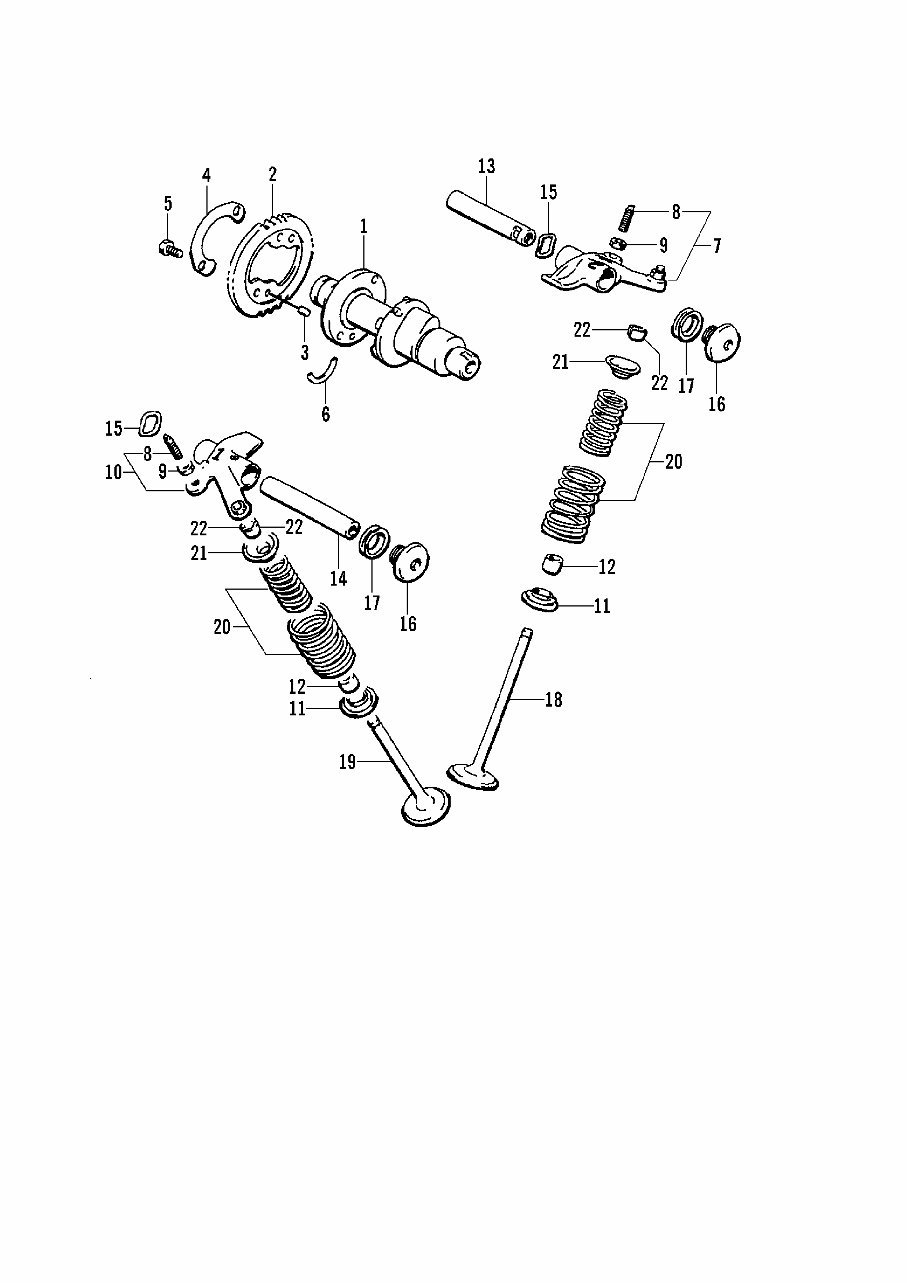

CAMSHAFT/VALVE ASSEMBLY
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 8](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/8/8.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 8 of 90
CAMSHAFT/VALVE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-027 Camshaft 1 S
2 3402-352 Sprocket 1
3 3423-047 Pin 1
4 3423-073 Washer 1
5 3423-013 Bolt 2 S
6 3423-071 C-Ring 1 /P
7 3402-138 Arm, Valve Rocker (inc. 8-9) 1 S
8 3423-075 Screw 4
9 3423-076 Nut 4
10 3402-139 Arm, Valve Rocker (inc. 8-9) 1
11 3402-148 Seat, Spring 4
12 3402-078 Seal, Oil 4
13 3402-140 Shaft, Rocker Arm 1
14 3402-141 Shaft, Rocker Arm 1
15 3423-031 Washer 2
16 3402-040 Plug, Shaft 2 /P
17 3402-012 Gasket 2
18 3402-142 Valve, Intake 2 S
19 3402-143 Valve, Exhaust 2
20 3402-144 Spring, Valve - Set 4
21 3402-146 Retainer, Spring 4 S
22 3402-147 Cotter, Valve 8
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 9](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/9/9.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 9 of 90

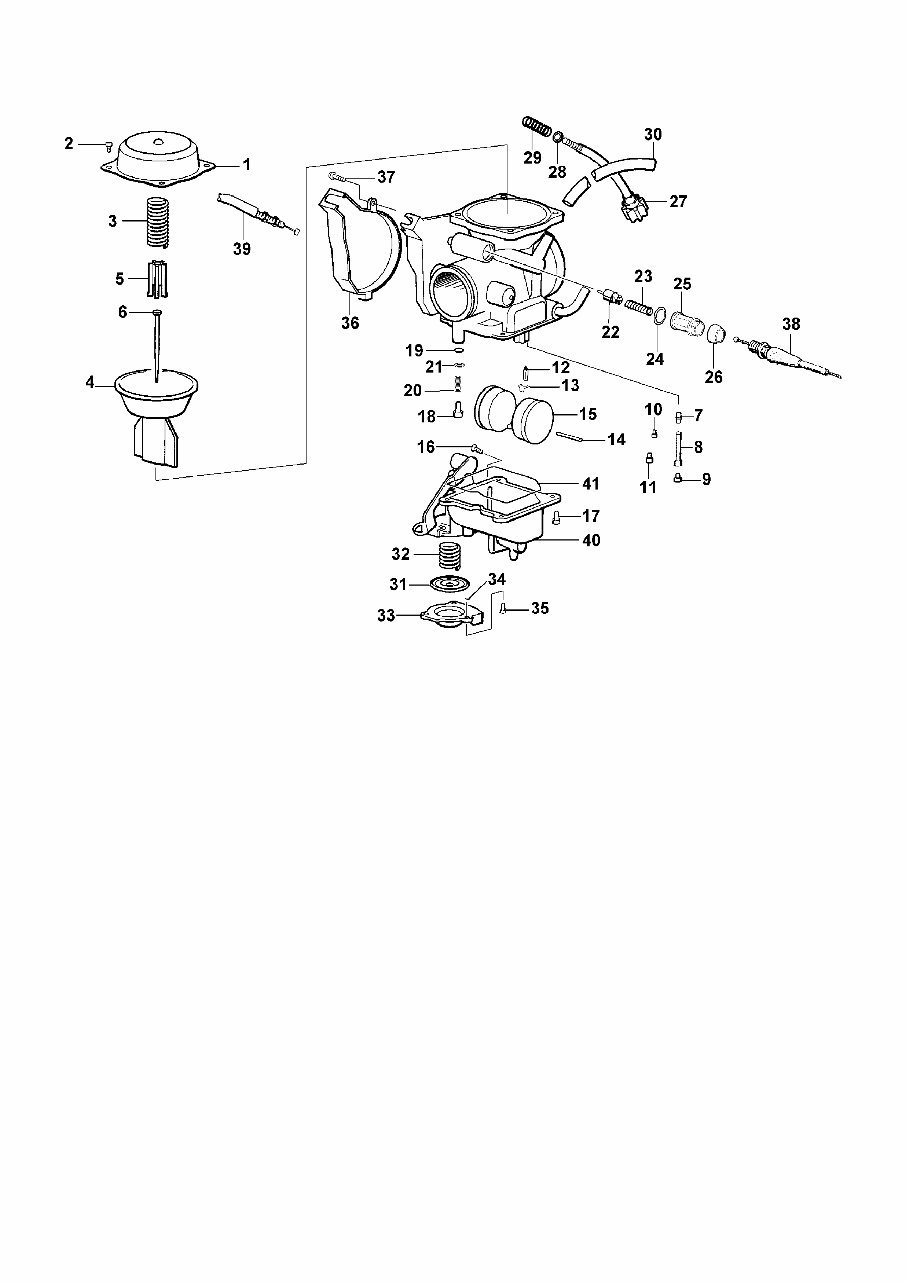

CARBURETOR
![Arctic Cat 2001 500 CC Automatic Transmission GREEN A2001ATM4BUSG [Parts Manual] preview img 10](https://cdn.static-repo.emanualonline.com/Other/DoneB/213495-Arctic_Cat_500cc_AT_Green_A2001_ATM4BUSG_Parts_Manual/10/10.jpg)
2001 500 CC AUTOMATIC TRANSMISSION (GREEN) (A2001ATM4BUSG) Page 10 of 90
CARBURETOR
Ref # Part Number Qty Description S/P/F
0470-433 Complete Assembly 1 S
1 5507-001 Cover, Top 1
2 5507-002 Screw, Top Cover 4 /P
3 5507-066 Spring 1 /P
4 5507-004 Piston, Vacuum 1 /P
5 5507-005 Spring, Seat 1
6 5507-006 Jet Needle 1
7 5507-007 Needle Jet 1
8 5507-047 Holder, Needle Jet 1 /P
9 5507-042 Main Jet 145 1 /P
9 5507-009 Main Jet 150 1 /P/F
9 5507-041 Main Jet 148 1 F
9 5507-043 Main Jet 142 1 F
9 5507-044 Main Jet 140 1 F
10 5507-010 Slow Jet 1 S
11 5507-011 Starter Jet - 102 1
12 5507-038 Valve, Float - Set (inc. 13) 1
13 0 Clip 1 F
14 0 Pin, Float 1 F
15 5507-039 Float Set (inc. 14) 1
16 5507-050 Screw, Drain 1 /P
17 5507-017 Screw 4 /P
18 5507-040 Screw, Pilot Air - Set (inc. 19-21) 1
19 0 O-Ring 1 F
20 0 Spring 1 F
21 0 Washer 1 F
22 5507-022 Valve, Starter 1
23 5507-023 Spring 1
24 5507-024 O-Ring 1
25 5507-025 Cap 1
26 5507-026 Cap, Rubber 1
27 5507-027 Screw, Stop 1
28 5507-028 Washer 1
29 5507-029 Spring 1
30 5507-030 Tube, Vinyl 1 /P
31 5507-031 Diaphragm Assembly 1 S
32 5507-032 Spring 1
33 0 Housing, Pump 1 F
34 5507-034 U-Ring 1
35 5507-035 Screw 3
36 5507-036 Cover 1
37 5507-037 Screw 1 /P
38 0487-016 Cable, Choke 1
39 0487-021 Cable, Throttle 1 S
40 0 Chamber, Float - Assembly (inc. 16, 31-35,
and 41)
1 F
41 5507-067 O-Ring, Float Chamber 1 /P
