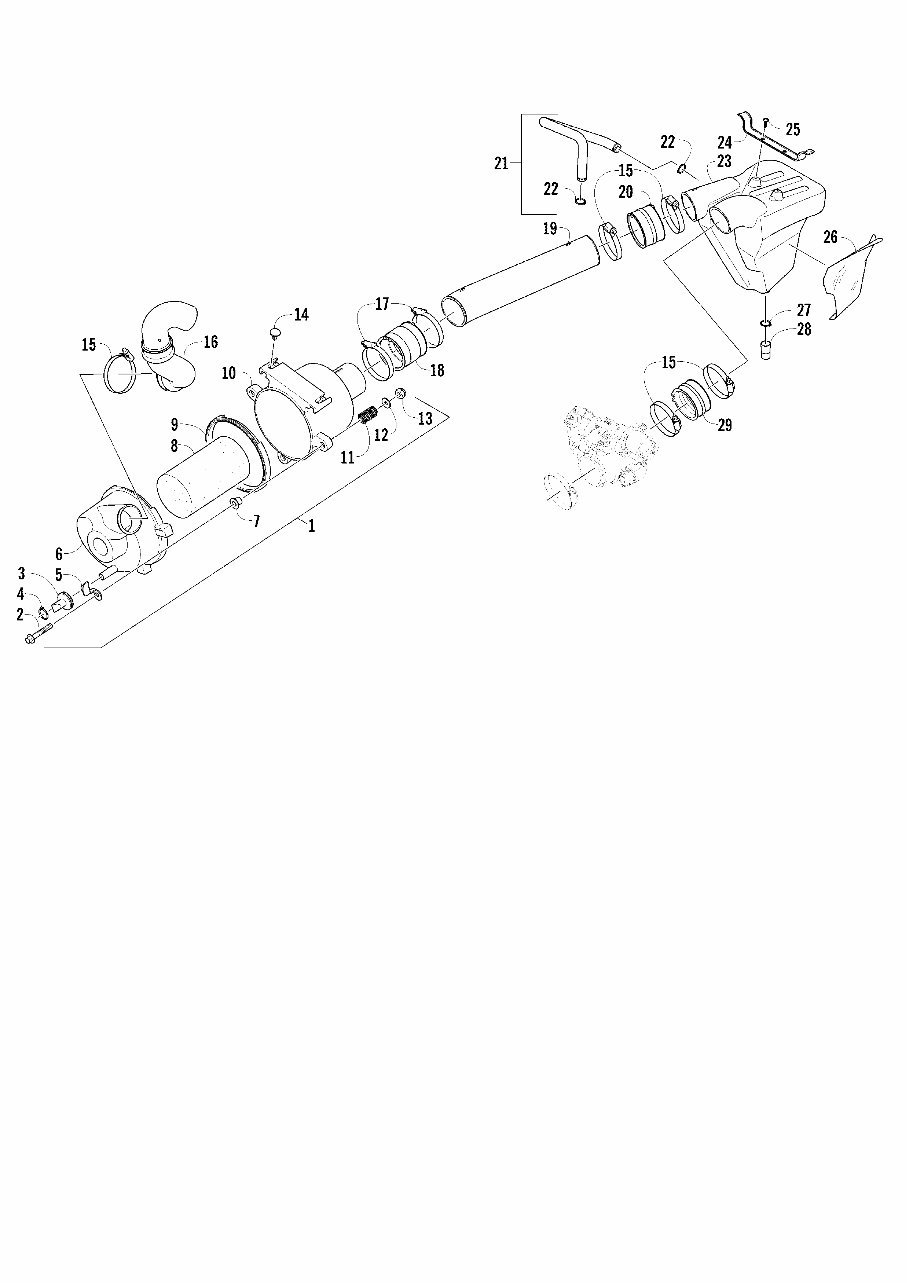

2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 1 of 72
AIR INTAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 2](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/2/2.jpg)
2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 2 of 72
AIR INTAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3313-395 Filter, Air - Assembly (inc. 2-13) 1
2 8408-850 Screw, Cap 3
3 0470-442 Valve, Drain 1 /P
4 3313-705 Clamp 1
5 3313-375 Latch 3
6 3313-376 Cover, Air Filter 1
7 3313-853 Spacer 3
8 3313-378 Element, Air Filter 1
9 3313-446 Gasket, Air Filter 1
10 3313-377 Housing, Air Filter 1
11 0402-678 Spring 3 /P
12 8050-222 Washer 3 /P
13 3303-269 Nut, Lock 3
14 3305-448 Clip, Retaining 2
15 0423-380 Clamp 5 /P
16 3313-816 Boot, Air Intake 1
17 3313-817 Clamp 2
18 3313-275 Boot, Air Intake 1
19 3313-063 Boot, Air Intake 1
20 3313-274 Boot, Air Intake 1
21 3313-397 Hose, Oil Catch (inc. 22) 1
22 3304-167 Clamp, Hose 2
23 3313-224 Housing, Air Intake 1
24 3313-356 Bracket, Mounting - Air Intake Housing 1
25 3304-409 Screw, Self-Tapping 2 /P
26 3313-362 Foil, Protective 1 /P
27 3313-706 Clamp 1
28 3313-543 Pipe, Drain 1
29 3306-309 Boot, Air Intake 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 3](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/3/3.jpg)

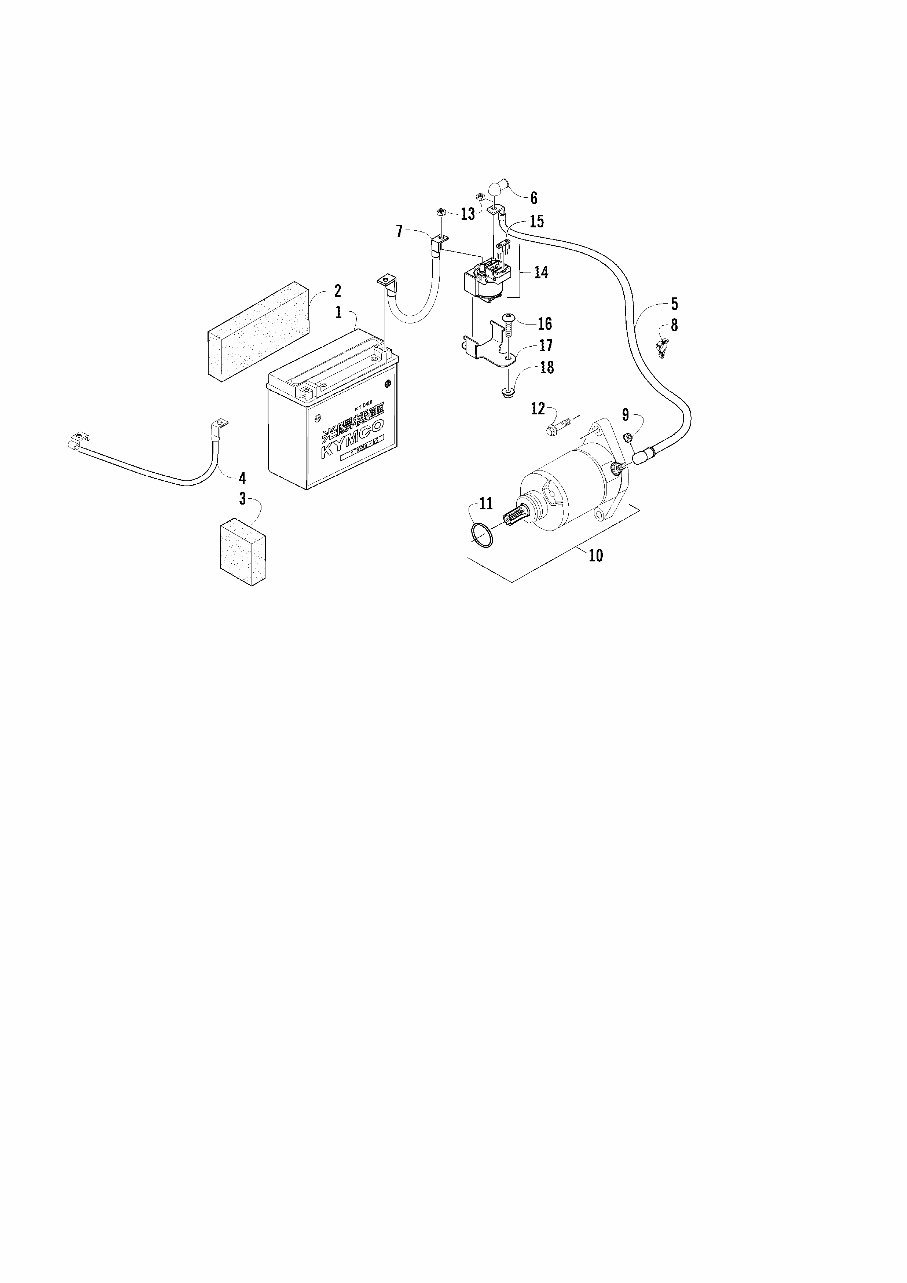

2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 3 of 72
BATTERY AND STARTER ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 4](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/4/4.jpg)
2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 4 of 72
BATTERY AND STARTER ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3306-301 Battery Assembly 1
2 3306-302 Pad, Foam 1
3 3306-303 Pad, Foam 1
4 3306-262 Cable, Ground 1
5 3313-527 Cable, Solenoid/Starter (inc. 6) 1
6 0 Boot, Terminal 1 F
7 3306-324 Cable, Battery/Solenoid 1
8 3306-364 Clamp, Routing 2
9 3304-011 Nut w/Washer 1
10 3305-954 Motor, Starter - Assembly (inc. 11) 1
11 3304-104 O-Ring 1
12 3305-946 Screw, Cap 2
13 3304-654 Nut, Lock 2 /P
14 3313-464 Solenoid (inc. 15) 1
15 3304-212 Fuse - 30 Amp 1
16 3305-703 Screw, Machine 2
17 3313-467 Bracket, Mounting - Solenoid 1
18 3304-431 Nut, Lock 2 /P
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 5](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/5/5.jpg)

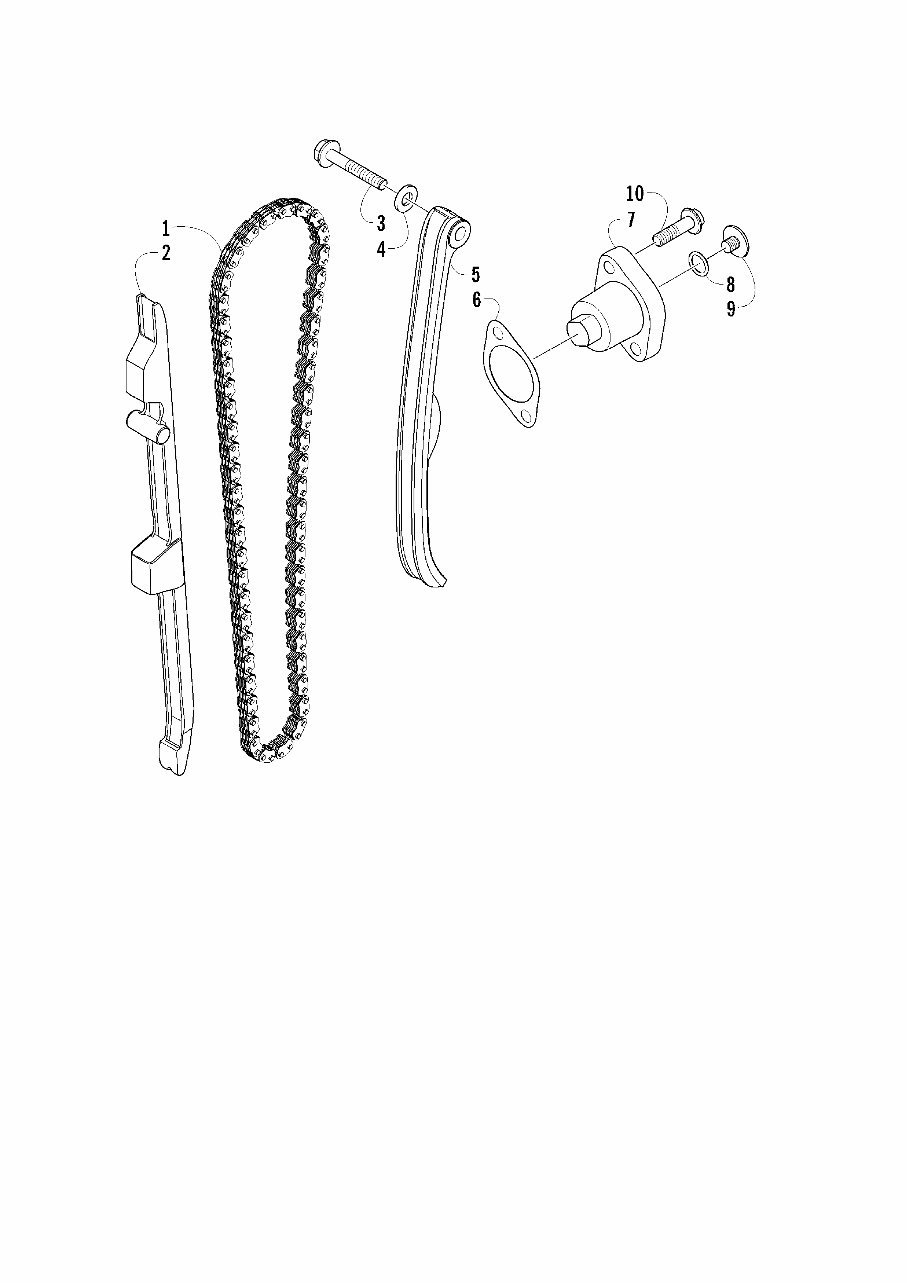

2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 5 of 72
CAM CHAIN ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 6](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/6/6.jpg)
2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 6 of 72
CAM CHAIN ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0810-005 Chain, Cam 1
2 0810-068 Guide, Chain 1
3 0826-133 Pivot, Tensioner 1
4 0830-150 Washer 1
5 0810-007 Tensioner, Chain 1
6 3303-035 Gasket 1
7 3303-677 Adjuster, Tensioner - Assembly 1
8 3304-100 O-Ring 1 /P
9 3304-006 Screw, Adjuster 1
10 3303-360 Screw, Cap 2
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 7](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/7/7.jpg)

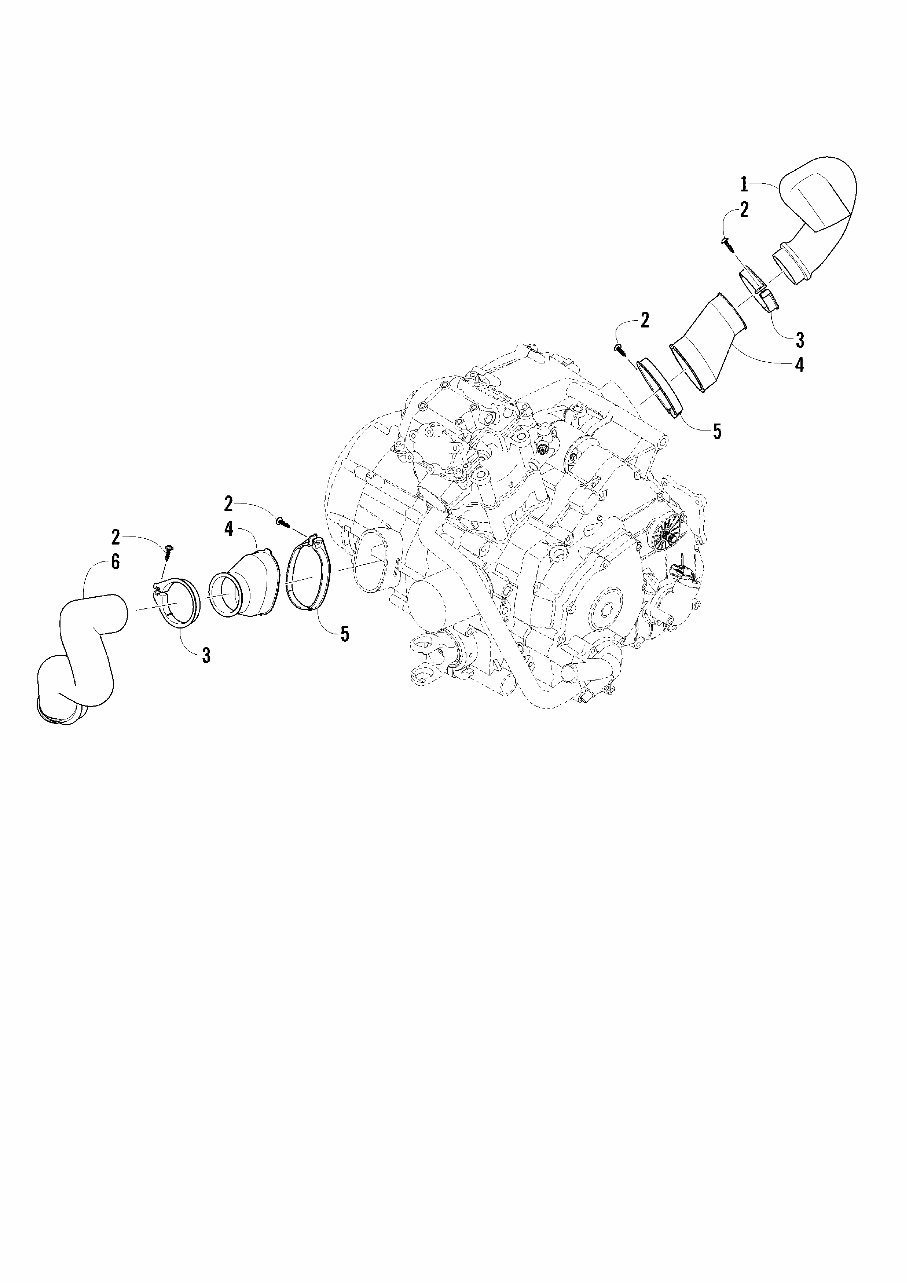

2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 7 of 72
CASE/BELT COOLING ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 8](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/8/8.jpg)
2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 8 of 72
CASE/BELT COOLING ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3313-064 Duct, Belt - Air Out 1
2 0423-342 Screw, Self-Tapping 4 /P
3 0423-551 Clamp 2
4 3313-782 Boot, Duct 2
5 0423-550 Clamp 2
6 3313-065 Duct, Belt - Air In 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 9](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/9/9.jpg)

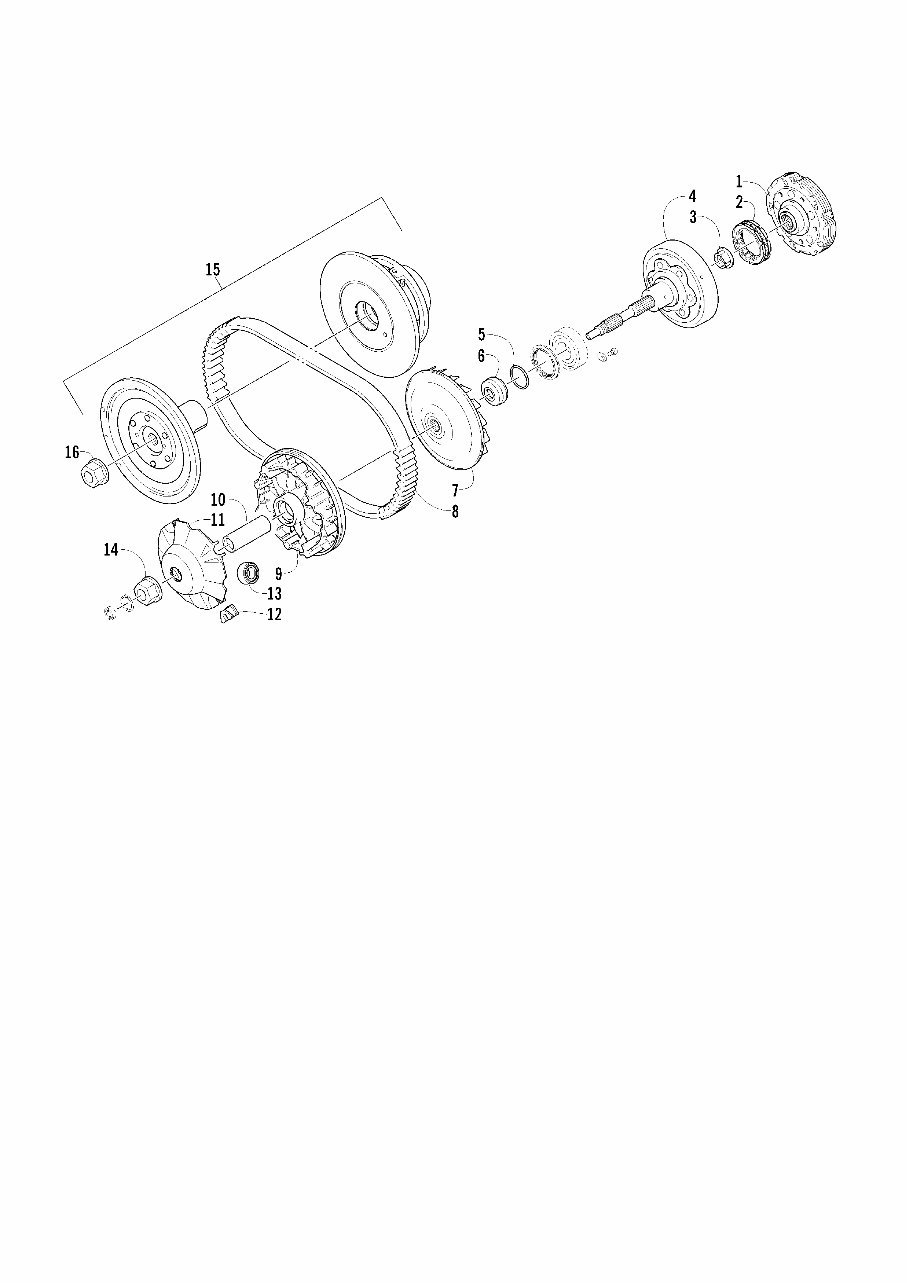

2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 9 of 72
CLUTCH AND DRIVE BELT ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2012 ATV 425 CR GREEN A2012IRK4CUSG [Parts Manual] preview img 10](https://cdn.static-repo.emanualonline.com/Other/NASa/25/380627-Arctic_Cat_A2012IRK4CUSG_2012_EPC/10/10.jpg)
2012 ATV 425 CR GREEN (A2012IRK4CUSG) Page 10 of 72
CLUTCH AND DRIVE BELT ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0823-328 Shoe, Clutch - Assembly 1
2 0823-198 Clutch, One-Way 1
3 0827-050 Nut 1
4 0823-338 Housing, Clutch 1
5 0470-531 O-Ring 1
6 0823-058 Spacer 1
7 0823-313 Face, Fixed Drive 1
8 0823-228 Belt, Drive 1
9 0823-324 Face, Movable Drive 1
10 0823-206 Spacer, Movable Drive Face 1
11 0823-213 Plate, Movable Drive Face 1
12 0823-214 Damper, Movable Drive Face 4
13 0823-351 Roller, Movable Drive Face 8
14 3323-165 Nut 1 /P
15 0823-350 Clutch, Driven - Assembly 1
16 0827-058 Nut 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
