2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 1 of 93

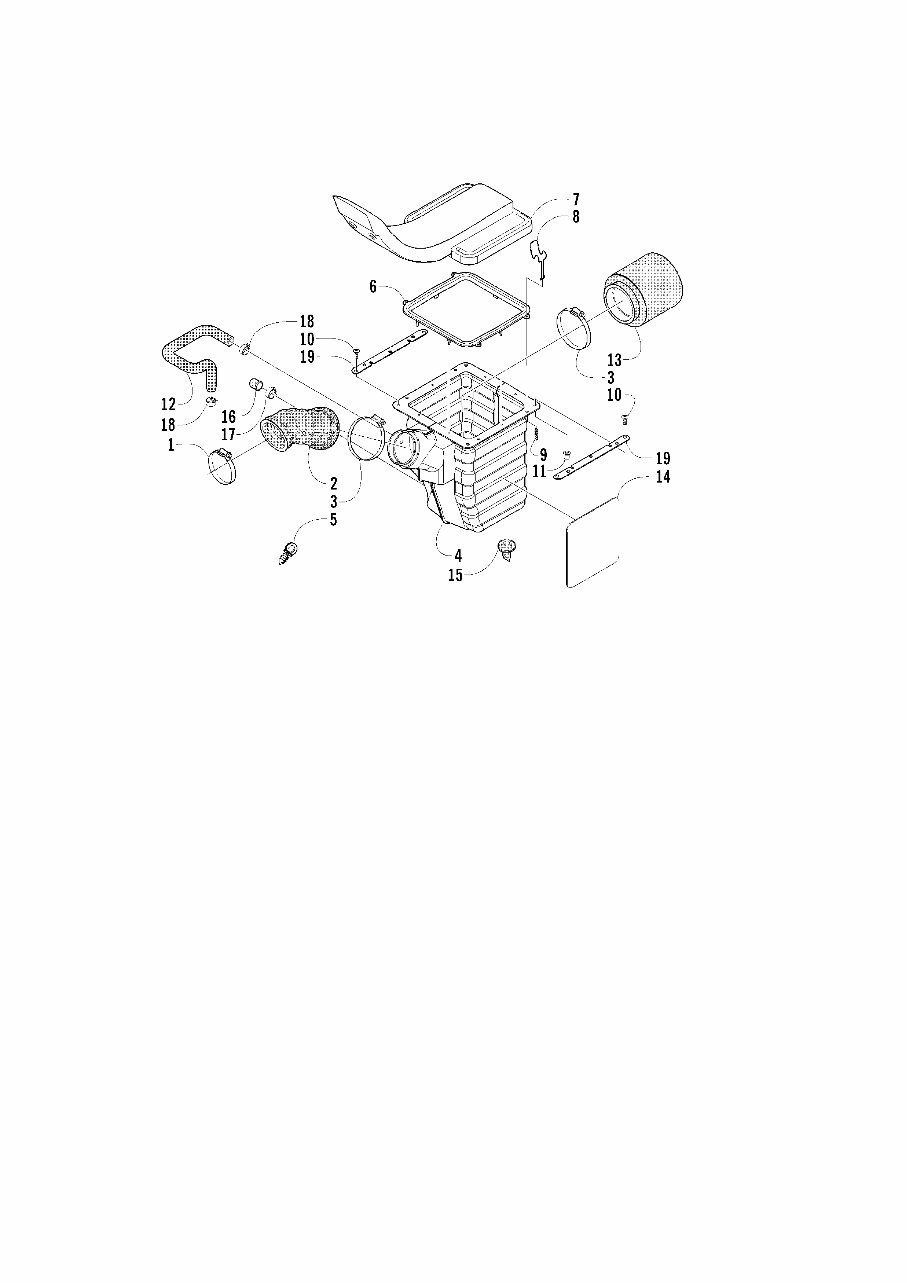

AIR INTAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 2 of 93
AIR INTAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0423-379 Clamp 1
2 0470-456 Boot, Air Intake 1
3 0423-018 Clamp 2
4 0470-446 Housing, Air Intake 1 /P
5 0623-101 Clip, Retaining 1
6 0470-343 Gasket 1
7 0470-383 Snorkel 1 /P
8 0470-307 Clamp 4
9 0423-037 Spring 4
10 0623-121 Screw, Machine 4
11 0123-010 Nut, Expansion 4 /P
12 0410-045 Hose, Crankcase Vent 1
13 0470-391 Filter, Air 1 /P
14 0412-141 Shield, Heat 1
15 0470-442 Valve, Drain 1 /P
16 1673-272 Cap, Drain Tube 1 /P
17 0423-047 Clamp, Hose 1
18 0423-045 Clamp, Hose 2
19 0470-351 Support, Air Intake Flange 2
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 3 of 93

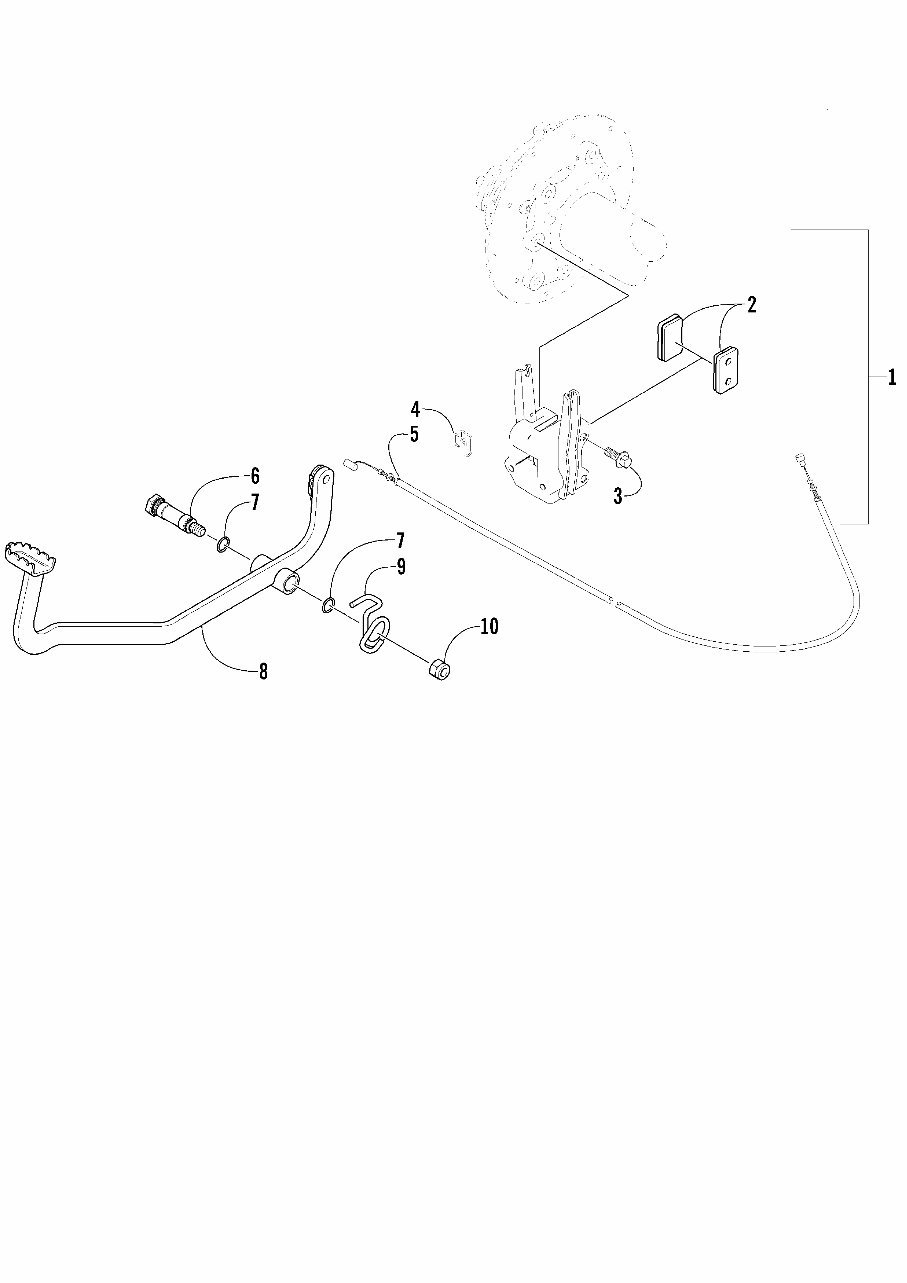

AUXILIARY BRAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 4 of 93
AUXILIARY BRAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0502-372 Auxiliary Brake Assembly (inc. 2) 1 /P
2 0402-958 Pad, Brake 2 /P
3 8408-820 Screw, Cap 2 /P
4 0402-379 Wire Form, Cable 1
5 0487-006 Cable, Brake - Rear 1
6 0402-872 Axle, Brake Lever 1
7 0423-096 O-Ring 2
8 0502-252 Lever, Brake 1
9 0502-395 Spring, Brake Lever 1 /P
10 8422-002 Nut 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 5 of 93

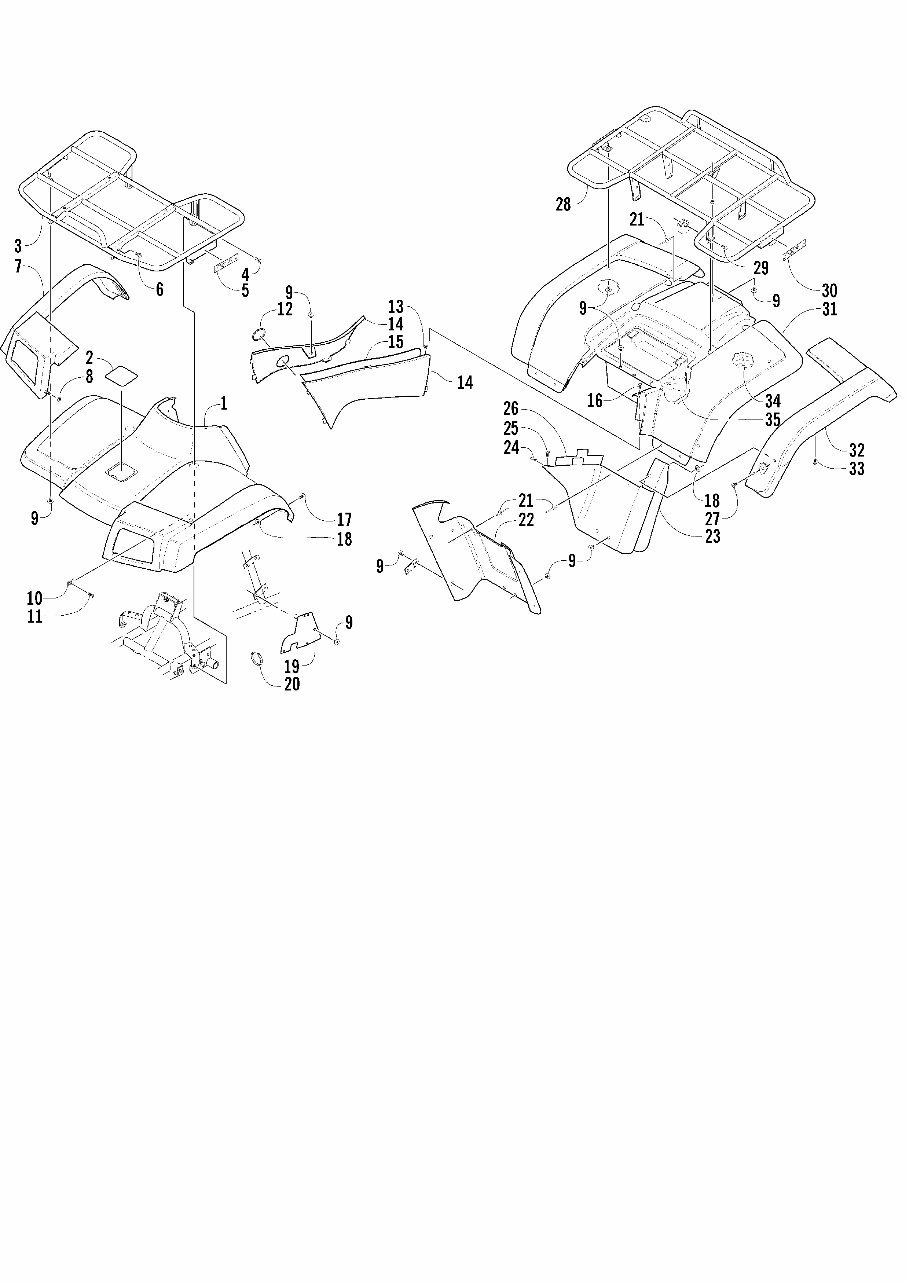

BODY PANEL ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 6 of 93
BODY PANEL ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0506-584 Panel, Fender - Front (inc. 2) 1
2 1406-141 Cover, Access 1 /P
3 0506-547 Rack - Front 1
4 8408-816 Screw, Cap 2
5 0411-646 Decal, Reflector - Amber 2
6 0423-360 Screw, Cap 2
7 0506-550 Flare - Front - Right 1
7 0506-551 Flare - Front - Left 1
8 0423-357 Nut, Stamped 2
9 0423-101 Screw, Body AR
10 0423-031 Nut, Speed 2
11 8477-616 Screw, Machine 2
12 0470-404 Grommet, Fuel Shut-Off Valve 1
13 0123-010 Nut, Expansion 2 /P
14 0506-549 Panel, Side - Right 1
14 0506-673 Panel, Side - Left 1
15 0412-142 Shield, Heat 1
16 0423-068 Screw, Machine 2
17 0423-356 Screw, Shoulder 2
18 0423-438 T-Nut w/Teeth 4
19 1406-006 Panel, Fender - Inner 2
20 0123-788 Cable Tie - 7.5 in. AR /P
21 0423-046 Rivet, Plastic AR
22 0506-625 Panel, Kick - Right 1
22 0506-626 Panel, Kick - Left 1
23 0406-084 Fender Extension - Rear - Right 1
23 0406-085 Fender Extension - Rear - Left 1
24 0423-060 Clip, Tinerman 2
25 0623-309 Screw, Self-Tapping 2
26 0412-140 Shield, Heat 1
27 0423-355 Screw, Shoulder 2
28 0506-821 Rack - Rear 1 /P
29 8409-020 Screw, Cap 4 /P
30 0411-647 Decal, Reflector - Red 2
31 0506-621 Panel, Fender - Rear 1
32 0506-552 Flare, Rear - Right 1
32 0506-553 Flare, Rear - Left 1
33 0423-342 Screw, Self-Tapping 12 /P
34 0412-124 Shield, Heat 1
35 0412-147 Shield, Heat 1
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 7 of 93

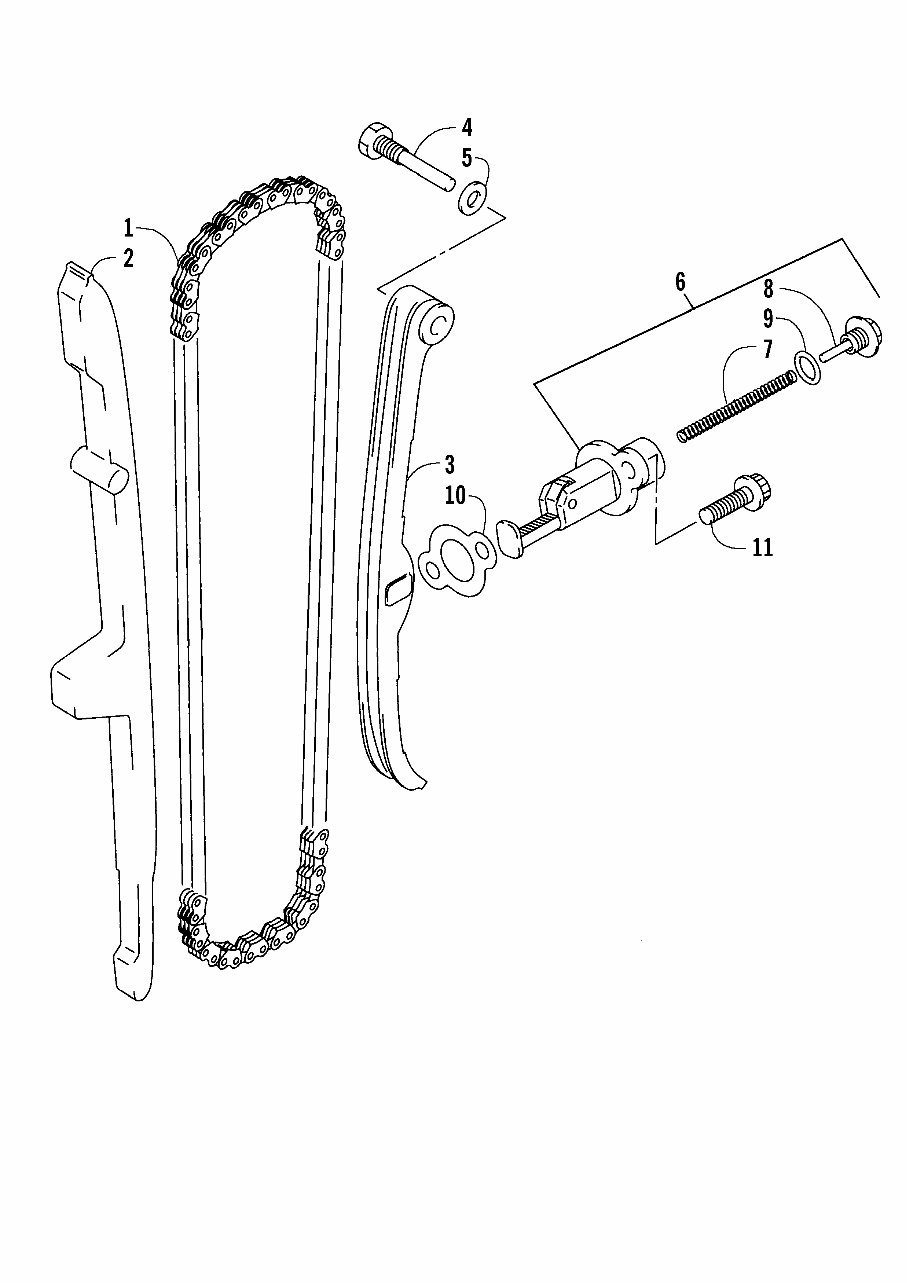

CAM CHAIN ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 8 of 93
CAM CHAIN ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-281 Chain, Cam 1
2 3402-612 Guide, Cam Chain 1
3 3402-613 Tensioner, Cam Chain 1
4 3423-074 Bolt 1
5 3003-188 Washer 1 S/P
6 3402-614 Adjuster, Tensioner - Assembly (inc. 7-9) 1
7 3423-484 Spring 1
8 3423-285 Plug 1
9 3423-286 O-Ring 1
10 3402-287 Gasket, Adjuster 1
11 3004-576 Bolt 2 S
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 9 of 93

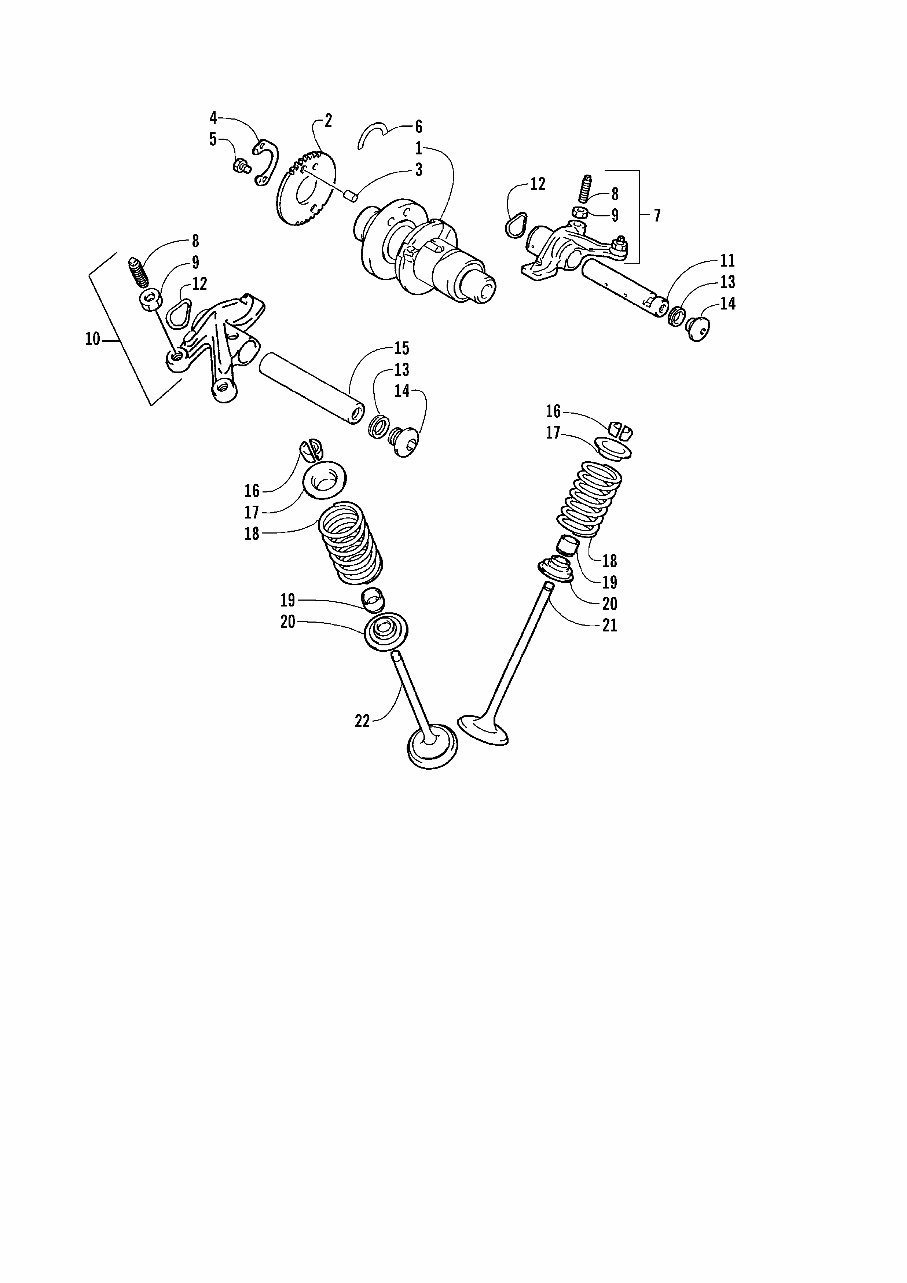

CAMSHAFT/VALVE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
2004 ATV 400 MANUAL TRANSMISSION 4X4 GREEN (A2004ATH4AUSG) Page 10 of 93
CAMSHAFT/VALVE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-609 Camshaft 1 S
2 3402-611 Sprocket 1
3 3423-047 Pin 1
4 3423-073 Washer 1
5 3423-013 Bolt 2 S
6 3423-071 C-Ring 1 /P
7 3402-532 Arm, Valve Rocker - Intake (inc. two No. 8-9) 1 S
8 3423-075 Screw 4
9 3423-076 Nut 4
10 3402-139 Arm, Valve Rocker - Exhaust (inc. two No.
8-9)
1
11 3402-140 Shaft, Rocker Arm 1
12 3423-031 Washer 2
13 3402-012 Gasket 2
14 3402-040 Plug, Shaft 2 /P
15 3402-141 Shaft, Rocker Arm 1
16 3402-147 Cotter, Valve 8
17 3402-146 Retainer, Spring 4 S
18 3402-726 Spring, Valve 4
19 3402-078 Seal, Oil 4
20 3402-148 Seat, Spring 4
21 3402-725 Valve, Intake 2 /P
22 3402-143 Valve, Exhaust 2
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
