![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual]](https://cdm.emanualonline.com/media/catalog/product/cache/3fba745dcec88e97bfe808bedc471260/3/7/377808-1.jpg "Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual]")
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 1](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/1/1.jpg)

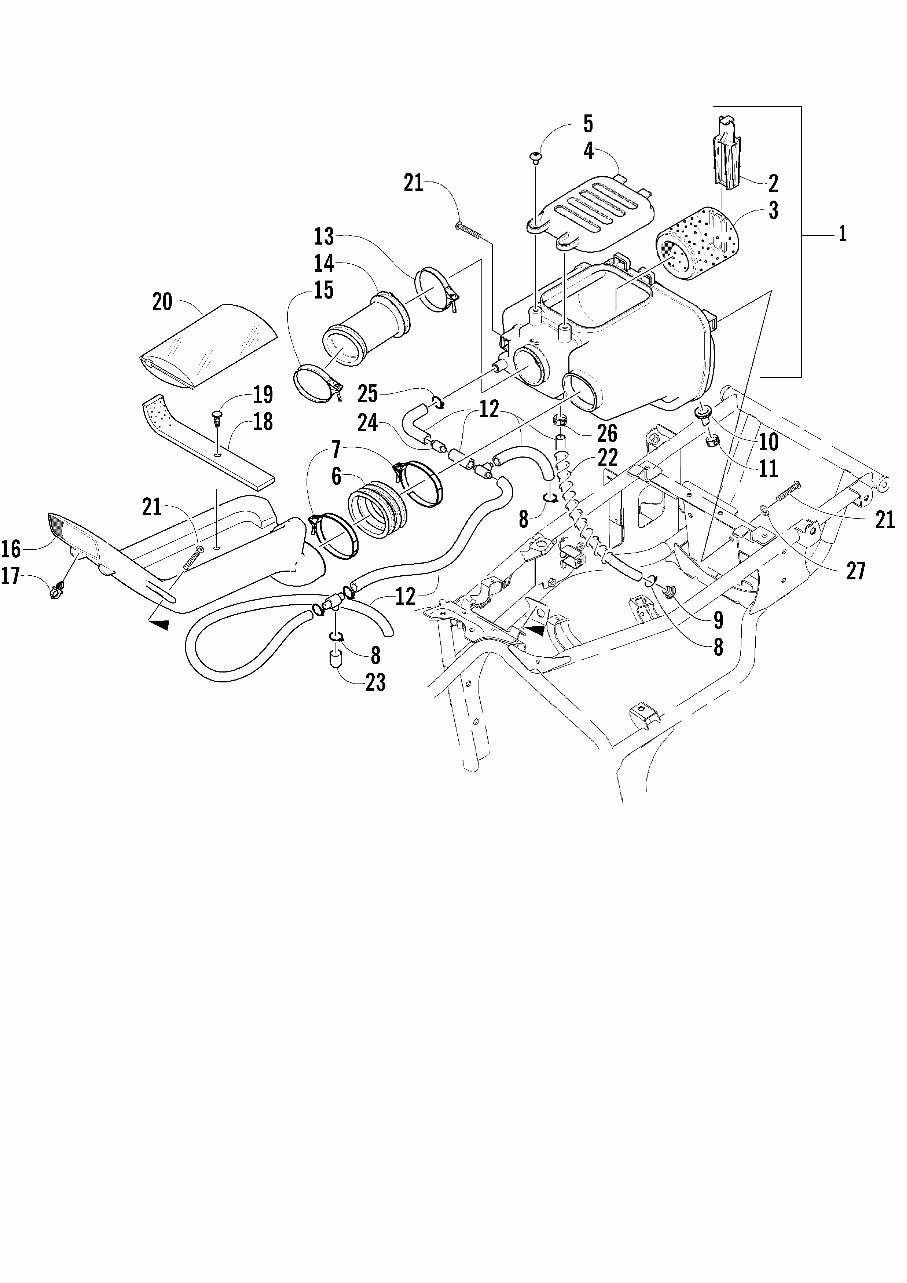

2005 ATV 300 RED (A2005ATF4AUSR) Page 1 of 90
AIR INTAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 2](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/2/2.jpg)
2005 ATV 300 RED (A2005ATF4AUSR) Page 2 of 90
AIR INTAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3570-001 Intake, Air - Assembly (inc. 2-7) 1 /P
2 3402-330 Slider, Retainer - Filter 1
3 0470-421 Filter, Air Cleaner 1
4 3402-331 Cap 1
5 8477-610 Screw, Cap 2
6 3423-329 Joint 1
7 3423-311 Clamp 2
8 3423-313 Clip 5
9 0423-127 Plug, Drain 1
10 0470-442 Valve, Air Cleaner 1 /P
11 0423-071 Clamp 1
12 3470-004 Tube, Crankcase Breather 1
13 3402-236 Clamp 1 /P
14 0470-347 Boot, Air Cleaner 1
15 0423-317 Clamp 1 /P
16 0570-062 Snorkel, Air Intake - Assembly (inc. 17-19) 1
17 0623-101 Clip, Routing 1
18 0406-379 Strap, Tool Kit 1 /P
19 0423-478 Plug, Hole - Retaining Clip 1
20 0444-122 Kit, Tool 1 S/P
21 8476-616 Screw, Cap 5
22 0423-128 Spring, Vent Tube 1
23 3402-334 Plug, Breather 1
24 3470-002 Valve, Check 1
25 3423-424 Clip, Air Cleaner 1
26 0423-047 Clamp 1
27 8053-212 Washer, Lock - External Tooth 1 /P
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 3](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/3/3.jpg)

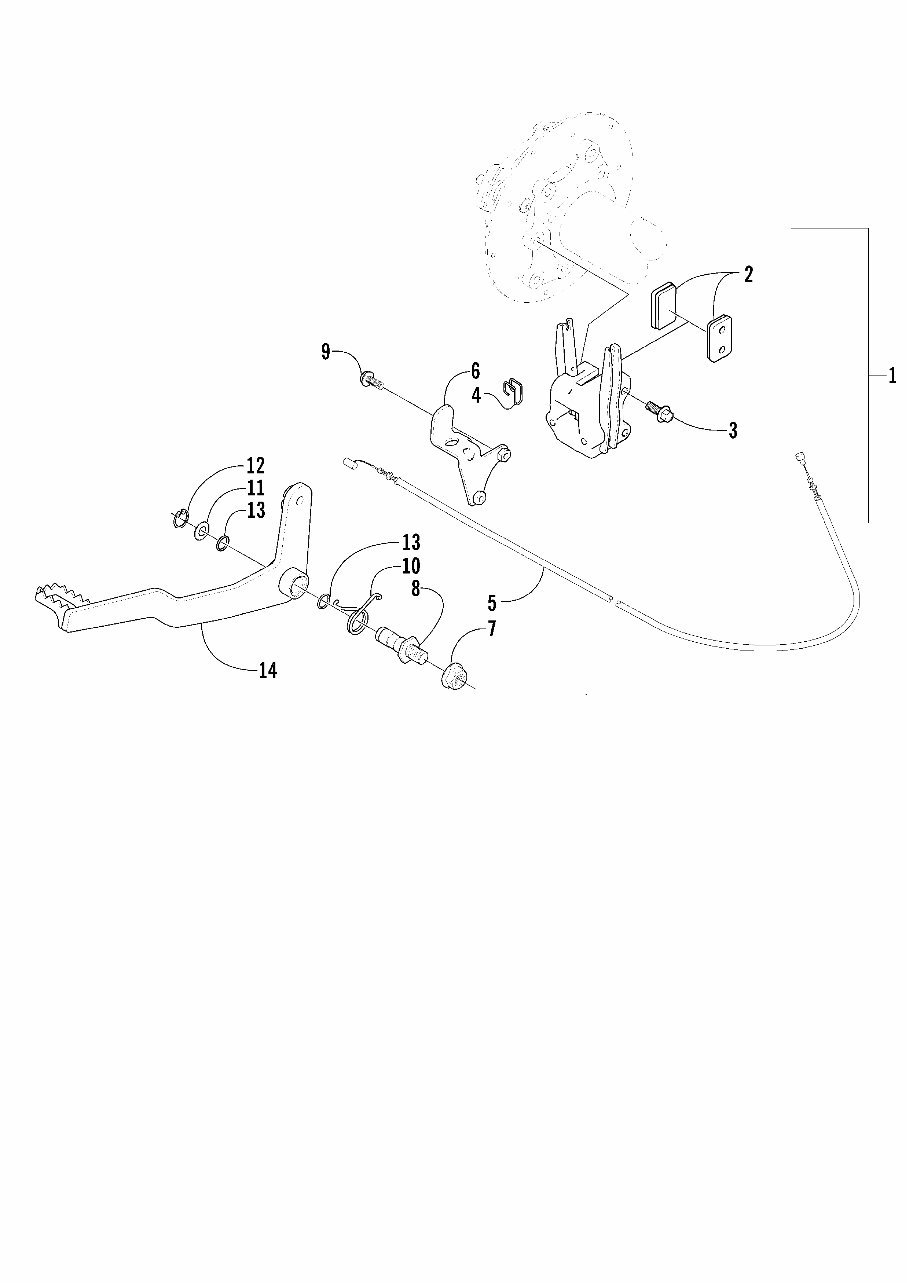

2005 ATV 300 RED (A2005ATF4AUSR) Page 3 of 90
AUXILIARY BRAKE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 4](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/4/4.jpg)
2005 ATV 300 RED (A2005ATF4AUSR) Page 4 of 90
AUXILIARY BRAKE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 0502-372 Auxiliary Brake Assembly (inc. 2) 1 /P
2 0402-958 Pad, Brake 2 /P
3 8408-825 Screw, Cap 2
4 0402-379 Wire Form, Cable 1
5 0487-010 Cable, Brake - Rear 1
6 0502-056 Bracket, Brake Switch 1
7 0423-165 Nut 1
8 0406-562 Axle, Brake Lever 1
9 8476-616 Screw, Cap 2
10 0502-409 Spring, Brake Lever 1 /P
11 0423-027 Washer, Brake Lever 1
12 0623-237 Ring, Snap 1 /P
13 0670-183 O-Ring 2
14 0502-095 Lever, Brake 1 /P
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 5](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/5/5.jpg)

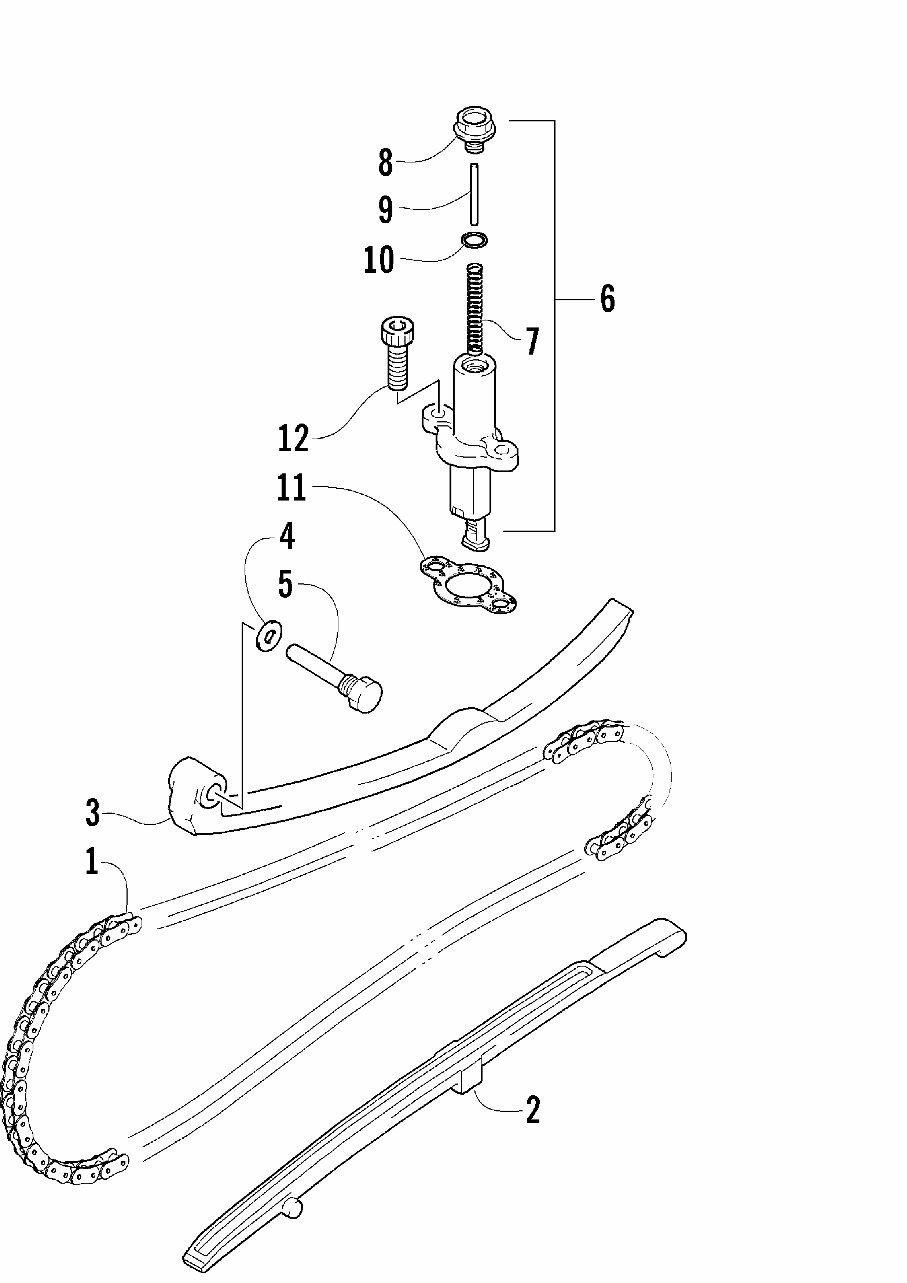

2005 ATV 300 RED (A2005ATF4AUSR) Page 5 of 90
CAM CHAIN ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 6](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/6/6.jpg)
2005 ATV 300 RED (A2005ATF4AUSR) Page 6 of 90
CAM CHAIN ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-281 Chain, Camshaft 1
2 3402-277 Guide, Camshaft Chain 1
3 3402-282 Tensioner, Camshaft Chain 1
4 3003-188 Washer 1 S/P
5 3423-074 Screw, Cap 1
6 3402-283 Adjuster, Tensioner - Assembly (inc. 7-10) 1
7 3402-284 Spring 1
8 3402-285 Plug 1
9 3402-286 Bar 1
10 3423-286 O-Ring 1
11 3402-287 Gasket, Adjuster 1
12 3004-576 Screw, Cap 2 S
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 7](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/7/7.jpg)

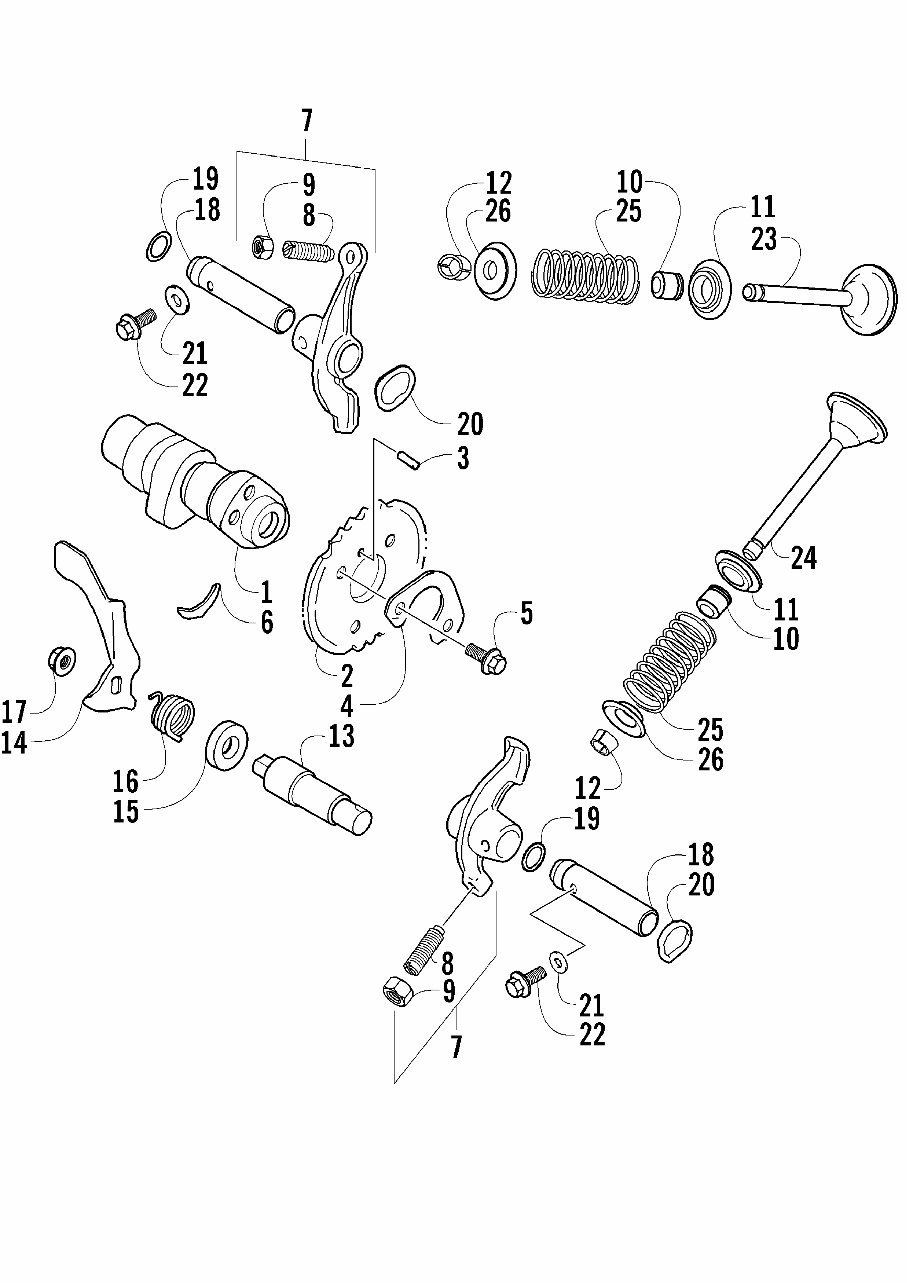

2005 ATV 300 RED (A2005ATF4AUSR) Page 7 of 90
CAMSHAFT/VALVE ASSEMBLY
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 8](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/8/8.jpg)
2005 ATV 300 RED (A2005ATF4AUSR) Page 8 of 90
CAMSHAFT/VALVE ASSEMBLY
Ref # Part Number Qty Description S/P/F
1 3402-275 Camshaft 1
2 3402-545 Sprocket 1 /P
3 3423-047 Pin 1
4 3423-284 Washer 1 S
5 3423-013 Screw 2 S
6 3423-071 C-Ring 1 /P
7 3402-288 Arm, Valve Rocker (inc. 8-9) 2
8 3423-287 Screw, Cap 2
9 3423-288 Nut 2
10 3402-226 Seal, Oil 2
11 3402-294 Seat, Valve Spring 2
12 0693-281 Cotter, Valve 4 /P
13 3402-295 Shaft, Decompression Lever 1
14 3402-296 Lever, Decompression 1
15 3402-225 Seal, Oil 1
16 3402-242 Spring 1
17 3004-326 Nut 1 S/P
18 3402-289 Shaft, Rocker Arm 2
19 3423-052 O-Ring 2
20 3423-259 Washer 2
21 3003-290 Gasket 2 /P
22 0693-416 Screw, Cap 2
23 3402-290 Valve, Intake 1
24 3402-291 Valve, Exhaust 1
25 3402-292 Spring, Valve - Set 2
26 3402-293 Retainer, Spring 2 S
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 9](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/9/9.jpg)

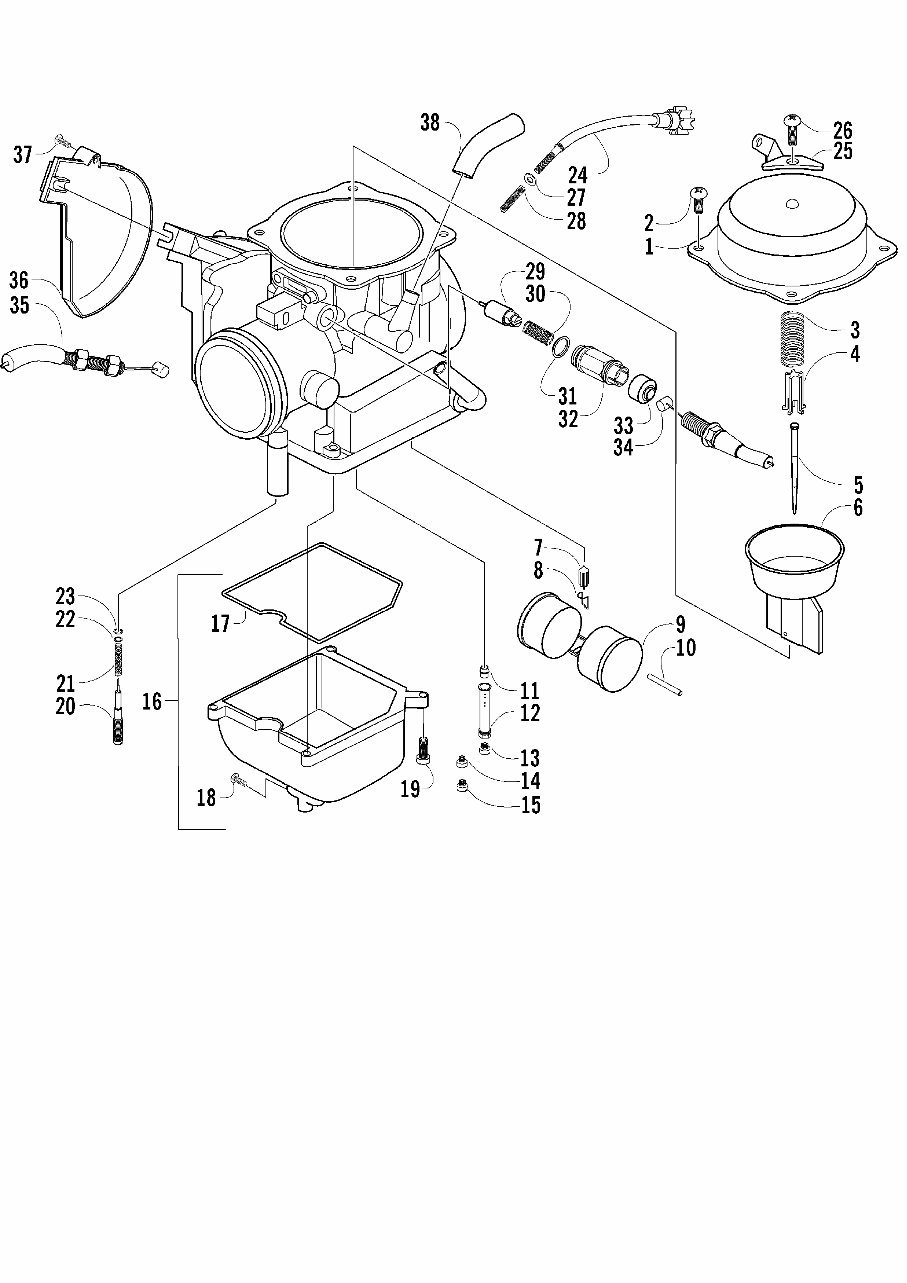

2005 ATV 300 RED (A2005ATF4AUSR) Page 9 of 90
CARBURETOR
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
![Arctic Cat 2005 ATV 300 RED A2005ATF4AUSR [Parts Manual] preview img 10](https://cdn.static-repo.emanualonline.com/Other/NASa/25/377808-Arctic_Cat_300_RED_A2005ATF4AUSR_2005_EPC/10/10.jpg)
2005 ATV 300 RED (A2005ATF4AUSR) Page 10 of 90
CARBURETOR
Ref # Part Number Qty Description S/P/F
0470-448 Complete Carburetor Assembly 1 /P
1 5507-001 Cover, Top 1
2 5507-002 Screw, Top Cover 3 /P
3 5507-052 Spring 1
4 5507-054 Seat, Spring 1
5 5507-055 Jet Needle 1
6 5507-053 Piston, Vacuum 1
7 5507-038 Valve, Float - Set (inc. 8) 1
8 0 Clip 1 F
9 5507-039 Float Set (inc. 10) 1
10 0 Pin, Float 1 F
11 5507-056 Needle Jet 1
12 5507-047 Holder, Needle Jet 1 /P
13 5507-057 Main Jet - 135 1 /P
13 5507-088 Main Jet - 138** 1 S
13 5507-041 Main Jet - 147** 1
13 5507-042 Main Jet - 145** 1 /P
13 5507-043 Main Jet - 142** 1
13 5507-044 Main Jet - 140** 1
13 5507-009 Main Jet - 150** 1 /P
14 5507-010 Slow Jet 1 S
15 5507-058 Starter Jet - 65 1
16 5507-064 Chamber, Float - Assembly (inc. 17-18) 1
17 5507-068 O-Ring, Float Chamber 1
18 5507-050 Plug, Drain 1 /P
19 5507-017 Screw 4 /P
20 5507-040 Screw, Pilot Air - Set (inc. 21-23) 1
21 0 Spring 1 F
22 0 Washer 1 F
23 0 O-Ring 1 F
24 5507-059 Screw, Idle Adjust (inc. 25) 1
25 0 Bracket, Idle Adjust Screw 1 F
26 5507-035 Screw 1
27 5507-028 Washer 1
28 5507-029 Spring 1
29 5507-022 Valve, Starter 1
30 5507-023 Spring 1
31 5507-024 O-Ring 1
32 5507-025 Cap 1
33 5507-026 Cap, Rubber 1
34 0487-017 Cable, Choke 1
35 0487-019 Cable, Throttle 1
36 5507-036 Cover 1
37 5507-037 Screw 1 /P
38 5507-083 Tube, Vinyl 1 /P
For Arctic Cat Discount Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
