FOREWORD This Arctic Cat Service Manual contains service, maintenance, and troubleshooting information for the 2011 Arctic Cat ATV 300 Utility/DVX 300. This manual is designed to aid service personnel in service-oriented applications. This manual is divided into sections. Each section covers a specific ATV component or system and, in addition to the standard service procedures, includes disassembling, inspecting, and assembling instructions. When using this manual as a guide, the technician should use discretion as to how much disassembly is needed to correct any given condition. The service technician should become familiar with the operation and construction of each component or system by carefully studying this manual. This manual will assist the service technician in becoming more aware of and efficient with servicing procedures. Such efficiency not only helps build consumer confidence but also saves time and labor. All Arctic Cat ATV publications and decals display the words Warning, Caution, Note, and At This Point to emphasize important information. The symbol ! WARNING identifies personal safety-related information. Be sure to follow the directive because it deals with the possibility of severe personal injury or even death. A CAUTION identifies unsafe practices which may result in ATV-related damage. Follow the directive because it deals with the possibility of damaging part or parts of the ATV. The symbol  NOTE: identifies supplementary information worthy of particular attention. The symbol  AT THIS POINT directs the technician to certain and specific procedures to promote efficiency and to improve clarity. At the time of publication, all information, photographs, and illustrations were technically correct. Some photographs used in this manual are used for clarity purposes only and are not designed to depict actual conditions. Because Arctic Cat Inc. constantly refines and improves its products, no retroactive obligation is incurred. All materials and specifications are subject to change without notice. Keep this manual accessible in the shop area for reference. Product Service and Warranty Department Arctic Cat Inc. © 2010 Arctic Cat Inc. August 2010 ®™ Trademarks of Arctic Cat Inc., Thief River Falls, MN 56701 Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

2011 ATV Service Manual DVX 300 300 Utility TM SHARE OUR PASSION. 1 TABLE OF CONTENTS General Information ........................................................... 2 Oil Flow Chart ............................................................. 69 General Specifications .................................................. 2 Oil Pump ..................................................................... 69 Torque Specifications.................................................... 2 Liquid Cooling System ................................................ 69 Torque Conversions (ft-lb/N-m) ..................................... 3 Radiator ....................................................................... 69 Tightening Torque (General Bolts) ................................ 3 Hoses/Thermostat ....................................................... 70 Break-In Procedure ...................................................... 4 Fan .............................................................................. 71 Gasoline - Oil - Lubricant .............................................. 4 Water Pump ................................................................ 71 Genuine Parts ............................................................... 5 Troubleshooting ........................................................... 72 Preparation For Storage ............................................... 5 Electrical System.............................................................. 73 Preparation After Storage ............................................. 5 Specifications .............................................................. 73 Periodic Maintenance/Tune-Up ......................................... 7 RPM Limiter ................................................................ 73 Periodic Maintenance Chart ......................................... 7 Testing Electrical Components .................................... 73 Lubrication Points ......................................................... 8 Electrical Connections................................................. 73 Air Filter ........................................................................ 8 Switches ...................................................................... 73 Valve/Tappet Clearance ................................................ 9 Battery ......................................................................... 73 Testing Engine Compression ........................................ 9 Brakelight Switch (Auxiliary) ........................................ 74 Spark Plug .................................................................... 9 Brakelight Switch (Handlebar Control) ........................ 75 Muffler/Spark Arrester ................................................ 10 Coolant Temperature and Cooling Fan Switches ........ 75 Engine Oil - Filter ........................................................ 10 Fan Motor .................................................................... 75 Rear Drive Lubricant (Utility) ...................................... 11 Fuse Block................................................................... 76 Transmission Lubricant ............................................... 11 Fuses .......................................................................... 76 Drive Chain (DVX) ...................................................... 12 Ignition Coil ................................................................. 76 Driveshaft/Coupling (Utility) ........................................ 13 Indicator Lights (DVX) ................................................. 77 Nuts/Bolts/Cap Screws ............................................... 13 LCD Gauge Assembly ................................................. 77 Headlight/Taillight- Brakelight ..................................... 13 Ignition Switch ............................................................. 78 Shift Lever ................................................................... 13 Handlebar Control Switches........................................ 78 Hydraulic Brake Systems............................................ 14 Magneto Coils ............................................................. 79 Auxiliary/Rear Hydraulic Brake ................................... 16 Starter Motor ............................................................... 79 Burnishing Brake Pads ............................................... 18 Starter Relay ............................................................... 80 Checking/Replacing V-Belt ......................................... 18 CDI Unit ....................................................................... 80 Engine/Transmission ....................................................... 20 Regulator/Rectifier ...................................................... 80 Specifications ............................................................. 20 Start-in-Gear Relay ..................................................... 80 Removing Engine/ Transmission ................................ 21 Headlights ................................................................... 81 Top-Side Components ................................................ 26 Taillight - Brakelight ..................................................... 81 Removing Top-Side Components ............................... 26 Ignition Timing ............................................................. 81 Servicing Top-Side Components ................................ 28 Troubleshooting ........................................................... 82 Installing Top-Side Components ................................. 32 Drive System..................................................................... 84 Left-Side Components ................................................ 34 Rear Drive Assembly Schematics ............................... 84 Removing Left-Side Components ............................... 34 Rear Drive Axle (DVX)................................................. 84 Servicing Left-Side Components ................................ 35 Rear Drive Axle (Utility) ............................................... 87 Installing Left-Side Components................................. 41 Troubleshooting Drive System..................................... 96 Right-Side Components ............................................. 42 Troubleshooting Brake System.................................... 96 Removing Right-Side Components ............................ 42 Suspension ....................................................................... 97 Servicing Right-Side Components.............................. 48 Front and Rear Suspension Assembly Schematics .... 97 Installing Right-Side Components .............................. 54 Front Shock Absorbers ................................................ 97 Center Crankcase Components ................................. 54 Rear Shock Absorber .................................................. 98 Separating Crankcase Halves .................................... 54 Swing Arm................................................................... 99 Disassembling Crankcase Half ................................... 55 Front A-Arms ............................................................. 102 Servicing Center Crankcase Components ................. 55 Wheels and Tires ...................................................... 104 Assembling Crankcase Half ........................................ 56 Troubleshooting ......................................................... 105 Joining Crankcase Halves .......................................... 56 Steering/Frame ............................................................... 106 Installing Engine/Transmission ................................... 57 Steering Post/Tie Rods ............................................. 106 Troubleshooting .......................................................... 60 Measuring/Adjusting Toe-In/Toe-Out ......................... 108 Fuel/Lubrication/Cooling................................................. 63 Body .......................................................................... 108 Carburetor Specifications ........................................... 63 Steering Post Cover/Instrument Pod ......................... 111 Carburetor................................................................... 63 Troubleshooting ......................................................... 112 Throttle Cable Free-Play ............................................. 67 Controls/Indicators......................................................... 113 Engine RPM (Idle) ...................................................... 67 Front Brake Lever/Master Cylinder Assembly ........... 113 Gas Tank..................................................................... 68 Auxiliary Brake Pedal/Master Cylinder Assembly...... 114 Gas Tank Valve ........................................................... 68 Throttle Control ......................................................... 115 Gas/Vent Hoses .......................................................... 68 For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

2 General Information NOTE: Some photographs and illustrations used in this manual are used for clarity purposes only and are not designed to depict actual conditions. General Specifications Specifications subject to change without notice. Torque Specifications *w/Red Loctite #271 CHASSIS DVX Utility Dry Weight (approx) 177.3 kg (391 lb) 216 kg (477 lb) Length (overall) 171.9 cm (67.7 in.) 187 cm (73.6 in.) Height (overall) 113.5 cm (44.7 in.) 111.8 cm (44.0 in.) Width (overall) 113.5 cm (44.7 in.) 105.1 cm (41.40 in.) Suspension Travel (Front) (Rear) 15.5 cm (6.1 in.) 16.5 cm (6.5 in.) 12.7 cm (5.0 in.) Brake Type Hydraulic w/Brake Lever Lock and Auxiliary Brake Tire Size (Front) (Rear) AT21 x 7-10 AT20 x 11-9 AT22 x 7-10 AT22 x 10-10 Tire Inflation Pressure 2 (Front) 2 (Rear) 0.28 kg/cm 2 (4 psi) 0.25 kg/cm 2 (3.5 psi) MISCELLANY Gas Tank Capacity (rated) 12.5 L (3.3 U.S. gal.) 13 L (3.43 U.S. gal.) Reserve Capacity N/A 4.54 L (1.2 U.S. gal.) Engine Oil Capacity 1.6 L (1.7 U.S. qt) Transmission (Overhaul) Lubricant Capacity (Change) 400 ml (13.5 fl/oz) 300 ml (10.1 fl/oz) 600 ml (20.3 fl/oz) 500 ml (16.9 fl/oz) Gasoline (recommended) 87 Octane Regular Unleaded Engine Oil (recommended) Arctic Cat ACX All Weather (Synthetic) Cooling System Capacity 1.4 L (1.5 U.S. qt) Rear Drive Capacity N/A 150 ml (5 fl oz) Rear Drive Lubricant N/A SAE Approved 80W-90 Hypoid Brake Fluid DOT 4 Taillight/Brakelight 12V/5W/21W Headlight 12V/35W (2) Starting System Electric Electric w/Manual Recoil (Emergency) STEERING COMPONENTS Part Part Bolted To Torque ft-lb N-m Handlebar Clamp Cap Screw Steering Head 18 24 Steering Post Support Block Frame 17 23 Steering Post Nut Steering Post 50 68 Upper And Lower Ball Joint Nut Steering Knuckle 22 30 Tie Rod End Nut Steering Knuckle 15 20 Tie Rod Lock Nut Tie Rod 15 20 ELECTRICAL COMPONENTS Starter Motor Lead Cable Nut Starter 36 in.-lb 5 Starter Motor Mounting Bolt Crankcase 9 12 EXHAUST COMPONENTS Exhaust Pipe Engine 25 34 Muffler Mounting Bolt Frame 25 34 BRAKE COMPONENTS Brake Hose Union Bolt Master Cylinder/ Caliper 25 34 Brake Bleed Screw Caliper 56 in.-lb 5 Brake Caliper Mounting Cap Screw Steering Knuckle/ Swing Arm 25 34 Master Cylinder (Front) Handlebar 13 18 Brake Pad Mounting Pin (Front/Rear) Brake Caliper 13 18 Brake Caliper Slide Pin (Front/Rear) Brake Caliper 25 34 Front Brake Line Nut Brake Line/Junction Block 25 34 Brake Caliper (Rear) Swing Arm Housing 25 34 SUSPENSION COMPONENTS (Front) A-Arm Pivot Nut Frame 32 44 Front Shock Absorber Mounting Nut* (Upper/Lower) Frame 29 39 SUSPENSION COMPONENTS (Rear) Left Pivot Bolt (Utility) Swing Arm 36 in.-lb 5 Right Pivot Bolt (Utility) Swing Arm 82 112 Left Pivot Lock Nut (Utility) Left Pivot Bolt 82 112 Swing Arm Pivot Nut (DVX) Frame 50 68 Rear Shock Absorber Mounting Nut (Upper/Lower) Frame/Swing Arm 29 39 Axle Housing Cap Screw (Utility) Final Drive Gear Case 40 54 Axle Housing Cap Screw (DVX) Swing Arm 29 39 DRIVE TRAIN COMPONENTS Engine Mounting Through-Bolt Frame 29 39 Engine Mounting Bracket Cap Screw Frame 16 22 Rear Axle Housing (Utility) Swing Arm 40 54 Rear Axle Housing (DVX) Tube 29 39 Gear Case Swing Arm 50 68 Pinion Nut Shaft 72 98 Gear Case Cover (8mm) (10 mm) Gear Case 19 36 26 49 Hub Nut (Front) Front/Spindle 50 68 Wheel Lug Nut Hub 32 44 Hub Nut (Rear) Axle 72 98 Rear Axle Nut* (Utility) Axle 72 98 Rear Axle Nut* (DVX) Axle 86 117 Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

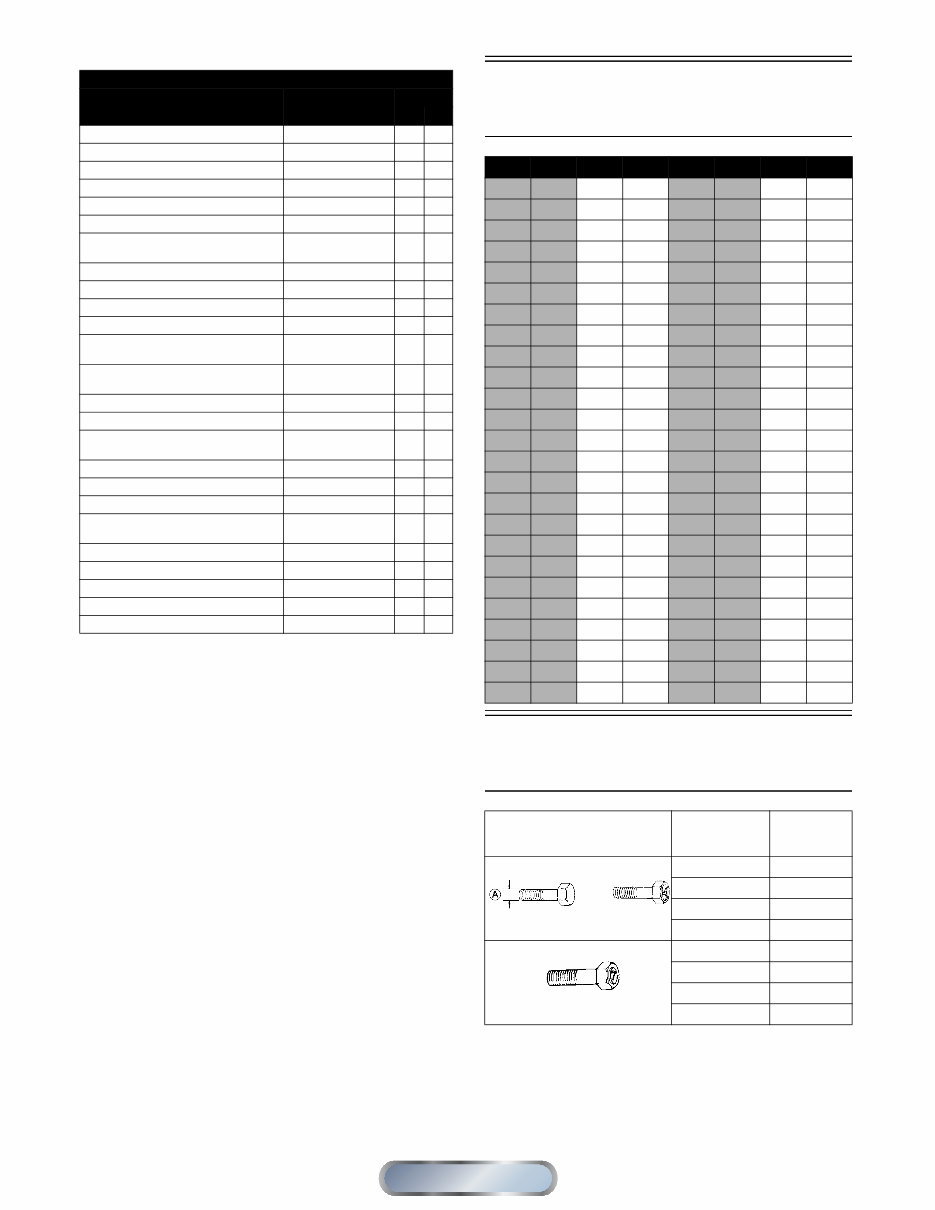

3 * w/Red Loctite #271 Torque Conversions (ft-lb/N-m) Tightening Torque (General Bolts) ENGINE/TRANSMISSION Part Part Bolted To Torque ft-lb N-m Cylinder Head Cylinder 7 10 Cylinder Nut Crankcase 7 10 Camshaft Holder Cylinder Head 18 24 Bevel Drive Gear (Utility) Driveshaft 72 98 Magneto Rotor/Flywheel Crankshaft 47 64 Bevel Driven Gear (Utility) Driven Shaft 72 98 Output Drive Sprocket Lock Plate (DVX) Driveshaft 43 59 Crankcase Cap Screw Crankcase 8 11 Engine Oil Screen/Filter Cap Crankcase 11 15 Shift Cam Stopper Plug* (Utility) Left Case 20 27 Shift Cam Stopper Plug* (DVX) Transmission Case 35 48 Camshaft Chain Tensioner Adjuster Cam Chain Tensioner 9 12 Cam Chain Tensioner Cover Bolt Tensioner 24 in.-lb 3 Starter Ratchet Crankshaft 68 92 Camshaft Chain Tensioner Mount Cylinder Head 9 12 Camshaft Chain Tension Spring Holder Plug Cam Chain Tensioner 36 in.-lb 4 Starter Ratchet Crankshaft 68 93 Centrifugal Clutch Housing Driveshaft 40 54 Timing Plug Right Case 16 22 Driven Pulley Retaining Nut Driven Shaft (Transmission) 43 59 Drive Plate Nut* Fixed Driven Face 43 59 Drive Pulley Nut Crankshaft 72 98 Engine Oil Drain Plug Crankcase 21 29 Transmission Drain Plug Transmission 21 29 Transmission Case Cover Transmission 20 27 ft-lb N-m ft-lb N-m ft-lb N-m ft-lb N-m 1 1.4 26 35.4 51 69.4 76 103.4 2 2.7 27 36.7 52 70.7 77 104.7 3 4.1 28 38.1 53 72.1 78 106.1 4 5.4 29 39.4 54 73.4 79 107.4 5 6.8 30 40.8 55 74.8 80 108.8 6 8.2 31 42.2 56 76.2 81 110.2 7 9.5 32 43.5 57 77.5 82 111.5 8 10.9 33 44.9 58 78.9 83 112.9 9 12.2 34 46.2 59 80.2 84 114.2 10 13.6 35 47.6 60 81.6 85 115.6 11 15 36 49 61 83 86 117 12 16.3 37 50.3 62 84.3 87 118.3 13 17.7 38 51.7 63 85.7 88 119.7 14 19 39 53 64 87 89 121 15 20.4 40 54.4 65 88.4 90 122.4 16 21.8 41 55.8 66 89.8 91 123.8 17 23.1 42 57.1 67 91.1 92 125.1 18 24.5 43 58.5 68 92.5 93 126.5 19 25.8 44 59.8 69 93.8 94 127.8 20 27.2 45 61.2 70 95.2 95 129.2 21 28.6 46 62.6 71 96.6 96 130.6 22 29.9 47 63.9 72 97.9 97 131.9 23 31.3 48 65.3 73 99.3 98 133.3 24 32.6 49 66.6 74 100.6 99 134.6 25 34 50 68 75 102 100 136 Type of Bolt Thread Diameter A (mm) Tightening Torque (Conventional or 4 Marked Bolt) 5 12-36 in.-lb 6 36-60 in.-lb 8 7-11 ft-lb 10 16-25 ft-lb (7 Marked Bolt) 5 24-48 in.-lb 6 6-8 ft-lb 8 13-20 ft-lb 10 29-43 ft-lb Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

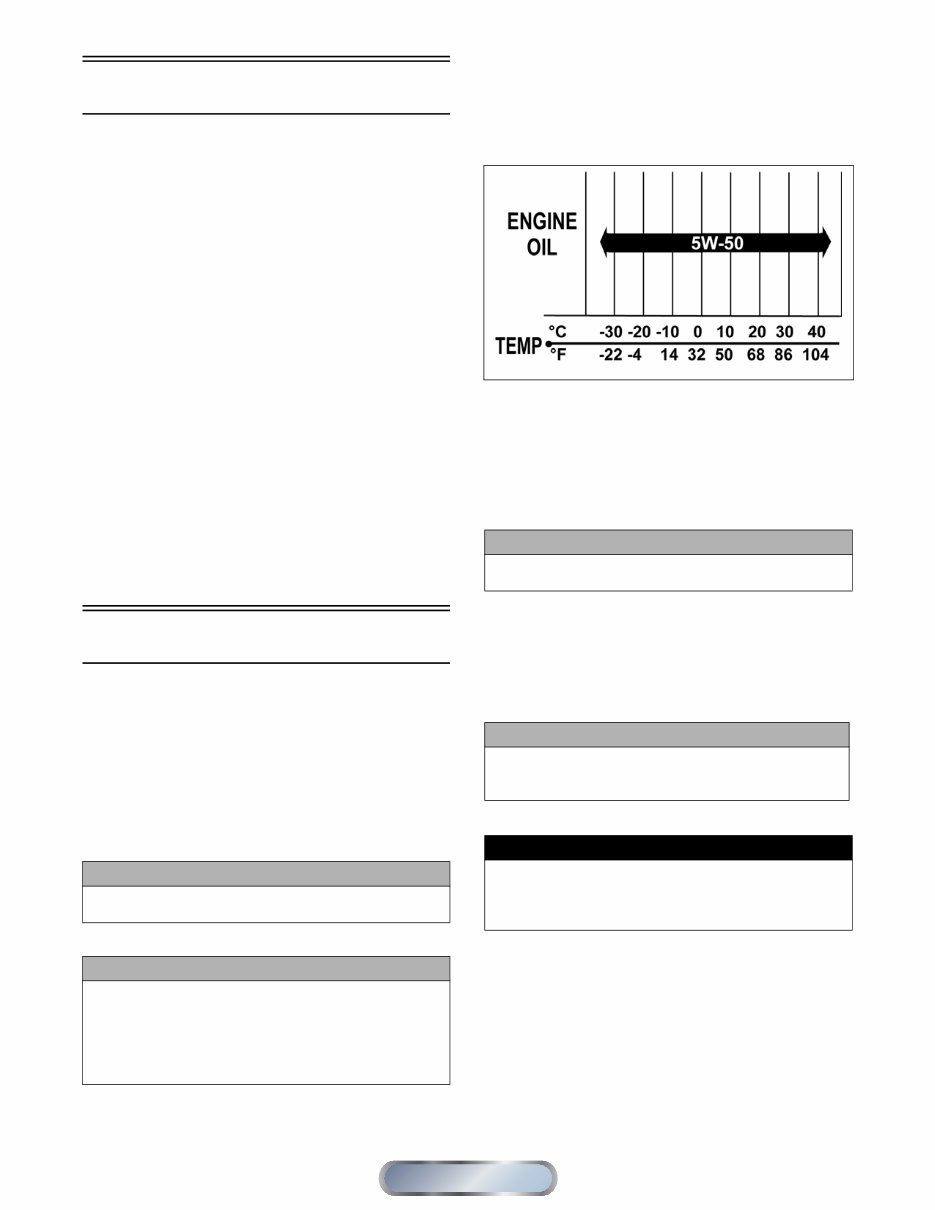

4 Break-In Procedure A new ATV and an overhauled ATV engine require a “break-in” period. The first 10 hours (or 200 miles) are most critical to the life of this ATV. Proper operation during this break-in period will help assure maximum life and performance from the ATV. During the first 10 hours (or 200 miles) of operation, always use less than 1/2 throttle. Varying the engine RPM during the break-in period allows the components to “load” (aiding the mating process) and then “unload” (allowing components to cool). Although it is essential to place some stress on the engine components during break-in, care should be taken not to overload the engine too often. Do not pull a trailer or carry heavy loads during the 10-hour break-in period. When the engine starts, allow it to warm up properly. Idle the engine several minutes until the engine has reached normal operating temperature. Do not idle the engine for excessively long periods of time. During the break-in period, a maximum of 1/2 throttle is recommended; however, brief full-throttle accelerations and variations in driving speeds contribute to good engine break-in. After the completion of the break-in period, the engine oil and oil filter should be changed. Other maintenance after break-in should include checking of all prescribed adjustments and tightening of all fasteners. Gasoline - Oil - Lubricant RECOMMENDED GASOLINE The recommended gasoline to use is 87 minimum octane regular unleaded. In many areas, oxygenates (either ethanol or MTBE) are added to the gasoline. Oxygenated gasolines containing up to 10% ethanol, 5% methane, or 5% MTBE are acceptable gasolines. When using ethanol blended gasoline, it is not necessary to add a gasoline antifreeze since ethanol will prevent the accumulation of moisture in the fuel system. RECOMMENDED ENGINE OIL The recommended oil to use is Arctic Cat ACX All Weather synthetic engine oil, which has been specifically formulated for use in this Arctic Cat engine. Although Arctic Cat ACX All Weather synthetic engine oil is the only oil recommended for use in this engine, use of any API certified SM 5W-50 oil is acceptable. OILCHARTI RECOMMENDED REAR DRIVE LUBRICANT (Utility) The recommended lubricant is Arctic Cat Gear Lube or an equivalent gear lube which is SAE approved 80W-90 hypoid. This lubricant meets all of the lubrication requirements of the Arctic Cat ATV rear drive. RECOMMENDED TRANSMISSION LUBRICANT The recommended lubricant is Arctic Cat Gear Lube or an equivalent gear lube which is SAE approved 80W-90 hypoid. This lubricant meets all the lubrication requirements of the Arctic Cat ATV front differential and rear drive. FILLING GAS TANK Since gasoline expands as its temperature rises, the gas tank must be filled to its rated capacity only. Expansion room must be maintained in the tank particularly if the tank is filled with cold gasoline and then moved to a warm area. CAUTION Do not use white gas. Only Arctic Cat approved gasoline additives should be used. CAUTION Any oil used in place of the recommended oil could cause serious engine damage. Do not use oils which contain graphite or molybdenum additives. These oils can adversely affect clutch operation. Also, not recommended are racing, vegetable, non-detergent, and cas- tor-based oils. CAUTION Any lubricant used in place of the recommended lubricant could cause serious rear drive damage. CAUTION Any lubricant used in place of the recommended lubricant could cause serious front differential/rear drive damage. ! WARNING Always fill the gas tank in a well-ventilated area. Never add fuel to the ATV gas tank near any open flames or with the engine running. DO NOT SMOKE while filling the gas tank. Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

5 ATV0049B Tighten the gas tank cap securely after filling the tank. Genuine Parts When replacement of parts is necessary, use only genuine Arctic Cat ATV parts. They are precision-made to ensure high quality and correct fit. Refer to the appropriate Illus- trated Parts Manual for the correct part number, quantity, and description. Preparation For Storage Arctic Cat recommends the following procedure to pre- pare the ATV for storage. 1. Clean the seat cushion (cover and base) with a damp cloth and allow it to dry. 2. Clean the ATV thoroughly by washing dirt, oil, grass, and other foreign matter from the entire ATV. Allow the ATV to dry thoroughly. DO NOT get water into any part of the engine or air intake. 3. Either drain the gas tank or add Fuel Stabilizer to the gas in the gas tank. Remove the air filter housing cover and air filter. Start the engine and allow it to idle; then using Arctic Cat Engine Storage Preserver, slowly inject the preserver into the air filter opening for a period of 10 to 20 seconds; then stop the engine. Install the air filter and housing cover. 4. Drain the carburetor float chamber. 5. Plug the exhaust hole in the exhaust system with a clean cloth. 6. Apply light oil to the upper steering post bushing and plungers of the shock absorbers. 7. Tighten all nuts, bolts, cap screws, and screws. Make sure rivets holding components together are tight. Replace all loose rivets. Care must be taken that all calibrated nuts, cap screws, and bolts are tightened to specifications. 8. Fill the cooling system to the FULL line in the cooling system reservoir with properly mixed coolant. 9. Disconnect the battery cables; then remove the battery, clean the battery posts and cables, and store in a clean, dry area. 10. Store the ATV indoors in a level position. Preparation After Storage Taking the ATV out of storage and correctly preparing it will assure many miles and hours of trouble-free riding. Arctic Cat recommends the following procedure to pre- pare the ATV. 1. Clean the ATV thoroughly. 2. Clean the engine. Remove the cloth from the exhaust system. 3. Check all control wires and cables for signs of wear or fraying. Replace if necessary. 4. Change the engine oil and filter. 5. Check the coolant level and add properly mixed coolant as necessary. 6. Charge the battery; then install. Connect the battery cables. ! WARNING Do not overflow gasoline when filling the gas tank. A fire hazard could materialize. Always allow the engine to cool before filling the gas tank. ! WARNING Do not over-fill the gas tank. CAUTION Prior to storing the ATV, it must be properly serviced to prevent rusting and component deterioration. CAUTION Rapid induction of oil or any liquid into a four-cycle engine can cause “hydraulic-lock” resulting in severe engine damage. CAUTION If the interior of the air filter housing is dirty, clean the area before starting the engine. CAUTION This maintenance-free battery should be charged at the recommended rate every 30 days or permanent damage may occur if the battery completely discharges. CAUTION Avoid storing outside in direct sunlight and avoid using a plastic cover as moisture will collect on the ATV caus- ing rusting. CAUTION The ignition switch must be in the OFF position prior to installing the battery or damage may occur to the ignition system. Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

6 7. Check the entire brake systems (fluid level, pads, etc.), all controls, headlights, taillight, brakelight, and headlight aim; adjust or replace as necessary. 8. Tighten all nuts, bolts, cap screws, and screws making sure all calibrated nuts, cap screws, and bolts are tightened to specifications. 9. Check tire pressure. Inflate to recommended pressure as necessary. 10. Make sure the steering moves freely and does not bind. 11. Check the spark plug. Clean or replace as necessary. CAUTION Connect the positive battery cable first; then the nega- tive. Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

7 Periodic Maintenance/ Tune-Up SPECIAL TOOLS A number of special tools must be available to the technician when performing service procedures in this section. Refer to the current Special Tools Catalog for the appropriate tool description. NOTE: Special tools are available from the Arctic Cat Service Parts Department. Periodic Maintenance Chart A = Adjust I = Inspect C = Clean L = Lubricate D = Drain R = Replace T = Tighten Description p/n Compression Tester Kit 0444-213 Tappet Adjuster 0444-189 Item Initial Service After Break-In (First Month or 100 Miles) Every Day Every Month or Every 100 Miles Every 3 Months or Every 300 Miles Every 6 Months or Every 500 Miles Every Year or Every 1500 Miles As Needed Battery I I C Air Filter/Drain Tube I I C* R Valve/Tappet Clearance I I A Spark Plug I I R (4000 Mi or 18 Mo) Muffler/Spark Arrester C R Gas/Vent Hoses I I R (2 Yrs) Gas Tank Valve I C Throttle Cable I I C-L A-R Carb Float Chamber D* Engine RPM (Idle) I I A Engine Oil Level I A Engine Oil - Screen C C* C Drive Chain (DVX) I I C-L Rear Drive Lubricant (Utility) I I R A Transmission Lubricant I I R A Tires/Air Pressure I I A-R Steering Components I I I R V-Belt I I R Suspension (Ball joint boots, tie rods, differential and rear drive bellows) I I l* R Nuts/Cap Screws/Screws I I T Ignition Timing I Headlight/Taillight-Brakelight I I R Switches I I R Shift Lever I A-L Choke Cable I C-L R Recoil Starter (Utility) I C-R Handlebar Grips I R Handlebars I I R Gauges/Indicators I I R Frame/Welds/Racks I I l Electrical Connections l C Complete Brake System (Hydraulic and Auxiliary) I I C L-R Brake Pads I I* R Brake Fluid I I R (2 Yrs) Brake Hoses I I R (4 Yrs) Coolant/Cooling System I I R (2 Yrs) Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

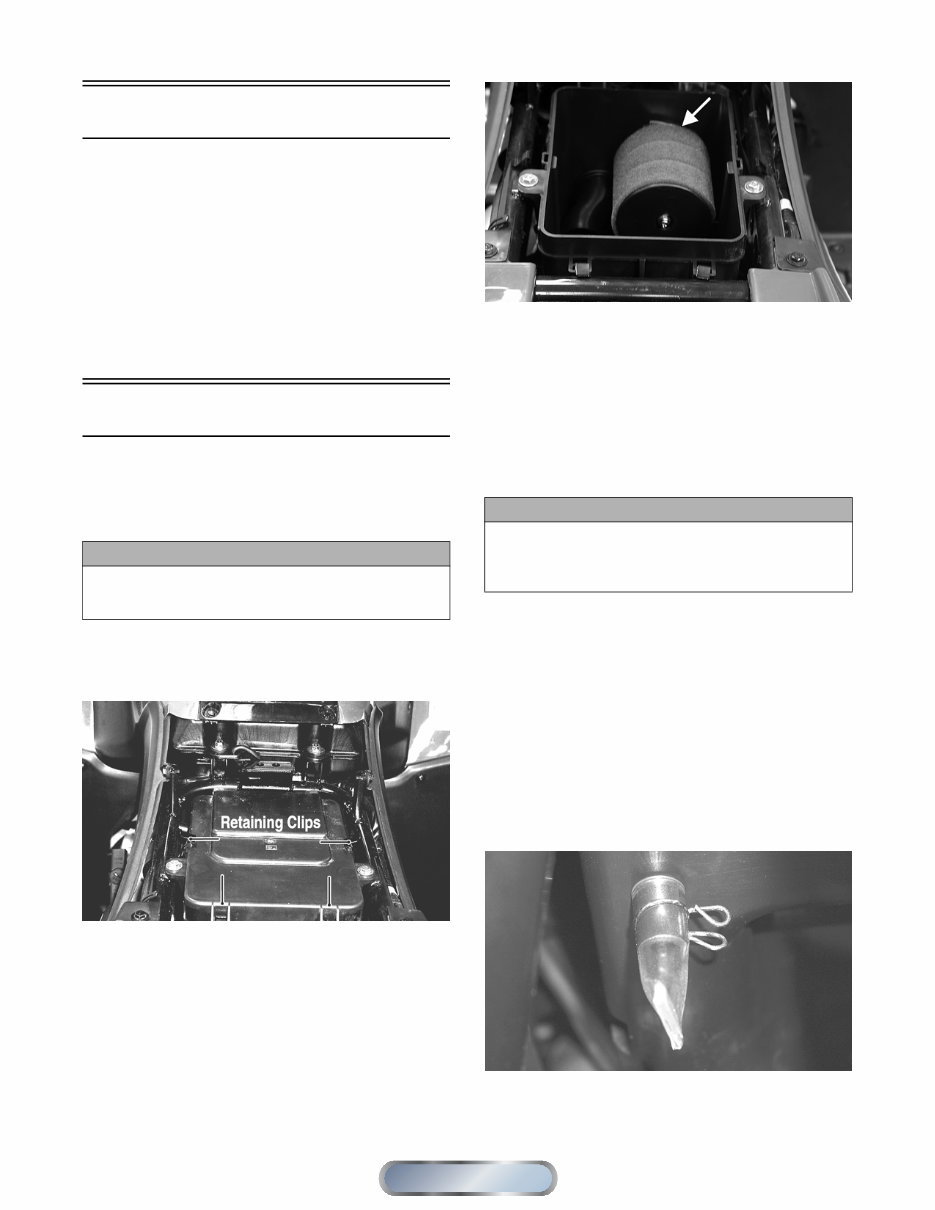

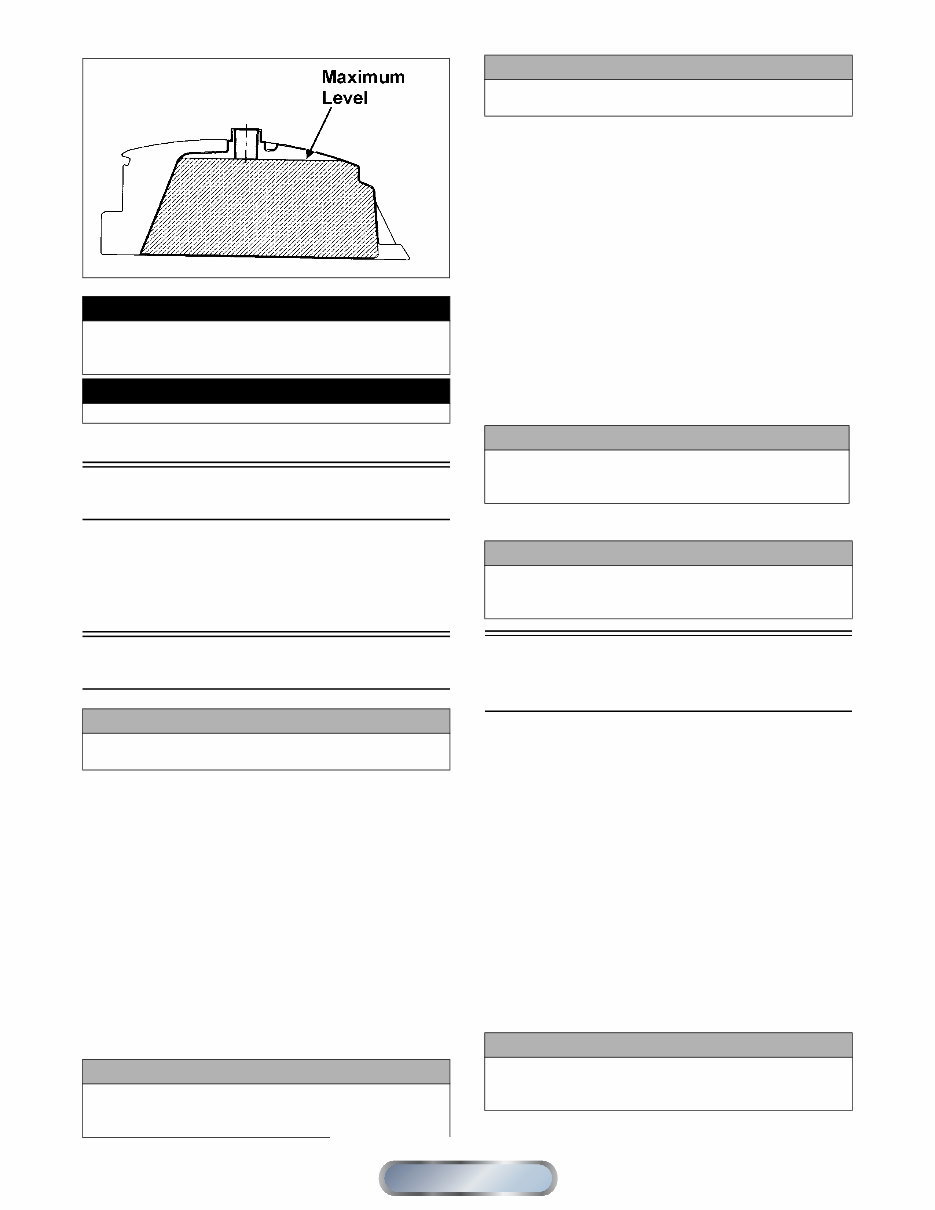

8 * Service/Inspect more frequently when operating in adverse conditions. Lubrication Points It is advisable to lubricate certain components periodically to ensure free movement. Apply light oil to the components using the following list as reference. A. Throttle Lever Pivot/Cable Ends B. Brake Lever Pivot C. Auxiliary Brake Pivot/Clevis D. Choke Cable Upper End E. Shift Lever/Ball Joints F. Idle RPM Screw (Carburetor) Air Filter Use the following procedure to remove the filter and inspect and/or clean it. CLEANING AND INSPECTING FILTER 1. Remove the seat. 2. Remove the air filter housing cover from the retaining clips. KM095A 3. Loosen the clamp; then remove the filter. KM097B 4. Fill a wash pan larger than the filter with a non-flam- mable cleaning solvent; then dip the filter in the solvent and wash it. NOTE: Foam Filter Cleaner and Foam Filter Oil are available from Arctic Cat. 5. Dry the filter. 6. Put the filter in a plastic bag; then pour in air filter oil and work the filter. 7. Clean any dirt or debris from inside the air cleaner. Make sure no dirt enters the carburetor. 8. Place the filter in the air filter housing making sure it is properly seated and secure with the clamp. 9. Install the air filter housing cover and secure with the retaining clips; then install the seat making sure it locks securely. CHECKING/DRAINING DRAIN TUBE Periodically check the drain tube for gasoline or oil accumulation. If noticed, remove the drain tube cap from beneath the housing and drain the gasoline or oil into a suitable container; then install and secure the tube cap. KM114 CAUTION Failure to inspect the air filter frequently if the vehicle is used in dusty, wet, or muddy conditions can damage the engine. CAUTION A torn air filter can cause damage to the ATV engine. Dirt and dust may get inside the engine if the element is torn. Carefully examine the element for tears before and after cleaning it. Replace the element with a new one if it is torn. Manual Table of Contents For Arctic Cat Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com
