2013 ATV WIRING DIAGRAMS
The wiring diagrams are located in this chart in the following sequence:
Page

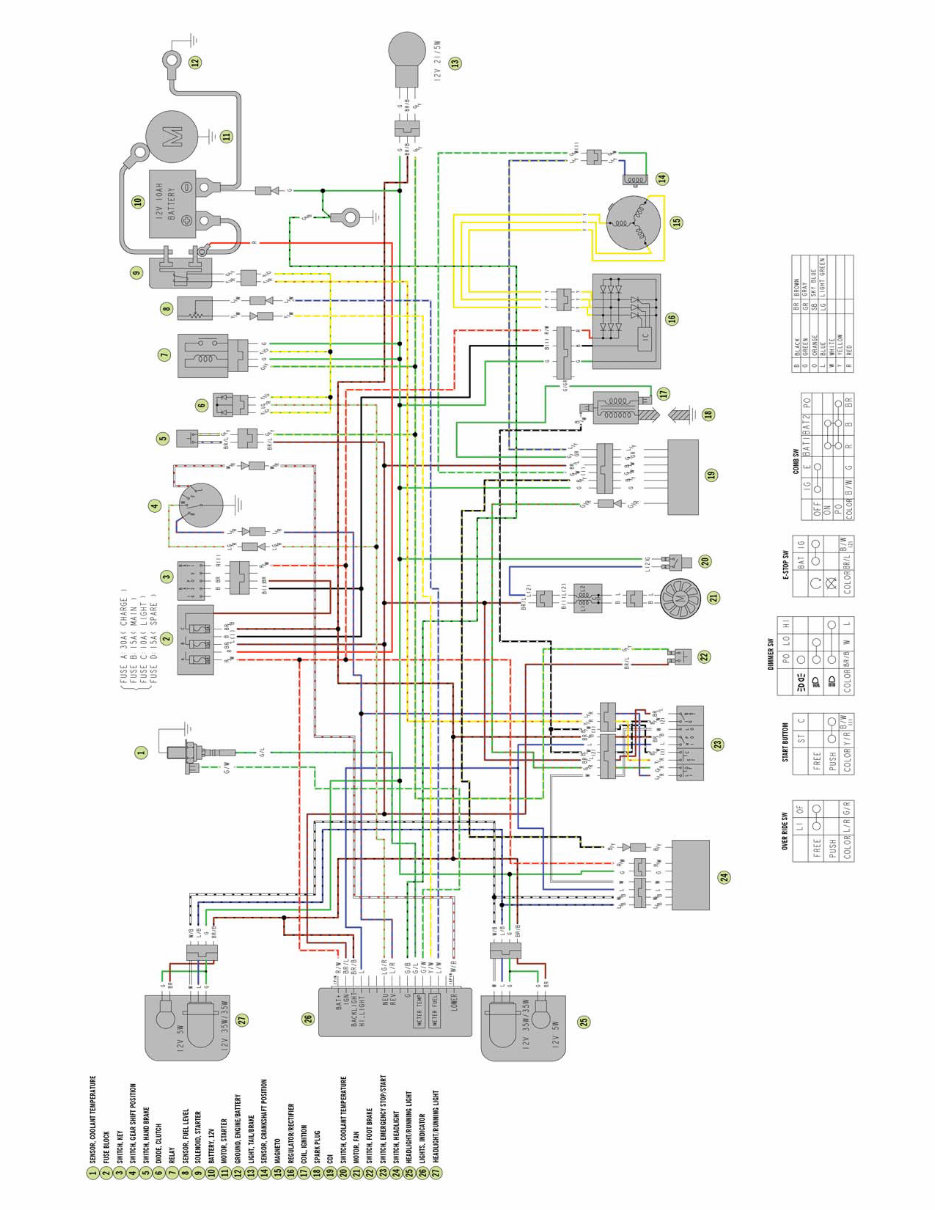

1 DVX 90

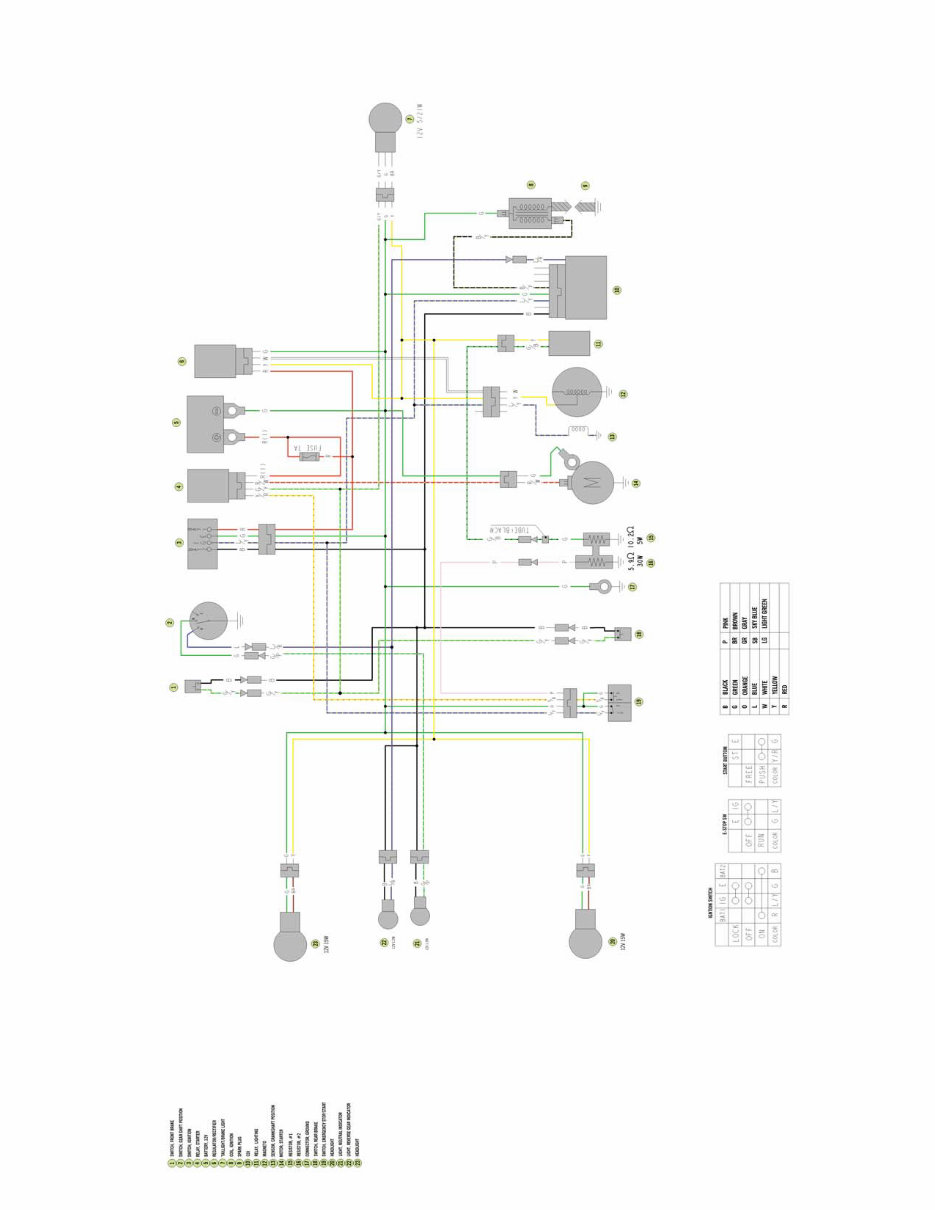

2 90 Utility

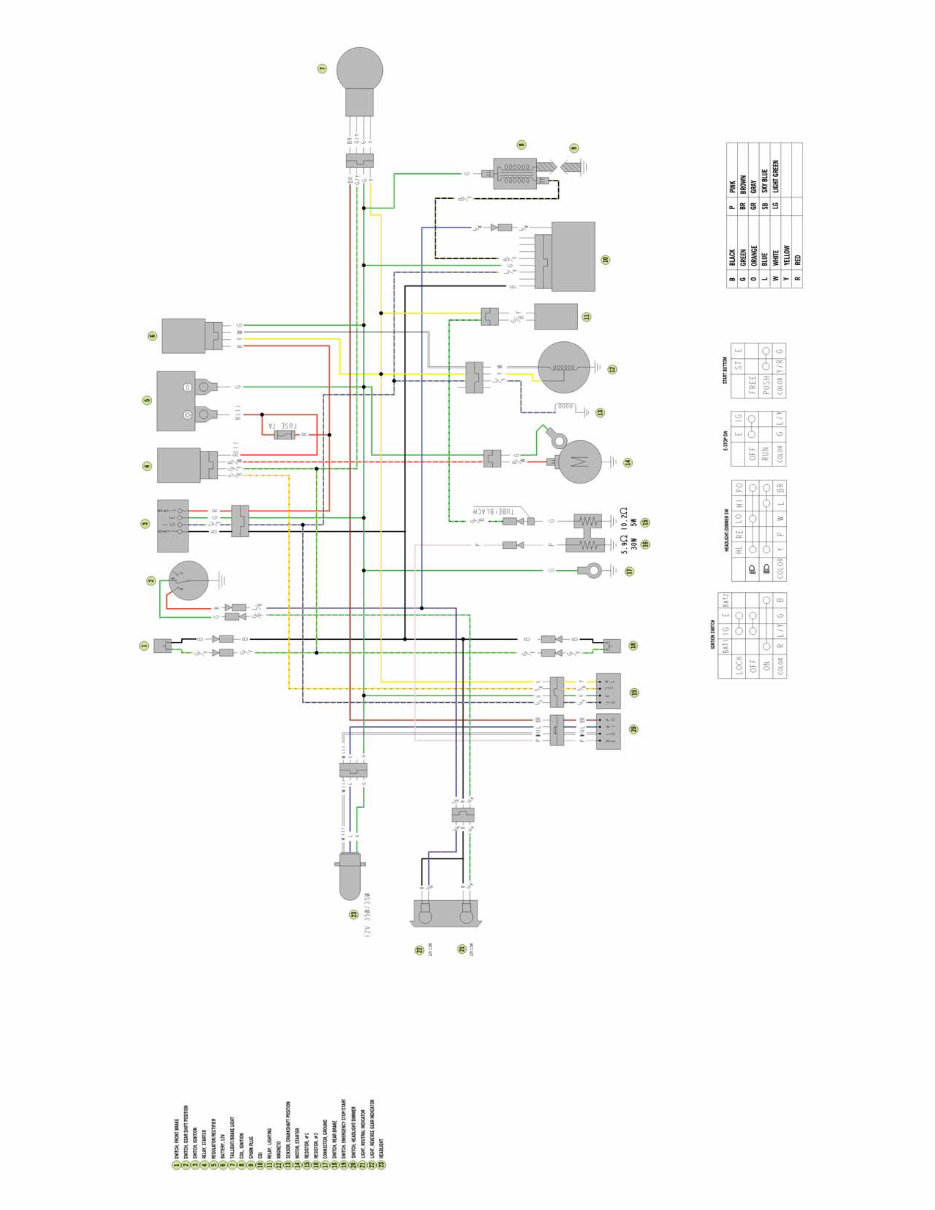

3 150
4 300 Utility

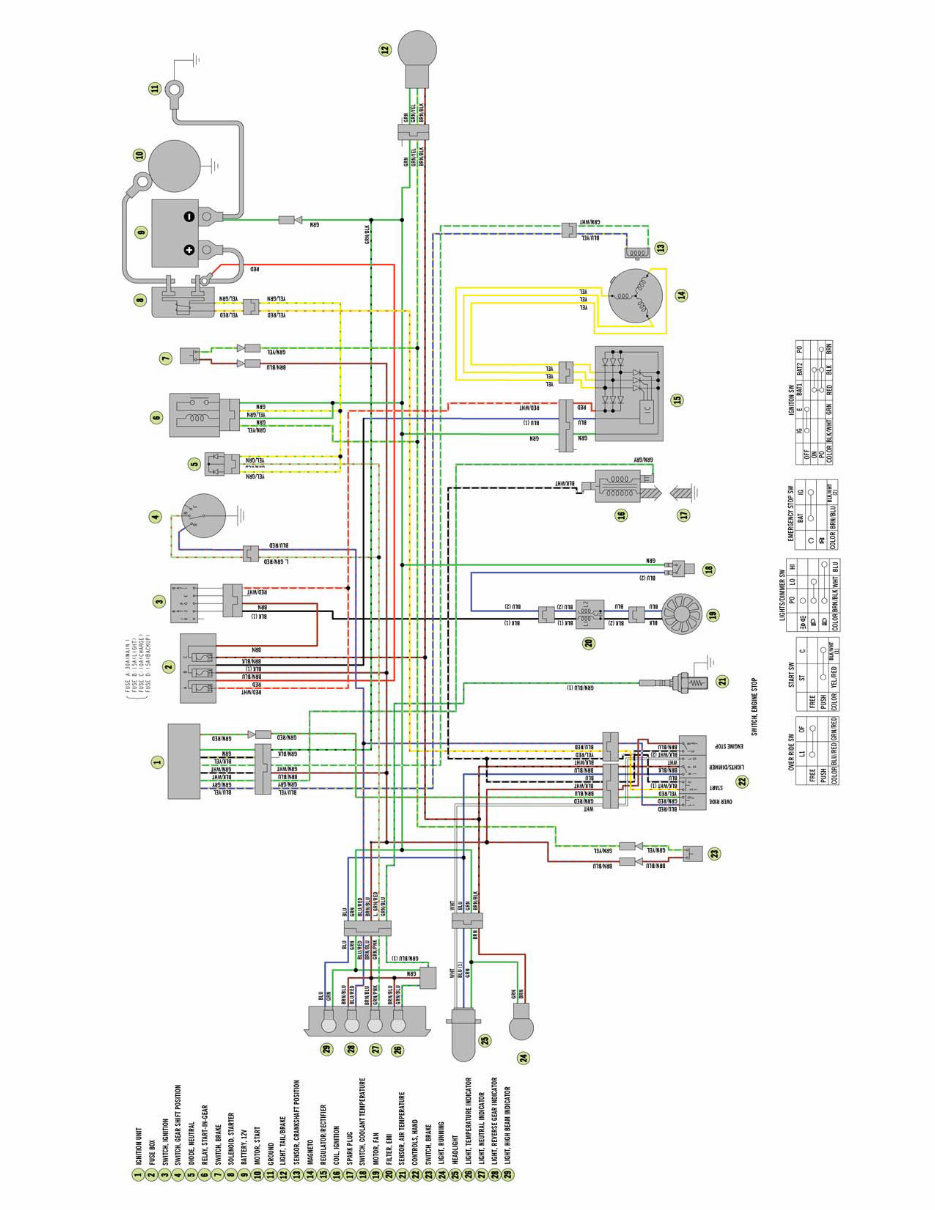

5 DVX 300
6 400 CR

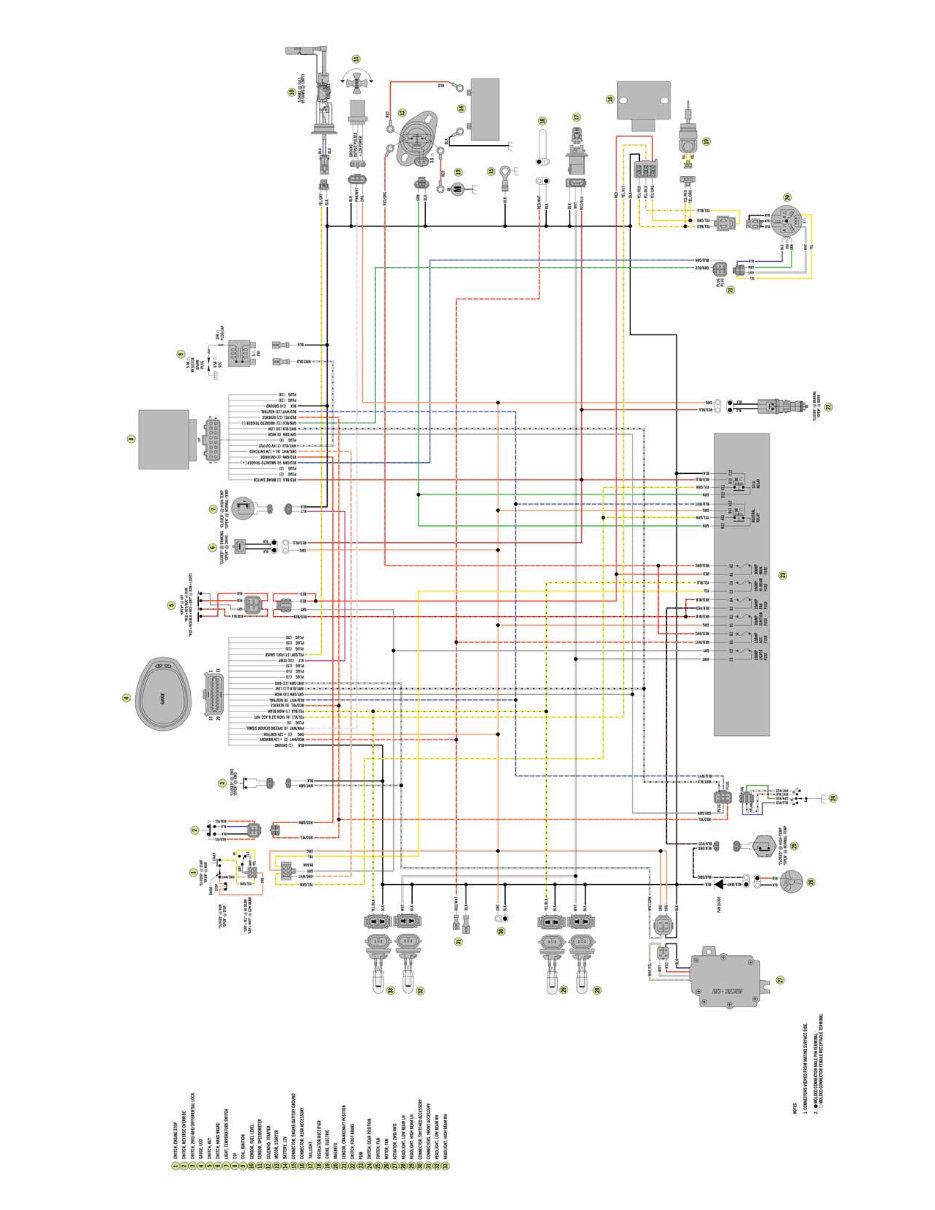

7 400 TRV

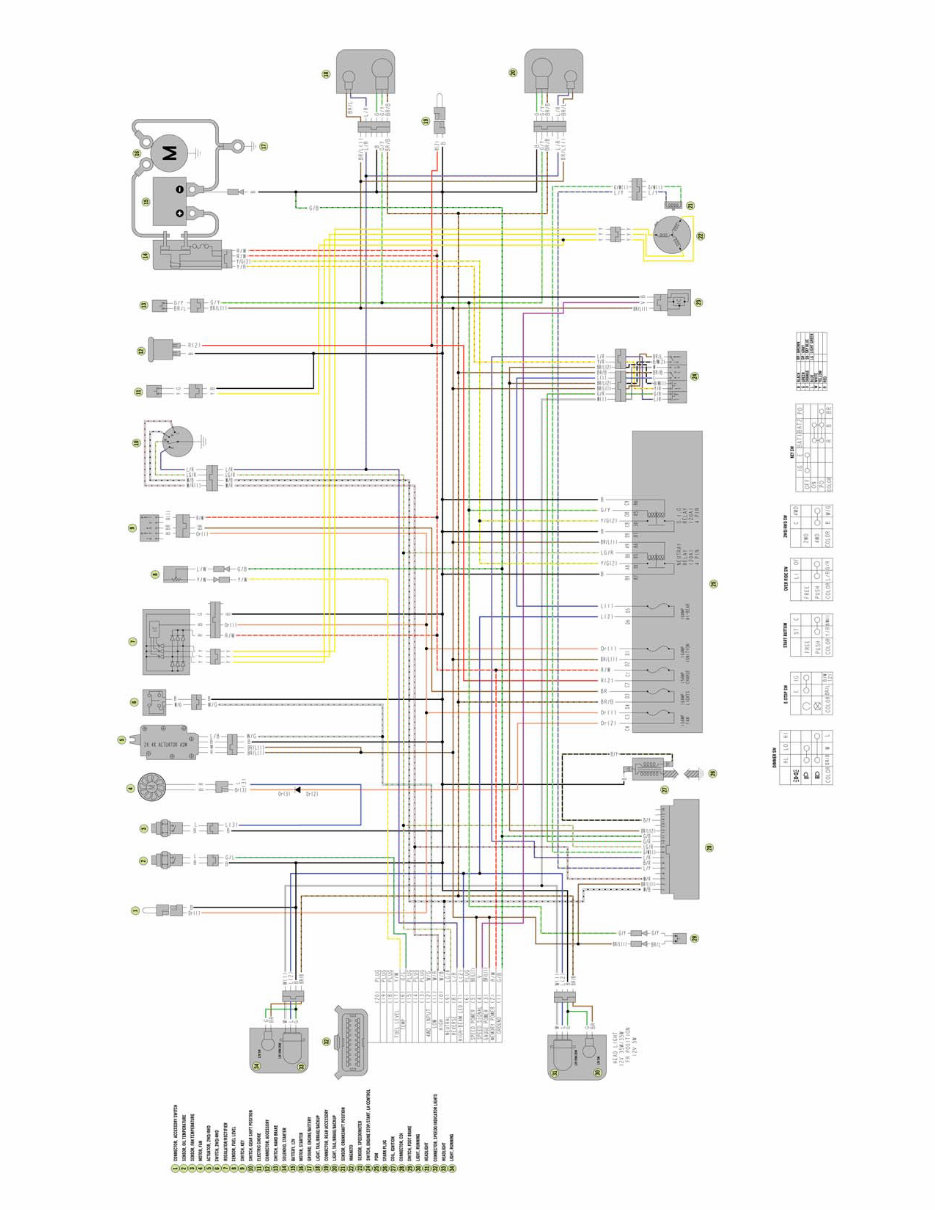

8 450 CR

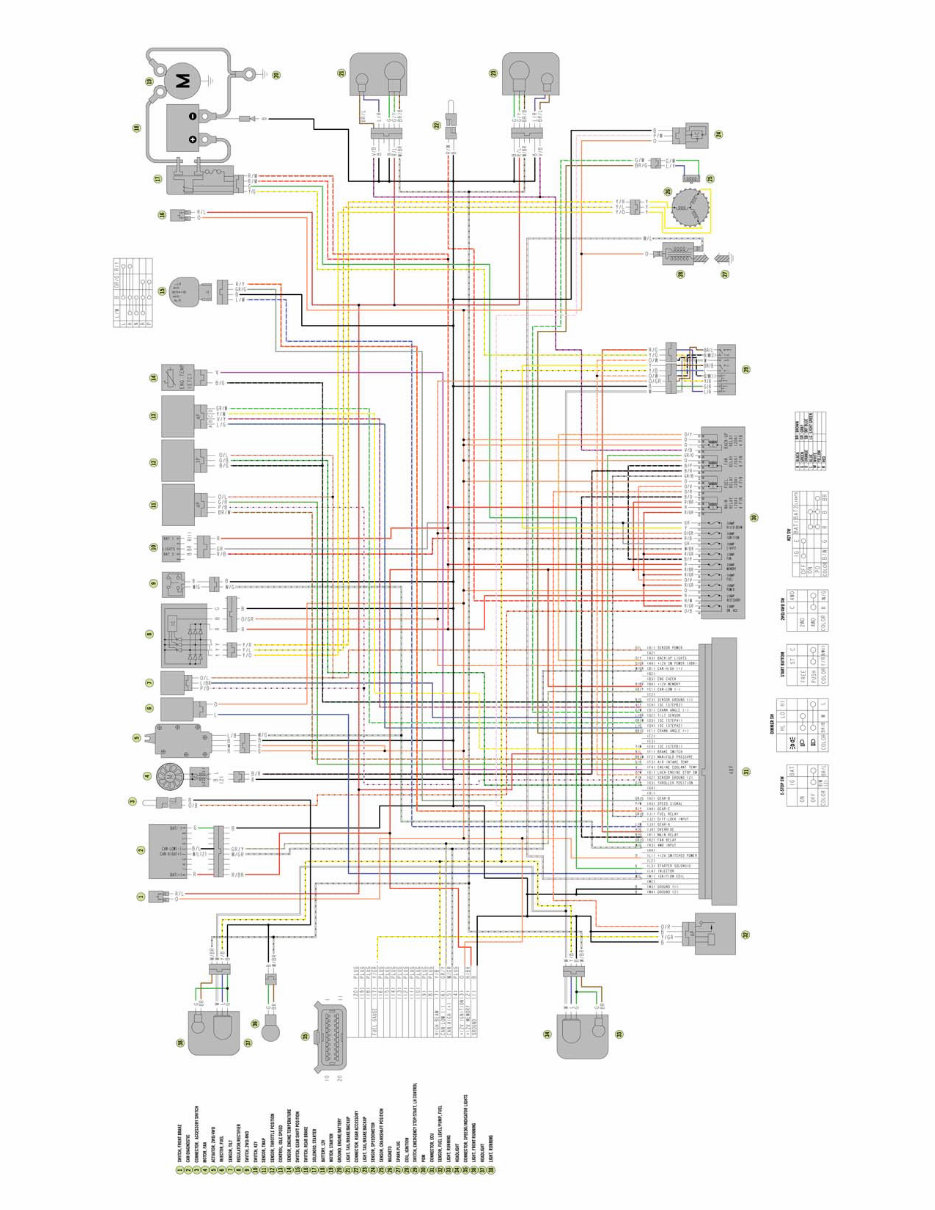

9 XC 450
10 500/500 TRV
11 500 XT
12 550
Page
13 550 XT/550 LTD/550 TRV XT
14 550 TRV LTD
15 700/700 LTD/700 XT/700 TBX/
700 TRV LTD/700 Mud Pro/
700 TRV XT
16 700 Diesel
17 1000 XT
18 1000 Mud Pro/1000 TRV LTD
19 Prowler XT
20 Prowler HDX/Prowler XTX
21 Prowler XTZ
22 Wildcat
0744-105
1
Harness
(p/n 3306-119)
DVX 90
Harness
(p/n 3305-860)
90 Utility
0744-106 2
Harness
(p/n 3305-748)
150
0743-537
3

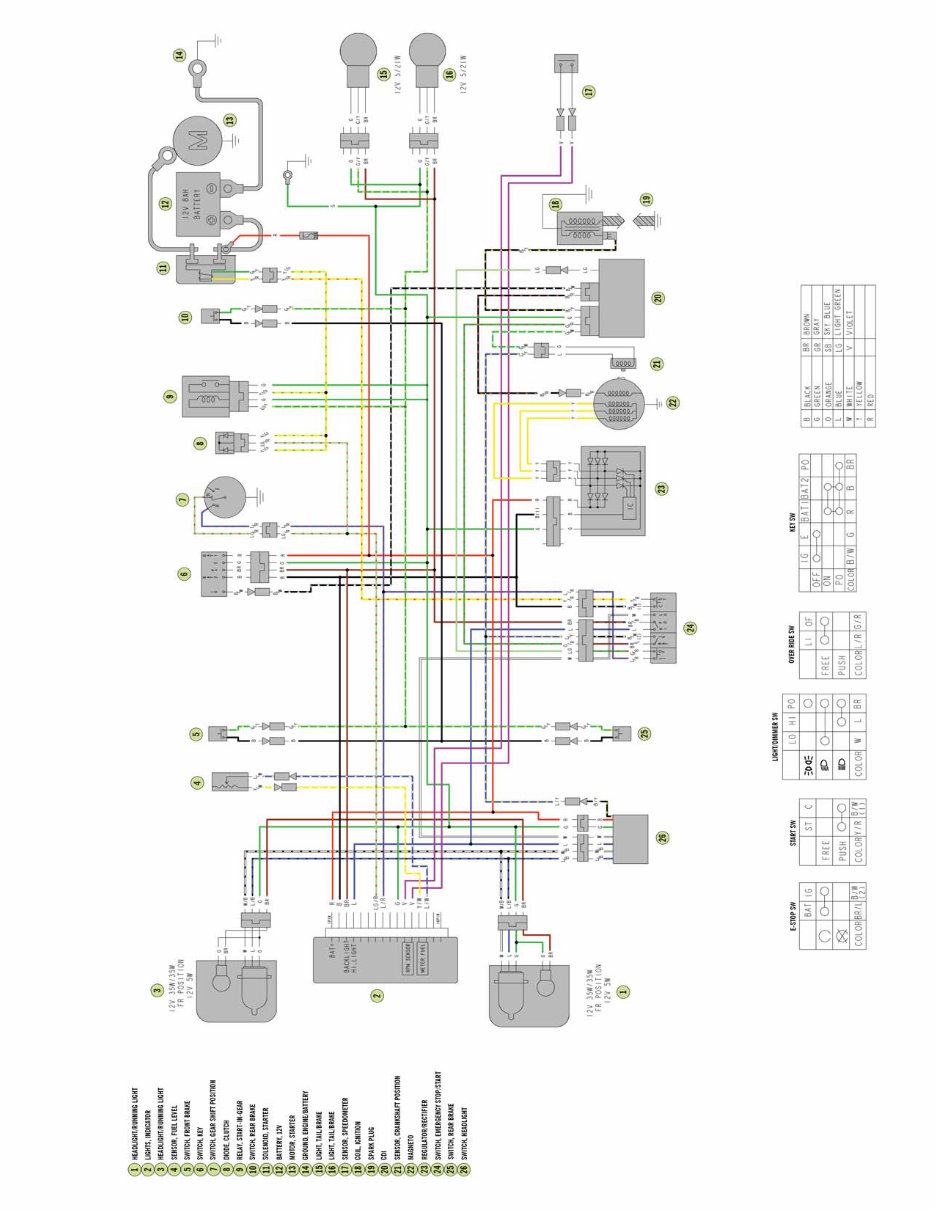

Harness
(p/n 3303-838)
300 Utility
0743-538
4
Main Harness
(p/n 3304-276)
DVX 300
0740-532 5
Main Harness
(p/n 0486-469)
400 CR
6
0747-123
0746-624
7
Main Harness
(p/n 0486-464)
400 TRV
8
Main Harness
(p/n 0486-472)
450 CR
0747-125

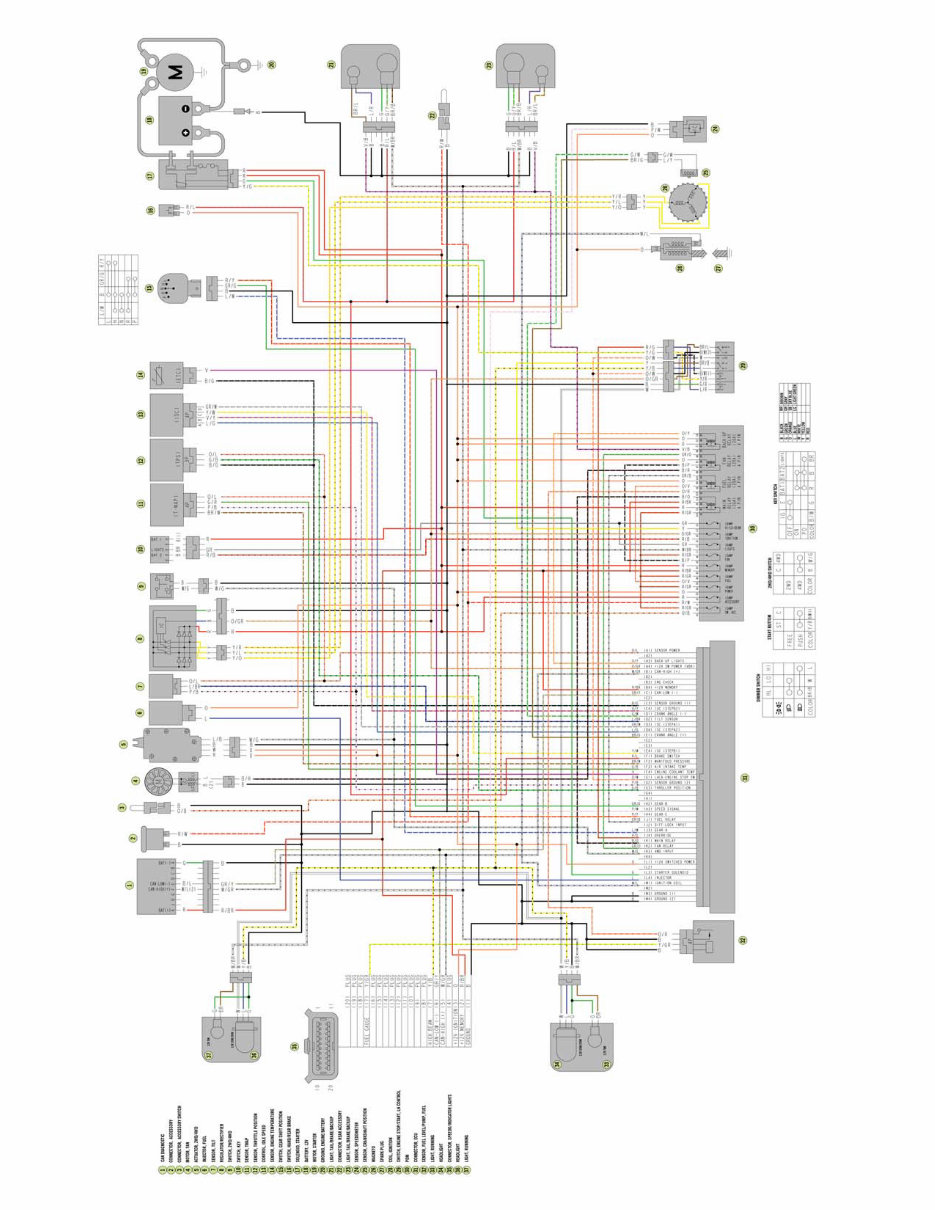

Main Harness
(p/n 0486-474)
XC 450
9
0747-141
