G1_A_A1
A1

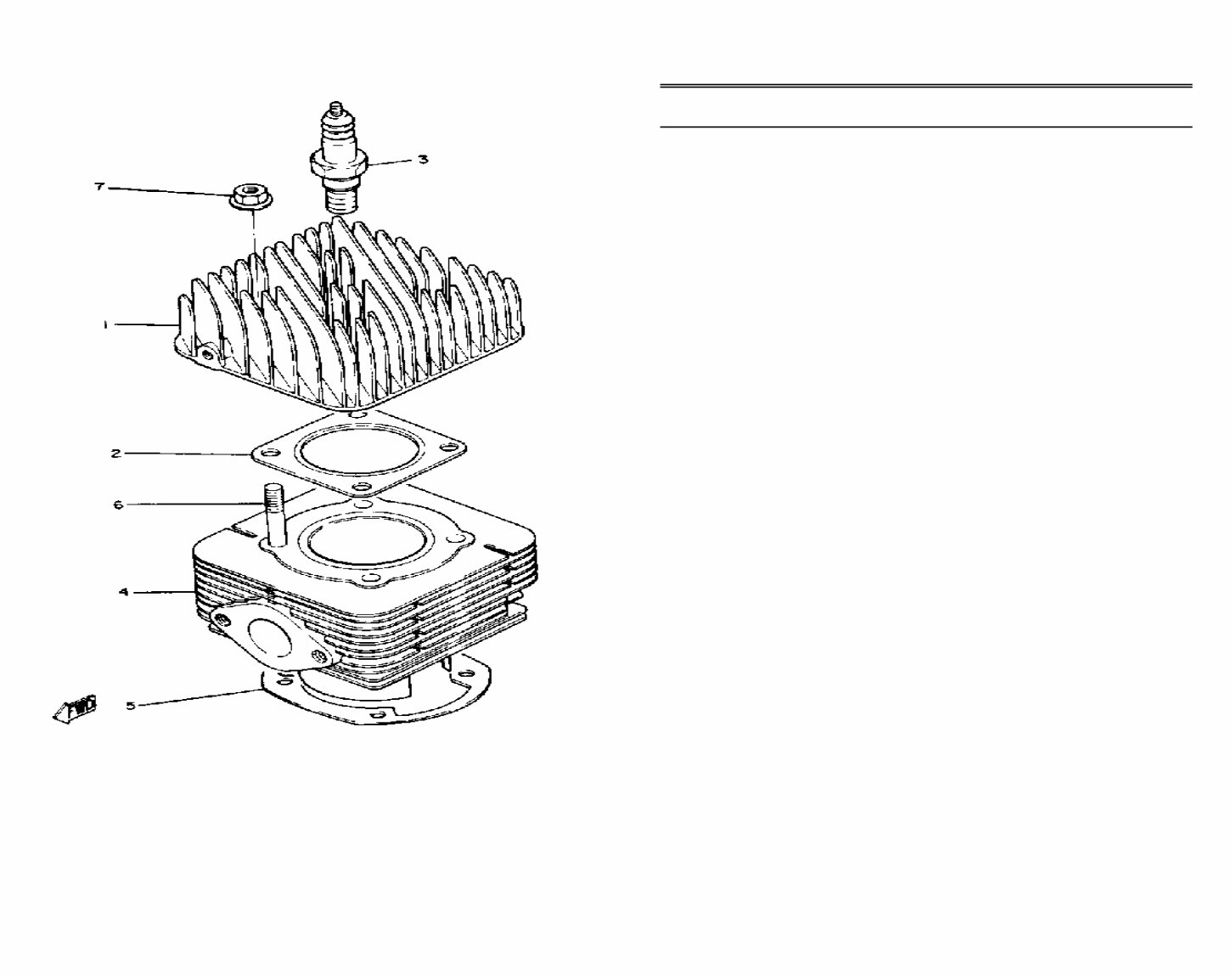

1 J10-11111-00-00 HEAD, CYLINDER 1 . . . . . . . . . 1
2 J10-11181-00-00 GASKET, CYLINDER HEAD 1 . 1
3 NGK-BP5HS-00-00 NGK BP5HS 10PK . . . . . . . . . . 1 LM
4 J10-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 1
5 881-11351-01-00 GASKET, CYLINDER . . . . . . . . 1
6 90116-08254-00 BOLT, STUD . . . . . . . . . . . . . . 4
7 90179-08270-00 NUT . . . . . . . . . . . . . . . . . . . . . 4
95701-08500-00 NUT, FLANGE . . . . . . . . . . . . . 4
CYLINDER HEAD-CYLINDER
Ref. Part
No. Number Description Qty Remarks
A2
G1_A_A1

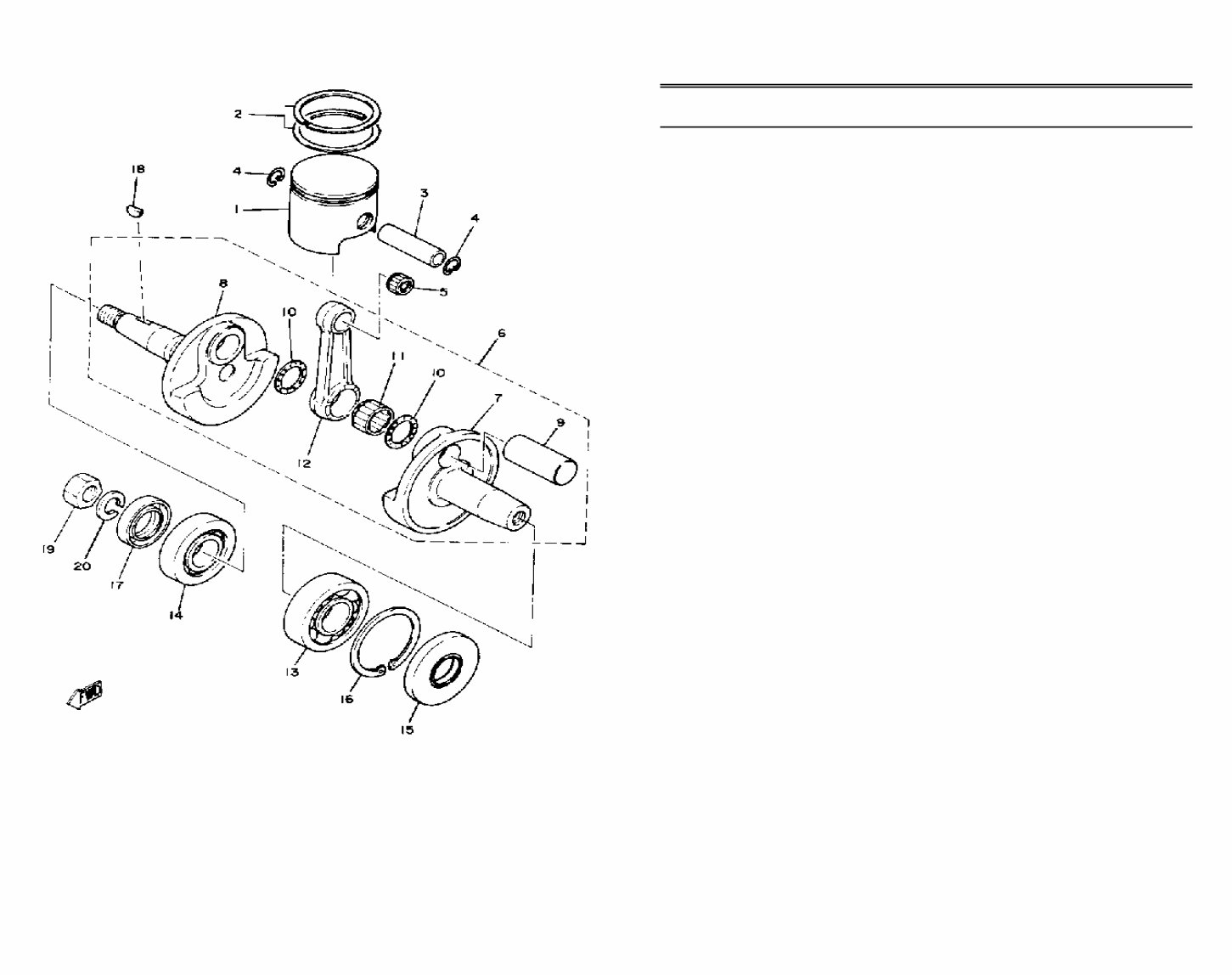

1 J10-11631-00-96 PISTON STD . . . . . . . . . . . . . . 1 U.R.
J10-11635-00-00 PISTON 1 O/S 0. 5 . . . . . . . . . . 1 ALT. PART
J10-11636-00-00 PISTON 2 O/S 0. 0 . . . . . . . . . . 1 ALT. PART
2 J10-11610-00-00 PISTON RINGSET STD . . . . . . 1
J10-11610-10-00 PISTON RINGSET 1ST
(1ST O/S) . . . . . . . . . . . . . . . . . 1 ALT. PART
J10-11610-20-00 PISTON RINGSET 2ND
(2ND O/S) . . . . . . . . . . . . . . . . 1 ALT. PART
3 818-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 1
4 93450-20026-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
5 93310-218A6-00 BEARING . . . . . . . . . . . . . . . . . 1
6 J10-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
7 J10-11412-00-00 . CRANK 1 . . . . . . . . . . . . . . . . 1
8 J10-11422-00-00 . CRANK 2 . . . . . . . . . . . . . . . . 1
9 857-11681-00-00 . PIN, CRANK 1 . . . . . . . . . . . . 1
10 90209-24073-00 . WASHER . . . . . . . . . . . . . . . . 2
11 93310-42497-00 . BEARING, CYLINDER.# 0 . . . 1
12 881-11651-00-00 . ROD, CONNECTING . . . . . . . . 1
13 93306-30630-00 BEARING . . . . . . . . . . . . . . . . . 1
14 93306-20622-00 BEARING . . . . . . . . . . . . . . . . . 1
15 93102-30188-00 OIL SEAL, SD-TYPE . . . . . . . . 1
16 93450-72048-00 CIRCLIP, INNER . . . . . . . . . . . . 1
17 93102-30128-00 OIL SEAL, SD-TYPE . . . . . . . . 1
18 90280-16053-00 KEY, WOODRUFF . . . . . . . . . . 1
19 90170-16182-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
20 92901-16100-00 WASHER, SPRING . . . . . . . . . . 1
CRANKSHAFT PISTON
Ref. Part
No. Number Description Qty Remarks
A3
G1_A_A1

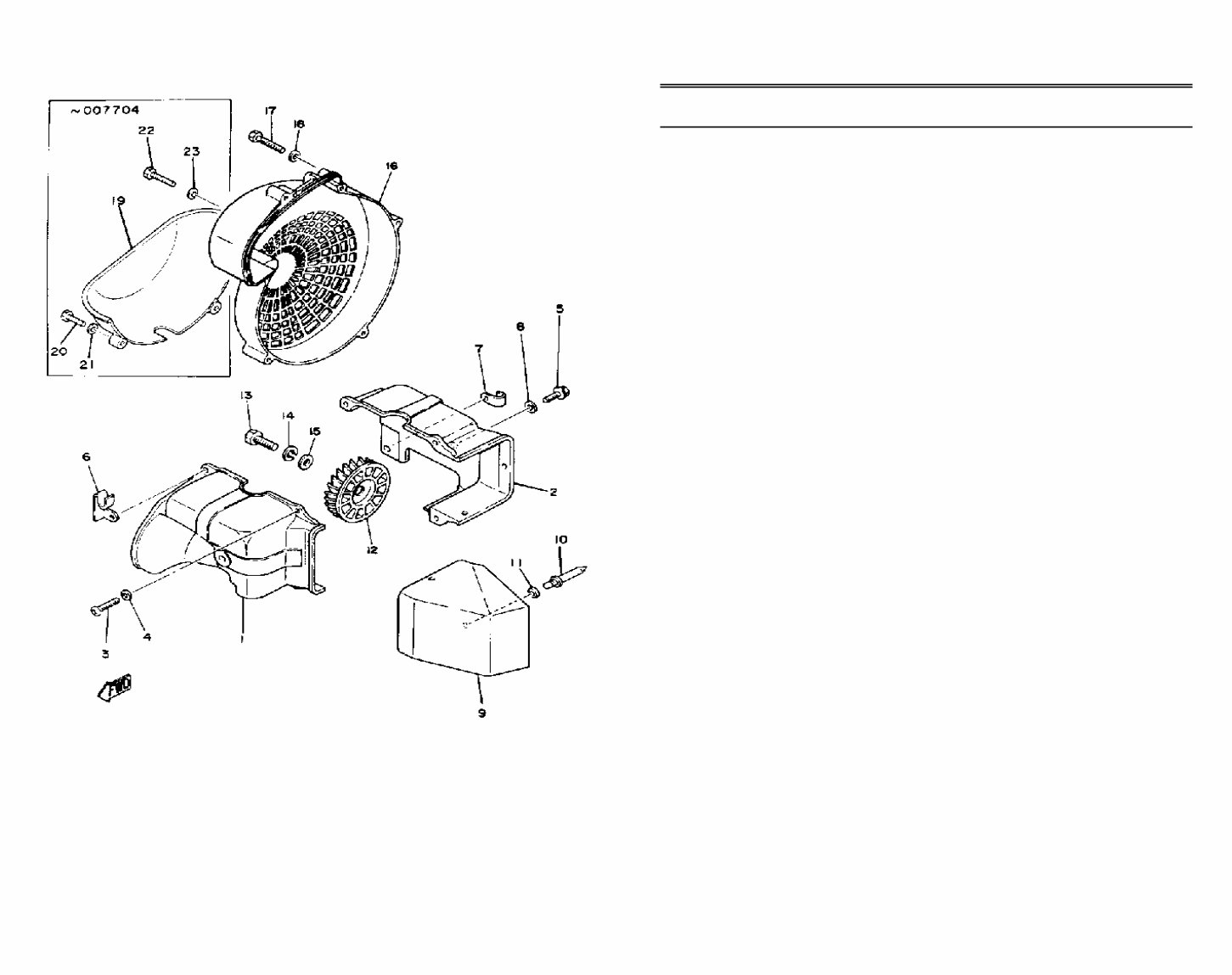

1 J10-12651-00-00 AIR SHROUD, CYLINDER
1CYLINDER 1 . . . . . . . . . . . . . 1
2 J24-12652-00-00 AIR SHROUD, CYLINDER
2CYLINDER 2 . . . . . . . . . . . . . 1
3 98503-06014-00 SCREW, PAN HEAD
(92502-06016) . . . . . . . . . . . . . 3
4 92901-06600-00 . WASHER . . . . . . . . . . . . . . . . 3
5 97313-06016-00 BOLT, HEXAGON . . . . . . . . . . 4
6 90465-10129-00 CLAMP . . . . . . . . . . . . . . . . . . 1
7 90465-08028-00 CLAMP . . . . . . . . . . . . . . . . . . 1
8 90201-06059-00 WASHER, PLATE . . . . . . . . . . . 4
90201-065F3-00 WASHER, PLATE . . . . . . . . . . . 4 705~
9 J10-12631-00-00 DEFLECTOR 1 . . . . . . . . . . . . . 1
10 90267-48086-00 RIVET, BLIND . . . . . . . . . . . . . 3
11 90201-04325-00 WASHER, PLATE . . . . . . . . . . . 3
12 8G8-12611-01-00 FAN . . . . . . . . . . . . . . . . . . . . . 1
13 97011-06016-00 BOLT . . . . . . . . . . . . . . . . . . . . 6
14 92995-06100-00 WASHER, SPRING . . . . . . . . . . 6
15 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 6
16 J10-12621-01-00 CASE, FAN . . . . . . . . . . . . . . . 1
17 97313-06050-00 BOLT . . . . . . . . . . . . . . . . . . . . 3
18 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 3
92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 5 705~
19 J10-12616-00-00 COVER, FAN CASE . . . . . . . . . 1
20 97313-06065-00 BOLT, HEXAGON . . . . . . . . . . 2
21 92901-06600-00 . WASHER . . . . . . . . . . . . . . . . 2
22 97021-06030-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
23 92901-06600-00 . WASHER . . . . . . . . . . . . . . . . 1
AIR SHROUD-FAN
Ref. Part
No. Number Description Qty Remarks
A4
G1_A_A1

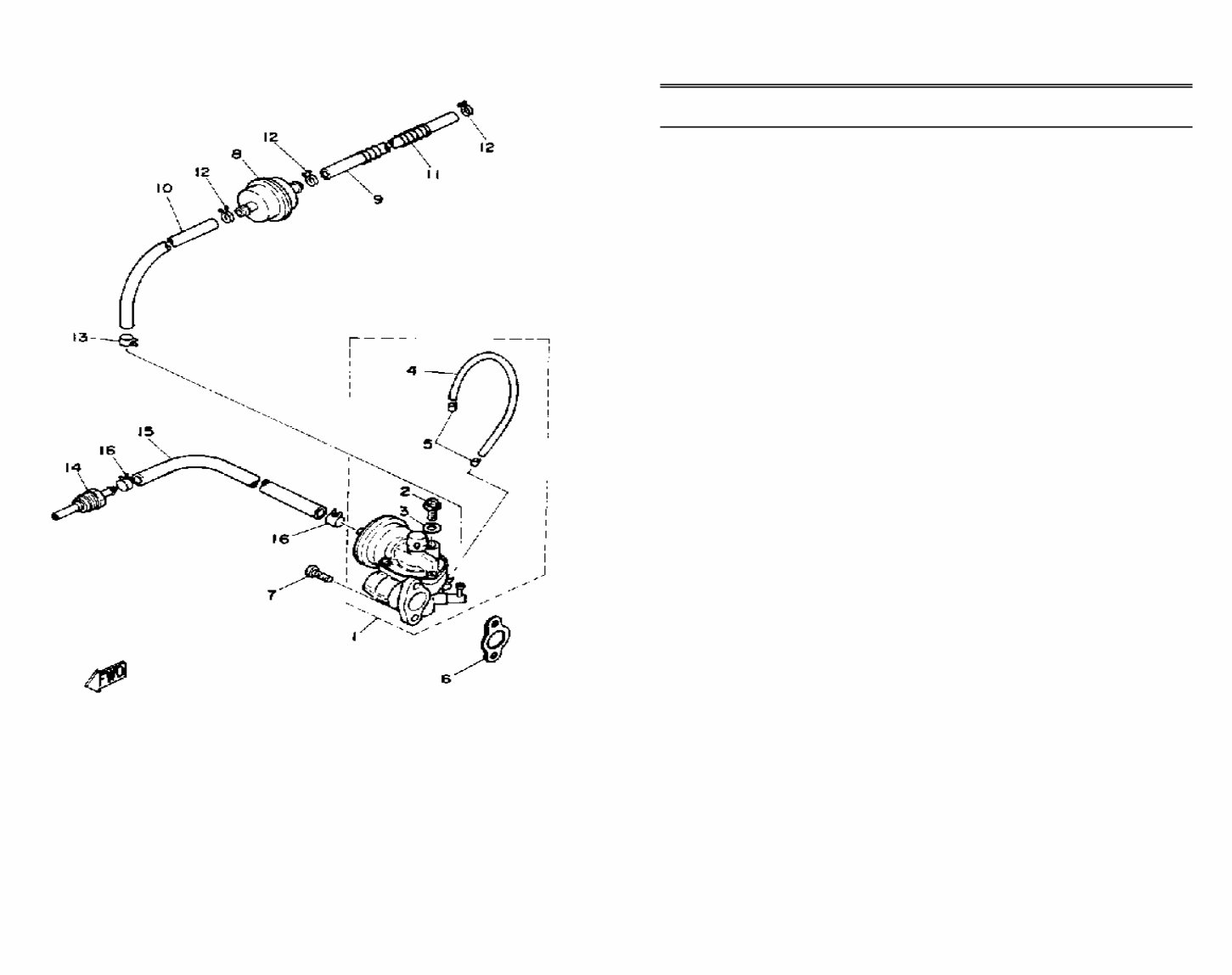

1 J10-13101-02-00 OIL PUMP ASSEMBLY . . . . . . . 1
2 90401-06001-00 . BOLT, UNION . . . . . . . . . . . . 1
3 90430-06180-00 . GASKET . . . . . . . . . . . . . . . . 1
4 90445-05214-00 . HOSE . . . . . . . . . . . . . . . . . . . 1
5 90468-02033-00 . CLIP . . . . . . . . . . . . . . . . . . . 2
6 3MT-13116-00-00 GASKET, PUMP CASE
(8Y0-13116-00) . . . . . . . . . . . . . 1
7 98580-05016-00 SCREW, PAN HEAD . . . . . . . . 2
8 J10-13410-00-00 STRAINER HSNG ASSEMBLY . 1
9 90445-09226-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
10 90445-09282-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
11 90501-08430-00 SPRING, COMPRESSION . . . . . 1
12 90467-09005-00 CLIP, SCISSOR . . . . . . . . . . . . 3
13 90467-09026-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
14 J10-13283-00-00 JET, SENSER . . . . . . . . . . . . . 1
15 90445-11391-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
16 90467-10035-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A5
G1_A_A1

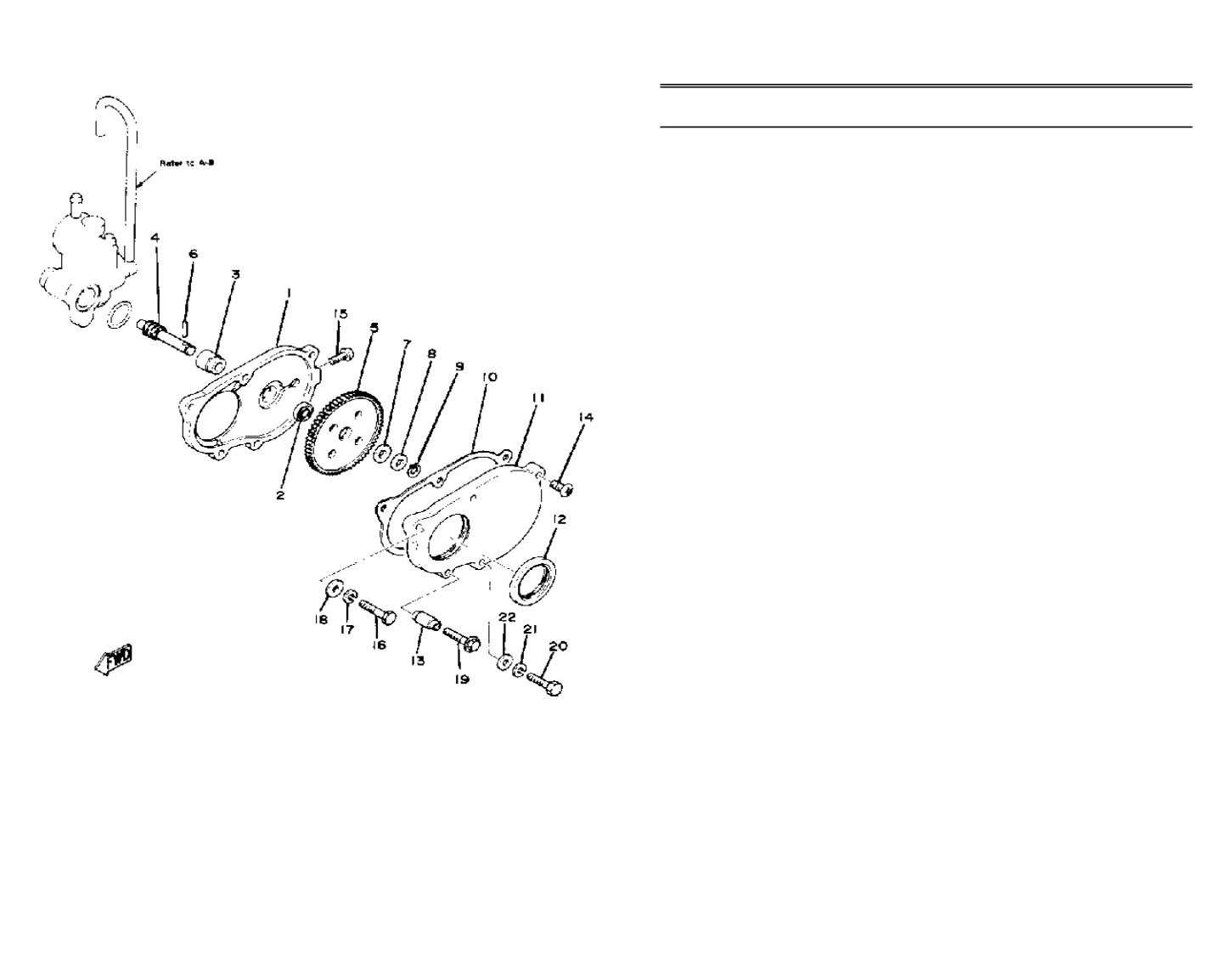

1 J10-15416-00-00 COVER, OIL PUMP . . . . . . . . . 1
2 93101-10090-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
3 1E7-13176-00-00 METAL, WRM SHAF OTR . . . . 1
4 J10-13175-00-00 SHAFT, WORM . . . . . . . . . . . . 1
5 J10-13188-00-00 GEAR, DRIVE . . . . . . . . . . . . . 1
6 93603-22028-00 PIN, DOWEL . . . . . . . . . . . . . . 1
7 90206-11016-00 WASHER, WAVE . . . . . . . . . . . 1
8 137-13148-00-00 PLATE, CAM THRUST . . . . . . . 1
9 99009-10400-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
10 J10-15466-00-00 GASKET 2 . . . . . . . . . . . . . . . . 1
11 J10-15426-00-00 COVER, OIL PUMP R . . . . . . . . 1
12 93112-53004-00 OIL SEAL, SR-TYPE . . . . . . . . 1 705~
13 91810-18025-00 PIN, DOWEL . . . . . . . . . . . . . . 2
14 98580-06018-00 SCREW, PAN HEAD . . . . . . . . 1
15 98580-06012-00 SCREW, PAN HEAD . . . . . . . . 1
16 97313-08035-00 BOLT, HEXAGON . . . . . . . . . . 1
17 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 1
18 92901-08600-00 WASHER . . . . . . . . . . . . . . . . . 1
19 95811-06035-00 BOLT, FLANGE . . . . . . . . . . . . 2
20 97021-06030-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
21 92995-06100-00 WASHER, SPRING . . . . . . . . . . 1
22 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 1
PUMP DRIVE GEAR
Ref. Part
No. Number Description Qty Remarks
A6
G1_A_A1

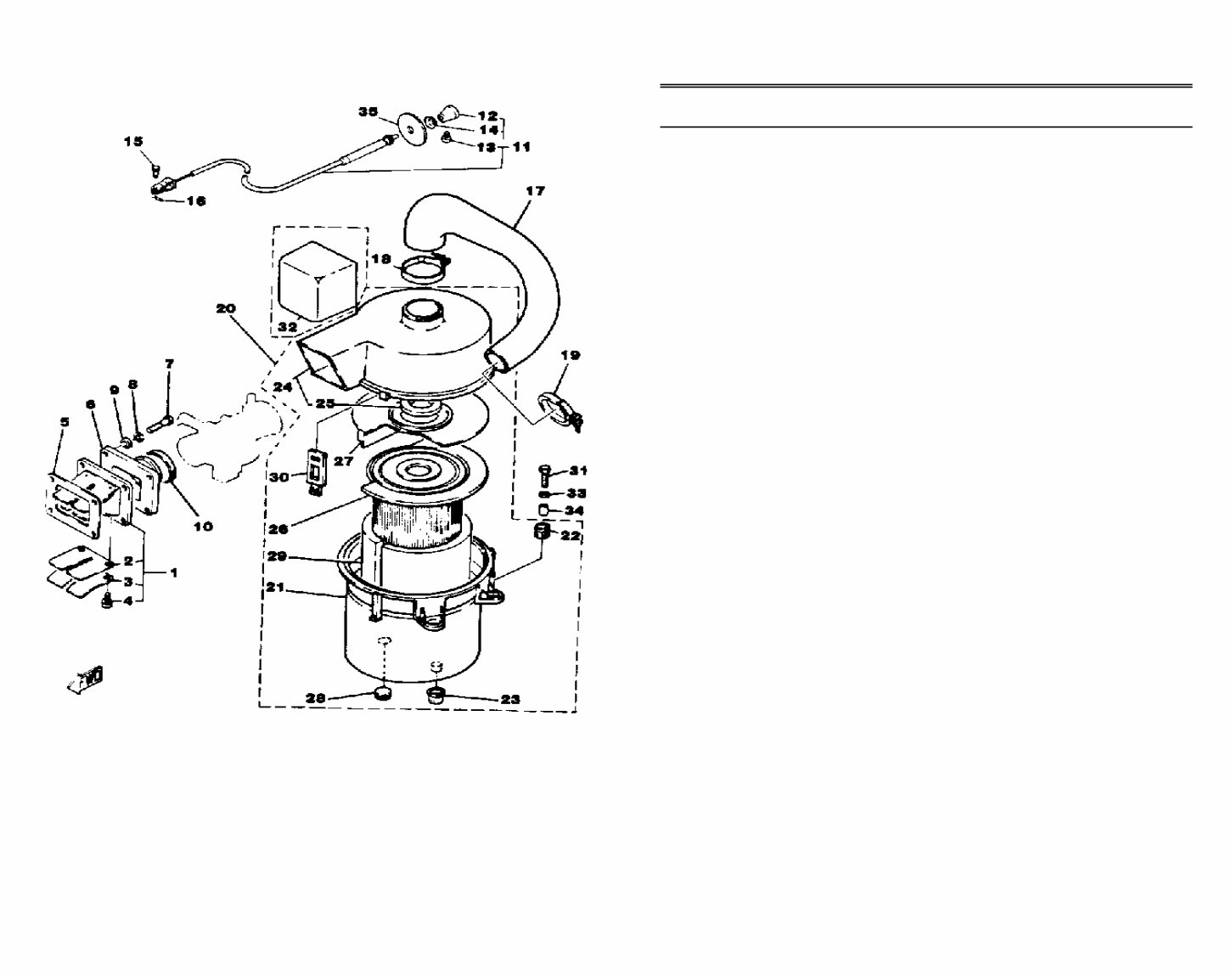

1 10V-13610-01-00 REED VALVE ASSEMBLY
(885-13610-00) . . . . . . . . . . . . . 1
2 10V-13613-01-00 . REED, VALVE (1L8-13613-00) 2
3 1UA-13616-00-00 . STOPPER REED VALVE
VALVE (10V-13616-01) . . . . . . 2
4 98580-03008-00 . SCREW, PAN HEAD . . . . . . . 4
5 3TT-13621-00-00 GASKET, VALVE SEAT . . . . . . 1
6 J10-13586-00-00 JOINT, CARBURETOR 1 . . . . . 1
7 97021-06030-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
8 92995-06100-00 WASHER, SPRING . . . . . . . . . . 4
9 92901-06600-00 . WASHER . . . . . . . . . . . . . . . . 4
10 90460-41191-00 CLAMP, HOSE (90460-41146) . 1
11 J10-26331-02-00 CABLE, STARTER 1 . . . . . . . . 1
12 J10-26325-00-00 . KNOB, STARTER . . . . . . . . . . 1
13 90149-03132-00 . SCREW, SPECIAL SHAPE . . . 1
14 J17-26339-09-00 . BOOT . . . . . . . . . . . . . . . . . . 1
15 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 1
16 90468-10050-00 . CLIP . . . . . . . . . . . . . . . . . . . 1
17 J10-14453-00-00 JOINT, AIR CLNR 1 . . . . . . . . . 1
18 90460-41191-00 CLAMP, HOSE (90460-41146) . 1
19 90460-50035-00 CLAMP, HOSE . . . . . . . . . . . . . 1
20 J10-14410-00-00 AIR CLEANER ASSEMBLY 1 . . 1
21 J10-14411-01-00 CASE, air cleaner 1 . . . . . . . . . 1
22 90480-13238-00 GROMMET . . . . . . . . . . . . . . . . 2
23 90480-14239-00 GROMMET . . . . . . . . . . . . . . . . 2
24 J17-W1443-00-00 CAP, cleaner case 1
(J17-14412-01-00) . . . . . . . . . . . 1
25 J10-14416-00-00 GASKET, AIR CLEANER . . . . . 1
26 J10-14450-10-00 ELEMENT ASS’’Y, air cleaner . 1
27 J10-1441F-00-00 PARTN, AIR CLNR CSAIR
CLEANER CASE . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A7
G1_A_A1
28 90480-14100-00 GROMMET . . . . . . . . . . . . . . . . 1
29 J10-14417-00-00 COVER 1 . . . . . . . . . . . . . . . . . 1 255~
30 J10-14436-00-00 HOOK . . . . . . . . . . . . . . . . . . . 3
31 97003-06022-00 BOLT, HEXAGON (97301-06022) 2
32 J10-12644-00-00 DEFLECTOR 3 0 1 . . . . . . . . . . 1 961~
33 90201-062G3-00 WASHER, PLATE . . . . . . . . . . . 2
90201-065F3-00 WASHER, PLATE . . . . . . . . . . . 2
34 90387-06026-00 COLLAR . . . . . . . . . . . . . . . . . 2
35 90201-114E6-00 WASHER, PLATE . . . . . . . . . . . 1
AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A8
G1_A_A1

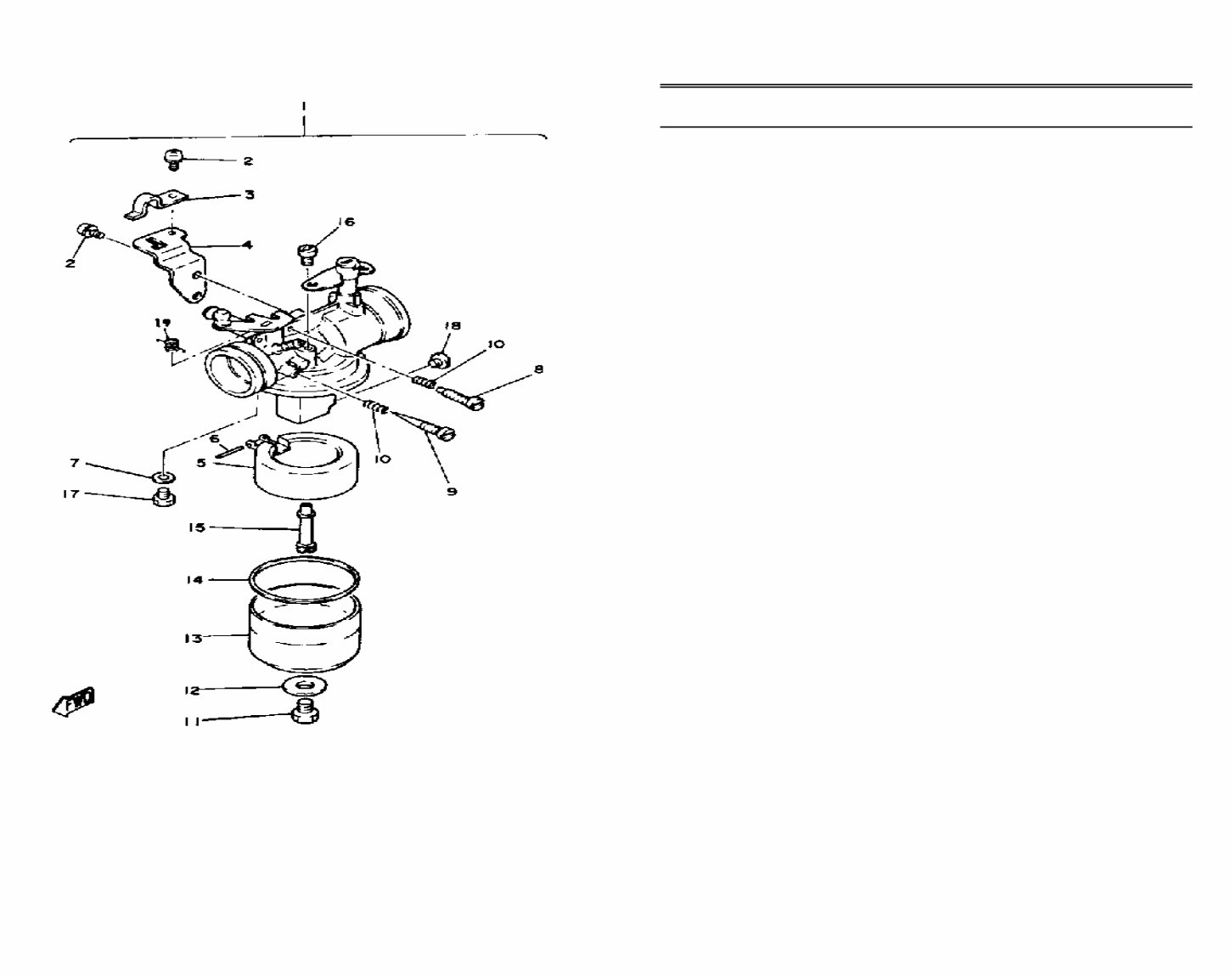

1 J10-14101-03-00 CARBURETOR ASSEMBLY 1
(J10-14100-02) 0 1 . . . . . . . . . . . 1 705~
J10-14101-09-00 CARBURETOR ASSEMBLY 1
(J10-14101-01) 0 1 . . . . . . . . . . . 1 101~ 007704
2 98580-03008-00 . SCREW, PAN HEAD . . . . . . . 2
3 J10-14243-00-00 . PLATE . . . . . . . . . . . . . . . . . . 1
4 J10-14581-00-00 . BRACKET . . . . . . . . . . . . . . . 1
5 796-14185-00-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
6 796-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 1
7 127-14195-00-00 . WASHER, NEEDLE VALVE . . 1
8 J10-14122-00-00 . SCREW, THROTTLE . . . . . . . 1
9 620-14211-00-00 . SCREW, PILOT ADJUSTING . 1
10 620-14212-00-00 . SPRING, PILOT ADJUSTING . 2
11 J10-14244-00-00 . HOLDER, NOZZLE . . . . . . . . . 1
12 732-14237-00-00 . GASKET . . . . . . . . . . . . . . . . 1
13 796-14181-00-00 . BODY, FLOAT CHMBR 1 . . . . 1
14 796-14184-00-00 . GASKET, FLOAT CHAMBER . 1
15 J10-14141-00-00 . NOZZLE, MAIN . . . . . . . . . . . 1
16 620-14142-32-00 JET, PILOT # 2 . . . . . . . . . . . . 1
620-14142-45-00 . JET, PILOT #45 0 1 . . . . . . . . 1 705~
17 353-14190-15-00 . NEEDLE VALVE ASSEMBLY . 1
18 3G2-14231-10-00 . JET, POWER (# 50) . . . . . . . . 1
3G2-14231-20-00 . JET, PILOT AIR (#100) . . . . . . 1 705~
19 J10-14131-00-00 SPRING, THROTTLE . . . . . . . . 1
J10-14202-09-00 THROTTLE SHAFT ASSEMBLY 1
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A9
G1_A_A1

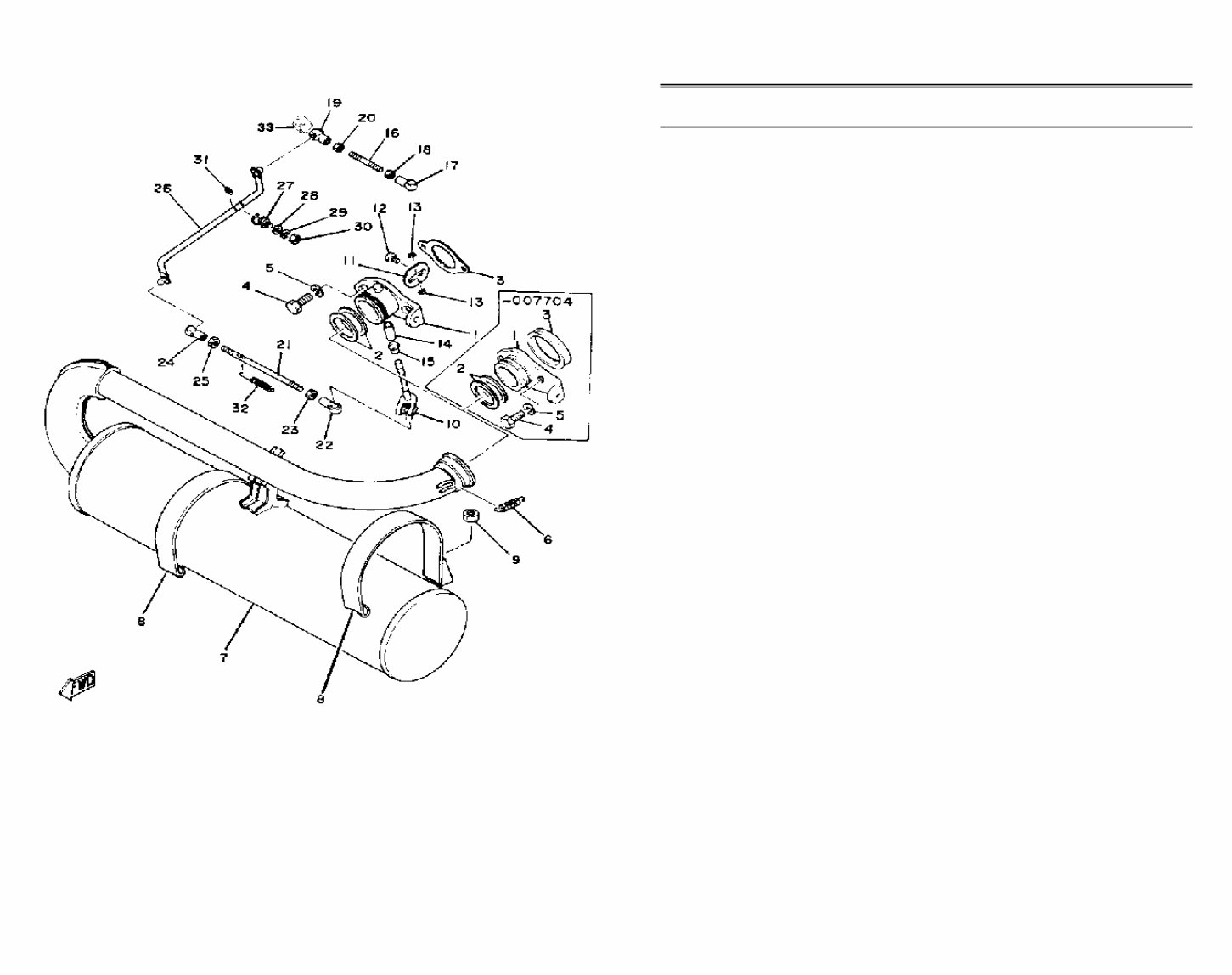

1 J10-14612-00-00 NUT, RING . . . . . . . . . . . . . . . . 1
J10-14612-01-00 NUT, RING . . . . . . . . . . . . . . . . 1 705~
2 888-14633-00-00 RING . . . . . . . . . . . . . . . . . . . . 2
3 8F3-14613-00-00 GASKET, EXST PIPE . . . . . . . . 1
J10-14613-00-00 GASKET, EXST PIPE . . . . . . . . 1 705~
4 97013-08025-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
5 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 2
6 90506-20074-00 SPRING, TENSION . . . . . . . . . . 2
7 99999-01395-00 EXHAUST PIPE ASSEMBLY
(J10-14610-00) . . . . . . . . . . . . . 1
J10-14612-01-00 . NUT, RING . . . . . . . . . . . . . . . 1
J24-14610-00-00 . EXHAUST PIPE ASSEMBLY L 1 705~
8 J10-14715-01-00 BAND, MUFFLER . . . . . . . . . . . 2
9 95611-08100-00 NUT, U . . . . . . . . . . . . . . . . . . . 2
10 J10-14813-01-00 SHAFT, BUTTERFLY . . . . . . . . 1 705~
11 99999-01184-00 . VALVE BUTTERFLY0 1 . . . . . 1 705~
J10-14812-02-00 . VALVE, BUTTERFLY . . . . . . . 1
J10-14813-01-00 . SHAFT, BUTTERFLY . . . . . . . 1
12 98580-03008-00 SCREW, PAN HEAD . . . . . . . . 2
98580-03008-00 SCREW, PAN HEAD . . . . . . . . 2 705~
13 99080-05600-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2 705~
14 J10-14815-00-00 GASKET . . . . . . . . . . . . . . . . . 1 705~
15 J10-14818-00-00 COVER, GASKET . . . . . . . . . . . 1 705~
16 J10-14836-00-00 ROD . . . . . . . . . . . . . . . . . . . . . 1 705~
17 J10-14833-00-00 JOINT 0 1 . . . . . . . . . . . . . . . . 1 705~
18 95311-05700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1 705~
19 J10-14864-00-00 JOINT 0 1 . . . . . . . . . . . . . . . . 1 705~
20 90170-05190-00 NUT, HEXAGON . . . . . . . . . . . . 1 705~
21 J10-14837-00-00 CONNECTOR, ROD . . . . . . . . . 1 705~
CONTINUED ON NEXT FRAME ➤
EXHAUST
Ref. Part
No. Number Description Qty Remarks
A10
G1_A_A1
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$40.99
Viewed 76 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$40.99
1979-2004 Yamaha Golf Carts Parts Catalog
Models Covered:
- 1979-1985 Yamaha G1 Series (Gas & Electric)
- 1985-1989 Yamaha G2 Series (Gas & Electric)
- 1986-1988 Yamaha G3 Series (Gas Only)
- 1990-1992 Yamaha G5 Series (Gas & Electric)
- 1990-1994 Yamaha G8 Series (Gas & Electric)
- 1991-1994 Yamaha G9 Series (Gas & Electric)
- 1993-2001 Yamaha G11 Series (Gas Utility)
- 1995-1996 Yamaha G14 Series (Gas & Electric)
- 1996-2002 Yamaha G16 Series (Gas & Electric)
- 1996-2002 Yamaha G19 Series (Electric Only)
- 2000-2001 Yamaha G20 Series (Gas Multi-Passenger)
- 2002-2004 Yamaha G21 Series (Gas Utility)
- 2003-2004 Yamaha G22 Series (Gas & Electric)
- 2004 Yamaha G23 Series (Electric Utility)
- 2004: Yamaha G27 Series (Gas & Electric Utility)
- 2004: Yamaha G28 Series (Gas Utility)
This official 1979-2004 Yamaha Golf Carts Parts Catalog is a comprehensive factory-issued reference covering a wide range of Yamaha golf cart models—both gas and electric. Whether you're a pro mechanic working on fleets or a DIYer keeping your own cart running smooth, this catalog gives you detailed breakdowns of components and assemblies across more than two decades of models.
Each section includes exploded diagrams and part numbers for essential systems—engine components, driveline, suspension, bodywork, steering, and more—organized by model year and variant. It's especially useful for identifying correct parts before ordering, matching fitment, and understanding how everything fits together during disassembly and reassembly.
Covers dozens of models from the early G1 series through to G22, G27, and G28 utility and multi-passenger vehicles. If you’re servicing Yamaha carts from 1979 to 2004, this catalog is a solid companion to your repair manual, whether you're in the garage or out on the course.
Printable: Yes
Language: English
Compatibility: Pretty much any electronic device, incl. PC & Mac computers, Android and Apple smartphones & tablet, etc.
Requirements: Adobe Reader (free)
