G9_AG
A1

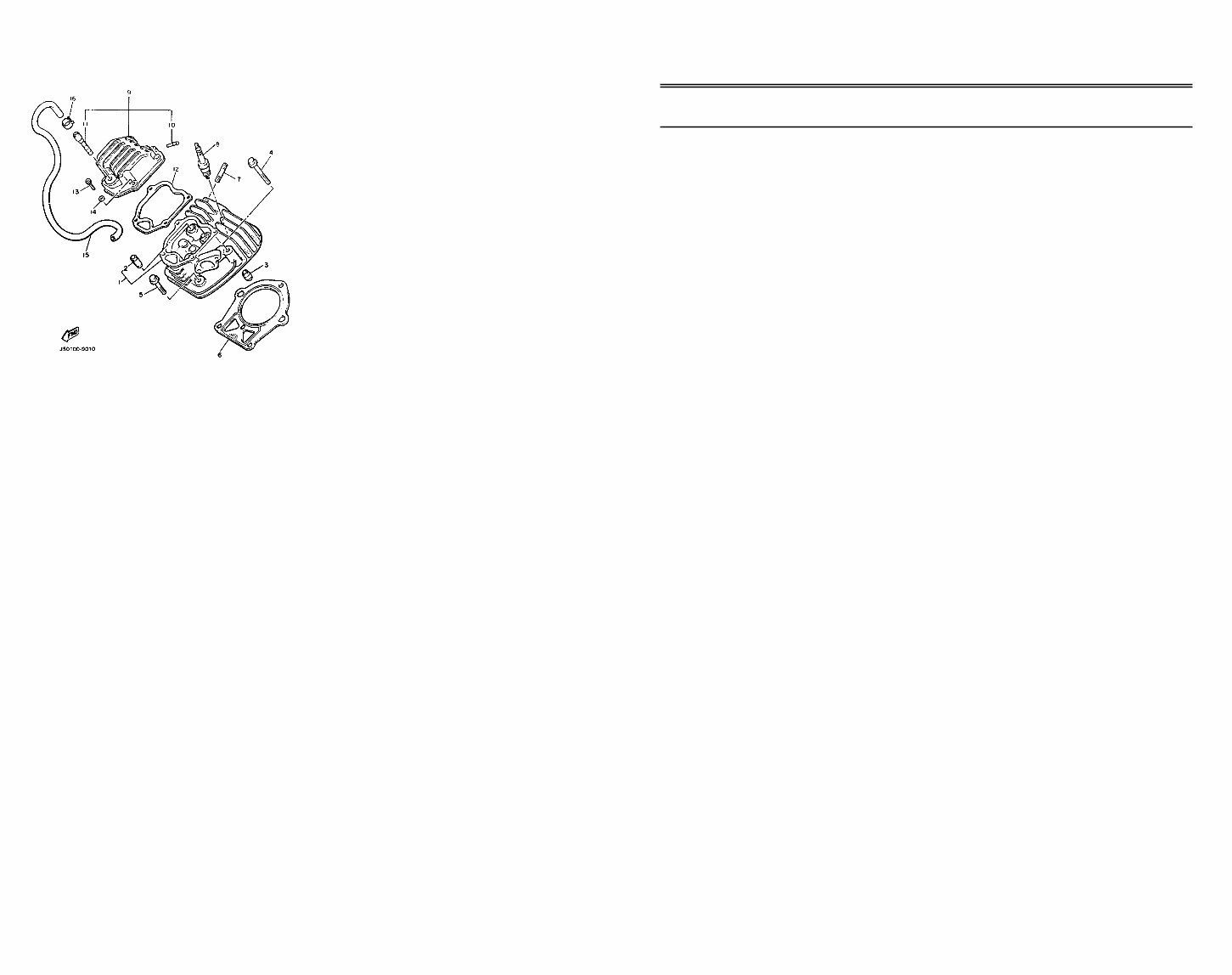

1 J38-11102-00-00 CYLINDER HEAD ASSEMBLY . 1
2 J38-11133-09-00 . GUIDE, INTAKE VALVE . . . . . 2
3 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
4 95811-08070-00 BOLT, FLANGE . . . . . . . . . . . . 3
5 95811-08045-00 BOLT, FLANGE (JN5) . . . . . . . 3
6 J38-11181-00-00 GASKET, CYLINDER HEAD 1 . 1
7 95612-08618-00 BOLT, STUD . . . . . . . . . . . . . . 2
8 NGK-BR4ES-00-00 PLUG, SPARK (NGK BR4ES) . . 1
9 J38-11191-00-00 COVER, CYLINDER HEAD 1 . . 1
10 J38-11116-00-00 . JOINT, BREATHER . . . . . . . . 2
11 J38-24461-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1
12 J38-11193-01-00 GASKET, HEAD COVER 1 . . . . 1
13 91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
14 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
15 90445-130F8-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
16 90467-12052-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A2
G9_AG

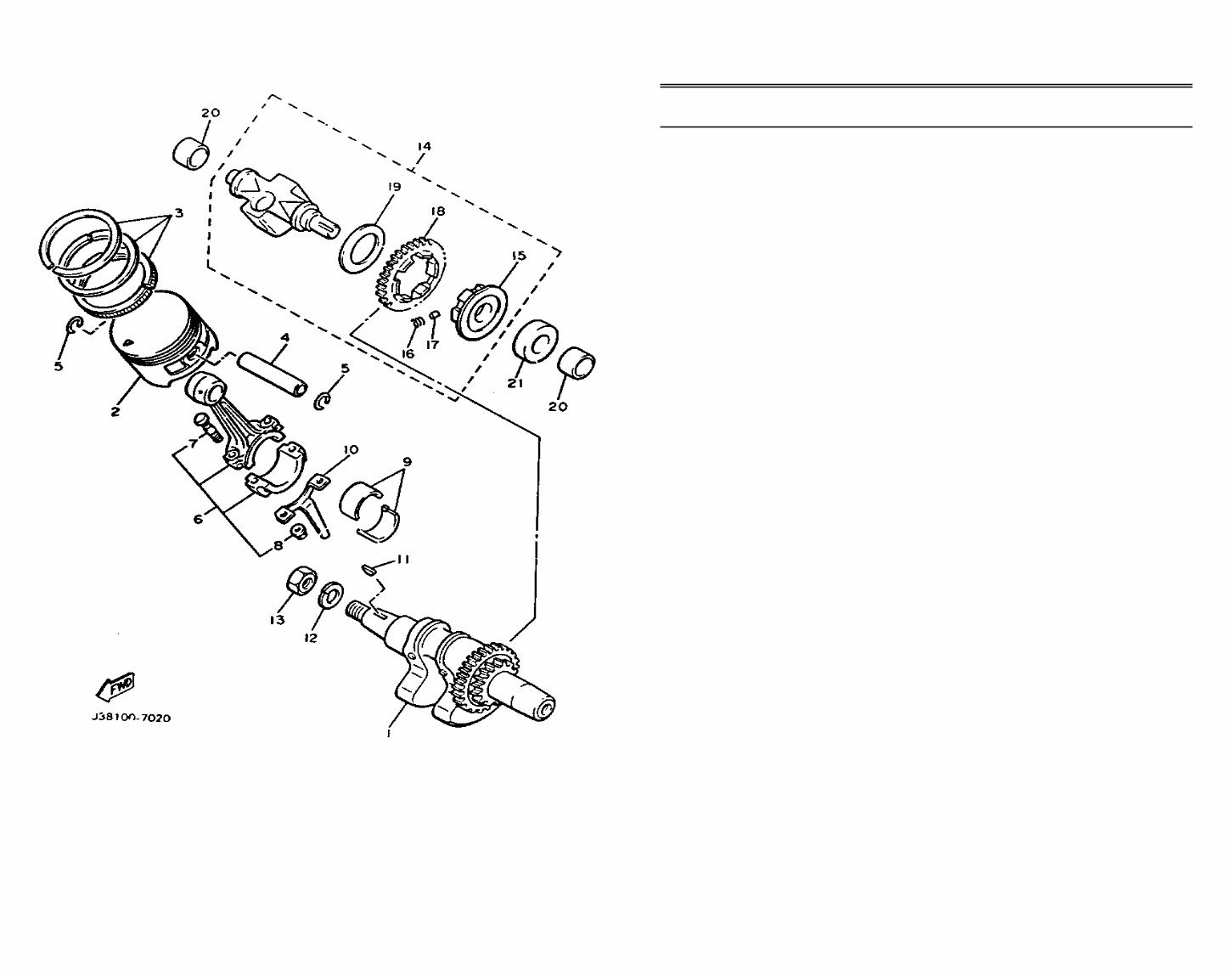

1 J38-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
2 J38-11631-01-A0 PISTON (STD) . . . . . . . . . . . . . 1 STD
J38-11635-01-00 PISTON (0.25MM O/S) . . . . . . . 1 AP
J38-11636-01-00 PISTON (0.50MM O/S) . . . . . . . 1 AP
3 J38-11610-00-00 PISTON RING SET (STD) . . . . . 1 STD
J38-11610-10-00 PISTON RING SET
(0.25MM O/S) . . . . . . . . . . . . . . 1 AP
J38-11610-20-00 PISTON RING SET
(0.50MM O/S) . . . . . . . . . . . . . . 1 AP
4 7A9-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 1
5 93450-19047-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
6 J38-11650-00-00 CONNECTING ROD ASSEMBLY 1
7 J38-11654-00-00 . BOLT, CONNECTING ROD . . 2
8 90179-08327-00 . NUT . . . . . . . . . . . . . . . . . . . . 2
9 J38-11656-00-00 BEARING, CON-ROD . . . . . . . . 2 UR
J38-11656-10-00 BEARING, CON-ROD . . . . . . . . 2 UR
J38-11656-20-00 BEARING, CON-ROD . . . . . . . . 2 UR
10 J38-11657-00-00 SPLASHER, OIL . . . . . . . . . . . . 1
11 90280-16053-00 KEY, WOODRUFF . . . . . . . . . . 1
12 92901-16100-00 WASHER, SPRING . . . . . . . . . . 1
13 90170-16182-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
14 J38-11500-00-00 BALANCER ASSEMBLY . . . . . 1
15 J38-11496-00-00 . BOSS, BUFFER . . . . . . . . . . . 1
16 90501-21133-00 . SPRING, COMPRESSION . . . . 6
17 93605-10090-00 . PIN, DOWEL . . . . . . . . . . . . . 3
18 J38-11531-00-00 . GEAR, BALANCE WT . . . . . . 1
19 90201-201G9-00 . WASHER, PLATE . . . . . . . . . . 1
20 90387-155R3-00 COLLAR . . . . . . . . . . . . . . . . . 2
21 90387-152M7-00 COLLAR . . . . . . . . . . . . . . . . . 1
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A3
G9_AG

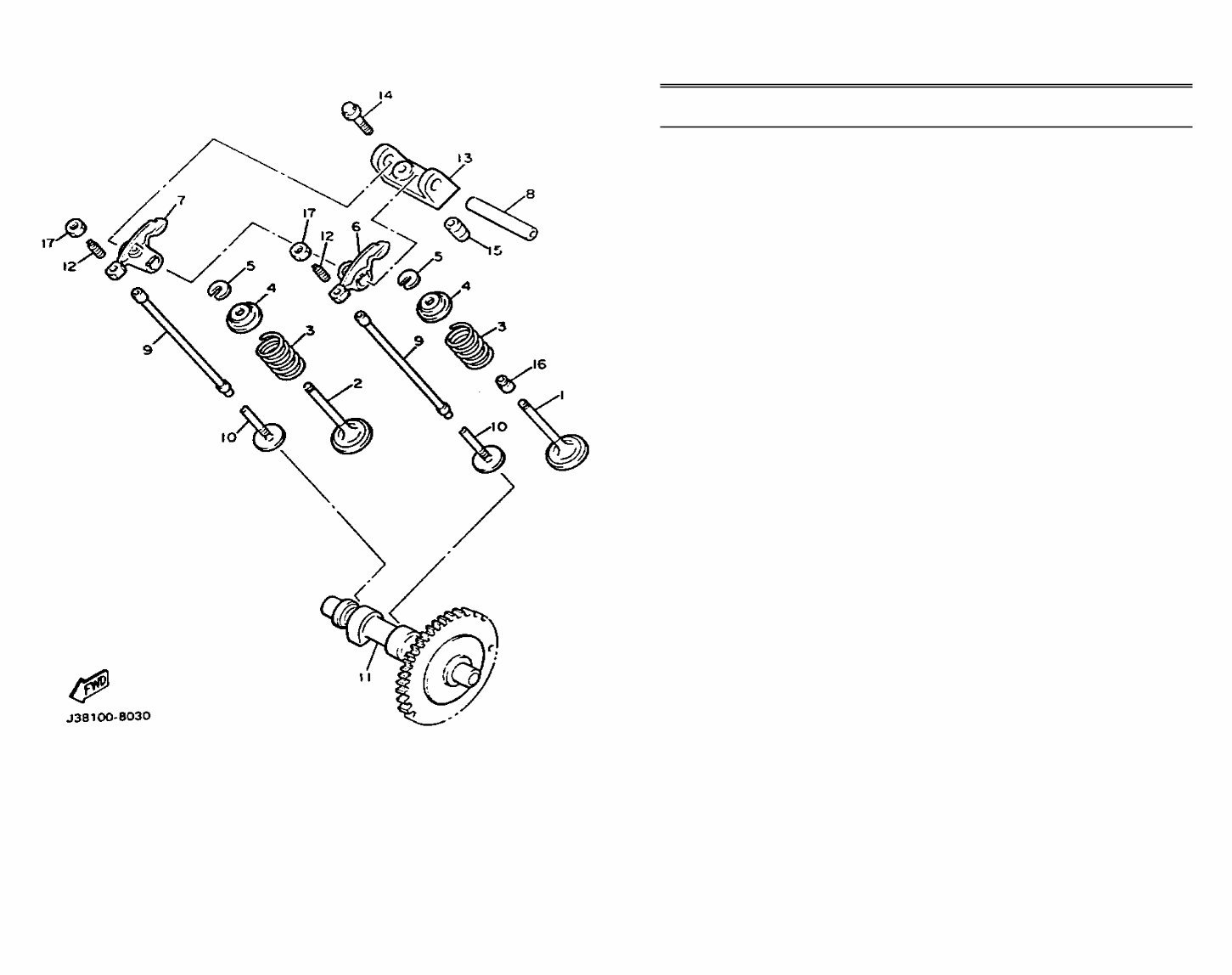

1 J38-12111-01-00 VALVE, INTAKE . . . . . . . . . . . . 1
2 J38-12121-01-00 VALVE, EXHAUST . . . . . . . . . . 1
3 90501-264A9-00 SPRING, COMPRESSION . . . . . 2
4 J38-12117-01-00 RETAINER, VALVE SPRING . . 2
5 J38-12118-00-00 COTTER, VALVE . . . . . . . . . . . 2
6 J38-12151-01-00 ARM, VALVE ROCKER . . . . . . 1
7 J38-12161-01-00 ARM, VALVE ROCKER 2 . . . . . 1
8 J38-12156-00-00 SHAFT, ROCKER 2 . . . . . . . . . 1
9 J38-12154-00-00 ROD, VALVE PUSH . . . . . . . . . 2
10 J38-12153-00-00 LIFTER, VALVE . . . . . . . . . . . . 2
11 J38-12171-00-00 CAMSHAFT 1 . . . . . . . . . . . . . . 1
12 J38-12159-00-00 SCREW, VALVE ADJUSTING . . 2
13 J38-12152-00-00 SUPPORT, ROCKER ARM . . . . 1
14 95811-06030-00 BOLT, FLANGE . . . . . . . . . . . . 2
15 91810-09014-00 PIN, DOWEL . . . . . . . . . . . . . . 2
16 5H0-12119-00-00 SEAL, VALVE STEM . . . . . . . . 1
17 90170-06128-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
CAMSHAFT - VALVE
Ref. Part
No. Number Description Qty Remarks
A4
G9_AG

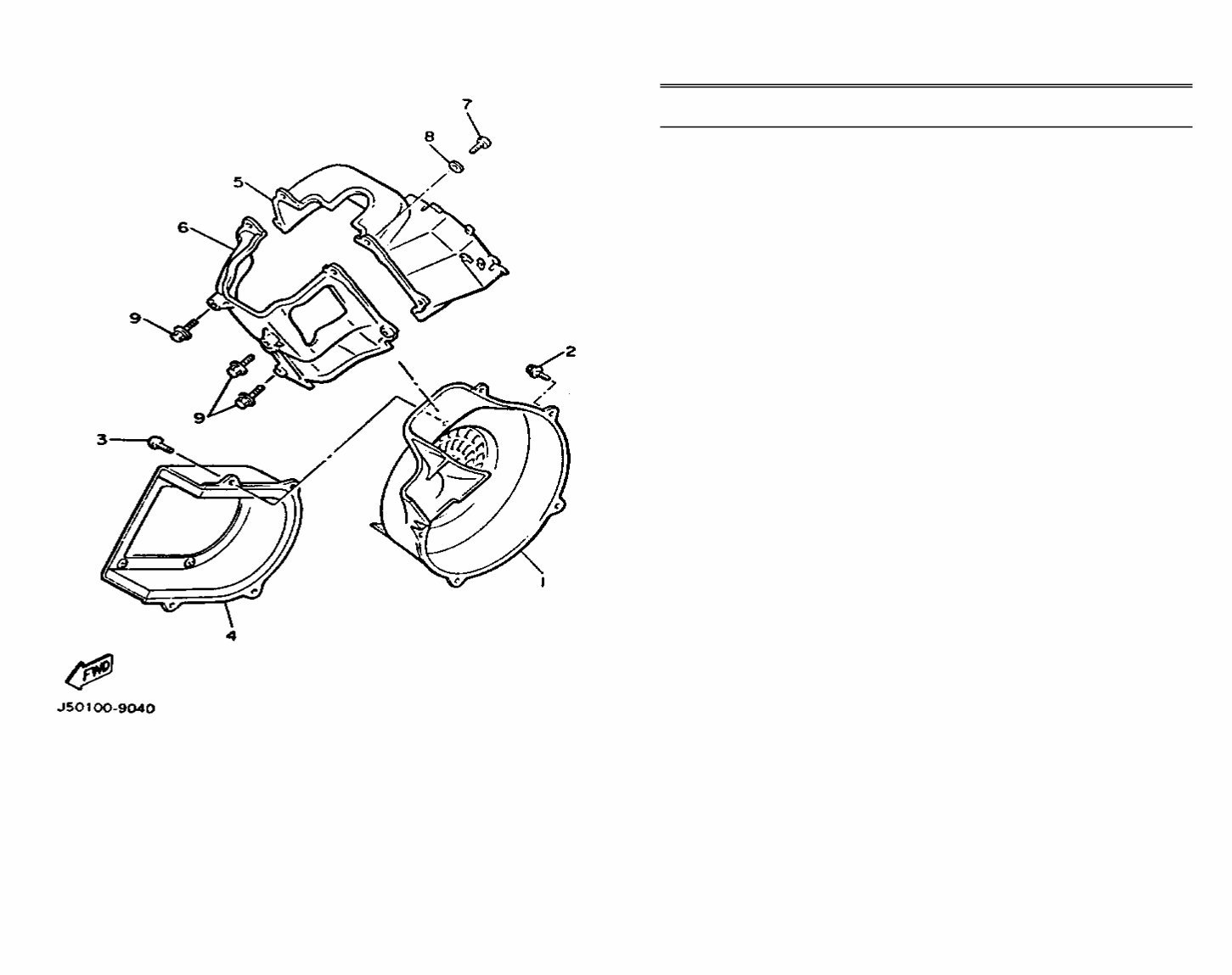

1 J38-12621-01-00 CASE, FAN . . . . . . . . . . . . . . . 1
2 95811-06020-00 BOLT, FLANGE . . . . . . . . . . . . 5
3 97780-60116-00 SCREW, TAPPING . . . . . . . . . . 4
4 J38-12640-00-00 FAN CASE COVER COMP. . . . 1
5 J38-12651-01-00 AIR SHROUD, CYLINDER 1 . . . 1
6 J38-12652-00-00 AIR SHROUD, CYLINDER 2 . . . 1
7 98502-06016-00 SCREW, PAN HEAD
(98501-06014-00) . . . . . . . . . . . 4
8 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
9 90109-06513-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
AIR SHROUD - FAN
Ref. Part
No. Number Description Qty Remarks
A5
G9_AG
