G2_ED
A1

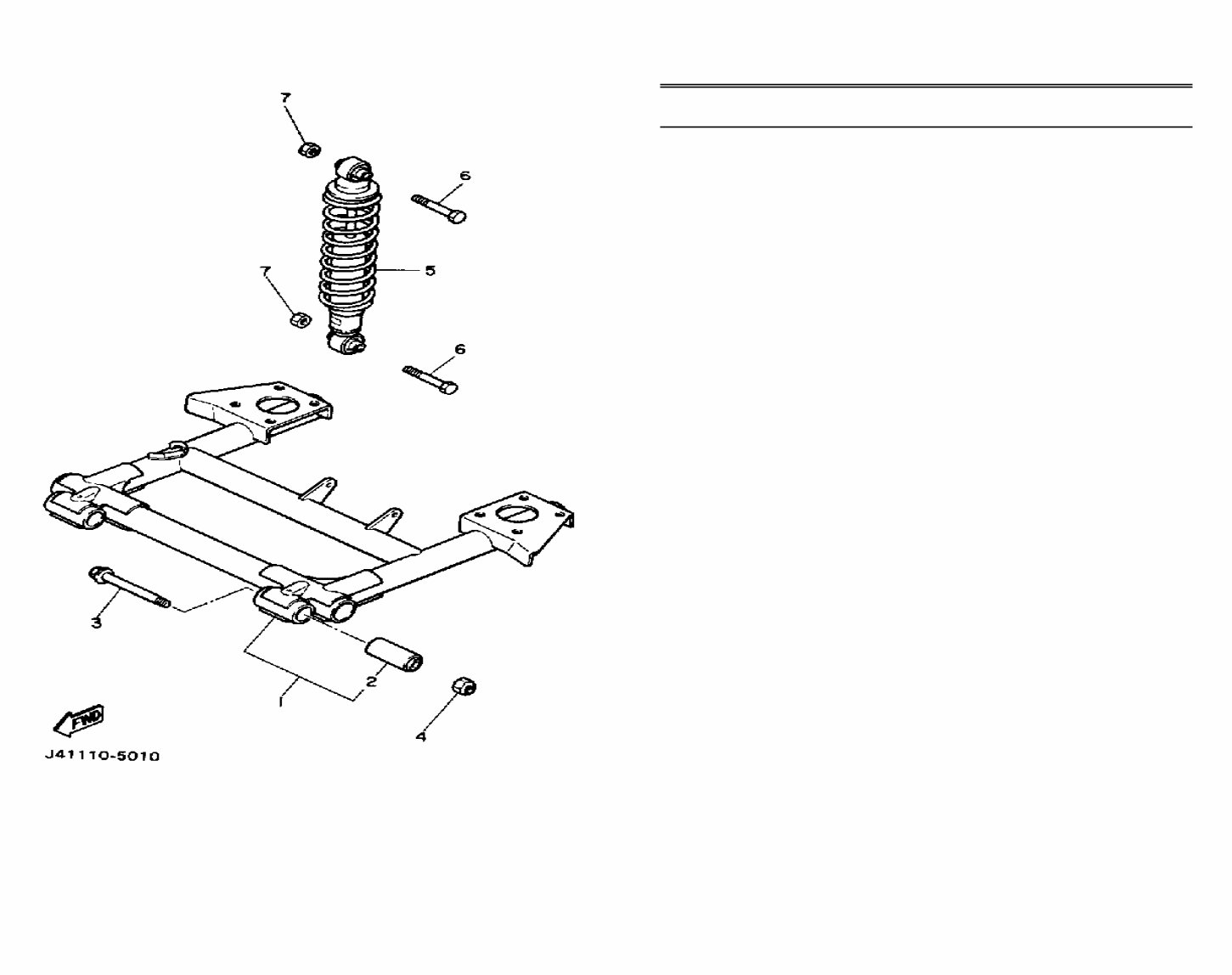

1 J56-F2110-W0-00 REAR ARM COMP.
(J56-F2110-00-00) . . . . . . . . . . 1
2 J10-22123-00-00 . BUSH 1 . . . . . . . . . . . . . . . . . 2
3 90105-10359-00 BOLT, WASHER BASED . . . . . 2
4 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 2
5 JG6-F2210-00-00 SHOCK ABSORBER
ASSEMBLY, REAR . . . . . . . . . 2
6 97012-10050-00 BOLT (97002-10050-00) . . . . . . 4
7 95601-10100-00 NUT, U (95602-10100-00) . . . . . 4
REAR SHOCKS - SUSPENSION
Ref. Part
No. Number Description Qty Remarks
A2
G2_ED

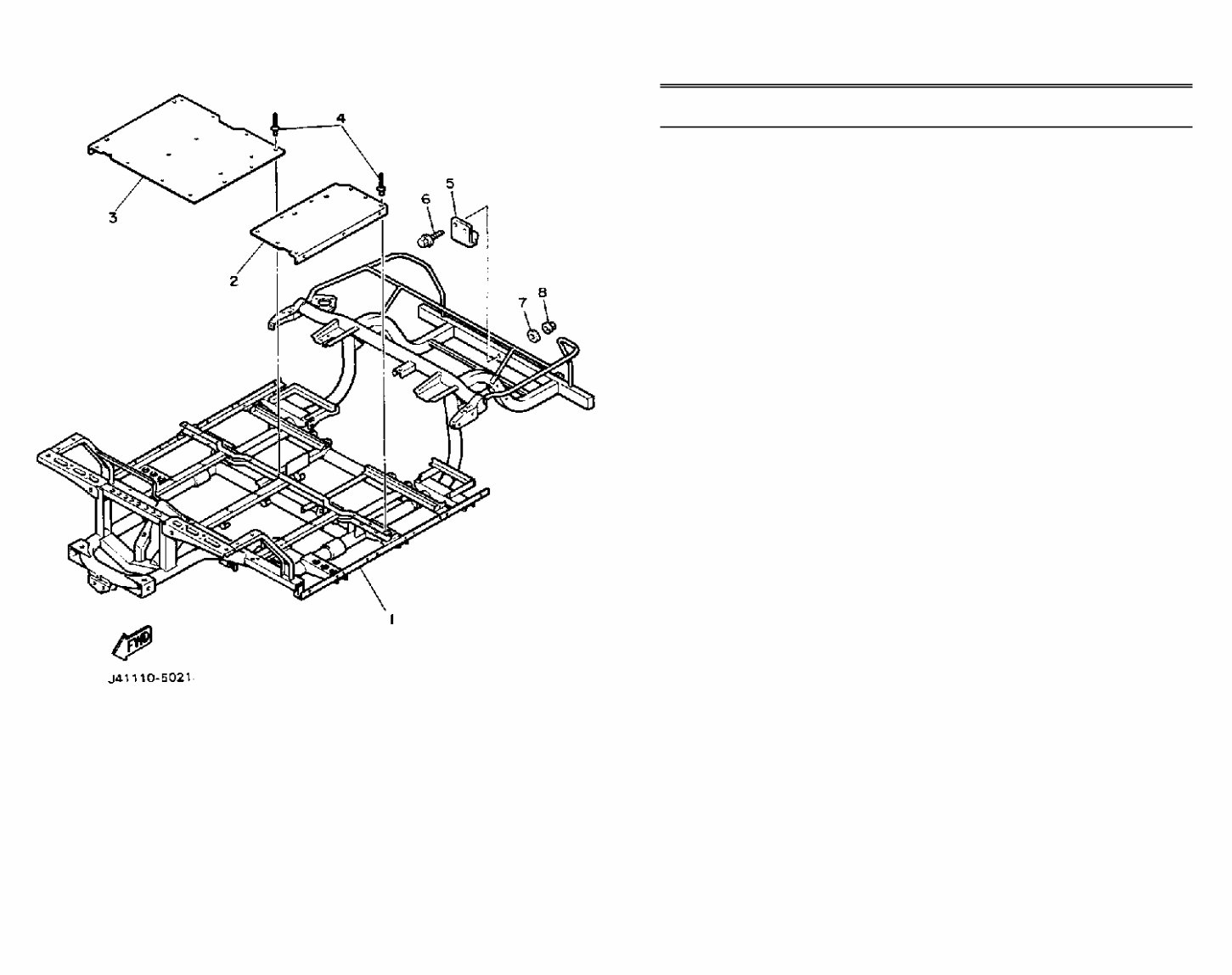

1 J56-F2501-00-00 FRAME COMP. (J41-22501-01) . 1
2 J55-F2571-00-00 PANEL 1 . . . . . . . . . . . . . . . . . 1
3 J55-F2572-00-00 PANEL 2 . . . . . . . . . . . . . . . . . 1
4 90267-40054-00 RIVET, BLIND . . . . . . . . . . . . . 20
5 ABA-JF286-00-00 REAR HITCH . . . . . . . . . . . . . . 1
6 95811-08050-00 BOLT, FLANGE (95812-08050) . 2
7 90201-08730-00 WASHER, PLATE . . . . . . . . . . . 2
8 95701-08500-00 NUT, FLANGE . . . . . . . . . . . . . 2
FRAME
Ref. Part
No. Number Description Qty Remarks
A3
G2_ED

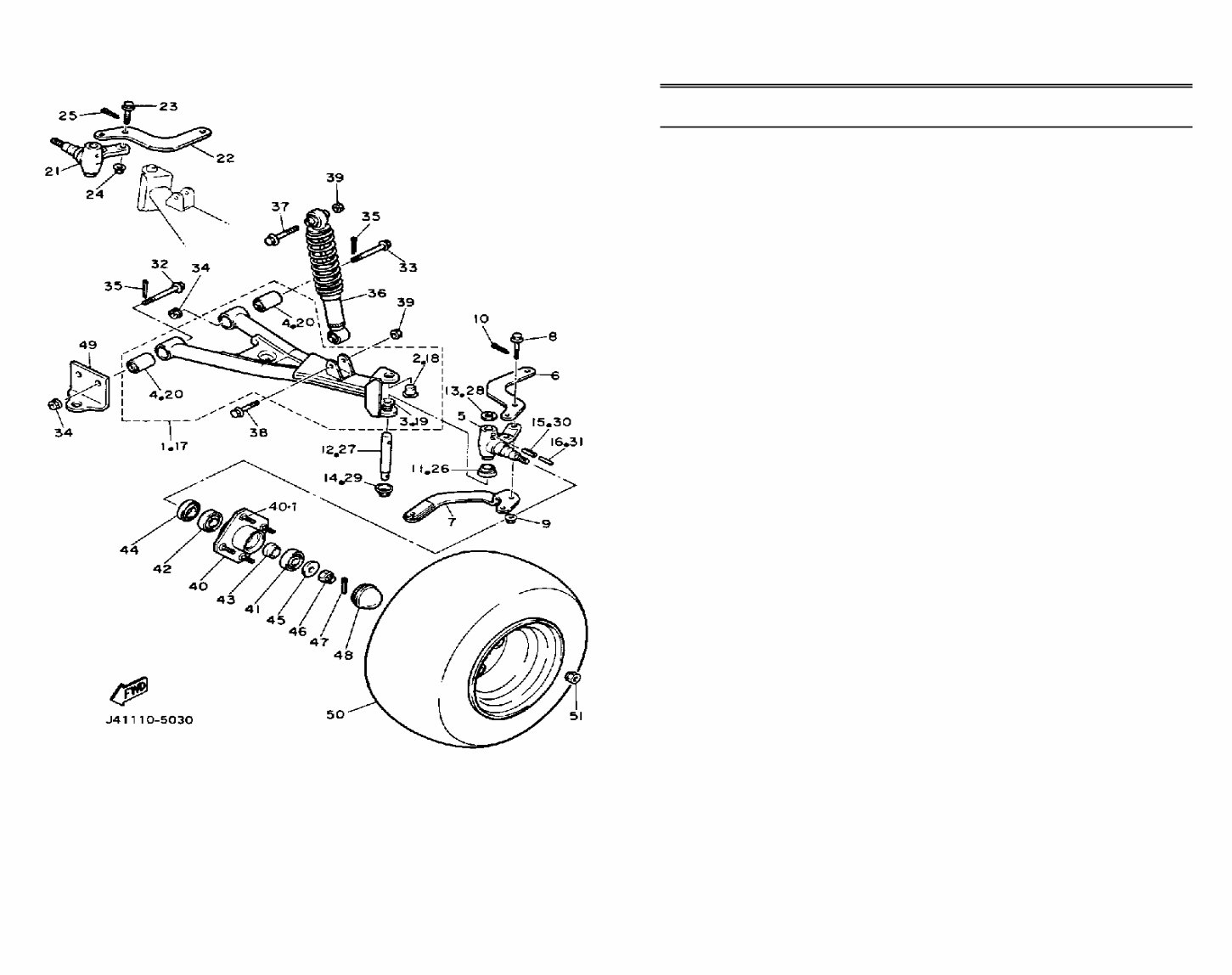

1 J38-23507-01-00 FRONT LOWER ARM SUB-
ASS’’Y (L.H) (J38-23507-00) . . . 1
2 90338-17225-00 . PLUG . . . . . . . . . . . . . . . . . . . 1
3 90386-15139-00 . BUSH . . . . . . . . . . . . . . . . . . . 1
4 J38-23526-00-00 . BUSH . . . . . . . . . . . . . . . . . . . 2
5 J38-23511-01-00 KNUCKLE, STEERING 1 . . . . . 1
6 J38-23512-02-00 ARM, KNUCKLE 1 . . . . . . . . . . 1
7 ABA-JF288-00-00 ARM, STEERING (J41-23532-00) 1
8 90105-10366-00 BOLT, WASHER BASED . . . . . 2
9 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 2
10 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
11 J38-23527-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
12 J38-23516-00-00 PIN, STEERING KNUCKLE . . . 1
13 90201-156J2-00 WASHER, PLAIN . . . . . . . . . . . 1
14 J38-23528-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
15 91609-60028-00 PIN, SPRING . . . . . . . . . . . . . . 1
16 91609-35028-00 PIN, SPRING . . . . . . . . . . . . . . 1
17 J38-23508-01-00 FRONT LOWER ARM SUB-
ASS’’Y (R.H) (J38-23508-00) . . 1
18 90338-17225-00 . PLUG . . . . . . . . . . . . . . . . . . . 1
19 90386-15139-00 . BUSH . . . . . . . . . . . . . . . . . . . 1
20 J38-23526-00-00 . BUSH . . . . . . . . . . . . . . . . . . . 2
21 J38-23521-01-00 KNUCKLE, STEERING 2 . . . . . 1
22 J38-23512-02-00 ARM, KNUCKLE 1 . . . . . . . . . . 1
23 90105-10360-00 BOLT, FLANGE . . . . . . . . . . . . 2
24 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 2
25 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
26 J38-23527-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
27 J38-23516-00-00 PIN, STEERING KNUCKLE . . . 1
CONTINUED ON NEXT FRAME ➤
FRONT SUSPENSION - WHEEL
Ref. Part
No. Number Description Qty Remarks
A4
G2_ED
28 90201-156J2-00 WASHER, PLAIN . . . . . . . . . . . 1
29 J38-23528-00-00 SEAL, DUST . . . . . . . . . . . . . . 1
30 91609-60028-00 PIN, SPRING . . . . . . . . . . . . . . 1
31 91609-35028-00 PIN, SPRING . . . . . . . . . . . . . . 1
32 90105-10358-00 BOLT, WASHER BASED . . . . . 2
33 90105-10357-00 BOLT, FLANGE . . . . . . . . . . . . 2
34 90185-10115-00 NUT, SELF-LOCKING . . . . . . . . 4
35 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
36 JG6-F3350-00-00 SHOCK ABSORBER
ASSEMBLY . . . . . . . . . . . . . . . 2
37 97002-10065-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
38 97012-10050-00 BOLT (97002-10050-00) . . . . . . 2
39 95601-10100-00 NUT, U (95602-10100-00) . . . . . 4
40 J38-W2511-00-00 HUB, FRONT . . . . . . . . . . . . . . 2
41 93306-20437-00 BEARING . . . . . . . . . . . . . . . . . 2
42 93306-00511-00 BEARING . . . . . . . . . . . . . . . . . 2
43 90387-241M7-00 COLLAR . . . . . . . . . . . . . . . . . 2
44 93102-30083-00 SEAL, OIL . . . . . . . . . . . . . . . . 2
45 90209-32271-00 WASHER . . . . . . . . . . . . . . . . . 2
46 95601-14100-00 NUT, U (95602-14100-00) . . . . . 2
47 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
48 J17-25118-00-00 COVER, HUB DUST . . . . . . . . . 2
49 ABA-JF287-00-00 BRACKET 1 ASSEMBLY . . . . . 1
50 J55-F5100-00-00 FRONT WHEEL ASSEMBLY . . 2
51 90179-12262-00 NUT . . . . . . . . . . . . . . . . . . . . . 8
FRONT SUSPENSION - WHEEL
Ref. Part
No. Number Description Qty Remarks
A5
G2_ED

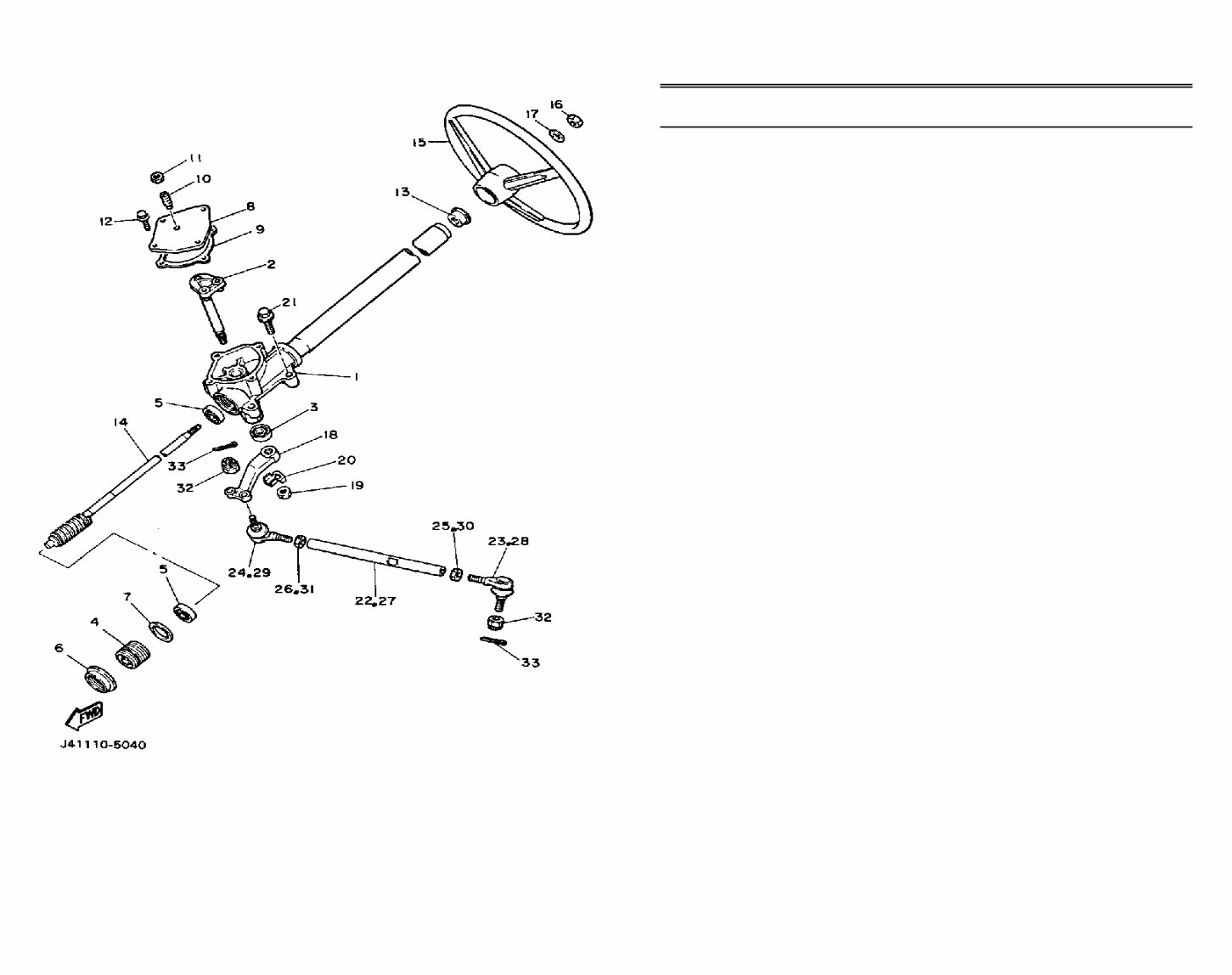

1 J55-F3811-00-00 COLUMN, STEERING
(J38-23811-00) . . . . . . . . . . . . . 1
2 J38-23816-00-00 ARM, PITMAN . . . . . . . . . . . . . 1
3 93102-22087-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
4 J55-F3876-00-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
5 93332-00010-00 BEARING . . . . . . . . . . . . . . . . . 2
6 J10-23877-00-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
7 J10-23444-00-00 WASHER . . . . . . . . . . . . . . . . . 1
8 J55-23818-00-00 COVER, STEERING . . . . . . . . . 1
9 J38-23462-00-00 SEAL, STEERING
(J38-23462-01-00) . . . . . . . . . . . 1
10 J10-23459-00-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
11 90170-08024-00 NUT, HEX. . . . . . . . . . . . . . . . . 1
12 95811-06020-00 BOLT, FLANGE . . . . . . . . . . . . 4
13 J38-23814-00-00 HOLDER, HANDLE UPPER . . . 1
14 J10-23840-00-00 STEERING SHAFT . . . . . . . . . . 1
15 J55-F3838-00-00 WHEEL, STEERING
(J10-23838-00) . . . . . . . . . . . . . 1
16 90185-12119-00 NUT, SELF-LOCKING . . . . . . . . 1
17 92990-12200-00 WASHER, PLAIN . . . . . . . . . . . 1
18 J38-23826-01-00 ARM, IDLER . . . . . . . . . . . . . . . 1
19 95701-16300-00 NUT, FLANGE . . . . . . . . . . . . . 1
20 90215-16252-00 WASHER, TONGUE . . . . . . . . . 1
21 95811-10050-00 BOLT, FLANGE
(95812-10050-00) . . . . . . . . . . . 4
22 J38-23831-02-00 ROD, TIE . . . . . . . . . . . . . . . . . 1
23 J38-23841-01-00 JOINT, UNIVERSAL 1 . . . . . . . 1
24 J38-23845-01-00 JOINT, UNIVERSAL 2 . . . . . . . 1
25 90170-12055-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
26 90170-12054-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
STEERING
Ref. Part
No. Number Description Qty Remarks
A6
G2_ED
27 J38-23837-02-00 ROD, TIE 2 . . . . . . . . . . . . . . . . 1
28 J38-23841-01-00 JOINT, UNIVERSAL 1 . . . . . . . 1
29 J38-23845-01-00 JOINT, UNIVERSAL 2 . . . . . . . 1
30 90170-12055-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
31 90170-12054-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
32 95601-10100-00 NUT, U (95602-10100-00) . . . . . 4
33 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
STEERING
Ref. Part
No. Number Description Qty Remarks
A7
G2_ED

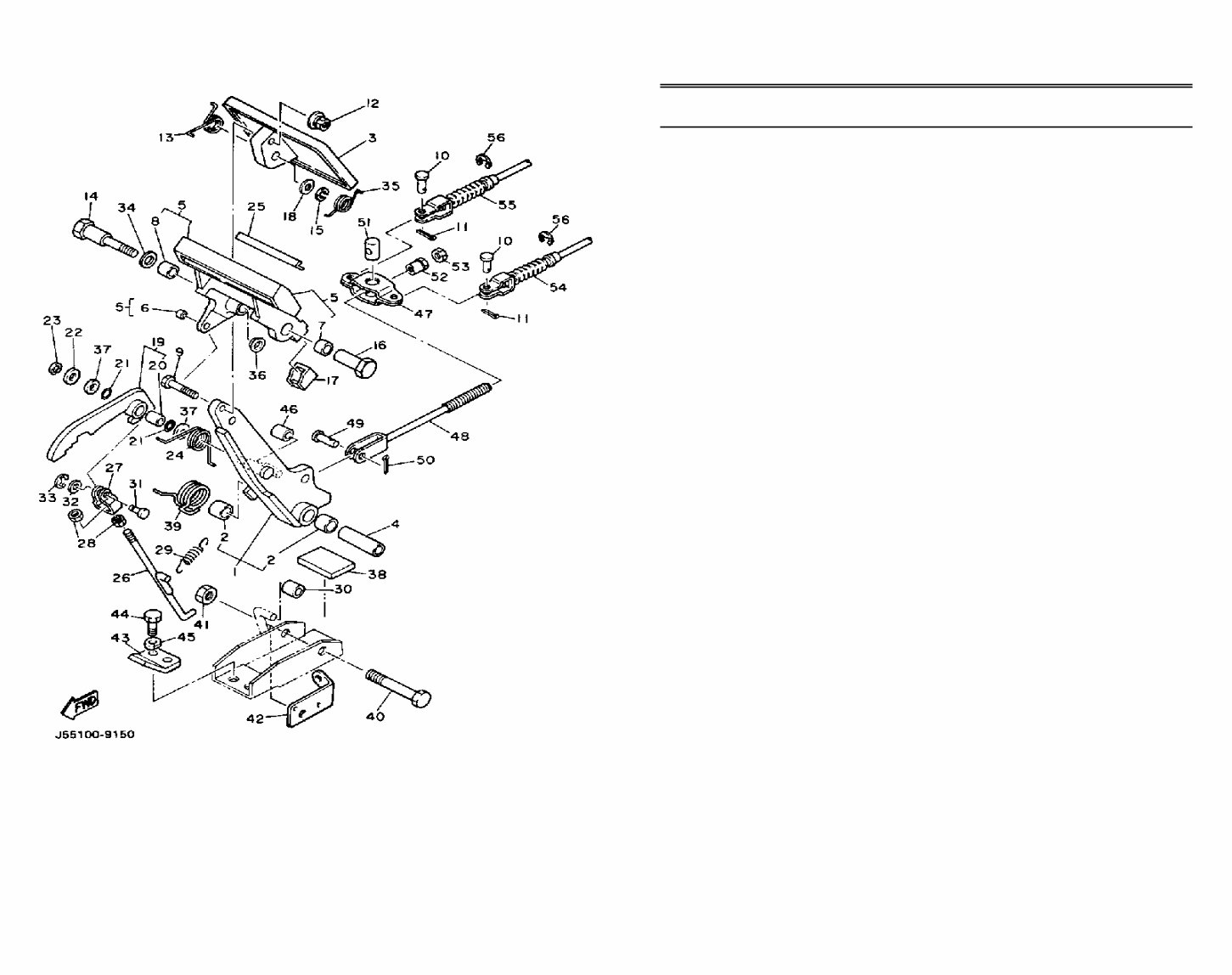

1 99999-01757-00 BRAKE ARM CMPLT
(J17-27250-01) . . . . . . . . . . . . . 1
2 90384-14080-00 . BUSH, BIMETAL . . . . . . . . . . 2
3 J10-27211-00-00 PEDAL, BRAKE . . . . . . . . . . . . 1
4 90387-107F8-00 COLLAR . . . . . . . . . . . . . . . . . 1
5 99999-01799-00 PARKING PEDAL COMP.
(J17-25670-00) . . . . . . . . . . . . . 1
6 90384-05163-00 . BUSH, BIMETAL . . . . . . . . . . 1
7 90384-12164-00 . BUSH, BIMETAL . . . . . . . . . . 1
8 90380-12051-00 . BUSH, SOLID . . . . . . . . . . . . . 1
9 90101-06555-00 BOLT, HEX. . . . . . . . . . . . . . . . 1
10 91701-08018-00 PIN . . . . . . . . . . . . . . . . . . . . . 4
11 91490-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
12 90179-07564-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
13 90508-23542-00 SPRING, TORSION . . . . . . . . . 1
14 90109-08669-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
15 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 1
16 90179-08378-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
17 J17-25679-01-00 DAMPER . . . . . . . . . . . . . . . . . 2
18 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 1
19 J17-W2561-00-00 SECTOR, PARKING BRAKE . . 1
20 90384-10162-00 . BUSH, BIMETAL . . . . . . . . . . 1
21 J17-27221-00-00 SEAL, SHAFT . . . . . . . . . . . . . 2
22 92990-10600-00 WASHER, PLATE . . . . . . . . . . . 1
23 99080-07600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
24 90508-14548-00 SPRING, TORSION . . . . . . . . . 1
25 J17-25672-01-00 PAD, PARKING . . . . . . . . . . . . 1
26 J17-27231-02-00 ROD, BRAKE . . . . . . . . . . . . . . 1
27 J17-27232-00-00 END, ROD . . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
BRAKE
Ref. Part
No. Number Description Qty Remarks
A8
G2_ED
28 95380-06700-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
29 90506-12277-00 SPRING, TENSION . . . . . . . . . . 1
30 J17-25673-00-00 DAMPER, BRAKE . . . . . . . . . . 1
31 J17-27228-00-00 PIN, LINK JOINT . . . . . . . . . . . 1
32 92901-05600-00 WASHER, PLATE . . . . . . . . . . . 1
33 99080-04600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
34 90201-123F2-00 WASHER, PLAIN . . . . . . . . . . . 1
35 90508-26557-00 SPRING, TORSION . . . . . . . . . 1
36 90380-12105-00 BUSH, SOLID . . . . . . . . . . . . . . 1
37 90201-104G8-00 WASHER, PLAIN . . . . . . . . . . . 2
38 J17-27245-00-00 PAD, BRAKE PEDAL . . . . . . . . 1
39 90508-40543-00 SPRING, TORSION . . . . . . . . . 1
40 90101-10447-00 BOLT, HEX. . . . . . . . . . . . . . . . 1
41 95601-10100-00 NUT, U (95602-10100-00) . . . . . 1
42 J55-2252M-00-00 BRACKET, . . . . . . . . . . . . . . . . 1
43 J17-27246-00-00 NAIL, BRAKE . . . . . . . . . . . . . . 1
44 97313-08020-00 BOLT, HEXAGON . . . . . . . . . . 2
45 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 2
46 J17-25673-00-00 DAMPER, BRAKE . . . . . . . . . . 1
47 J10-25681-00-00 EQUALIZER, BRAKE . . . . . . . . 1
48 J20-25685-00-00 ROD . . . . . . . . . . . . . . . . . . . . . 1
49 91701-10022-00 PIN . . . . . . . . . . . . . . . . . . . . . 1
50 91490-30020-00 PIN, COTTER . . . . . . . . . . . . . . 1
51 90249-14129-00 PIN . . . . . . . . . . . . . . . . . . . . . 1
52 90179-08261-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
53 95303-08700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
54 J56-F6341-00-00 CABLE, BRAKE . . . . . . . . . . . . 1
55 J56-F6351-00-00 CABLE, BRAKE . . . . . . . . . . . . 1
56 99001-09600-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
BRAKE
Ref. Part
No. Number Description Qty Remarks
A9
G2_ED

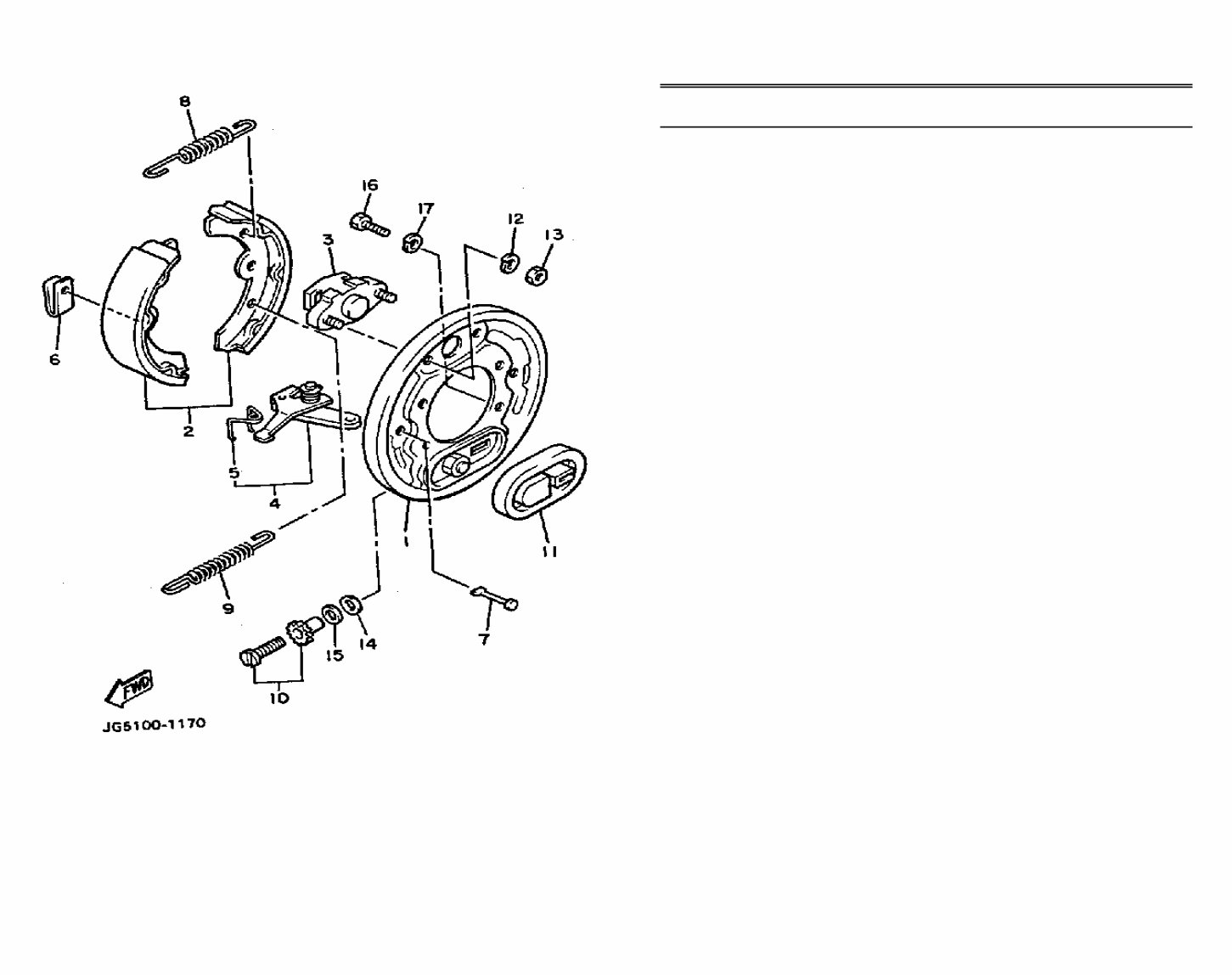

1 J17-27206-00-00 ANCHOR BODY COMP. . . . . . . 1
2 J55-W2536-00-00 BRAKE SHOE SET . . . . . . . . . 1
3 J17-27206-00-00 ANCHOR BODY COMP. . . . . . . 1
4 J38-27204-00-00 LEVER ASSEMBLY 1 . . . . . . . . 1
5 J55-25358-00-00 SPRING LEVER . . . . . . . . . . . . 1
6 J10-27281-00-00 SPRING, SHOE CLAMP . . . . . . 2
7 J10-27282-00-00 PIN, SHOE HOLD DOWN . . . . . 2
8 90506-20281-00 SPRING, TENSION . . . . . . . . . . 1
9 90506-26191-00 SPRING, TENSION . . . . . . . . . . 1
10 J55-27270-00-00 ADJUSTER ASSEMBLY . . . . . . 1
11 J10-27286-00-00 COVER, DUST . . . . . . . . . . . . . 1
12 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2
13 95380-06600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
14 90201-121H8-00 WASHER, PLATE . . . . . . . . . . . 1
15 90201-121H9-00 WASHER, PLATE . . . . . . . . . . . 1
16 97011-08016-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
17 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 4
BRAKE 2
Ref. Part
No. Number Description Qty Remarks
A10
G2_ED
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Viewed 91 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Get access to a comprehensive parts manual, parts list, and parts catalog featuring detailed exploded diagrams and manufacturer part numbers for every component. This resource allows you to zoom in on views to inspect even the smallest parts and provides invaluable assistance for assembly and disassembly tasks. The files are in PDF format, ensuring ease of readability and accessibility.
Whether you are a professional mechanic or a DIY enthusiast, this manual is an indispensable tool for disassembly and reassembly, offering a wealth of information on parts and their corresponding numbers through exploded diagrams.
With instant access, there are no shipping costs or waiting for physical delivery. Upon secure payment processing, you will receive the manual immediately, making it a convenient solution for your urgent needs. The manual is compatible with both PC and MAC, working seamlessly across all Windows versions.
Click the instant access button to acquire this essential parts manual today.
- Contains manufacturer part numbers and diagrams for every part
- Enlargable views for detailed inspection
- Useful for assembly and disassembly
- Easy-to-read PDF format
- Compatible with PC and MAC
All rights reserved. Designated trademarks and brands are the property of their respective owners.
