G2_AD
A1
1 J38-11102-00-00 CYLINDER HEAD ASSEMBLY . 1
2 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
3 95811-08070-00 BOLT, FLANGE . . . . . . . . . . . . 3
4 95811-08045-00 BOLT, FLANGE (JN5) . . . . . . . 3
5 J38-11181-00-00 GASKET, CYLINDER HEAD 1 . 1
6 95612-08618-00 BOLT, STUD . . . . . . . . . . . . . . 2
7 NGK-BR4ES-00-00 PLUG, SPARK (NGK BR4ES) . . 1
8 J38-11191-00-00 COVER, CYLINDER HEAD 1 . . 1
9 J38-11116-00-00 . JOINT, BREATHER . . . . . . . . 2
10 J38-24461-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1
11 J38-11193-01-00 GASKET, HEAD COVER 1 . . . . 1
12 91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
13 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
14 90445-130F8-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
15 90467-12052-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A2
G2_AD
1 J38-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
2 J38-11631-01-A0 PISTON (STD) . . . . . . . . . . . . . 1
J38-11635-01-00 PISTON (0.25MM O/S) . . . . . . . 1 AP
J38-11636-01-00 PISTON (0.50MM O/S) . . . . . . . 1 AP
3 J38-11610-00-00 PISTON RING SET (STD) . . . . . 1
J38-11610-10-00 PISTON RING SET
(0.25MM O/S) . . . . . . . . . . . . . . 1 AP
J38-11610-20-00 PISTON RING SET
(0.50MM O/S) . . . . . . . . . . . . . . 1 AP
4 7A9-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 1
5 93450-19047-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
6 J38-11650-00-00 CONNECTING ROD ASSEMBLY 1
7 J38-11654-00-00 . BOLT, CONNECTING ROD . . 2
8 90179-08327-00 . NUT . . . . . . . . . . . . . . . . . . . . 2
9 J38-11656-00-00 BEARING, CON-ROD . . . . . . . . 2 U.R. BROWN
J38-11656-10-00 BEARING, CON-ROD . . . . . . . . 2 U.R. BLACK
J38-11656-20-00 BEARING, CON-ROD . . . . . . . . 2 U.R. BLUE
10 J38-11657-00-00 SPLASHER, OIL . . . . . . . . . . . . 1
11 90280-16053-00 KEY, WOODRUFF . . . . . . . . . . 1
12 92901-16100-00 WASHER, SPRING . . . . . . . . . . 1
13 90170-16182-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
14 J38-11500-00-00 BALANCER ASSEMBLY . . . . . 1
15 J38-11496-00-00 . BOSS, BUFFER . . . . . . . . . . . 1
16 90501-21133-00 . SPRING, COMPRESSION . . . . 6
17 93605-10090-00 . PIN, DOWEL . . . . . . . . . . . . . 3
18 J38-11531-00-00 . GEAR, BALANCE WT . . . . . . 1
19 90201-201G9-00 . WASHER, PLATE . . . . . . . . . . 1
20 90387-155R3-00 COLLAR . . . . . . . . . . . . . . . . . 2
21 90387-152M7-00 COLLAR . . . . . . . . . . . . . . . . . 1

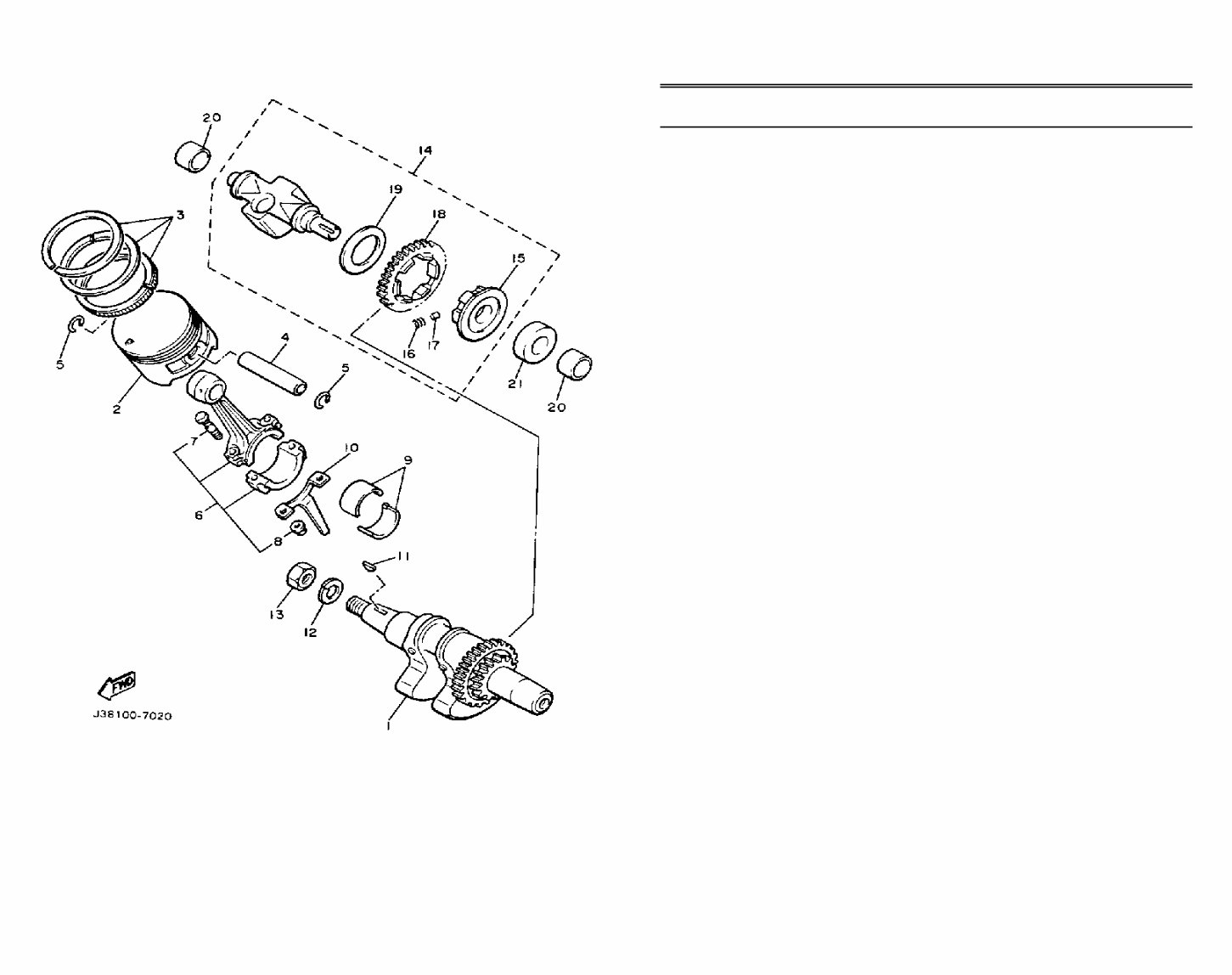

CRANKSHAFT-PISTON
Ref. Part
No. Number Description Qty Remarks
A3
G2_AD
1 J38-12111-01-00 VALVE, INTAKE . . . . . . . . . . . . 1
2 J38-12121-01-00 VALVE, EXHAUST . . . . . . . . . . 1
3 90501-264A9-00 SPRING, COMPRESSION . . . . . 2
4 J38-12117-01-00 RETAINER, VALVE SPRING . . 2
5 J38-12118-00-00 COTTER, VALVE . . . . . . . . . . . 2
6 J38-12151-01-00 ARM, VALVE ROCKER . . . . . . 1
7 J38-12161-01-00 ARM, VALVE ROCKER 2 . . . . . 1
8 J38-12156-00-00 SHAFT, ROCKER 2 . . . . . . . . . 1
9 J38-12154-00-00 ROD, VALVE PUSH . . . . . . . . . 2
10 J38-12153-00-00 LIFTER, VALVE . . . . . . . . . . . . 2
11 J38-12171-00-00 CAMSHAFT 1 . . . . . . . . . . . . . . 1
12 J38-12159-00-00 SCREW, VALVE ADJUSTING . . 2
13 J38-12152-00-00 SUPPORT, ROCKER ARM . . . . 1
14 95811-06030-00 BOLT, FLANGE . . . . . . . . . . . . 2
15 91810-09014-00 PIN, DOWEL . . . . . . . . . . . . . . 2
16 5H0-12119-00-00 SEAL, VALVE STEM . . . . . . . . 1
17 90170-06128-00 NUT . . . . . . . . . . . . . . . . . . . . . 2

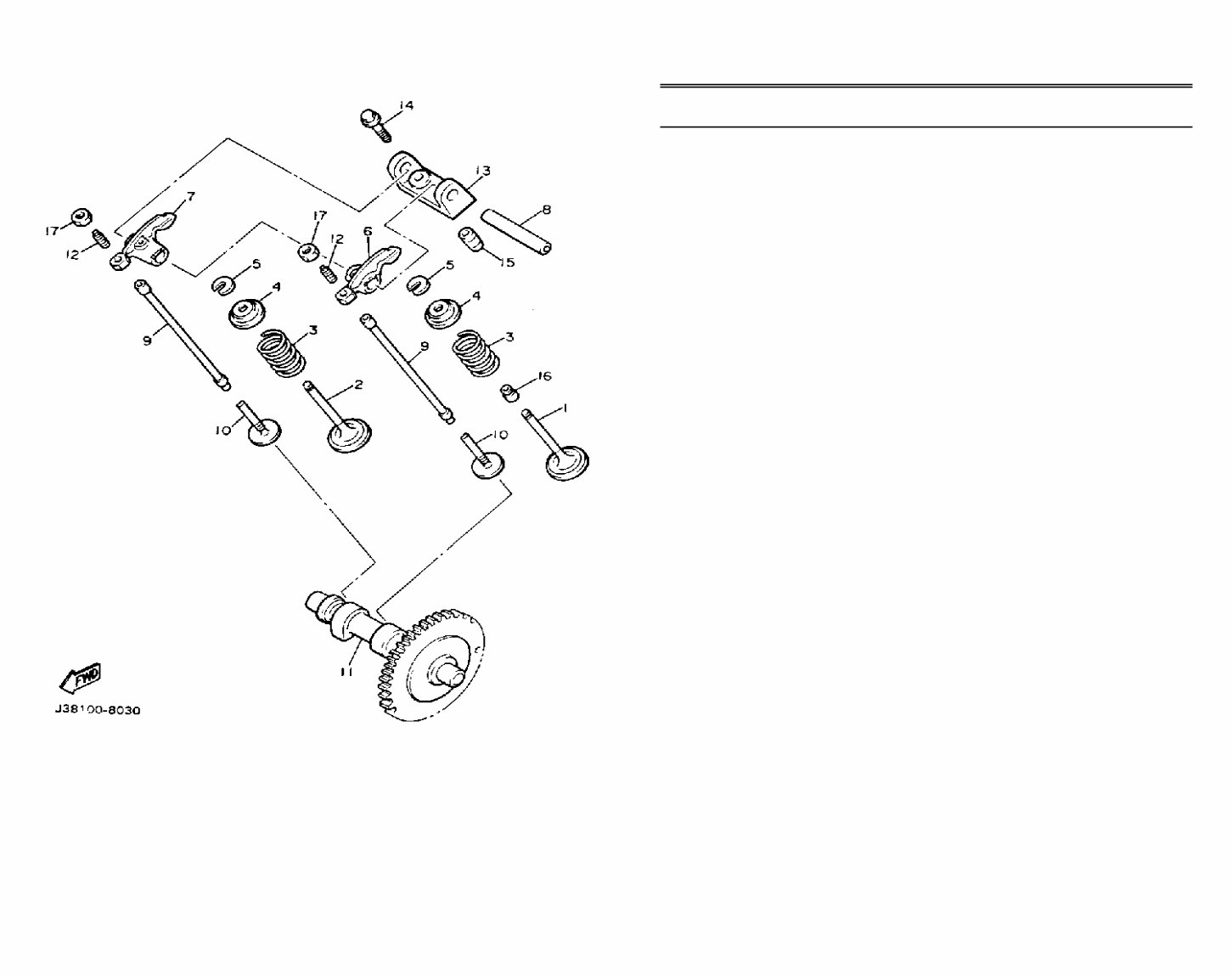

CAMSHAFT - VALVE
Ref. Part
No. Number Description Qty Remarks
A4
G2_AD
1 J38-12621-01-00 CASE, FAN . . . . . . . . . . . . . . . 1
2 95811-06020-00 BOLT, FLANGE . . . . . . . . . . . . 5
3 97780-60116-00 SCREW, TAPPING . . . . . . . . . . 4
4 J38-12640-00-00 FAN CASE COVER COMP. . . . 1
5 J38-12651-01-00 AIR SHROUD, CYLINDER 1 . . . 1
6 J38-12652-00-00 AIR SHROUD, CYLINDER 2 . . . 1
7 98503-06014-00 SCREW, PAN HEAD
(92502-06016) . . . . . . . . . . . . . 4
8 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
9 90109-06513-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
10 J38-12631-00-00 DEFLECTOR 1 . . . . . . . . . . . . . 1
11 90267-48086-00 RIVET, BLIND . . . . . . . . . . . . . 2
12 90201-04325-00 WASHER, PLATE . . . . . . . . . . . 2

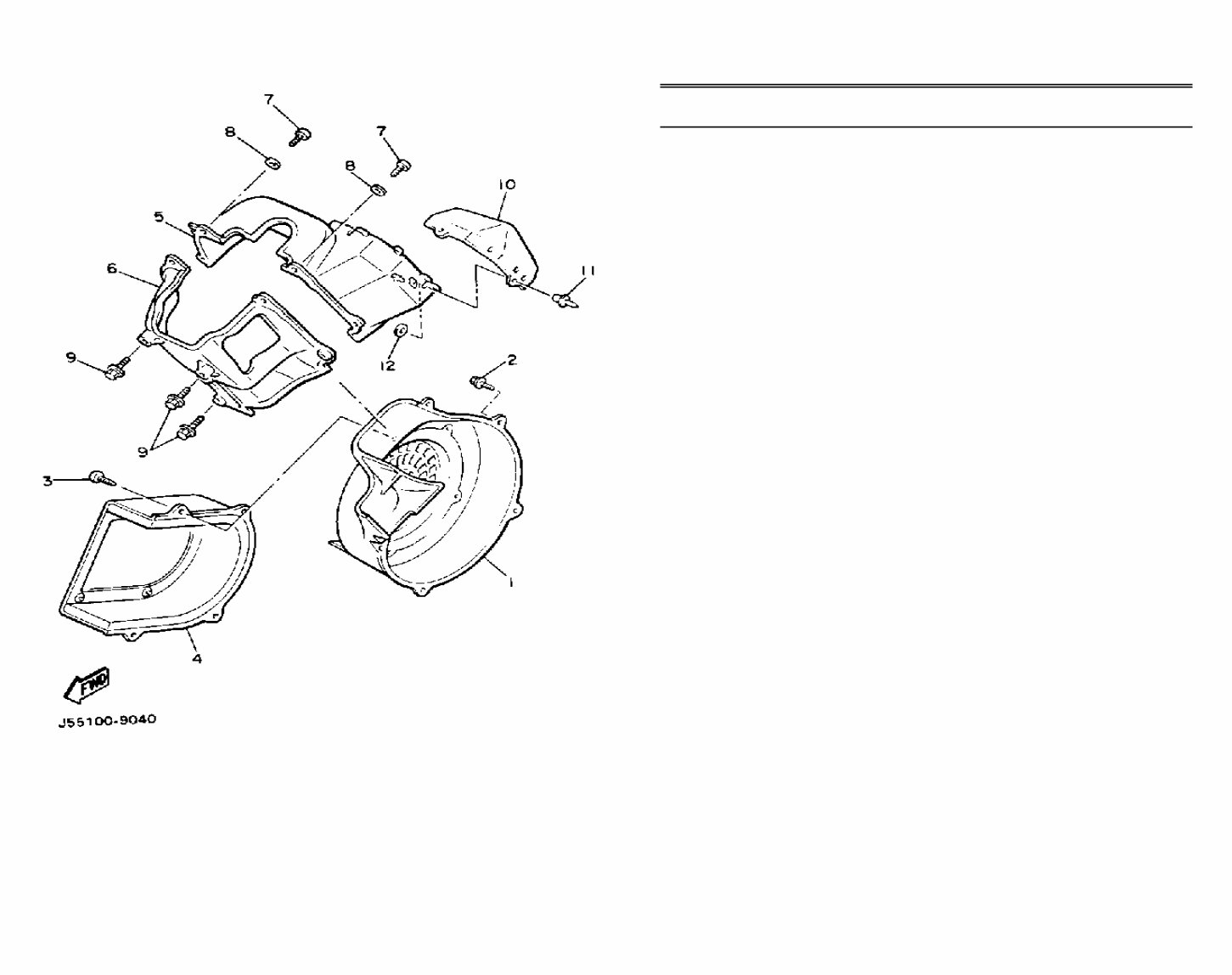

AIR SHROUD - FAN
Ref. Part
No. Number Description Qty Remarks
A5
G2_AD
1 J38-13556-00-00 GASKET, MANIFOLD . . . . . . . . 1
2 J38-13596-00-00 JOINT, CARBURETOR 2 . . . . . 1
3 J38-13557-00-00 GASKET . . . . . . . . . . . . . . . . . 1
4 98580-06030-00 SCREW PAN HEAD . . . . . . . . . 2
5 92995-06100-00 WASHER, SPRING . . . . . . . . . . 2
6 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 2
7 95601-06200-00 NUT, U FLANGE . . . . . . . . . . . 2
8 J38-14453-01-00 JOINT, AIR CLEANER 1 . . . . . . 1
9 90460-43279-00 CLAMP, HOSE . . . . . . . . . . . . . 1
10 90460-53239-00 CLAMP, HOSE . . . . . . . . . . . . . 1
11 J38-14411-01-00 CASE, AIR CLEANER 1 . . . . . . 1
12 90480-14100-00 GROMMET . . . . . . . . . . . . . . . . 2
13 J38-14412-02-00 CAP, CLEANER CASE 1 . . . . . 1
14 50M-14462-01-00 SEAL . . . . . . . . . . . . . . . . . . . . 1
15 J38-14450-00-00 ELEMENT ASSEMBLY, AIR
CLEANER . . . . . . . . . . . . . . . . 1
16 J38-14484-00-00 PLATE, CLEANER CASE
FITTING . . . . . . . . . . . . . . . . . . 1
17 J38-14479-00-00 FUNNEL . . . . . . . . . . . . . . . . . . 1
18 J38-14419-00-00 PIPE . . . . . . . . . . . . . . . . . . . . 1
19 90480-18277-00 GROMMET . . . . . . . . . . . . . . . . 1
20 90480-13238-00 GROMMET . . . . . . . . . . . . . . . . 2
21 J10-14436-00-00 HOOK . . . . . . . . . . . . . . . . . . . 4
22 J38-14416-00-00 GASKET, AIR CLEANER . . . . . 1
23 J38-1441F-00-00 PARTN, AIR CLNR CSAIR
CLEANER CASE . . . . . . . . . . . 1
24 90267-40073-00 RIVET, BLIND . . . . . . . . . . . . . 4
25 J10-14417-00-00 COVER 1 . . . . . . . . . . . . . . . . . 1
26 J38-1446A-01-00 SURGE TANK ASSEMBLY . . . . 1
27 92990-04200-00 WASHER, PLAIN . . . . . . . . . . . 4
CONTINUED ON NEXT FRAME ➤

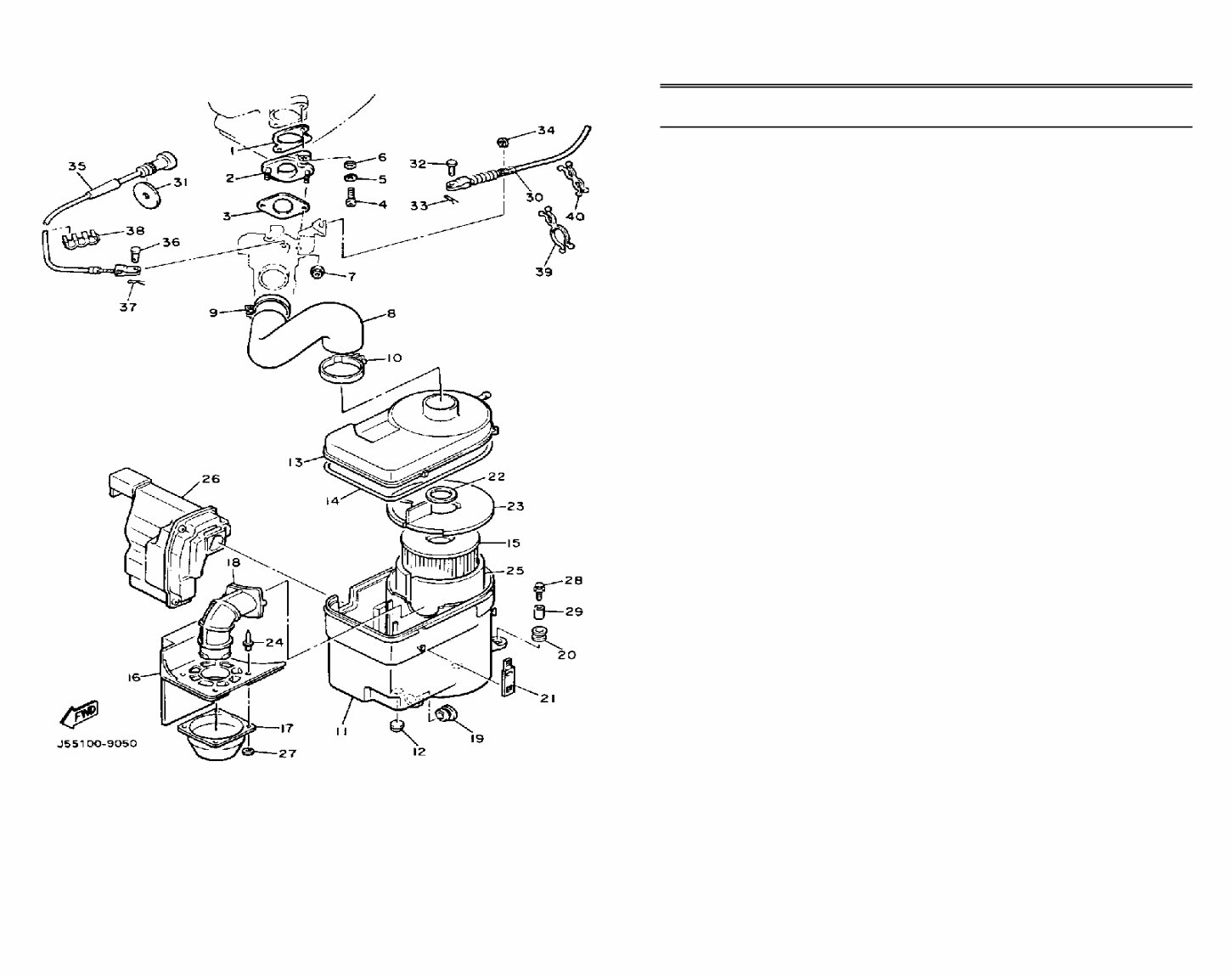

AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A6
G2_AD
28 90119-06097-00 BOLT, WITH WASHER . . . . . . . 2
29 90387-07390-00 COLLAR . . . . . . . . . . . . . . . . . 2
30 J38-26312-00-00 CABLE, THROTTLE 2 . . . . . . . 1
31 90201-114E6-00 WASHER, PLATE . . . . . . . . . . . 1
32 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 1
33 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
34 99080-07600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
35 JF2-F6331-01-00 CABLE, STARTER 1 . . . . . . . . 1
36 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 1
37 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
38 90468-07179-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
39 90464-26114-00 CLAMP . . . . . . . . . . . . . . . . . . 1
40 90464-20096-00 CLAMP (J38) . . . . . . . . . . . . . . 2
AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A7
G2_AD
1 J38-14101-01-00 CARBURETOR ASSEMBLY 1 . 1
2 98580-05010-00 . SCREW, PAN HEAD . . . . . . . 1
3 92990-05100-00 . WASHER, SPRING . . . . . . . . . 1
4 J38-14243-00-00 . PLATE . . . . . . . . . . . . . . . . . . 1
5 75G-14211-00-00 . SCREW, PILOT ADJUSTING . 1
6 620-14212-00-00 . SPRING, PILOT ADJUSTING . 2
7 J10-14122-00-00 . SCREW, THROTTLE . . . . . . . 1
8 J38-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 1
9 J38-14185-00-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
10 620-14142-67-00 . JET, PILOT (#67.5) . . . . . . . . . 1 AP FOR HIGH
ALTITUDE
620-14142-72-00 . JET, PILOT (#72.5) . . . . . . . . . 1 U.R. STD
11 J38-14133-00-00 . SPRING, THROTTLE STOP . . 1
12 J38-14581-00-00 . BRACKET . . . . . . . . . . . . . . . 1
13 98580-06010-00 . SCREW, PAN HEAD
(92503-06010) . . . . . . . . . . . . 1
14 92995-06100-00 . WASHER, SPRING . . . . . . . . . 1
15 98701-05008-00 . SCREW, FLAT HEAD . . . . . . . 2
16 J38-14291-00-00 . BRACKET 1 . . . . . . . . . . . . . . 1
17 3G2-1423E-41-00 . JET, MAIN (#103.8) . . . . . . . . 1 AP FOR HIGH
ALTITUDE
3G2-1423E-42-00 . JET, MAIN (#106.3) . . . . . . . . 1 U.R. STD
18 796-14184-00-00 . GASKET, FLOAT CHAMBER . 1
19 127-14198-00-00 . GASKET . . . . . . . . . . . . . . . . 1
20 7R1-14162-00-00 . BOLT, HOLDING . . . . . . . . . . 1
21 J10-14597-00-00 . WASHER . . . . . . . . . . . . . . . . 1
22 J38-14150-00-00 . NEEDLE ASSEMBLY . . . . . . . 1
23 J38-14141-00-00 . NOZZLE, MAIN . . . . . . . . . . . 1
24 J38-14202-09-00 . THROTTLE LEVER COMP . . . 1

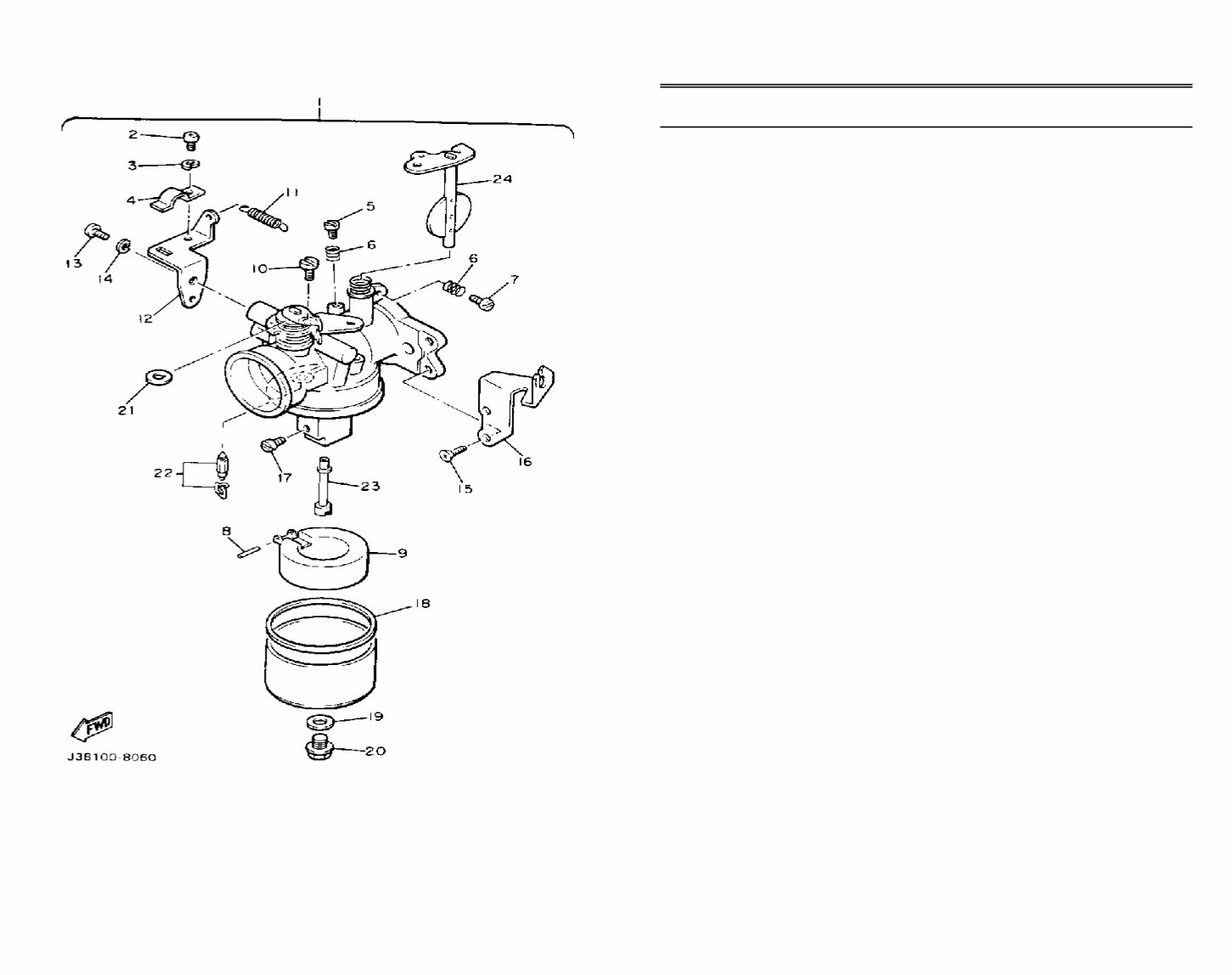

CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A8
G2_AD
1 J55-E4710-01-00 MUFFLER ASSEMBLY 1 . . . . . 1
2 J38-14613-01-00 GASKET, EXHAUST PIPE . . . . 1
3 95380-08600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
4 92990-08100-00 WASHER . . . . . . . . . . . . . . . . . 2
5 J38-14771-00-00 STAY, MUFFLER 1 . . . . . . . . . . 1
6 95026-10020-00 BOLT, FLANGE . . . . . . . . . . . . 2
7 90119-08119-00 BOLT, WITH WASHER . . . . . . . 2

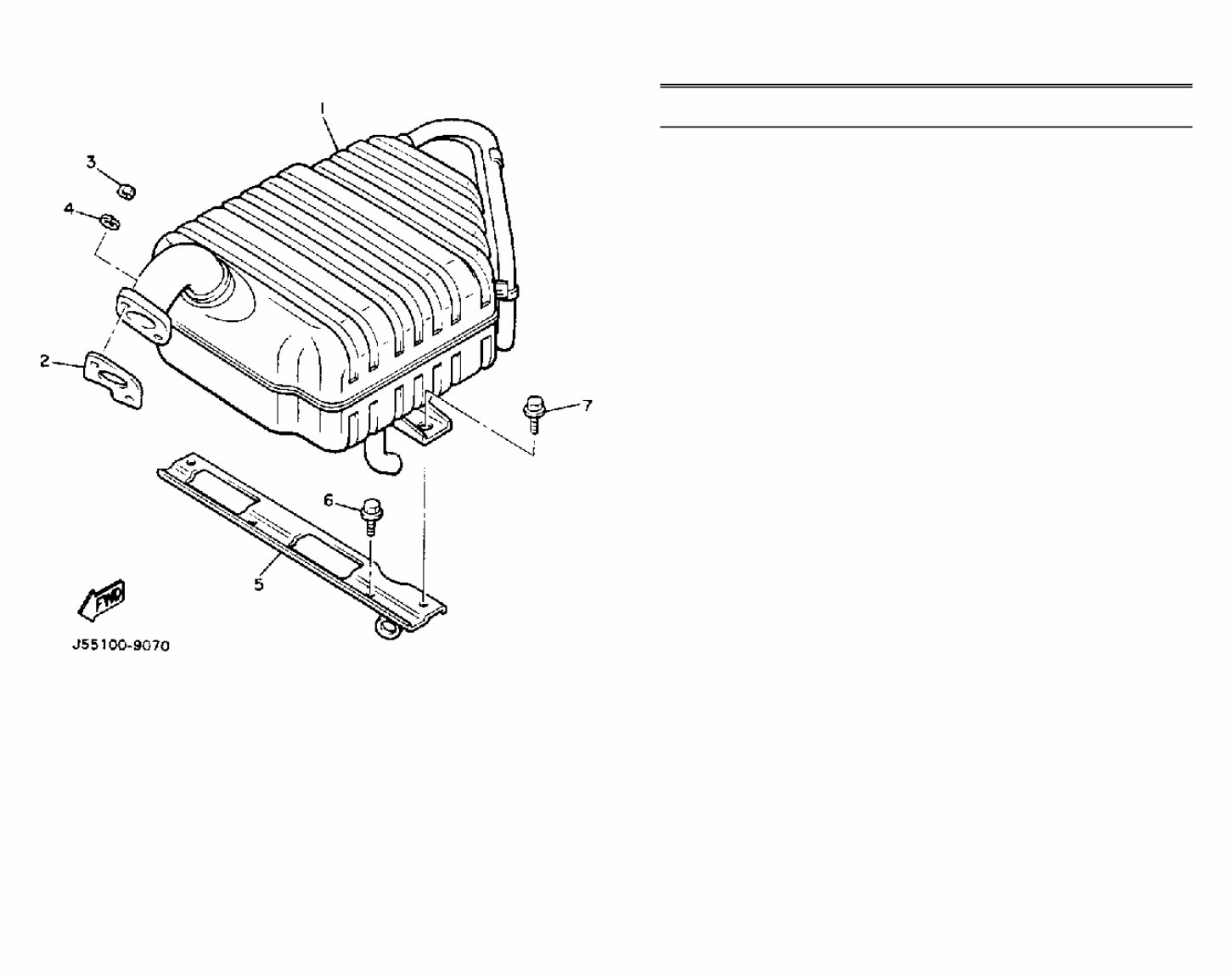

EXHAUST
Ref. Part
No. Number Description Qty Remarks
A9
G2_AD
1 J38-15100-02-00 CRANKCASE ASSEMBLY . . . . 1
2 J38-15148-00-00 . NOZZLE 2 . . . . . . . . . . . . . . . 1
3 J38-15155-00-00 . NOZZLE 3 . . . . . . . . . . . . . . . 1
4 J38-15123-00-00 PLATE, BUFFLE 1 . . . . . . . . . . 1
5 90159-05117-00 SCREW, w/washer . . . . . . . . . . 1
6 93306-30709-00 BEARING . . . . . . . . . . . . . . . . . 1
7 93102-35191-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
8 J38-15361-00-00 GAUGE, LEVEL . . . . . . . . . . . . 1
9 J38-15411-01-00 COVER, CRANKCASE 1 . . . . . 1
10 J38-15112-00-00 PIPE, OIL . . . . . . . . . . . . . . . . . 1
11 J38-15363-00-00 PLUG, OIL . . . . . . . . . . . . . . . . 1
12 93306-30630-00 BEARING . . . . . . . . . . . . . . . . . 1
13 93102-30195-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
14 93608-12063-00 PIN, DOWEL . . . . . . . . . . . . . . 2
15 95811-08035-00 BOLT, FLANGE (95821-08035) . 9
16 90340-12097-00 PLUG, STRAIGHT SCREW . . . . 1
17 90430-12199-00 GASKET . . . . . . . . . . . . . . . . . 1
18 J38-15451-00-00 GASKET, CRCS
COVERCRANKCASE COVER 1 1
19 J38-14388-00-00 VALVE, VACUUM CONTROL . . 1
20 J38-13115-00-00 CONNECTOR, SUCTION PIPE . 1
21 90445-113E4-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
22 90467-10008-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
23 90468-08104-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
24 J38-13161-00-00 PIPE, DELIVERY 1 . . . . . . . . . . 1
25 90445-110E6-00 HOSE . . . . . . . . . . . . . . . . . . . . 2
26 90467-10008-00 CLIP . . . . . . . . . . . . . . . . . . . . 4
27 807-24376-00-00 PIPE, JOINT 1 . . . . . . . . . . . . . 1
28 90445-09073-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤

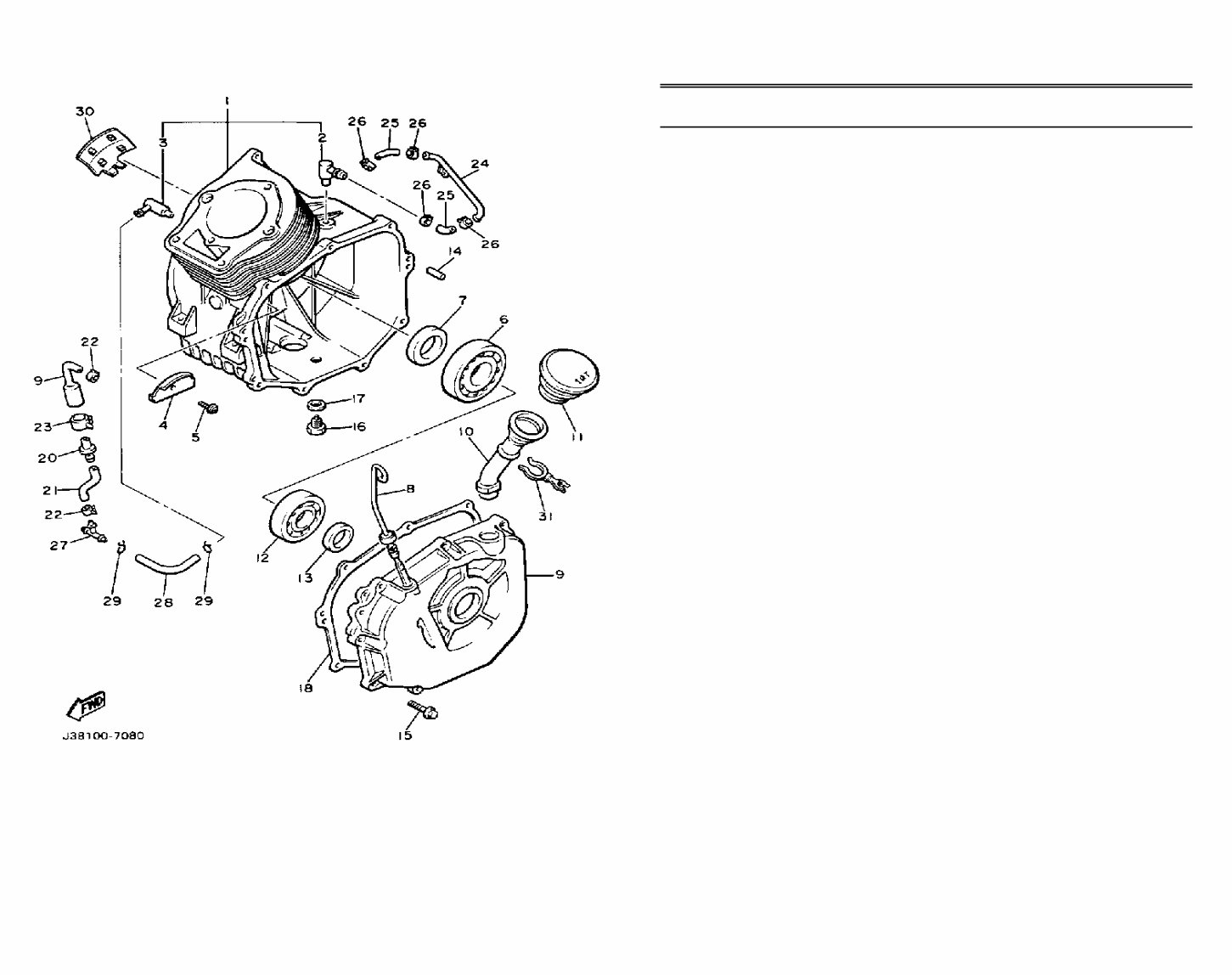

CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A10
G2_AD
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Viewed 68 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Yamaha G2A Golf Cart Parts Catalog
The Yamaha G2A Golf Cart Parts Catalog provides detailed exploded diagrams and OEM part numbers for the gasoline-powered Yamaha G2A model, including the G2A AD production revision. Designed for mechanics, parts managers, and serious DIY owners, this catalog ensures accurate parts identification and ordering for service, repair, and restoration of Yamaha’s classic four-cycle golf carts.
What’s Inside the Yamaha G2A Golf Cart Parts Catalog
This catalog offers complete component breakdowns and part listings for:
Engine Assembly
Exploded diagrams and part numbers for crankcases, pistons, cylinder heads, camshafts, and associated components.
Fuel and Intake Systems
Coverage for the carburetor, fuel tank, fuel lines, air intake system, and related hardware.
Electrical System
Parts listings for ignition coils, starter motors, voltage regulators, and basic wiring components.
Transmission and Drive Train
Detailed breakdowns for primary clutches, secondary clutches, belts, differentials, and axle assemblies.
Chassis and Suspension Components
Parts coverage for the main frame, steering assembly, suspension arms, shocks, and wheel hubs.
Brake System
Illustrations and listings for brake drums, shoes, cables, levers, and linkage components.
Body and Interior Panels
Exploded views for seat assemblies, body panels, floorboards, and control consoles.
How to Access the Yamaha G2A Golf Cart Parts Catalog
The Yamaha G2A Golf Cart Parts Catalog is available for immediate download in PDF format. It is fully compatible with Windows, macOS, iOS, Android, and all devices supporting standard PDF readers such as Adobe Reader.
Why This Yamaha G2A Parts Catalog is Essential
Using original OEM diagrams and part numbers ensures you source the correct components for maintenance and repairs. Whether restoring a classic G2A or keeping your golf cart in peak operating condition, this catalog simplifies the parts ordering and replacement process.
Get Your Yamaha G2A Golf Cart Parts Catalog Today
Download your copy today and gain access to complete OEM parts information for Yamaha’s G2A golf carts, including G2A AD revisions.
Printable: Yes
Language: English
Compatibility: Works on all devices (Windows, Mac, iOS, Android)
Requirements: PDF reader (e.g., Adobe Reader)
