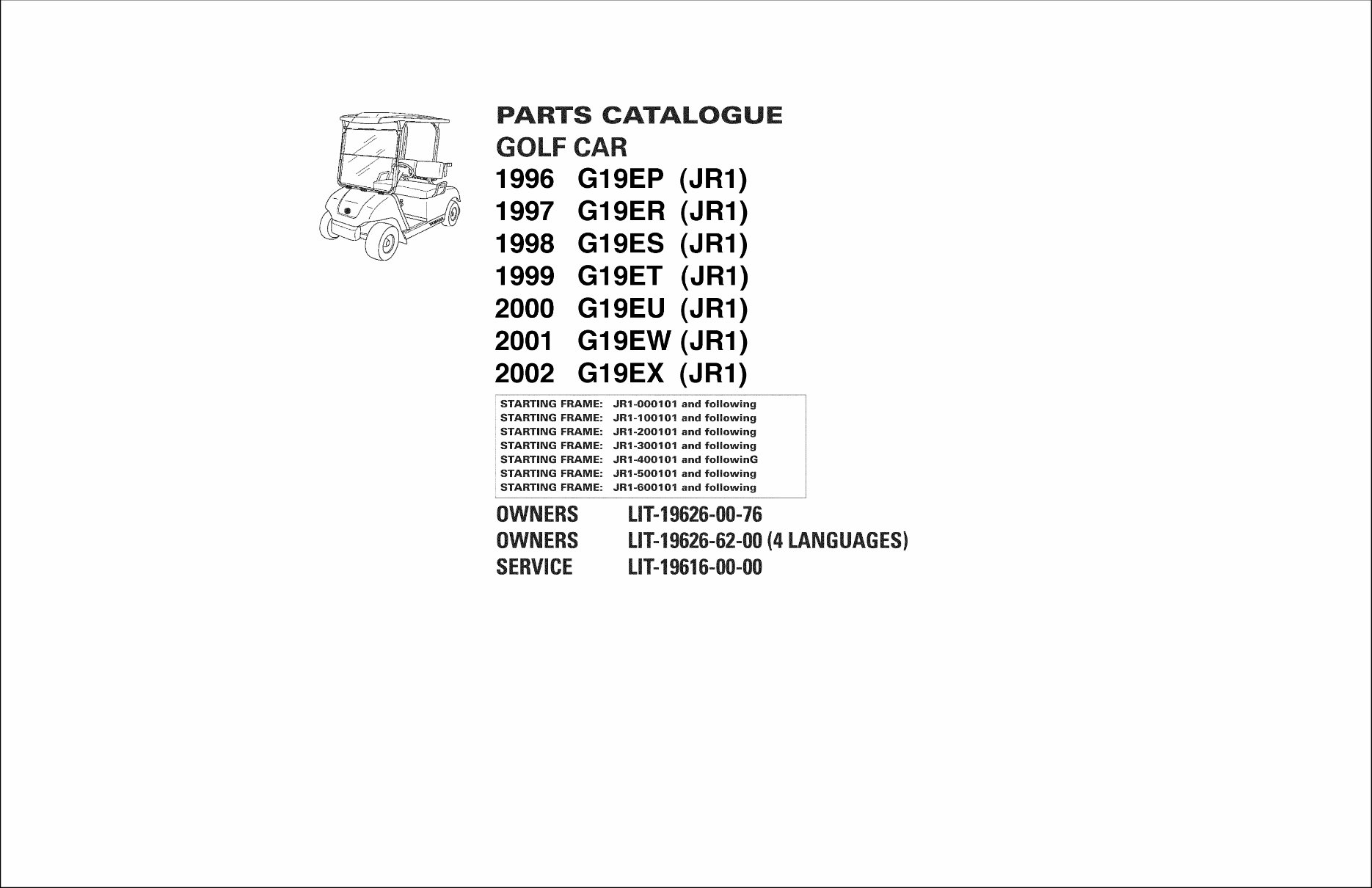

1996-2002 Yamaha G19EP(R,S,T,U,W,X) Golf Buggy Parts Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
G19EP_ER_ES_ET_EU_EW
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
A1

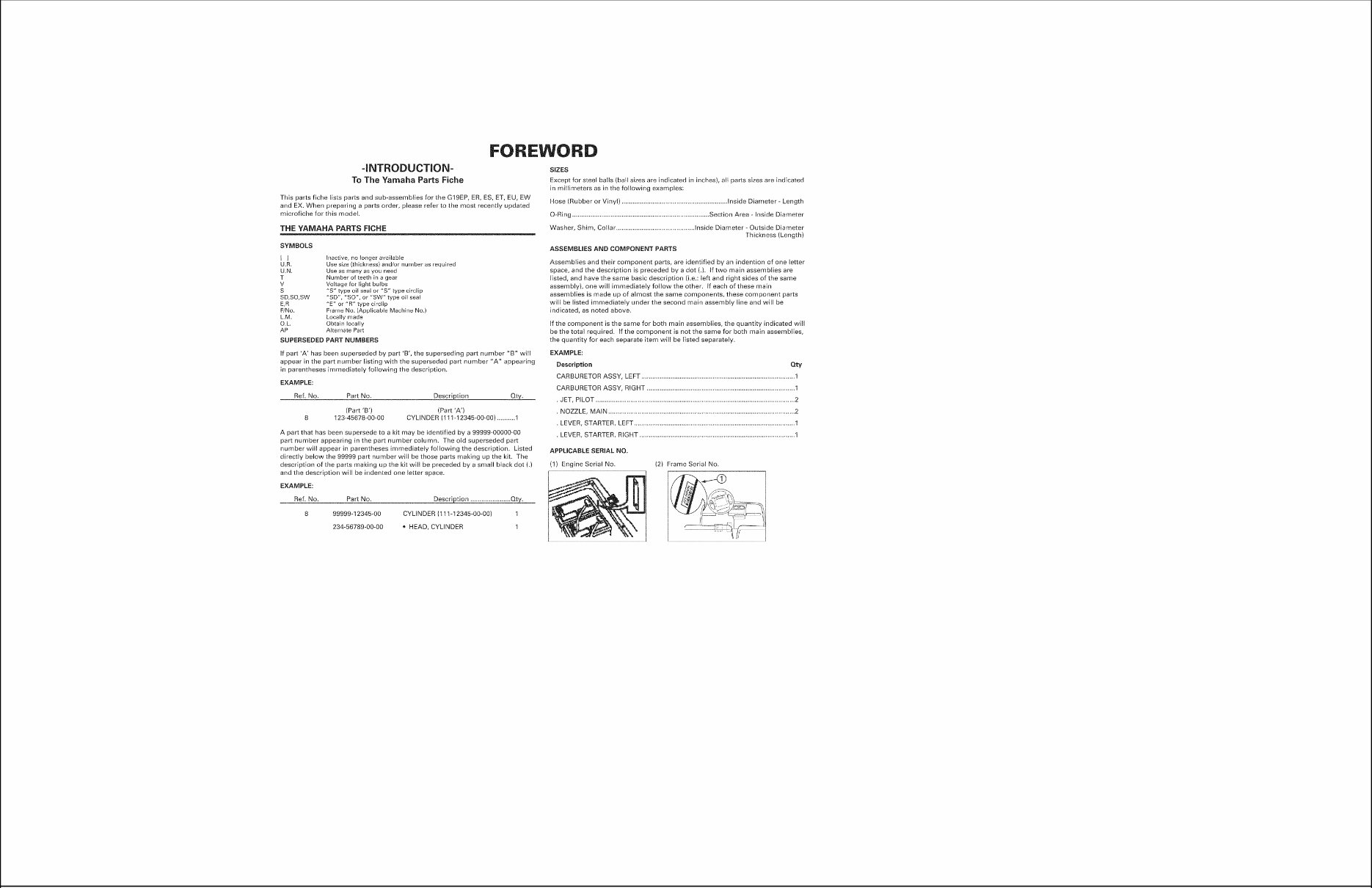

G19EP_ER_ES_ET_EU_EW
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
A2

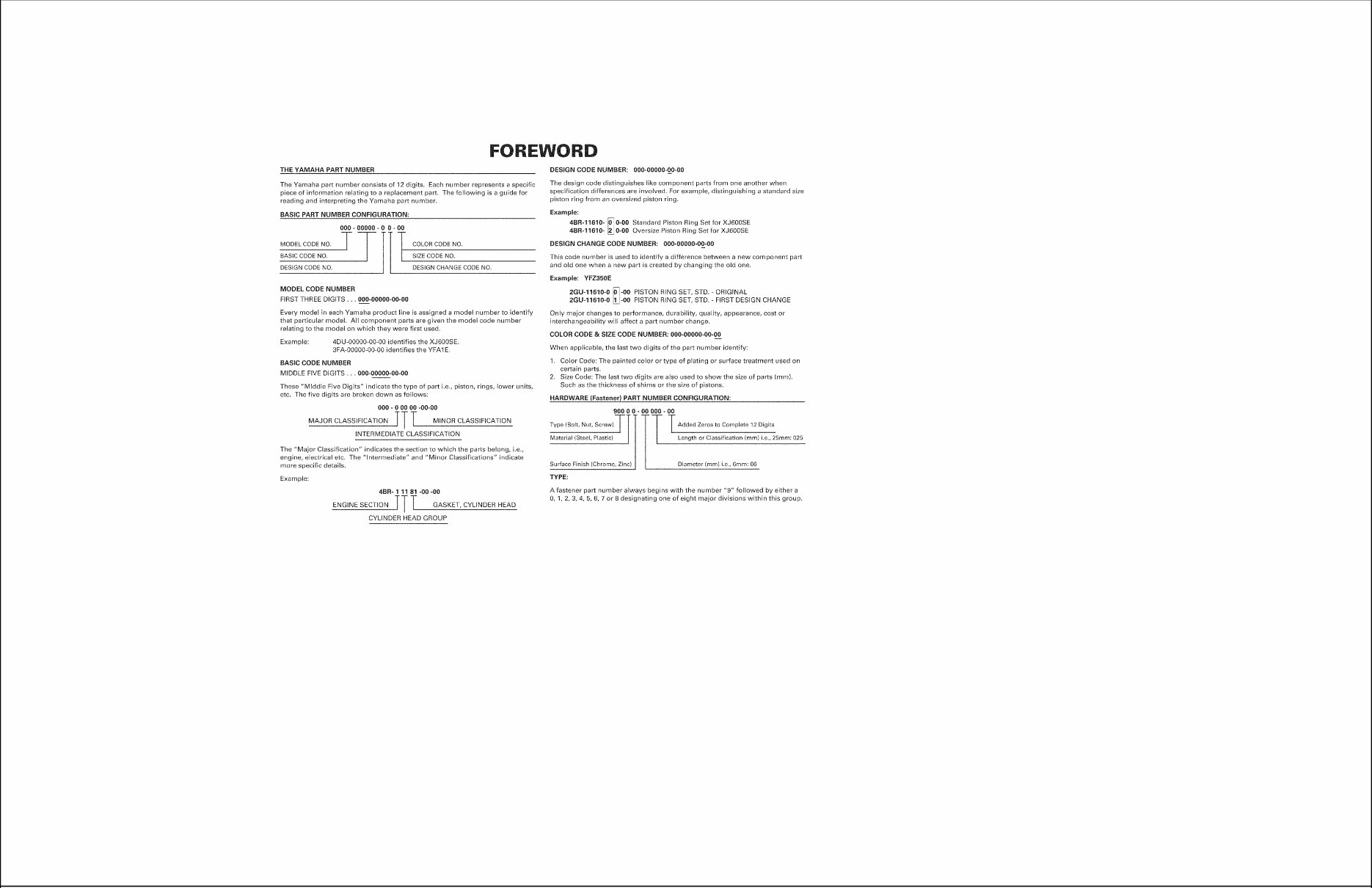

G19EP_ER_ES_ET_EU_EW
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
A3

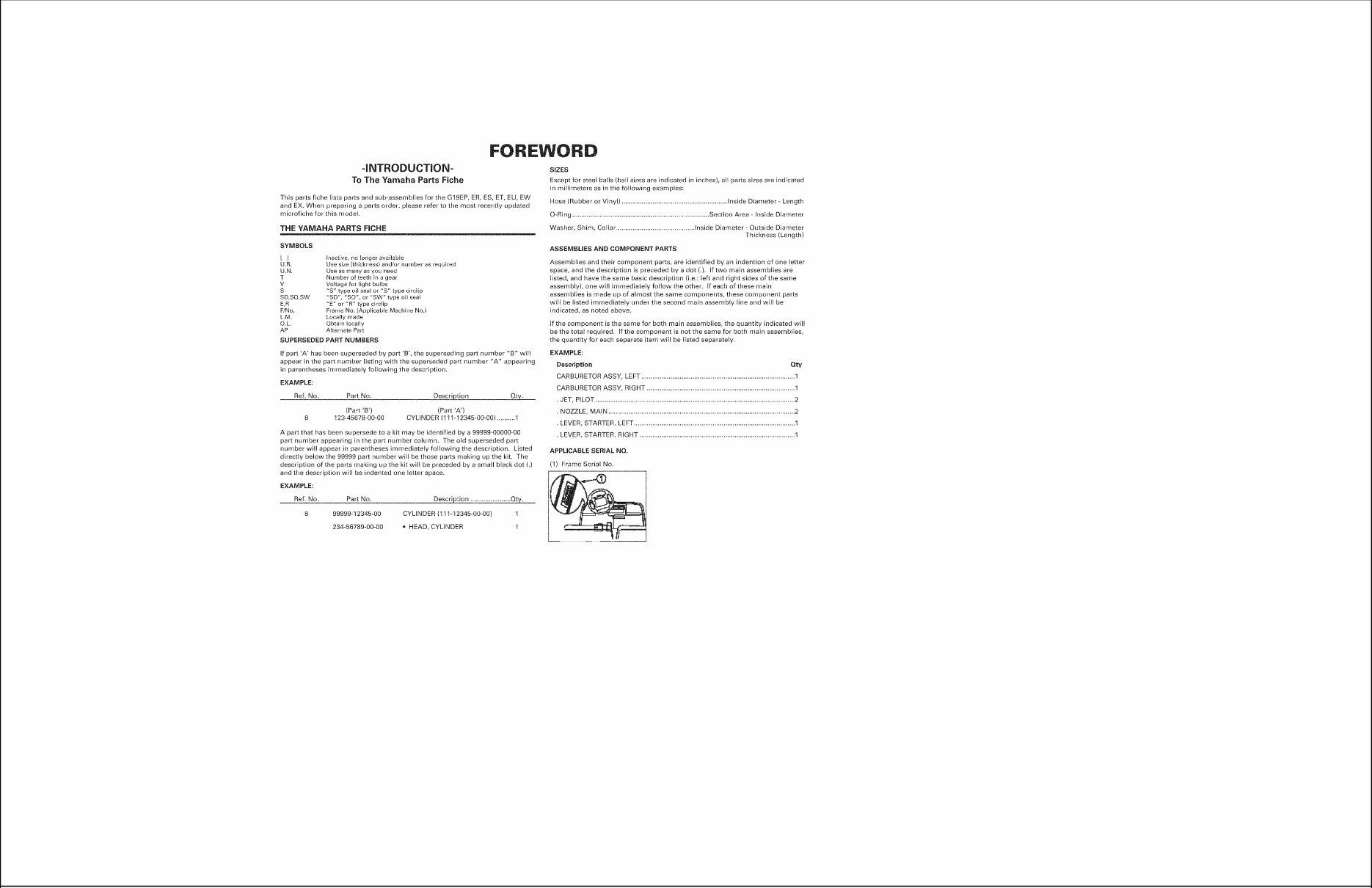

G19EP_ER_ES_ET_EU_EW
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
A4
1 JN8-F2110-00-00 REAR ARM COMP. . . . . . . . . . 1
2 JN6-F2123-01-00 BUSHING, 1 . . . . . . . . . . . . . . . 1
3 90105-13864-00 BOLT, FLANGE . . . . . . . . . . . . 1
4 90179-13878-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
5 97017-10020-00 BOLT, HEX HEAD . . . . . . . . . . 2
6 92907-10100-00 WASHER, LOCK . . . . . . . . . . . 2
7 92907-10600-00 WASHER, PLAIN . . . . . . . . . . . 2
8 JN6-F2172-00-00 ROD, CONNECTING . . . . . . . . . 1
9 JN6-F2124-00-00 BUSHING, 2 . . . . . . . . . . . . . . . 2
10 95817-12065-00 BOLT, FLANGE . . . . . . . . . . . . 2
11 95617-12200-00 NUT, SELF-LOCKING . . . . . . . . 2
12 90201-12426-00 WASHER, PLAIN . . . . . . . . . . . 2
13 JN4-F2210-00-00 SHOCK ABSORBER . . . . . . . . 2
14 95807-10055-00 BOLT, FLANGE . . . . . . . . . . . . 4
15 95607-10200-00 NUT, (RH THREAD) . . . . . . . . . 4
16 90462-20186-00 CLAMP . . . . . . . . . . . . . . . . . . 2
17 95817-06016-00 BOLT, FLANGE . . . . . . . . . . . . 2

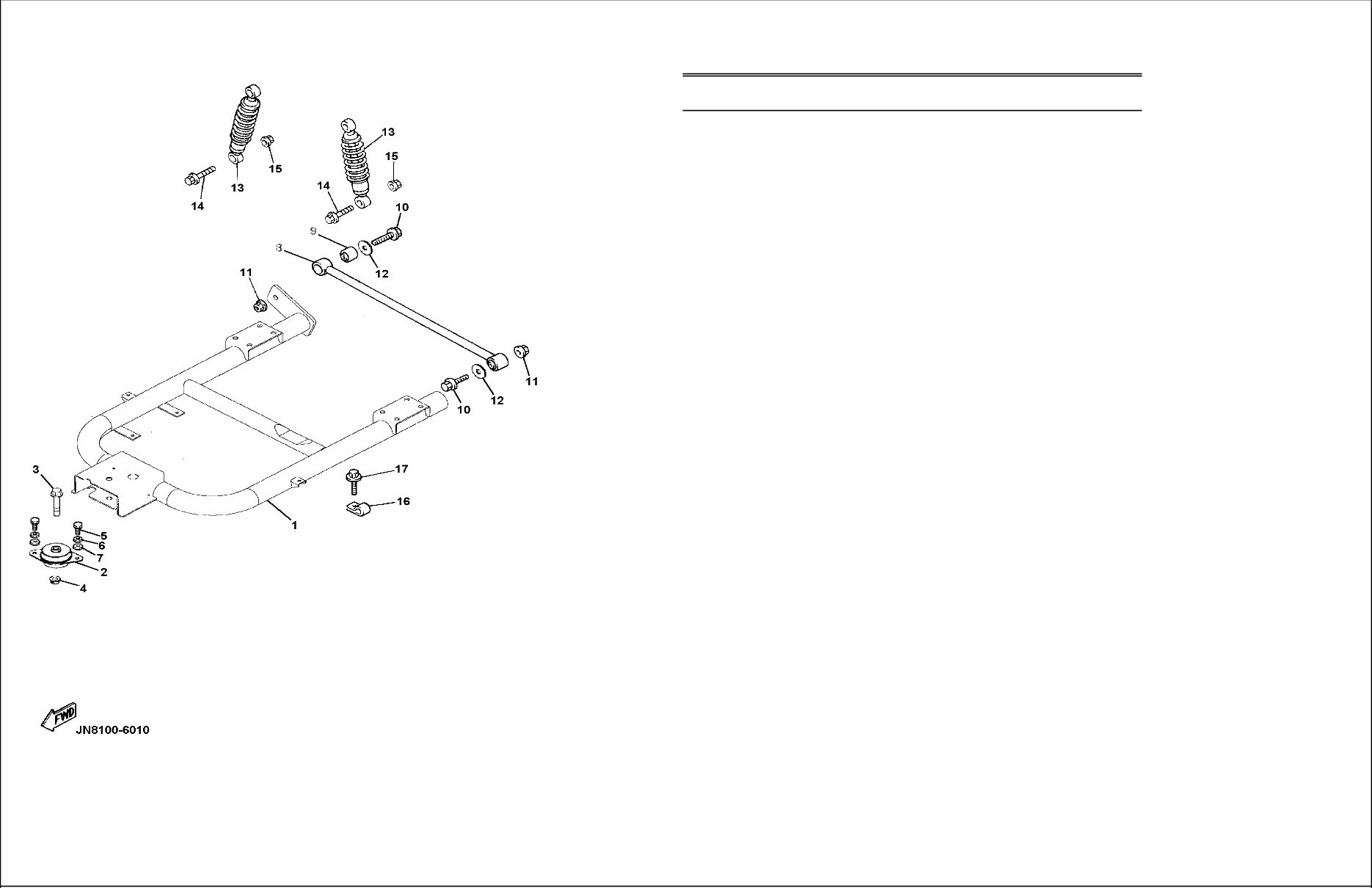

REAR ARM SUSPENSION
Ref. Part
No. Number Description Qty Remarks
A5
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
G19EP_ER_ES_ET_EU_EW
1 JR1-F2501-02-00 FRAME COMP. . . . . . . . . . . . . 1
2 JN6-F254R-00-00 SUPPORT, BODY MOUNTING . 1
3 95817-08016-00 BOLT, FLANGE . . . . . . . . . . . . 2

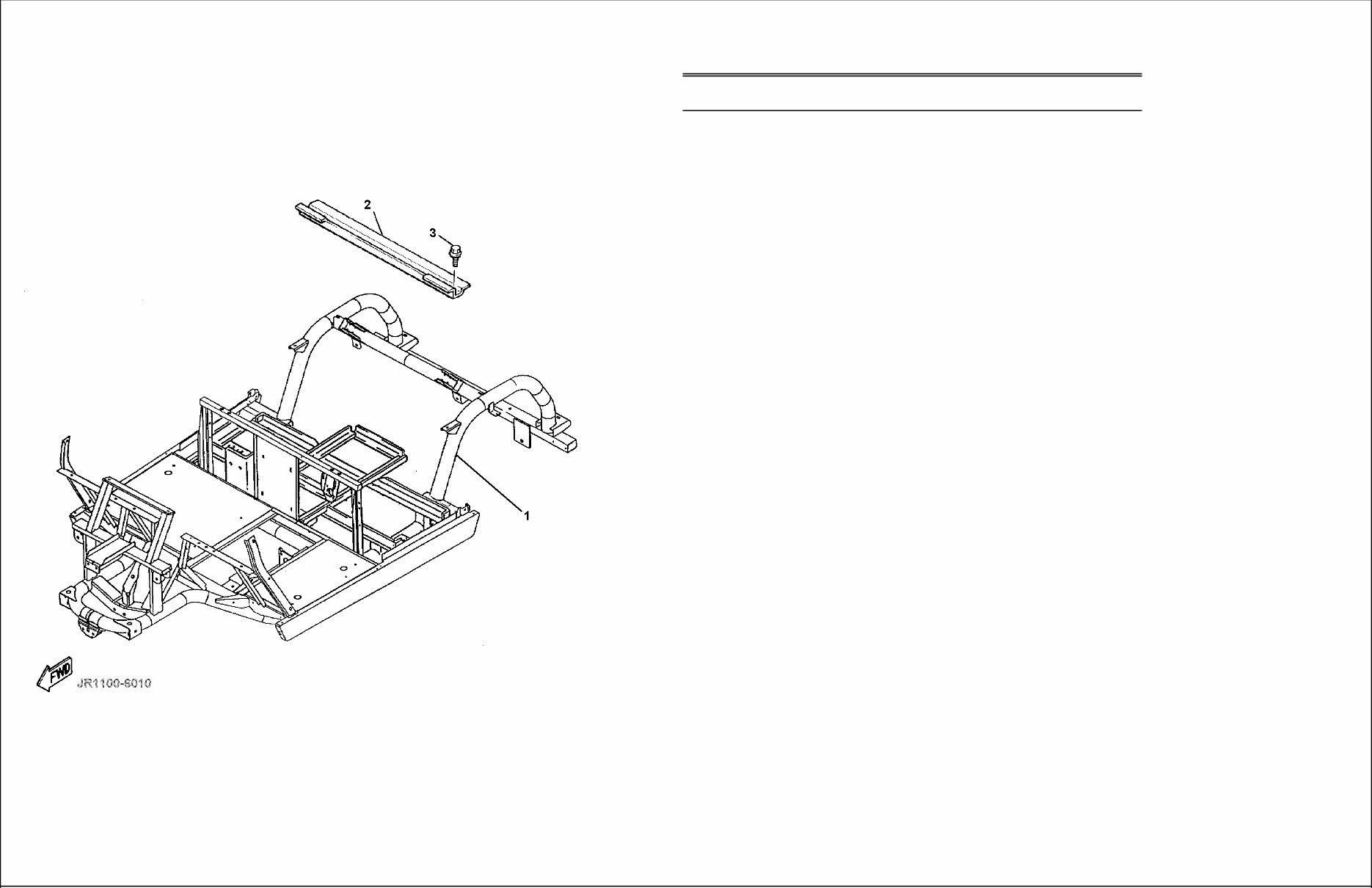

FRAME
Ref. Part
No. Number Description Qty Remarks
A6
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
G19EP_ER_ES_ET_EU_EW
1 JN6-F3570-00-00 FRONT LOWER ARM, LEFT . . 1
2 JN6-F3526-00-00 . BUSHING, ARM . . . . . . . . . . . 1
3 90384-15826-00 BUSH, BIMETAL . . . . . . . . . . . 1 JR1-204501~
4 90384-15825-00 BUSH, BIMETAL . . . . . . . . . . . 1 JR1-204501~
5 90334-19800-00 PLUG, STRAIGHT . . . . . . . . . . 1 JR1-204501~
6 JN6-F3511-00-00 KNUCKLE, STEERING . . . . . . . 1
7 JN3-F3512-00-00 ARM, KNUCKLE . . . . . . . . . . . 1
8 95814-10040-00 BOLT, FLANGE . . . . . . . . . . . . 2
9 95617-10200-00 NUT, U-FLANGE . . . . . . . . . . . 2
10 91490-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
11 J38-23527-00-00 SEAL, DUST 1 . . . . . . . . . . . . . 1
12 J38-23516-00-00 PIN, STEERING KNUCKLE . . . 1
13 90201-156J2-00 WASHER, PLAIN . . . . . . . . . . . 1
14 J38-23528-00-00 SEAL, DUST 2 . . . . . . . . . . . . . 1
15 91609-60028-00 PIN, SPRING . . . . . . . . . . . . . . 1
16 91609-35028-00 PIN, SPRING . . . . . . . . . . . . . . 1
17 JN6-F3580-00-00 FRONT LOWER ARM, RIGHT . 1
18 JN6-F3526-00-00 . BUSHING, ARM . . . . . . . . . . . 1
19 90384-15826-00 BUSH, BIMETAL . . . . . . . . . . . 1
20 90384-15825-00 BUSH, BIMETAL . . . . . . . . . . . 1
21 90386-19800-00 PLUG, STRAIGHT . . . . . . . . . . 1
22 JN6-F3521-00-00 KNUCKLE, STEERING . . . . . . . 1
23 JN3-F3512-00-00 ARM, KNUCKLE . . . . . . . . . . . 1
24 95814-10040-00 BOLT, FLANGE . . . . . . . . . . . . 2
25 95607-10200-00 NUT, (RH THREAD) . . . . . . . . . 2
26 91490-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
27 J38-23527-00-00 SEAL, DUST 1 . . . . . . . . . . . . . 1
28 J38-23516-00-00 PIN, STEERING KNUCKLE . . . 1
29 90201-156J2-00 WASHER, PLAIN . . . . . . . . . . . 1
30 J38-23528-00-00 SEAL, DUST 2 . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤

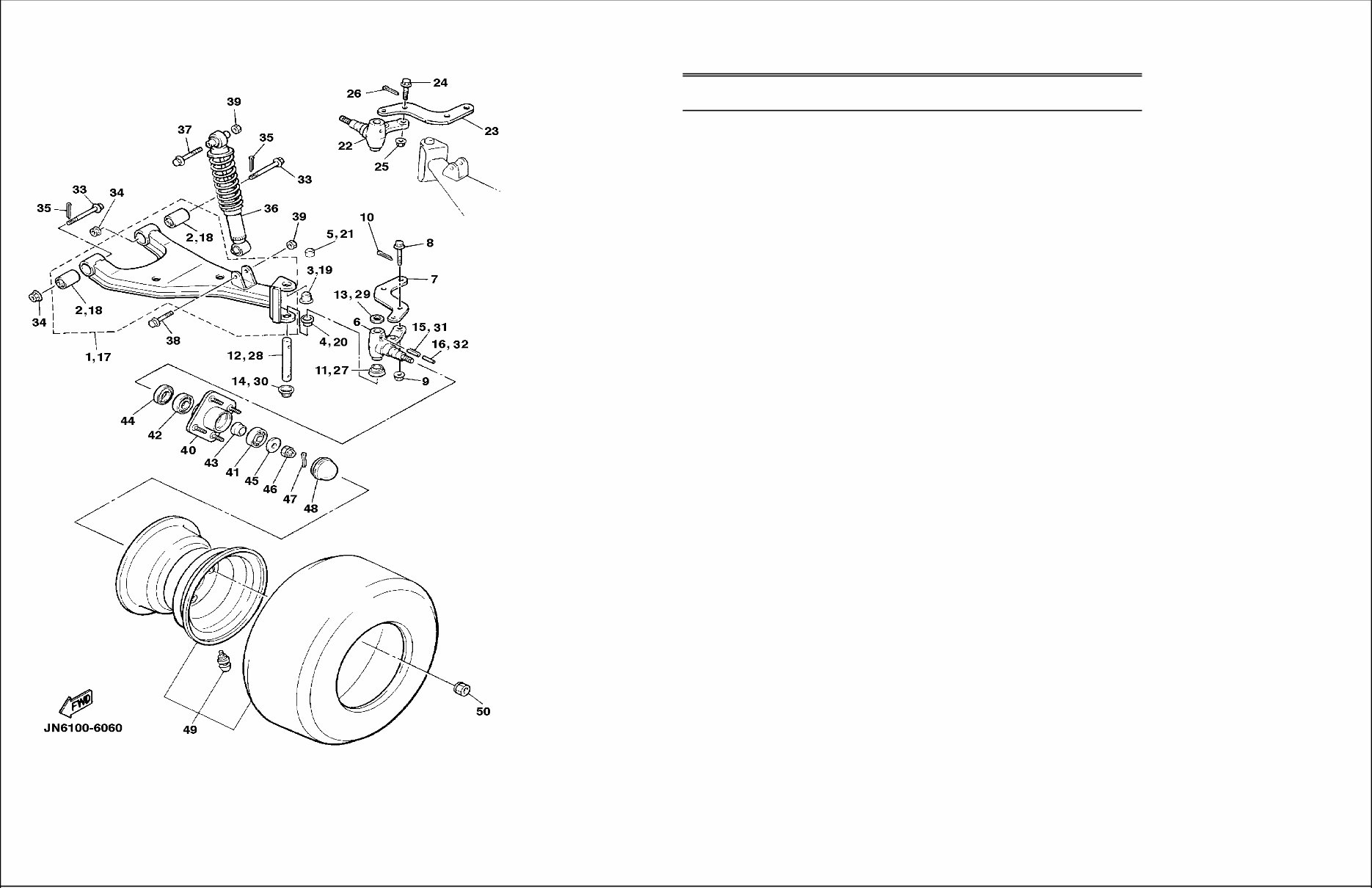

FRONT SUSPENSION WHEEL
Ref. Part
No. Number Description Qty Remarks
A7
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
G19EP_ER_ES_ET_EU_EW
31 91609-60028-00 PIN, SPRING . . . . . . . . . . . . . . 1
32 91609-35028-00 PIN, SPRING . . . . . . . . . . . . . . 1
33 95817-10075-00 BOLT, FLANGE . . . . . . . . . . . . 4
34 95607-10200-00 NUT, (RH THREAD) . . . . . . . . . 4
35 91490-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
36 JN4-F3350-00-00 CUSHION ASSEMBLY . . . . . . . 2
37 95817-10065-00 BOLT, FLANGE . . . . . . . . . . . . 2
38 95817-10055-00 BOLT, FLANGE . . . . . . . . . . . . 2
39 95607-10200-00 NUT, (RH THREAD) . . . . . . . . . 4
40 JG5-WF511-00-00 HUB . . . . . . . . . . . . . . . . . . . . . 2
41 93306-204X0-00 BEARING . . . . . . . . . . . . . . . . . 2
42 93306-005Y3-00 BEARING . . . . . . . . . . . . . . . . . 2
43 90387-241M7-00 COLLAR . . . . . . . . . . . . . . . . . 2
44 93102-30083-00 OIL SEAL . . . . . . . . . . . . . . . . . 2
45 90209-32271-00 WASHER . . . . . . . . . . . . . . . . . 2
46 95607-14100-00 NUT, U . . . . . . . . . . . . . . . . . . . 2
47 91490-25020-00 PIN, COTTER . . . . . . . . . . . . . . 2
48 JN6-25118-00-00 COVER, HUB DUST . . . . . . . . . 2
49 JN6-F5100-11-00 REAR WHEEL ASSY . . . . . . . . 2
50 90179-12262-00 NUT . . . . . . . . . . . . . . . . . . . . . 8
FRONT SUSPENSION WHEEL
Ref. Part
No. Number Description Qty Remarks
A8
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
G19EP_ER_ES_ET_EU_EW

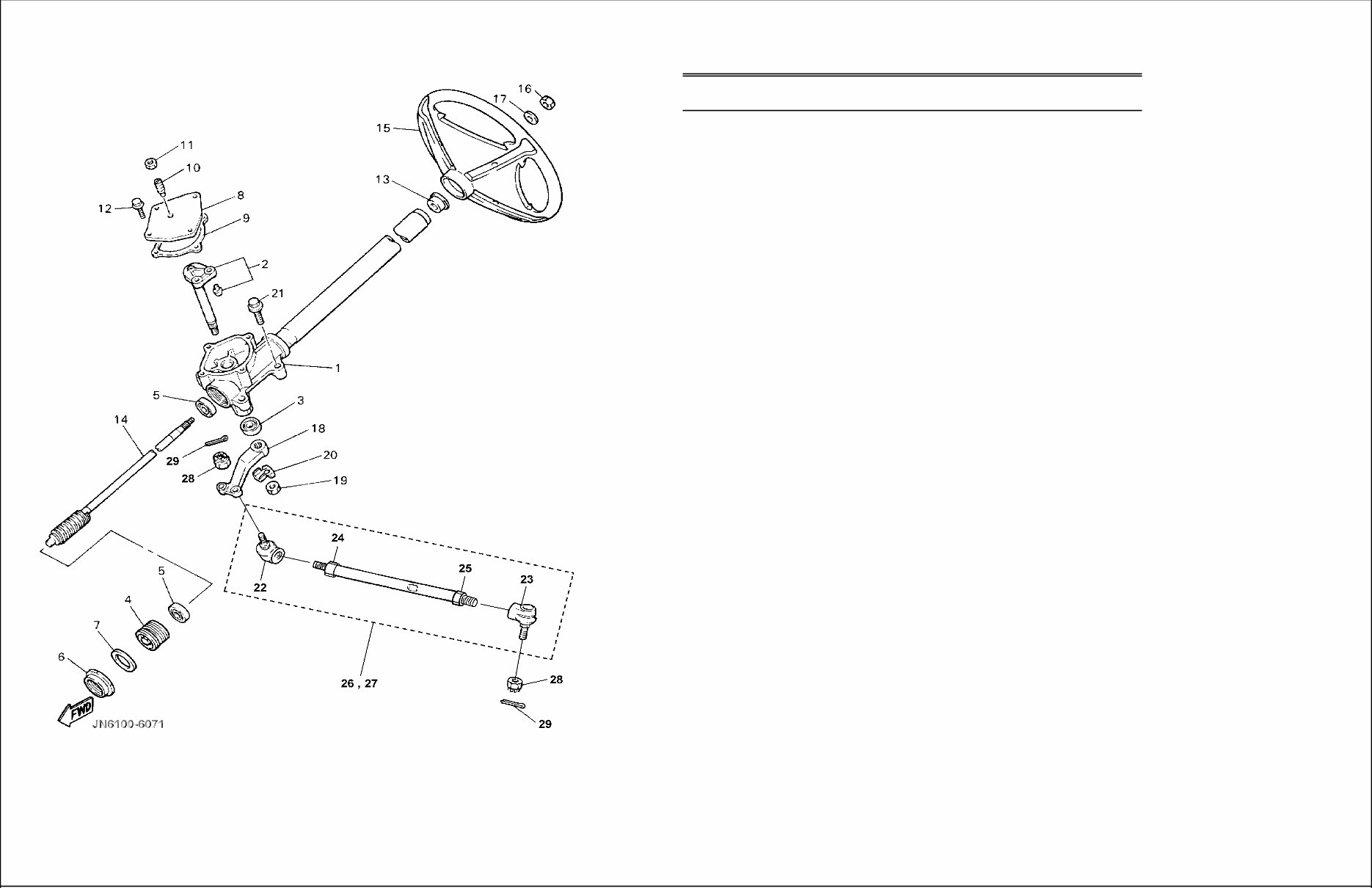

1 JG5-F3811-00-00 COLUMN, STEERING . . . . . . . . 1
2 J38-23816-00-00 ARM, PITMAN . . . . . . . . . . . . . 1
3 93102-22314-00 SEAL, OIL . . . . . . . . . . . . . . . . 1
4 J55-F3876-00-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
5 93332-000Y2-00 BEARING . . . . . . . . . . . . . . . . . 2
6 J10-23877-00-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
7 J10-23444-00-00 WASHER . . . . . . . . . . . . . . . . . 1
8 JN3-F3818-00-00 COVER, STEERING . . . . . . . . . 1
9 J38-23462-01-00 SEAL, STEERING . . . . . . . . . . 1
10 J10-23459-00-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
11 90170-08024-00 NUT, HEX . . . . . . . . . . . . . . . . 1
12 95817-06020-00 BOLT, FLANGE . . . . . . . . . . . . 4
13 JN3-F3814-00-00 HOLDER, HANDLE . . . . . . . . . 1
14 J10-23840-00-00 STEERING SHAFT . . . . . . . . . . 1
15 JN3-F3838-00-00 WHEEL, STEERING . . . . . . . . . 1
16 95617-12200-00 NUT, SELF-LOCKING . . . . . . . . 1
17 92907-12200-00 WASHER, PLAIN . . . . . . . . . . . 1
18 J38-23826-01-00 ARM, IDLER . . . . . . . . . . . . . . . 1
19 95707-16300-00 NUT, NYLON . . . . . . . . . . . . . . 1
20 90215-16252-00 WASHER, TONGUE . . . . . . . . . 1
21 90105-100A4-00 BOLT, FLANGE . . . . . . . . . . . . 4
22 JN6-F3841-00-00 UNIVERSAL, JOINT
(RH THREAD) . . . . . . . . . . . . . 2
23 JN6-F3845-00-00 UNIVERSAL, JOINT
(LH THREAD) . . . . . . . . . . . . . . 2
24 9530N-10600-00 NUT, (RH THREAD) . . . . . . . . 2
25 90170-10414-00 NUT, (LH THREAD) . . . . . . . . . 2
26 JN6-F3830-11-00 TIE ROD ASSEMBLY, RIGHT . . 1
27 JN6-F3850-11-00 TIE ROD ASSEMBLY, LEFT . . . 1
28 95617-10200-00 NUT, U-FLANGE . . . . . . . . . . . 4
29 91401-25020-00 PIN, COTTER . . . . . . . . . . . . . . 4
STEERING
Ref. Part
No. Number Description Qty Remarks
A9
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
G19EP_ER_ES_ET_EU_EW

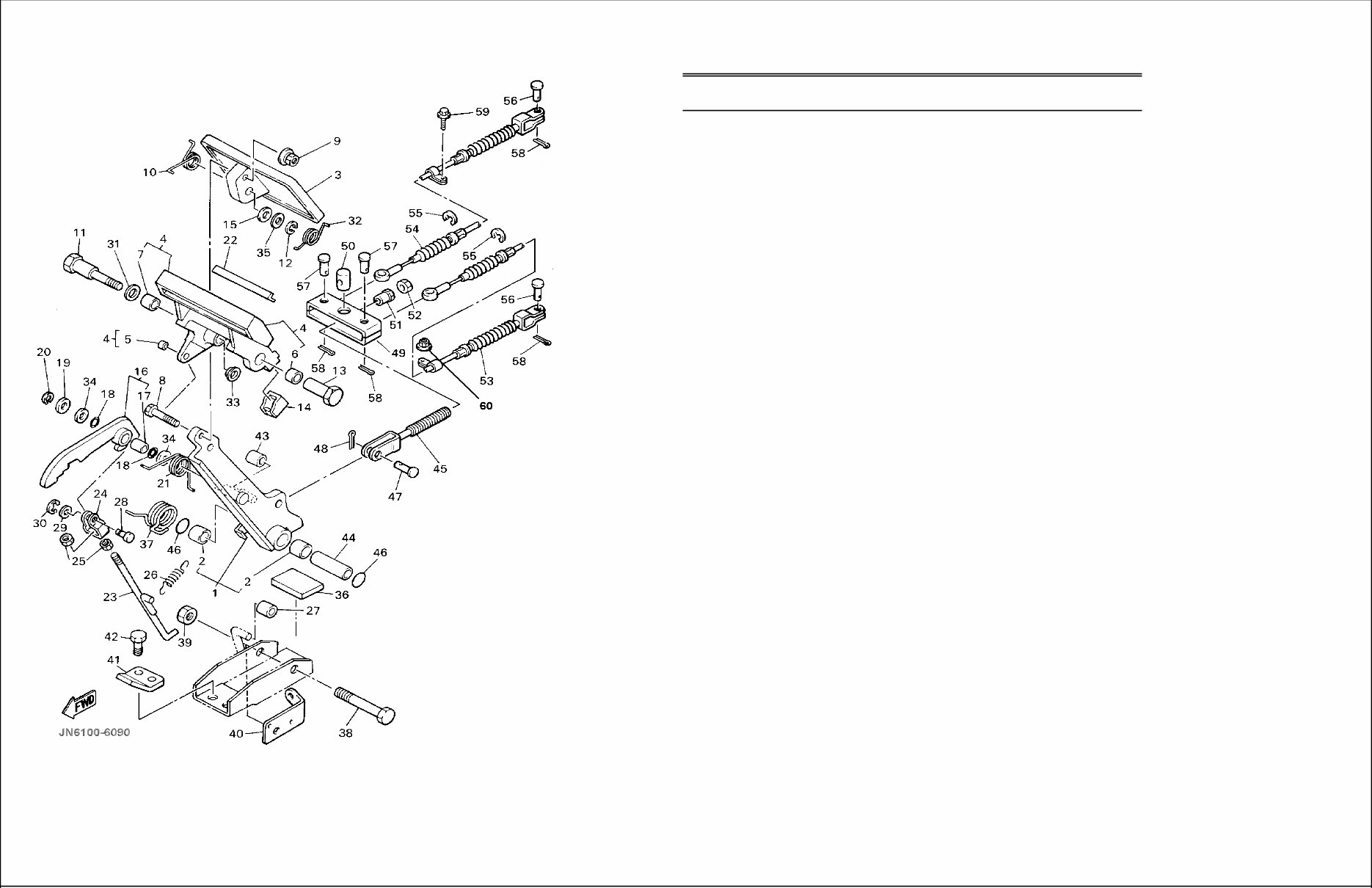

1 J46-27250-03-00 BRAKE ARM COMP. . . . . . . . . 1
2 90384-14080-00 . BUSH, BIMETAL . . . . . . . . . . 2
3 J10-27211-00-00 PEDAL, BRAKE . . . . . . . . . . . . 1
4 J17-25670-01-00 PARKING BRAKE COMP. . . . . 1
5 90384-05163-00 . BUSH, BIMETAL . . . . . . . . . . 1
6 90384-12164-00 . BUSH, BIMETAL . . . . . . . . . . 1
7 90380-12051-00 . BUSH, SOLID . . . . . . . . . . . . . 1
8 90101-06555-00 BOLT, HEX . . . . . . . . . . . . . . . 1
9 90179-06387-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
10 90508-23542-00 SPRING, TORSION . . . . . . . . . 1
11 90109-08669-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
12 92907-08100-00 WASHER, SPRING . . . . . . . . . . 1
13 90179-08378-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
14 J17-25679-01-00 DAMPER . . . . . . . . . . . . . . . . . 2
15 92907-08200-00 WASHER, PLAIN . . . . . . . . . . . 1
16 J17-W2561-02-00 SECTOR, PARKING BRAKE . . 1
17 90384-10162-00 . BUSH, BIMETAL . . . . . . . . . . 1
18 J17-27221-00-00 SEAL, SHAFT . . . . . . . . . . . . . 2
19 92907-10600-00 WASHER, PLAIN . . . . . . . . . . . 1
20 99080-07600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
21 90508-14548-00 SPRING, TORSION . . . . . . . . . 1
22 J17-25672-01-00 PAD, PARKING . . . . . . . . . . . . 1
23 J17-27231-03-00 ROD, BRAKE . . . . . . . . . . . . . . 1
24 J17-27232-00-00 END, ROD 1 . . . . . . . . . . . . . . . 1
25 95317-06700-00 NUT, HEX . . . . . . . . . . . . . . . . 2
26 90506-08526-00 SPRING, TENSION . . . . . . . . . . 1
27 J17-25673-00-00 DAMPER, BRAKE . . . . . . . . . . 1
28 J17-27228-00-00 PIN, LINK JOINT . . . . . . . . . . . 1
29 92907-05600-00 WASHER . . . . . . . . . . . . . . . . . 1
30 99080-04600-00 CIRCLIP(E) . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
BRAKE 1
Ref. Part
No. Number Description Qty Remarks
A10
CONTENTS
ACCELERATOR B2
BATTERY CHARGER C8-9
BODY 1 B7-8
BODY 2 B9-10
BODY FITTING B11
BRAKE 1 A10-11
BRAKE 2 A12
BRAKE 3 B1
BUMPER B6
CARRIER B12
CONTROLLER 1 C4-5
ELECTRIC MOTOR C3
ELECTRICAL 1 C6-7
FRAME A6
FRONT SUSPENSION WHEEL A7-8
OPTIONAL GAUGES D3
OPTIONAL HUB CAPS C10
OPTIONAL LIGHT KIT D4
OPTIONAL LIGHT KIT
STREAMLINE JU2 D5-6
OPTIONAL SUN ROOF JN3 D1
OPTIONAL SUN ROOF JN6 D2
OPTIONAL WINDSHIELD JN3 C11
OPTIONAL WINDSHIELD JN6 C12
REAR ARM SUSPENSION A5
REAR AXLE MOUNT WHEEL B5
SEAT C1-2
STEERING A9
TRANSAXLE 1 B3-4
~MODELS IN THIS CATALOG D7
G19EP_ER_ES_ET_EU_EW
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$35.99
Viewed 15 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$35.99
Yamaha G19EP(R,S,T,U,W,X) Golf Buggy Parts Manual from 1996 to 2002 is an essential resource for both professional mechanics and DIY enthusiasts. The reliable design and simple construction of golf buggies make them ideal for home maintenance and repair. With proper care and routine maintenance, your golf buggy will provide many years of reliable use.
A quality parts manual specific to your golf buggy is invaluable for identifying parts and assisting in routine maintenance and repair. Performing routine maintenance at home offers several benefits, including cost-effectiveness, prolonged vehicle life, and a better understanding of the working components.
Even with diligent routine maintenance, golf buggies may require periodic repairs. Access to service manuals and parts catalogues makes engine repair easier, especially if you have been conducting your own routine maintenance. The manual includes 42 pages in English format, enabling you to print only what you need. It contains exploded diagrams and part number lists, making it a comprehensive resource for all your repair needs.
