G16_AP_AR
A1

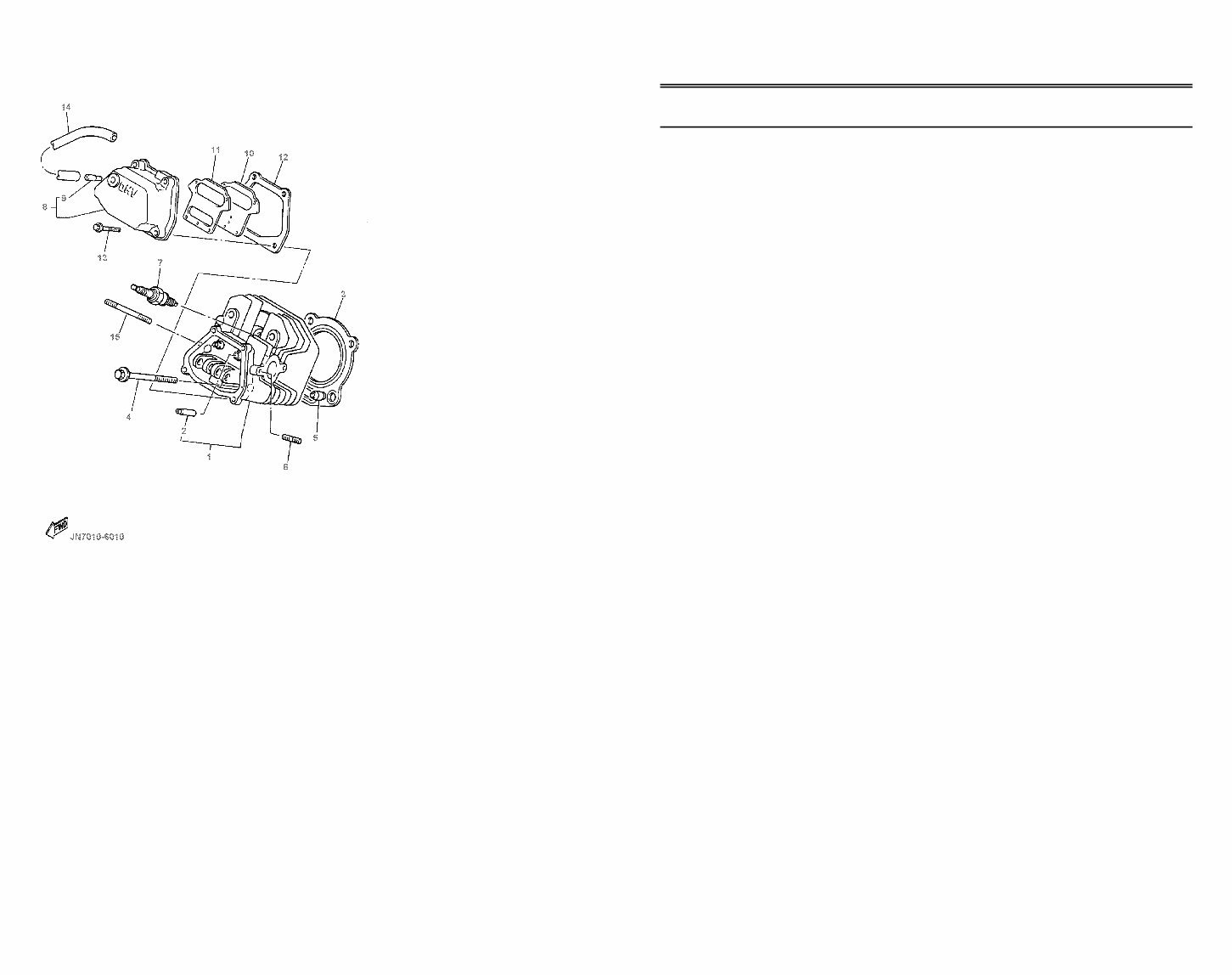

1 JN6-11102-00-00 HEAD, CYLINDER . . . . . . . . . . 1
2 JN6-11133-10-00 . GUIDE, VALVE . . . . . . . . . . . . 2
3 JN6-11181-00-00 GASKET, CYLINDER HEAD . . . 1
4 95817-10070-00 BOLT, FLANGE . . . . . . . . . . . . 4
5 99530-14016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
6 95617-08618-00 BOLT, STUD (95627-08618-00) . 2
7 NGK-BPR2E-S0-00 PLUG, SPARK . . . . . . . . . . . . . 1 STD
8 JN6-11191-00-00 COVER, CYLINDER . . . . . . . . . 1
9 JN6-11116-00-00 . JOINT, BREATHER . . . . . . . . 1
10 JN6-11168-00-00 COVER, BREATHER . . . . . . . . 1
11 JN6-11169-00-00 GASKET, BREATHER . . . . . . . 1
12 JN6-11193-00-00 GASKET, HEAD COVER 1 . . . . 1
13 95817-06030-00 BOLT, FLANGE . . . . . . . . . . . . 4
14 JN6-E1166-00-00 PIPE, BREATHER . . . . . . . . . . 1
15 95607-08710-00 BOLT, STUD . . . . . . . . . . . . . . 2
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A2
G16_AP_AR

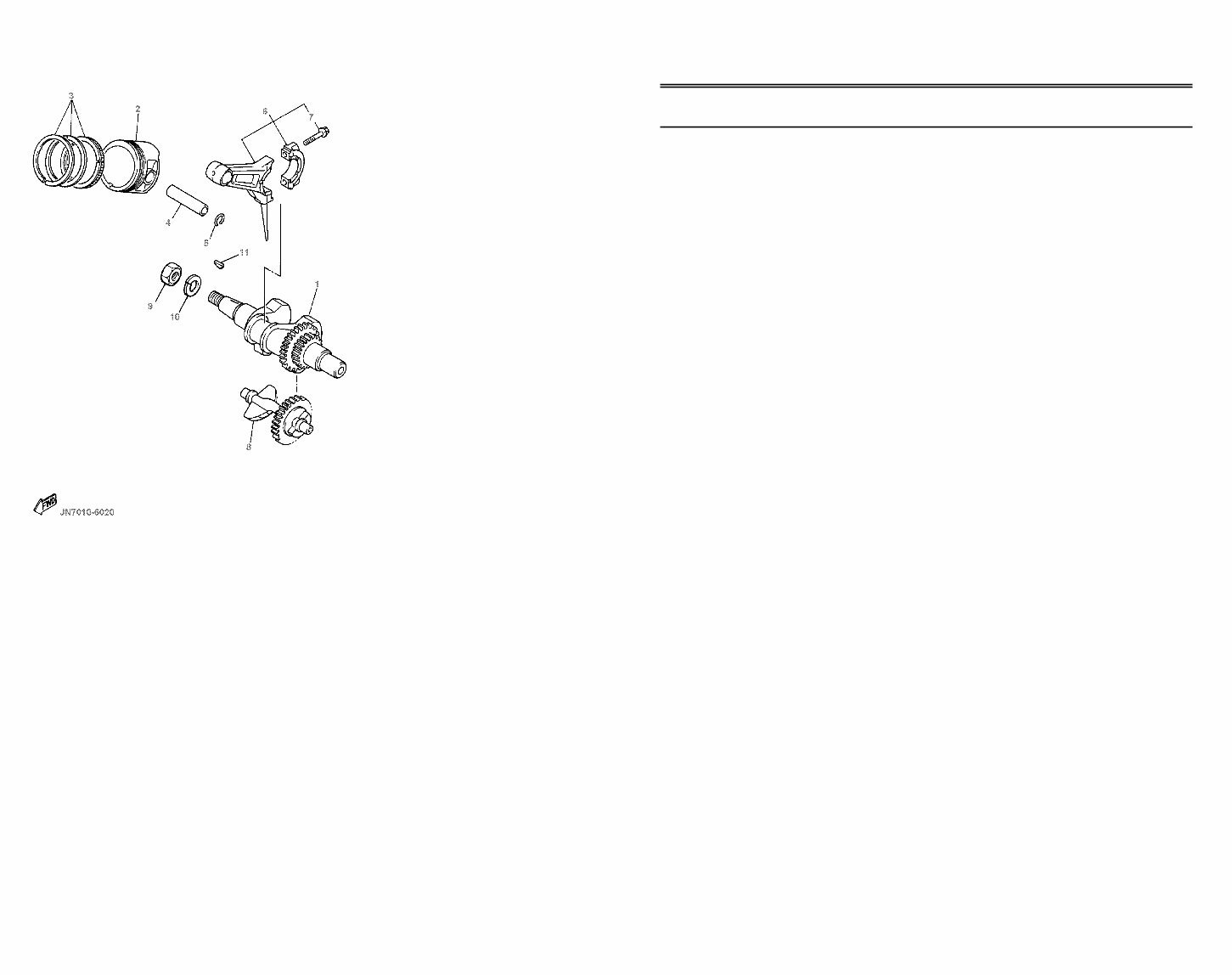

1 JN6-11400-00-00 CRANK ASSEMBLY. . . . . . . . . 1
2 JN6-11631-00-A0 PISTON (STD) . . . . . . . . . . . . . 1 STD
JN6-11635-00-00 PISTON (0.25MM O/S) . . . . . . . 1 AP
JN6-11636-00-00 PISTON (0.50MM O/S) . . . . . . . 1 AP
3 JN6-11610-00-00 PISTON RING SET (STD) . . . . . 1 STD
JN6-11610-10-00 PISTON RING SET
(0.25MM O/S) . . . . . . . . . . . . . . 1 AP
JN6-11610-20-00 PISTON RING SET
(0.50MM O/S) . . . . . . . . . . . . . . 1 AP
4 447-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 1
5 93450-21053-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
6 JN6-11650-00-00 CONNECTING ROD ASSEMBLY 1
7 JN6-11654-00-00 . BOLT, CONNECTING ROD . . 2
8 JN6-11454-00-00 WEIGHT 1 . . . . . . . . . . . . . . . . 1
9 95307-18600-00 NUT, HEX. . . . . . . . . . . . . . . . . 1
10 90201-18620-00 WASHER, PLAIN . . . . . . . . . . . 1
11 90280-04052-00 KEY, WOODRUFF . . . . . . . . . . 1
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A3
G16_AP_AR

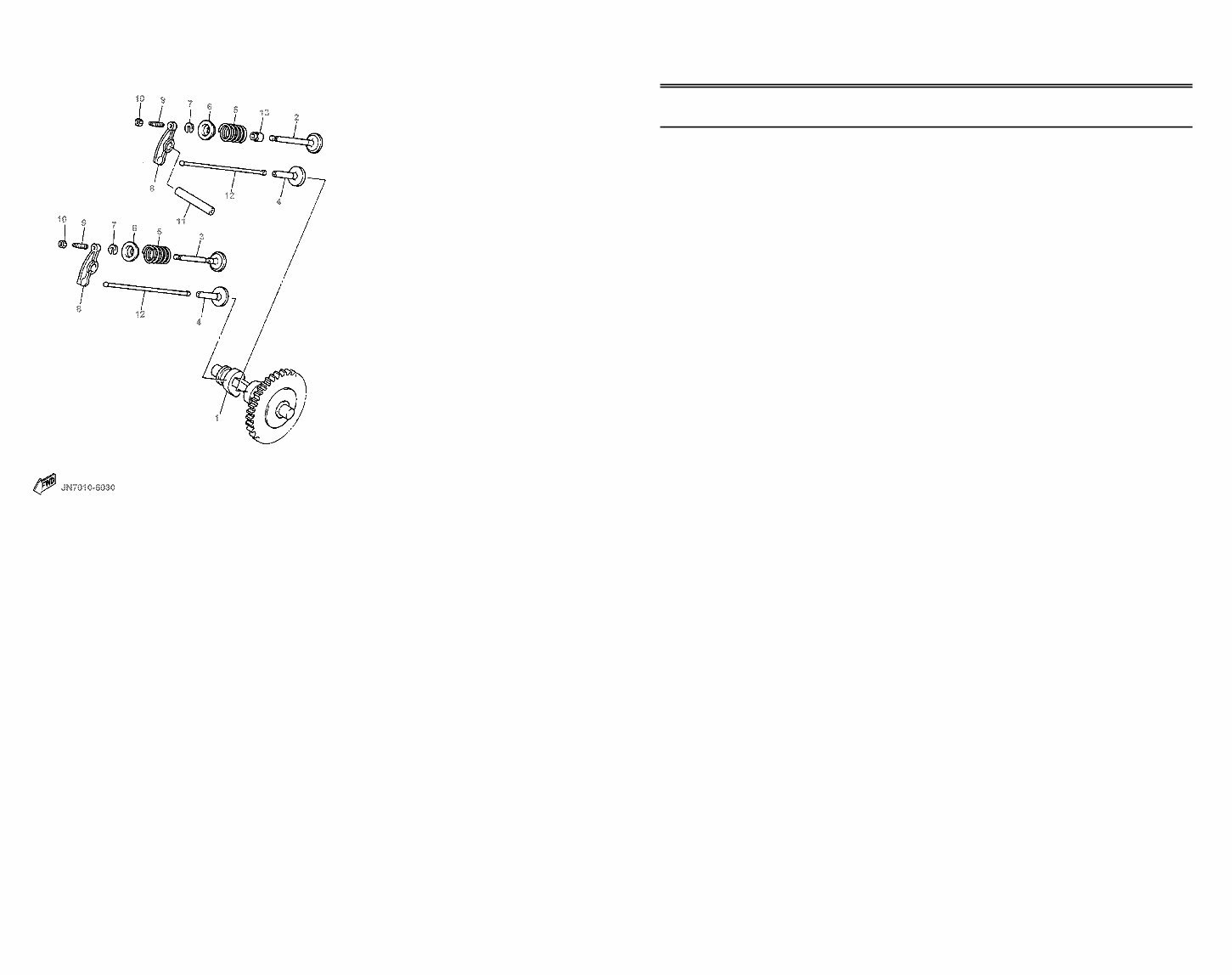

1 JN6-12171-00-00 SHAFT, CAM . . . . . . . . . . . . . . 1
2 JN6-12111-00-00 VALVE, INTAKE . . . . . . . . . . . . 1
3 JN6-12121-00-00 VALVE, EXHAUST . . . . . . . . . . 1
4 JN6-12153-00-00 LIFTER, VALVE . . . . . . . . . . . . 2
5 90501-264A9-00 SPRING, COMPRESSION . . . . . 2
6 J38-12117-01-00 RETAINER, VALVE SPRING . . 2
7 J38-12118-00-00 COTTER, VALVE . . . . . . . . . . . 2
8 JN6-12151-00-00 ARM, VALVE ROCKER . . . . . . 2
9 22F-12159-00-00 SCREW, VALVE ADJUSTING . . 2
10 90170-05302-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
11 J38-12156-00-00 SHAFT, ROCKER 2 . . . . . . . . . 1
12 JN6-12154-00-00 ROD, VALVE PUSH . . . . . . . . . 2
13 5H0-12119-00-00 SEAL, VALVE STEM . . . . . . . . 1
CAMSHAFT - VALVE
Ref. Part
No. Number Description Qty Remarks
A4
G16_AP_AR

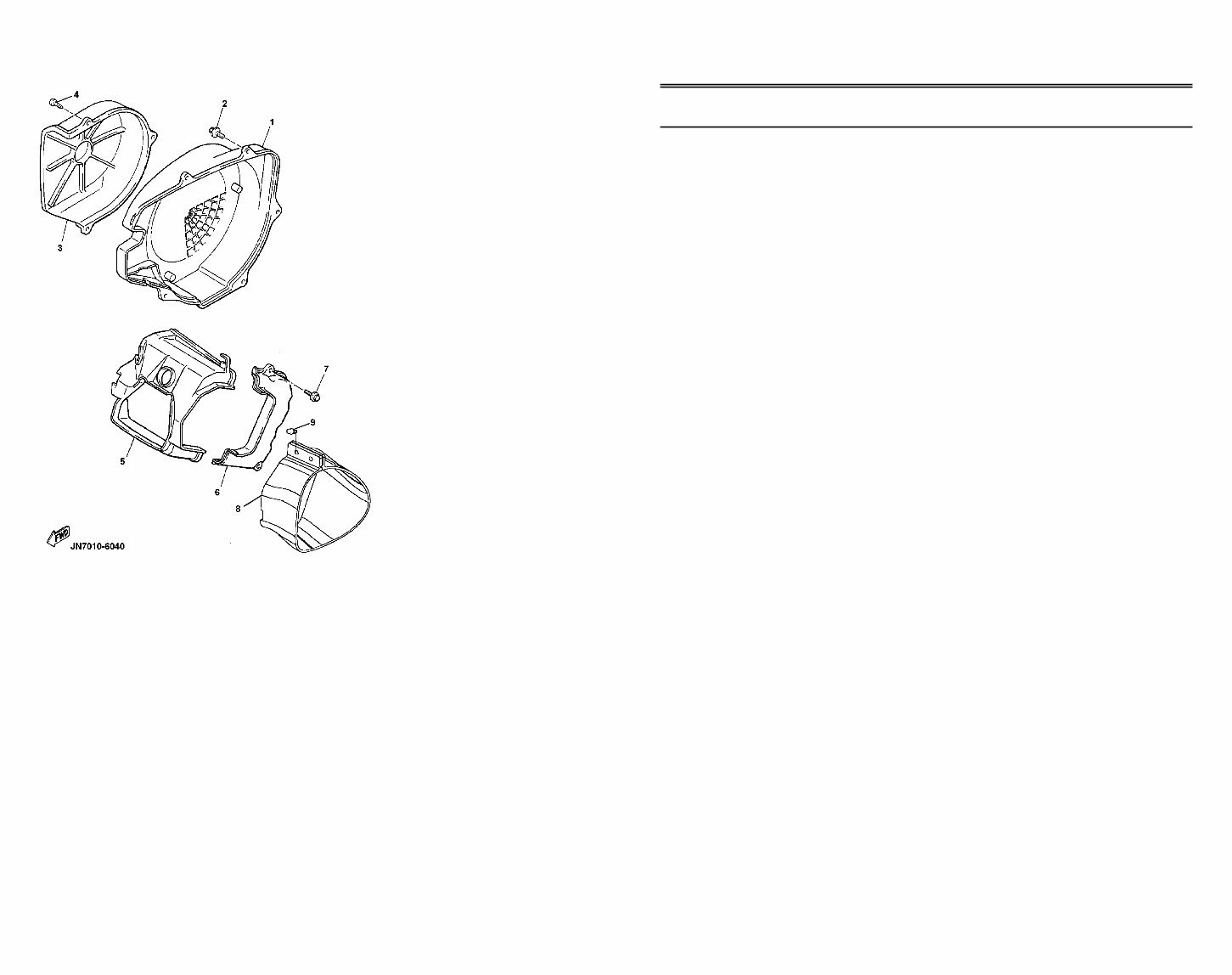

1 JN6-12621-00-00 CASE, FAN . . . . . . . . . . . . . . . 1
2 95817-06020-00 BOLT, FLANGE . . . . . . . . . . . . 5
3 JN6-12616-00-00 COVER, FAN CASE . . . . . . . . . 1
4 97707-60520-00 SCREW, TAPPING . . . . . . . . . . 3
5 JN6-12651-00-00 AIR SHROUD, CYLINDER . . . . 1
6 JN6-12652-00-00 AIR SHROUD, CYLINDER . . . . 1
7 95817-06020-00 BOLT, FLANGE . . . . . . . . . . . . 2
8 JN6-E2691-00-00 DUCT, . . . . . . . . . . . . . . . . . . . 1
9 90269-08813-00 RIVET . . . . . . . . . . . . . . . . . . . 2
AIR SHROUD - FAN
Ref. Part
No. Number Description Qty Remarks
A5
G16_AP_AR

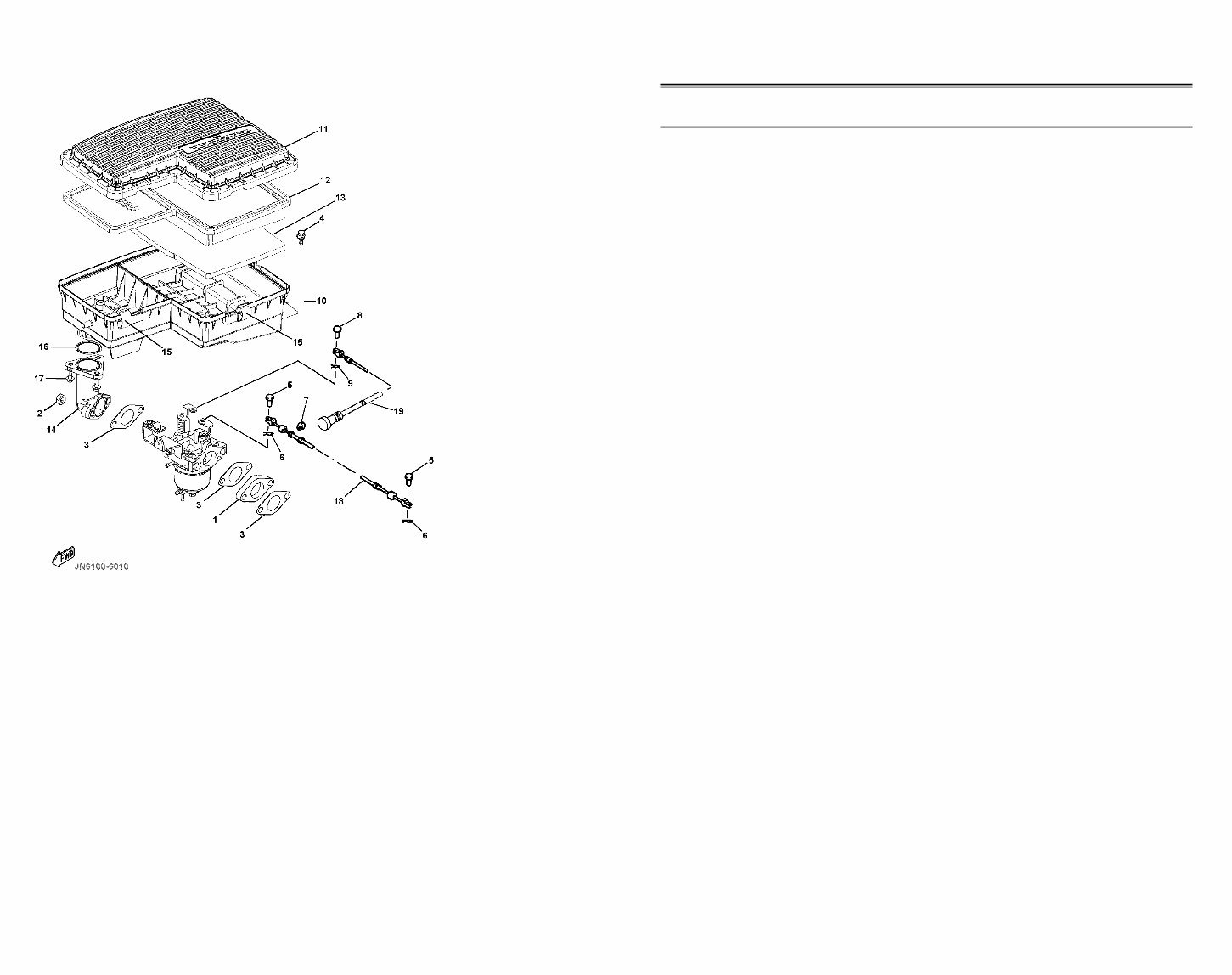

1 JN6-13595-00-00 JOINT . . . . . . . . . . . . . . . . . . . 1
2 95707-08500-00 NUT, FLANGE . . . . . . . . . . . . . 2
3 JN6-13567-00-00 GASKET . . . . . . . . . . . . . . . . . 3
4 90119-06920-00 BOLT, WITH WASHER . . . . . . . 2
5 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 2
6 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
7 99080-07600-00 CIRCLIP (E) . . . . . . . . . . . . . . . 1
8 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 1
9 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
10 JN6-E4411-00-00 CASE, AIR FILTER . . . . . . . . . . 1
11 JN6-E4412-00-00 CAP, CASE . . . . . . . . . . . . . . . 1
12 JN6-E4450-00-00 ELEMENT ASSEMBLY. . . . . . . 1
13 JN6-E445E-00-00 FILTER, . . . . . . . . . . . . . . . . . . 1
14 JN6-E3586-00-00 JOINT, CARBURETOR . . . . . . . 1
15 JN6-E4424-00-00 CLIP, CAP FITTING . . . . . . . . . 3
16 93210-398D6-00 O-RING . . . . . . . . . . . . . . . . . . 1
17 90105-06862-00 BOLT, FLANGE . . . . . . . . . . . . 3
18 JN6-F6312-00-00 WIRE, THROTTLE . . . . . . . . . . 1
19 JN6-F6331-00-00 WIRE, STARTER . . . . . . . . . . . 1
INTAKE
Ref. Part
No. Number Description Qty Remarks
A6
G16_AP_AR

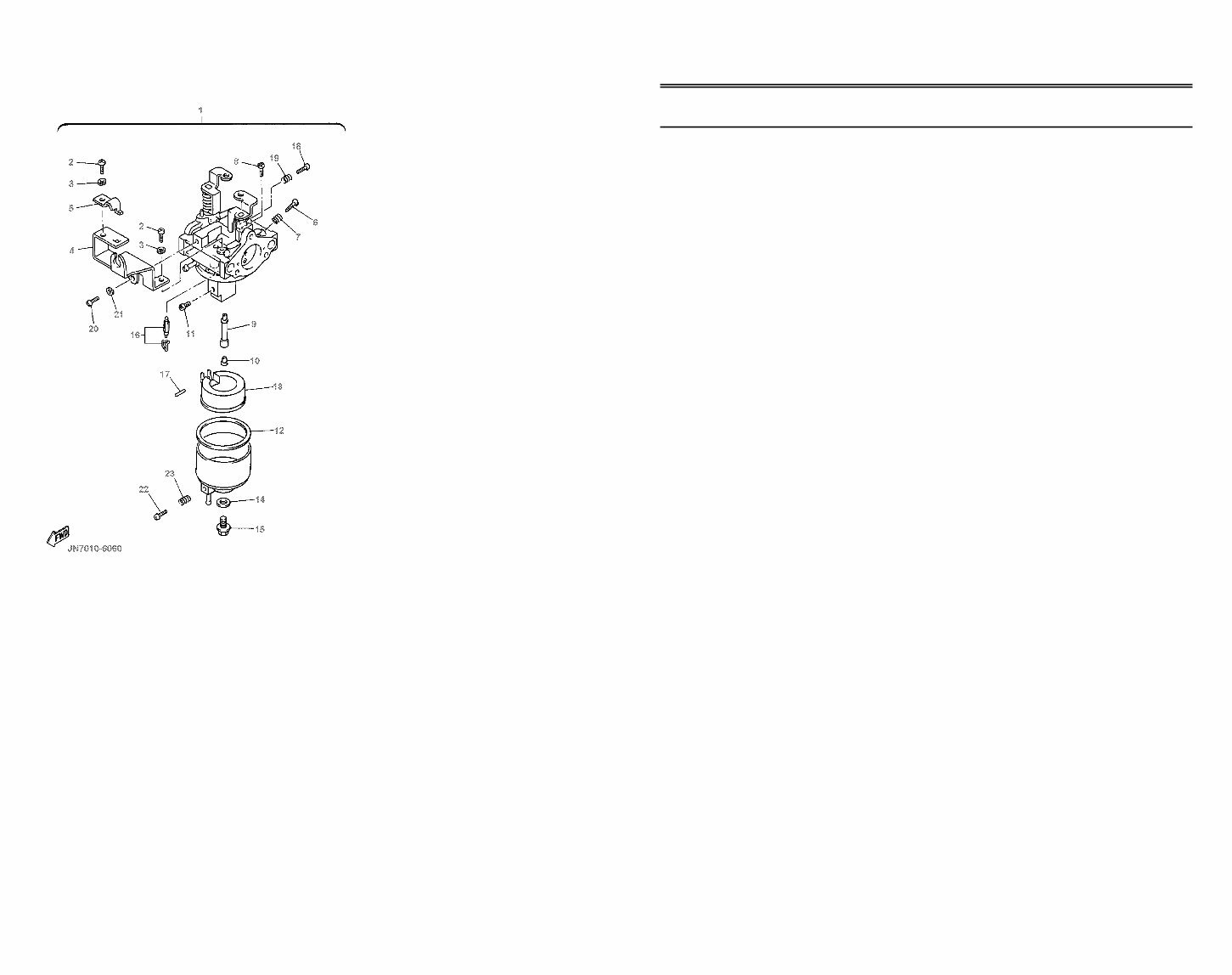

1 JN6-14101-01-00 CARBURETOR ASSEMBLY. . . 1
2 98507-05008-00 . SCREW, PAN HEAD . . . . . . . 2
3 92990-05100-00 . WASHER, SPRING . . . . . . . . . 2
4 JN6-14291-00-00 . BRACKET . . . . . . . . . . . . . . . 1
5 J10-14227-00-00 . WASHER . . . . . . . . . . . . . . . . 1
6 7LV-14211-00-00 . SCREW, PILOT ADJUSTING . 1
7 73A-14212-00-00 . SPRING . . . . . . . . . . . . . . . . . 1
8 620-1414J-24-00 . JET, PILOT . . . . . . . . . . . . . . 1
9 JN6-1495H-3B-00 . NOZZLE, MAIN . . . . . . . . . . . 1
10 73A-1414G-00-00 . PIPE, MAIN BREED . . . . . . . . 1
11 3G2-1423E-34-00 . JET, MAIN 1 # . . . . . . . . . . . . 1
12 796-14184-00-00 . GASKET, FLOAT CHAMBER . 1
13 7KY-14185-00-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
14 127-14198-00-00 . GASKET . . . . . . . . . . . . . . . . 1
15 7R1-14162-00-00 . BOLT, HOLDING . . . . . . . . . . 1
16 JN5-14150-00-00 . NEEDLE ASSEMBLY . . . . . . . 1
17 22F-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 1
18 1WG-14922-00-00 . SCREW, THROTTLE . . . . . . . 1
19 73A-14212-10-00 . SPRING . . . . . . . . . . . . . . . . . 1
20 98507-04010-00 . SCREW, PAN HEAD . . . . . . . 1
21 92990-05100-00 . WASHER, SPRING . . . . . . . . . 1
22 7E1-14191-00-00 . PLUG, DRAIN . . . . . . . . . . . . 1
23 73A-14212-00-00 . SPRING . . . . . . . . . . . . . . . . . 1
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A7
G16_AP_AR

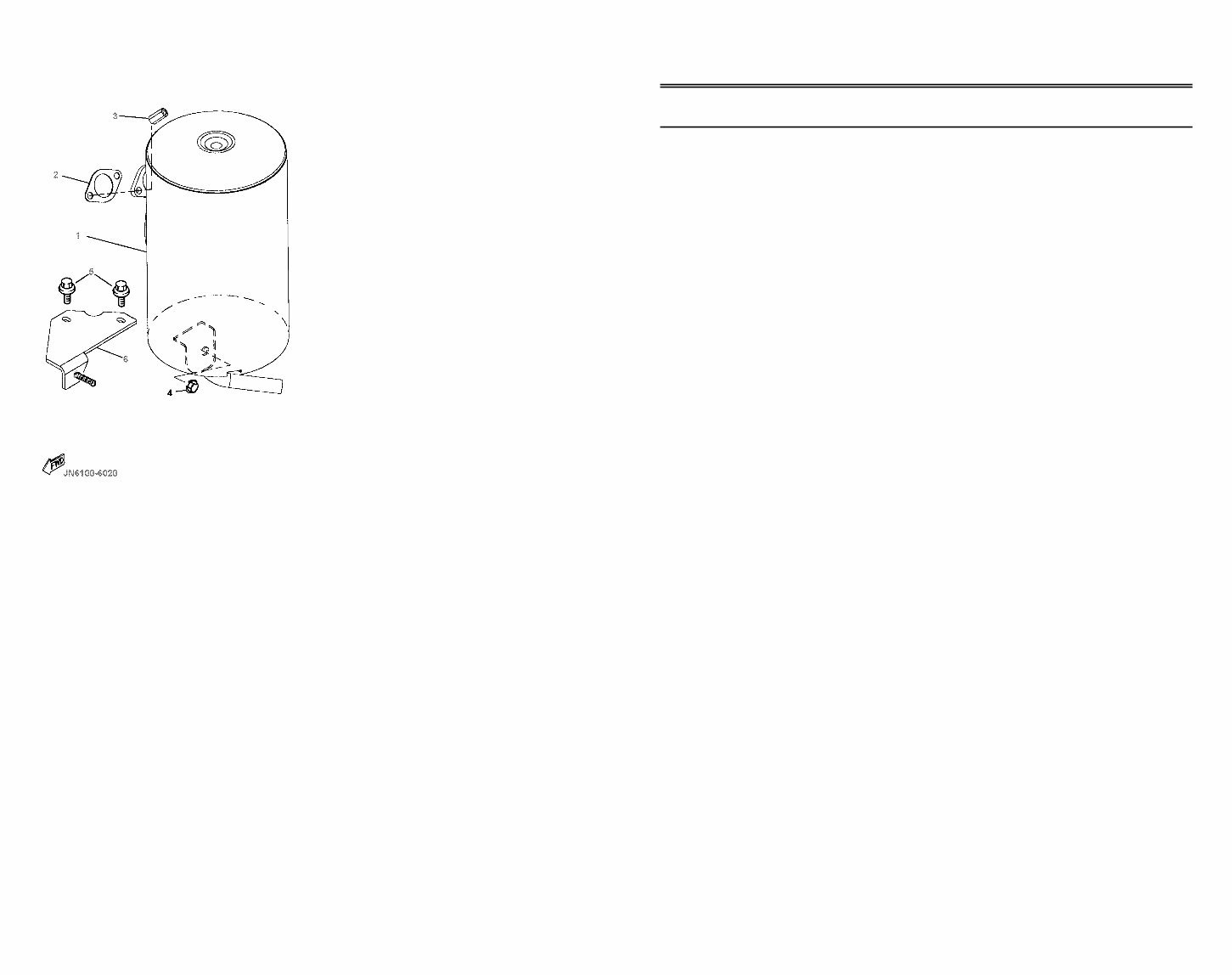

1 JN6-E4710-00-00 MUFFLER ASSEMBLY . . . . . . . 1
2 7KY-14613-01-00 GASKET, EXHAUST PIPE . . . . 1
3 90179-08879-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
4 97507-08620-00 BOLT, HEX HEAD W/WASHER 1
5 90119-08825-00 BOLT, HEX HEAD W/WASHER 2
6 JN6-F1435-01-00 BRACKET, MUFFLER . . . . . . . 1
EXHAUST
Ref. Part
No. Number Description Qty Remarks
A8
G16_AP_AR

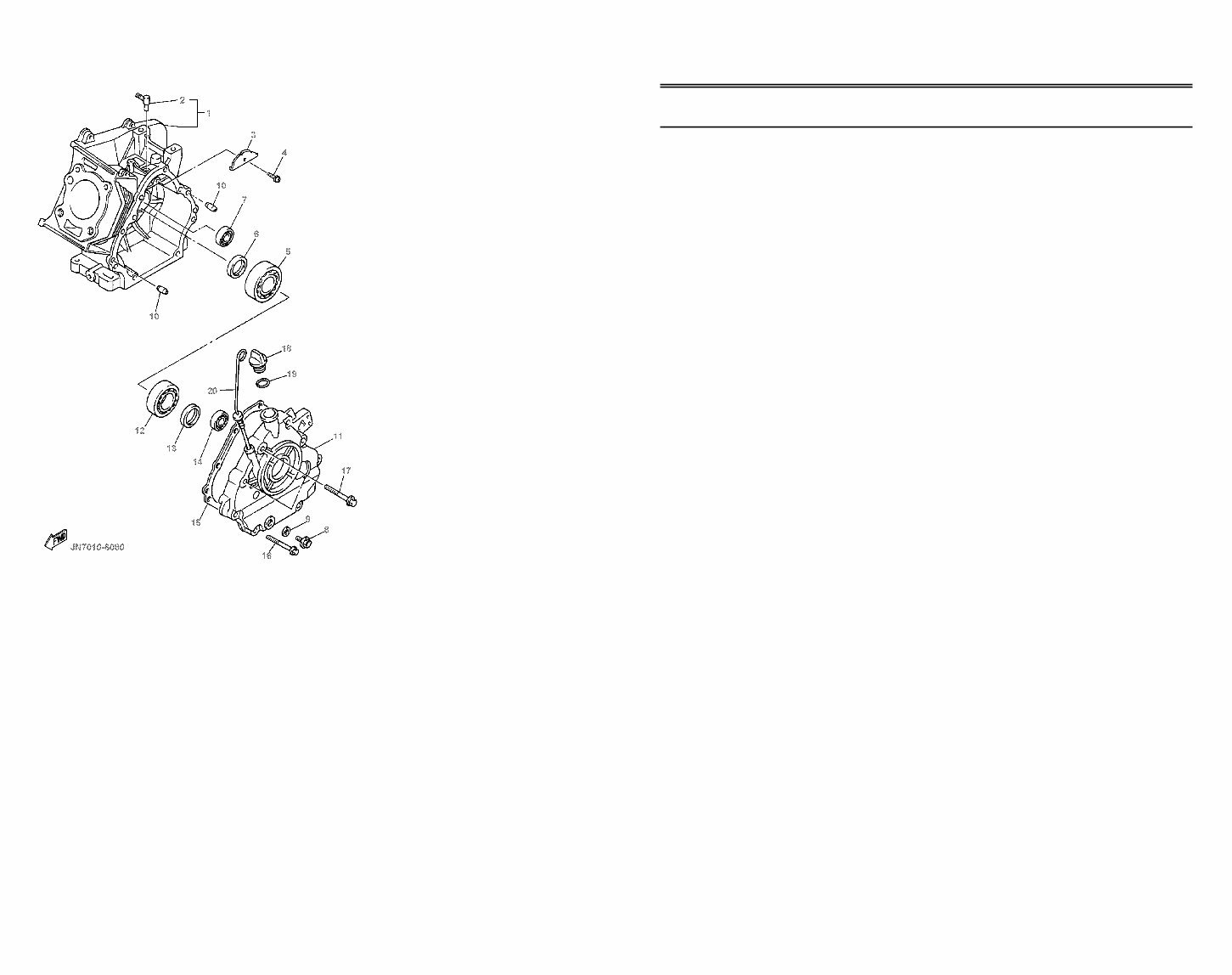

1 JN6-15100-00-00 CRANKCASE ASSEMBLY . . . . 1
2 JN6-15155-00-00 . NOZZLE, . . . . . . . . . . . . . . . . 1
3 JN6-15123-00-00 PLATE, BAFFLE . . . . . . . . . . . 1
4 90159-06107-00 SCREW, WITH WASHER . . . . . 1
5 93306-30709-00 BEARING . . . . . . . . . . . . . . . . . 1
6 93102-35191-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
7 93306-20211-00 BEARING (6202SH2-C3) . . . . . 1
8 90340-12097-00 PLUG, STRAIGHT SCREW . . . . 1
9 812-11198-00-00 GASKET . . . . . . . . . . . . . . . . . 1
10 99510-08016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
11 JN6-15411-00-00 COVER, CRANKCASE . . . . . . . 1
12 93306-20716-00 BEARING . . . . . . . . . . . . . . . . . 1
13 93102-35191-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
14 93306-20211-00 BEARING (6202SH2-C3) . . . . . 1
15 JN6-15451-00-00 GASKET, CRANKCASE . . . . . . 1
16 95817-08045-00 BOLT, FLANGE . . . . . . . . . . . . 6
17 95817-10050-00 BOLT, FLANGE . . . . . . . . . . . . 2
18 796-15363-01-00 PLUG, OIL . . . . . . . . . . . . . . . . 1
19 93210-22344-00 O-RING . . . . . . . . . . . . . . . . . . 1
20 J38-15361-00-00 GAUGE, LEVEL . . . . . . . . . . . . 1
CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A9
G16_AP_AR

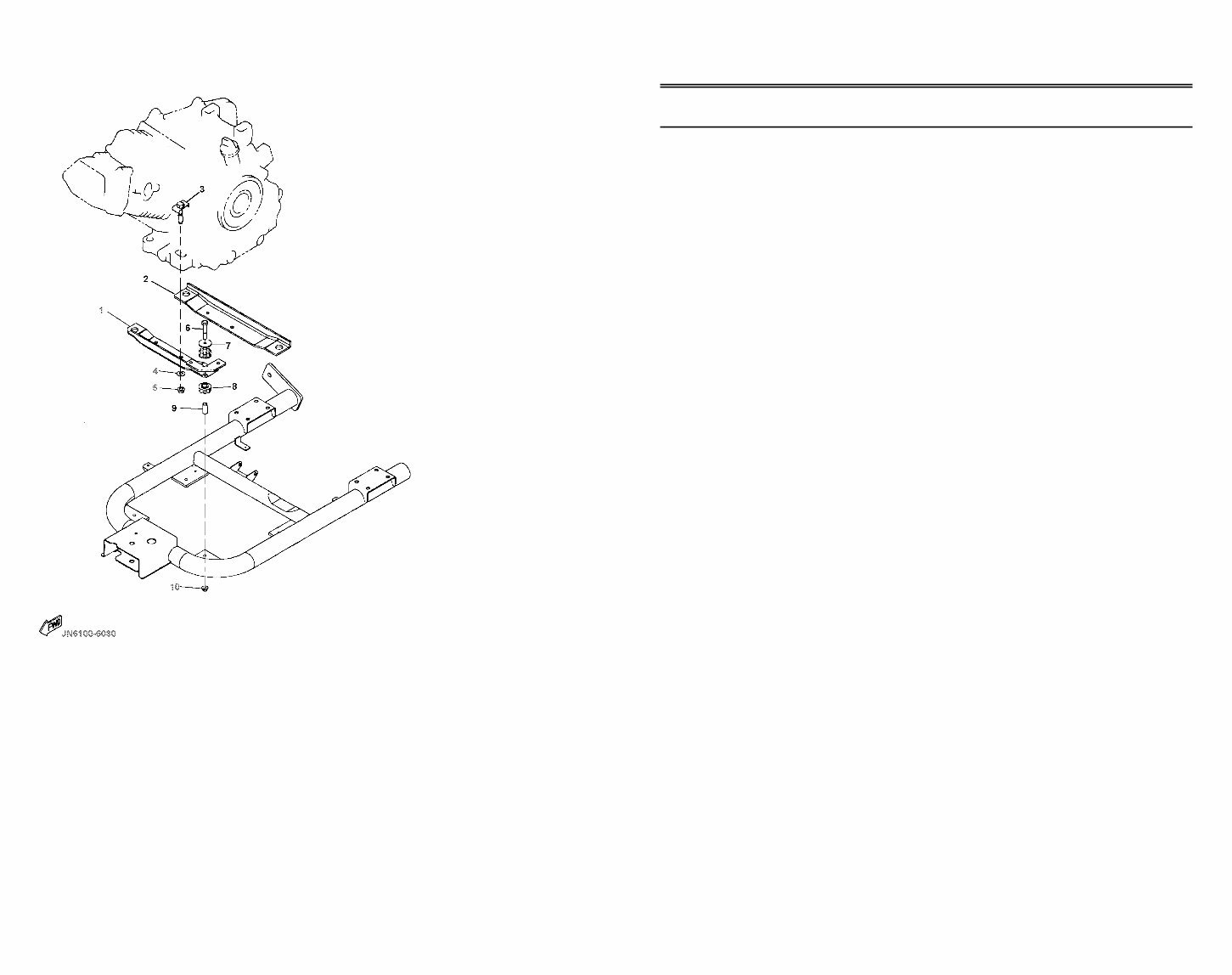

1 JN6-F1411-00-00 BRACKET, ENGINE . . . . . . . . . 1
2 JN6-F1419-00-00 BRACKET, ENGINE . . . . . . . . . 1
3 JN6-F1481-00-00 BOLT, ENGINE . . . . . . . . . . . . 4
4 92907-10200-00 WASHER, PLAIN . . . . . . . . . . . 4
5 95617-10200-00 NUT, SELF-LOCKING . . . . . . . . 4
6 90101-08870-00 BOLT, HEX . . . . . . . . . . . . . . . 4
7 90201-088K6-00 WASHER, PLAIN . . . . . . . . . . . 4
8 JN6-F1486-00-00 DAMPER, . . . . . . . . . . . . . . . . . 8
9 JN6-F1459-00-00 SPACER . . . . . . . . . . . . . . . . . 4
10 95617-08200-00 NUT, SELF-LOCKING
(95607-08200-00) . . . . . . . . . . . 4
ENGINE MOUNT
Ref. Part
No. Number Description Qty Remarks
A10
G16_AP_AR
