YAMAHA G1 AM AM5 GOLF CART Parts Manual Catalog
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
G1_AM_AM5
A1

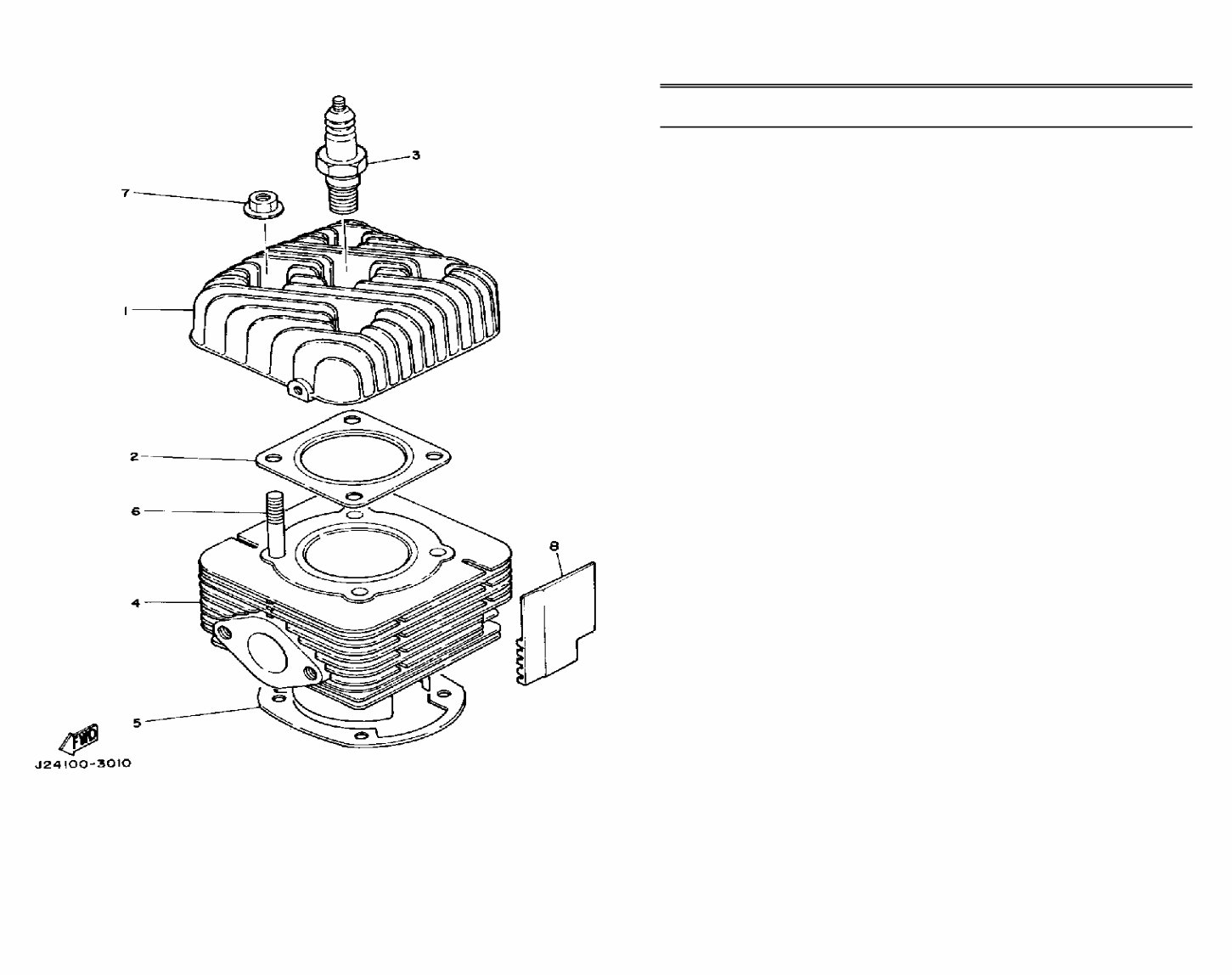

1 J10-11111-00-00 HEAD, CYLINDER 1 . . . . . . . . . 1
2 J10-11181-00-00 GASKET, CYLINDER HEAD 1 . 1
3 NGK-BP5HS-00-00 NGK BP5HS 10PK . . . . . . . . . . 1
NGK-BP6HS-00-00 PLUG, SPARK (NGK BP6HS) . . 1
4 J10-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 1
5 881-11351-01-00 GASKET, CYLINDER . . . . . . . . 1
6 90116-08079-00 BOLT, STUD . . . . . . . . . . . . . . 4
7 95701-08500-00 NUT, FLANGE (95702-08500) . . 4
8 J24-11127-00-00 ABSORBER 3 . . . . . . . . . . . . . 1
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A2
G1_AM_AM5

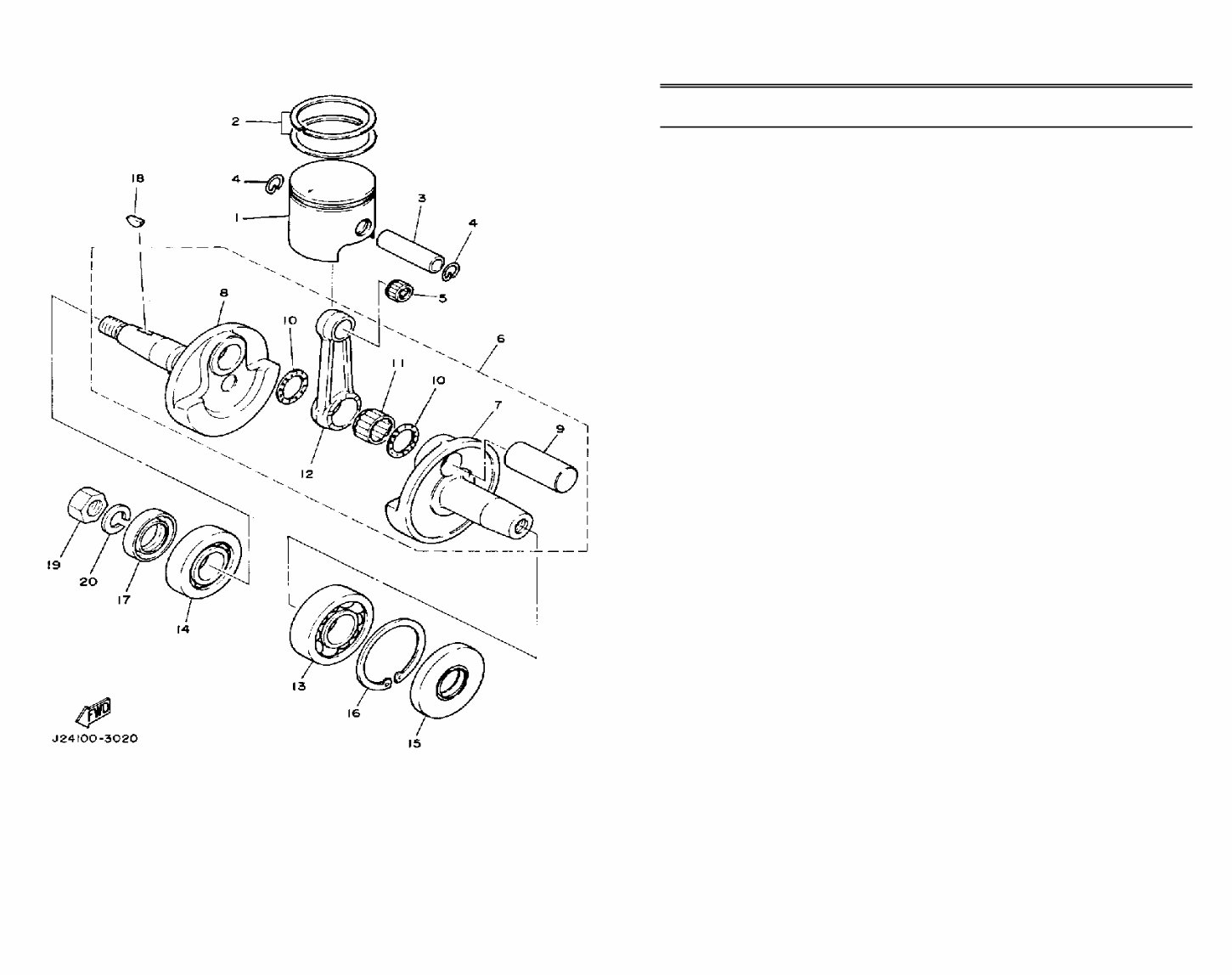

1 J10-11631-00-96 PISTON STD . . . . . . . . . . . . . . 1 UR
J10-11635-00-00 PISTON 1 O/S 0. 5 . . . . . . . . . . 1 ALT. PART
J10-11636-00-00 PISTON 2 O/S 0. 0 . . . . . . . . . . 1 ALT. PART
J10-11637-00-00 PISTON 3 O/S 0. 5 . . . . . . . . . . 1 ALT. PART
J10-11638-00-00 PISTON 4 O/S 1. 0 . . . . . . . . . . 1 ALT. PART
2 J10-11610-00-00 PISTON RINGSET STD . . . . . . 1
J10-11610-10-00 PISTON RINGSET 1ST
(1ST O/S) . . . . . . . . . . . . . . . . . 1 ALT. PART
J10-11610-20-00 PISTON RINGSET 2ND
(2ND O/S) . . . . . . . . . . . . . . . . 1 ALT. PART
J10-11610-30-00 PISTON RINGSET 3RD
(3RD O/S) . . . . . . . . . . . . . . . . ALT. PART
J10-11610-30-00 PISTON RINGSET 3RD
(3RD O/S) . . . . . . . . . . . . . . . . 1 ALT. PART
J10-11610-40-00 PISTON RINGSET 4TH
(4TH O/S) . . . . . . . . . . . . . . . . . ALT. PART
J10-11610-40-00 PISTON RINGSET 4TH
(4TH O/S) . . . . . . . . . . . . . . . . . 1 ALT. PART
3 818-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 1
4 93450-20026-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
5 93310-218A6-00 BEARING, CYLINDRICAL . . . . 1
6 J10-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
7 J10-11412-00-00 . CRANK 1 . . . . . . . . . . . . . . . . 1
8 J10-11422-00-00 . CRANK 2 . . . . . . . . . . . . . . . . 1
9 857-11681-00-00 . PIN, CRANK 1 . . . . . . . . . . . . 1
10 90209-24073-00 . WASHER, SPEC’’L SHAP . . . 2
11 93310-42497-00 . BEARING, CYLINDER.# 0 . . . 1
12 881-11651-00-00 . ROD, CONNECTING . . . . . . . . 1
13 93306-30630-00 BEARING . . . . . . . . . . . . . . . . . 1
14 93306-20622-00 BEARING . . . . . . . . . . . . . . . . . 1
15 93102-30188-00 OIL SEAL, SD-TYPE . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A3
G1_AM_AM5
16 93450-72048-00 CIRCLIP, INNER . . . . . . . . . . . . 1
17 93102-30128-00 OIL SEAL, SD-TYPE . . . . . . . . 1
18 90280-16053-00 KEY, WOODRUFF
(90280-05048-00) . . . . . . . . . . . 1
19 90170-16182-00 NUT, HEXAGON . . . . . . . . . . . . 1
20 92901-16100-00 WASHER, SPRING . . . . . . . . . . 1
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A4
G1_AM_AM5
1 J10-12651-00-00 AIR SHROUD, CYLINDER
1CYLINDER 1 . . . . . . . . . . . . . 1
2 J24-12652-00-00 AIR SHROUD, CYLINDER
2CYLINDER 2 . . . . . . . . . . . . . 1
3 98503-06014-00 SCREW, PAN HEAD
(92501-06015) . . . . . . . . . . . . . 5
4 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 5
5 90119-06108-00 BOLT, WITH WASHER . . . . . . . 4
6 90462-08056-00 CLAMP . . . . . . . . . . . . . . . . . . 1
7 J10-12631-00-00 DEFLECTOR 1 . . . . . . . . . . . . . 1
8 90267-48086-00 RIVET, BLIND . . . . . . . . . . . . . 3
9 90201-04325-00 WASHER, PLATE . . . . . . . . . . . 3
10 8G8-12611-01-00 FAN . . . . . . . . . . . . . . . . . . . . . 1
11 95811-06012-00 BOLT, FLANGE (95801-06012) . 6
12 J10-12621-01-00 CASE, FAN . . . . . . . . . . . . . . . 1
13 95811-06050-00 BOLT, FLANGE . . . . . . . . . . . . 1
14 J24-12616-00-00 COVER, FAN CASE . . . . . . . . . 1
15 97313-06060-00 BOLT, HEXAGON . . . . . . . . . . 4
16 92990-06600-00 WASHER, PLATE . . . . . . . . . . .
AIR SHROUD - FAN
Ref. Part
No. Number Description Qty Remarks
A5
G1_AM_AM5

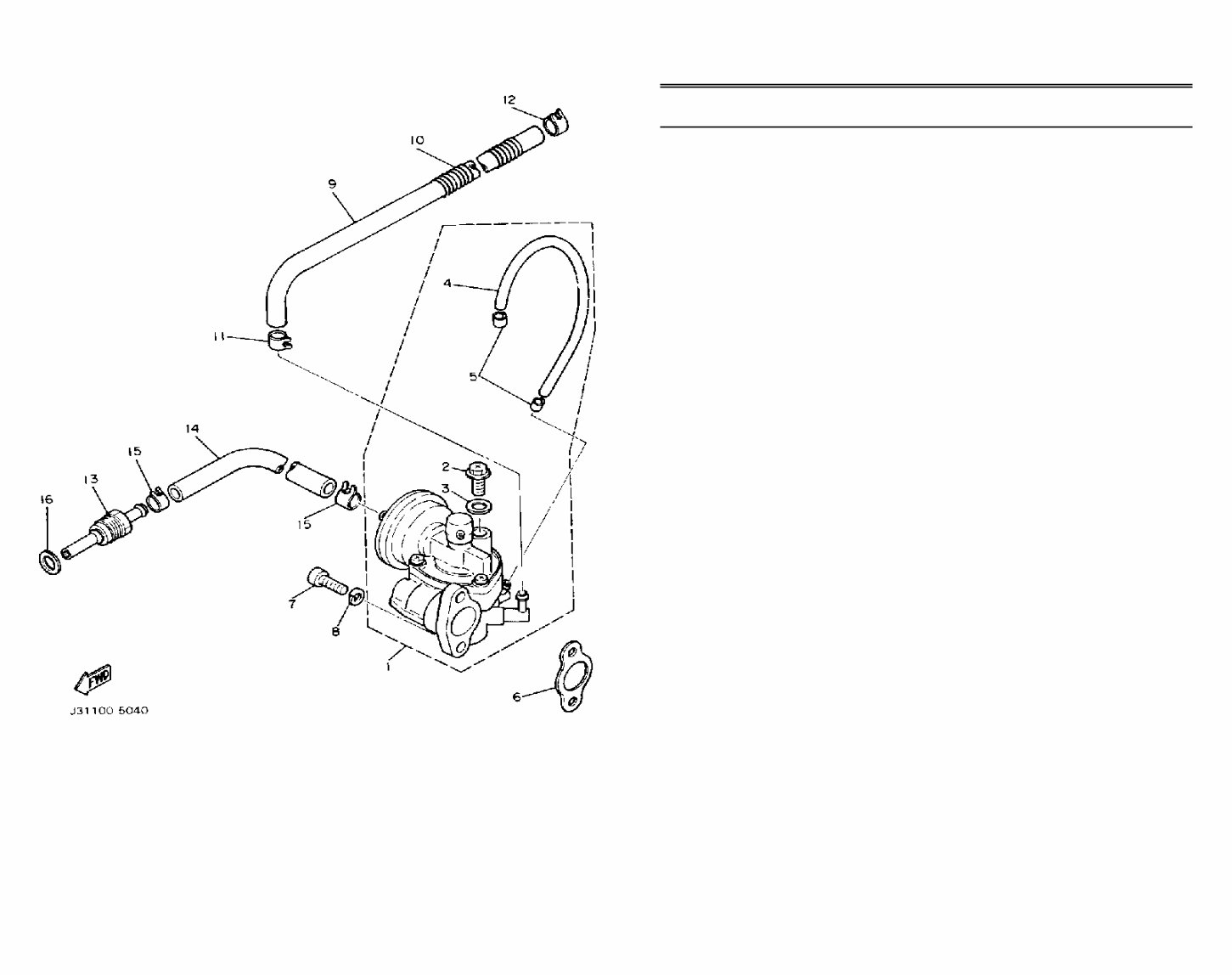

1 J24-13101-00-00 OIL PUMP ASSEMBLY . . . . . . . 1
2 90401-06001-00 . BOLT, UNION . . . . . . . . . . . . 1
3 90430-06180-00 . GASKET . . . . . . . . . . . . . . . . 1
4 90445-05214-00 . HOSE . . . . . . . . . . . . . . . . . . . 1
5 90468-02033-00 . CLIP . . . . . . . . . . . . . . . . . . . 2
6 3MT-13116-00-00 GASKET, PUMP CASE . . . . . . . 1
7 98580-05016-00 SCREW, PAN HEAD . . . . . . . . 2
8 92990-05100-00 WASHER, SPRING . . . . . . . . . . 2
9 90445-09635-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
10 90501-08430-00 SPRING, COMPRESSION . . . . . 1
11 90467-09005-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
12 90467-09026-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
13 J10-13283-00-00 JET, SENSER . . . . . . . . . . . . . 1
14 90445-11634-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
15 90467-10035-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
16 90201-08624-00 WASHER, PLATE . . . . . . . . . . . 1
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A6
G1_AM_AM5

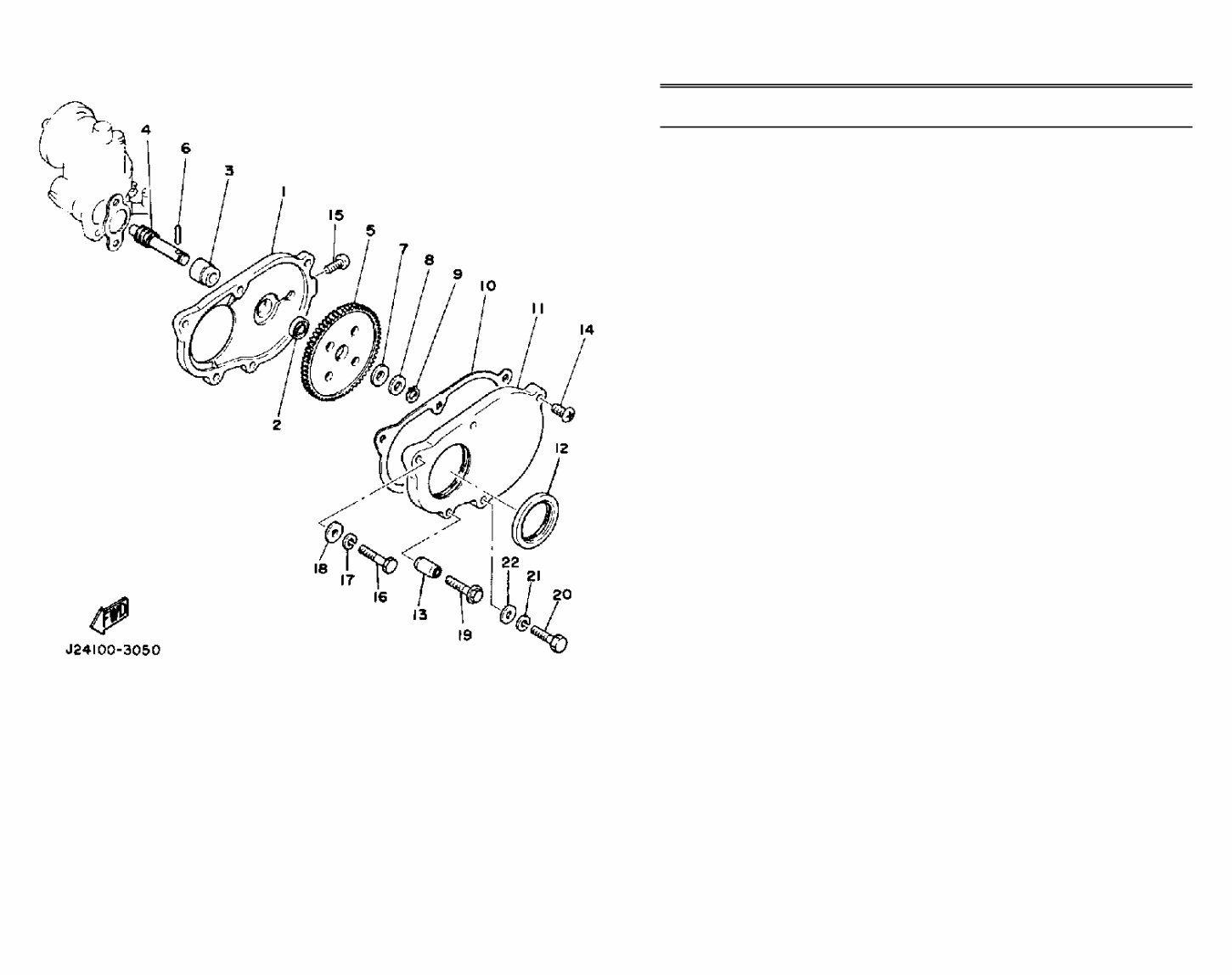

1 J10-15416-00-00 COVER, OIL PUMP . . . . . . . . . 1
2 93101-10090-00 OIL SEAL, . . . . . . . . . . . . . . . . 1
3 1E7-13176-00-00 METAL, WRM SHAF OTR . . . . 1
4 J10-13175-00-00 SHAFT, WORM . . . . . . . . . . . . 1
5 J10-13188-00-00 GEAR, DRIVE . . . . . . . . . . . . . 1
6 93603-22028-00 PIN, DOWEL . . . . . . . . . . . . . . 1
7 90206-11016-00 WASHER, WAVE . . . . . . . . . . . 1
8 137-13148-00-00 PLATE, CAM THRUST . . . . . . . 1
9 99009-10400-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
10 J10-15466-00-00 GASKET 2 . . . . . . . . . . . . . . . . 1
11 J10-15426-00-00 COVER, OIL PUMP R . . . . . . . . 1
12 93112-53004-00 OIL SEAL, SR-TYPE . . . . . . . . 1
13 91810-18025-00 PIN, DOWEL . . . . . . . . . . . . . . 2
14 98580-06018-00 SCREW, PAN HEAD (N15) . . . . 1
15 98580-06012-00 SCREW, PAN HEAD
(92501-06012-00) . . . . . . . . . . . 1
16 97313-08035-00 BOLT, HEXAGON . . . . . . . . . . 1
17 92990-08100-00 WASHER, PLAIN . . . . . . . . . . . 1
18 92990-08600-00 WASHER, PLATE . . . . . . . . . . . 1
19 95811-06035-00 BOLT, FLANGE . . . . . . . . . . . . 2
20 97021-06030-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
21 92995-06100-00 WASHER, SPRING
(92990-06100-00) . . . . . . . . . . . 1
22 92990-06600-00 WASHER, PLATE . . . . . . . . . . .
PUMP DRIVE - GEAR
Ref. Part
No. Number Description Qty Remarks
A7
G1_AM_AM5
1 10V-13610-01-00 REED VALVE ASSEMBLY . . . . 1
2 10V-13613-01-00 . REED, VALVE . . . . . . . . . . . . 2
3 1UA-13616-00-00 . STOPPER REED VALVE . . . . 2
4 98580-03008-00 . SCREW, PAN HEAD
(98501-03008-00) . . . . . . . . . . 4
5 3TT-13621-00-00 GASKET, VALVE SEAT
(311-13621-01) . . . . . . . . . . . . . 1
6 J24-13586-00-00 JOINT, CARBURETOR 1 . . . . . 1
7 97021-06030-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
8 92995-06100-00 WASHER, SPRING
(92990-06100-00) . . . . . . . . . . . 4
9 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 4
10 90460-41191-00 CLAMP, HOSE (90460-41146) . 1
11 J10-26331-02-00 CABLE, STARTER 1 . . . . . . . . 1
12 J10-26325-00-00 . KNOB, STARTER . . . . . . . . . . 1
13 90149-03132-00 . SCREW, SPECIAL SHAPE . . . 1
14 J17-26339-09-00 . BOOT . . . . . . . . . . . . . . . . . . 1
15 91701-05010-00 PIN, CYLINDER. HEAD . . . . . . 1
16 90468-10050-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
17 J10-14453-00-00 JOINT, AIR CLNR 1 . . . . . . . . . 1
18 1HX-13575-00-00 BAND . . . . . . . . . . . . . . . . . . . 1
19 90460-53239-00 CLAMP, HOSE . . . . . . . . . . . . . 1
20 J17-14410-00-00 AIR CLEANER ASSEMBLY 1 . . 1
21 J10-14411-01-00 . CASE, air cleaner 1 . . . . . . . . 1
22 90480-13238-00 . GROMMET . . . . . . . . . . . . . . . 2
23 90480-14239-00 . GROMMET . . . . . . . . . . . . . . . 2
24 J17-W1443-00-00 . CAP, cleaner case 1
(J17-14412-01-00) . . . . . . . . . 1
25 J10-14416-00-00 . . GASKET, AIR CLEANER . . . 1
26 J10-14450-10-00 ELEMENT ASS’’Y, air cleaner . 1
CONTINUED ON NEXT FRAME ➤
AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A8
G1_AM_AM5
27 J10-1441F-00-00 PARTN, AIR CLNR CSAIR
CLEANER CASE . . . . . . . . . . . 1
28 90480-14100-00 GROMMET . . . . . . . . . . . . . . . . 1
29 J10-14417-00-00 COVER 1 . . . . . . . . . . . . . . . . . 1
30 J17-12644-00-00 DEFLECTOR 3 . . . . . . . . . . . . . 1
31 J10-14436-00-00 HOOK . . . . . . . . . . . . . . . . . . . 3
32 90269-65032-00 RIVET, SPEC’’L SHAPE . . . . . . 1
33 90119-06097-00 BOLT, WITH WASHER . . . . . . . 2
34 90387-06026-00 COLLAR . . . . . . . . . . . . . . . . . 2
35 90201-114E6-00 WASHER, PLATE . . . . . . . . . . . 1
36 J24-13581-00-00 CHAMBER, AIR . . . . . . . . . . . . 1
37 J24-14388-00-00 VALVE, VAC CONTROL . . . . . . 1
38 90468-08104-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
39 90468-02025-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
40 90462-08056-00 CLAMP . . . . . . . . . . . . . . . . . . 1
AIR FILTER
Ref. Part
No. Number Description Qty Remarks
A9
G1_AM_AM5

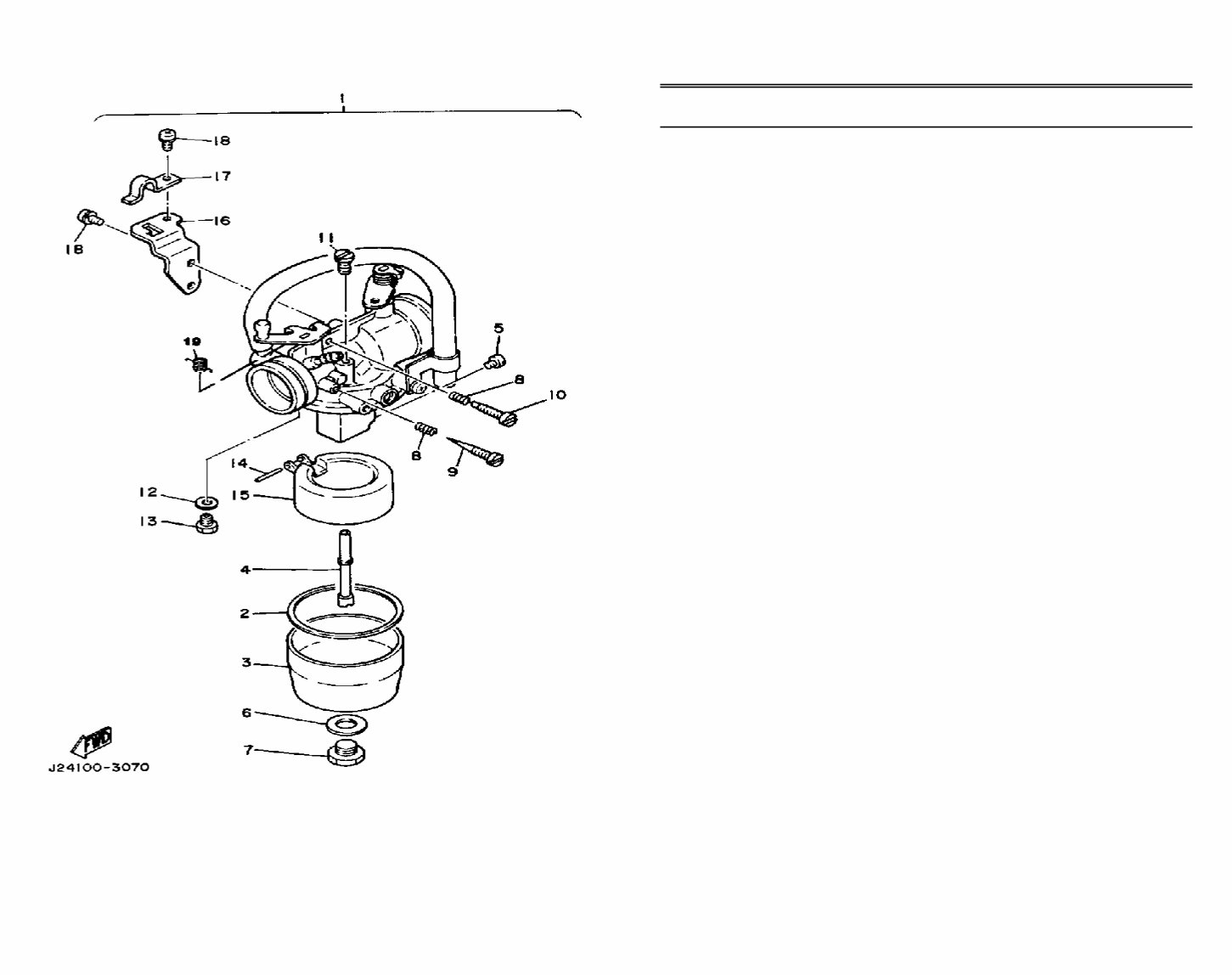

1 J24-14101-01-00 CARBURETOR 1 (J24-14101-00) 1
2 796-14184-00-00 . GASKET, FLOAT CHMBR . . . 1
3 796-14181-00-00 . BODY, FLOAT CHMBR 1 . . . . 1
4 J17-14141-00-00 . NOZZLE, MAIN . . . . . . . . . . . 1
5 3G2-14231-19-00 . JET, POWER (# 95) . . . . . . . . 1
6 732-14237-00-00 . GASKET . . . . . . . . . . . . . . . . 1
7 J10-14244-00-00 . HOLDER, NOZZLE . . . . . . . . . 1
8 620-14212-00-00 . SPRING, PILOT ADJUSTING . 2
9 620-14211-00-00 . SPRING, PILOT ADJUSTING . 1
10 J10-14122-00-00 . SCREW, THROTTLE . . . . . . . 1
11 620-14142-32-00 . JET, PILOT # 2 . . . . . . . . . . . 1
620-1414J-15-00 . JET, PILOT . . . . . . . . . . . . . . 1
12 127-14195-00-00 . WASHER, NEEDLE VALVE . . 1
13 353-14190-10-00 . NEEDLE VALVE ASSEMBLY . 1
14 796-14186-00-00 . PIN, FLOAT CHAMBER . . . . . 1
15 796-14185-00-00 . FLOAT . . . . . . . . . . . . . . . . . . 1
16 J10-14581-00-00 . BRACKET . . . . . . . . . . . . . . . 1
17 J10-14243-00-00 . PLATE . . . . . . . . . . . . . . . . . . 1
18 98580-03008-00 . SCREW, PAN HEAD
(98501-03008-00) . . . . . . . . . . 2
19 256-14944-17-00 JET, MAIN 5 . . . . . . . . . . . . . .
3G2-14231-18-00 JET, MAIN ( 90) . . . . . . . . . . . .
3G2-1423A-70-00 JET, MAIN 97 5 . . . . . . . . . . . .
620-14142-08-00 JET, PILOT # 0 . . . . . . . . . . . .
620-14142-30-00 JET, PILOT # 0 . . . . . . . . . . . .
620-14142-32-00 JET, PILOT # 2 . . . . . . . . . . . .
620-14142-35-00 JET, PILOT # 5 . . . . . . . . . . . .
620-14142-37-00 JET, PILOT #37 5 . . . . . . . . . . .
620-14142-42-00 JET, PILOT #42 5 . . . . . . . . . . .
CONTINUED ON NEXT FRAME ➤
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A10
G1_AM_AM5
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Viewed 91 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Get access to a comprehensive parts manual, parts list, and parts catalog featuring exploded diagrams for every part. This manual contains manufacturer part numbers and detailed diagrams, allowing you to enlarge views for even the smallest part. The exploded views are invaluable for assembly and disassembly assistance, making it a great tool for professionals and DIY enthusiasts alike.
All files are in PDF format, ensuring ease of readability and accessibility. This manual is designed to aid in disassembly and reassembly, providing a wealth of information on parts and numbers with accompanying exploded diagrams.
With instant delivery, there are no shipping costs or waiting for a physical manual to arrive. Upon payment completion through our secure processor, you will receive the manual instantly. It is compatible with both PC and MAC, working seamlessly with all versions of Windows.
Print what you need, when you need it – this is the only parts list manual you will ever need. Click on the instant access button to get this comprehensive parts manual today.
All rights reserved. Designated trademarks and brands are the property of their respective owners.
