1963-1968 Cessna 172 Series Service & Repair Manual

lOO-SERIES SERVICE MANUAL ~ 1 SEPTEMBER 1968 ~ THIS MANUAL COVERS MAINTENANCE FOR CESSNA 100-SERIES AIR- PLANES, 1963 THRU 1968. FOR COVERAGE OF'MODELS PRIOR TO 1963, REFER TO THE SINGLE ENGINE SERVICE MANUAL DATED 1 FEBRUARY 1962. D637-13-RAND-l000--8/76

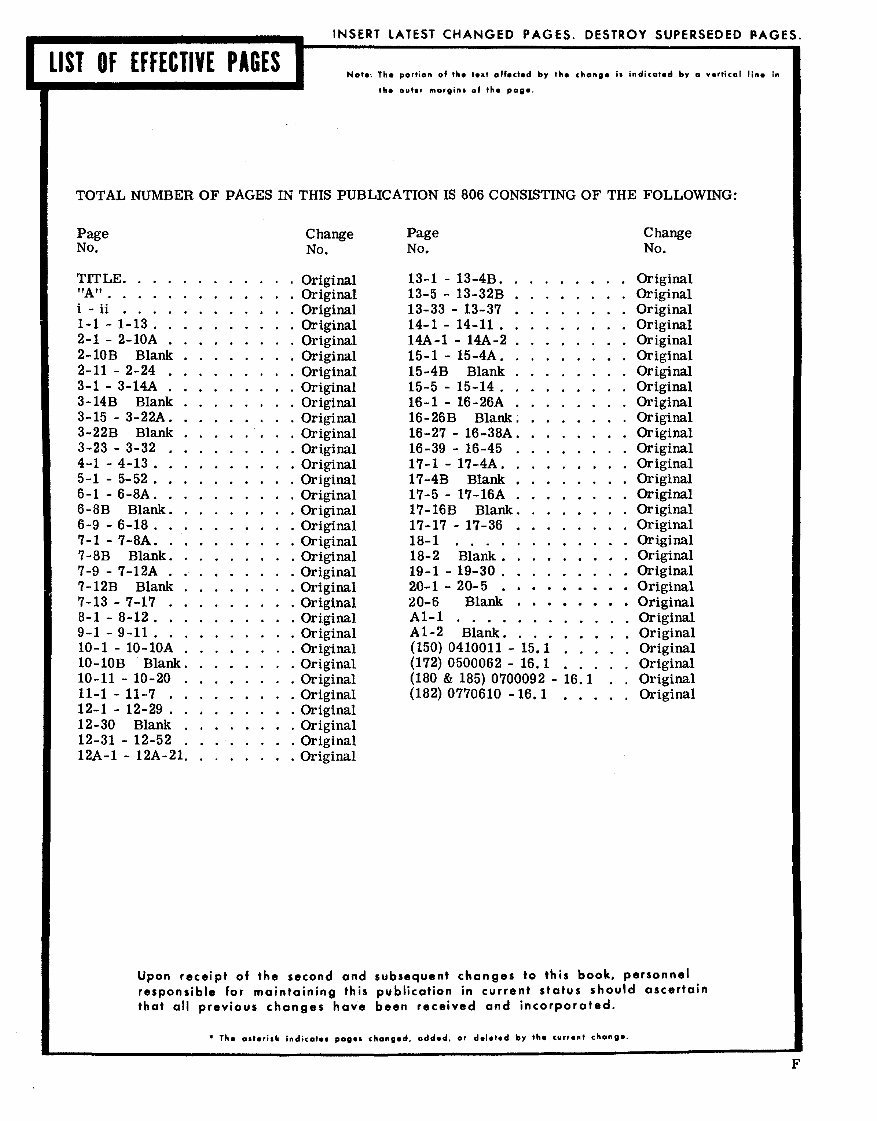

INSERT LATEST CHANGED PAGES. DESTROY SUPERSEDED PAGES. LIST OF EFFECTIVE PAGES Not.: Th. portion of the text aff.ct.d by the chonge it indicated by a vertical line in ttl. oute, ",arlin, of the poge. TOTAL NUMBER OF PAGES IN THIS PUBLICATION IS 806 CONSISTING OF THE FOLLOWING: Page Change Page Change No. No. No. No. TITLE. Original 13-1 - 13-4B. Original "Aft. Original 13-5 - 13-32B Original i - ii . Original 13-33 - 13-37 Original 1-1 - 1-13 . · Original 14-1 - 14-11 . Original 2-1 - 2-10A · Original 14A-1 - 14A-2 Original 2-lOB Blank · Original 15-1 - 15-4A. Original 2-11 - 2-24 · Original 15-4B Blank Original 3-1 - 3-14A · Original 15-5 - 15-14 . Original 3-14B Blank · Original 16-1 - 16-26A Original 3-15 - 3-22A. · Original 16-26B Blank. Original 3-22B Blank · Original 16-27 - 16-38A. Original 3-23 - 3-32 · Original 16-39 - 16-45 Original 4-1 - 4-13 . · Original 17-1 - 17-4A. Original 5-1 - 5-52 . · Original 17-4B Blank Original 6-1 - 6-8A. · Original 17-5 - 17-16A Original 6-8B Blank. · Original 17-16B Blank. Original 6-9 - 6-18 . · Original 17-17 - 17-36 Original 7-1 - 7-8A. · Original 18-1 Original 7-8B Blank. · Original 18-2 Blank • Original 7-9 - 7-12A · Original 19-1 - 19-30 . Original 7-12B Blank · Original 20-1 - 20-5 . Original 7-13-7-17 · Original 20-6 Blank • Original 8-1 - 8-12 . · Original A1-1 Original 9-1 - 9-11 . · Original Al-2 Blank. Original 10-1 - 10-lOA · Original (150) 0410011 - 15.1 Original 1O-1OB Blank. · Original (172) 0500062 - 16. 1 Original 10-11 - 10-20 · Original (180 & 185) 0700092 - 16.1 Original 11-1 - 11-7 · Original (182) 0770610 -16. 1 Original 12-1 - 12-29 . · Original 12-30 Blank · Original 12-31 - 12-52 · Original 12A-1 - 12A-21. · Original Upon receipt of the second and subsequent changes to this book, personnel responsible for maintaining this publication in current status should ascertain that all previous changes have been received and incorporated . • Th. oat., ••• indicat •• page. chonled. added. or d.leted by the current chang •. F

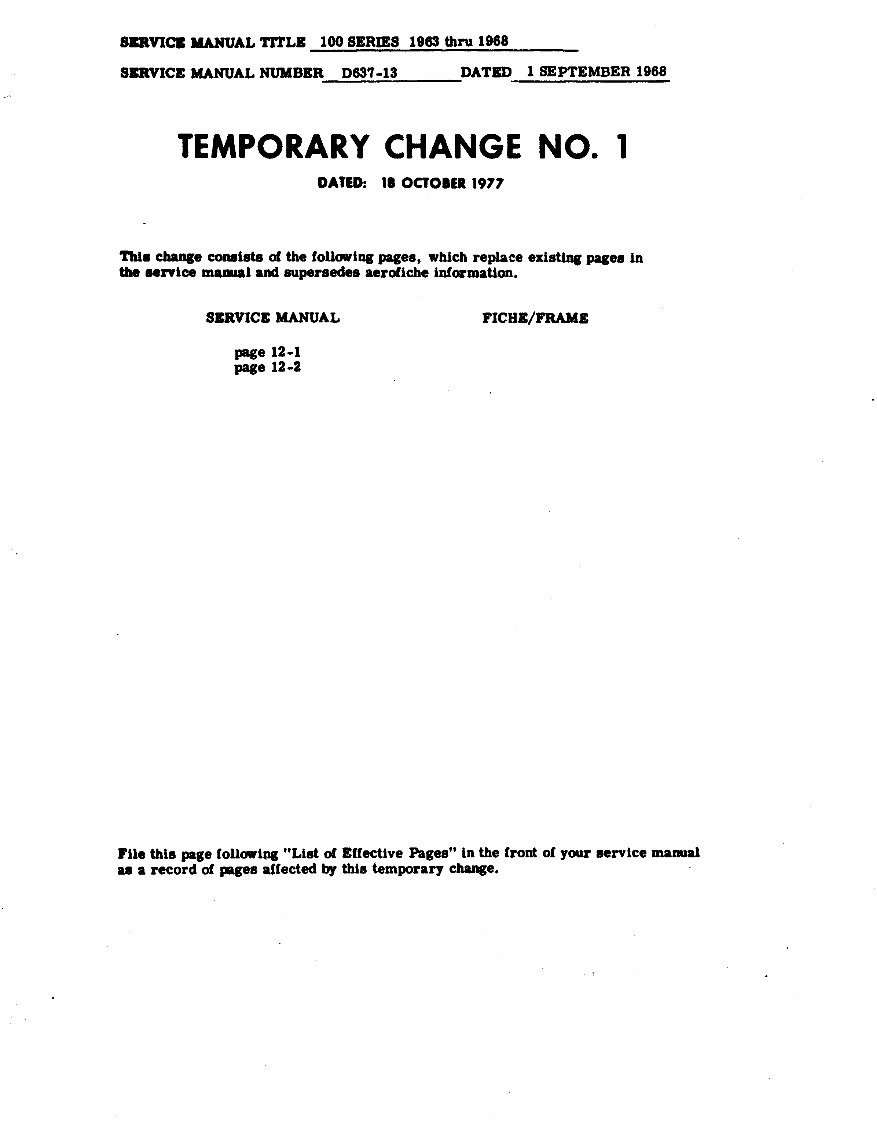

aaVlCB ILUWAL TlTLB 100 SERIES 1963 thru 1968 saVICE MANUAL NUMBER D637 -13 DATED 1 SEPTEMBER 1968 TEMPORARY CHANGE NO. 1 DATED: 11 OCTOBER 1977 Thl. change co_lsts of the following pages, which replace existing pages in the _nice maaual and supersedes aeroflche information. SBRVICB MANUAL page 12-1 page 12-2 FICHB/FRAME I'lle this page following "List of Effective Pages" in the front of your sen ice malNal as a record of pages affected by this temporary change.

~ 08.. SERVICE MANUAL CHANGE NOTICE REFERENCE MANUAL NUMBER:IllllijD.6 .. 37 .. - .. 1 .. 3 ___ _ MANUAL TITLE: 199 Ser; es 1963 thry 1968 TO: ALL ZONES AND DEALERS 12-2 FROM: CUSTOMER SERVICES DEPARTMENT 12-3 CORRECT YOUR SERVICE MANUAL AS SHOWN BELOW. DESCRIPTION OF CHANGES The attached change updates magneto timing on the Model 150. SMCN #77-25 DATE: Dec.5. 1977

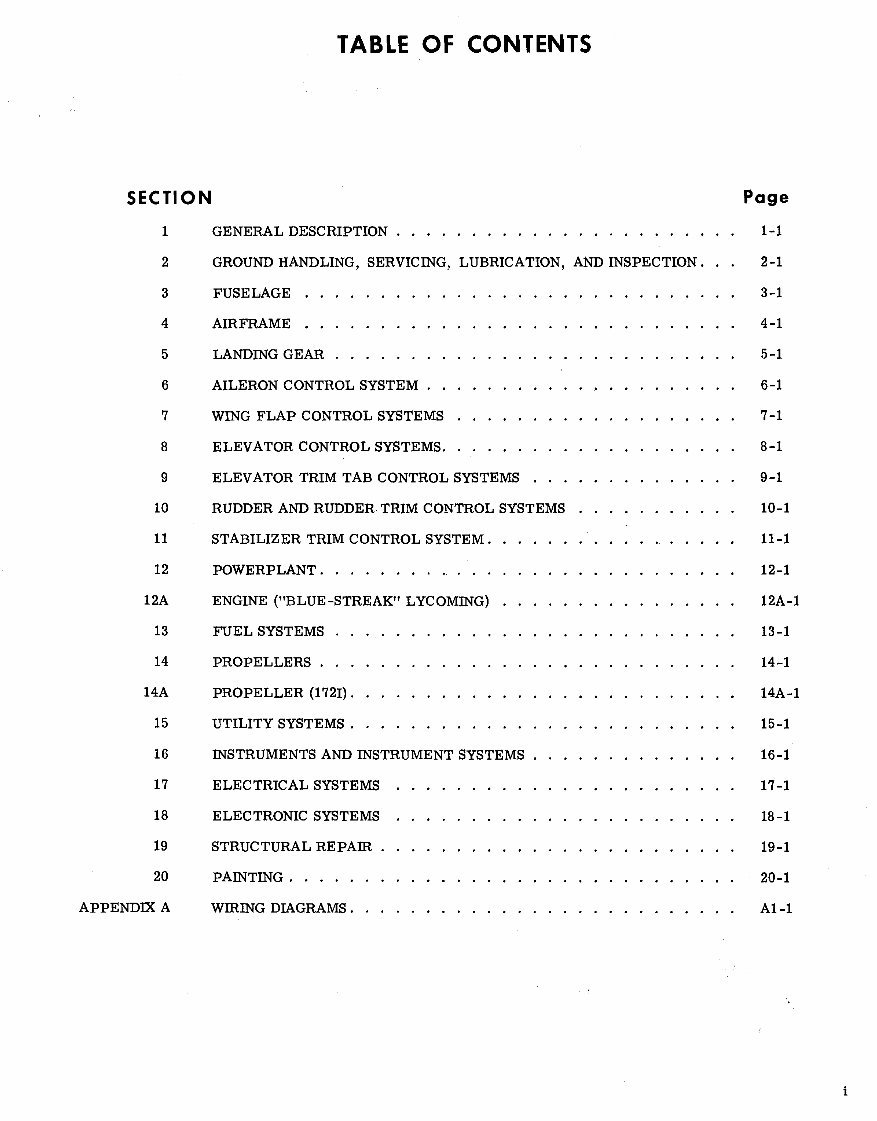

SECTION 1 2 3 4 5 6 7 8 9 10 11 12 12A 13 14 14A 15 16 17 18 19 20 APPENDIX A TABLE OF CONTENTS GENERAL DESCRIPTION . GROUND HANDLING, SERVICING, LUBRICATION, AND INSPECTION. FUSELAGE AIRFRAME LANDING GEAR AILERON CONTROL SYSTEM . WING FLAP CONTROL SYSTEMS ELEVATOR CONTROL SYSTEMS. ELEVATOR TRIM TAB CONTROL SYSTEMS RUDDER AND RUDDER TRIM CONTROL SYSTEMS STABILIZER TRIM CONTROL SYSTEM. POWERPLANT. . . . . . . . . . . . ENGINE ("BLUE-STREAK" LYCOMING) FUEL SYSTEMS PROPELLERS . PROPELLER (1721) . UTILITY SYSTEMS . INSTRUMENTS AND INSTRUMENT SYSTEMS ELECTRICAL SYSTEMS ELECTRONIC SYSTEMS STRUCTURAL REPAIR . PAINTING ..... WillING DIAGRAMS. Page 1-1 2-1 3-1 4-1 5-1 6-1 7-1 8-1 9-1 10-1 11-1 12-1 12A-1 13-1 14-1 14A-1 15-1 16-1 17-1 18-1 19-1 20-1 A1-1

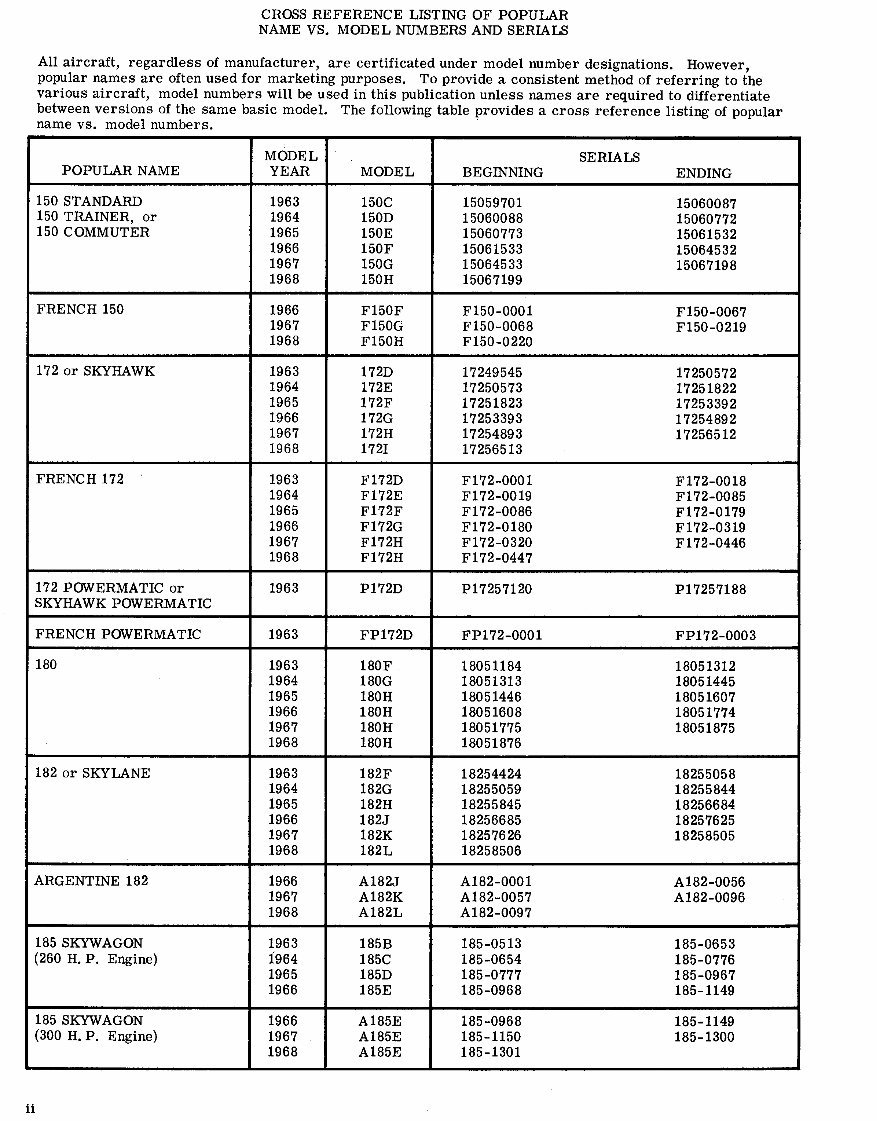

CROSS REFERENCE LISTING OF POPULAR NAME VS. MODEL NUMBERS AND SERIALS All aircraft, regardless of manufacturer, are certificated under model number designations. However, popular names are often used for marketing purposes. To provide a consistent method of referring to the various aircraft, model numbers will be used in this publication unless names are required to differentiate between versions of the same basic model. The following table provides a cross reference listing of popular name vs. model numbers. MODEL SERIALS POPULAR NAME YEAR MODEL BEGINNING ENDING 150 STANDARD 1963 150C 15059701 15060087 150 TRAINER, or 1964 150D 15060088 15060772 150 COMMUTER 1965 150E 15060773 15061532 1966 150F 15061533 15064532 1967 150G 15064533 15067198 1968 150H 15067199 FRENCH 150 1966 F150F F150-0001 F150-0067 1967 F150G F150-0068 F150-0219 1968 F150H F150-0220 172 or SKYHAWK 1963 172D 17249545 17250572 1964 172E 17250573 17251822 1965 172F 17251823 17253392 1966 172G 17253393 17254892 1967 172H 17254893 17256512 1968 1721 17256513 FRENCH 172 1963 Fl72D Fl72-0001 Fl72-0018 1964 Fl72E Fl72-0019 Fl72-0085 1965 Fl72F Fl72-0086 Fl72-0179 1966 F172G Fl72-0180 Fl72-0319 1967 Fl72H Fl72-0320 Fl72-0446 1968 Fl72H Fl72-0447 172 POWERMATIC or 1963 Pl72D Pl7257120 Pl7257188 SKYHAWK POWERMATIC FRENCH POWERMATIC 1963 FPl72D FPl72-0001 FPl72-0003 180 1963 180F 18051184 18051312 1964 180G 18051313 18051445 1965 180H 18051446 18051607 1966 180H 18051608 18051774 1967 180H 18051775 18051875 1968 180H 18051876 182 or SKYLANE 1963 182F 18254424 18255058 1964 182G 18255059 18255844 1965 182H 18255845 18256684 1966 182J 18256685 18257625 1967 182K 18257626 18258505 1968 182L 18258506 ARGENTINE 182 1966 A182J A182-0001 A182-0056 1967 A182K A182-0057 A182-0096 1968 A182L A182-0097 185 SKYWAGON 1963 185B 185-0513 185-0653 (260 H. P. Engine) 1964 185C 185-0654 185-0776 1965 185D 185-0777 185-0967 1966 185E 185-0968 185-1149 185 SKYWAGON 1966 A185E 185-0968 185-1149 (300 H. P. Engine) 1967 A185E 185-1150 185-1300 1968 A185E 185-1301 ii

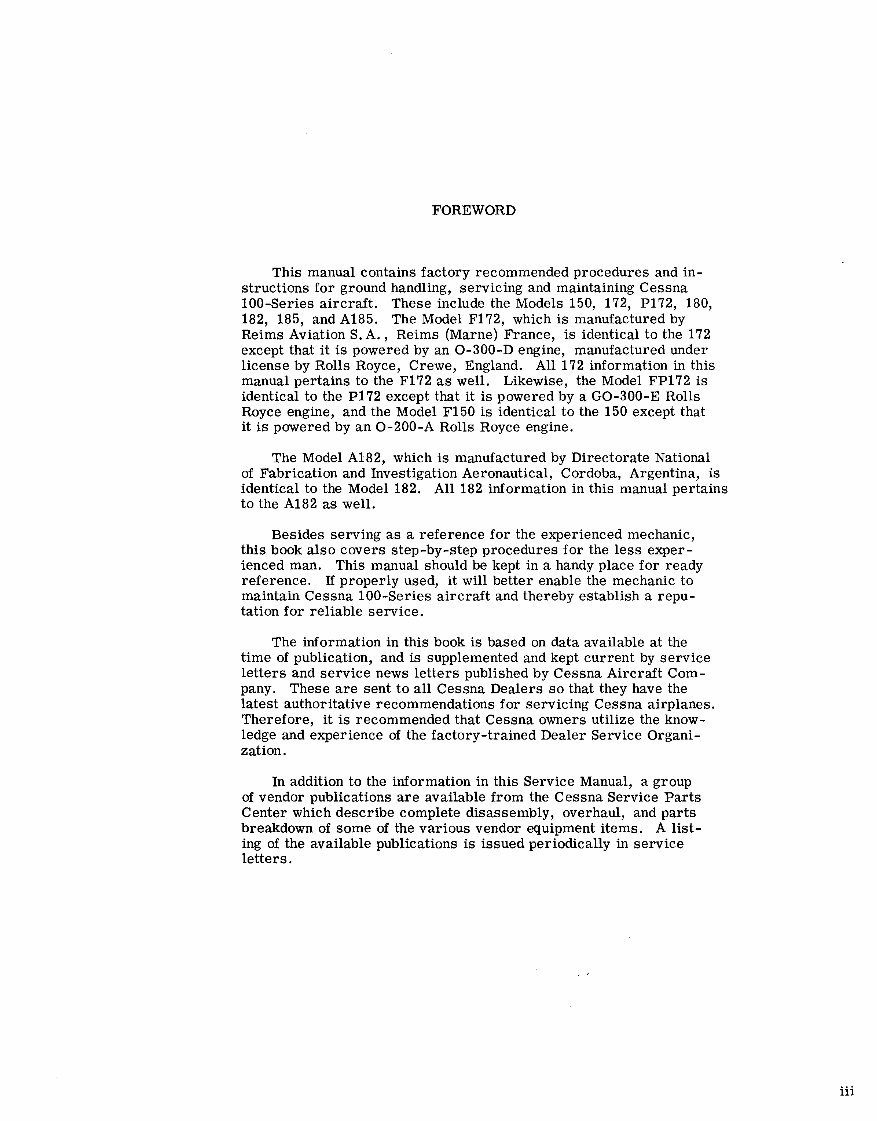

FOREWORD This manual contains factory recommended procedures and in- structions for ground handling, servicing and maintaining Cessna 100-Series aircraft. These include the Models 150, 172, Pl72, 180, 182, 185, and A185. The Model F172, which is manufactured by Reims Aviation S. A., Reims (Marne) France, is identical to the 172 except that it is powered by an 0-300-D engine, manufactured under license by Rolls Royce, Crewe, England. All 172 information in this manual pertains to the F172 as well. Likewise, the Model FPl72 is identical to the P172 except that it is powered by a GO-300-E Rolls Royce engine, and the Model F150 is identical to the 150 except that it is powered by an 0-200-A Rolls Royce engine. The Model A182, which is manufactured by Directorate National of Fabrication and Investigation Aeronautical, Cordoba, Argentina, is identical to the Model 182. All 182 information in this manual pertains to the A182 as well. Besides serving as a reference for the experienced mechanic, this book also covers step-by-step procedures for the less experienced man. This manual should be kept in a handy place for ready reference. If properly used, it will better enable the mechanic to maintain Cessna 100-Series aircraft and thereby establish a repu- tation for reliable service. The information in this book is based on data available at the time of publication, and is supplemented and kept current by service letters and service news letters published by Cessna Aircraft Com- pany. These are sent to all Cessna Dealers so that they have the latest authoritative recommendations for servicing Cessna airplanes. Therefore, it is recommended that Cessna owners utilize the know- ledge and experience of the factory-trained Dealer Service Organi- zation. In addition to the information in this Service Manual, a group of vendor publications are available from the Cessna Service Parts Center which describe complete disassembly, overhaul, and parts breakdown of some of the various vendor equipment items. A listing of the available publications is issued periodically in service letters. iii

This page intentionally left blank.

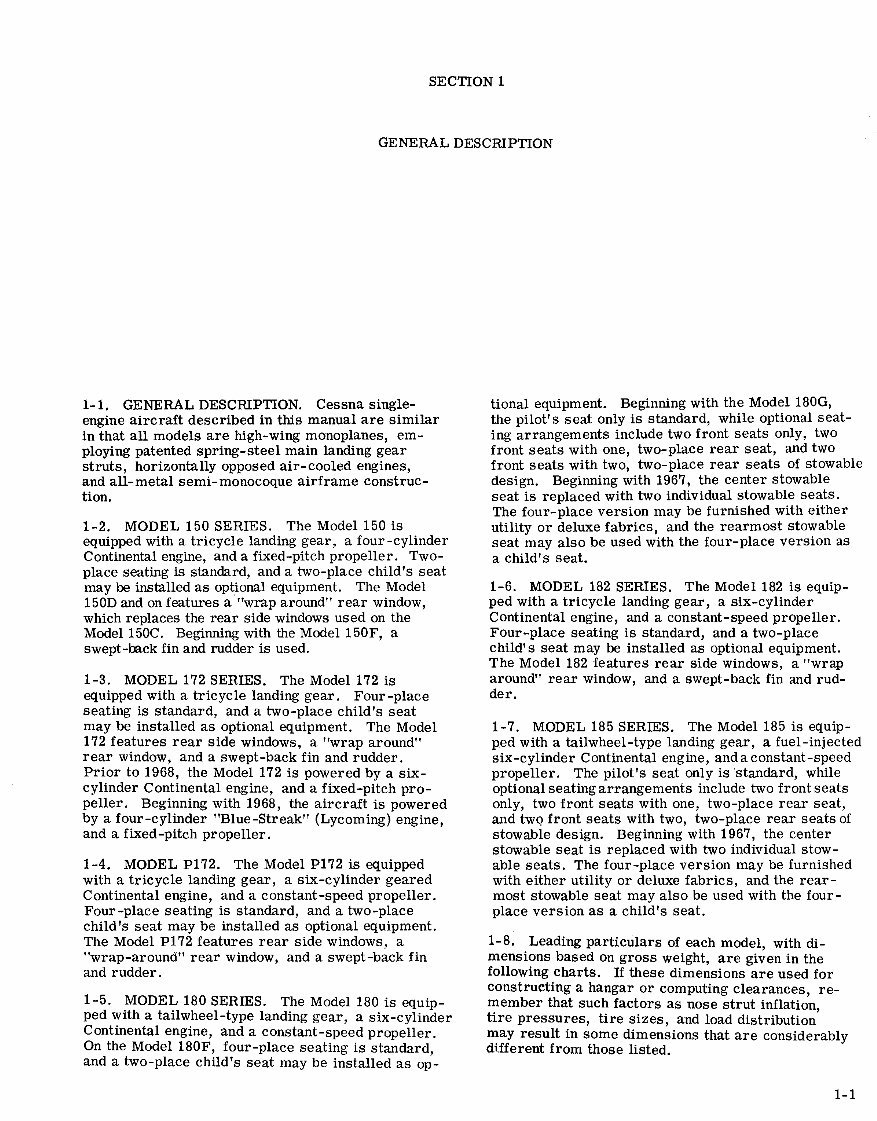

SECTION 1 GENERAL DESCRIPTION 1-1. GENERAL DESCRIPTI.oN. Cessna single- engine aircraft described in this manual are similar in that all models are high-wing monoplanes, em- ploying patented spring-steel main landing gear struts, horizontally opposed air-cooled engines, and all-metal semi-monocoque airframe construc- tion. 1-2. M.oDEL 150 SERIES. The Model 150 is equipped with a tricycle landing gear, a four -cylinder Continental engine, and a fixed-pitch propeller. Two- place seating is standard, and a two-place child's seat may be installed as optional equipment. The Model 150D and on features a'''wrap around" rear window, which replaces the rear side windows used on the Model 150C. Beginning with the Model 150F, a swept-back fin and rudder is used. 1-3. M.oDEL 172 SERIES. The Model 172 is equipped with a tricycle landing gear. Four-place seating is standard, and a two-place child's seat may be installed as optional equipment. The Model 172 features rear side windows, a "wrap around" rear window, and a swept-back fin and rudder. Prior to 1968, the Model 172 is powered by a six- cylinder Continental engine, and a fixed-pitch propeller. Beginning with 1968, the aircraft is powered by a four-cylinder "Blue-Streak" (Lycoming) engine, and a fixed -pitch propeller. 1-4. M.oDEL Pl72. The Model Pl72 is equipped with a tricycle landing gear, a six-cylinder geared Continental engine, and a constant-speed propeller. Four-place seating is standard, and a two-place child's seat may be installed as optional equipment. The Model P172 features rear side windows, a "wrap-around" rear window, and a swept-back fin and rudder. 1-5. M.oDEL 180 SERIES. The Model 180 is equipped with a tailwheel-type landing gear, a six-cylinder Continental engine, and a constant-speed propeller. .on the Model 180F, four-place seating is standard, and a two-place child's seat may be installed as optional equipment. Beginning with the Model 180G, the pilot's seat only is standard, while optional seating arrangements include two front seats only, two front seats with one, two,.place rear seat, and two front seats with two, two-place rear seats of stowable design. Beginning with 1967, the center stowable seat is replaced with two individual stowable seats. The four-place version may be furnished with either utility or deluxe fabrics, and the rearmost stowable seat may also be used with the four-place version as a child's seat. 1-6. M.oDEL 182 SERIES. The Model 182 is equipped with a tricycle landing gear, a six-cylinder Continental engine, and a constant-speed propeller. Four-place seating is standard, and a two-place child's seat may be installed as optional equipment. The Model 182 features rear side windows, a "wrap around" rear window, and a swept-back fin and rudder. 1-7. MODEL 185 SERIES. The Model 185 is equipped with a tailwheel-type landing gear, a fuel-injected six-cylinder Continental engine, and a constant-speed propeller. The pilot's seat only is 'standard, while optional seating arrangements include two front seats only, two front seats with one, two-place rear seat, and tWQ front seats with two, two-place rear seats of stowable design. Beginning with 1967, the center stowable seat is replaced with two individual stowable seats. The four-place version may be furnished with either utility or deluxe fabrics, and the rearmost stowable seat may also be used with the four- place version as a child's seat. 1-8. Leading particulars of each model, with dimensions based on gross weight, are given in the following charts. If these dimensions are used for constructing a hangar or computing clearances, re- member that such factors as nose strut inflation tire pressures, tire Sizes, and load distribution' may result in some dimensions that are conSiderably di.fferent from those listed. 1-1

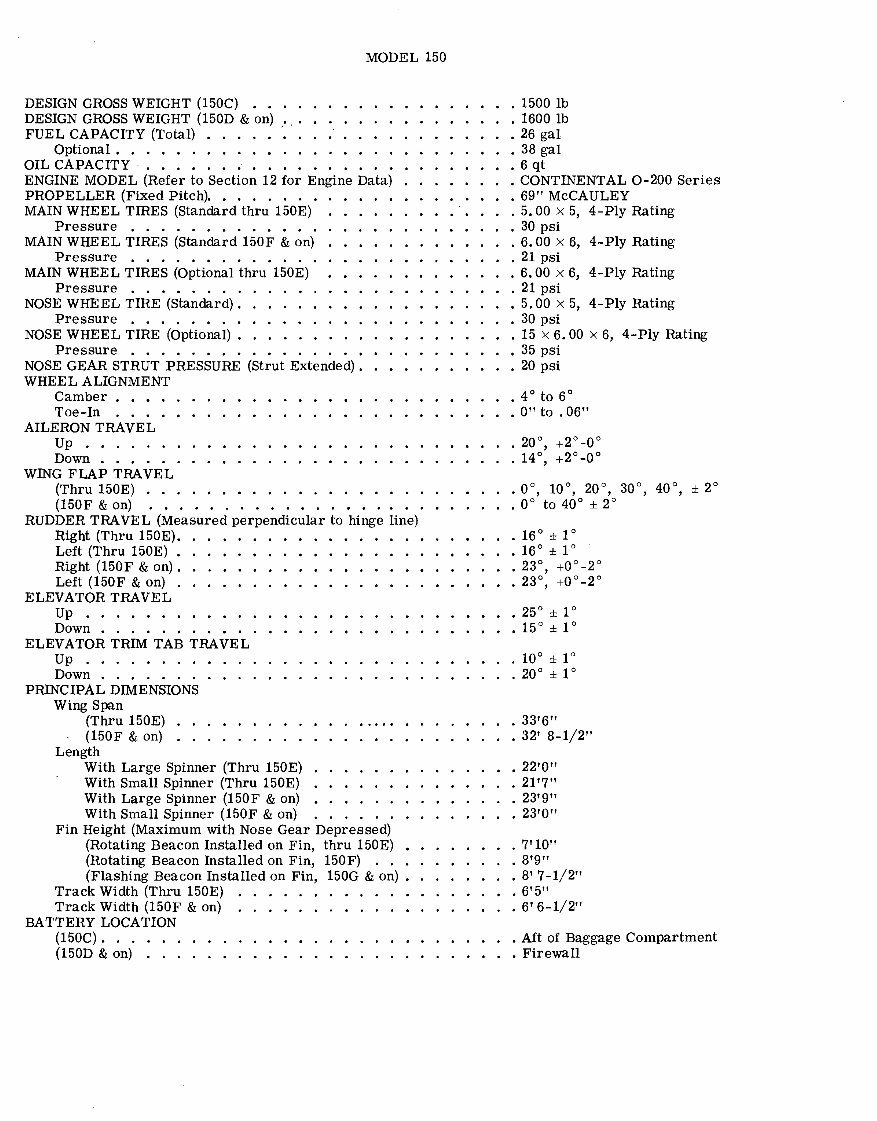

DESIGN GROSS WEIGHT (150C) .. DESIGN GROSS WEIGHT (150D & on) " FUEL CAPACITY (Total) . . . . . Optional •.••..•...• MODEL 150 OIL CAPACITY . • . • . • . • . • .. ...• ENGINE MODEL (Refer to Section 12 for Engine Data) PROPELLER (Fixed Pitch). • • . . • . . MAIN WHEEL TIRES (Standard thru 150E) Pressure ..... •..•.•.. MAIN WHEEL TIRES (Standard 150F & on) Pressure ...•.• ....... MAIN WHEEL TIRES (Optional thru 150E) Pressure ....... . NOSE WHE EL TIRE (Standard) . Pressure ..... •• .... •• NOSE WHEEL TIRE (Optional). . . . . . Pressure . • . . . . . • . . . .. • NOSE GEAR STRUT PRESSURE (Strut Extended) . WHEEL ALIGNMENT Camber •.•. Toe-In .... AILERON TRAVEL Up •• .... Down •.•.. WING FLAP TRAVEL (Thru 150E) . . . (150F & on) ...... •• . RUDDER TRAVEL (Measured perpendicular to hinge line) Right (Thru 150E). Left (Thru 150E) . Right (150F & on) • Left (150F & on) . ELEVATOR TRAVEL Up •...••• Down ..... • ELEVATOR TRIM TAB TRAVEL Up ....... . Down ..• ........ PRINCIPAL DIMENSIONS Wing Span (Thru 150E) . . . . . . . . . (150F & on) . . . . . . . . . Length With Large Spinner (Thru 150E) With Small Spinner (Thru 150E) With Large Spinner (150F & on) With Small Spinner (150F & on) Fin Height (Maximum with Nose Gear Depressed) (Rotating Beacon Installed on Fin, thru 150E) (Rotating Beacon Installed on Fin, 150F) . . (Flashing Beacon Installed on Fin, 150G & on) . Track Width (Thru 150E) Track Width (150F & on) BA TTERY LOCATION (150C). . . • . • . . . (150D & on) . . . . . • · 1500 lb · 1600 lb · 26 gal · 38 gal • 6 qt · CONTINENTAL 0-200 Series .69" McCAULEY · 5.00 x 5, 4-Ply Rating · 30 psi · 6.00 x 6, 4-Ply Rating · 21 psi · 6.00 x 6, 4-Ply Rating · 21 psi • 5.00 X 5, 4-Ply Rating · 30 psi • 15 x 6.00 X 6, 4-Ply Rating • 35 psi · 20 psi • 4 ° to 6° · 0" to .06" · 20°, +2°_0° • 14°, +2°_0° • 0°, 10°, 20°, 30°, 40°, ± 2° · 0 0 to 40 ° ± 2 ° · 16 ° ± 1 ° • 16 ° ± 1 ° · 23°, +0° _2° .23°, +0°_2° • 25° ± 1 ° .15°±1° · 10° ± 1 ° · 20° ± 1 ° · 33'6" · 32' 8-1/2" .22'0" · 21'7" · 23'9" · 23'0" · 7' 10" · 8'9" · 8' 7-1/2" · 6'5" · 6' 6-1/2" · Aft of Baggage Compartment · Firewall
