FlightSafety international FlightSafety International, Inc. Marine Air Terminal, LaGuardia Airport Flushing, New York 11371 (718) 565-4100 www.flightsafety.com SUPER KING AIR 200/B200 PILOT TRAINING MANUAL

Raytheon Learning Center FlightSafety International 9720 East Central Avenue Wichita, KS 67206-2595 (316) 612-5300 (800) 488-3747 Long Beach Learning Center FlightSafety International Long Beach Municipal Airport 4330 Donald Douglas Drive Long Beach, CA 90808 (562) 938- 0100 (800) 487-7670 Atlanta Learning Center FlightSafety International 1010 Toffie Terrace Atlanta, GA 30354 (678) 365-2700 (800) 889-7916 Lakeland Learning Center FlightSafety International Lakeland Airport 2949 Airside Center Dr. Lakeland, FL 33811 (863) 646-5037 (800) 726-5037 Toledo Learning Center FlightSafety International Toledo Express Airport 11600 West Airport Services Rd. Swanton, OH 43558 (419) 865-0551 (800) 497-4023 Houston Learning Center FlightSafety International William P. Hobby Airport 7525 Fauna at Airport Blvd. Houston, TX 77061 (713) 393-8100 (800) 927-1521 Paris Learning Center FlightSafety International BP 25 Zone d’Aviation d’Affaires Building 404, Aeroport du Bourget Le Bourget, CEDEX FRANCE +33 (1) 49-92-1919 Copyright © 2002 by FlightSafety International, Inc. All rights reserved. Printed in the United States of America. Courses for the Super King Air 200 and other King Air products are taught at the following FlightSafety Learning Centers:

v CONTENTS SYLLABUS Chapter 1 AIRCRAFT GENERAL Chapter 2 ELECTRICAL POWER SYSTEMS Chapter 3 LIGHTING Chapter 4 MASTER WARNING SYSTEM Chapter 5 FUEL SYSTEM Chapter 6 AUXILIARY POWER UNIT Chapter 7 POWERPLANT Chapter 8 FIRE PROTECTION Chapter 9 PNEUMATICS Chapter 10 ICE AND RAIN PROTECTION Chapter 11 AIR CONDITIONING Chapter 12 PRESSURIZATION Chapter 13 HYDRAULIC POWER SYSTEMS Chapter 14 LANDING GEAR AND BRAKES Chapter 15 FLIGHT CONTROLS Chapter 16 AVIONICS Chapter 17 MISCELLANEOUS SYSTEMS Chapter 18 WEIGHT AND BALANCE/PERFORMANCE GENERAL PILOT INFORMATION APPENDIX WALKAROUND ANNUNCIATOR PANEL INSTRUMENT PANEL POSTER

FOR TRAINING PURPOSES ONLY FOR TRAINING PURPOSES ONLY NOTICE iii The material contained in this training manual is based on information obtained from the aircraft manufacturer’s pilot manuals and maintenance manuals. It is to be used for familiarization and training purposes only. At the time of printing it contained then-current information. In the event of conflict between data provided herein and that in publications issued by the manufacturer or the FAA, that of the manufacturer or the FAA shall take precedence. We at FlightSafety want you to have the best training possible. We welcome any suggestions you might have for improving this manual or any other aspect of our training program.

1-i CHAPTER 1 AIRCRAFT GENERAL CONTENTS Page INTRODUCTION ................................................................................................................... 1-1 GENERAL............................................................................................................................... 1-1 AIRPLANE SYSTEMS........................................................................................................... 1-2 Electrical Power System .................................................................................................. 1-2 Lighting ............................................................................................................................ 1-4 Master Warning System ................................................................................................... 1-5 Fuel System ...................................................................................................................... 1-5 Powerplants ...................................................................................................................... 1-6 Fire Protection .................................................................................................................. 1-8 Bleed-Air System ............................................................................................................. 1-8 Ice and Rain Protection .................................................................................................... 1-8 Air Conditioning and Heating .......................................................................................... 1-9 Pressurization ................................................................................................................. 1-10 Landing Gear and Brakes ............................................................................................... 1-11 Flight Controls ............................................................................................................... 1-13 Pitot and Static Systems ................................................................................................. 1-13 Oxygen System .............................................................................................................. 1-15 AIRPLANE STRUCTURES ................................................................................................. 1-16 General ........................................................................................................................... 1-16 Fuselage ......................................................................................................................... 1-19 Doors .............................................................................................................................. 1-20 FOR TRAINING PURPOSES ONLY SUPER KING AIR 200/B200 PILOT TRAINING MANUAL FlightSafety international

Cabin Windows .............................................................................................................. 1-22 Control Locks ................................................................................................................ 1-23 1-ii FOR TRAINING PURPOSES ONLY SUPER KING AIR 200/B200 PILOT TRAINING MANUAL FlightSafety international

1-iii ILLUSTRATIONS Figure Title Page 1-1 Simplified Electrical System .................................................................................... 1-2 1-2 Electrical Panel ......................................................................................................... 1-3 1-3 External Power Socket ............................................................................................. 1-3 1-4 Overhead Light Control Panel (BB-1632 and After) ............................................... 1-4 1-5 Cabin Lights Control Switch (BB-1439, 1444 and After) ....................................... 1-4 1-6 Exterior Lights Control Switches ............................................................................. 1-5 1-7 Fuel Control Panels .................................................................................................. 1-6 1-8 Engine Control Levers.............................................................................................. 1-7 1-9 Bleed-Air Valve Control ........................................................................................... 1-8 1-10 Ice Protection Switches—Pilot’s Subpanel .............................................................. 1-8 1-11 Windshield Wiper Control Switch............................................................................ 1-9 1-12 Cabin Pressurization Controller ............................................................................. 1-11 1-13 Landing Gear Control Panel................................................................................... 1-12 1-14 Manual Extension Controls .................................................................................... 1-12 1-15 Parking Brake Handle ............................................................................................ 1-13 1-16 Flight Control Surfaces .......................................................................................... 1-14 1-17 Trim Tab Controls and Indicators .......................................................................... 1-14 1-18 Flap Control Lever ................................................................................................. 1-14 1-19 Pitot Tubes.............................................................................................................. 1-15 1-20 Static Ports ............................................................................................................. 1-15 1-21 Pilot’s Static Air Source Valve Handle .................................................................. 1-15 1-22 Cockpit Oxygen Handles ....................................................................................... 1-16 1-23 Airplane Dimensions (BB-1439, 1444 and After) ................................................. 1-17 FOR TRAINING PURPOSES ONLY SUPER KING AIR 200/B200 PILOT TRAINING MANUAL FlightSafety international

1-24 Airplane Dimensions (Prior to BB-1444, except 1439) ......................................... 1-18 1-25 Fuselage Stations and Compartments .................................................................... 1-19 1-26 Cockpit Layout (Typical) ....................................................................................... 1-20 1-27 Cabin Door ............................................................................................................. 1-20 1-28 Door Handles ......................................................................................................... 1-21 1-29 Placard and Inspection Port .................................................................................... 1-21 1-30 Latch Bolt ............................................................................................................... 1-22 1-31 Emergency Exit Release Handles .......................................................................... 1-23 1-32 Control Locks ......................................................................................................... 1-24 TABLES Table Title Page 1-1 Cabin Altitudes....................................................................................................... 1-10 1-iv FOR TRAINING PURPOSES ONLY SUPER KING AIR 200/B200 PILOT TRAINING MANUAL FlightSafety international

INTRODUCTION This pilot training manual covers all systems on the Super King Air 200 and B200. Chapter 1 provides a general overview of the systems and the structural makeup of the airplane. Throughout this manual there are boxed warnings, cautions, and notes. As indicated in the Aircraft Flight Manual , they are defined as follows: Warnings —Operating procedures, techniques, etc., which could result in personal injury or loss of life if not carefully followed; Cautions —Operating procedures, techniques, etc., which could result in damage to equipment if not carefully followed; Note —An operating procedure, tech- nique, etc., which is considered essential to emphasize. GENERAL The Super King Air 200 and B200 are all metal airplanes employing a fully cantilevered, low- wing design. There are twin Pratt and Whitney turboprop engines, and a T-tail empennage. Both airplanes are certificated for flight as Normal Category Aircraft. By carrying required operational equipment, they may be used dur- ing VFR, IFR, and in known icing conditions. CHAPTER 1 AIRCRAFT GENERAL 1-1 FOR TRAINING PURPOSES ONLY SUPER KING AIR 200/B200 PILOT TRAINING MANUAL FlightSafety international

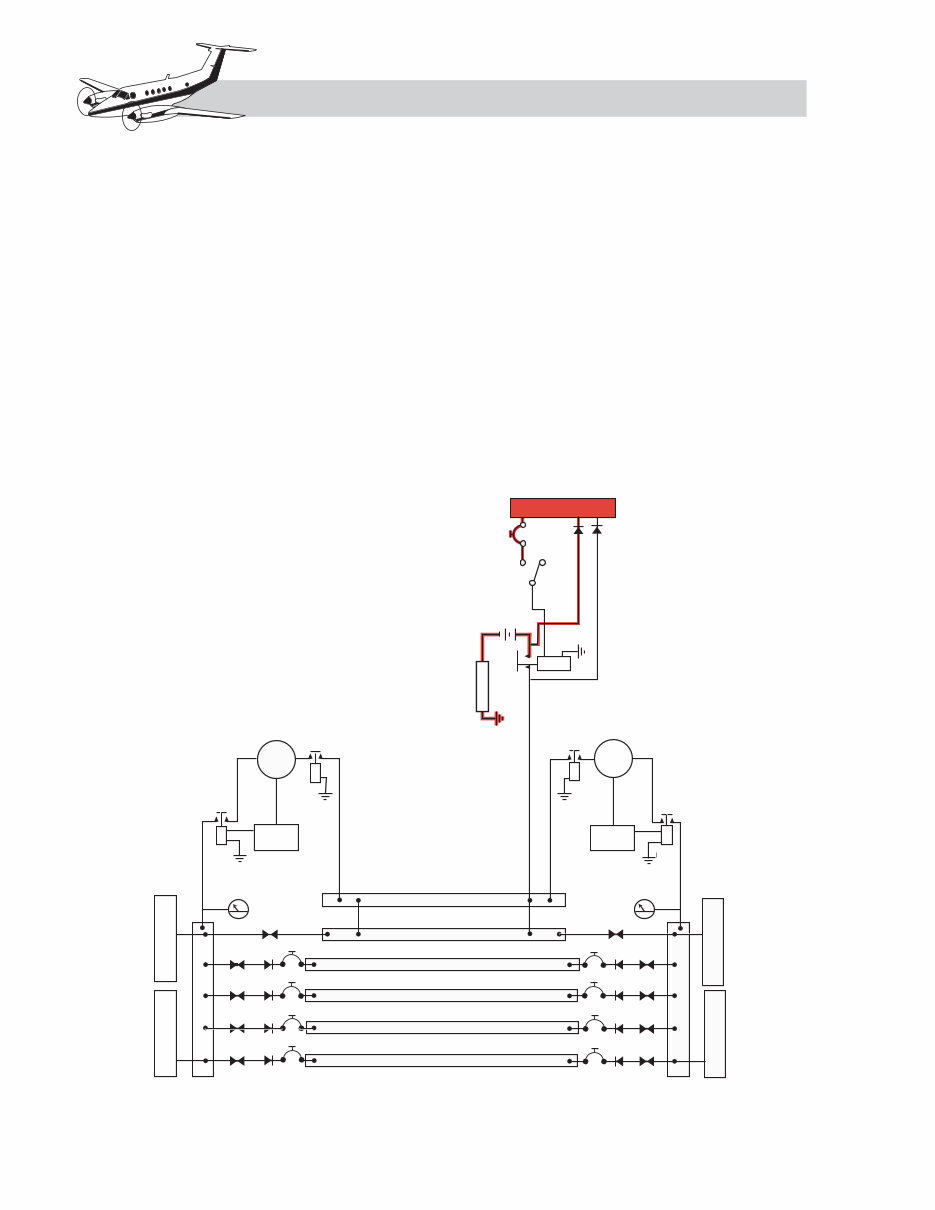

AIRPLANE SYSTEMS ELECTRICAL POWER SYSTEM General The airplane electrical system is a 28-VDC system, which receives power from a 24-volt, 42-ampere hour lead acid gel cell battery (34/36-ampere hour nickel-cadmium battery prior to BB-1632), two 250-ampere starter- generators, or through an external power socket. DC power is supplied to one of the two operating inverters, which provide 400-hertz, 115- volt and 26-volt AC power for various avionics equipment. (For BB-2 through BB-1483 the 26-volt AC also powers the torquemeters. Prior to BB-225 the fuel flow meters are also 26-volt AC powered.) Distribution Some major DC buses are as follows (Figure 1-1): 1. Hot Battery Bus 2. Main Battery Bus 3. Left Generator Bus 4. Right Generator Bus 5. Isolation Bus 1-2 FOR TRAINING PURPOSES ONLY SUPER KING AIR 200/B200 PILOT TRAINING MANUAL FlightSafety international DUAL FED SUB-BUS #1 DUAL FED SUB-BUS #2 DUAL FED SUB-BUS #3 DUAL FED SUB-BUS #4 START RELAY G C U VOLT / LOAD METER R/H GEN LINE CONTACTOR R/H STARTER/ GENERATOR 325A 50A 70A 60A 325A 60A 70A 50A L / H G E N B U S VOLT / LOAD METER G C U L/H GEN LINE CONTACTOR L/H STARTER/ GENERATOR START RELAY ISOLATION BUS MAIN BATT BUS A V I O N I C S #1 I N V E R T E R R / H G E N B U S A V I O N I C S #2 I N V E R T E R HOT BUS S H U N T BATT RELAY BATTERY OFF BATT SWITCH ON Figure 1-1. Simplified Electrical System
