YZF600RGC
A1

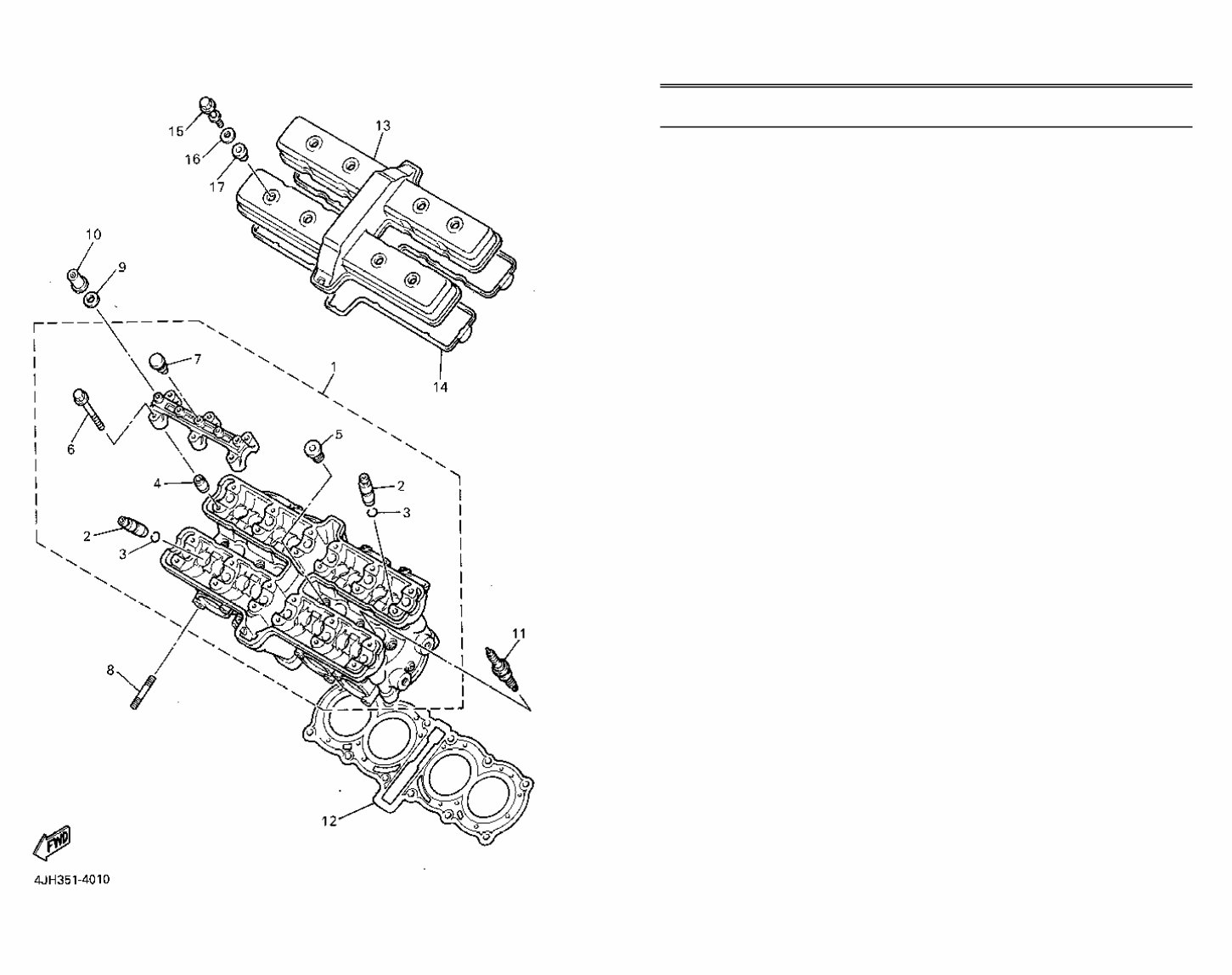

1 4MM-11101-00-00 CYLINDER HEAD ASSEMBLY . 1
2 3TJ-11133-10-00 . GUIDE, INTAKE VALVE . . . . . 16
3 93440-07149-00 . CIRCLIP . . . . . . . . . . . . . . . . . 16
4 99510-08016-00 . PIN, DOWEL . . . . . . . . . . . . . 12
5 90340-12112-00 . PLUG, STRAIGHT SCREW . . . 6
6 90105-06384-00 . BOLT, WASHER BASED . . . . 24
7 90338-08174-00 . PLUG . . . . . . . . . . . . . . . . . . . 12
8 90116-06437-00 BOLT, STUD . . . . . . . . . . . . . . 8
9 90201-090P4-00 WASHER, PLATE . . . . . . . . . . . 12
10 90179-09612-00 NUT . . . . . . . . . . . . . . . . . . . . . 12
11 NGK-CR9E0-00-00 PLUG, SPARK (NGK R CR9E) . 4 UR
12 4JH-11181-00-00 GASKET, CYLINDER HEAD 1 . 1
13 3TJ-11191-00-00 COVER, CYLINDER HEAD 1 . . 1
14 3TJ-11193-00-00 GASKET, HEAD COVER 1 . . . . 1
15 90109-064F0-00 BOLT . . . . . . . . . . . . . . . . . . . . 8
16 90209-11262-00 WASHER . . . . . . . . . . . . . . . . . 8
17 2GH-1111G-00-00 RUBBER, MOUNT 1 . . . . . . . . . 8
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A2
YZF600RGC

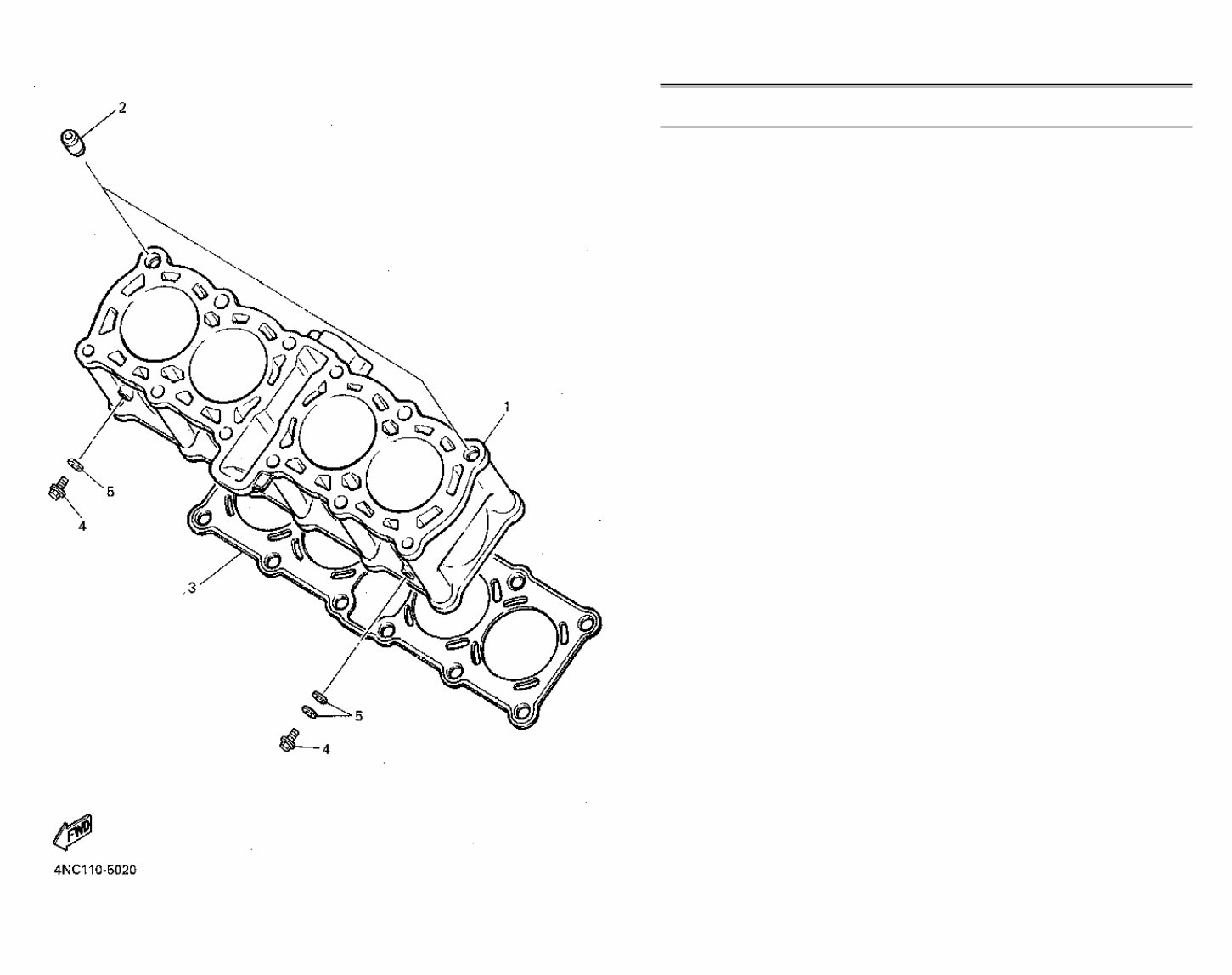

1 4MM-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 1
2 91810-08016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
3 3TJ-11351-00-00 GASKET, CYLINDER . . . . . . . . 1
4 95816-06014-00 BOLT, FLANGE . . . . . . . . . . . . 2
5 90430-06014-00 GASKET . . . . . . . . . . . . . . . . . 3
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A3
YZF600RGC

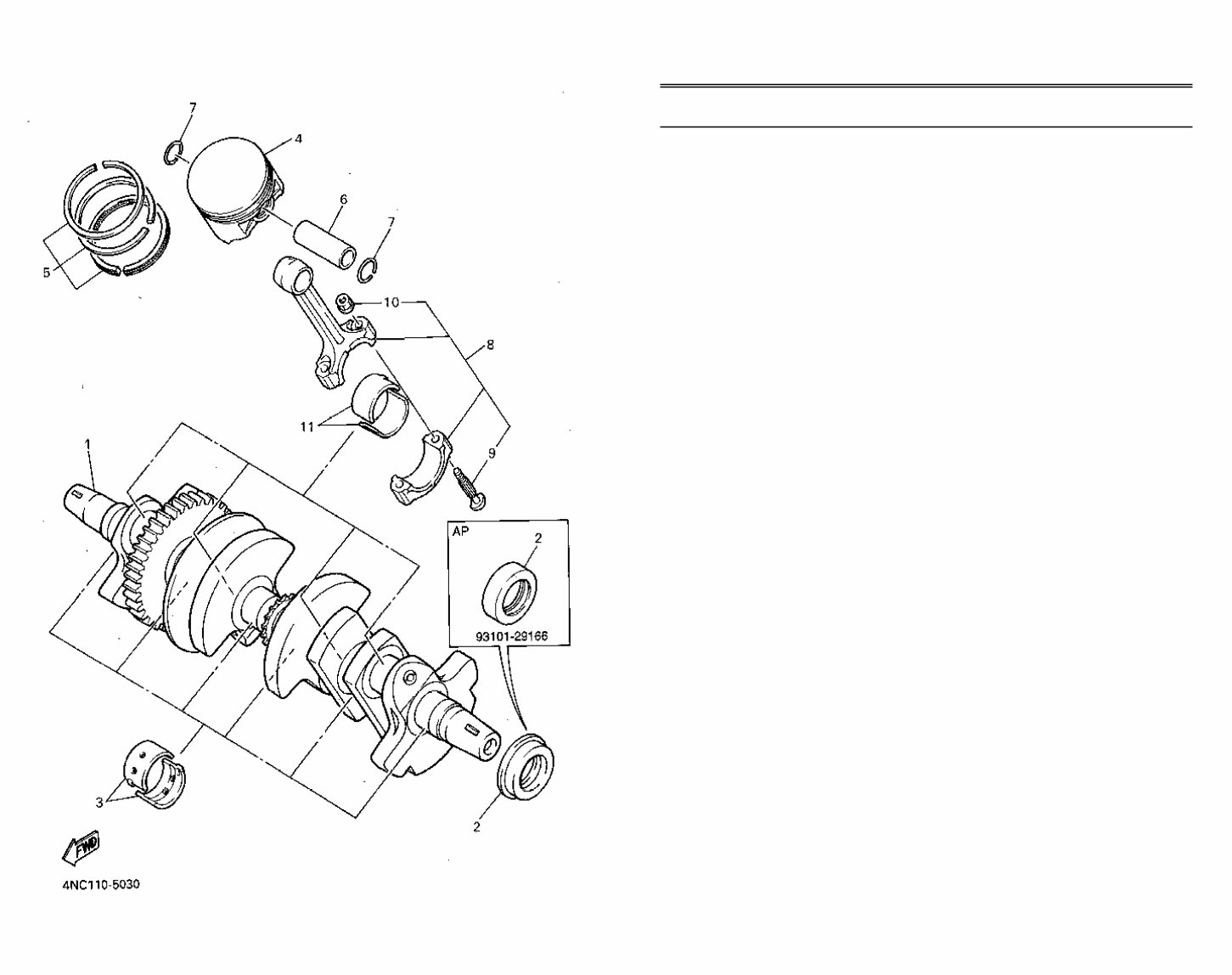

1 4JH-11411-00-00 CRANKSHAFT . . . . . . . . . . . . . 1
2 93101-29165-00 OIL SEAL . . . . . . . . . . . . . . . . . 1 UR
93101-29166-00 OIL SEAL . . . . . . . . . . . . . . . . . 1 AP
3 1WG-11416-00-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 12 UR BLUE
1WG-11416-10-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 12 UR BLACK
1WG-11416-20-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 12 UR BROWN
1WG-11416-30-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 12 UR GREEN
1WG-11416-40-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 12 UR YELLOW
1WG-11416-50-00 PLANE BEARING,
CRANKSHAFT 1 . . . . . . . . . . . 12 UR PINK
4 4JH-11631-00-00 PISTON (STD) . . . . . . . . . . . . . 4
5 4JH-11603-00-00 PISTON RING SET (STD) . . . . . 4
6 4JH-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 4
7 90468-12069-00 CLIP . . . . . . . . . . . . . . . . . . . . 8
8 4JH-11650-00-00 CONNECTING ROD ASSEMBLY 4
9 4JH-11654-00-00 . BOLT, CONNECTING ROD . . 2
10 90179-07652-00 . NUT . . . . . . . . . . . . . . . . . . . . 2
11 1WG-11656-00-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR BLUE
1WG-11656-10-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR BLACK
1WG-11656-20-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR BROWN
1WG-11656-30-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 8 UR GREEN
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A4
YZF600RGC

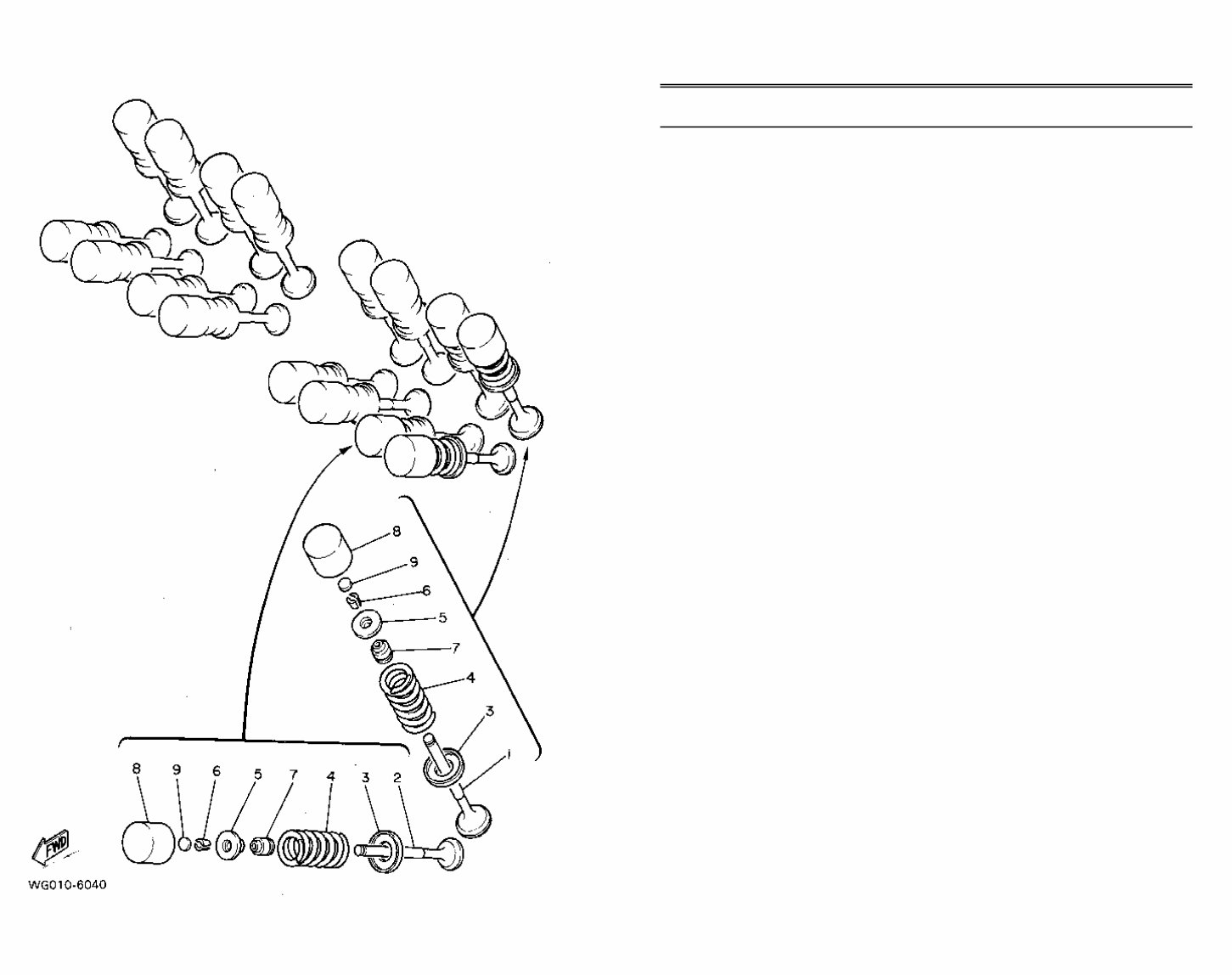

1 4JH-12111-00-00 VALVE, INTAKE . . . . . . . . . . . . 8
2 4JH-12121-00-00 VALVE, EXHAUST . . . . . . . . . . 8
3 1WG-12116-00-00 SEAT, VALVE SPRING . . . . . . . 16
4 4JH-12113-00-00 SPRING, VALVE INNER . . . . . . 16
5 3TJ-12117-00-00 RETAINER, VALVE SPRING . . 16
6 1HX-12118-00-00 COTTER, VALVE . . . . . . . . . . . 32
7 1HX-12119-00-00 SEAL, VALVE STEM . . . . . . . . 16
8 3FV-12153-09-00 LIFTER, VALVE (O/S) . . . . . . . . 16 UR GREEN
3FV-12153-10-00 LIFTER, VALVE . . . . . . . . . . . . 16 UR YELLOW
9 1HX-12168-00-00 PAD, ADJUSTING 2 (1.20) . . . . 16 UR
1HX-12168-20-00 PAD, ADJUSTING 2 (1.25) . . . . 16 UR
1HX-12168-40-00 PAD, ADJUSTING 2 (1.30) . . . . 16 UR
1HX-12168-60-00 PAD, ADJUSTING 2 (1.35) . . . . 16 UR
1HX-12168-80-00 PAD, ADJUSTING 2 (1.40) . . . . 16 UR
1HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) . . . . 16 UR
1HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) . . . . 16 UR
1HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) . . . . 16 UR
1HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) . . . . 16 UR
1HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) . . . . 16 UR
1HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) . . . . 16 UR
1HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) . . . . 16 UR
1HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) . . . . 16 UR
1HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) . . . . 16 UR
1HX-12169-11-00 PAD, ADJUSTING 2 (1.90) . . . . 16 UR
1HX-12169-31-00 PAD, ADJUSTING 2 (1.95) . . . . 16 UR
1HX-12169-50-00 PAD, ADJUSTING 2 (2.00) . . . . 16 UR
1HX-12169-70-00 PAD, ADJUSTING 2 (2.05) . . . . 16 UR
1HX-12169-90-00 PAD, ADJUSTING 2 (2.10) . . . . 16 UR
1HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) . . . . 16 UR
CONTINUED ON NEXT FRAME ➤
VALVE
Ref. Part
No. Number Description Qty Remarks
A5
YZF600RGC
9 1HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) . . . . 16 UR
1HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) . . . . 16 UR
1HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) . . . . 16 UR
1HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) . . . . 16 UR
1HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) . . . . 16 UR
VALVE
Ref. Part
No. Number Description Qty Remarks
A6

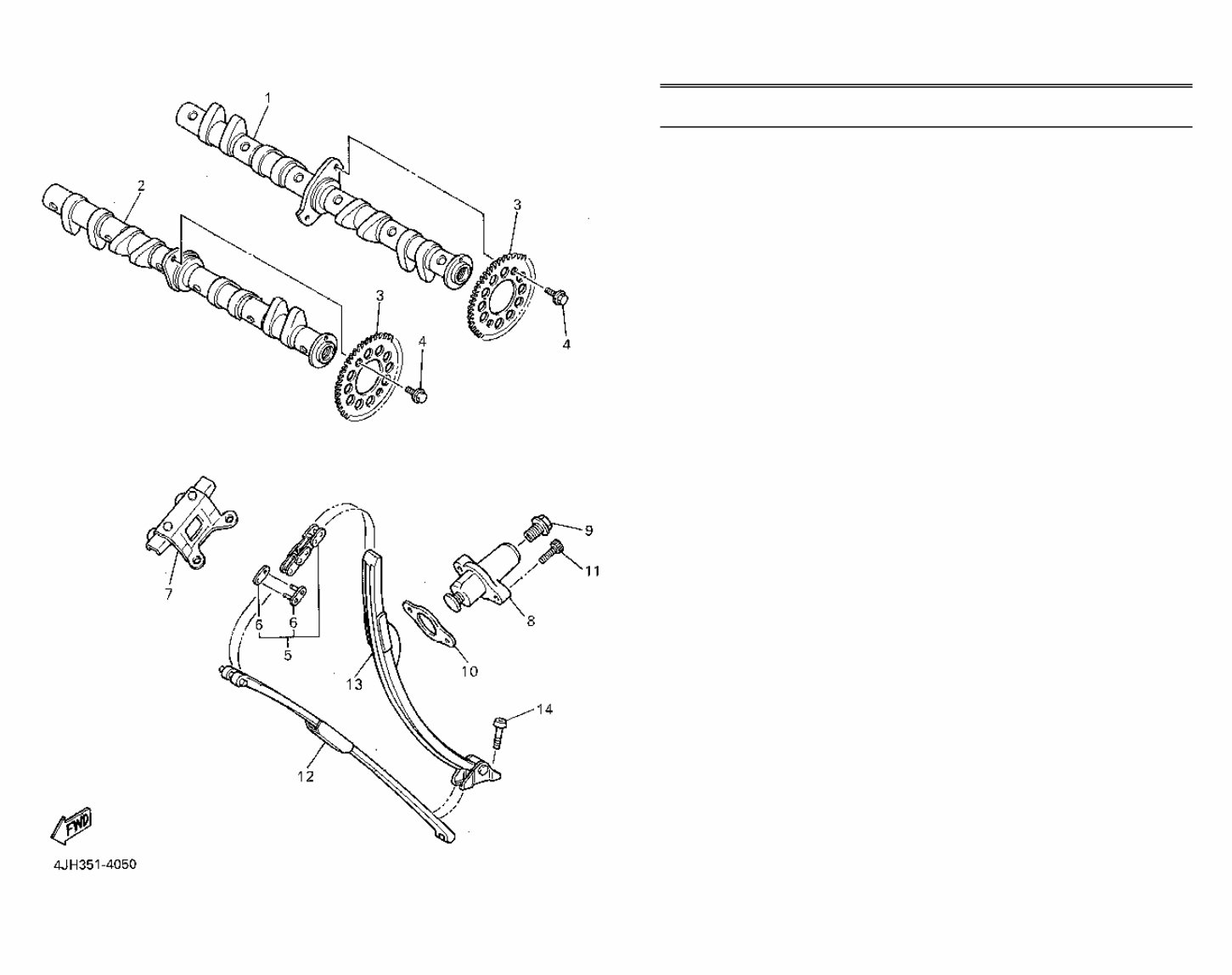

YZF600RGC
1 4NC-12171-00-00 CAMSHAFT 1 . . . . . . . . . . . . . . 1
2 4NC-12181-00-00 CAMSHAFT 2 . . . . . . . . . . . . . . 1
3 1WG-12176-00-00 SPROCKET, CAM CHAIN . . . . . 2
4 90105-07385-00 BOLT, WASHER BASED . . . . . 4
5 94581-32118-00 CHAIN (D.I.D. 215F DHA 118L) 1
6 94681-32021-00 . JOINT, CHAIN (D.I.D.215F-LJ) 1
7 3TJ-12241-00-00 GUIDE, STOPPER 2 . . . . . . . . . 1
8 3GM-12210-00-00 TENSIONER ASSEMBLY, CAM
CHAIN (1WG-12210-02-00) . . . . 1
9 90109-112F1-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
10 4BE-12213-00-00 GASKET, TENSIONER CASE . . 1
11 91317-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
12 3HE-12251-00-00 DAMPER, CHAIN 1 . . . . . . . . . 1
13 4JH-12252-00-00 DAMPER, CHAIN 2 . . . . . . . . . 1
14 90109-065A8-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
CAMSHAFT - CHAIN
Ref. Part
No. Number Description Qty Remarks
A7
YZF600RGC

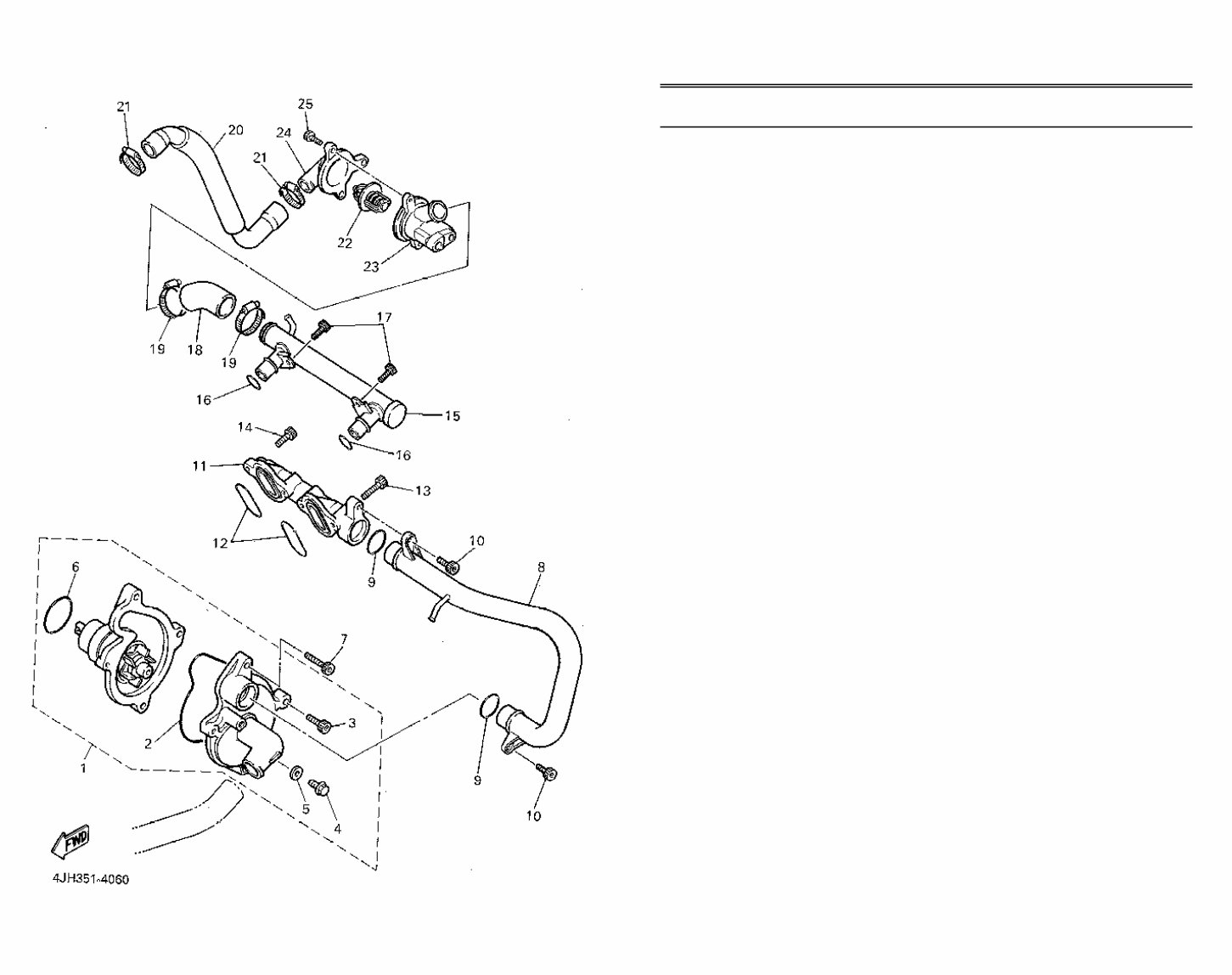

1 3TJ-Y1242-00-00 WATER PUMP ASSEMBLY . . . 1
2 1WG-12439-00-00 . O-RING . . . . . . . . . . . . . . . . . 1
3 91317-06025-00 . BOLT . . . . . . . . . . . . . . . . . . . 2
4 95027-06012-00 . BOLT, FLANGE . . . . . . . . . . . 1
5 90430-06014-00 . GASKET . . . . . . . . . . . . . . . . 1
6 93210-33133-00 . O-RING . . . . . . . . . . . . . . . . . 1
7 91317-06035-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
8 4JH-12481-00-00 PIPE 1 . . . . . . . . . . . . . . . . . . . 1
9 93210-21190-00 O-RING . . . . . . . . . . . . . . . . . . 2
10 91317-06010-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
11 1WG-12446-01-00 JOINT . . . . . . . . . . . . . . . . . . . 1
12 93210-17746-00 O-RING . . . . . . . . . . . . . . . . . . 2
13 91317-06040-00 BOLT . . . . . . . . . . . . . . . . . . . . 3
14 91317-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
15 4JH-12482-00-00 PIPE 2 . . . . . . . . . . . . . . . . . . . 1
16 93210-15566-00 O-RING . . . . . . . . . . . . . . . . . . 2
17 91317-06010-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
18 3TJ-12576-00-00 HOSE 1 . . . . . . . . . . . . . . . . . . 1
19 90450-32051-00 HOSE CLAMP ASSEMBLY . . . 2
20 4JH-12577-00-00 HOSE 2 . . . . . . . . . . . . . . . . . . 1
21 90450-32051-00 HOSE CLAMP ASSEMBLY . . . 2
22 4JH-12410-00-00 THERMOSTAT ASSEMBLY . . . 1
23 3TJ-12417-00-00 HOUSING, THERMOSTAT . . . . 1
24 3TJ-12413-00-00 COVER, THERMOSTAT . . . . . . 1
25 91317-06020-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
WATER PUMP
Ref. Part
No. Number Description Qty Remarks
A8
YZF600RGC

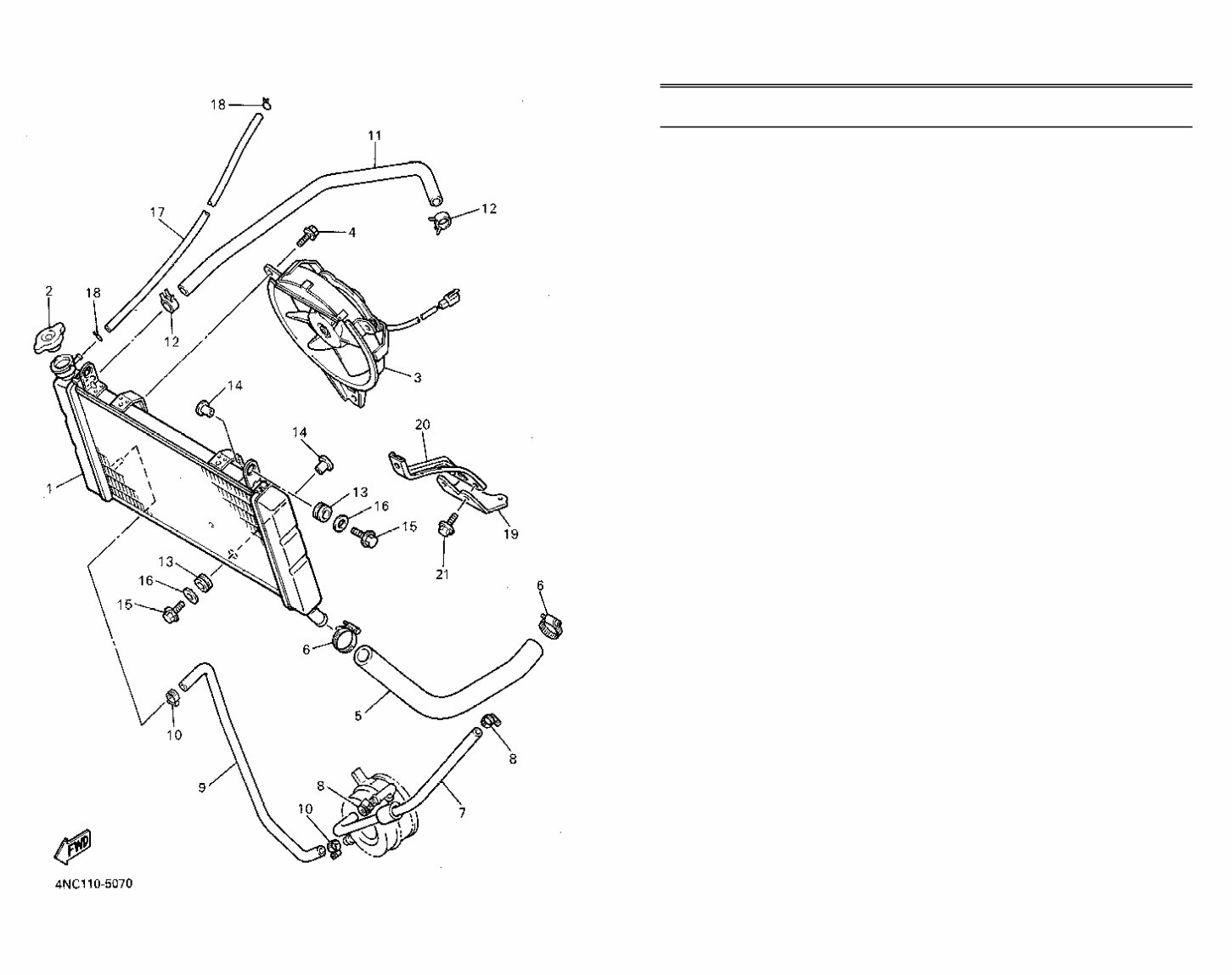

1 4JH-12461-00-00 RADIATOR ASSEMBLY . . . . . . 1
2 4JH-12462-00-00 CAP, RADIATOR . . . . . . . . . . . 1
3 4JH-12405-00-00 BLOWER ASSEMBLY . . . . . . . 1
4 95811-06010-00 BOLT, FLANGE . . . . . . . . . . . . 3
5 4JH-12578-00-00 HOSE 3 . . . . . . . . . . . . . . . . . . 1
6 90450-32051-00 HOSE CLAMP ASSEMBLY . . . 2
7 4MM-12579-00-00 HOSE 4 . . . . . . . . . . . . . . . . . . 1
8 90450-17036-00 HOSE CLAMP ASSEMBLY . . . 2
9 4JH-12588-00-00 HOSE 5 . . . . . . . . . . . . . . . . . . 1
10 90450-17036-00 HOSE CLAMP ASSEMBLY . . . 2
11 4JH-1243A-00-00 HOSE 1 . . . . . . . . . . . . . . . . . . 1
12 90467-11090-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
13 90480-15363-00 GROMMET . . . . . . . . . . . . . . . . 3
14 90387-07391-00 COLLAR . . . . . . . . . . . . . . . . . 3
15 95807-06025-00 BOLT, FLANGE . . . . . . . . . . . . 3
16 90201-063J2-00 WASHER, PLATE . . . . . . . . . . . 3
17 90445-095E9-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
18 90467-08003-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
19 4JH-1244F-00-00 BRACKET 1 . . . . . . . . . . . . . . . 1
20 4JH-2142K-00-00 BRACKET, RADIATOR . . . . . . . 1
21 95807-06012-00 BOLT, FLANGE . . . . . . . . . . . . 2
RADIATOR - HOSE
Ref. Part
No. Number Description Qty Remarks
A9
YZF600RGC

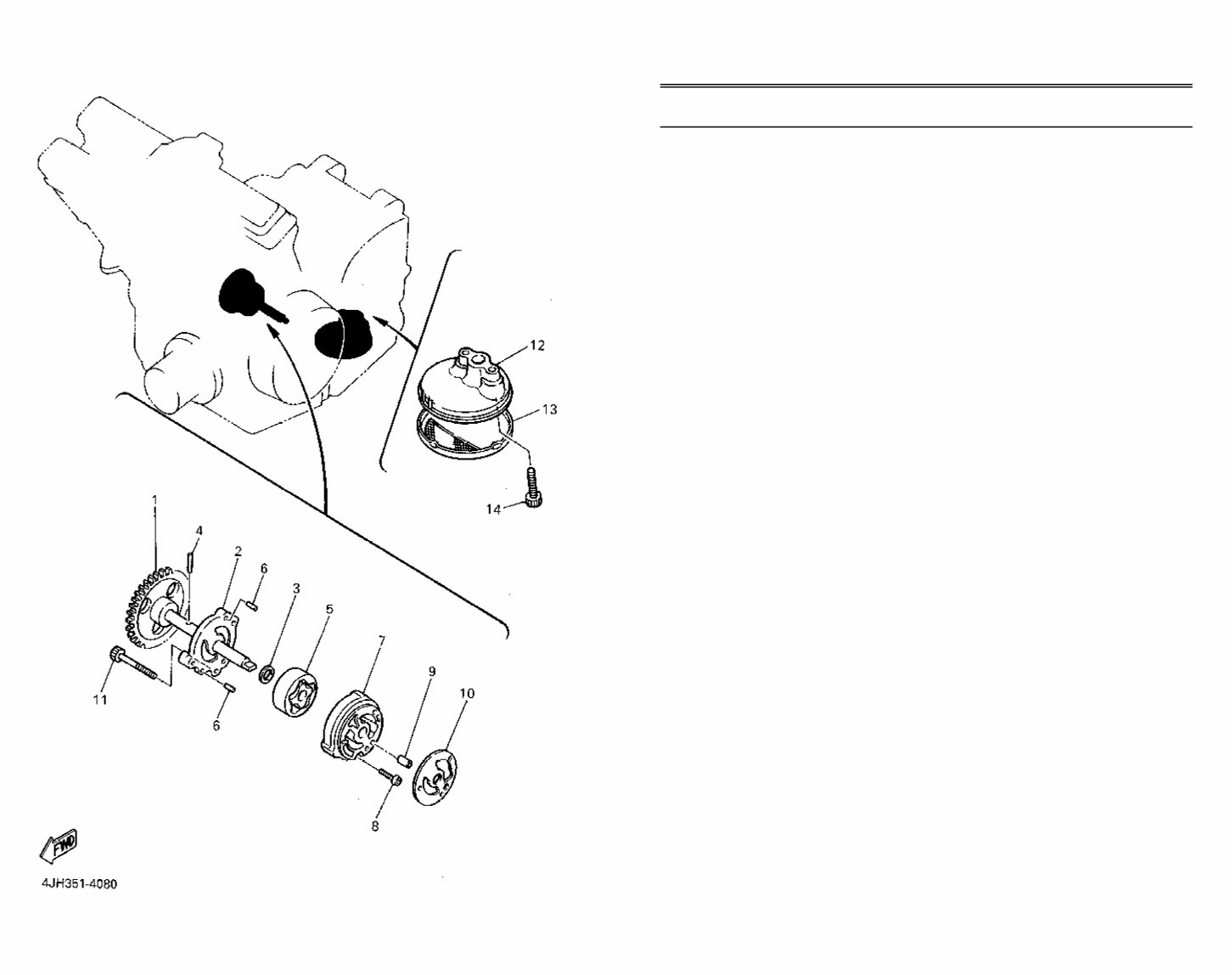

1 4JH-13330-00-00 PUMP SHAFT ASSEMBLY . . . . 1
2 1WG-13316-00-00 COVER, PUMP . . . . . . . . . . . . . 1
3 90201-113K2-00 WASHER, PLATE . . . . . . . . . . . 1
4 93603-17070-00 PIN, DOWEL . . . . . . . . . . . . . . 1
5 1WG-13310-00-00 ROTOR ASSEMBLY 1 . . . . . . . 1
6 93603-09106-00 PIN, DOWEL . . . . . . . . . . . . . . 2
7 1WG-13336-00-00 HOUSING, ROTOR . . . . . . . . . . 1
8 98580-06020-00 SCREW . . . . . . . . . . . . . . . . . . 1
9 99510-08012-00 PIN, DOWEL . . . . . . . . . . . . . . 1
10 1WG-13329-00-00 GASKET, PUMP COVER . . . . . 1
11 90110-06130-00 BOLT, HEXAGON SOCKET
HEAD . . . . . . . . . . . . . . . . . . . . 3
12 3TJ-13412-00-00 HOUSING, STRAINER . . . . . . . 1
13 4H7-13411-02-00 STRAINER, OIL . . . . . . . . . . . . 1
14 90110-06225-00 BOLT, HEXAGON SOCKET
HEAD . . . . . . . . . . . . . . . . . . . . 2
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A10
YZF600RGC
