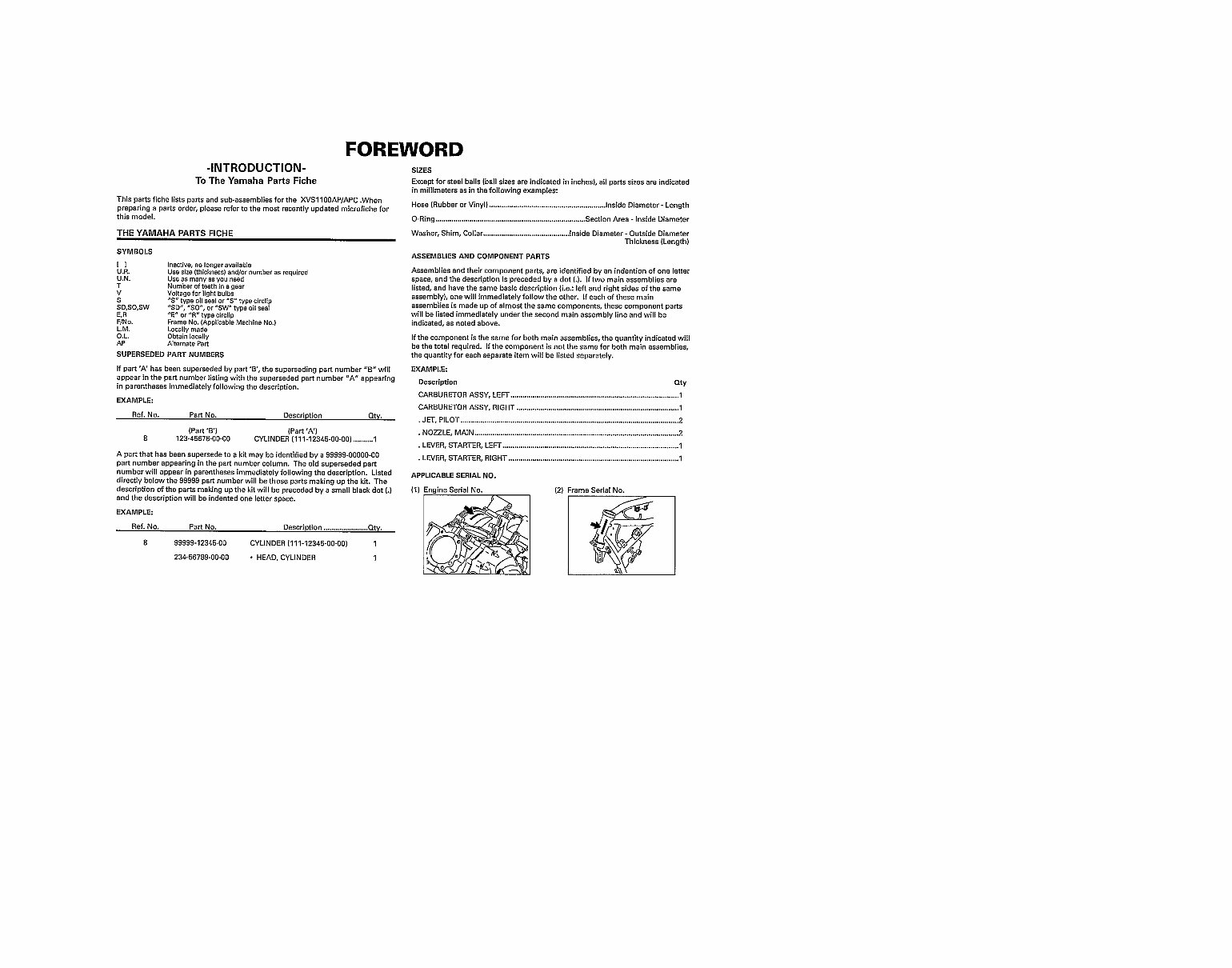

XVS1100AP_APC
A1

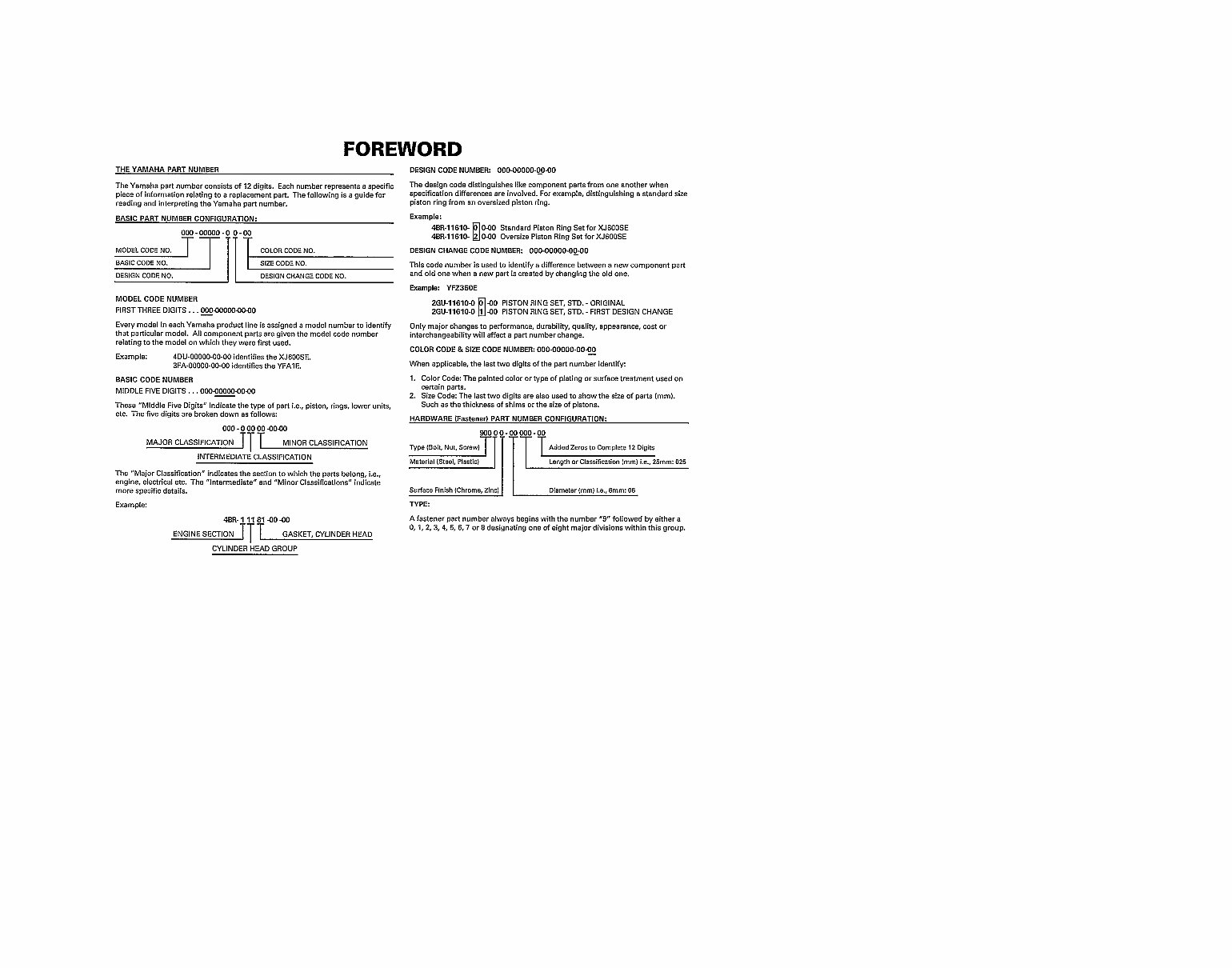

XVS1100AP_APC
A2

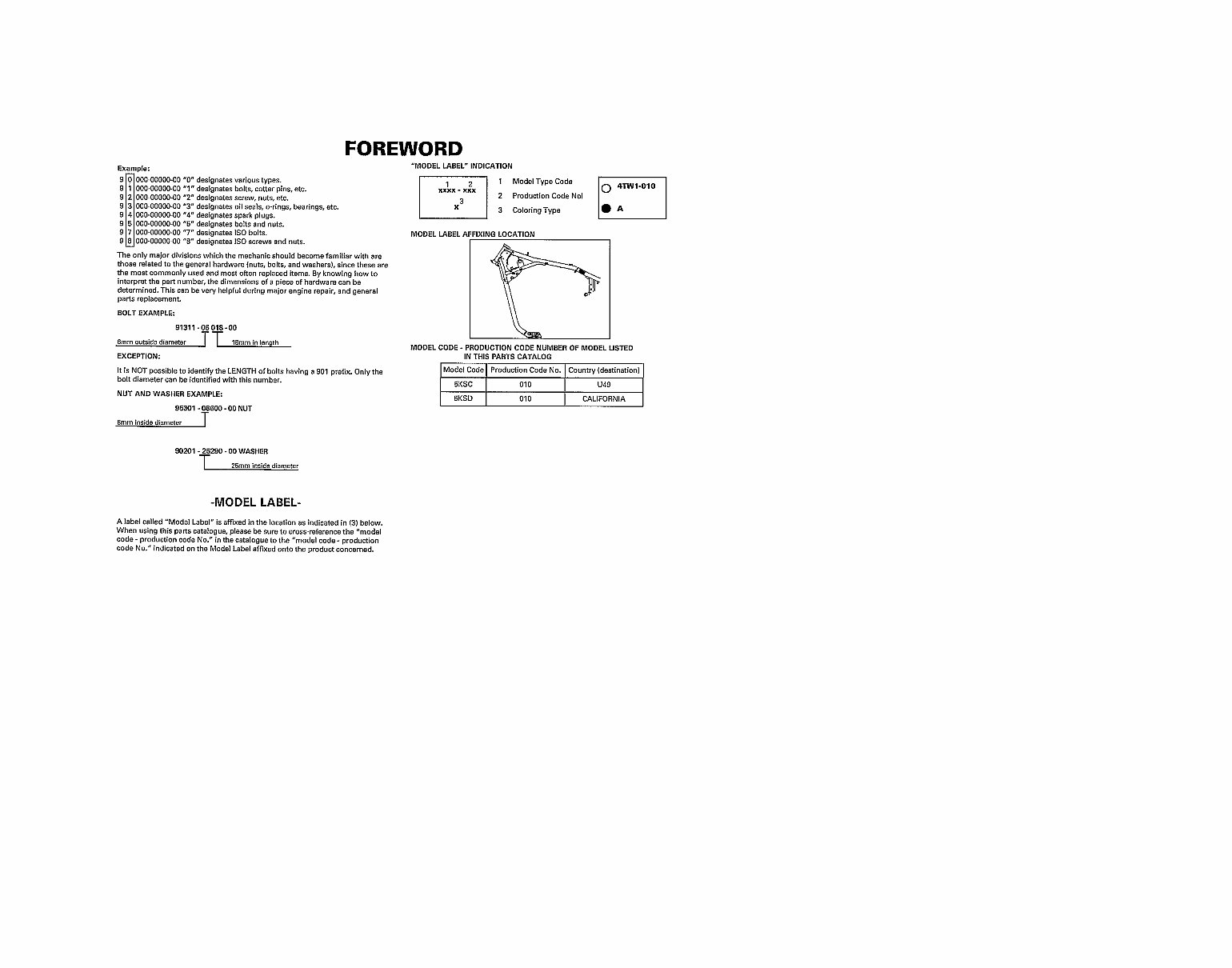

XVS1100AP_APC
A3
XVS1100AP_APC
A4

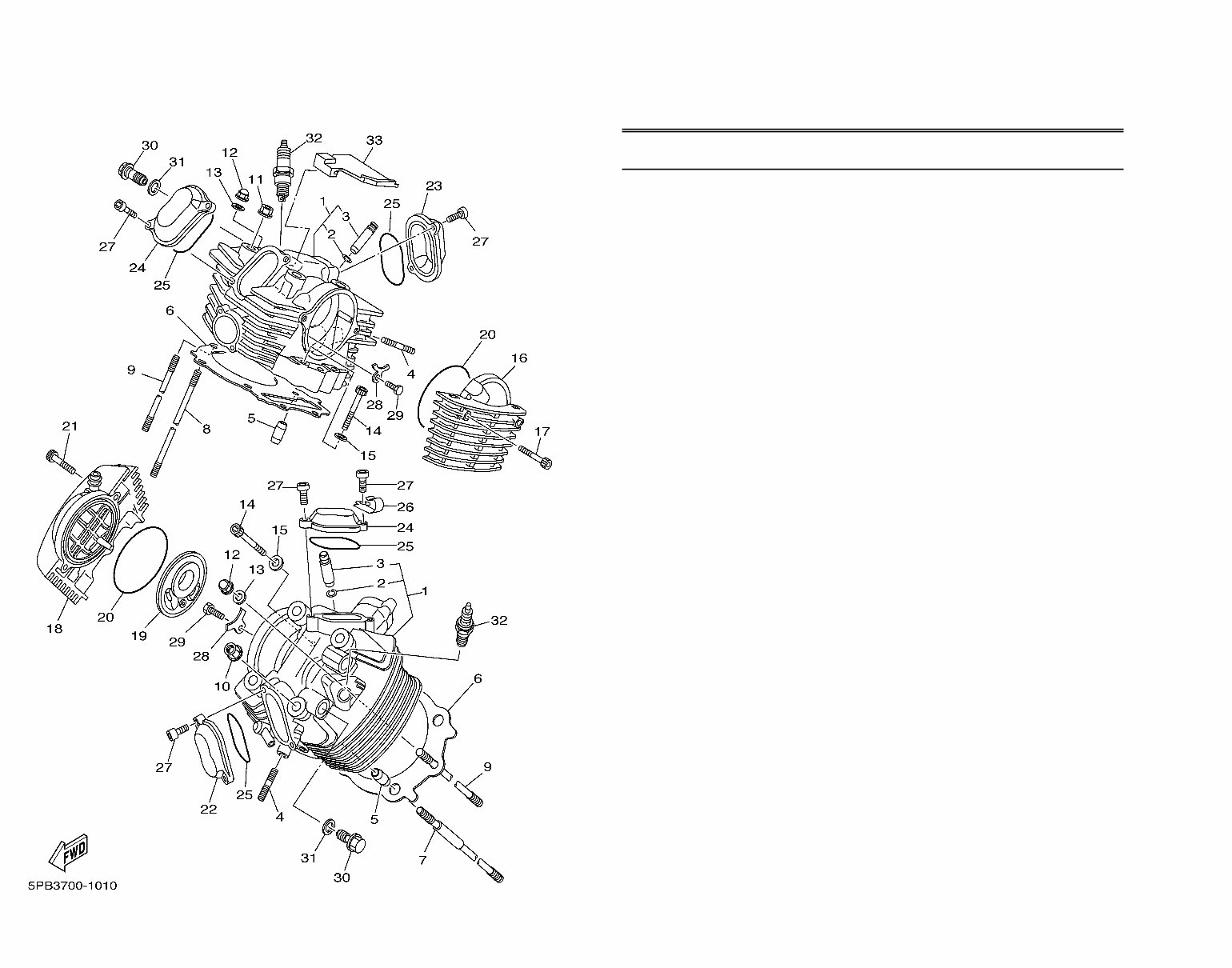

1 5KS-11101-00-00 CYLINDER HEAD ASSY . . . . . . 2
2 93440-14086-00 . CIRCLIP . . . . . . . . . . . . . . . . . 2
3 4X7-11133-10-00 . GUIDE, IN./EX. VALVE . . . . . . 2
4 95617-08625-00 BOLT, STUD 3 . . . . . . . . . . . . . 4
5 91817-30011-00 PIN, DOWEL . . . . . . . . . . . . . . 4
6 5EL-11181-00-00 GASKET, CYLINDER HEAD 1 . 2
7 4X7-11363-01-00 BOLT, CYLINDER HOLDING 3 . 4
8 90116-12469-00 BOLT, STUD . . . . . . . . . . . . . . 4
9 90116-10344-00 BOLT, STUD . . . . . . . . . . . . . . 2
10 90179-12326-00 NUT . . . . . . . . . . . . . . . . . . . . . 4
11 90179-12325-00 .NUT . . . . . . . . . . . . . . . . . . . . 4
12 90176-10075-00 NUT, CROWN . . . . . . . . . . . . . 2
13 90201-102G9-00 WASHER, PLATE . . . . . . . . . . . 2
14 91314-08050-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
15 92907-08600-00 WASHER . . . . . . . . . . . . . . . . . 4
16 5KS-1111H-00-00 COVER, CYLINDER HEAD
SIDE 4 . . . . . . . . . . . . . . . . . . . 1
17 91314-06035-00 BOLT, SOCKET HEAT . . . . . . . 2
18 5KS-11185-00-00 COVER, CYLINDER HEAD
SIDE 1 . . . . . . . . . . . . . . . . . . . 1
19 42X-11165-00-00 PLATE, BREATHER . . . . . . . . . 1
20 93210-92448-00 O-RING . . . . . . . . . . . . . . . . . . 2
21 91314-06035-00 BOLT, SOCKET HEAT . . . . . . . 2
22 42H-11186-01-00 COVER, CYLINDER HEAD
SIDE 2 . . . . . . . . . . . . . . . . . . . 1
23 5EL-11187-00-00 COVER, CYLINDER HEAD
SIDE 3 . . . . . . . . . . . . . . . . . . . 1
24 4X7-11187-01-00 COVER, CYLINDER HEAD
SIDE 3 . . . . . . . . . . . . . . . . . . . 2
25 93210-62446-00 O-RING . . . . . . . . . . . . . . . . . . 4
CONTINUED ON NEXT FRAME ➤
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A5
XVS1100AP_APC
26 90465-10264-00 CLAMP . . . . . . . . . . . . . . . . . . 1
27 91314-06016-00 BOLT, SOCKET . . . . . . . . . . . . 8
28 4X7-1111F-00-00 PLATE . . . . . . . . . . . . . . . . . . . 2
29 97017-08020-00 BOLT, HEXAGON . . . . . . . . . . 2
30 90401-16002-00 BOLT, UNION . . . . . . . . . . . . . 2
31 90430-17168-00 GASKET . . . . . . . . . . . . . . . . . 2
32 NGK-BPR7E-S0-00 PLUG, SPARK (NGK BPR7ES) 2 UR
33 5EL-1112M-00-00 COVER . . . . . . . . . . . . . . . . . . 1
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A6
XVS1100AP_APC

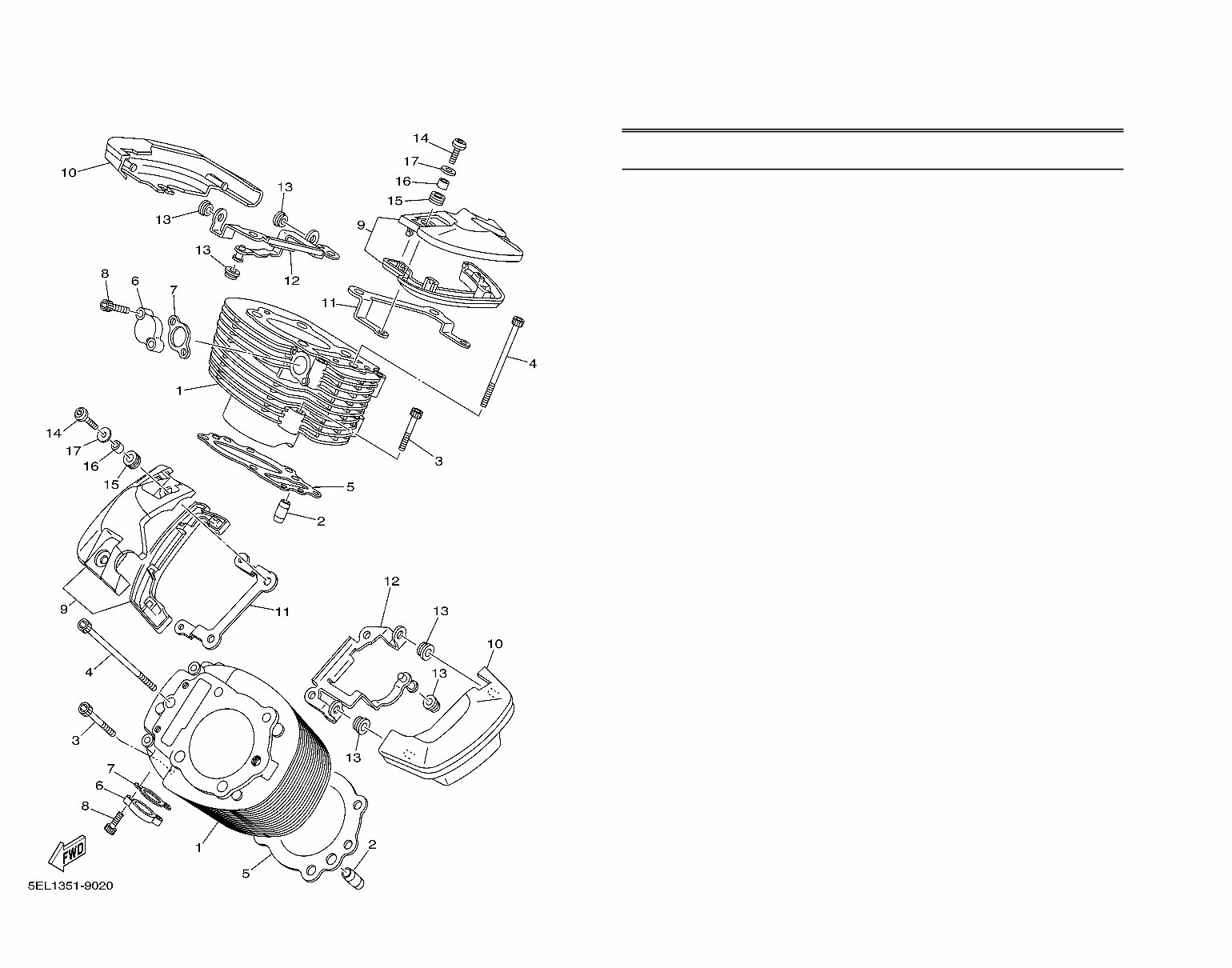

1 5KS-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 2
2 90387-087A5-00 COLLAR . . . . . . . . . . . . . . . . . 4
3 91314-06040-00 BOLT, SOCKET . . . . . . . . . . . . 4
4 91314-06100-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
5 5EL-11351-00-00 GASKET, CYLINDER . . . . . . . . 2
6 5KS-12215-00-00 CAP, TENSIONER CASE . . . . . 2
7 4FM-12213-00-00 GASKET, TENSIONER CASE . . 2
8 91314-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
9 5EL-11190-00-00 COVER, CYLINDER HEAD 1 . . 2
10 5EL-11186-00-00 COVER, CYLINDER HEAD
SIDE 2 . . . . . . . . . . . . . . . . . . . 2
11 5EL-11152-00-00 BRACKET, CYLINDER HEAD
COVER . . . . . . . . . . . . . . . . . . 2
12 5EL-11142-01-00 BRACKET, CYLINDER HEAD
COVER 2 . . . . . . . . . . . . . . . . . 2
13 90480-10627-00 GROMMET . . . . . . . . . . . . . . . . 6
14 90149-06298-00 SCREW, SPEC’L SHAPE . . . . . 4
15 90480-13018-00 GROMMET . . . . . . . . . . . . . . . . 4
16 90387-06043-00 COLLAR . . . . . . . . . . . . . . . . . 4
17 90201-06057-00 WASHER, PLATE . . . . . . . . . . . 4
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A7
XVS1100AP_APC

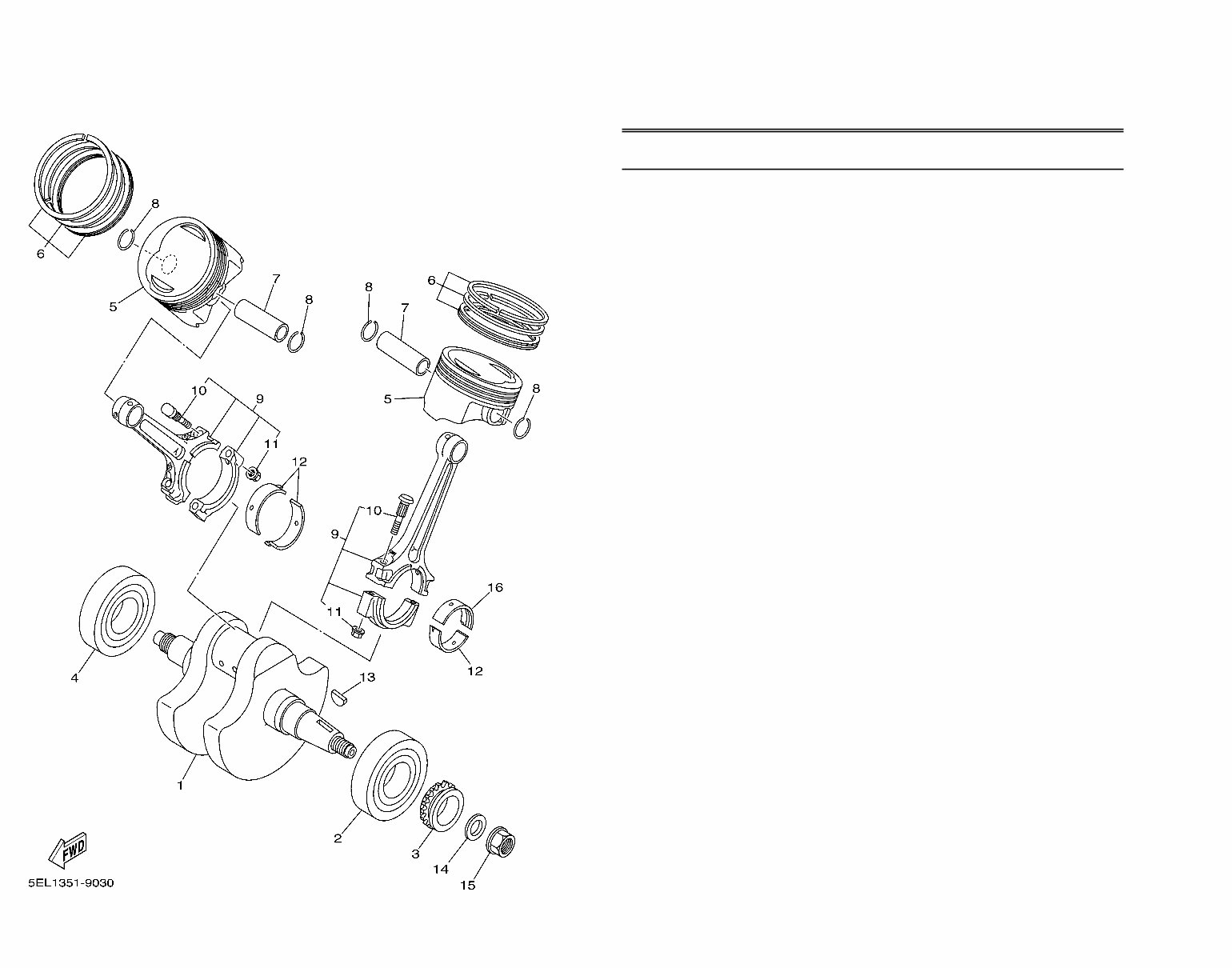

1 5EL-11411-10-00 CRANKSHAFT . . . . . . . . . . . . . 1
2 93306-30808-00 BEARING . . . . . . . . . . . . . . . . . 1
3 4X7-13354-00-00 SPROCKET, DRIVE . . . . . . . . . 1
4 93306-30808-00 BEARING . . . . . . . . . . . . . . . . . 1
5 5EL-11631-10-00 PISTON (STD) . . . . . . . . . . . . . 2
6 1TA-11610-00-00 PISTON RING SET (STD) . . . . . 2
7 4WM-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 2
8 93450-24028-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
9 5EL-11650-10-00 CONNECTING ROD ASSY . . . . 2
10 4X7-11654-01-00 . BOLT, CONNECTING ROD . . 2
11 90179-09379-00 . NUT . . . . . . . . . . . . . . . . . . . . 2
12 4X7-11656-00-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 3 UR BLUE
4X7-11656-10-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 3 UR BLACK
4X7-11656-20-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 3 UR BROWN
4X7-11656-30-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 3 UR GREEN
4X7-11656-40-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 3 UR YELLOW
13 90280-16053-00 KEY, WOODRUFF . . . . . . . . . . 1
14 90201-165H4-00 WASHER, PLATE . . . . . . . . . . . 1
15 90179-16662-00 NUT, SPEC’L SHAPE . . . . . . . . 1
16 5G5-11656-00-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 1 UR BLACK
5G5-11656-10-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 1 UR BROWN
5G5-11656-20-00 PLANE BEARING,
CONNECTING ROD . . . . . . . . . 1 UR GREEN
CRANKSHAFT. PISTON
Ref. Part
No. Number Description Qty Remarks
A8
XVS1100AP_APC

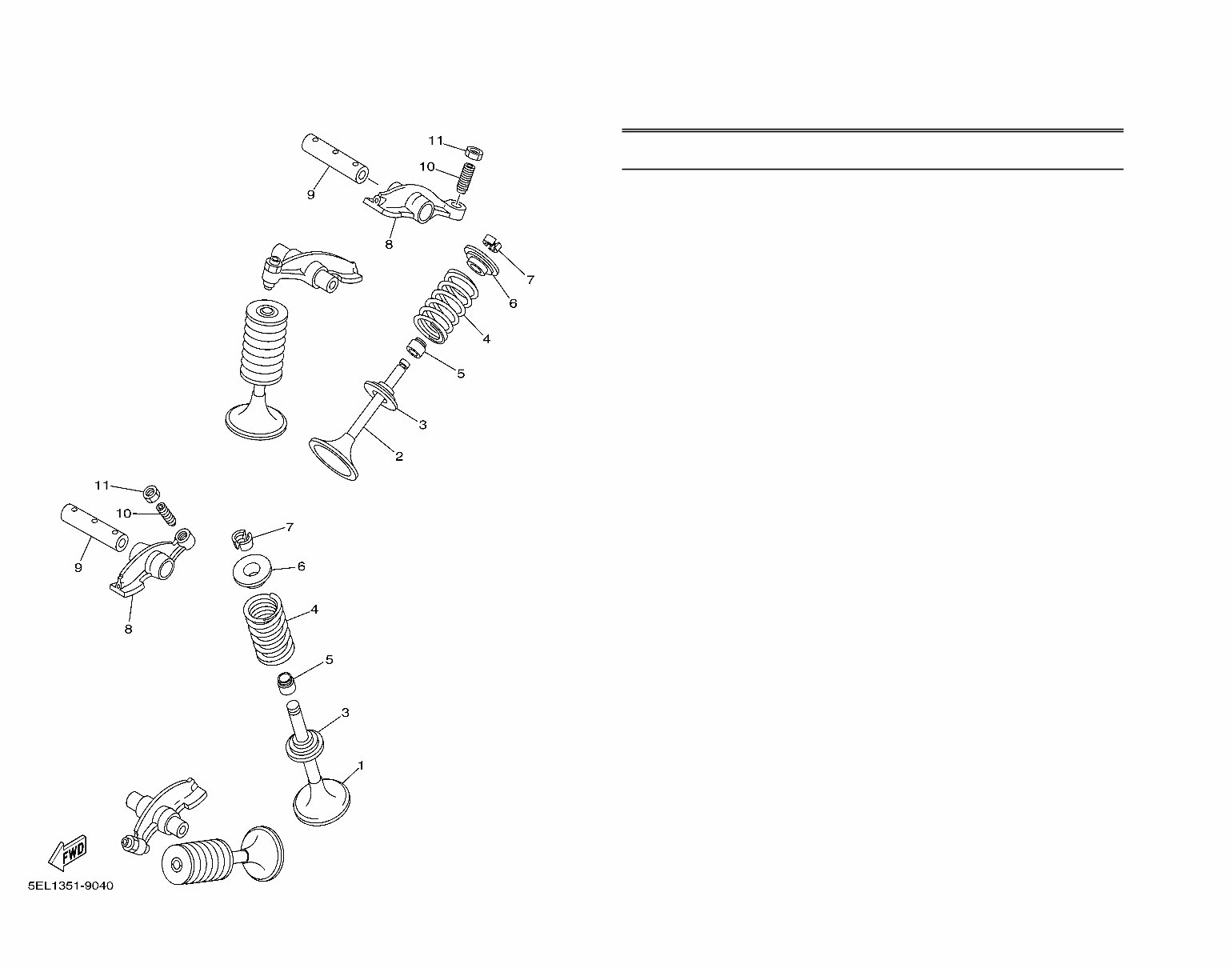

1 2J2-12111-01-00 VALVE, INTAKE . . . . . . . . . . . . 2
2 5A8-12121-00-00 VALVE, EXHAUST . . . . . . . . . . 2
3 4X7-12116-00-00 SEAT, VALVE SPRING . . . . . . . 4
4 90501-44455-00 SPRING, COMPRESSION . . . . . 4
5 341-12119-02-00 SEAL, VALVE STEM . . . . . . . . 4
6 4X7-12117-00-00 RETAINER, VALVE SPRING . . 4
7 4X7-12118-00-00 COTTER, VALVE . . . . . . . . . . . 8
8 42X-12151-00-00 ARM, VALVE ROCKER . . . . . . 4
9 4X7-12156-01-00 SHAFT, ROCKER 2 . . . . . . . . . 4
10 4X7-12159-00-00 SCREW, VALVE ADJUSTING . . 4
11 90170-08173-00 NUT . . . . . . . . . . . . . . . . . . . . . 4
VALVE
Ref. Part
No. Number Description Qty Remarks
A9
XVS1100AP_APC

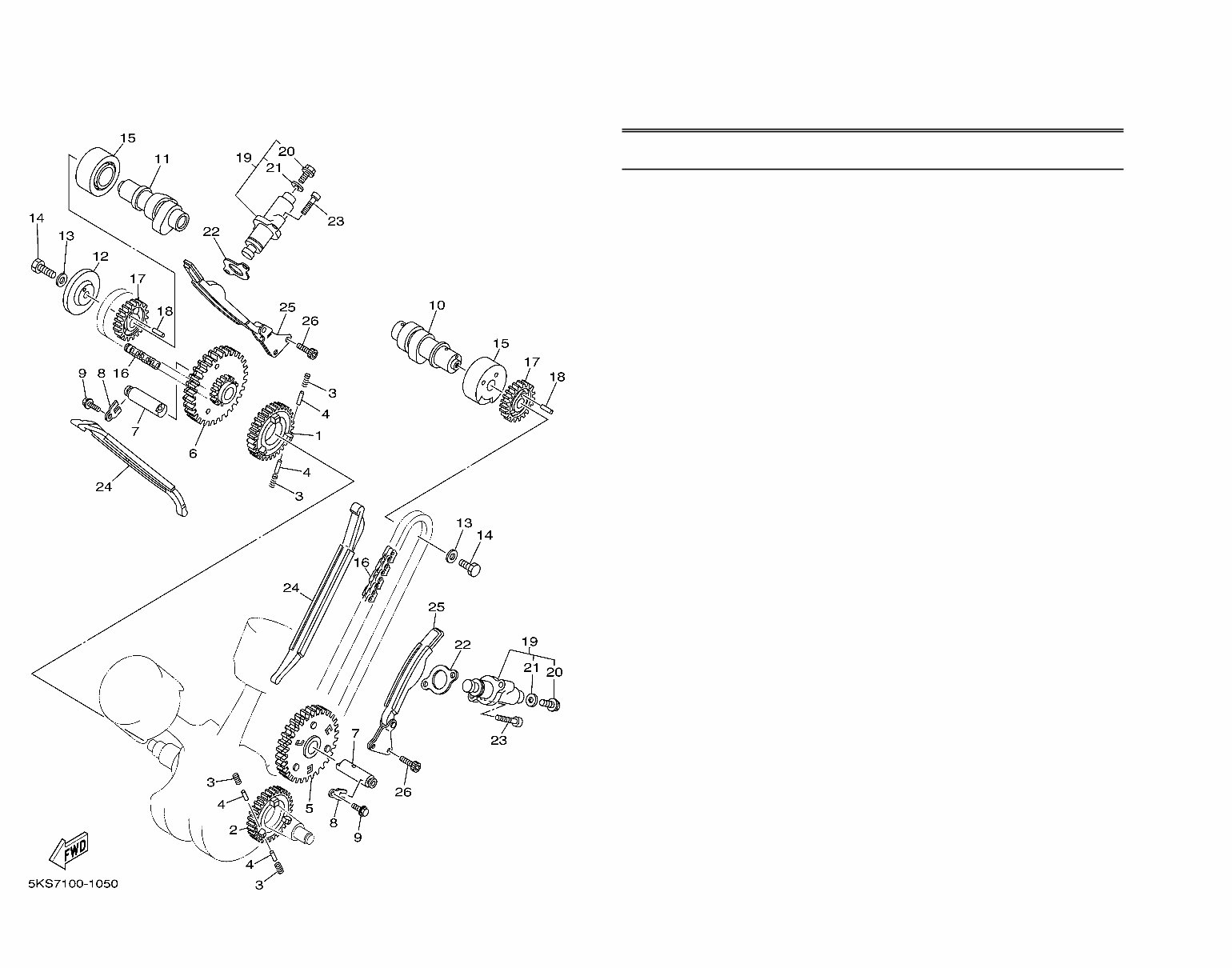

1 4X7-11536-00-00 GEAR, DRIVE (35T) . . . . . . . . . 1
2 4X7-11534-00-00 GEAR, BREAKER DRIVE (35T) 1
3 90501-21133-00 SPRING, COMPRESSION . . . . . 12
4 93605-10090-00 PIN, DOWEL . . . . . . . . . . . . . . 12
5 5EL-11540-01-00 CAM CHAIN SPROCKET
ASSY 1 . . . . . . . . . . . . . . . . . . 1
6 5EL-11550-01-00 CAM CHAIN SPROCKET
ASSY 2 . . . . . . . . . . . . . . . . . . 1
7 5EL-12247-00-00 SHAFT, TENSIONER . . . . . . . . 2
8 90209-06205-00 WASHER . . . . . . . . . . . . . . . . . 2
9 95817-06014-00 BOLT, FLANGE . . . . . . . . . . . . 2
10 5EL-12171-00-00 CAMSHAFT 1 . . . . . . . . . . . . . . 1
11 5EL-12181-00-00 CAMSHAFT 2 . . . . . . . . . . . . . . 1
12 42X-11145-00-00 PLATE, BREATHER 2 . . . . . . . 1
13 90201-10774-00 WASHER, PLATE . . . . . . . . . . . 2
14 90101-10303-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
15 90380-25125-00 BUSH, SOLID . . . . . . . . . . . . . . 2
16 94591-49098-00 CHAIN . . . . . . . . . . . . . . . . . . . 2
17 5EL-12176-00-00 SPROCKET, CAM CHAIN . . . . . 2
18 93604-12037-00 .PIN, DOWEL . . . . . . . . . . . . . . 2
19 5EL-12210-01-00 TENSIONER ASSY, CAM CHAIN 2
20 5EL-12228-00-00 . BOLT . . . . . . . . . . . . . . . . . . . 1
21 5EL-12214-00-00 . GASKET . . . . . . . . . . . . . . . . 1
22 4FM-12213-00-00 GASKET, TENSIONER CASE . . 2
23 91314-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
24 5EL-12231-00-00 GUIDE, STOPPER 1 . . . . . . . . . 2
25 5EL-12241-00-00 GUIDE, STOPPER 2 . . . . . . . . . 2
26 91314-06016-00 BOLT, SOCKET . . . . . . . . . . . . 4
CAMSHAFT. CHAIN
Ref. Part
No. Number Description Qty Remarks
A10
XVS1100AP_APC
