XS1_XSB_XS2_TX650
A1
3 93210-15151-00 . . O-RING . . . . . . . . . . . . . . . . 4
4 (256-11133-21-00) . . GDE, INTK VLV 1 O/S . . . . . 2 ALTERNATE PARTS
341-11133-11-00 . . GDE, INTK VLV 1 O/S . . . . . 2
341-11133-11-00 . . GDE, INTK VLV 1 O/S . . . . . 2 ALTERNATE PARTS
5 (256-11134-21-00) . . GDE, EXST VLV 1 O/S . . . . . 2 ALTERNATE PARTS
341-11134-11-00 . . GDE, EXST VLV 1 O/S . . . . . 2
6 99530-14016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
7 93210-12152-00 O-RING . . . . . . . . . . . . . . . . . . 4
8 256-11199-00-00 SLEEVE, CYLINDER HD COVR 4
9 90176-10008-00 NUT, CROWN . . . . . . . . . . . . . 8
10 92990-10200-00 WASHER, PLAIN . . . . . . . . . . . 4
11 90210-10004-00 WASHER, SEAL . . . . . . . . . . . . 4
12 97013-08060-00 BOLT (663) . . . . . . . . . . . . . . . 4 PN315
97313-08050-00 BOLT, HEXAGON (90101-08125) 4
13 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 4
15 447-11186-00-00 COVER, CYLINDER.HEAD 2 . . 4 M6-040
16 256-11196-01-00 GASKET, CYLINDER.HD.SIDE . 4 M6-040
93210-62451-00 O-RING . . . . . . . . . . . . . . . . . . 4 M6-040
17 90116-06016-00 BOLT, STUD . . . . . . . . . . . . . . 6
90116-06017-00 BOLT, STUD . . . . . . . . . . . . . . 12
18 95303-06800-00 NUT (CROWN) . . . . . . . . . . . . . 12
95303-06800-00 NUT (CROWN) . . . . . . . . . . . . . 9
19 90201-06038-00 WASHER, PLATE . . . . . . . . . . . 12
90201-06038-00 WASHER, PLATE . . . . . . . . . . . 9
20 93210-45150-00 O-RING . . . . . . . . . . . . . . . . . . 2
21 256-11157-03-00 COVER, BREAKER 1 . . . . . . . . 2 844~
22 90201-06038-00 WASHER, PLATE . . . . . . . . . . . 2
23 98503-06014-00 SCREW, PAN HEAD
(92502-06016) . . . . . . . . . . . . . 2
CONTINUED ON NEXT FRAME ➤

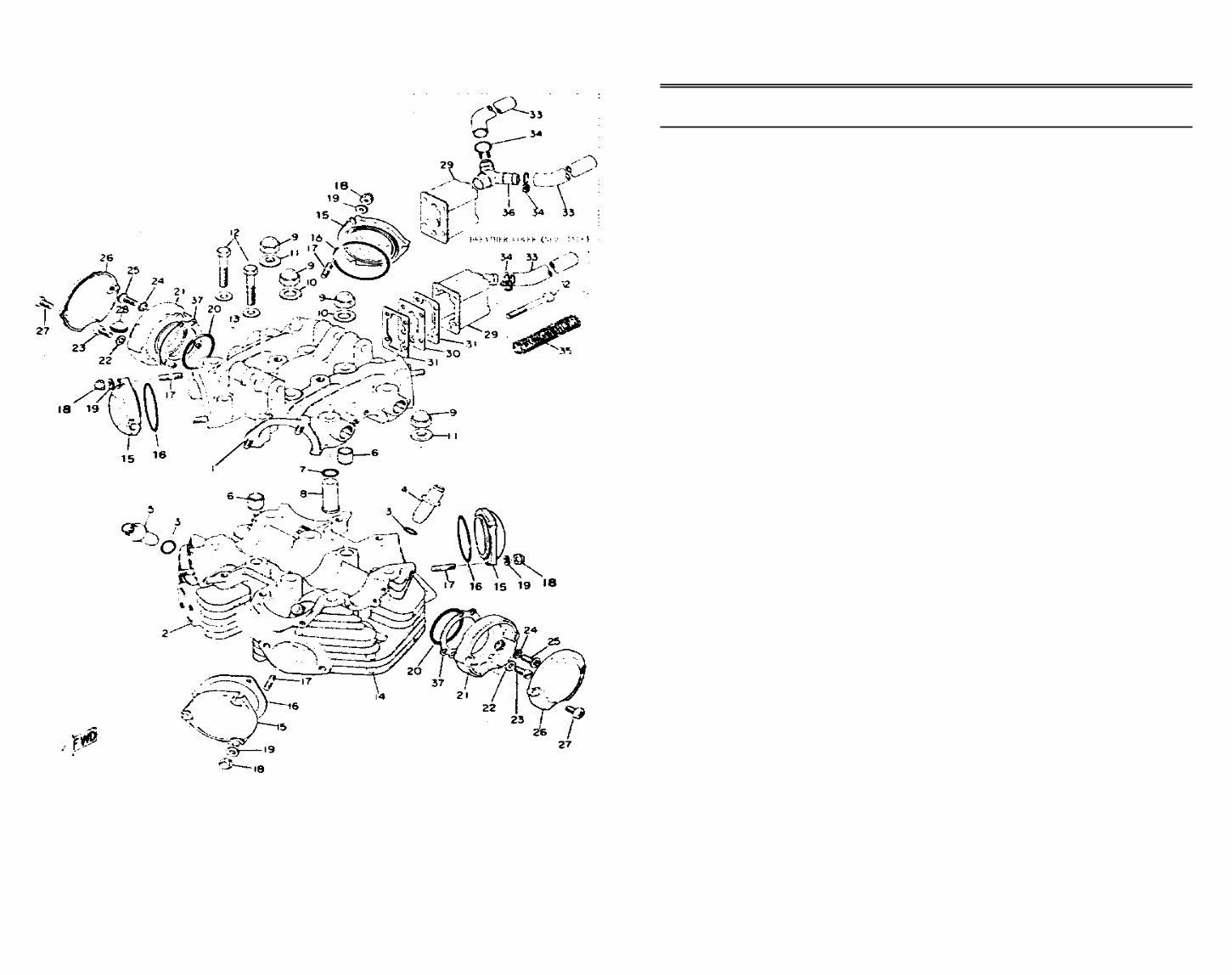

CYLINDER HEAD - CYLINDER HEAD COV
Ref. Part
No. Number Description Qty Remarks
A2
XS1_XSB_XS2_TX650
24 92990-06500-00 WASHER . . . . . . . . . . . . . . . . . 6
25 98701-06014-00 SCREW, FLAT HEAD . . . . . . . . 6
26 256-11158-01-00 COVER, BREAKER 2 . . . . . . . . 2 587~
27 98980-06020-00 SCREW, BIND . . . . . . . . . . . . . 4
28 90338-12044-00 PLUG, SPEC’’L SHAPE . . . . . . 1
29 584-11108-00-00 BREATHER COVER ASSEMBLY 1
90338-12044-00 PLUG, SPEC’’L SHAPE . . . . . . 1
30 (256-11165-00-00) PLATE, BREATHER . . . . . . . . . 1
31 256-11169-01-00 GASKET, BRTHR COVER . . . . 1
256-11169-01-00 GASKET, BRTHR COVER . . . . 2
32 91316-06060-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
97313-06060-00 BOLT, HEXAGON . . . . . . . . . . 4
33 (90445-16161-00) HOSE 0 0 . . . . . . . . . . . . . . . . . 1
(90445-16161-00) HOSE 0 0 . . . . . . . . . . . . . . . . . 2 685~
34 90467-14015-00 CLIP . . . . . . . . . . . . . . . . . . . . 1
90467-14015-00 CLIP . . . . . . . . . . . . . . . . . . . . 2 685~
35 90501-08046-00 SPRING, COMPRESSION . . . . . 7 344~
36 (256-11167-02-00) PIPE, BREATHER 2 0 1 . . . . . . 9 685~
37 (99999-00856-00) COVER, CYLINDER HEAD 3 . . 1
256-11146-00-00 GASKET, BREAKER CVR . . . . 16 844~
256-12156-01-00 SHAFT, ROCKER . . . . . . . . . . . 4
306-11198-00-00 GASKET . . . . . . . . . . . . . . . . .
447-11185-00-00 CVR, CYLINDER HD SIDE 1 . . . 1
90116-08150-00 BOLT, STUD . . . . . . . . . . . . . . 4
93210-62451-00 O-RING . . . . . . . . . . . . . . . . . . 1

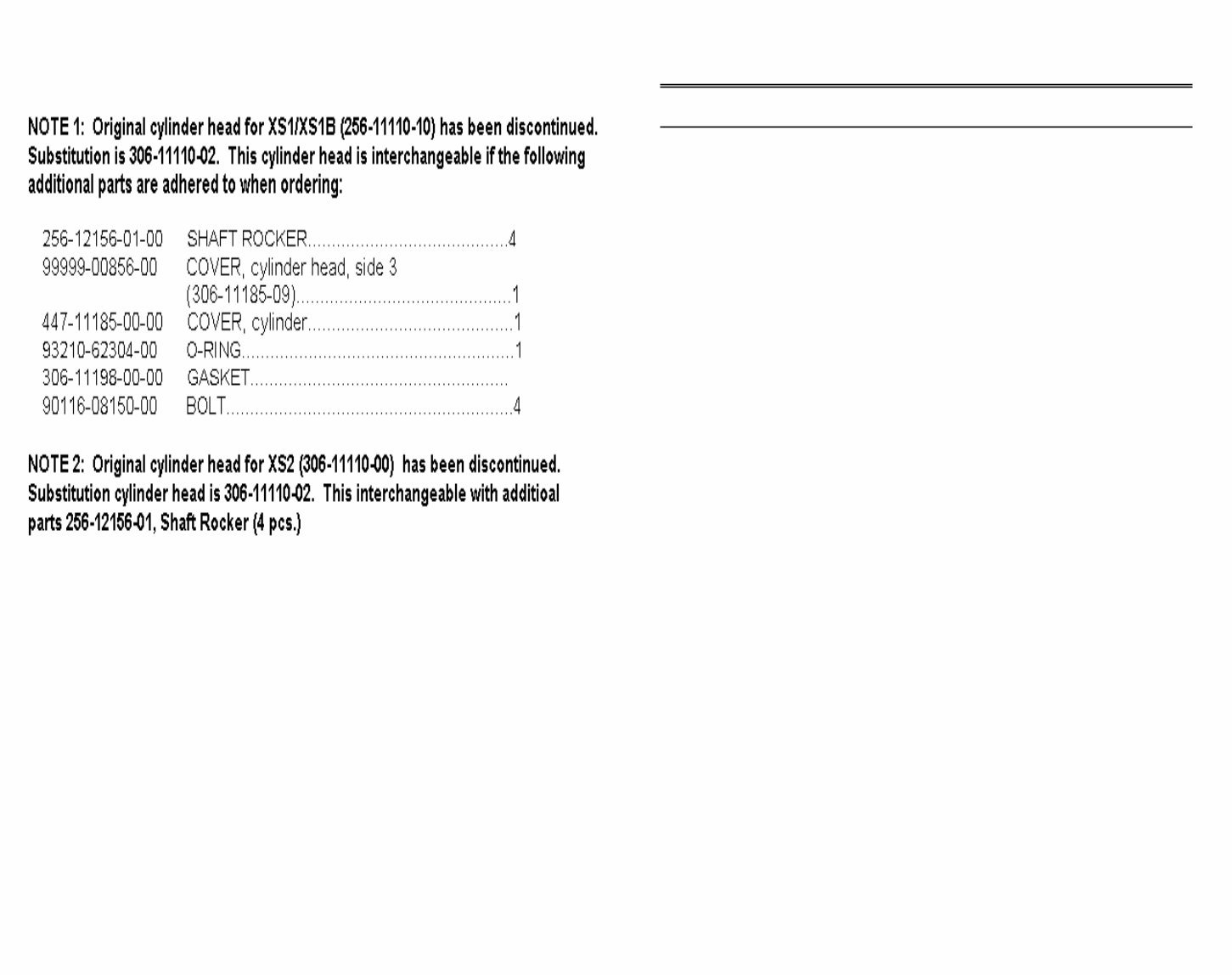

-1 (5V4-11101-00-00) CYLINDER HEAD ASSEMBLY . 1 SEE NOTE 1 & 2
CYLINDER HEAD - CYLINDER HEAD COV
Ref. Part
No. Number Description Qty Remarks
A3
XS1_XSB_XS2_TX650
CYLINDER HEAD - CYLINDER HEAD COVER (N
Ref. Part
No. Number Description Qty Remarks
A4
XS1_XSB_XS2_TX650
1 90116-10108-00 BOLT, STUD . . . . . . . . . . . . . . 8
2 99530-14016-00 PIN, DOWEL . . . . . . . . . . . . . . 4
3 256-11351-00-00 GASKET, CYLINDER . . . . . . . . 1
256-11351-01-00 GASKET, CYLINDER . . . . . . . . 1
4 93210-81731-00 O-RING . . . . . . . . . . . . . . . . . . 2
5 (306-11310-01-00) CYLINDER . . . . . . . . . . . . . . . . 1 487~XS1B
6 (256-11395-00-00) HOLDER . . . . . . . . . . . . . . . . . 2
256-11395-01-00 HOLDER . . . . . . . . . . . . . . . . . 2 487~
256-11395-02-00 HOLDER . . . . . . . . . . . . . . . . . 2
7 90430-11033-00 GASKET . . . . . . . . . . . . . . . . . 2
8 306-11181-01-00 GASKET, CYLH 1 . . . . . . . . . . 1
306-11181-02-00 GASKET, CYLH 1 . . . . . . . . . . 1
9 97313-08035-00 BOLT, HEXAGON . . . . . . . . . . 2
10 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 2
11 97323-06035-00 BOLT (1TL) . . . . . . . . . . . . . . . 1
12 90201-06038-00 WASHER, PLATE . . . . . . . . . . . 1
13 (256-14465-00-00) PIPE . . . . . . . . . . . . . . . . . . . . 2
14 (90445-16160-00) HOSE . . . . . . . . . . . . . . . . . . . . 1
15 (90501-08043-00) SPRING, COMPRESSION . . . . . 1
16 (90460-14003-00) CLAMP, HOSE . . . . . . . . . . . . . 2
17 90501-08046-00 SPRING, COMPRESSION . . . . . 7 344~
18 (306-12288-00-00) CAM, DCOMP . . . . . . . . . . . . . 1
19 306-12282-00-00 LEVER, DCOMP . . . . . . . . . . . . 1
20 90508-16019-00 SPRING, TORSION
(306-12287-00) . . . . . . . . . . . . . 1
21 91690-40016-00 PIN, SPRING . . . . . . . . . . . . . . 1
22 (93102-12100-00) OIL SEAL, SD-TYPE . . . . . . . . 1
23 90201-065F3-00 WASHER, PLATE . . . . . . . . . . . 1
24 95303-06800-00 NUT (CROWN) . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤

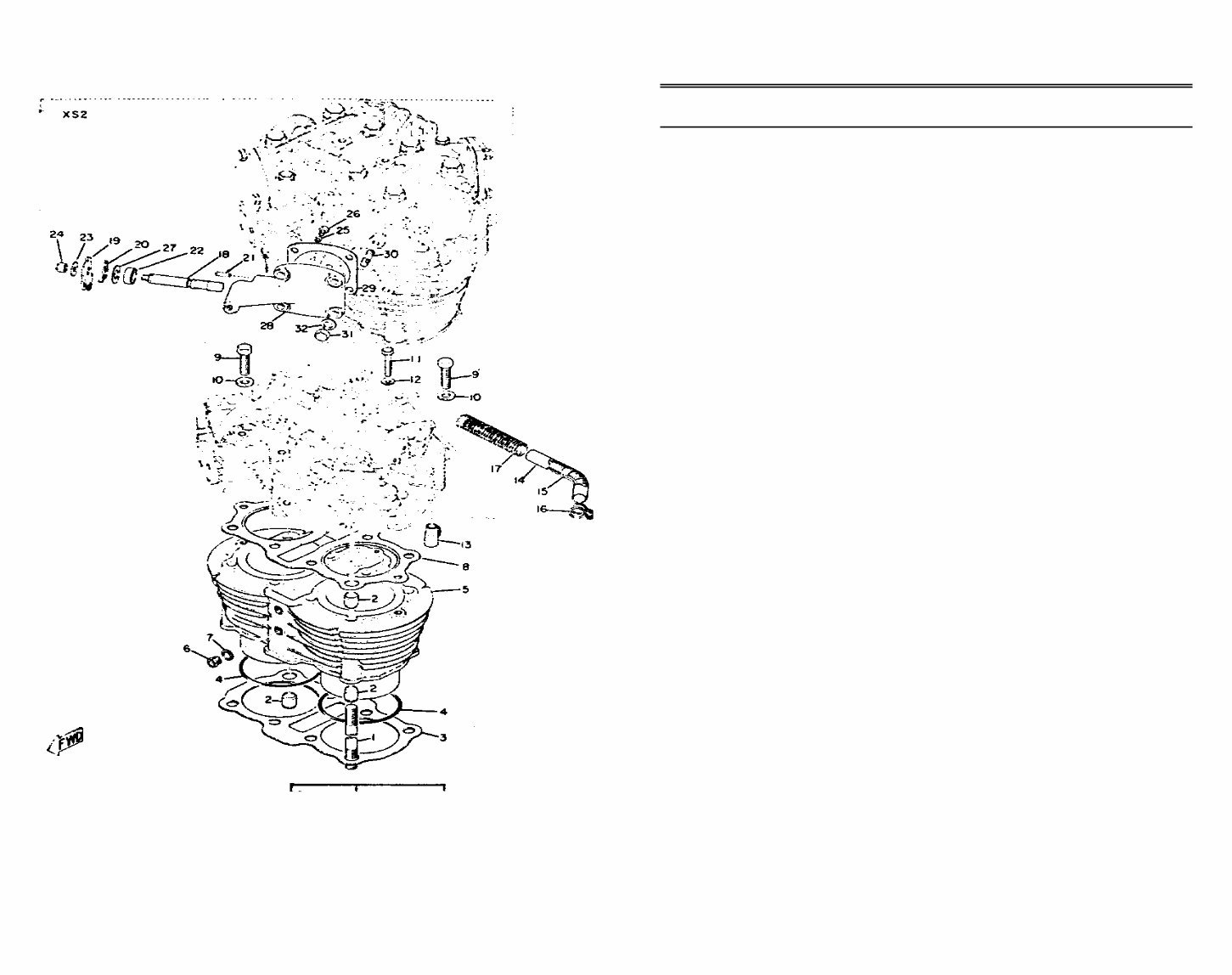

CYLINDER - DECOMPRESSION
Ref. Part
No. Number Description Qty Remarks
A5
XS1_XSB_XS2_TX650
25 90201-06038-00 WASHER, PLATE . . . . . . . . . . . 1
26 (306-12299-00-00) BOLT, STOPPER . . . . . . . . . . . 1
(90109-06075-00) BOLT . . . . . . . . . . . . . . . . . . . . 1 NEEDS NO PLAIN
WASHER. (REF.NO
27 90201-12184-00 WASHER, PLATE (12.5-25-0.5)
(306-12289-00) . . . . . . . . . . . . . 1
28 306-11187-00-00 COVER, CYLINDER.HEAD 3 . . 1
29 306-11198-00-00 GASKET . . . . . . . . . . . . . . . . . 1
30 90116-08150-00 BOLT, STUD . . . . . . . . . . . . . . 4
31 95303-08800-00 NUT (CROWN) (95301-08800) . 4
32 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 4
33 NOTAVAILABLE FOOTREST, RIGHT . . . . . . . . . 2
CYLINDER - DECOMPRESSION
Ref. Part
No. Number Description Qty Remarks
A6
XS1_XSB_XS2_TX650
1 (256-15100-05-00) CRANKCASE ASSEMBLY . . . . 1
(306-15100-03-00) CRANKCASE ASSEMBLY . . . . 1 F/N 101801~
2 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 6
3 90116-08196-00 BOLT, STUD . . . . . . . . . . . . . . 2 L=76
4 97313-08055-00 BOLT, HEXAGON . . . . . . . . . . 1
5 90116-08232-00 BOLT, STUD . . . . . . . . . . . . . . 3 L=76
6 (204-15363-01-00) PLUG, OIL . . . . . . . . . . . . . . . . 1 PN315 L=30
7 (90116-08199-00) BOLT, STUD . . . . . . . . . . . . . . 3 L=186
8 90116-05220-00 BOLT, STUD . . . . . . . . . . . . . . 4 L=96
9 97321-08075-00 BOLT (96103-08075) . . . . . . . . 2
10 93605-12069-00 PIN, DOWEL . . . . . . . . . . . . . . 4
11 97023-08090-00 BOLT (97321-08090) . . . . . . . . 1
12 95333-08600-00 . NUT, HEXAGON . . . . . . . . . . . 14 E/N 106930~SEE 24
13 92990-08200-00 WASHER, PLAIN . . . . . . . . . . . 18 SEE 25
14 93603-14026-00 . PIN, DOWEL . . . . . . . . . . . . . 1
15 256-15351-00-00 PLUG, DRAIN . . . . . . . . . . . . . 2
16 256-15353-00-00 GASKET, DRAIN . . . . . . . . . . . 2
17 256-15362-02-00 PLUG, OIL LEVEL . . . . . . . . . . 1
18 90430-29114-00 . GASKET . . . . . . . . . . . . . . . . 1
19 90116-08066-00 BOLT, STUD . . . . . . . . . . . . . . 1 F/N 10801~
90116-08232-00 BOLT, STUD . . . . . . . . . . . . . . 1 L=60
20 256-15395-00-00 GASKET, OIL SEALING . . . . . . 1
21 90116-08055-00 BOLT, STUD . . . . . . . . . . . . . . 1 L=61
22 90116-08047-00 BOLT, STUD (306-15192-00) . . 1 L=54
23 90116-08066-00 BOLT, STUD . . . . . . . . . . . . . . 1 L=103
24 90176-08019-00 NUT, CROWN . . . . . . . . . . . . . 4 932~MC72003
25 90430-08143-00 GASKET . . . . . . . . . . . . . . . . . 4 932~

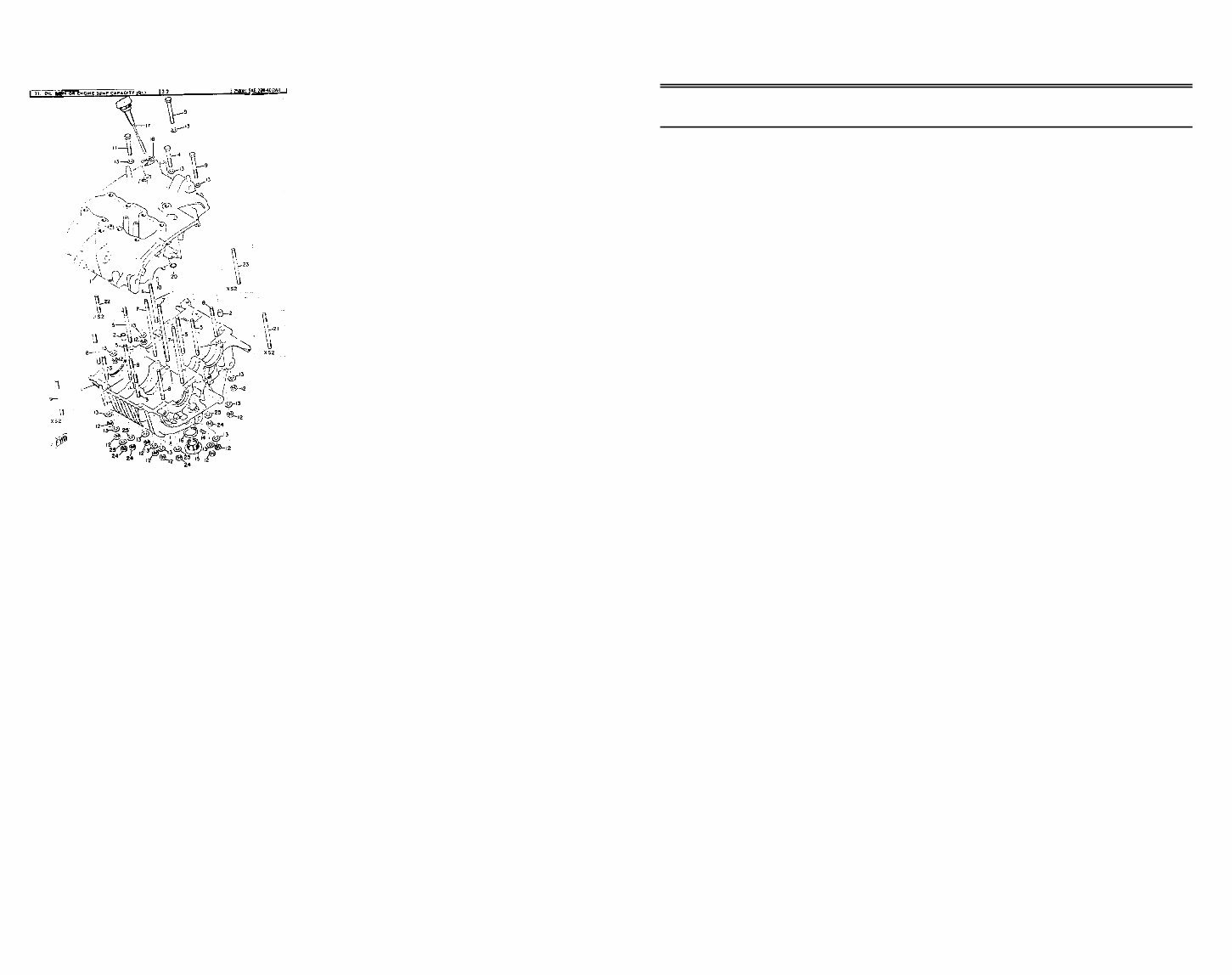

CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A7
XS1_XSB_XS2_TX650
1 (256-15411-09-00) COVER, CRANKCASE L . . . . . 1
584-15411-00-00 COVER, CRANKCASE L . . . . . 1
2 256-15461-00-00 GASKET, CRCS CVR 2 . . . . . . 1
306-15461-00-00 GASKET, CRCS CVR 2 . . . . . . 1
3 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
4 91316-06035-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
91316-06040-00 BOLT, SOCKET HEAD . . . . . . . 2 430~
5 91316-06020-00 BOLT, SOCKET HEAD . . . . . . . 4
91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4 430~
6 256-15425-00-00 COVER, GENERATOR R . . . . . 1
7 98580-05010-00 . SCREW, PAN HEAD . . . . . . . 2
8 1J7-15417-02-00 COVER, CAP . . . . . . . . . . . . . . 1
1J7-15417-02-00 COVER, CAP . . . . . . . . . . . . . . 1 125~
9 256-15457-00-00 GASKET . . . . . . . . . . . . . . . . . 1

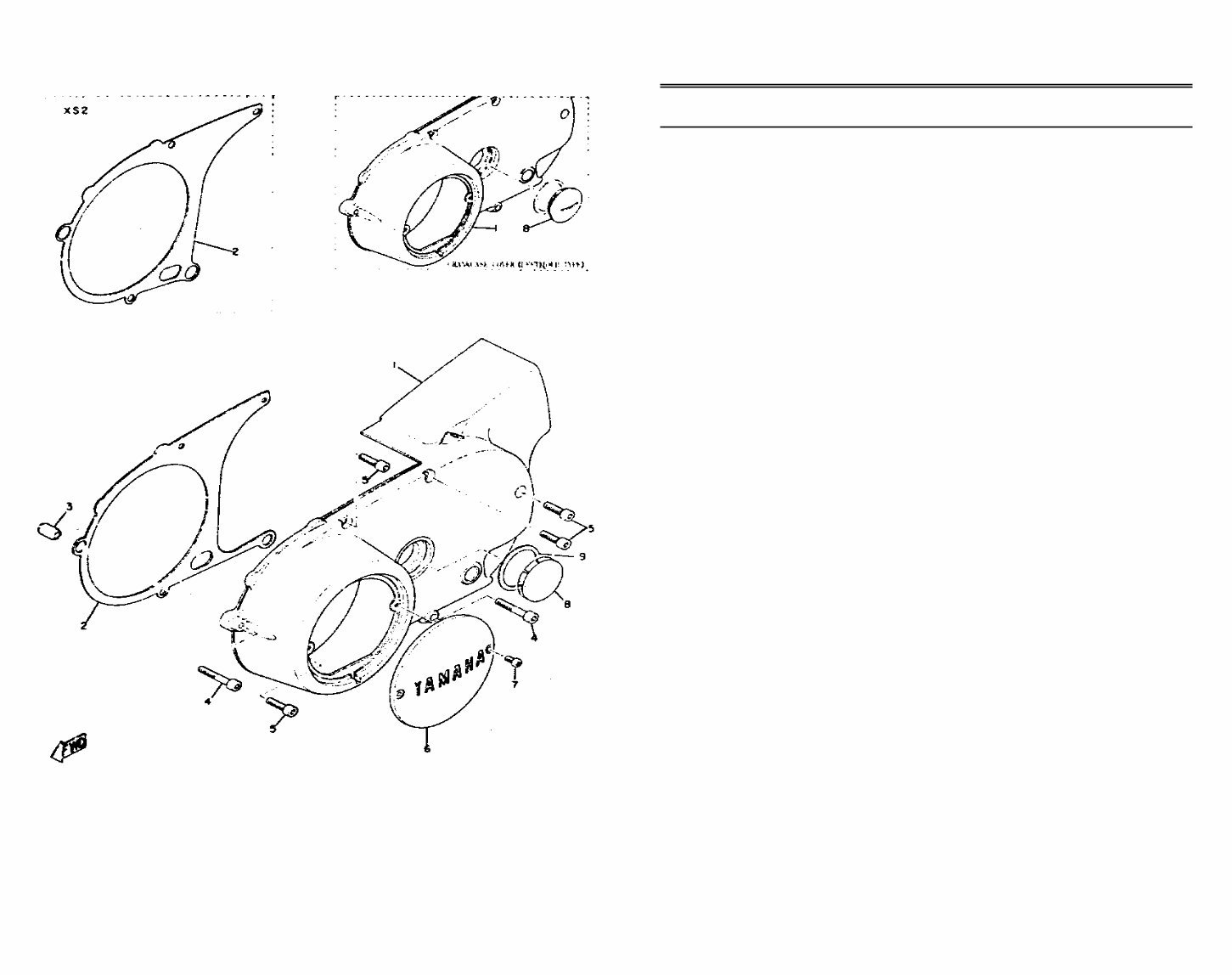

CRANKCASE COVER (LEFT)
Ref. Part
No. Number Description Qty Remarks
A8
XS1_XSB_XS2_TX650
1 99999-01146-00 CVR CRANKCASE RH
(256-15421-04) . . . . . . . . . . . . . 1
2 256-15451-00-00 GASKET, CRCS COVER . . . . . 1
3 99510-12016-00 PIN, DOWEL . . . . . . . . . . . . . . 2
4 91316-06070-00 BOLT, SOCKET HEAD . . . . . . . 4
91316-06075-00 BOLT, SOCKET HEAD . . . . . . . 4 430~
5 91316-06040-00 BOLT, SOCKET HEAD . . . . . . . 1 430~
91316-06075-00 BOLT, SOCKET HEAD . . . . . . . 1
6 91316-06020-00 BOLT, SOCKET HEAD . . . . . . . 5
91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 5 430~
7 (256-15416-01-00) COVER, OIL PUMP 0 1 . . . . . . 1 125~
256-15416-02-00 COVER, OIL PUMP . . . . . . . . . 1
8 256-15456-00-00 GASKET, O/PMP CVR 1 . . . . . . 1 125~
93210-50047-00 O-RING (3-49.5) . . . . . . . . . . . . 1
9 91316-06020-00 BOLT, SOCKET HEAD . . . . . . . 2
91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 2 430~
10 90430-06014-00 GASKET . . . . . . . . . . . . . . . . . 4
CRANKCASE COVER (RIGHT)
Ref. Part
No. Number Description Qty Remarks
A9
XS1_XSB_XS2_TX650

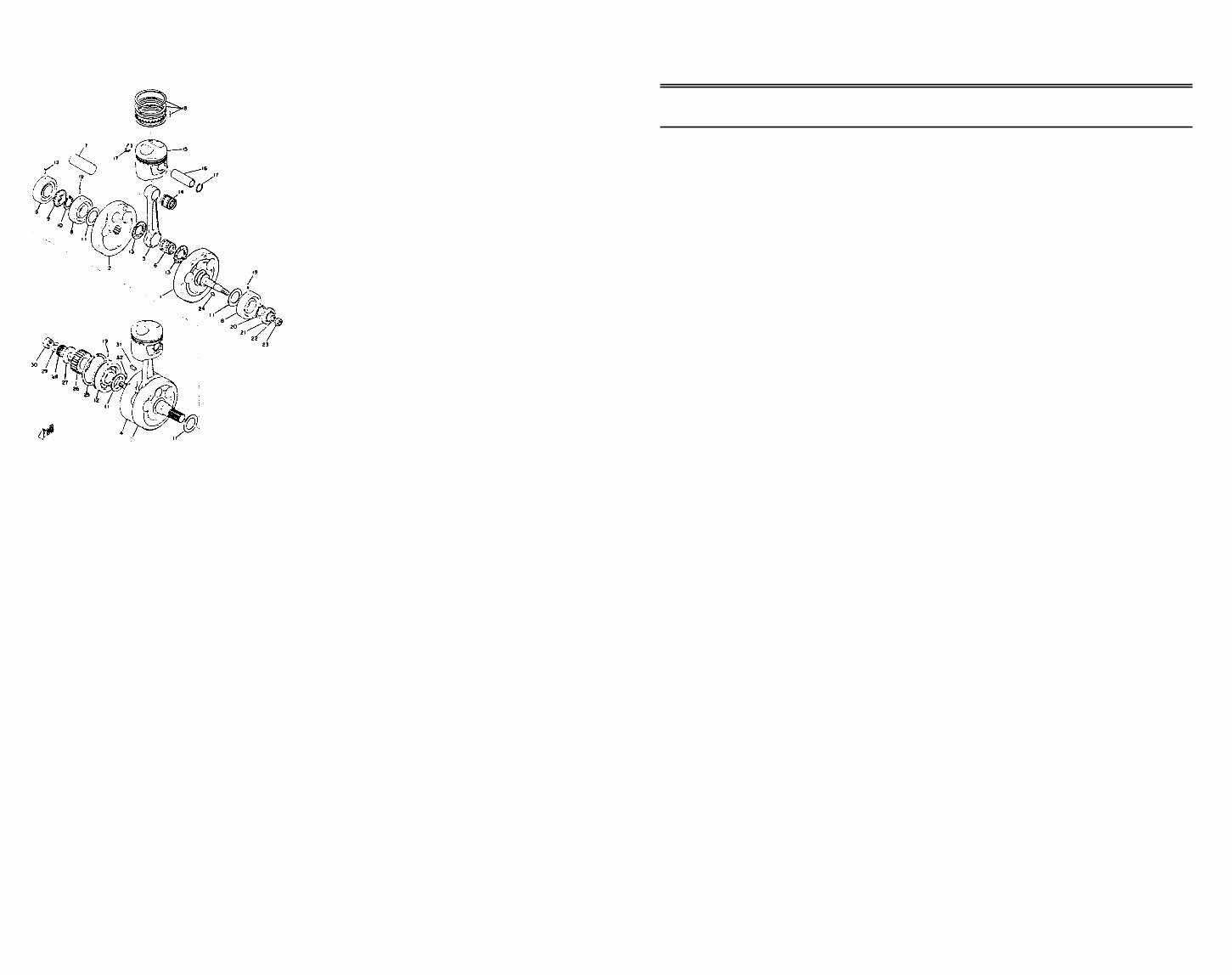

1 (256-11412-01-00) . CRANK 1 . . . . . . . . . . . . . . . . 1
2 (256-11422-01-00) . CRANK 2 . . . . . . . . . . . . . . . . 1
3 (256-11432-02-00) . CRANK 3 . . . . . . . . . . . . . . . . 1
4 (256-11442-01-00) . CRANK 4 . . . . . . . . . . . . . . . . 1
(306-11442-03-00) . CRANK 4 . . . . . . . . . . . . . . . . 1
5 256-11651-01-00 . ROD, CONNECTING 0 2 . . . . . 2 269~
6 93310-62660-00 . BEARING, CYLINDER.# 0 . . . 2
7 256-11681-00-00 . PIN, CRANK 1 . . . . . . . . . . . . 2
8 93390-00003-00 . BEARING, CYLINDER. # 0 . . . 3
9 (256-11549-00-00) . SPROCKET, CAM CHAIN . . . . 1
10 93410-32052-00 . CIRCLIP . . . . . . . . . . . . . . . . . 1
11 256-11561-00-00 . SHIM, CRANK 1 . . . . . . . . . . . 4
12 93306-30604-00 . BEARING . . . . . . . . . . . . . . . . 1
13 90209-26014-00 . WASHER, SPEC’’L SHAP . . . 4
14 93310-22242-00 BEARING, CYLINDER.# 0 . . . . 2
15 (256-11631-02-96) PISTON STD . . . . . . . . . . . . . . 2 PN315
256-11635-02-00 PISTON 1 O/S 0.25
(0.25MM 1ST O.S.) . . . . . . . . . . 2 ALTERNATE PARTS
256-11636-02-00 PISTON 2 O/S 0.50
(0.50MM 2ND O.S.) . . . . . . . . . . 2 ALTERNATE PARTS
16 256-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 2
17 93450-24028-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
18 256-11610-00-00 PISTON RINGSET STD (STD) . 2
256-11610-10-00 PISTON RINGSET 1ST
(1ST O.S.) . . . . . . . . . . . . . . . . 2 ALTERNATE PARTS
256-11610-20-00 PISTON RINGSET 2ND
(2ND O.S.) . . . . . . . . . . . . . . . . 2 ALTERNATE PARTS
19 93605-12069-00 PIN, DOWEL . . . . . . . . . . . . . . 4
20 93410-32052-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
21 93102-25121-00 OIL SEAL, SD-TYPE . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
CRANK - PISTON
Ref. Part
No. Number Description Qty Remarks
A10
XS1_XSB_XS2_TX650
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Viewed 32 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Get access to a comprehensive parts catalog for the Yamaha XS1/XSB/XS2 TX650. This catalog includes detailed exploded-view illustrations and parts diagrams, encompassing every OEM part number for all motorcycle components. Whether you're a professional mechanic or a DIY enthusiast, this manual is invaluable when ordering replacement parts or cross-referencing part numbers between OEM and aftermarket manufacturers.
While it doesn't feature step-by-step procedures like a traditional repair manual, the exploded-view illustrations are immensely helpful when a workshop manual isn't available. Whether you're rebuilding or overhauling various parts of your machine, this manual ensures you order the correct replacement parts.
- Printable: Yes
- Language: English
- Compatibility: Compatible with various electronic devices, including PC, Mac computers, Android, and Apple smartphones and tablets.
- Requirements: Adobe Reader (free)
