TT600K_L
A1

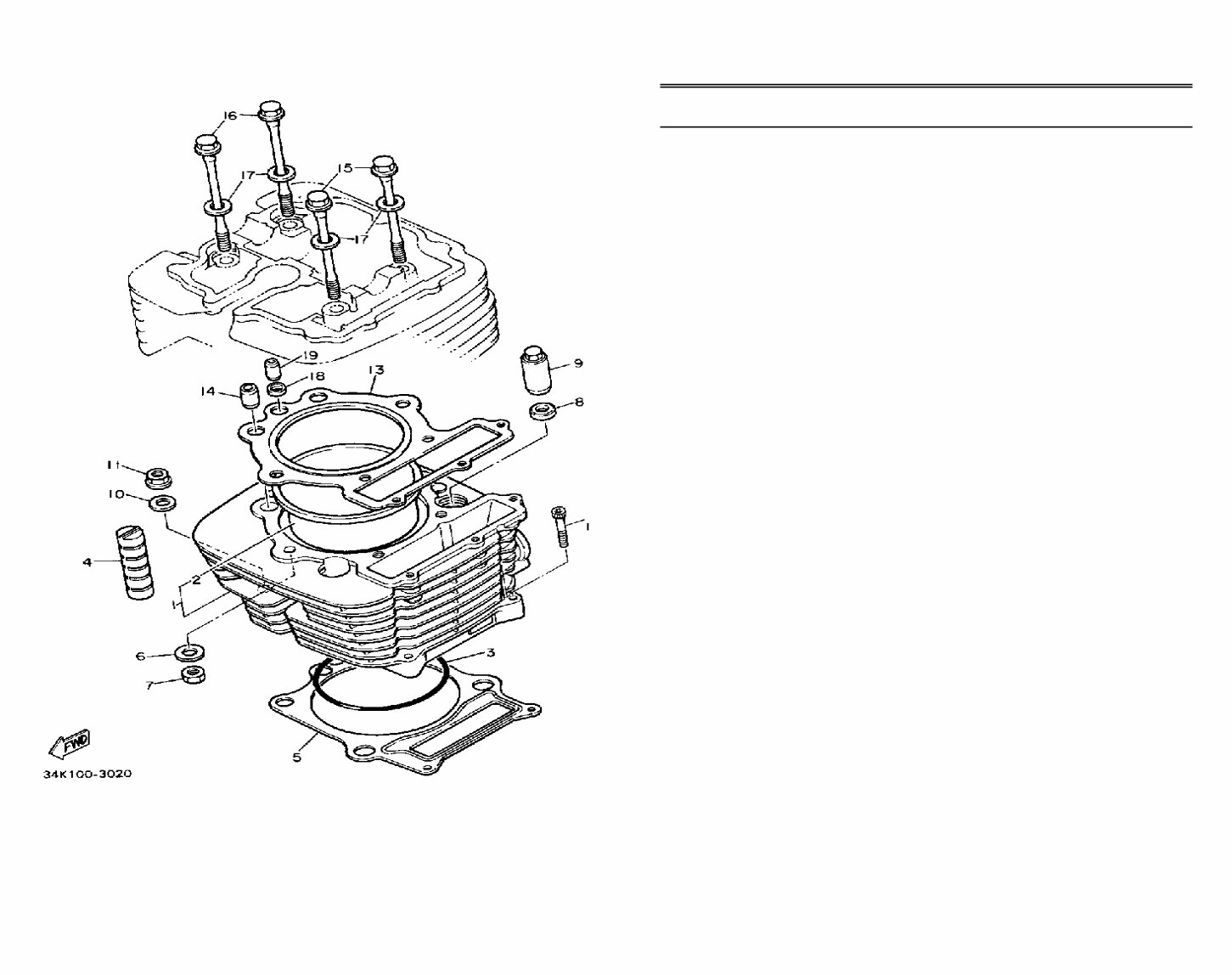

1 99999-01957-00 CYLINDER ASSEMBLY . . . . . . 1
2 34K-11312-09-00 . SLEEVE, CYLINDER . . . . . . . 1 SEE NOTE
3 93210-97524-00 O-RING . . . . . . . . . . . . . . . . . . 1
4 583-11127-00-00 ABSORBER 3 . . . . . . . . . . . . . 2
5 1VJ-11351-00-00 GASKET, CYLINDER . . . . . . . . 1
6 90201-087K2-00 WASHER, PLATE . . . . . . . . . . . 2
7 90176-08026-00 NUT, CROWN . . . . . . . . . . . . . 2
8 90201-10590-00 WASHER, PLATE . . . . . . . . . . . 2
9 90179-10201-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
10 90201-10124-00 WASHER, PLATE . . . . . . . . . . . 2
11 90179-10279-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
12 90110-06138-00 BOLT, HEX SKT HEAD . . . . . . 2
13 1JK-11181-02-00 GASKET, CYLINDER HEAD . . . 1
14 91810-05018-00 PIN, DOWEL . . . . . . . . . . . . . . 2
15 90105-08464-00 BOLT, WASHER BASED . . . . . 2
16 90105-08214-00 BOLT, WASHER BASED . . . . . 2
17 90201-080L7-00 WASHER, PLATE . . . . . . . . . . . 4
18 90430-08178-00 GASKET . . . . . . . . . . . . . . . . . 1
19 99510-08016-00 PIN, DOWEL . . . . . . . . . . . . . . 1
CYLINDER
Ref. Part
No. Number Description Qty Remarks
A2
TT600K_L

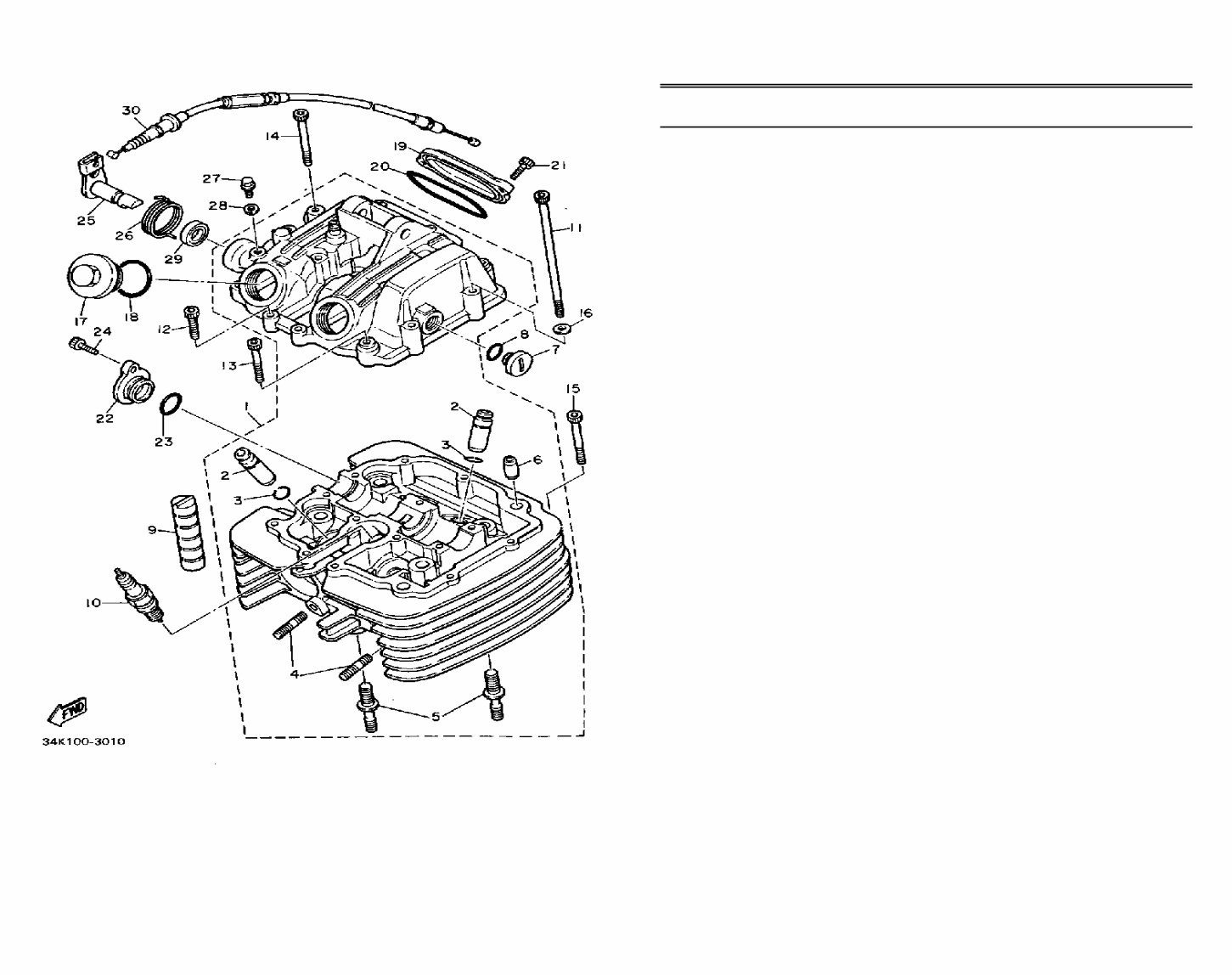

1 34K-11101-03-00 CYLINDER HEAD ASSEMBLY . 1
2 4H7-11133-10-00 . GUIDE, INTAKE VALVE . . . . . 4
3 93440-12052-00 . CIRCLIP . . . . . . . . . . . . . . . . . 4
4 90116-06475-00 BOLT, STUD . . . . . . . . . . . . . . 4
5 90116-10378-00 . BOLT, STUD . . . . . . . . . . . . . 2
6 99510-10114-00 . PIN, DOWEL . . . . . . . . . . . . . 2
7 90340-14079-00 PLUG, STRAIGHT SCRW . . . . . 1
8 93210-14369-00 O-RING . . . . . . . . . . . . . . . . . . 1
9 583-11127-00-00 ABSORBER 3 . . . . . . . . . . . . . 2
10 NGK-D7EA0-00-00 PLUG, SPARK (NGK D7EA) . . . 1
11 91316-06125-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
12 91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
13 91316-06040-00 BOLT, SOCKET HEAD . . . . . . . 3
14 91316-06055-00 BOLT, SOCKET HEAD . . . . . . . 7
15 91316-06050-00 BOLT, SOCKET HEAD . . . . . . . 1
16 92906-06600-00 WASHER . . . . . . . . . . . . . . . . . 2
17 1H2-11186-00-00 PLUG, VIEWER . . . . . . . . . . . . 2
18 93210-32172-00 O-RING . . . . . . . . . . . . . . . . . . 2
19 5Y1-11187-00-00 COVER, CYLINDER HEAD
SIDE 3 . . . . . . . . . . . . . . . . . . . 1
20 93210-62446-00 O-RING . . . . . . . . . . . . . . . . . . 1
21 91316-06018-00 BOLT, SOCKET HEAD . . . . . . . 2
22 34K-12215-01-00 CAP, TENSIONER CASE . . . . . 1
23 93210-19522-00 O-RING . . . . . . . . . . . . . . . . . . 1
24 91316-06020-00 BOLT, SOCKET HEAD . . . . . . . 1
25 5Y1-12288-00-00 CAM, DCOMP . . . . . . . . . . . . . 1
26 90508-18551-00 SPRING, TORSION . . . . . . . . . 1
27 90109-06418-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
28 90430-06014-00 GASKET . . . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A3
TT600K_L
29 93102-12321-00 OIL SEAL, SD-TYPE . . . . . . . . 1
30 5Y1-12292-00-00 CABLE, DCOMP . . . . . . . . . . . 1
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A4
TT600K_L

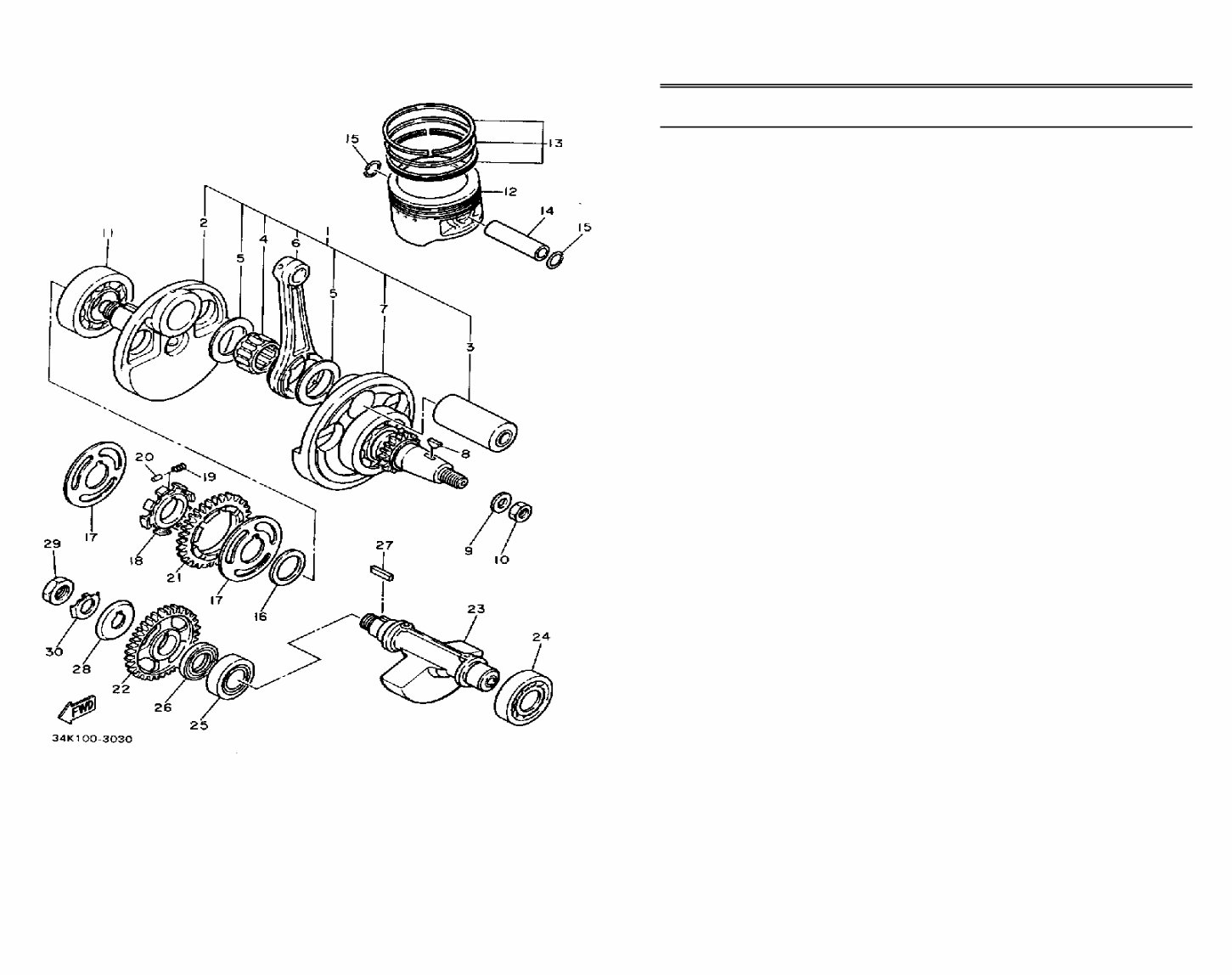

1 34K-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
2 34K-11422-00-00 . CRANK 2 . . . . . . . . . . . . . . . . 1
3 34K-11681-00-00 . PIN, CRANK 1 . . . . . . . . . . . . 1
4 93310-634K2-00 . BEARING, CYLINDER.# 0 . . . 1
5 90209-34254-00 . WASHER, SPEC’’L SHAP . . . 2
6 34K-11651-00-00 . ROD, CONNECTING . . . . . . . . 1
7 34K-W1141-00-00 . CRANK 1 . . . . . . . . . . . . . . . . 1
8 90280-16053-00 KEY, WOODRUFF . . . . . . . . . . 1
9 90201-140A6-00 WASHER, PLATE . . . . . . . . . . . 1
10 90179-14317-00 NUT, SPEC’’L SHAPE . . . . . . . 1
11 93306-30702-00 BEARING (B6307) . . . . . . . . . . 1
12 34K-11631-00-E0 34K-11631-01- 0 . . . . . . . . . . . . 1 UR SEE NOTE
34K-11631-02-Y0 PISTON (STD) . . . . . . . . . . . . . 1 U.R.
13 34K-11610-01-00 PISTON RING SET . . . . . . . . . . 1
14 34K-11633-01-00 PIN, PISTON . . . . . . . . . . . . . . 1
15 93450-24028-00 CIRCLIP . . . . . . . . . . . . . . . . . . 2
16 90201-301F4-00 WASHER, PLATE . . . . . . . . . . . 1
17 34K-11565-01-00 WASHER, BEARING CVR . . . . 2
18 5Y1-11496-01-00 BOSS, BUFFER . . . . . . . . . . . . 1
19 90501-22721-00 SPRING, COMPRESSION . . . . . 8
20 93605-10090-00 PIN, DOWEL . . . . . . . . . . . . . . 4
21 2JT-11536-00-00 GEAR, DRIVE . . . . . . . . . . . . . 1
22 5Y1-11531-00-00 GEAR, BALANCE WT 44T . . . . 1
23 34K-11454-00-00 WEIGHT 1 . . . . . . . . . . . . . . . . 1
24 93306-30525-00 BEARING (B6305) . . . . . . . . . . 1
25 93306-30541-00 BEARING . . . . . . . . . . . . . . . . . 1
26 93101-25106-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
27 90282-05013-00 KEY, STRAIGHT . . . . . . . . . . . 1
28 34K-11145-00-00 PLATE, BREATHER 2 . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
CRANKSHAFT-PISTON
Ref. Part
No. Number Description Qty Remarks
A5
TT600K_L
29 90170-16326-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
30 90215-16242-00 WASHER, LOCK . . . . . . . . . . . 1
CRANKSHAFT-PISTON
Ref. Part
No. Number Description Qty Remarks
A6
TT600K_L
1 34K-12171-00-00 CAMSHAFT ASSEMBLY 1
(34K-12170-00) . . . . . . . . . . . . . 1
2 34K-12176-00-00 SPROCKET, CAM CHAIN . . . . . 1
3 90105-07087-00 BOLT, WASHER BASED . . . . . 2
4 94590-27126-00 CHAIN . . . . . . . . . . . . . . . . . . . 1
5 34K-12231-00-00 GUIDE, STOPPER 1 . . . . . . . . . 1
6 34K-12241-00-00 GUIDE, STOPPER 2 . . . . . . . . . 1
7 97011-06016-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
8 92901-06600-00 WASHER . . . . . . . . . . . . . . . . . 2
9 34K-12210-00-00 TENSNR ASSEMBLY, CAM
CHN . . . . . . . . . . . . . . . . . . . . . 1
10 91316-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
11 4DW-12213-00-00 GASKET, TENSIONER CASE . . 1
12 1JK-12283-00-00 BRACKET, DCOMP
(5Y1-12283-00) . . . . . . . . . . . . . 1
CAMSHAFT-CHAIN
Ref. Part
No. Number Description Qty Remarks
A7
TT600K_L
1 5Y1-12111-00-00 VALVE, INTAKE . . . . . . . . . . . . 2
2 34K-12121-00-00 VALVE, EXHAUST . . . . . . . . . . 2
3 5Y1-12113-00-00 SPRING, VALVE INNER . . . . . . 4
4 5Y1-12114-00-00 SPRING, VALVE OUTER . . . . . 4
5 4H7-12116-00-00 SEAT, VALVE SPRING . . . . . . . 4
6 1J7-12119-01-00 SEAL, VALVE STEM . . . . . . . . 4
7 2F3-12117-00-00 RETAINER, VALVE SPRING . . 4
8 1J7-12118-00-00 COTTER, VALVE . . . . . . . . . . . 8
9 34K-12151-00-00 ARM, VALVE ROCKER . . . . . . 1
10 34K-12161-00-00 ARM, VALVE ROCKER 2 . . . . . 1
11 34K-12162-00-00 ARM, VALVE ROCKER 3 . . . . . 1
12 34K-12163-00-00 ARM, VALVE ROCKER 4 . . . . . 1
13 2NX-12146-00-00 SHAFT, ROCKER . . . . . . . . . . . 1
14 5Y1-12156-00-00 SHAFT, ROCKER . . . . . . . . . . . 1
15 5Y1-12166-00-00 SHAFT, ROCKER 3 . . . . . . . . . 1
16 93210-08521-00 O-RING . . . . . . . . . . . . . . . . . . 2
17 90110-06138-00 BOLT, HEX SKT HEAD . . . . . . 2
18 3Y1-12159-00-00 SCREW, VALVE ADJUSTING . . 4
19 90170-06128-00 NUT . . . . . . . . . . . . . . . . . . . . . 4
20 90206-12074-00 WASHER, WAVE . . . . . . . . . . . 4
VALVE
Ref. Part
No. Number Description Qty Remarks
A8
TT600K_L

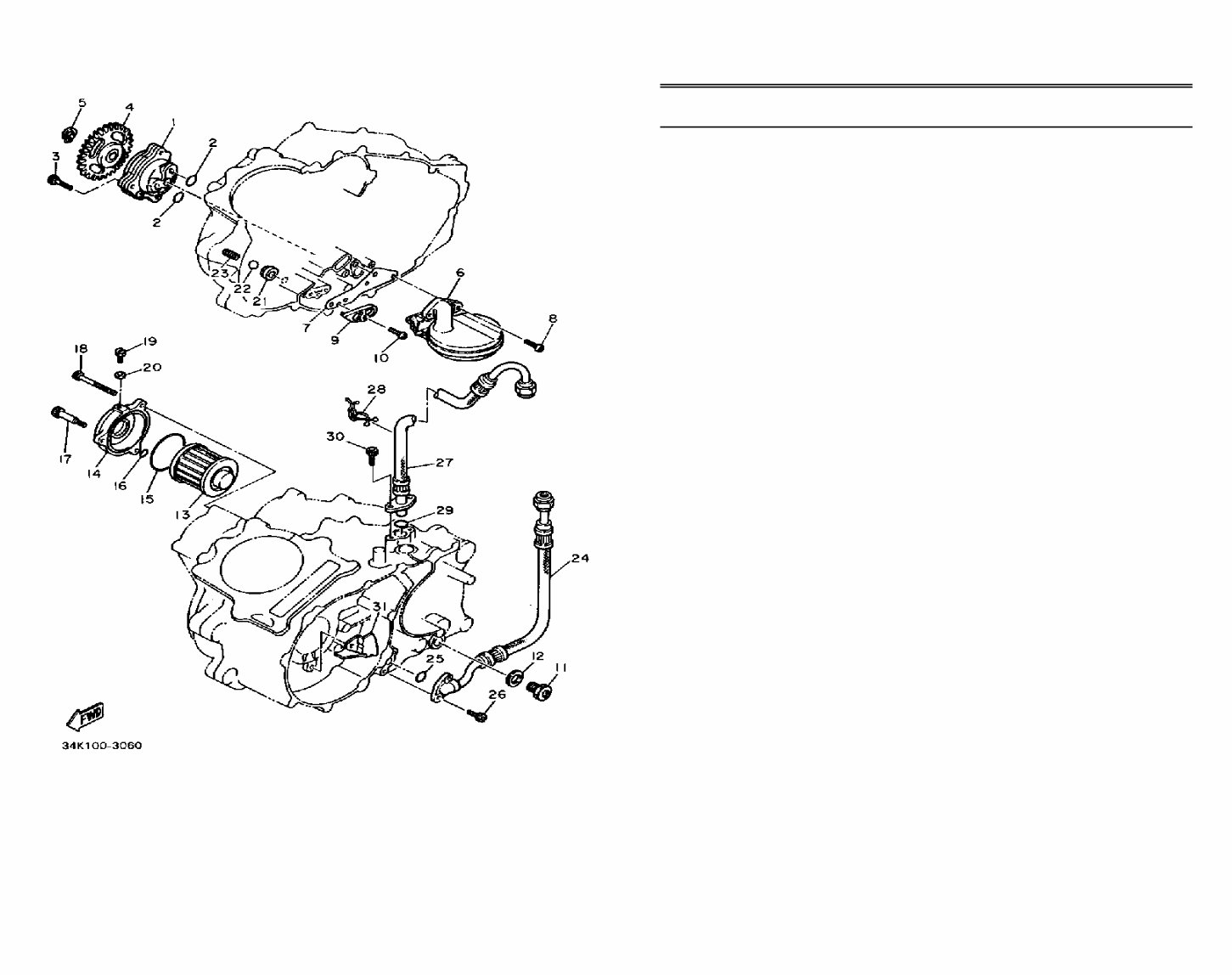

1 99999-01858-00 OIL PUMP KIT (3AJ) . . . . . . . . 1
2 93210-13361-00 O-RING . . . . . . . . . . . . . . . . . . 2
3 91316-06035-00 BOLT . . . . . . . . . . . . . . . . . . . . 3
4 99999-01925-00 OIL PUMP GEAR KIT . . . . . . . . 1
5 99009-11400-00 CIRCLIP . . . . . . . . . . . . . . . . . . 1
6 5Y1-W1343-00-00 STRAINER COMP. . . . . . . . . . . 1
7 4DW-13415-00-00 SEAL, OIL STRAINER . . . . . . . 1
8 98503-06014-00 SCREW, PAN HEAD
(92502-06016) . . . . . . . . . . . . . 2
9 5Y1-15427-01-00 COVER, CAP 2 . . . . . . . . . . . . 1
10 98503-06014-00 SCREW, PAN HEAD
(92502-06016) . . . . . . . . . . . . . 1
11 3VD-13455-00-00 PLUG . . . . . . . . . . . . . . . . . . . . 1
12 214-11198-01-00 GASKET . . . . . . . . . . . . . . . . . 1
13 4X7-13440-90-00 ELMNT ASSEMBLY, OIL CLNR 1
14 583-13447-01-00 COVER, OIL ELEMENT . . . . . . 1
15 93210-64297-00 O-RING . . . . . . . . . . . . . . . . . . 1
16 93210-07135-00 O-RING . . . . . . . . . . . . . . . . . . 1
17 90109-06419-00 BOLT . . . . . . . . . . . . . . . . . . . . 1
18 91316-06080-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
19 90149-05110-00 SCREW . . . . . . . . . . . . . . . . . . 1
20 90430-05126-00 GASKET . . . . . . . . . . . . . . . . . 1
21 583-13113-00-00 SEAT, CHECK BALL . . . . . . . . 1
22 93503-08007-00 BALL . . . . . . . . . . . . . . . . . . . . 1
23 90501-05378-00 SPRING, COMPRESSION . . . . . 1
24 34K-13464-00-00 HOSE, OIL 1 . . . . . . . . . . . . . . 1
25 93210-10197-00 O-RING . . . . . . . . . . . . . . . . . . 1
26 91316-06016-00 BOLT, SOCKET HEAD . . . . . . . 2
27 34K-13465-00-00 HOSE, OIL 2 . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A9
TT600K_L
28 90464-20064-00 CLAMP . . . . . . . . . . . . . . . . . . 1
29 93210-15171-00 O-RING . . . . . . . . . . . . . . . . . . 1
30 91316-06016-00 BOLT, SOCKET HEAD . . . . . . . 2
31 5Y1-13371-00-00 PLATE . . . . . . . . . . . . . . . . . . . 1
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A10
TT600K_L
