TR2_TR2B
A1

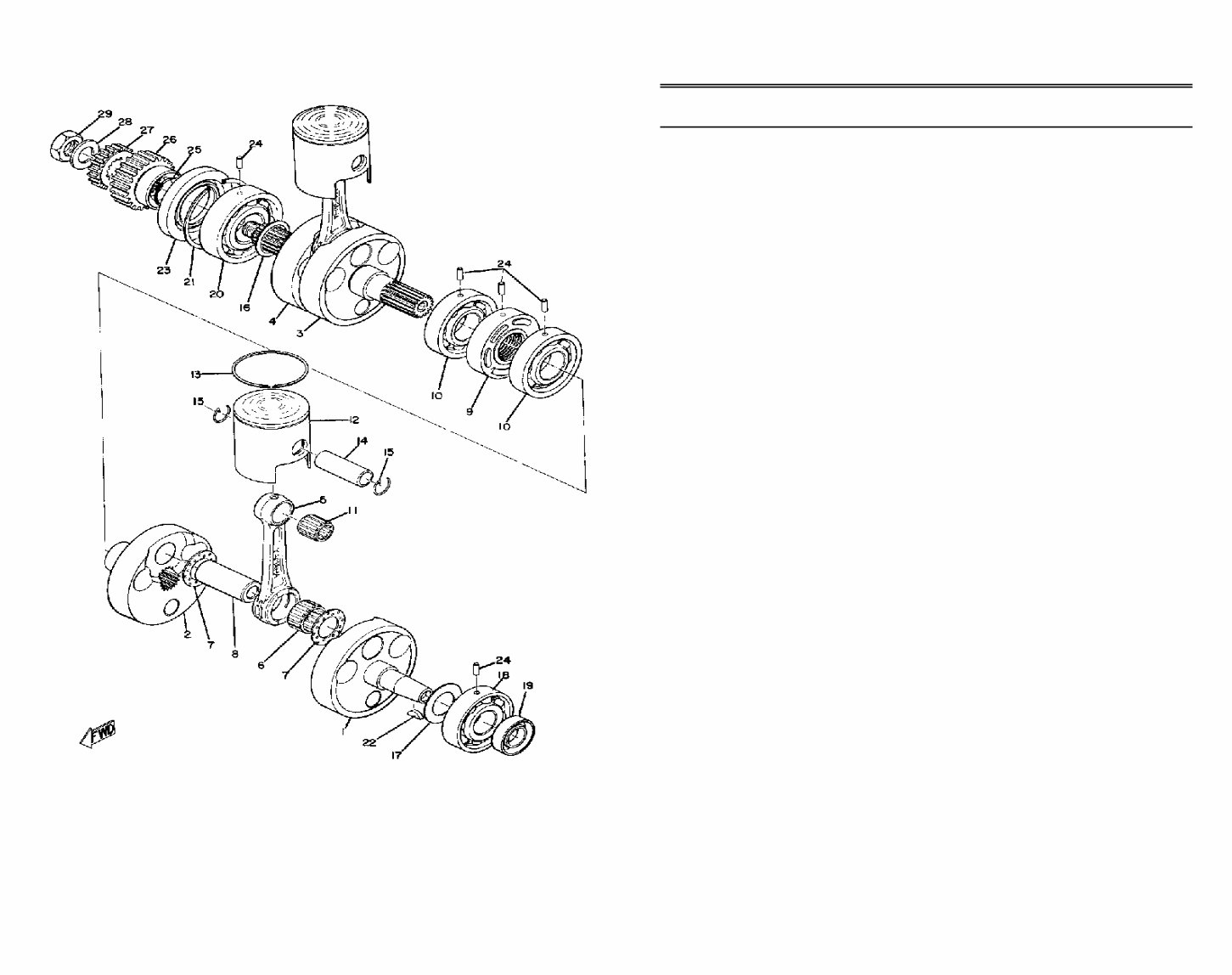

1 (239-11412-00-00) CRANK 1 . . . . . . . . . . . . . . . . . 1
2 (239-11422-00-00) CRANK 2 . . . . . . . . . . . . . . . . . 1
3 (239-11432-00-00) CRANK 3 . . . . . . . . . . . . . . . . . 1
4 (239-11442-00-00) CRANK 4 . . . . . . . . . . . . . . . . . 1
5 (239-11651-00-00) ROD, CONNECTING . . . . . . . . . 2
6 (93310-42446-00) BEARING, CYLINDER.# 0 . . . . 2
93310-42497-00 . BEARING, CYLINDER.# 0 . . . 2
7 90209-24073-00 . WASHER . . . . . . . . . . . . . . . . 4
8 168-11681-00-00 . PIN, CRANK 1 . . . . . . . . . . . . 2
9 (168-11515-00-00) SEAL, LABYRINTH 1 . . . . . . . . 1
10 93306-20633-00 . BEARING . . . . . . . . . . . . . . . . 2
11 93310-218A6-00 BEARING . . . . . . . . . . . . . . . . . 2 ROD SMALL END
(18-22-22)
12 (239-11631-00-96) PISTON STD . . . . . . . . . . . . . . 2
(294-11631-00-96) PISTON STD . . . . . . . . . . . . . . 2
13 (294-11611-00-00) RING, PISTON STD . . . . . . . . . 2
14 168-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 2
15 93450-20026-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
16 (168-11561-00-03) SHIM, CRANK 1 . . . . . . . . . . . . 1
17 (156-11562-00-05) SHIM, CRANK 2 . . . . . . . . . . . . 1
18 (93306-30505-00) BEARING . . . . . . . . . . . . . . . . . 1
19 93103-20046-00 OIL SEAL, SW-TYPE . . . . . . . . 1
20 93306-20621-00 BEARING . . . . . . . . . . . . . . . . . 1
21 93440-78011-00 CIRCLIP, OUTER . . . . . . . . . . . 1
22 90280-04005-00 KEY, WOODRUFF . . . . . . . . . . 1
23 93103-42047-00 OIL SEAL, SW-TYPE
(SW42-78-10) . . . . . . . . . . . . . . 1
24 93604-12037-00 PIN, DOWEL . . . . . . . . . . . . . . 5
25 93210-25070-00 O-RING . . . . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
CRANKSHAFT-PISTON
Ref. Part
No. Number Description Qty Remarks
A2
TR2_TR2B
26 (239-16111-00-00) GEAR, PRI DRIVE . . . . . . . . . . 1
27 (168-13188-00-00) GEAR, DRIVE . . . . . . . . . . . . . 1
28 92901-16100-00 WASHER, SPRING . . . . . . . . . . 1
29 90170-16182-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
-1 (239-11400-00-00) CRANKSHAFT ASSEMBLY . . . 1
CRANKSHAFT-PISTON
Ref. Part
No. Number Description Qty Remarks
A3
TR2_TR2B

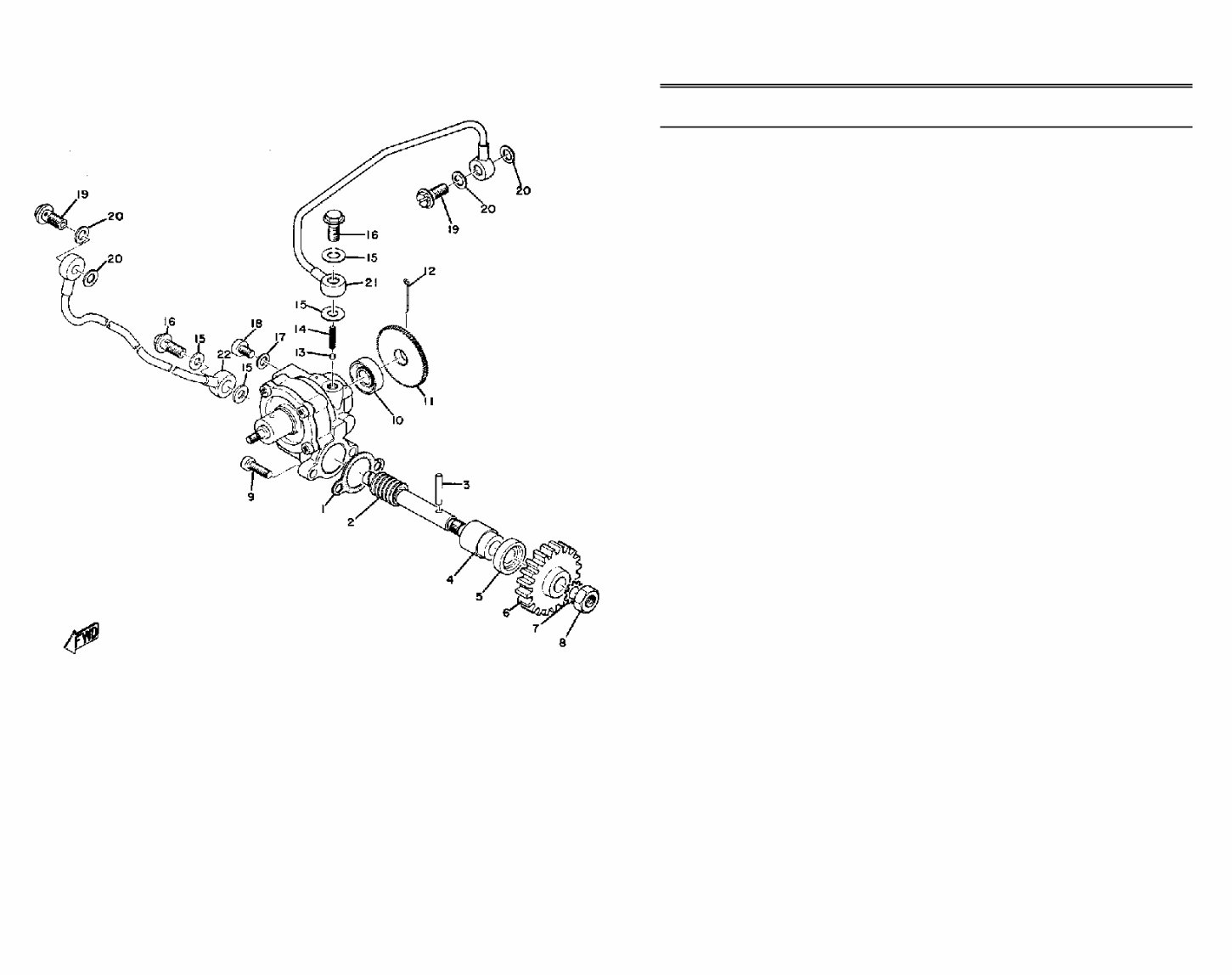

1 3MT-13116-00-00 GASKET, PUMP CASE
(8Y0-13116-00) . . . . . . . . . . . . . 1
2 (168-13175-00-00) SHAFT, WORM . . . . . . . . . . . . 1
3 93603-22028-00 PIN, DOWEL . . . . . . . . . . . . . . 1
4 1E7-13176-00-00 METAL, WRM SHAF OTR . . . . 1
5 93101-10002-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
6 (168-13178-00-00) GEAR, PUMP DRIVE . . . . . . . . 1
7 92901-08400-00 WASHER, EX.TOOTH . . . . . . . . 1
8 95303-08700-00 NUT . . . . . . . . . . . . . . . . . . . . . 1
9 98580-05016-00 SCREW, PAN HEAD
(98501-05016) . . . . . . . . . . . . . 2
10 93101-10090-00 . OIL SEAL . . . . . . . . . . . . . . . . 1
11 (137-13128-00-00) PLATE, STARTER . . . . . . . . . . 1
12 91401-12018-00 . PIN, COTTER . . . . . . . . . . . . . 1
13 93505-32002-00 . BALL . . . . . . . . . . . . . . . . . . . 2
14 (90501-02017-00) SPRING, COMPRESSION . . . . . 2
15 90430-06011-00 . GASKET . . . . . . . . . . . . . . . . 4
16 90401-06001-00 . BOLT, UNION . . . . . . . . . . . . 2
17 90430-04004-00 . GASKET . . . . . . . . . . . . . . . . 1
18 98580-04008-00 . SCREW, PAN HEAD . . . . . . . 1
19 90401-06001-00 BOLT, UNION . . . . . . . . . . . . . 2
20 90430-06011-00 GASKET . . . . . . . . . . . . . . . . . 4
21 (239-13161-00-00) PIPE, DELIVERY 1 . . . . . . . . . . 1
22 (239-13171-00-00) PIPE, DELIVERY 2 . . . . . . . . . . 1
-1 (239-13101-00-00) OIL PUMP ASSEMBLY . . . . . . . 1
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A4
TR2_TR2B

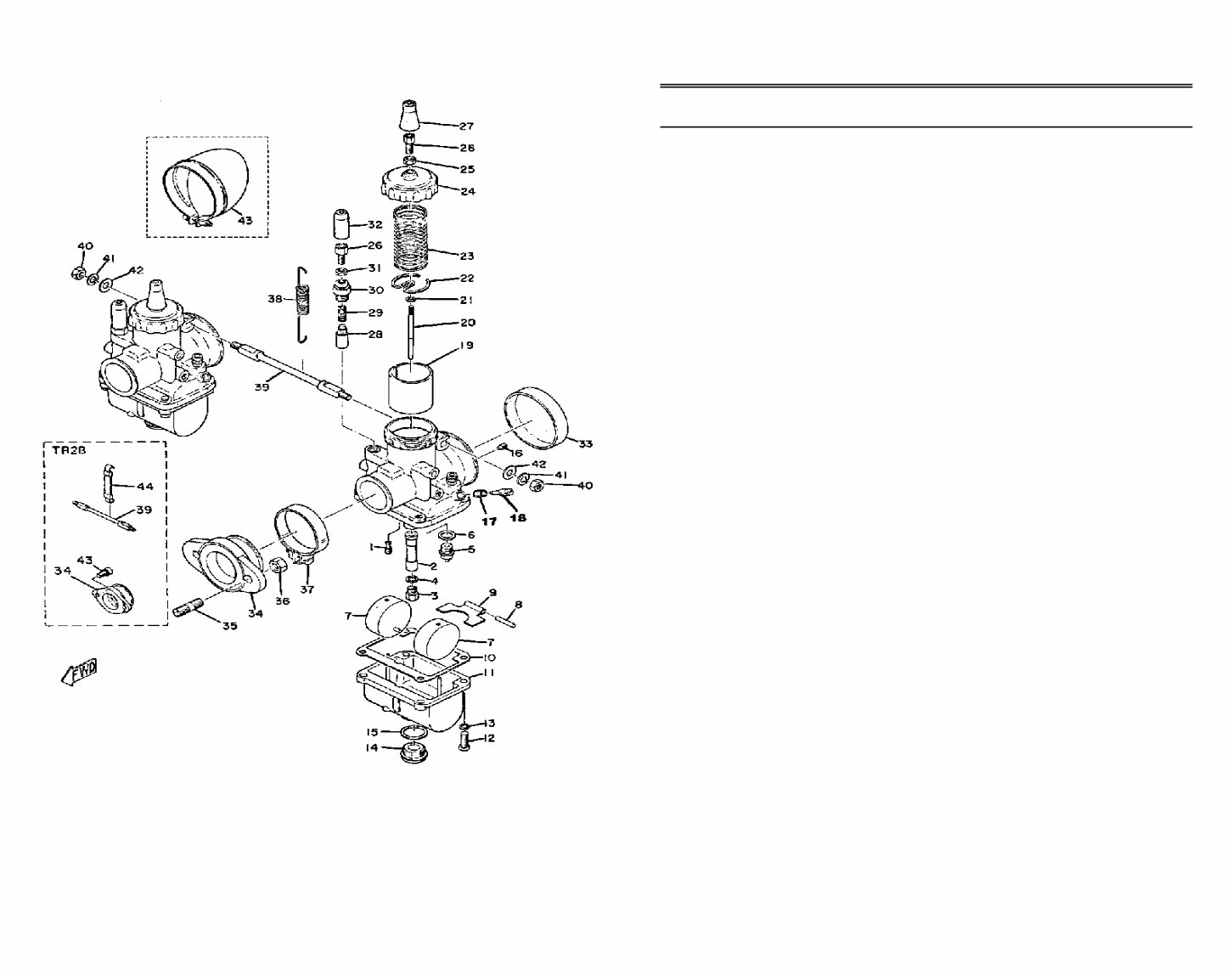

1 193-14142-60-00 . JET, PILOT #60 (60) . . . . . . . . 2
2 (239-14141-36-00) NOZZLE, MAIN . . . . . . . . . . . . 2
3 137-14143-68-00 . JET, MAIN (#340) . . . . . . . . . . 2 U.R.
137-14143-72-00 . JET, MAIN (#360) . . . . . . . . . . 2 U.R.
137-14143-76-00 . JET, MAIN (#380) . . . . . . . . . . 2 U.R.
137-14143-80-00 . JET, MAIN (#400) . . . . . . . . . . 2 U.R.
137-14143-84-00 . JET, MAIN (#420) . . . . . . . . . . 2 U.R.
137-14143-88-00 . JET, MAIN (#440) . . . . . . . . . . 2 U.R.
4 137-14153-00-00 . WASHER, MAIN JET . . . . . . . 2
5 24X-14107-33-00 . NEEDLE VALVE SET (#3.3) . . 2
6 239-14195-00-00 . WASHER, NEEDLE VALVE . . 2
7 (239-14185-00-00) FLOAT . . . . . . . . . . . . . . . . . . . 4
8 127-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 2
9 (239-14187-00-00) ARM, FLOAT . . . . . . . . . . . . . . 2
10 (239-14184-00-00) GASKET, FLOAT CHMBR . . . . 2
11 (239-14181-00-00) BODY, FLOAT CHMBR 1 . . . . . 2
12 98580-05016-00 . SCREW, PAN HEAD
(98501-05016) . . . . . . . . . . . . 8
13 92990-05100-00 . WASHER, SPRING . . . . . . . . . 8
14 (239-14115-00-00) PLUG, SCREW . . . . . . . . . . . . . 2
15 239-14117-00-00 . WASHER, PLUG
SCREWSCREW . . . . . . . . . . . 2
16 239-14172-20-00 . PILOT JET, AIR (2.0) . . . . . . . 2
17 127-14134-00-00 . SPRING, AIR ADJUSTING . . . 2
18 23X-14104-00-00 . AIR SCREW SET . . . . . . . . . . 2
19 (239-14112-15-00) VALVE, THROTTLE 1 . . . . . . . . 2
20 (239-14116-06-00) NEEDLE . . . . . . . . . . . . . . . . . . 2
21 164-14137-00-00 . CLIP . . . . . . . . . . . . . . . . . . . 2
22 239-14136-00-00 . SEAT, SPRING . . . . . . . . . . . . 2
CONTINUED ON NEXT FRAME ➤
CARBURETOR
Ref. Part
No. Number Description Qty Remarks
A5
TR2_TR2B
