HOW TO USE THIS MANUAL C O N T E N T S
This service manual describes the service procedures for the
Thumpstar Off Road Range GENERAL INFORMATION
Follow the Maintenance Schedule (Section 3) recommendations to FRAME/BODY PANELS/ EXHAUST SYSTEM
ensure that the vehicle is in peak operation condition and the
emission levels are within the standards set by the California Air MAINTENANCE
Resources Board.
LUBRICATION SYSTEM
Performing the first scheduled maintenance is very important. It
compensates for the initial wear that occurs during the break-in period FUEL SYSTEM
Sections 1 and 3 apply to the whole motorcycle. Section 2 illustrates ENGINE REMOVAL/ INSTALLATION
what may be required to perform service described in the following
sections. Section 4 through 14 describe parts of the motorcycle, CYLINDER HEAD/ VALVES
grouped according to location.
CYLINDER/PISTON
Find the section you want on this page, then turn to the table of contents
on the first page of the section. CLUTCH/GEARSHIFT LINKAGE
Most sections have an assembly or system illustration , service ALTERNATOR/CAM CHAIN TENSIONER
information and troubleshooting for the section.
CRANKSHAFT/TRANSMISSION/KICKSTARTER
The subsequent pages give detailed procedures. If you don't know
the source of the trouble, go to section 16, troubleshooting CHASSIS FRONT WHEEL/BRAKE/SUSPENSION/STEERING
ALL INFORMATION, ILLUSTRATIONS, DIRECTIONS AND SPECIFICATION REAR WHEEL/BRAKE/SUSPENSION
INCLUDED IN THIS PUBLICATION ARE BASED ON THE LATEST PRODUCT
INFORMATION AVAILABLE AT THE TIME OF APPROVAL FOR PRINTING. ELECTRICAL IGNITION SYSTEM
THUMPSTAR MOTOR INC RESERVES THE RIGHT TO MAKE CHANGES
AT ANY TIME WITHOUT NOTICE AND WITHOUT INCURRING ANY WIRING DIAGRAM
OBLIGATION WHATEVER. NO PART OF THIS PUBLICATION MAY BE
REPRODUCED WITHOUT WRITTEN PERMISSION. THIS MANUAL IS WRITTEN TROUBLESHOOTING
FOR PERSONS WHO HAVE ACQUIRED BASIC KNOWLEDGE OF
MAINTENANCE ON MANUFACTURER'S MOTORCYCLES, INDEX
MOTOR SCOOTERS OR ATVS. SERVICE PUBLICATION OFFICE
IMPORTANT SAFETY NOTICE
Detailed descriptions of standard workshop procedures, safety principles and service operations are not
included. It is important to note that this manual contains some warnings and cautions against some specific
ENGINE
AND
DRIVE
TRAIN
SYMBOLS
The symbols used through out this manual show specific service procedures. If supplementary
information is required it would be explained specifically in
the text without the use of the symbols.
Use molybdenum disulfide grease (containing more than 3% molybdenum disulfide,NLG#2
Example: Molykote BR-2 plus manufactured by Dow Corning, U. S. A.
Multi-purpose M-2 manufactured by Mitsubishi oil, Japan
Use molybdenum disulfide paste (containing more than 40% molybdenum disulfide, NLG#2
or equivalent).
Example: Molykote G-N paste manufactured by Dow Corning, U.S.A.
Manufacture Moly 610 (U.S.A. only)
Rocol ASP manufactured by Rocol Limited, U.K.
Rocol Paste manufactured by Sumico Lubricant, Japan.
1. GENERAL INFORMATION
GENERAL SAFETY----------------------------1-1 TOOLS-----------------------------------------------------1-12
SERVICE RULES-------------------------------1-2 LUBRICATION & SEAL POINTS----------------------1-13
MODEL IDENTIFICATION--------------------1-3 CABLE &HARNESS ROUTING------------------------1-14
SPECIFICATIONS------------------------------1-4 EMISSION CONTROL SYSTEMS--------------------1-17
TORQUE VALUES-----------------------------1-10
GENERAL SAFETY
CARBON MONOXIDE HOT COMPONENTS
If the engine must be running to do some work ,make
sure the area is well ventilated. Never run the engine WARNING
in an enclosed area. Engine and exhaust system parts become very hot and
remain hot for some time after the engine is run. Wear
WARNING insulated gloves or wait until the engine and exhaust system
The exhaust contains poisonous carbon monoxide have cooled before handing these parts.
gas that can cause loss of consciousness and may
lead to death. USED ENGINE OIL
Run the engine in an open area or with an exhaust WARNING
evacuation system in an enclosed area. Used engine oil may cause skin cancer if repeatedly left
in contact with the skin for prolonged periods. Although
GASOLINE this is unlikely unless you handle used oil on a daily
Work in a well ventilated area. Keep cigarettes, flames basis, it is still advisable to thoroughly wash your hands
or sparks away from the work area or where gasoline with soap and water as soon as possible after handling
is stored. used oil. KEEP OUT OF REACH OF CHILDREN.
WARNING
Gasoline is extremely flammable and is explosive
under certain conditions. KEEP OUT OF REACH OF
CHILDREN.
or equivalent)
Use silicone grease.
Apply a locking agent. Use a middle strength locking agent unless otherwise specified.
Use Fork or Suspension Fluid.
Apply sealant.
Use DOT 4 brake fluid. Use the recommended brake fluid unless otherwise specified.
Replace the part (s) with new one (s) before assembly.
Use recommended engine oil, unless otherwise specified.
Use molybdenum oil solution (mixture of the engine oil and molybdenum grease in a ratio of 1:1)
Use multi-purpose grease (Lithium based multi-purpose grease NLG1#2 or equivalent).
GENERAL INFORMATION
SERVICE RULES
1.Use genuine Manufacturer's recommended parts and lubricants or their equivalent. Parts
that do not meet Manufacturer's design specifications may cause damage to the motorcycle.
2.Use the special tools designed for this product to avoid damage and incorrect assembly.
3.Use only metric tools when servicing the motorcycle. Metric bolts, nuts and screws.
4.Install new gaskets, O-ring ,cotter pins ,and lock plates when reassembling.
5.When tightening bolts or nuts, begin with the larger diameter or inner bolt first. Then tighten to the specified torque
diagonally in incremental steps unless a particular sequence is specified.
6.Clean parts in cleaning solvent upon disassembly. Lubricate any sliding surfaces before reassembly.
7.After reassembly, check all parts for proper installation and operation.
8.Route all electrical wires as shown on pages 1-14 through 1-16, Cable and Harness Routing.
GENERAL
26
。
Trochoid
Foam Style
Oiled polyurethane foam
FRAME
21kg (46.3lbs)
Assembled type
Forced pressure and wet sump
Cylinder arrangement
125cc 52.4mmx57mm
90cc= 86ml 110cc=107ml 125cc=122.7ml
90cc 9.0 1 110cc 9.7.1 125cc 9.0.1
Chain driven OHC with rocker arm
7.5
。
BTDC
12.5
。
ABDC
22.5
。
BBDC
2.5
。
BTDC
Oil pump type
Air filtration
Crankshaft type
Intake valve opens at 1mm
closes (0.04in)
closes
Lubrication system
3.0&(0.79 US gal, 0.66 lmp gal
0.9&(0.24 US gal, 0.20 lmp gal)
Bore and stroke 90cc 47mmx49.5mm 110cc 52.4mmx49.5mm
Front/Rear: C-183A-3
Internal expanding shoe
Internal expanding shoe
35mm(1.4 in)
Swingarm
Conventional type oil damper
2.50-10/12/14
2.50/2.75/3.00-10/12
Caster angle
Trail length
Fuel tank capacity
Fuel tank reserve capacity
Rear suspension
Rear damper
Front tyre size
Rear Tyre
Frame type Back bone
Front suspension Telescopic fork
Overall Length
Overall width
Overall height
Wheelbase
Seat height
Foot peg height
Ground clearance
Dry weight
700mm27.6 in)
ENGINE
Exhaust valve opens lift
Displacement
Compression ratio
Valve train
Engine dry weight
SPECIFICATIONS ITEM
1,430mm(71.0 in)
760mm(30.0 in)
950mm(37.4 in)
990mm(38.9in)
215mm(8.5 in)
240mm(9.4 in)
60 kg (180.8 lbs)

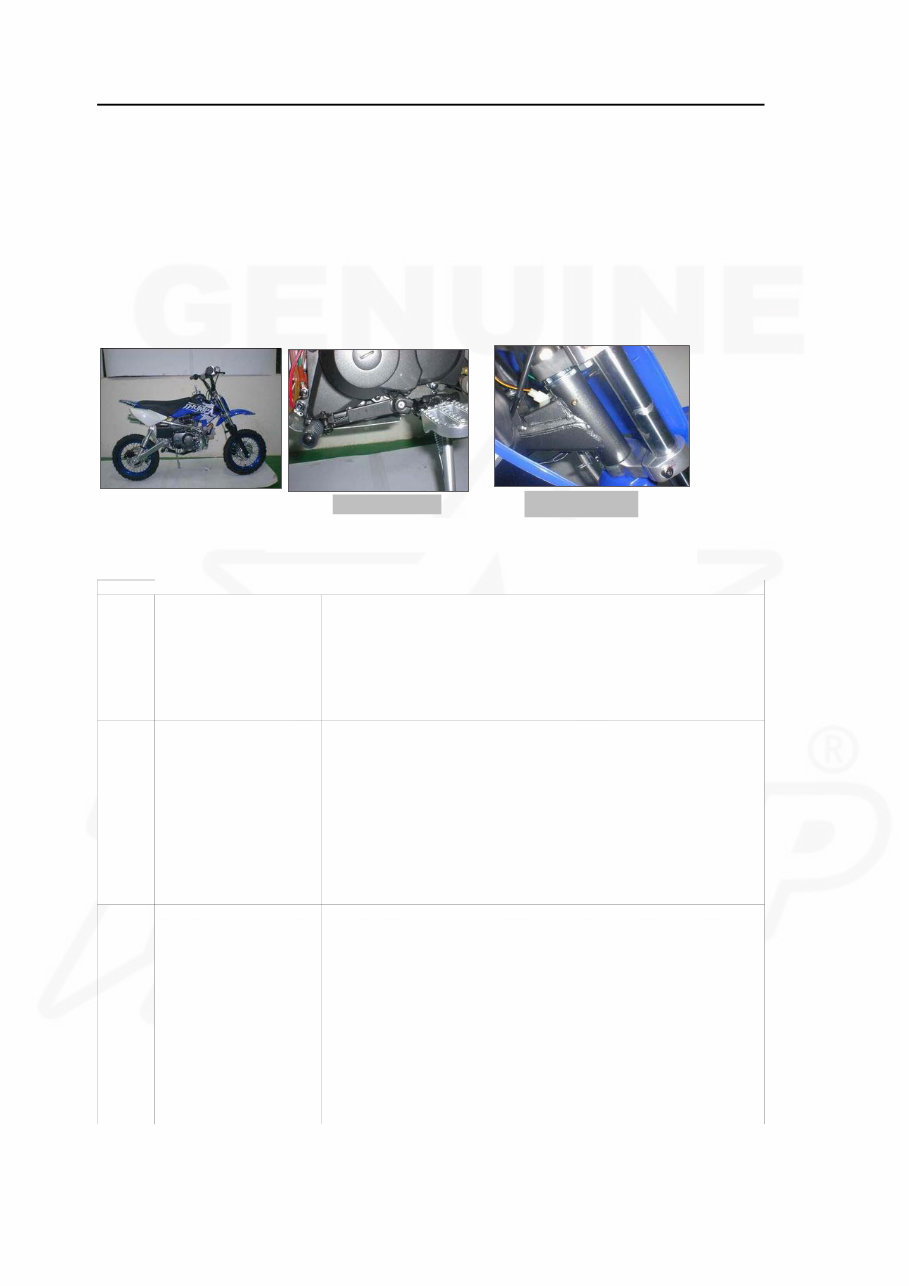

MODEL IDENTIFICATION
(2)The engine serial number is stamped
on the lower left of the crankcase.
ENGINE SERIAL
NUMBER
(3)The vehicle identification
number (VIN) is located on the
right side of the steering head.
VEHICLE
IDENTIFICATION
Clutch system
4-speed
Ignition system
Starting system
SERVICE LIMIT
At draining 0.6(0.6US qt, 0.5lmp qt) -------------------
At disassembly 0.8(0.8US qt, 0.7lmp qt) -------------------
GN4 4-stroke oil or equivalent Motor oil -------------------
APL service classification SF or SG
Viscosity: SAE 10W-30
Tip clearance 0.15(0.006) 0.12(0.005)
Body clearance 0.02-0.07(0.001-0.003) 0.12(0.005)
Side clearance 0.10-0.15(0.004-0.006) 0.20(0.008)
FUEL SYSTEM
ITEM
Carburetor identification number
Main jet
Jet needle clip positioning
Air screw initial opening
Float level
Idle speed
Throttle grip free play
Unit:mm(in)
ITEM SERVICE LIMIT
Cylinder compression 981-1, 177kpa (10.0-12.0kgf/cm
2
,
142-171jpsi)at 1,000 rpm
Cylinder head warpage 0.05(0.002)
Valve clearance IN 0.05±0.02(0.002±0.001) --------------------
Valve, Valve guide EX 0.05±0.02(0.002±0.001) --------------------
Valve stemO.D. IN 4.970-4.985(0.1957-0.1963) 4.92(0.194)
EX 4.955-4.970(0.1951-0.1957) 4.92(0.194)
Valve guide I.D IN/EX 5.000-5.012(0.1969-0.1973) 5.03(0.198)
IN 0.015-0.042(0.0006-0.0017) 0.08(0.003)
EX 0.030-0.057(0.0012-0.0022) 0.10(0.004)
Valve seat width IN/EX 1.0-1.3(0.04-0.05) 2.0(0.08)
Valve spring free length IN/EX 33.34(1.313) 31.8(1.25)
Rocker armRocker arm I.D. IN/EX 10.000-10.015(0.3937-0.3943) 10.10(0.398)
Rocker arm shaftO.D. IN/EX 9.978-9.987(0.3928-0.3932) 9.91(0.390)
IN 20.003-20.123(0.7875-0.7922) 19.66(0.774)
EX 19.994-20.114(0.7872-0.7919) 19.65(0.774)
Unit:mm(in)
SERVICE ITEM
Cylinder I.D. THUMPSTAR 47.05(1.8524)
THUMPSTAR 52.45(2.650)
Out of round 0.10(0.004)
Taper 0.10(0.004)
Warpage 0.05(0.002)
Piston mark direction "IN"mark facing toward the intake side -----------------
Piston, Piston O.D. 38.975-38.995(1.5344-1.5352) 38.90(1.531)
Piston O.D.measurement point 8mm(0.3in)from bottom of skirt -----------------
Piston pin bore I.D. 13.002-13.008(0.5119-0.5121) 13.06(0.514)
Piston pin O.D. 12.994-13.000(0.5116-0.5118) 12.98(0.511)
Piston-to-piston pin clearance 0.002-0.014(0.0001-0.0006) 0.08(0.003)
Piston ring-to-ring 0.015-0.050(0.0006-0.0020) 0.12(0.005)
Groove clearance Top Second
Piston ring end gap Top 0.05-0.015(0.002-0.006) 0.5(0.02)
Second 0.05-0.20(0.002-0.008) 0.5(0.02)
Oil(side rail) 0.3-0.9(0.01-0.04) 1.1(0.04)
Cylinder-to-piston clearance 0.010-0.040(0.0004-0.0016) 0.15(0.006)
Connecting rod small end I.D. 132.016-13.034(0.5124-0.5131) 13.08(0.515)
Connecting rod-to-piston pin clearance 0.016-0.040(0.0006-0.0016) 0.12(0.005)
Piston
rings
-------------------
STANDARD
-------------------
-------------------
-------------------
STANDARD
LUBRICATION SYSTEM
19mm(0.75in)
1,500±100rpm
2.0-6.0mm(1/16-1/4in)
ITEM
Oil pump rotor
STANDARD
1-1/2turns out
SPECIFICATIONS
VM22-38 VM16-486B
125cc= 95# #95=110cc #85=90cc
4th groove from top (Different in each country)
LUBRICATION SYSTEM
Engine oil capacity
Recommended
engine oil
CARBURETOR
DRIVE TRAIN
ELECTRICAL
Primary reduction
Final reduction
CDI (Capacitive Discharge lgnition)
Kickstarter and electric
Final reduction
Multi-plate, wet
Automatic centrifugal
4.059(69/17)
2.866(37/14)
1.706(36/11)
Clutch operation system
Transmission
SPECIFICATIONS
Carburetor type
Throttle bore
Piston valve
ITEM
Stem to guide clearance
Cam lobe height
GENERAL INFORMATION
CYLINDER HEAD/VALVES
ITEM
Camshaft
Unit:mm(in)
ITEM SERVICE LIMIT
Clutch disc thickness 2.52-2.68(0.099-0.106) 2.3(0.09)
3.32-3.48(0.131-0.137) 3.0(0.12)
Clutch plate warpage 0.20(0.008)
Centrifugal clutch spring free length 22.4(0.88) 19.4(0.76)
Primary drive gear I.D. 21.000-21.021(0.8268-0.8276) 21.05(0.829)
Clutch centre guide 16.988-17.006(0.6688-0.6695) 17.04(0.671)
20.930-20.950(0.8240-0.8248) 20.90(0.823)
Crankshaft O.D. at clutch centre guide 16.966-16.984(0.6680-0.6687) 16.90(0.665)
Unit:mm(in)
ITEM SERVICE LIMIT
Cam chain tensioner 11.94(0.470)
100(3.9)
CRANKSHAFT/TRANSMISSION/KICKSTARTER
ITEM SERVICE LIMIT
Crankshaft Side clearance 0.60(0.024)
Radial clearance 0.05(0.002)
Run out 0.10(0.004)
Gear I.D. M2 17.10(0.673)
C1 23.10(0.909)
C3 20.10(0.791)
Transmission Bushing O.D. C1 22.93(0.903)
Bushing I.D. C1 20.08(0.791)
Gear-to-bushing clearance C1 0.10(0.004)
Mainshaft O.D. M2 16.95(0.667)
Countershaft O.D. C1 19.94(0.785)
Gear-to-shaft clearance M2 0.10(0.004)
Gear bushing-to-shaft clear C1 0.10(0.004)
Shift fork I.D 34.14(1.344)
Claw thickness 4.60(0.181)
Shift drum O.D. 33.93(1.336)
Unit:mm(in)
FRONT WHEEL/BRAKE/SUSPENSION/STEERING
ITEM SERVICE LIMIT
Minimum tyre tread depth 3.0(0.12)
175kpa(1.75kgf/cm
2,
26.25psi)
Axle run out 0.20(0.008)
Wheel rim ru
2.0(0.08)
Brake 2.0(0.08)
Fork 373.5(14.70)
Unit:mm(in)
ITEM SERVICE LIMIT
Minimum tyre tread depth 3.0(0.12)
Cold tyre pressure 175kpa(1.75kgf/cm
2
,29.25psi) --------------------
Axle run out 0.20(0.008)
--------------------
Wheel rim run out Radial 2.0(0.08)
Drive chain Axial 2.0(0.08)
Brake Size/Link DlD420MBK1/88 --------------------
Slack 15-25(9/16-1) --------------------
Brake pedal free play 10-20(3/8-13/16) --------------------
ITEM
Spark plug Standard CR6HSA(NGK) U20FSR-U(DENSO)
For cold climate/below41oF/50C CR5HSA(NGK) U16FSR-U(DENSO)
For extended high speed riding CR7HSA(NGK) U22FSR-U(DENSO)
Spark plug gap
Ignition coil peak voltage
Ignition coil generator peak voltage
Alternator exciter coil peak voltage
Ignition timing ("F" mark)
0.7Vminimum
100Vminimum
15
.
BTDC at idle
--------------
SPECIFICATIONS
0.60-0.70mm(0.024-0.028in)
100Vminimum
STANDARD
--------------
--------------
--------------
376(14.8)
Radial
Axial
Brake lever free play
Spring free length
--------------
--------------
STANDARD
10-20(3/8-13/16)
--------------
4.86-4.94(0.191-0.194)
33.950-33.975(1.3366-1.3376)
19.959-19.980(0.7858-0.7866)
0.032-0.077(0.0013-0.0030)
0.020-0.062(0.008-0.0024)
34.075-34.100(1.3415-1.3425)
0.020-0.074(0.0008-0.0029)
16.966-16.984(0.6680-0.6687)
17.016-17.043(0.6699-0.6710)
0-0.012(0-0.0005)
23.020-23.053(0.9063-0.9076)
20.020-20.053(0.7882-0.7895)
22.979-23.000(0.9047-0.9055)
20.000-20.021(0.7874-0.7882)
----------------------
0.010-0.350(0.0004-0.0138)
111.3(4.38)
STANDARD
STANDARD
11.985-12.000(0.4718-0.4724)
B
I.D.
O.D.
STANDARD
Spring free length
Push rod O.D.
ALTERNATOR/CAM CHAIN TENSIONER
A
CLUTCH/GEARSHIFT LINKAGE
Cold tyre pressure
REAR WHEEL/BRAKE/SUSPENSION
STANDARD
TORQUE TORQUE
N.m(kgf:m,ibf.ft)
4(0.4,2.9)
5mm hex bolt and nut 5(0.5,3.6) 9(0.9,6.5)
6mm hex bolt and nut 10(1.0,7) 10(1.0,7)
8mm hex bolt and nut 22(2.2,16) 12(1.2,9)
10mm hex bolt and nu 34(3.5,25) 12(1.2,9)
12mm hex bolt and nu 54(5.5,40) 26(2.7,20
39(4.1,29)
Torque specifications listed below are for important fasteners.
Others should be tightened to standard torque values listed above.
NOTES:1.Apply oil to the threads.
2.Apply grease to the seating surface.
3.U-nut.
4.ALOC bolt; replace with a new one.
ENGINE
ITEM TORQUE
N.m(kgf.m,lbf.ft)
MAINTENANCE:
Spark plug 1 10 12(1.2,9)
Oil drain bolt 1 12 25(2.5,18)
Valve adjuster hole cap 2 30 12(1.2,9) NOTE1
Valve adjuster lock nut 2 5 9(0.9,6.5)
Clutch adjuster lock nut 1 8 12(1.2,9)
LUBRICATION SYSTEM:
Oil pump mounting screw 3 6 8(0.8,5.8)
Oil pump cover screw 3 5 5(0.5,3.6)
ENGINE REMOVAL/INSTALLATION;
Drive sprocket fixing plate bolt 2 6 12(1.2,9)
CYLINDER HEAD/VALVES;
Cylinder head nut 4 6 11(1.1,8)
Cylinder head right side cover bolt 2 6 10(1.0,7)
Cam sprocket bolt 2 5 9(0.9,6.5)
CYLINDER/PISTON:
Cam chain guide roller pin bolt 1 8 10(1.0,7)
CLUTCH/GEARSHIFT LINKAGE:
Clutch outer cover screw 4 5 5(0.5,3.6)
Clutch lock nut 1 14 42(4.3,31)
Clutch assembly screw 4 5 6(0.6,4.3)
Shift drum stopper arm bolt 1 6 13(1.3,9)
Shift return spring pin 1 8 29(3.0,22)
Gearshift cam bolt 1 6 17(1.7,12)
ALTERNATOR/CAM CHAIN TENSIONER
Flywheel nut 1 10 41(4.2,30)
Cam chain tensioner sealing bolt 1 14 23(2.3,17)
Cam chain tensioner pivot bolt 1 8 16(1.6,12)
CRANKSHAFT/TRANSMISSION/KICKSTARTER
Shift drum bolt 1 6 12(1.2,9)
REMARKS Q'TY THREAD DIAMETER (mm)
TORQUE VALUES
FASTENER TYPE N.m(kgf:m,ibf.ft)
ITEM TORQUE
N.m(kgf-m,lbf.ft)
FRAME/BODY PANELS/EXHAUST SYSTEM
Side stand pivot bolt 1 ---- Page 2-5
Muffler mounting bolt 1 26(2.7,20)
Exhaust pipe protector bolt 3 15(1.5,11)
Exhaust pipe cover screw 4 6(0.6,4.3)
MAINTENANCE:
Fuel valve mounting bolt 2 9(0.9,6.5)
FUEL SYSTEM:
Connecting tube band screw 1 1(0.1,0.7)
ENGINE REMOVAL/INSTALLATION:
Engine hanger nut 2 31(3.2,23)
FRONT WHEEL/BRAKE/SUSPENSION/STEERING:
Handlebar mounting nut 2 20(2.0,14)
Engine stop switch/throttle housing screw 2 3(0.3,2.2)
Brake lever pivot bolt 1 3(0.3,2.2)
Brake lever pivot nut 1 3(0.3,2.2)
Spoke nipple 28 2(0.2,1.4)
Front axle nut 1 12 47(4.8,35) NOTE 3
Front brake arm pinch bolt 1 5 6(0.6,4.3) NOTE 4
Fork protector bolt 4 6 10(1.0,7)
Steering stem nut 1 22 74(7.5,54)
Steering stem top thread 1 22 ---- Page 12-17
REAR WHEEL/BRAKE/SUSPENSION
Spoke nipple 28 2(0.2,1.4)
Rear axle nut 1 12 47(4.8,35) NOTE 3
Driven sprocket nut 4 8 32(3.3,24) NOTE 3
Rear brake arm pinch bolt 1 5 6(0.6,4.3) NOTE 4
Swingarm pivot nut 1 10 39(4.0,29) NOTE 2,3
Shock absorber mounting nut 2 10 34(3.5,25) NOTE 3
Drive chain slider nut 1 12(1.2,9) NOTE 3
IGNITION SYSTEM
Ignition coil mounting bolt 1 6(0.6,4.3)
TOOLS
NOTES:1.Equivalent commercially available in U.S.A
2.Not available in U.S.A
3.Alternative tool.
Carburetor float level gauge 5
Spoke wrench, 4.1x4.5mm NOTE1 3,12,13
Pin spanner 12
Valve adjusting wrench,8x9mm NOTE1 3
Valve adjuster B NOTE3 07908-KE90200(U.S.A.only3
Lock nut wrench,20x24mm 9
Extension bar NOTE1 9
Universal holder 10
Flywheel holder NOTE1 9
Attachment, 31x35mm 12,13
Attachment, 37x40mm 11,12
Pilot,12mm 12,13
Pilot,17mm 11
Bearing remover shaft NOTE1 12,13
Bearing remover head,12mm NOTE1 12,13
Drive 11,12,13
Valve spring compressor 7
Valve seat cutter NOTE1 7
Seat cutter,24mm(45
。
IN）
Seat cutter,20.5mm(45
。
EX）
Flat cutter,24mm(32
。
IN)
Flat cutter,21.5mm(32
。
EX)
Interior cutter,22mm(60
。
IN/EX)
Cutter holder,5mm
Flywheel puller NOTE2,3:07933-0010000 10
Valve guide driver,5.0mm 7
Ball race remover 12
Steering stem driver NOTE3:07946-MB00000 12
Valve spring compressor attachment 07946-GC4000A(U.S.A.only)
Valve guide reamer.5.0mm 7
NOTE3:07984-MA6000C 7
Peak voltage adaptor NOTE3:Peak voltage tester 14
5
6
BC2.3
TOOL NUMBER REMARKS REF.SEC
07401-0010000
07701-0020100
07702-0020001
6
4
8
5
BC2.3
8
5
5
5
REMARKS
FRAME
THREAD DIAMETER (mm)
QTY
10
8
6
07708-0030100
07708-0030400
07716-0020100
07716-0020500
07725-0030000
07725-0040000
07746-0010100
07746-0010200
07746-0040200
07746-0040400
07746-0050100
07746-0050300
07749-0010000
07757-0010000
07780-0010600
07780-0011000
07780-0012500
07780-0012800
07780-0014202
07984-MA60001
07781-0010400
07933-GE0000
07948-MA60000
07944-1150001
DESCRIPTION
07946-GC40000
07959-KM30101
07HGJ-0020100
LUBRICATION AND SEAL POINTS
Cylinder bore surface
Valve adjuster hole cap threads
Connecting rod small end bearing
Connecting rod small end inner surface
Piston outer surface, piston pin hole and ring grooves
Piston pin outer surface
Valve stem sliding surface
Camshaft lobes
Cam chain
Cam chain guide roller inner surface
Rocker arm inner and slipper surfaces
Cam chain tensioner push rod(inside)
Oil pump rotors
Clutch centre guide (whole surfaces)
Clutch discs
Primary drive gear teeth and inner surface
Primary driven gear teeth
Mainshaft sliding surface
Countershaft sliding surface
Transmission gear sliding surface, gear teeth
and shifter groove
Shift drum outer surface
Kickstarter spindle sliding surface
Other rotating and sliding area
Each bearing rotating area
Each oil seal lips
Each O-ring
FRAME
REMARKS
Air cleaner housing cover mating groove
Throttle grip pipe flange
Steering head bearing and race sliding surface
Wheel hub dust seal lips
Wheel bearing cavities
Brake panel anchor pin sliding surface
Brake cam spindle and sliding surfaces
Brake pedal pivot
Fork dust seal lips
Fork slider outer surface(slider guide sliding surface) Apply5-6g
Fork slider guide outer groove Apply5-6g
Fork spring whole surface Pack with 14g
Swingarm pivot nut seating surface
Side stand pivot and sliding surface
Brake cam dust seal
Throttle cable outer inside
Brake cable outer inside
Handlebar grip rubber inside
Air cleaner connecting tube-housing mating area
REMARKS
Engine oil
Pour 1-2cm
3
Fill with 1-2cm
3
(page 10-6)
Fill with 0.5-1cm
3
Multi-purpose grease
MATERIAL
MATERIAL
Cable lubricant
MANUFACTURE
bond A or equivalent
LOCATION
LOCATION
Engine oil
ENGINE

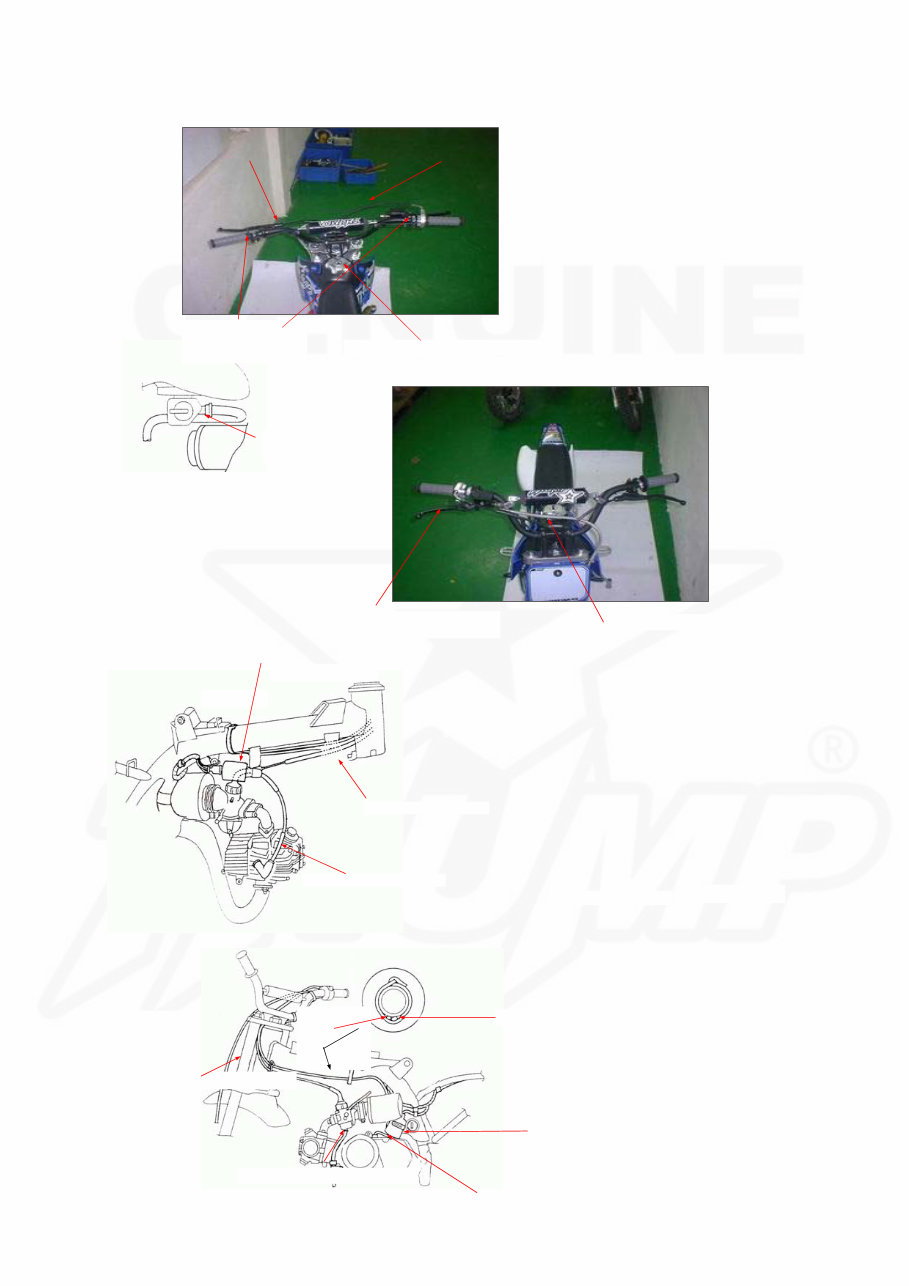

CABLE & HARNESS ROUTING
BRAKE CABLE
THROTTLE CABLE
FUEL TANK BREATHER TUBE
ENGINE STOP SWITCH
WIRE
FUEL TUBE
THROTTLE CABLE
BRAKE CABLE
IGNITION COIL
THROTTLE CABLE
SPARK PLUG WIRE
ENGINE STOP SWITCH WIRE
IGNITION
SWITCH
WIRE
THROTTLE CABLE
ALTERNATOR WIRE
CARBURETOR DRAIN TUBE
CLAMP
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
Thumpstar Thump Off Road Pit Bike 90cc 110cc 125cc Complete Workshop Service Repair Manual
Viewed 86 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
Thank you for considering this comprehensive Workshop Service Repair Manual for the Thumpstar Thump Off Road Pit Bike 90cc, 110cc, and 125cc models.
This manual is an invaluable resource covering every service and repair procedure necessary, enabling you to save significantly on repair costs. It provides easy-to-follow, step-by-step instructions accompanied by illustrative pictures, making any service or repair job manageable.
Upon acquisition, this manual becomes your perpetual asset, allowing you to print individual pages, chapters, or the entire document. Additionally, you can conveniently access it on your tablet or smartphone.
Models Covered:
- All Models/Engines/Trim/Transmissions Types
Contents:
- This high-quality manual encompasses all repair procedures from A to Z, ensuring comprehensive coverage of every repair and service procedure.
Computer Requirements:
- This downloadable manual is compatible with all PC & MAC Computers, tablets, and mobile phones. It only requires Adobe Reader, which is typically pre-installed on most computers or can be obtained for free.
Instant Delivery:
- Upon payment confirmation via Visa, MasterCard, or PayPal, the manual will be promptly emailed to the address provided during checkout.
Customer satisfaction is guaranteed with this Workshop Service Repair Manual, catering to the needs of professional mechanics and DIY enthusiasts alike.
