KYMCO VENOX 250 Parts Manual Catalog 2008 Onwards

RA50AF(US)：AUG/22/’07 光陽機車 KYMCO 光陽機車 KYMCO 光陽機車 KYMCO

前言 ●本零件目錄適用於 RA50AF(US) 機種，訂購零件時，請參照本冊。 ●本冊之配色表僅供參考，若與實車不符之處，以實車為準。 ●販賣記號(Sales mark)： 1、註明 ★★ 記號，表示訂購該零件時，請參照機車相片及配色表，並請在基本零件號碼最後加上色碼。 ●本冊付梓印刷倉促，倘有錯誤或遺漏之處，敬請不吝賜教指正。 ABOUT THIS PARTS LIST ●This parts list is compiled all service parts for model RA50AF(US)。 ●Any difference between color chart and motorcycle will be revised according to motorcycle。 ●The sales mark： 1、marking 〞★★〝 must add color code in the end before ordering parts。 ●When modification or additions to this parts list are made a revised edition at an appropriate time。 -1-

目次 ●前言 ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1 ●RA50AF(US)配色表 ‥‥‥‥‥‥‥‥5 ●引擎分組圖 ‥‥‥‥‥‥‥‥‥‥‥‥‥7 ●車架分組圖 ‥‥‥‥‥‥‥‥‥‥‥‥‥9 ●引擎零件號碼表‥‥‥‥‥‥‥‥‥‥‥13 ●車架零件號碼表‥‥‥‥‥‥‥‥‥‥‥67 ●零件號碼索引 ‥‥‥‥‥‥‥‥‥‥‥159 CONTENTS ●ABOUT THIS PARTS LIST‥‥‥‥‥‥‥1 ●COLOR CHART OF RA50AF(US) ‥‥‥5 ●CONTENTS-ENGINE GROUP ‥‥‥‥‥7 ●CONTENTS-FRAME GROUP ‥‥‥‥‥9 ●ENGINE PARTS LIST ‥‥‥‥‥‥‥‥13 ●FRAME PARTS LIST ‥‥‥‥‥‥‥‥67 ●PARTS NO. INDEX ‥‥‥‥‥‥‥‥159 -3-

機種名稱 (MODEL) RA50AF(US) COLOR CHART 相片號碼 (PHOTO NO) NO.1 NO.2 NO.3 NO.4 NO.5 NO.6 NO.7 主體色 (BASIC COLOR) BG055CA NH232MA RR164MA PP301MA RR132CA PB184PA YR108SA 色碼 (CODE) Deep Green Metallic Deep Silver Metallic Diamond Red Dark Purple Dark Red Black Blue Yellow 項次 NO 色別零件名稱(PARTS NAME) 基零件號碼(PARTS NO) 版數(VERSION) 墨綠深銀灰寶石紅深紫暗紅黑藍黃 1 FENDER FR 61100-KED9-900 1 V3P NZP RDP PGP R7P BJP Y5P 2 COVER BODY 83600-KED9-900 7 V3P NZP RDP PGP R7P BJP Y5P 3 COVER R BODY 83520-KED9-900 8 V3P NZP RDP PGP R7P BJP Y5P 4 COVER L BODY 83620-KED9-900 8 V3P NZP RDP PGP R7P BJP Y5P 5 TANK COMP FUEL 17500-KED9-305 0 V3S NZS RDS PGS R7S BJS Y5S 6 BODY COMP FRAME 50100-KED9-M30 5 V3S NZS RDS PGS R7S BJS N1S 7 PLATE R PIVOT COVER 50300-KED9-900 3 V3S NZS RDS PGS R7S BJS N1S 8 PLATE L PIVOT COVER 50310-KED9-900 3 V3S NZS RDS PGS R7S BJS N1S 9 FORK COMP RR 52110-KED9-900 7 V3S NZS RDS PGS R7S BJS N1S 10 FIN B COMP 12228-KED9-900 3 NJA NJA NJA NJA NJA NJA NJA 11 FIN C COMP 12229-KED9-900 2 NJA NJA NJA NJA NJA NJA NJA 12 FIN D COMP 12230-KED9-900 2 NJA NJA NJA NJA NJA NJA NJA 13 FORK ASSY R FR 51400-KED9-900 6 NJA NJA NJA NJA NJA NJA NJA 14 FORK ASSY L FR 51500-KED9-900 6 NJA NJA NJA NJA NJA NJA NJA 15 CLAIPER ASSY FR 45200-KED9-900 2 NJA NJA NJA NJA NJA NJA NJA 16 PLANEL ASSY RR BRK 43100-KED9-900 5 NJA NJA NJA NJA NJA NJA NJA 17 STAY R HEAD LIGHT 51601-KED9-900 5 NJA NJA NJA NJA NJA NJA NJA 18 STAY L HEAD LIGHT 51602-KED9-900 5 NJA NJA NJA NJA NJA NJA NJA 19 WHEEL SET RR 42600-KED9-305 0 NJA NJA NJA NJA NJA NJA NJA 20 WHEEL SET FR 44600-KED9-305 0 NJA NJA NJA NJA NJA NJA NJA 21 LEVER ASSY R HANDLE 53175-KKA8-900 0 M3A M3A M3A M3A M3A M3A M3A 22 LEVER ASSY L HANDLE 53178-KKA8-900 0 M3A M3A M3A M3A M3A M3A M3A 23 MIRROR ASSY R BACK 88110-KHC6-C00 0 F1S F1S F1S F1S F1S F1S F1S 24 MIRROR ASSY L BACK 88120-KHC6-C00 0 F1S F1S F1S F1S F1S F1S F1S 25 SEAT COMP 77200-KED9-900 4 T01 T01 T01 T01 T01 T01 T01 26 EMB R FUEL TANK ASSY 8622A-KED9-900 0 T01 T01 T01 T01 T01 T01 T01 27 EMB L FUEL TANK ASSY 8624A-KED9-900 0 T01 T01 T01 T01 T01 T01 T01 28 MARK UP COWL BRIDGE 87129-KFW6-960 4 T03 T03 T03 T03 T03 T03 T03 29 MARK TIRE CAUTION 87505-KED9-E00 0 T01 T01 T01 T01 T01 T01 T01 30 MARK EVAPORATIVE E/M 87122-KED9-M31 1 T01 T01 T01 T01 T01 T01 T01 31 MARK OF CANISTER L/O 87507-KED9-M31 1 T01 T01 T01 T01 T01 T01 T01 32 LABEL OIL CAP 87541-KED9-M30 0 T01 T01 T01 T01 T01 T01 T01 33 LABEL FUEL FILL CAUTION 87543-KED9-M30 0 T01 T01 T01 T01 T01 T01 T01 34 MARK MIT 87571-KBE2-A40 1 T01 T01 T01 T01 T01 T01 T02 35 36 37 38 39 40 41 42 43 44 45 46 生產日期 (DATE OF STARTING-SALES) 2007.6.27 2007.6.27 2007.6.27 2003.12.17 停產日期 (DATE OF ENDING-SALES) -5-

CONTENTS-ENGINE GROUP E1 Cylinder Head Cover E2 Cylinder Head E3 Valve E4 Chain E5 Right Crankcase Cover E6 Clutch E7 Starting Clutch Outer E8 Left Crankcase Cover E9 Water Pump -7-

CONTENTS-ENGINE GROUP E10 Starter Motor E11 Oil Pump E12 Crank Case E13 Crankshaft●Piston E14 Transmission E15 Gearshift Drum E16 Coolant Tube E17 Carburetor -8-

CONTENTS-FRAME GROUP F1 Head Light F2 Speedometer F3 Cable●Switch●Mirror F4 Master Cylinder F5 Handle Steering F6 Steering Stem F7 Front Fender F8 Front Fork F9 Front Caliper -9-

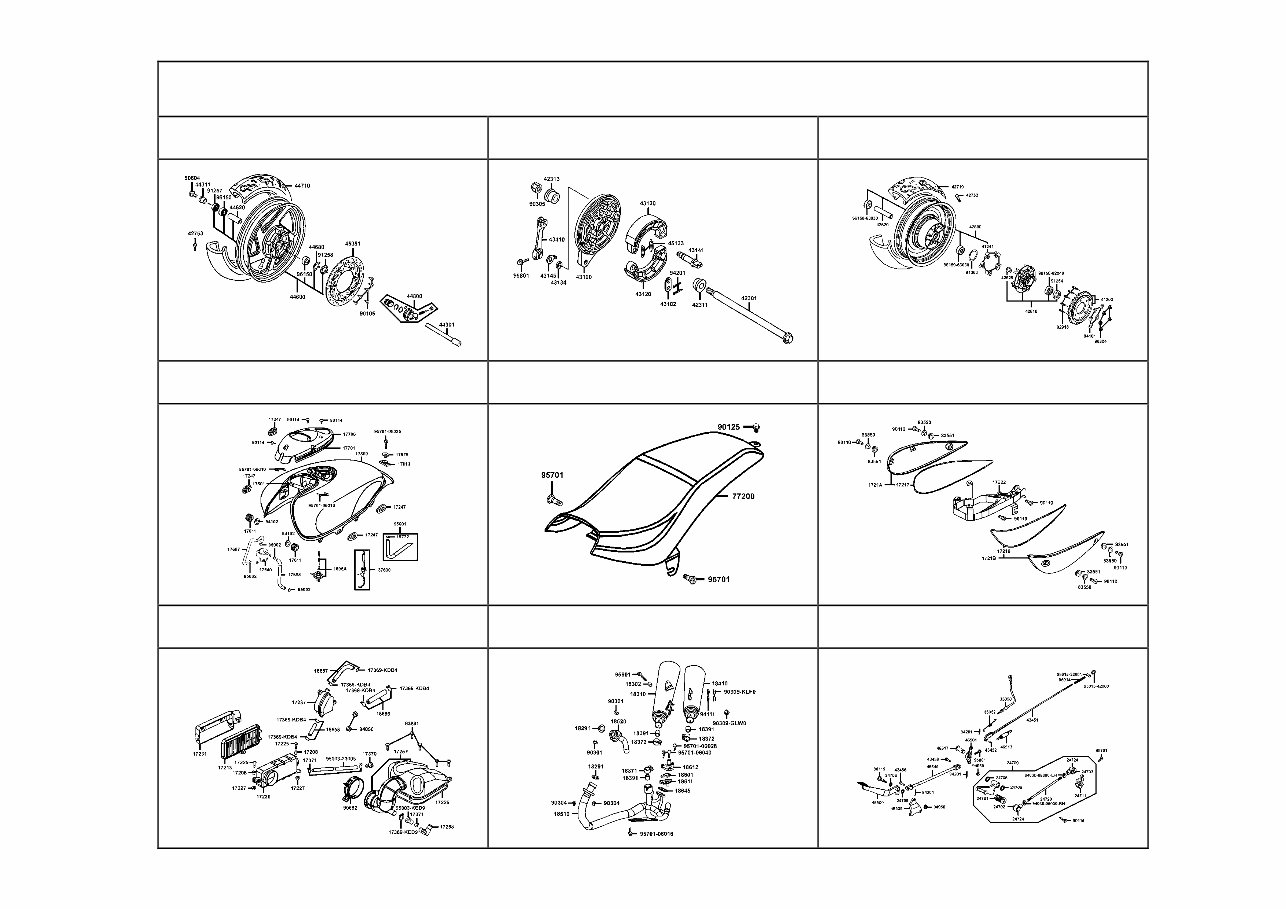

CONTENTS-FRAME GROUP F10 Front Wheel F11 Rear Brake Panel F12 Rear Wheel F13 Fuel Tank F14 Seat F15 Front Cover F16 Air Cleaner F17 Exhaust Muffler F18 Pedal -10-

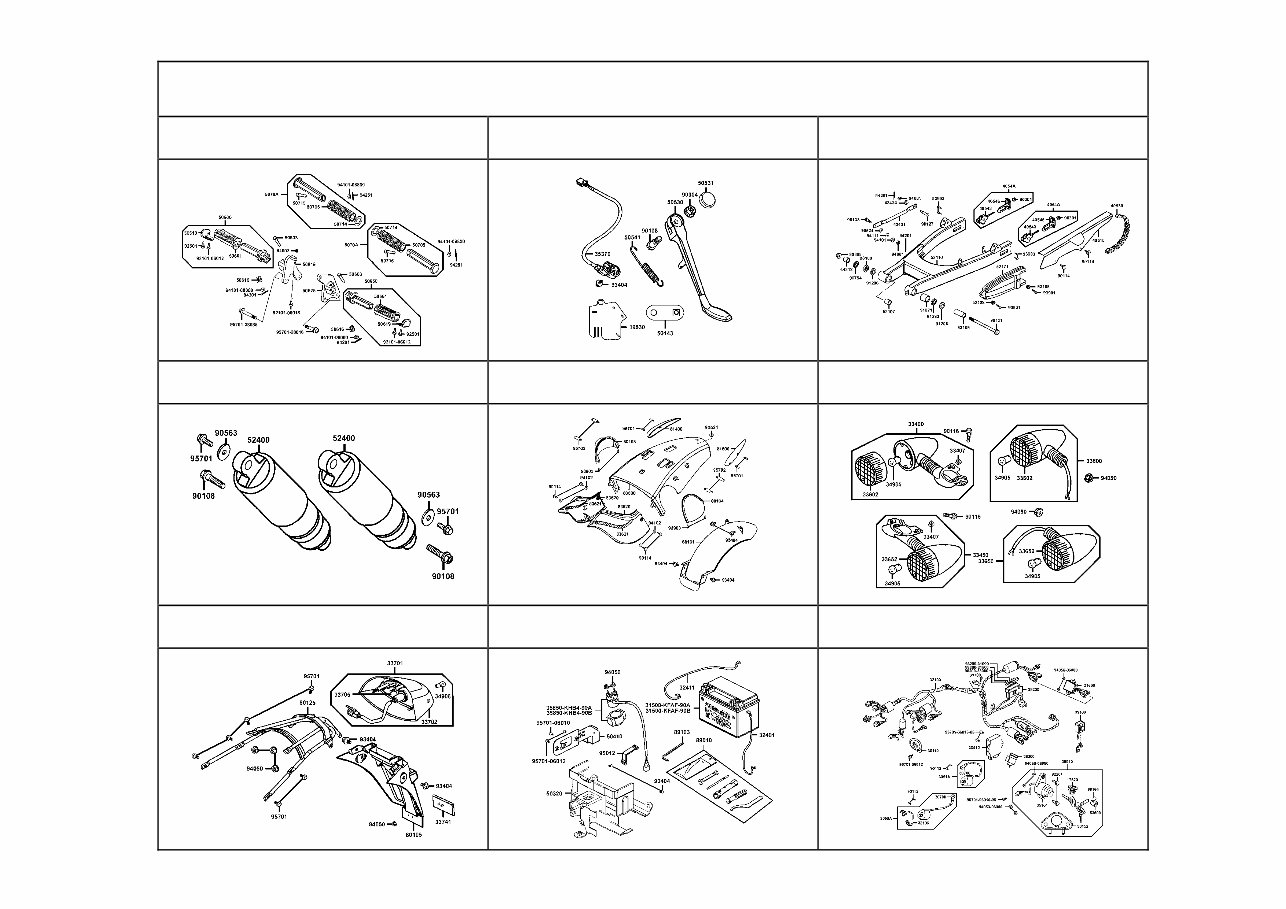

CONTENTS-FRAME GROUP F19 Step F20 Side Stand F21 Rear Fork●Chain Cover F22 Rear Cushion F23 Rear Fender F24 Winker F25 Tail Light F26 Battery F27 Harness Wire -11-

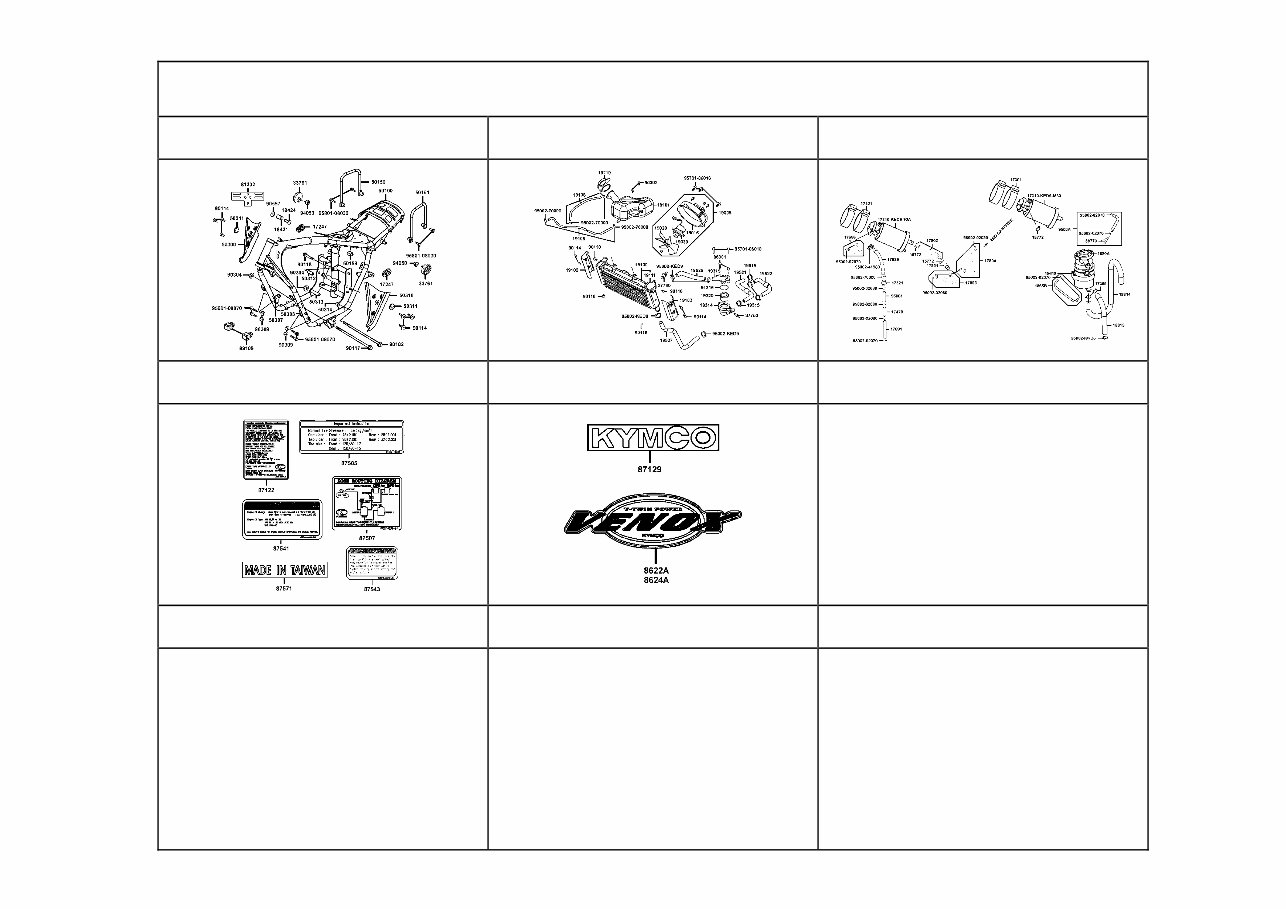

CONTENTS-FRAME GROUP F28 Frame Body F29 Radiator F30 Air Clean Second F31 Caution Label F32 Emblem●Stripe -12-
