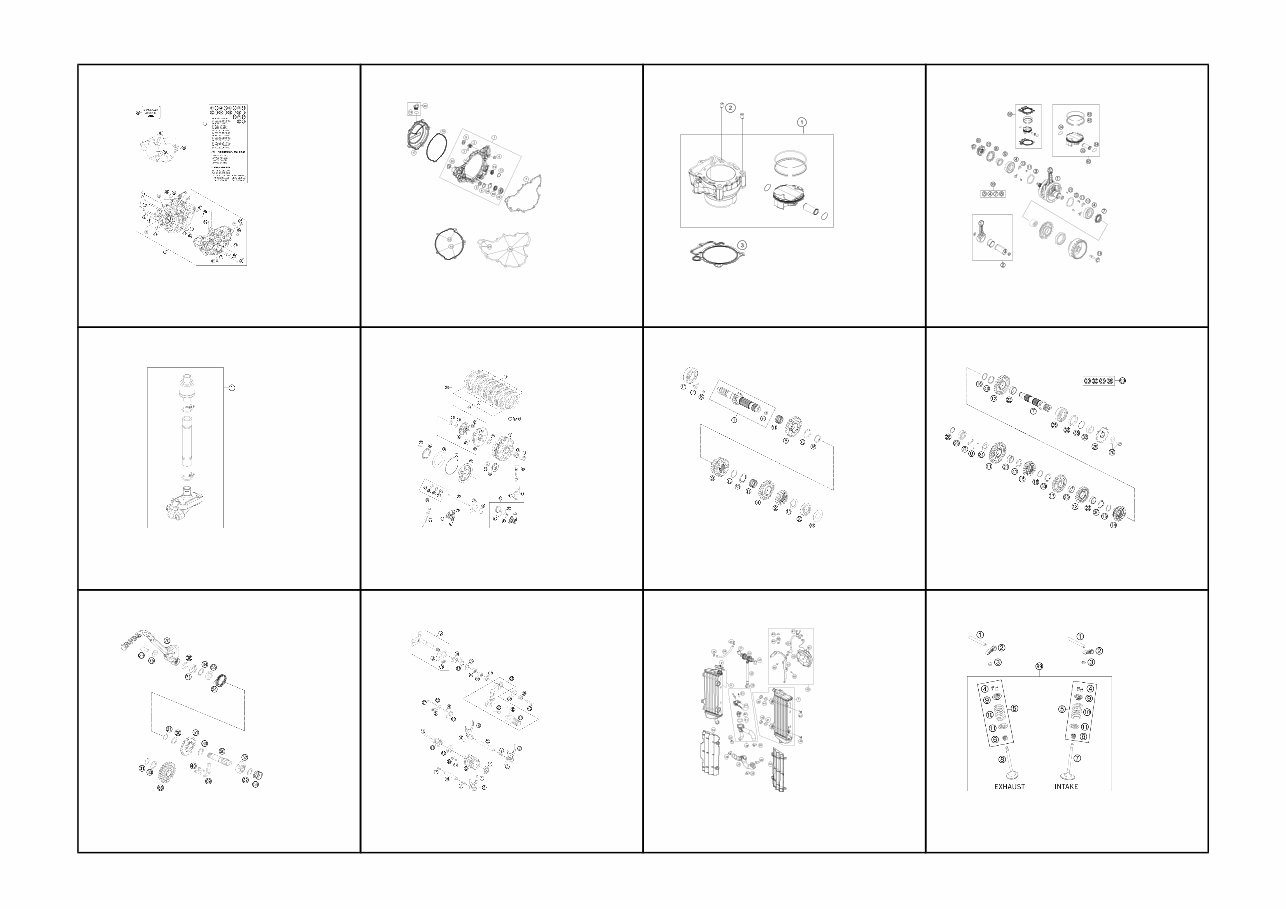

ENGINE // 1
ENGINE CASE
3
CLUTCH COVER
4
CYLINDER
5
CRANKSHAFT, PISTON
6
SECONDARY AIR SYSTEM SAS
7
CLUTCH
8
TRANSMISSION I - MAIN SHAFT
10
TRANSMISSION II - COUNTERSHAFT
11
KICK STARTER
12
SHIFTING MECHANISM
13
COOLING SYSTEM
14
VALVE DRIVE
15
350 EXC-F USA 2014 CONTENT
CONTENT
All information contained is without obligation. KTM-Sportmotorcycle AG particularly reserves the right to
modify any equipment, technical specifications, prices, colors, shapes, materials, services, service work,
constructions, equipment and the like so as to adapt them to local conditions or to cancel any of the above
items, all without previous announcement and without giving reasons. KTM may stop manufacturing certain
models without previous notice. KTM shall not be held liable for any deviations of availability and/or ability to
deliver, illustrations, descriptions, printing and/or other errors. The illustrated models partly contain extra
equipment, which is not applied to standard models.
© by KTM-SPORTMOTORCYCLE AG, Mattighofen AUSTRIA; All rights reserved; Reprint, also in extracts, with
written allowance of KTMSPORTMOTORCYCLE AG, Mattighofen only.

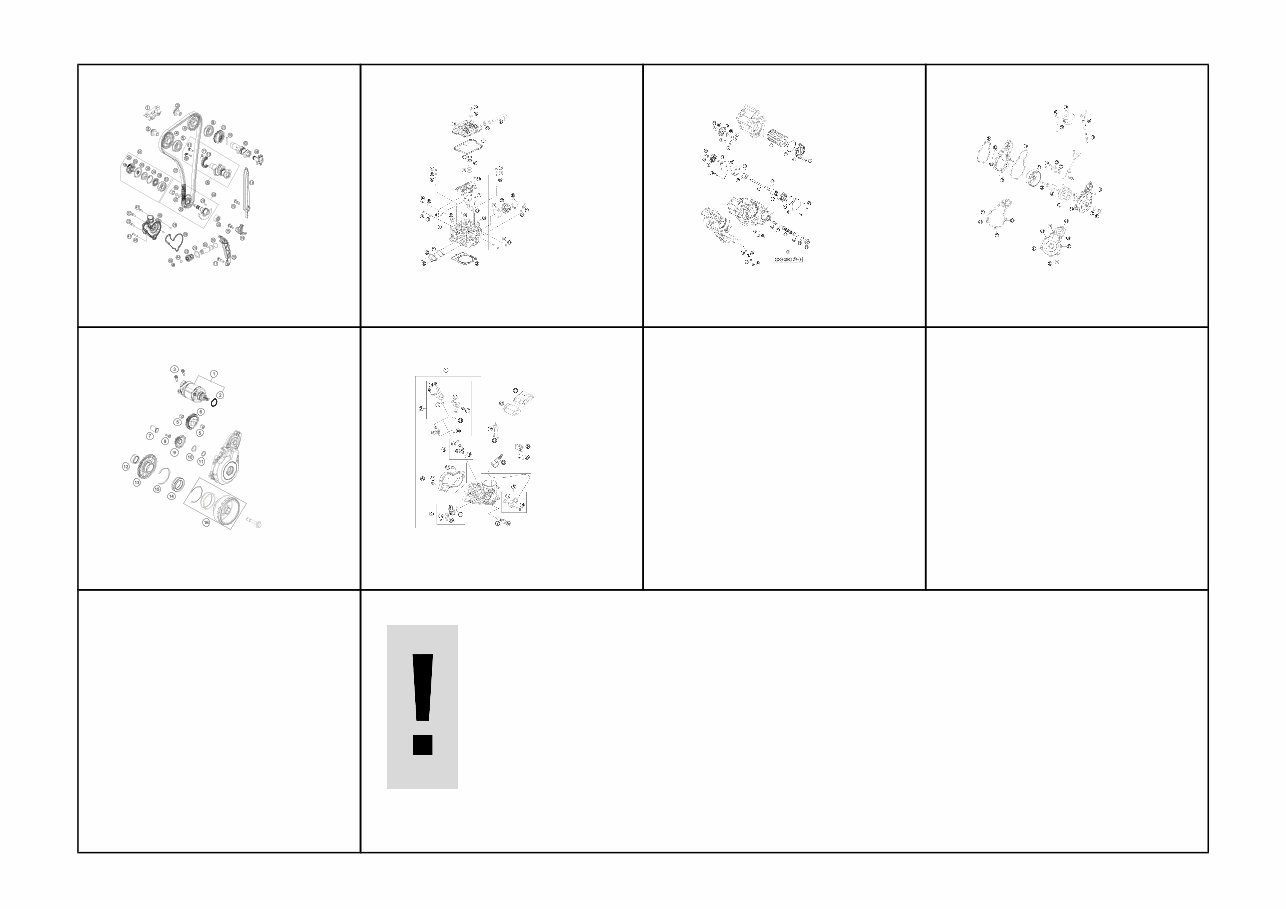

ENGINE // 2
TIMING DRIVE
16
CYLINDER HEAD
18
LUBRICATING SYSTEM
19
IGNITION SYSTEM
20
ELECTRO STARTER
21
THROTTLE BODY
22
350 EXC-F USA 2014
X ON DEMAND * NEW PART C147753010

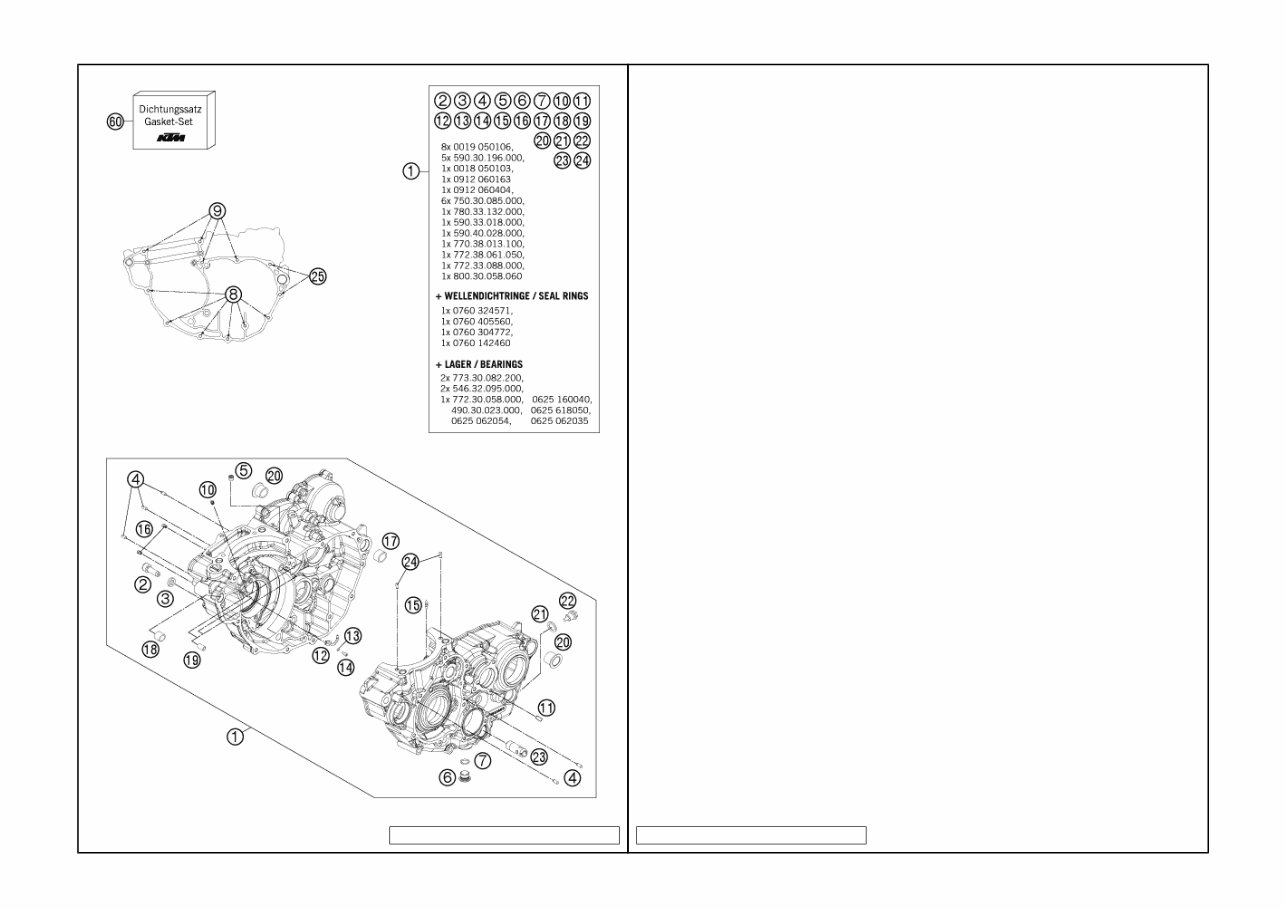

ENGINE // 3
POS PARTNUMBER PARTNAME PIECE
1* 77730000044 ENGINE CASE CPL. 1
2 58030080000 LOCATING SCREW M8 L=23 1
3 58030081000 CU-SEAL RING 8 X 14 X 3 1
4 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 5
5 0906100100 PLUG DIN0906-M10X1 1
6 78036081000 HOLDING BOLT M14X1,5 1
7 0770110015 O-RING 1,5x11 SILICON 1
8 0025060556 HH COLLAR SCREW M6X55 TX30 6
9 0025060656 HH COLLAR SCREW M6X65 TX30 4
10 80030058060 OIL JET "60" M4 1
11 77230066000 THROTTLE M5X10X0,5 1
12* 77830064050 OIL JET CURVED " 50 " 1
13 0770035020 O-RING 3,5X2,00 NBR 1
14 0912040103 AH.SCREW DIN0912-M 4X10 1
15 60030063050 OIL JET 50 05 1
16 59030058000 JET 100 BING(44-031/180) M4 2
17 59030024000 DOWEL 17 X 19 X 12 1
18 54630027000 DOWEL BUSHING 13,8X11X12 1
19 59030023000 DOWEL 6X8X11,5 3
20 75030010100 CASE BUSH 2
21 58038022000 CU-SEAL RING DIN7603-12X18X1,5 1
22 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 1
23 77038022000 OIL INTAKEPIPE 1
24 0402050080 CYLINDER ROLLER ZRO 5X8 2
25 0025060856 HH COLLAR SCREW M6X85 TX30 2
60 77230099000 GASKET SET 350 SX-F 1
137753010
350 EXC-F USA 2014 ENGINE CASE
X ON DEMAND * NEW PART C147753020

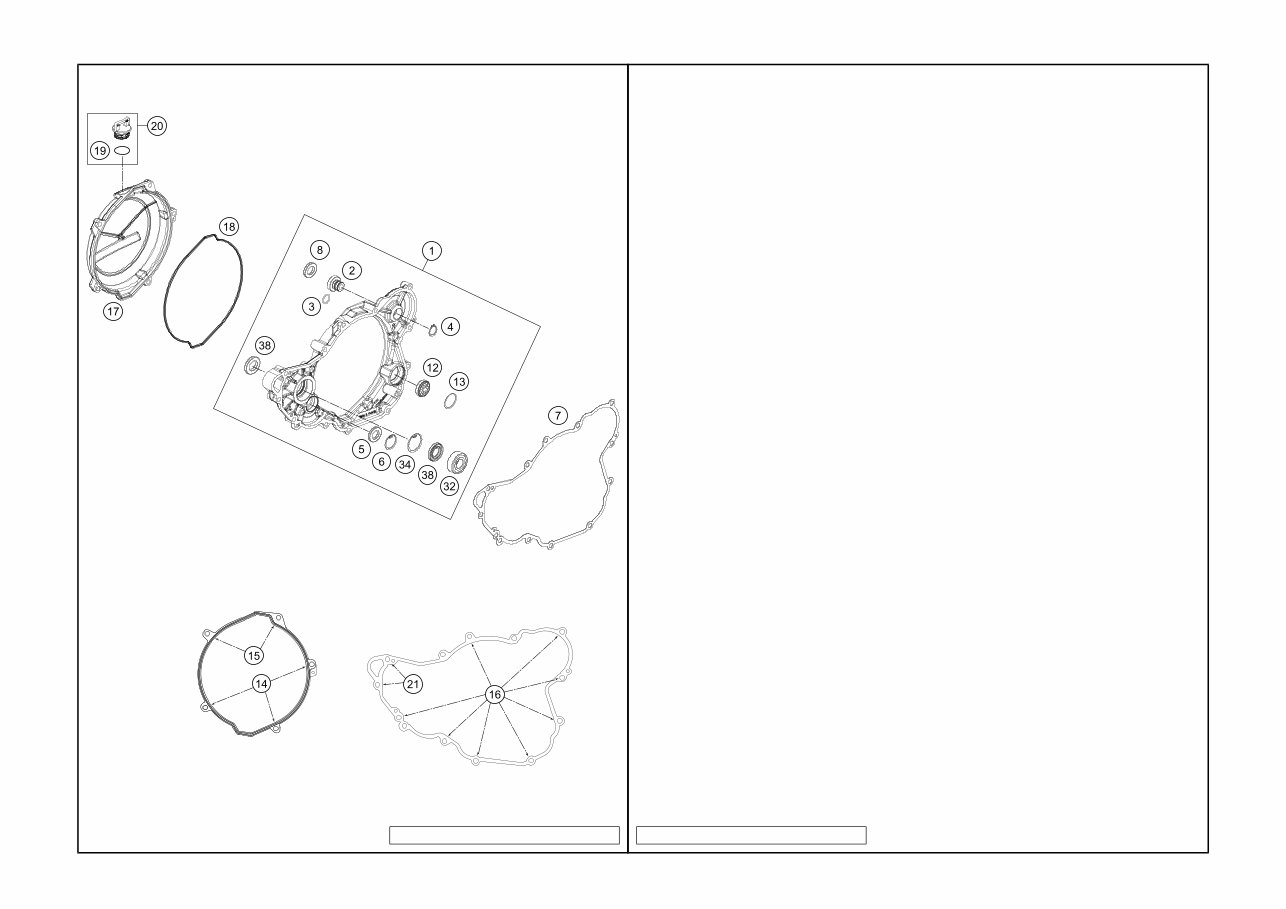

ENGINE // 4
POS PARTNUMBER PARTNAME PIECE
1* 77230001144 CLUTCH COVER CPL. 1
2 77230001010 PLUG STARTING LEVER 1
3 0770140200 O-RING 14,00X2,00 1
4 0471170010 CIRCLIP DIN0471-17X1 1
5* 0760142450 SHAFT SEAL RING 14X24X5 VITON 1
6* 0472024120 CIRCLIP DIN0472-24X1.2 1
7 77230025000 CLUTCH COVER GASKET 1
8 0760172870 SHAFT SEAL RING 17X28X7 B 1
12 59030019100 OIL LEVEL GLASS 1
13 61030019050 CIRCLIP OIL LEVEL GLASS 03 1
14 0025060206 HH COLLAR SCREW M6X20 TX30 3
15 0025060456 HH COLLAR SCREW M6X45 TX30 2
16 0025060256 HH COLLAR SCREW M6X25 TX30 8
17 7723002600015 CLUTCH COVER OUTSIDE 1
18 77230027000 GASKET FOR OUTER CLUTCH COVER 1
19 0770191015 O-RING 19,00X3,00 NBR 1
20 58030120000 OIL FILLER CAP M24x3 WITH O-R 1
21 0025060406 HH COLLAR SCREW M6X40 TX30 2
32 0625062022 BALL BEARING 6202 C0 2 1
34 0472300120 CIRCLIP 30X1,2 1
38 07601530451 SHAFT SEAL RING 15X30X4.5 BAUD 2
147753020
350 EXC-F USA 2014 CLUTCH COVER
X ON DEMAND * NEW PART C147753040

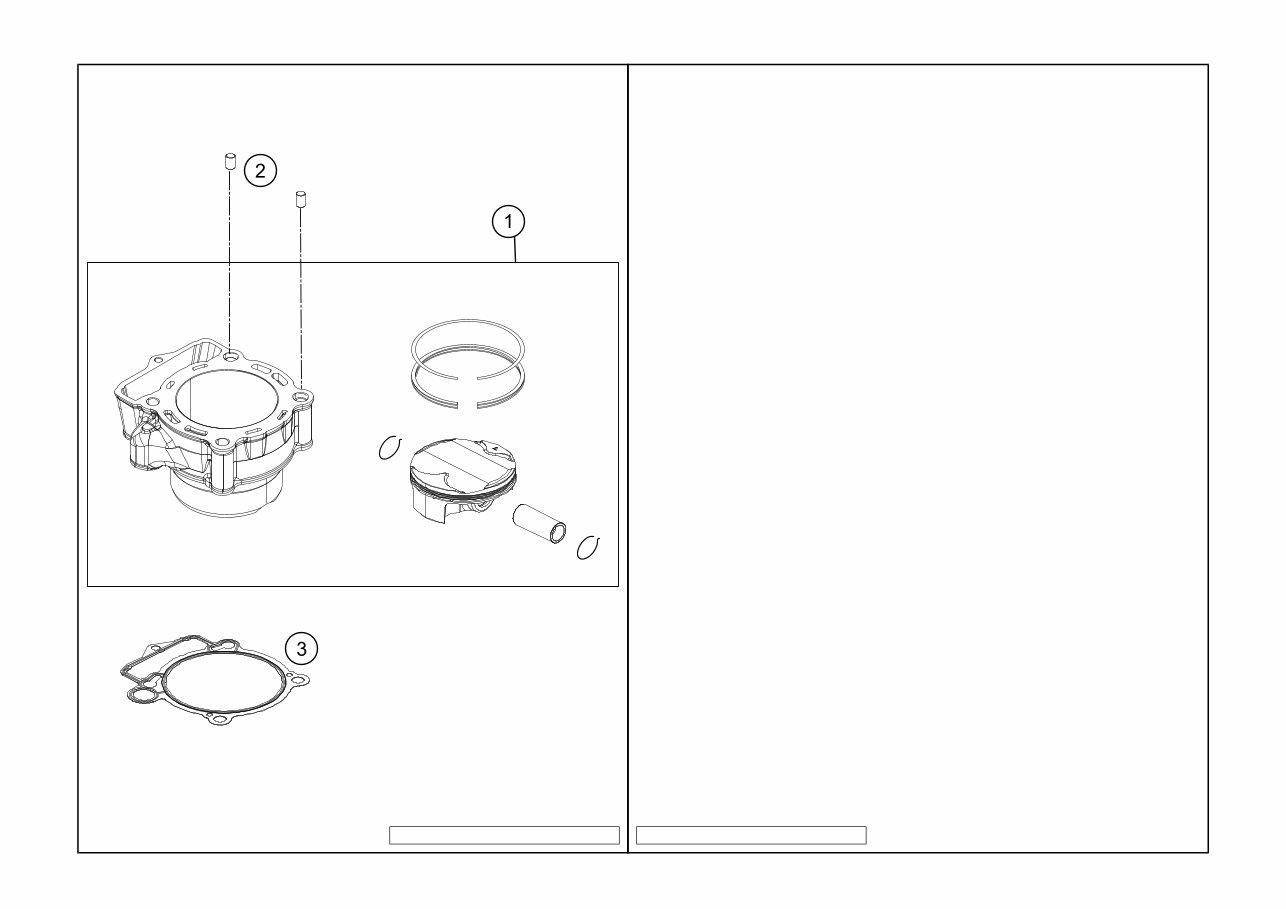

ENGINE // 5
POS PARTNUMBER PARTNAME PIECE
1* 77230138200 CYLINDER + PISTON 1
2 58530014100 DOWEL BUSHING 10,2X12,5X10 2
3 77230035000 CYLINDER BASE GASKET 1
147753040
350 EXC-F USA 2014 CYLINDER
X ON DEMAND * NEW PART C147753060

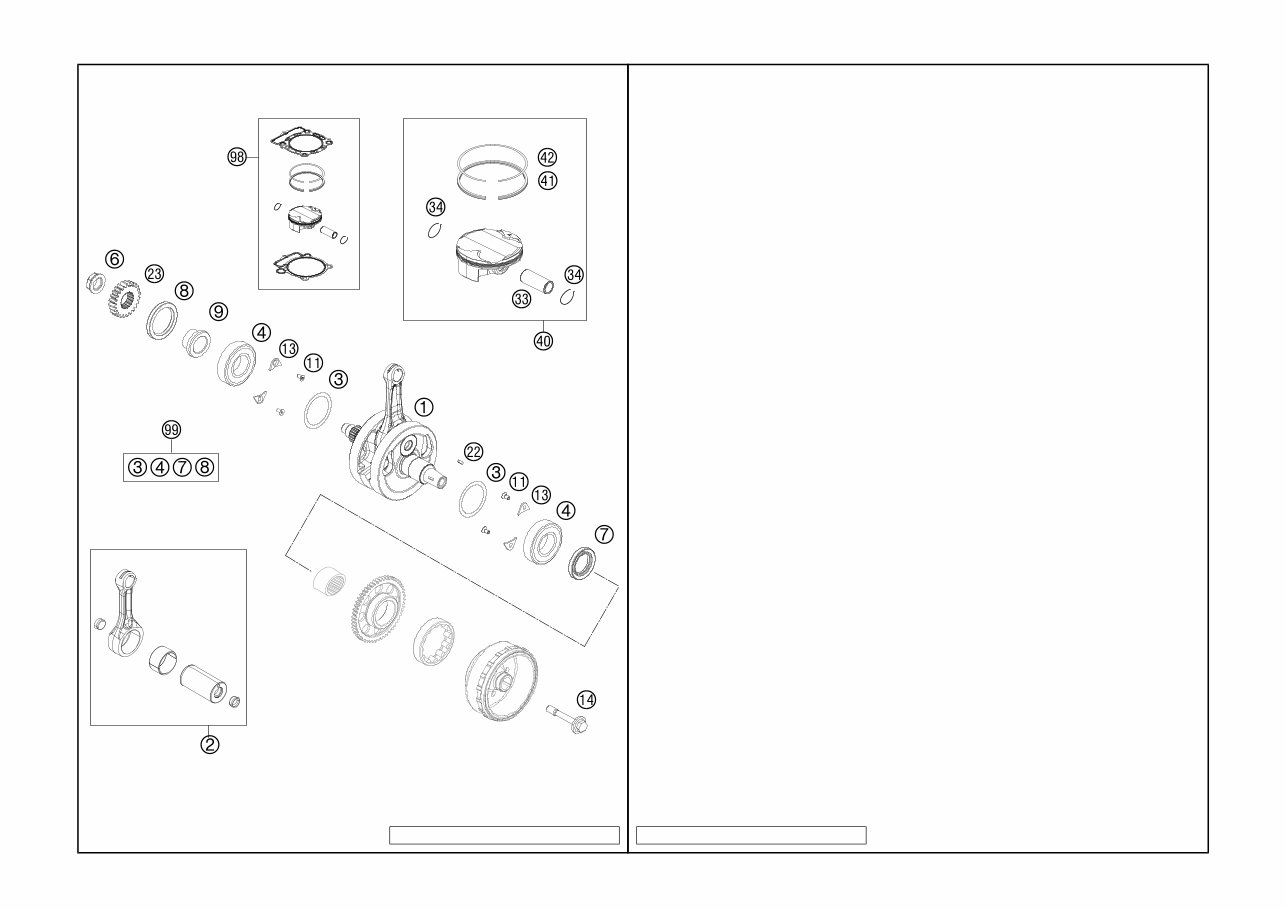

ENGINE // 6
POS PARTNUMBER PARTNAME PIECE
1 77530018200 CRANKSHAFT CPL. 1
2* 77830015044 CONNECTING ROD REPAIR SET 1
3 0988324510 THRUST WASHER 988ST 32X0,1 x
3 0988324515 THRUST WASHER 988ST 32X0,15 x
3 0988324530 THRUST WASHER 988ST 32X0,30 x
4 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 2
6 77230029000 NUT PRIMARY WHEEL 1
7 0760304772 SH.SEAL RING 30X47X7 BSL VITON 1
8 0760405560 SHAFT SEAL RING A40x55x6 VITON 1
9 77232022000 SPACER BUSHING PRIMARY GEAR 1
11 0019050106 INT. TORX FLAT HEAD M5X10 10.9 4
13 75030085000 RETAINING PLATE F. CS BEARING 4
14 77339010100 FLYWHEEL SCREW 1
22 0888030037 WOODRUFF KEY DIN6888-3X3,7 1
23 77232023024 PRIMARY GEAR 24T. 1
33 77230133000 PISTON PIN 350 1
34 77230174000 CIRCLIP 2
40 77530107100 I PISTON I CPL. 350 x
40 77530107100 II PISTON II CPL. 350 x
41 77230032100 SCRAPER RING 350 1
42 77230030000 COMPRESSIONRING 350 1
98* 77530007010 I PISTON KIT GR. I 350 EXC-F 14 x
98* 77530007010 II PISTON KIT GR. II 350 EXC-F 14 x
99 00050002311 CRANKSHAFT REP. KIT SX-F 13 x
147753060
350 EXC-F USA 2014 CRANKSHAFT, PISTON
X ON DEMAND * NEW PART C127753130

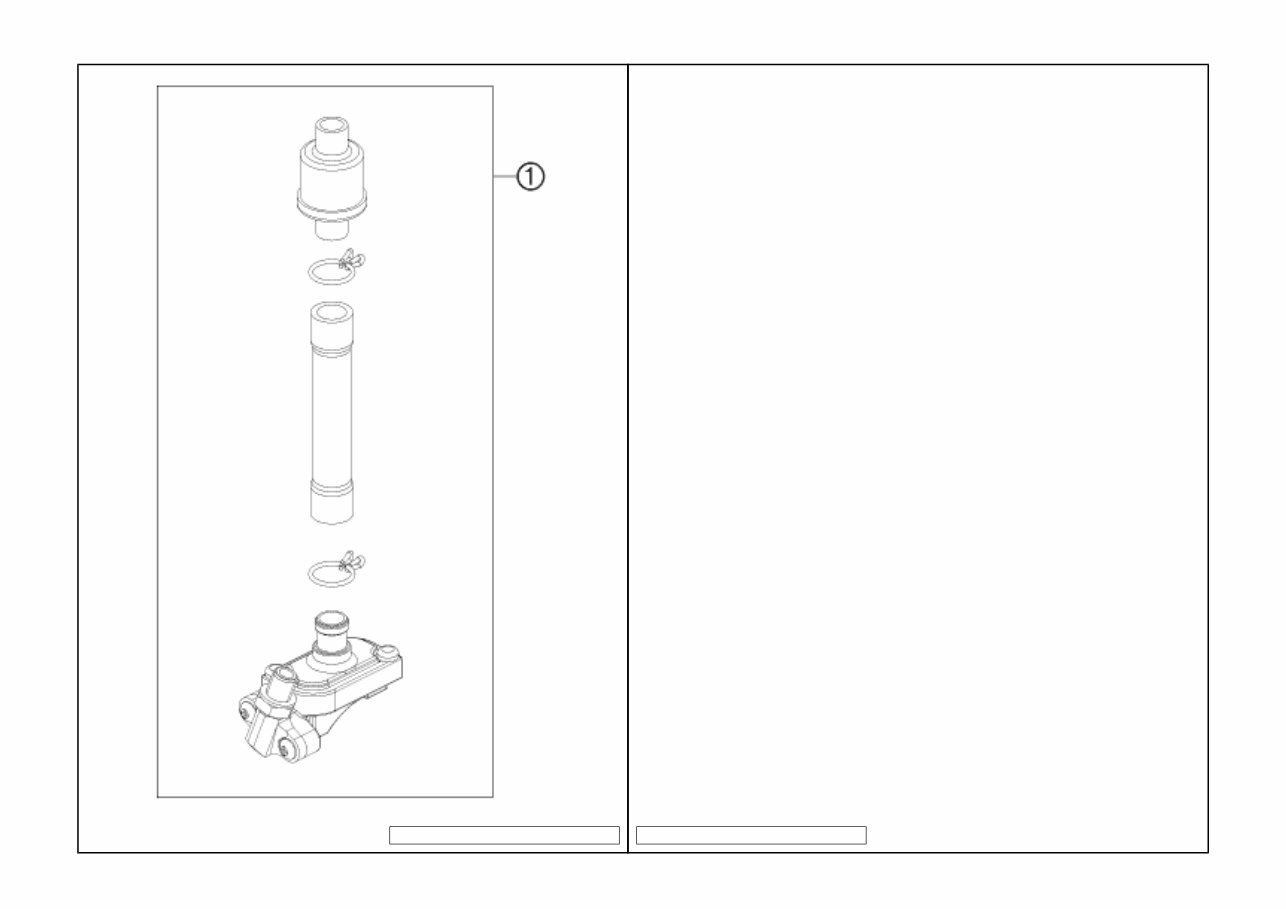

ENGINE // 7
POS PARTNUMBER PARTNAME PIECE
1 77505024044 SLS-VALVE CPL. 350 EXC-F 1
127753130
350 EXC-F USA 2014 SECONDARY AIR SYSTEM SAS
X ON DEMAND * NEW PART C127753210

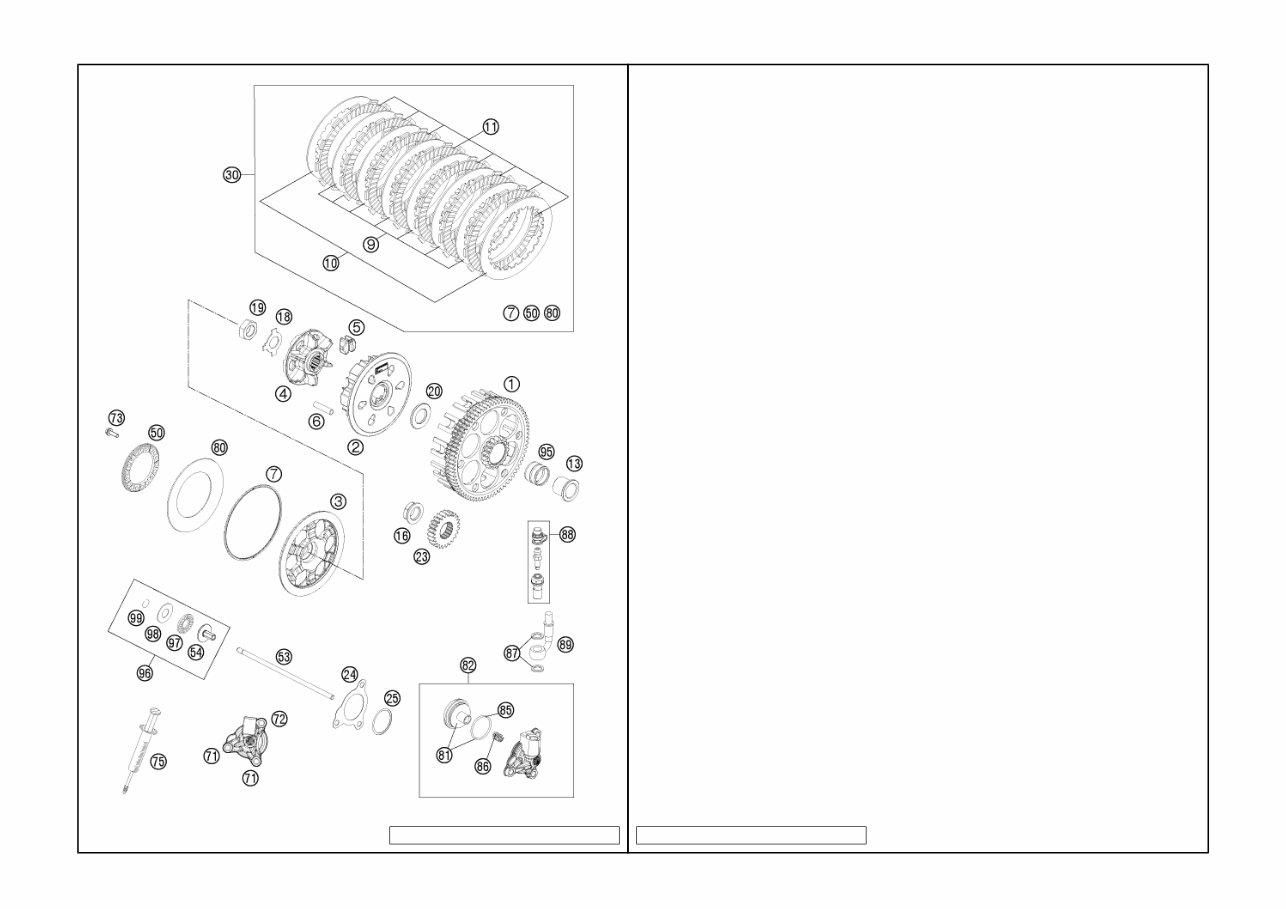

ENGINE // 8
POS PARTNUMBER PARTNAME PIECE
1 77232001073 OUTER CLUTCH CPL. 1
2 78132002008 % INNER CLUTCH HUB 1
3 78132003000 PRESSURE PLATE 1
4 78132002111 HUB 1
5 78132025100 DAMPING RUBBER 6
6 78132004000 SLEEVE 7,5X33.4 6
7 78132013000 WASHER 112X118X1.5 1
9 59032010200 INTERMEDIATE DISC 1,4MM 2002 7
10 59032010100 INTERMEDIATE DISC 1MM 2002 2
11 59032011100 LINING DISC 2MM 04 8
13 77232015000 INNER RING 1
16 77230029000 NUT PRIMARY WHEEL 1
18 56532018000 LOCK WASHER 1
19 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. 1
20 77232009000 WASHER 21,8 X 37 X 5,1 1
23 77232023024 PRIMARY GEAR 24T. 1
24 77232062000 GASKET F. OUTPUT CYLINDER 1
25 0770300015 O-RING 30,00X1,50 NBR 70 1
30 78132010110 CLUTCH KIT 350 EXC-F 12-13 1
50 78132006100 SPRING RING 1
53 77232054000 PUSH ROD 1
54 78032057000 PRESSURE PIECE 1
71 0025060166 HH COLLAR SCREW M6X16 TX30 2
72 0025060356 HH COLLAR SCREW M6X35 TX30 1
73 0025050166 HH COLLAR SCREW M5X16 TX30 6
75 50329050000 VENT INJEKTION HYDR. CLUTCH 1
80 78132005000 BELLEVILLE SPRING 71X115X1,5 I 1
81 77232066000 PISTON CPL. 1
82 77232061044 OUTPUT CYLINDER CPL. 1
85 54832067000 O-RING 1
86 54832069000 PRESSURE SPRING 1
87 42013226000 CU-SEAL RING DIN7603-10X16X1 2
88 62513020000 BLEEDER SCREW CPL. 05 1
89 54832063000 CLUTCH PIPE 06 1
95 56532095000 NEEDLE BEARING K26X30X22ZW.KSE 1
96 78032057044 PRESSURE PIECE CPL. 08 1
97 54637097200 AXIAL NEEDLE BEARING AXK 1226 1
127753210
350 EXC-F USA 2014 CLUTCH
X ON DEMAND * NEW PART C127753210
ENGINE // 9
POS PARTNUMBER PARTNAME PIECE
98 54637098200 AXIAL WASHER AS1226 12X26X1 1
99 0993012000 CIRCLIP DIN7993-RW12 1
127753210
350 EXC-F USA 2014 CLUTCH
X ON DEMAND * NEW PART C127753330

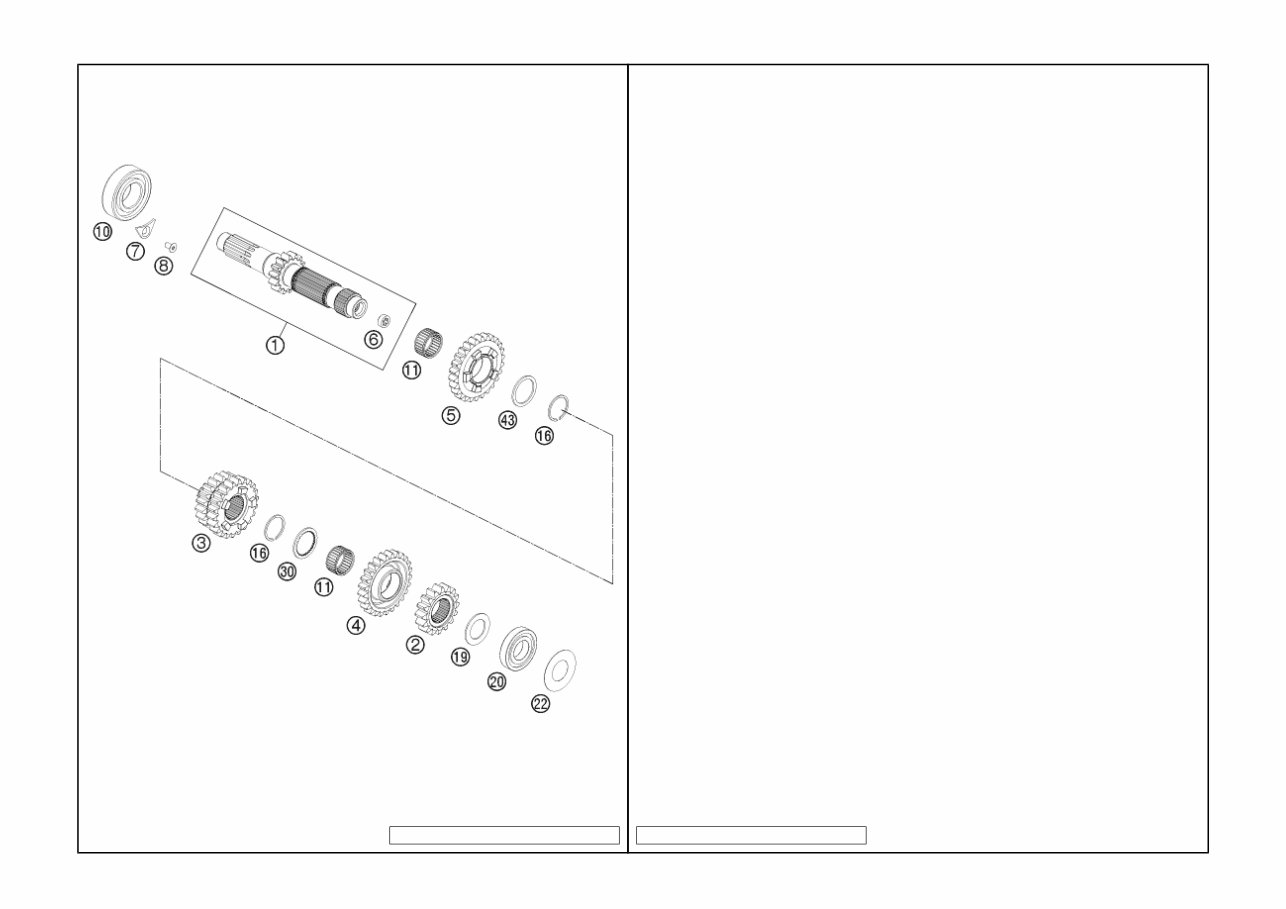

ENGINE // 10
POS PARTNUMBER PARTNAME PIECE
1 77233101000 MAIN SHAFT CPL. 14 T. 1
2 54833202000 SOLID GEAR 1
3 54833203000 SLIDING GEAR 3./4.GANG,Z=20/22 1
4 54833205000 IDLER GEAR 5.G, Z =25 1
5 54833206000 IDLER GEAR 6. G, Z=26 1
6 78033001110 BUSHING 1
7 75030085000 RETAINING PLATE F. CS BEARING 1
8 0019050106 INT. TORX FLAT HEAD M5X10 10.9 1
10 0625062054 BALL BEARING 6205 C3 NTN 1
11 0405222613 NEEDLE BEAR. K 22X26X13 TN 2
16 0417024000 CIRCLIP WS24 2
19 77233015000 DISK 20,2X32X1,3 1
20 0625160040 GROOVED BALL BEAR. TM 16004 C3 1
22 77233088000 SPACER SHIM 21X42X0.2 1
30 54833043000 STOP DISC 25X0,8X30X30X7H 1
43 54833044000 STOP DISC 25X31X1,5 1
127753330
350 EXC-F USA 2014 TRANSMISSION I - MAIN SHAFT
