1 Matenance Manual Model: Focus/Matrix COPY RIGHT: KEEWAY INTERNATIONAL DEVELOPMENT CO.,LTD. FEB.2006

2 If you have any problems can not fnd the solution in this manual, please fell free to contact with: KEEWAY INTERNATIONAL DEVELOPMENT CO.,LTD 2000 SZENTENDRE U.8 KOZUZO. HUNGARY TEL:0036-26-500005 FAX:0036-26-312034 EMAI: info@keewaymotor.com Our engineer are very glad to give you the necessary assistance and help.

3 Index The service manual has been specially prepared to provide all the necessary information for the proper maintenance and servicing of FOCUS/MATRIX. The FOCUS/MATRIX is a new type of scooter that has many techinal features such as: V-belt drive automatic transmission Forced air-cooling system CDI ignition system Electric starter system The FOCUS/MATRIX fits the needs of a wide variety of scooter user. Those who will be servicing the scooter should carefully review the manual before performing any repair or services. Major modifications and changes incorporated later will be advised to QIANJIANG product distributor in each market. Therefore, if newest information is requested in the future, please contact the local QIANJIANG distributor. The FOCUS/MATRIX scooters distributed in your country mignt differ in minor respects from the standard specification and, if they do, it is because some minor modifications had to be made to comply with the statutory requirements of your country. 前

4 Index Termly maintenance and repair 2 Engine 3 Fuell and lubricate system 4 Electrical system 5 Frame 6 Maintenance information 7 General principles 1

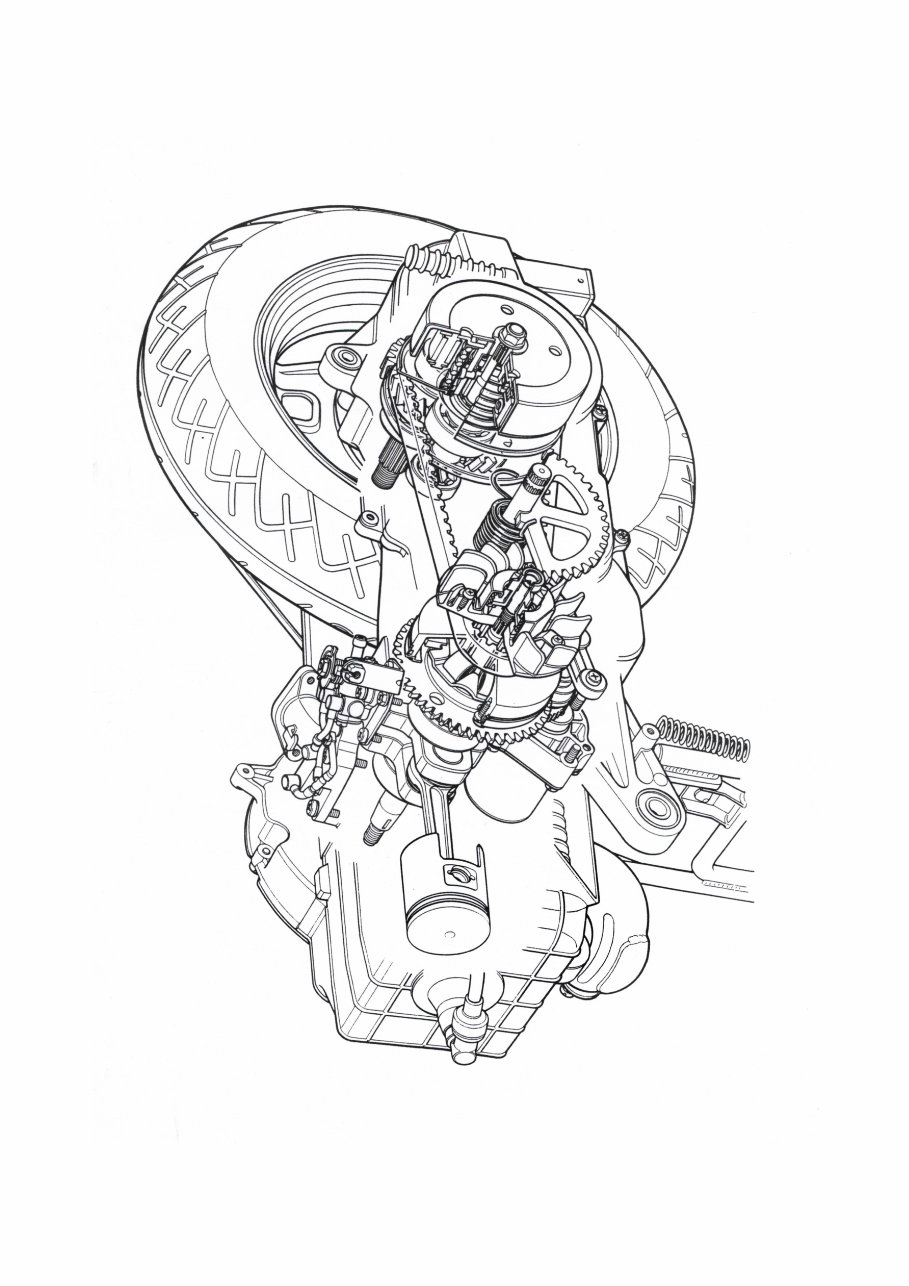

6 GENERAL PRINCIPLES TYPE IDENTIFICATION 1-1 FUEL AND ENGINE OIL 1-1 BREAK-IN PROCEDURE 1-1 PRECAUTIONS AND GENERAL INSTRUCTIONS 1-2 MAINTENANCE TOOLS 1-3 SPECIFICATIONS 1-4 CONTENTS

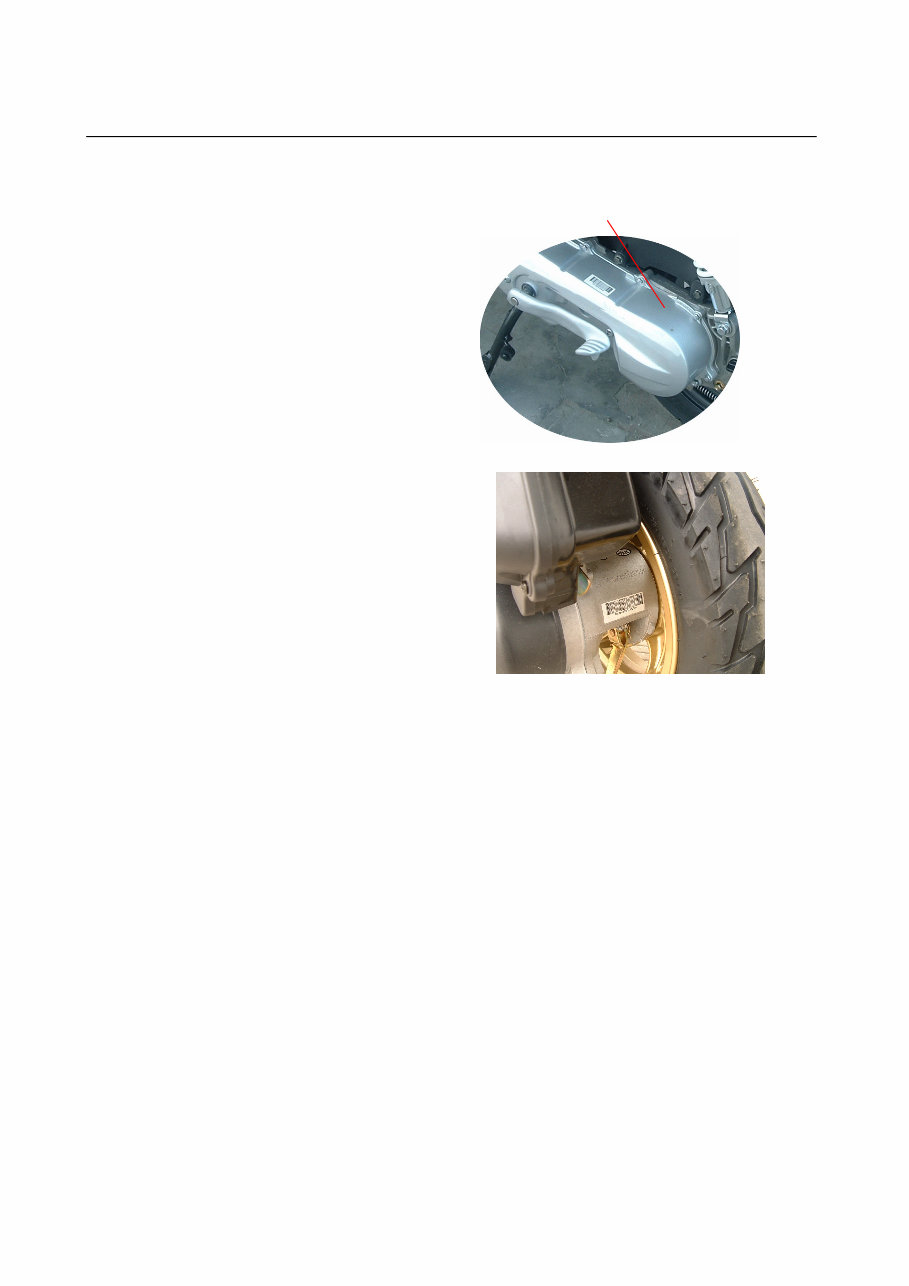

7 1-1 GENERAL PRINCIPLES TYPE IDENTIFICATION ① ENGINE NUMBER ENGINE NUMBER① is carved on rear crankcase as Shown in figure. Both FRAME NUBER AND ENGINE NUMBER are Designed specially for registering your scooter and ordering spare parts. FUEL AND ENGINE OIL Be sure to use specified fuel and engine oil. Some specifications are as follows: FUEL Unleaded, the minimum octane number is 90 or more. ENGINE OIL For QIANJIANG CCI SYSTEM, we recommend special engine oil, you can choose high quality two-stroke engine oil (without being diluted) if without special oil. GEAR OIL Use high quality, all-purpose SAE90 engine oil for scooter. BREAK-IN TIME General requirements are as follows：  Limit break-in speed： At the first 1000KMS（600 miles）mileage，play throttle less than 4/5 throttle； After mileage exceeds 1000KMS（600 miles），play full throttle；  Don’t run engine too long during break-in time, and try to change throttle position.

8 1-2 GENERAL PRINCIPLES PRECAUTIONS AND GENERAL INSTRUCTIONS Correctly abide by the following items when disassembling and assembling scooter: □ Don’t run engine indoors with little or no ventilation; □ Be sure to replace new bushings, circlips, O-rings and cotter pins with new ones； CAUTION  It is forbidden to use the circlip removed from shaft, only use new one；  Be very carefull to install new circlip for fear that the end hatch of circlip exceeds required sliding surface for shaft；  After installing circlip, inspect whether it has been completely clipped into the groove. □ Fix bigger diameter bolt first when tightening cylinder head or cylinder, and tighten to specified torque gradually from inside to outside at diagonal order. □ Use special tools for some special requrements； □ Use original components and recommended engine oil； □ Keep each other’s safety when several persons do； □ Inspect looseness and operating state of components after reassembling them.； □ Take high care of gasoline, which is explosive, and never use gasoline as lotion. The words like warning, notice, note may turn out incessantly in the manual, which means: WARNING——The personal safety of the rider may be involved. Disregarding the information could result in injury to the rider. CAUTION—These instructions point out special service procedures or precautions that must be followed to avoid damaging the machine. NOTE——it provides some special information, which keeps maintanance easier and important instructions clearer.. REPLACEMENT COMPONENTS Be sure to use genuine QIANJIANG components or their equivalent.. Genuine QIANJIANG components are high quality parts which are designed specially for QIANJIANG vehicle. CAUTION Damage to the scooter may result from use of replacement components which are not Equivalent in quality to genuine QIANJIANG parts, and it can lead to performance problems.

9 1-3 GENERAL PRINCIPLES SPECIFICATIONS DIMENSION AND NET WEIGHT OVERALL LENGTH……1830mm OVERALL LENGTH………695mm OVERALL HEIGHT………1160 mm WHEELBASE………………1295mm NET WEIGHT………………92kg CHASSIS Front shock absorber……spring, without damp Rear shock absorber……spring, oil damp Turning angle …………… 48 º (toward the left\toward the right) Front wheel…………120/70-12 Rear wheel…………130/70-12 Front brake…………Discφ190 Rear brake…………Drumφ110 ENGINE Type………two-stroke, forcible wind cooling Intake system…………piston-reed valve Cylinder QTY.…………1 Bore………………40.0mm Stroke………………39.6mm Discharge ………………49.8mL Compression ratio……………6.9:1 Carburetor……………flat inhale stopper style Air cleaner……………dry Starting system…electricity start and kicking start Lubricating system………pressure lubricating ELECTRIC Ignition mode…………CDI Ignition timing…………15 0 at 1500RPM Spark plug……………BP8HS Storage battery…………YTX5L-BS Generator……………AC magneto Fuse……………8A Headlight ……………12V—35/35W Turning light……………12V/10W Taillight ………………12V—21/5W Meter light……………12V/1.7W Oil level signal indicator light…12V/3W Turning signal indicator light…12V/3W CAPACITY FUEL TANK……………5.2L ENGINE OIL TANK……………1L GEAR OIL……………0.1L Transmission system Clutch system ．．．．．．．dry auto acentric Gearshift mechanism．．．．．CVT stepless Operating mode of gears shift mechanism．．． Automatic acentric Stepless shift range．．．．．0.86~2.64 *the above data may be modified without any notification.

10 TERMLY MAINTENANCE AND REPAIR CONTENT Periodic maintenance and service schedule……………………… 2-1 Maintenance and service procedures…………………………… 2-2 Storage battery………………………………………………… 2-2 Spark plug………………………………………………………… 2-3 Cylinder head nut and exhaust pipe bolt……………………… 2-3 Cylinder head and cylinder…………………………………………2-4 Fuel level line………………………………………………………2-4 Air cleaner……………………………………………………………2-5 Throttle cable…………………………………………………………2-5 Engine idle speed……………………………………………………2-5 Oil pump………………………………………………………………2-6 Gear oil………………………………………………………………2-7 Braking…………………………………………………………2-7 Tire …………………………………………………………………2-10 Steering………………………………………………………………2-10 Front shock absorber…………………………………………………2-11 Rear shock absorber…………………………………………………2-11 Vehicle bolts and nuts…………………………………………………2-11
