HYOSUNG
XRX - RX 125
Downloaded from www.Manualslib.com manuals search engine
FWD
13
13
12
8
7
6
6
6
6
14
14
16
15
18
17
4
4
2
9
9
10
10
11
11
5
5
5
5
18
3
1
19
Downloaded from www.Manualslib.com manuals search engine
REF PARTS NAME Q'TY REMARKS
NO. ST01 JEU01 JEU02 NG01 JG01 KEN01 (PCS)
1 11100HG5810PCH 11100HG5810PCH 11100HG5810PCH 11100HG5810PCH 11100HG5810PCH 11100HG5810PCH HEAD ASS'Y, CYLINDER 1 ~ KM4PF41A641202817
1~1 11100HG5850PCH 11100HG5850PCH 11100HG5850PCH 11100HG5850PCH 11100HG5850PCH HEAD ASS'Y, CYLINDER 1 KM4PF41A641202818 ~
2 11110HG5801PCH 11110HG5801PCH 11110HG5801PCH 11110HG5801PCH 11110HG5801PCH 11110HG5801PCH HEAD COMP, CYLINDER 1
3 11130HD6303PCH 11130HD6303PCH 11130HD6303PCH 11130HD6303PCH 11130HD6303PCH 11130HD6303PCH HOLDER COMP,CAMSHAFT 1
4 04213-11169 04213-11169 04213-11169 04213-11169 04213-11169 04213-11169 KNOCK PIN,CAMSHAFT HOLDER 2
5 09289-05008 09289-05008 09289-05008 09289-05008 09289-05008 09289-05008 OIL SEAL VALVE STEM 4
6 09159-08031 09159-08031 09159-08031 09159-08031 09159-08031 09159-08031 NUT, CYLINDER HEAD(M8) 4
7 11173HD6302 11173HD6302 11173HD6302 11173HD6302 11173HD6302 11173HD6302 GASKET,CYLINDER HEAD COVER 1
8 11171HG580003S 11171HG580003S 11171HG580003S 11171HG580003S 11171HG580003S 11171HG580003S COVER,CYLINDER HEAD 1
9 09106H07009 09106H07009 09106H07009 09106H07009 09106H07009 09106H07009 BOLT,CYLINDER HEAD COVE(M7*18) 2
10 11124H93B11 11124H93B11 11124H93B11 11124H93B11 11124H93B11 11124H93B11 WASHER, CYLINDER HEAD COVER BOLT 2
11 11123H93B01 11123H93B01 11123H93B01 11123H93B01 11123H93B01 11123H93B01 PACKING, CYLINDER HEAD COVE BOLT 2
12 11141H93B01 11141H93B01 11141H93B01 11141H93B01 11141H93B01 11141H93B01 GASKET, CYLINDER HEAD 1 ~ KM4PF41A641202817
12~1 11141HG5800 11141HG5800 11141HG5800 11141HG5800 11141HG5800 GASKET, CYLINDER HEAD 1 KM4PF41A641202818 ~
13 04213-11169 04213-11169 04213-11169 04213-11169 04213-11169 04213-11169 KNOCK PIN,CYLINDER HEAD 2
14 09128-06005 09128-06005 09128-06005 09128-06005 01547-06148 09128-06005 BOLT INTAKE PIPE(M6*20) 2
14-1 01547-06148 01547-06148 01547-06148 01547-06148 09128-06005 01547-06148 BOLT INTAKE PIPE(M6*20) 1
14-2 01547-06148 BOLT INTAKE PIPE(M6*20) 1
15 13110HG5802 13110HG5802 13110HG5802 13110HG5802 13110HG5802 13110HG5802 PIPE COMP,INTAKE 1 ~ KM4PF41A641202817
15~1 13110HG5870 13110HG5870 13110HG5870 13110HG5870 13110HG5870 PIPE COMP,INTAKE 1 KM4PF41A641202818 ~
16 09280H32006 09280H32006 09280H32006 09280H32006 09280H32006 09280H32006 O-RING INTAKE PIPE 1
17 09482-01248 09482-01248 09482-01248 09482-01248 09482-01248 09482-01248 SPARK PLUG,C8EH-9 1
17-1 SPARK PLUG,C8EH-9 1
18 01421-06168 01421-06168 01421-06168 01421-06168 01421-06168 01421-06168 STUD BOLT, INTAKE PIPE(M6*16) 2
19 09168-08021 09168-08021 09168-08021 09168-08021 09168-08021 09168-08021 GASKET, cylinder head nut 4
FIG 1. CYLINDER HEAD
PARTS NO.
Downloaded from www.Manualslib.com manuals search engine
FWD
4
4
4
4
1
5
3
3
2
2
2
2
6
3
3
Downloaded from www.Manualslib.com manuals search engine
REF PARTS NAME Q'TY REMARKS
NO. ST01 JEU01 JEU02 NG01 JG01 KEN01 (PCS)
1 11210HG5800PCY 11210HG5800PCY 11210HG5800PCY 11210HG5800PCY 11210HG5800PCY 11210HG5800PCY CYLINDER COMP 1 ~ KM4PF41A641202817
11210HG5850PCY 11210HG5850PCY 11210HG5850PCY 11210HG5850PCY 11210HG5850PCY CYLINDER COMP 1 KM4PF41A641202818 ~
2 09108H08175 09108H08175 09108H08175 09108H08175 09108H08175 09108H08175 STUD BOLT (L=224) 4
3 01421-06258 01421-06258 01421-06258 01421-06258 01421-06258 01421-06258 STUD BOLT(M6*25) 4
4 08316-16068 08316-16068 08316-16068 08316-16068 08316-16068 08316-16068 NUT(M16) 4
5 11241H05201 11241H05201 11241H05201 11241H05201 11241H05201 11241H05201 GASKET, CYLINDER(NA) 1
6 04213-11149 04213-11149 04213-11149 04213-11149 04213-11149 04213-11149 KNOCK PIN,CYLINDER 2

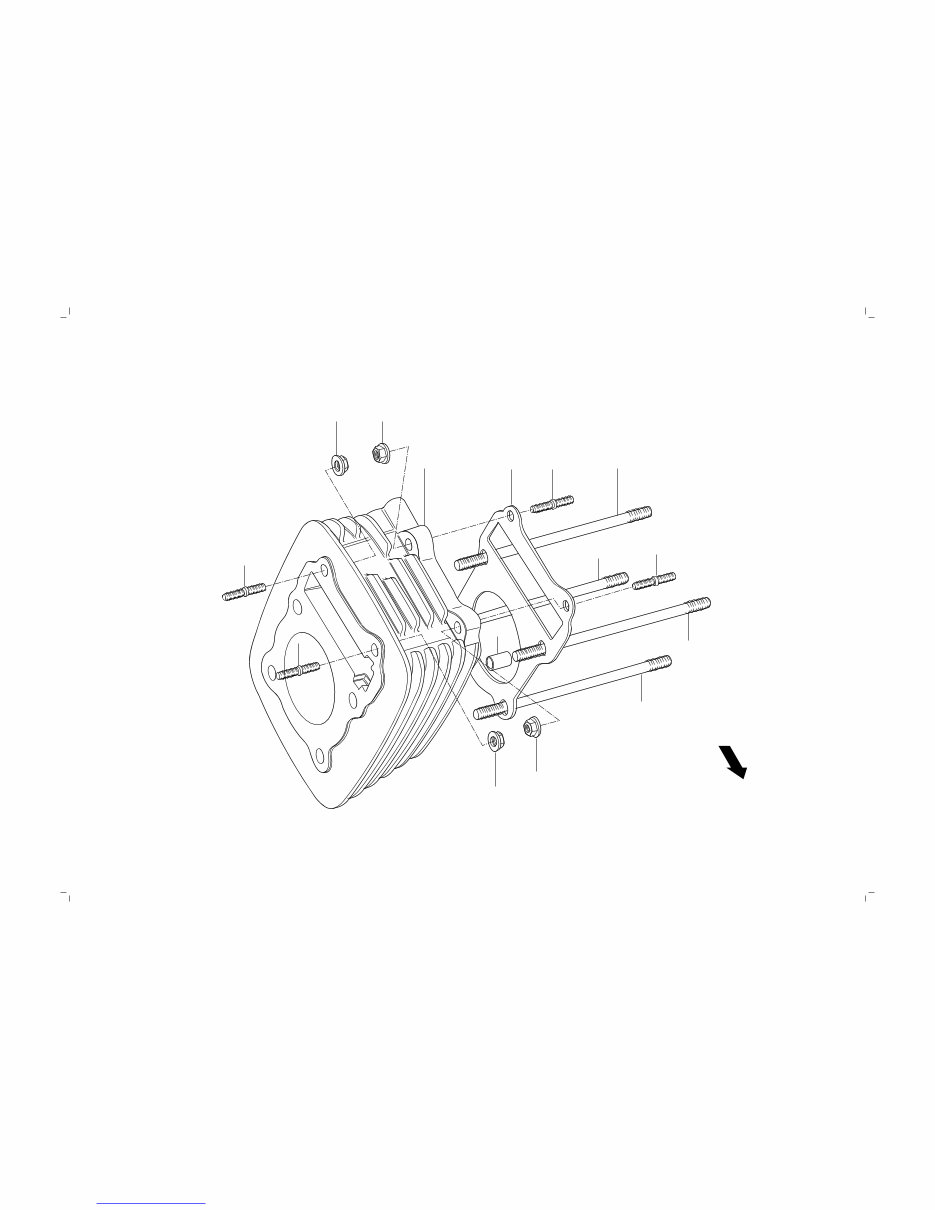

FIG 2. CYLINDER
PARTS NO.
Downloaded from www.Manualslib.com manuals search engine
FWD
5
4
5
5
4 3
3
3
3
4 5 4
6
2
8
9
7
10
11
12
1
Downloaded from www.Manualslib.com manuals search engine
REF PARTS NAME Q'TY REMARKS
NO. ST01 JEU01 JEU02 NG01 JG01 KEN01 (PCS)
1 11300HG5800HPA 11300HG5800HPA 11300HG5800HPA 11300HG5800HPA 11300HG5800HPA 11300HG5800HPA CRANK CASE ASSY 1
2 04213-13189 04213-13189 04213-13189 04213-13189 04213-13189 04213-13189 PIN,CRANK CASE 2
3 01547-06558 01547-06558 01547-06558 01547-06558 01547-06558 01547-06558 BOLT CRANK CASE(M6*55) 4
4 01547-06608 01547-06608 01547-06608 01547-06608 01547-06608 01547-06608 BOLT CRANK CASE(M6*60) 4
5 01547-06758 01547-06758 01547-06758 01547-06758 01547-06758 01547-06758 BOLT CRANK CASE(M6*75) 4
6 11319-05200 11319-05200 11319-05200 11319-05200 11319-05200 11319-05200 PLATE OIL GALLERY PLUG 1
7 01107-06106 01107-06106 01107-06106 01107-06106 01107-06106 01107-06106 BOLT, OIL GALLERY PLATE(M6*10) 1
8 11310HG5803PCC 11310HG5803PCC 11310HG5803PCC 11310HG5803PCC 11310HG5803PCC 11310HG5803PCC CRANK CASE R 1
9 11320HG5800PCC 11320HG5800PCC 11320HG5800PCC 11320HG5800PCC 11320HG5800PCC 11320HG5800PCC CRANK CASE L 1
10 09364-12001 09364-12001 09364-12001 09364-12001 09364-12001 09364-12001 UNION BREATH HOSE 1
11 13824-05331 13824-05331 13824-05331 13824-05331 13824-05331 13824-05331 CLAMP, BREATHER DRAIN CAP 1
12 13870H29B00 13870H29B00 13870H29B00 13870H29B00 13870H29B00 13870H29B00 CAP COMP, BREATHER DRAIN 1

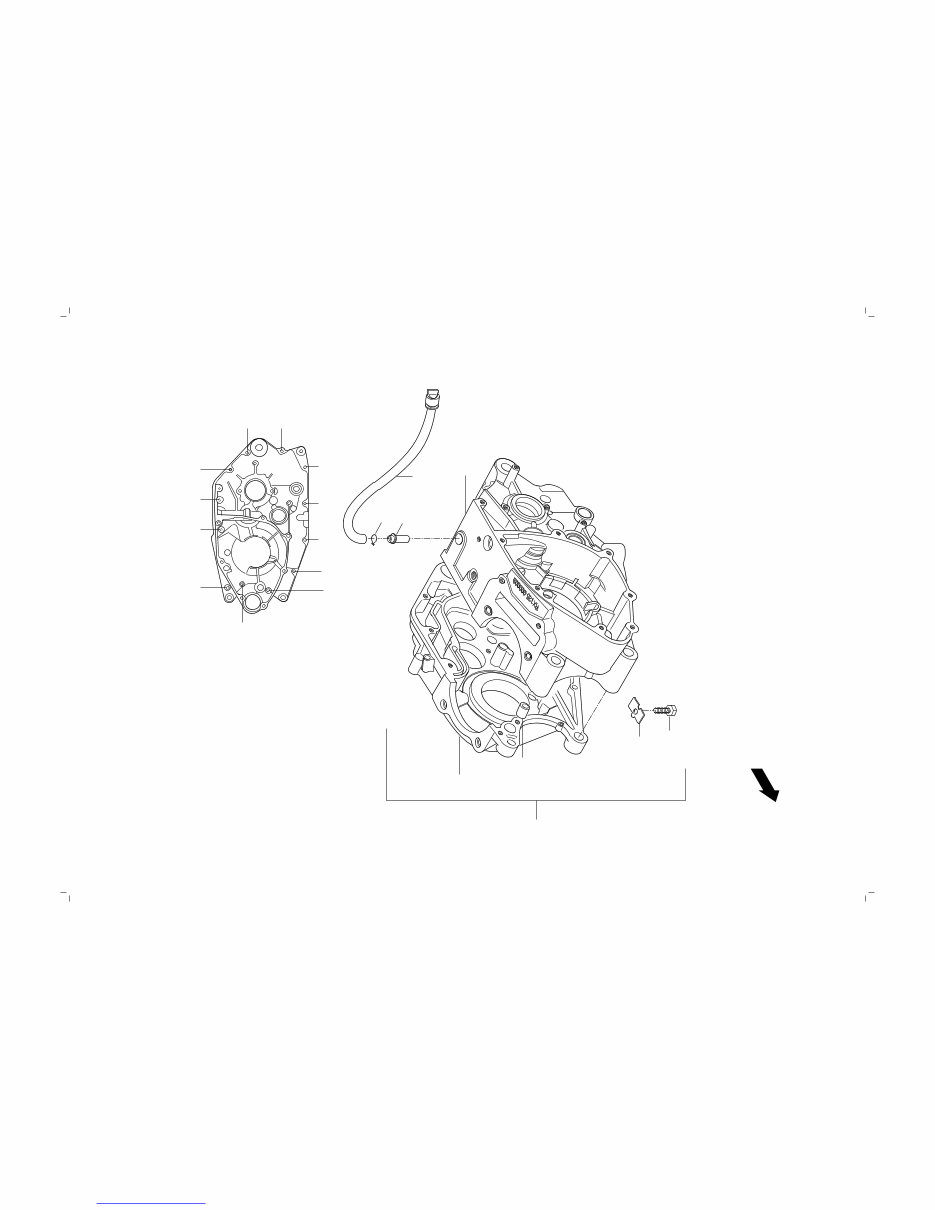

FIG 3. CRANK CASE
PARTS NO.
Downloaded from www.Manualslib.com manuals search engine
FWD
5
4.5
5
6
5
5
5
5
4
5
7
7
1
10
11
3
13
12
16
23
24
2
8
22
18
23
17
17
20
9
21
14
19
16
16
15
15
Downloaded from www.Manualslib.com manuals search engine
REF PARTS NAME Q'TY REMARKS
NO. ST01 JEU01 JEU02 NG01 JG01 KEN01 (PCS)
1 11340HG580103S 11340HG580103S 11340HG580103S 11340HG580103S 11340HG580103S 11340HG580103S COVER COMP,CLUTCH 1
2 11482H05211 11482H05211 11482H05211 11482H05211 11482H05211 11482H05211 GASKET CLUTCH COVER(NA) 1
3 04213-13189 04213-13189 04213-13189 04213-13189 04213-13189 04213-13189 PIN,CLUTCH COVER 2
4 09168H06009 09168H06009 09168H06009 09168H06009 09168H06009 09168H06009 GASKET CLUTCH COVER BOLT 2
5 01547-06303 01547-06303 01547-06303 01547-06303 01547-06303 01547-06303 BOLT CLUTCH COVER(M6*30) 7
6 01547-06453 01547-06453 01547-06453 01547-06453 01547-06453 01547-06453 BOLT CLUTCH COVER(M6*45) 1
7 01547-06403 01547-06403 01547-06403 01547-06403 01547-06403 01547-06403 BOLT CLUTCH COVER(M6*40) 2
8 11971HE6100 11971HE6100 11971HE6100 11971HE6100 11971HE6100 11971HE6100 PLUG, ENGINE OIL FILLER 1
9 09280-17003 09280-17003 09280-17003 09280-17003 09280-17003 09280-17003 O/RING ENGINE OIL FILTER PLUG 1
10 09247-14026 09247-14026 09247-14026 09247-14026 09247-14026 09247-14026 PLUG, OIL CHECK 1
11 09168H14003 09168H14003 09168H14003 09168H14003 09168H14003 09168H14003 GASKET,OIL CHECK PLUG 1
12 11351HG580203S 11351HG580203S 11351HG580203S 11351HG580203S 11351HG580203S 11351HG580203S COVER,MAGNETO 1
13 11483H05301 11483H05301 11483H05301 11483H05301 11483H05301 11483H05301 GASKET MAGNETO COVER(NA) 1
14 04213-09129 04213-09129 04213-09129 04213-09129 04213-09129 04213-09129 PIN,MAGNETO COVER 1
15 01547-06303 01547-06303 01547-06303 01547-06303 01547-06303 01547-06303 BOLT, MAGNETO COVER(M6*30) 2
16 01547-06353 01547-06353 01547-06353 01547-06353 01547-06353 01547-06353 BOLT, MAGNETO COVER(M6*35) 3
17 01547-06453 01547-06453 01547-06453 01547-06453 01547-06453 01547-06453 BOLT, MAGNETO COVER(M6*45) 2
18 09247H12102 09247H12102 09247H12102 09247H12102 09247H12102 09247H12102 PLUG T.D.C. 1
19 09168H12003 09168H12003 09168H12003 09168H12003 09168H12003 09168H12003 GASKET,T.D.C. PLUG 1
20 09259-2601503S 09259-2601503S 09259-2601503S 09259-2601503S 09259-2601503S 09259-2601503S PLUG, CRANK SHAFT HOLE 1
21 09280-22008 09280-22008 09280-22008 09280-22008 09280-22008 09280-22008 O/RING CRANK SHAFT HOLE PLUG 1
22 11361HG580003S 11361HG580003S 11361HG580003S 11361HG580003S 11361HG580003S 11361HG580003S COVER, ENGINE SPROCKET 1
23 01547-06253 01547-06253 01547-06253 01547-06253 01547-06253 01547-06253 BOLT ENGINE SPROCKET COVER(M6*25) 2
24 01547-06603 01547-06603 01547-06603 01547-06603 01547-06603 01547-06603 BOLT ENGINE SPROCKET COVER(M6*60) 1

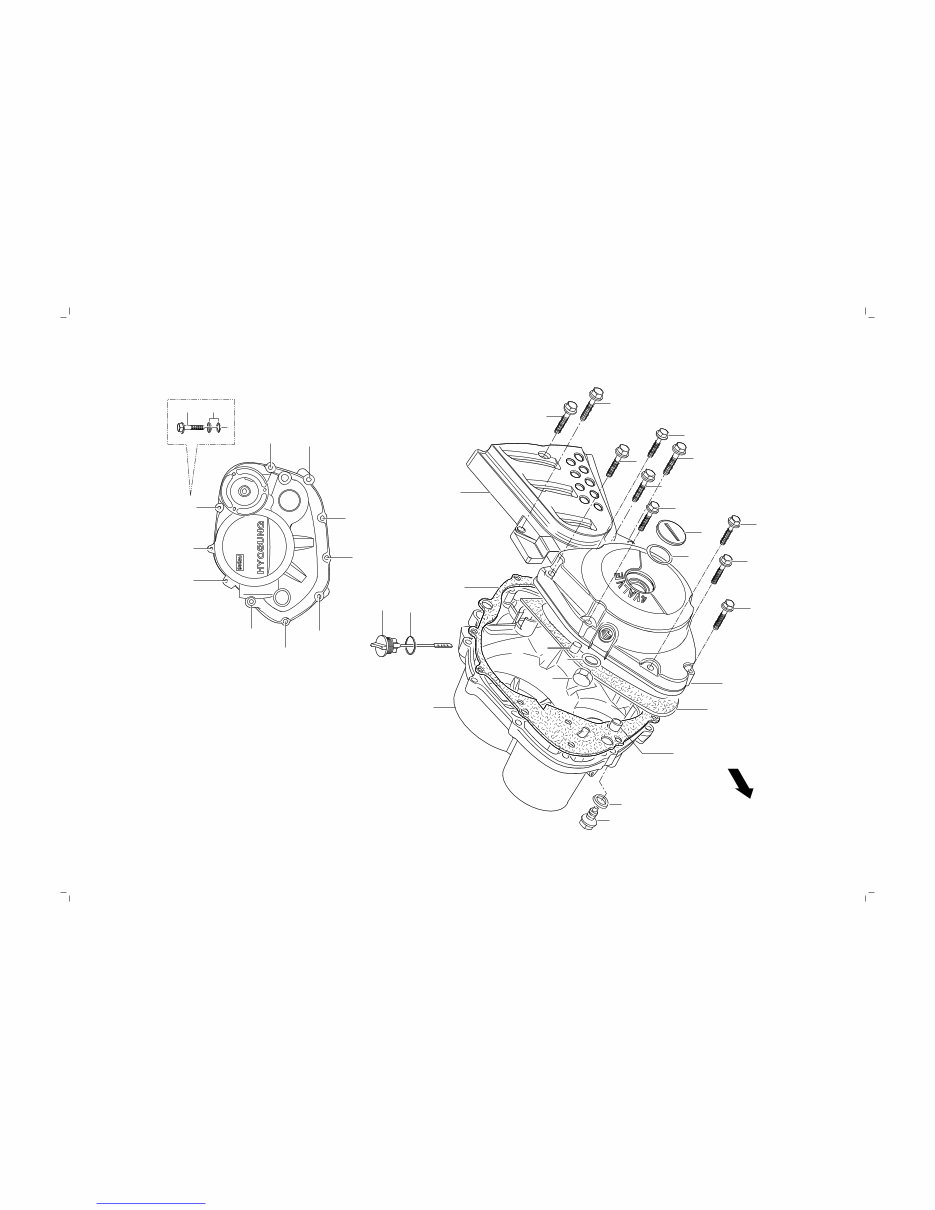

FIG 4. CRANK CASE COVER
PARTS NO.
Downloaded from www.Manualslib.com manuals search engine
FWD
19
20
21
18
17
15
16
17
14
9
12
13
10
11
7
1
4 3
2
6
5
8
Downloaded from www.Manualslib.com manuals search engine
