PARTS CATALOG
FIRST EDITION
GL1800’05•’06•’07•’08
GOLD WING
GL1800A’05
GOLD WING
JUNE, 2007
American Honda Motor Co., Inc. 14MCA501M (Fiche Version)
2007 American Honda Motor Co., Inc., 14MCA501P (Paper Version)
(Order through Helm)
goldwingdocs.com
goldwingdocs.com
TABLE OF CONTENTS
JUNE, 2007 3 2007 American Honda Motor Co., Inc.
Introduction Grid / Page
• HOW TO USE THIS CATALOG .................................... A2 4
• LOCATION OF SERIAL NUMBER ................................ A2 5
• SERIAL NUMBERS ...................................................... A3 7
• CONSTRUCTION OF VEHICLE IDENTIFICATION
NUMBER ................................................................ A4 8
• COLOR TABLE .............................................................. A4 9
• BULK HOSE PART NUMBER PATTERN...................... A15 30
• MASTER INDEX ............................................................ A16 32
Part Groups
• ENGINE SECTION ........................................................ 1-C1 1-1
• FRAME SECTION.......................................................... 1-H1 2-1
• ACCESSORIES SECTION ............................................ 2-J1 3-1
Index
• PART NUMBER INDEX ................................................ B1 4-1
• DESCRIPTION INDEX .................................................. 2-M1 5-1
goldwingdocs.com

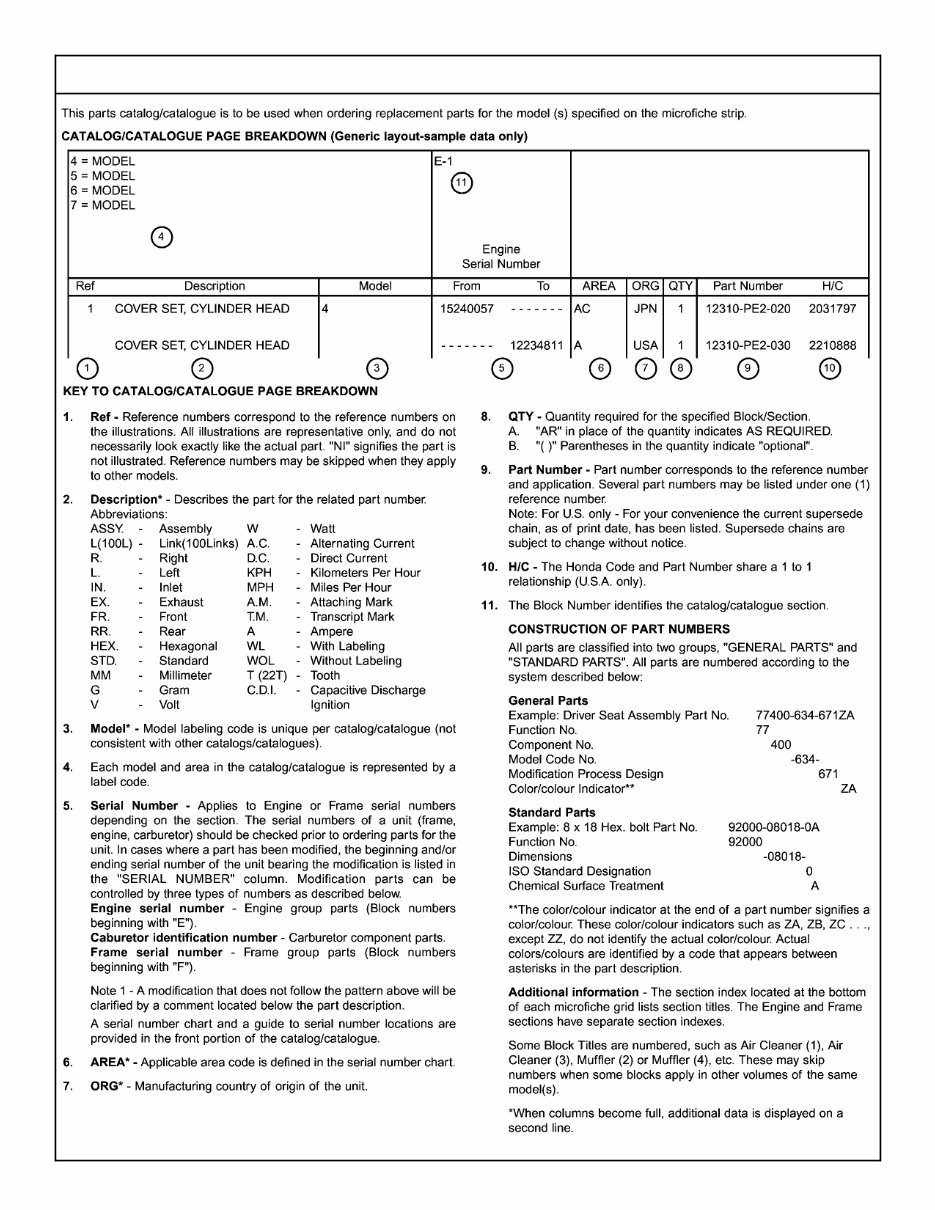

HOW TO USE THIS CATALOG
4 2007 American Honda Motor Co., Inc. JUNE, 2007
goldwingdocs.com
LOCATION OF SERIAL NUMBER
JUNE, 2007 2007 American Honda Motor Co., Inc. 5
goldwingdocs.com
LOCATION OF SERIAL NUMBER
6 2007 American Honda Motor Co., Inc. JUNE, 2007
goldwingdocs.com
SERIAL NUMBERS
JUNE, 2007 2007 American Honda Motor Co., Inc. 7

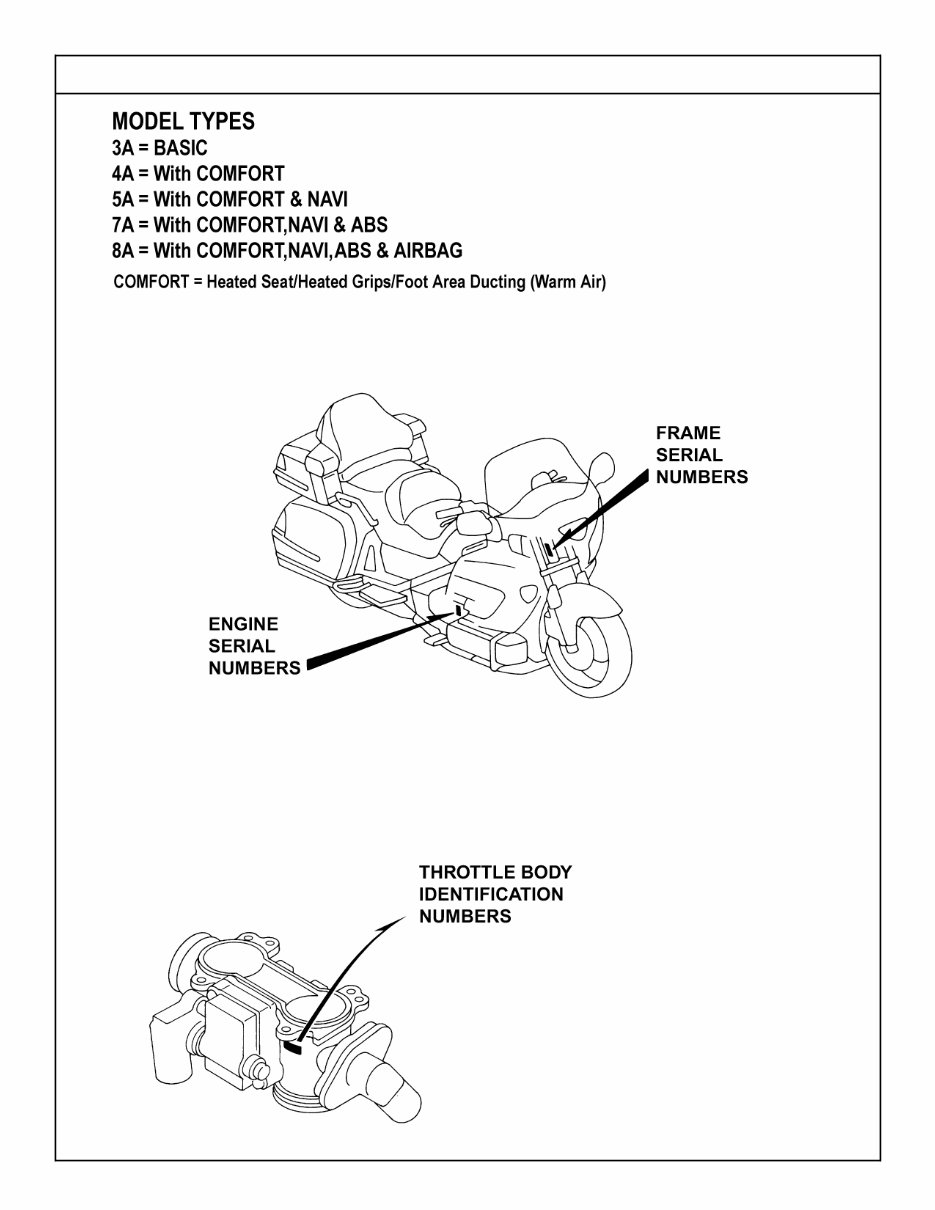

Models and applicable serial numbers
Models and applicable serial numbers given in this parts catalog can be identified as follows.
3A=BASIC
4A=WITH COMFORT
5A=WITH COMFORT & NAVI
7A=WITH COMFORT, NAVI & ABS
8A=WITH COMFORT, NAVI,ABS & AIRBAG.
Engine Frame Carburetor
Area Serial Serial Serial
Model Code No. No. No.
GL1800’05 A SC47E-2400001 TO
2499999
1HFSC470*5A400001 TO
5A499999
GQ61A A
GL1800A’05 A SC47E-2400001 TO
2499999
1HFSC474*5A400001 TO
5A499999
GQ61A A
GL1800’06 3A SC47E-2500001 TO
2599999
1HFSC47F*6A500001 TO
6A599999
GQ68A A
GL1800’06 4A SC47E-2500001 TO
2599999
1HFSC47G*6A500001 TO
6A599999
GQ68A A
GL1800’06 5A SC47E-2500001 TO
2599999
1HFSC47H*6A500001 TO
6A599999
GQ68A A
GL1800’06 7A SC47E-2500001 TO
2599999
1HFSC47L*6A500001 TO
6A599999
GQ68A A
GL1800’06 8A SC47E-2500001 TO
2599999
1HFSC47M*6A500001 TO
6A599999
GQ68A A
GL1800’07 3A SC47E-2600001 TO
2699999
1HFSC47F*7A600001 TO
7A699999
GQ68A A
GL1800’07 5A SC47E-2600001 TO
2699999
1HFSC47H*7A600001 TO
7A699999
GQ68A A
GL1800’07 7A SC47E-2600001 TO
2699999
1HFSC47L*7A600001 TO
7A699999
GQ68A A
GL1800’07 8A SC47E-2600001 TO
2699999
1HFSC47M*7A600001 TO
7A699999
GQ68A A
GL1800’08 3A SC47E-2600001~ 1HFSC47F*8A700001~ GQ68A A
GL1800’08 5A SC47E-2600001~ 1HFSC47H*8A700001~ GQ68A A
GL1800’08 7A SC47E-2600001~ 1HFSC47L*8A700001~ GQ68A A
GL1800’08 8A SC47E-2600001~ 1HFSC47M*8A700001~ GQ68A A
goldwingdocs.com

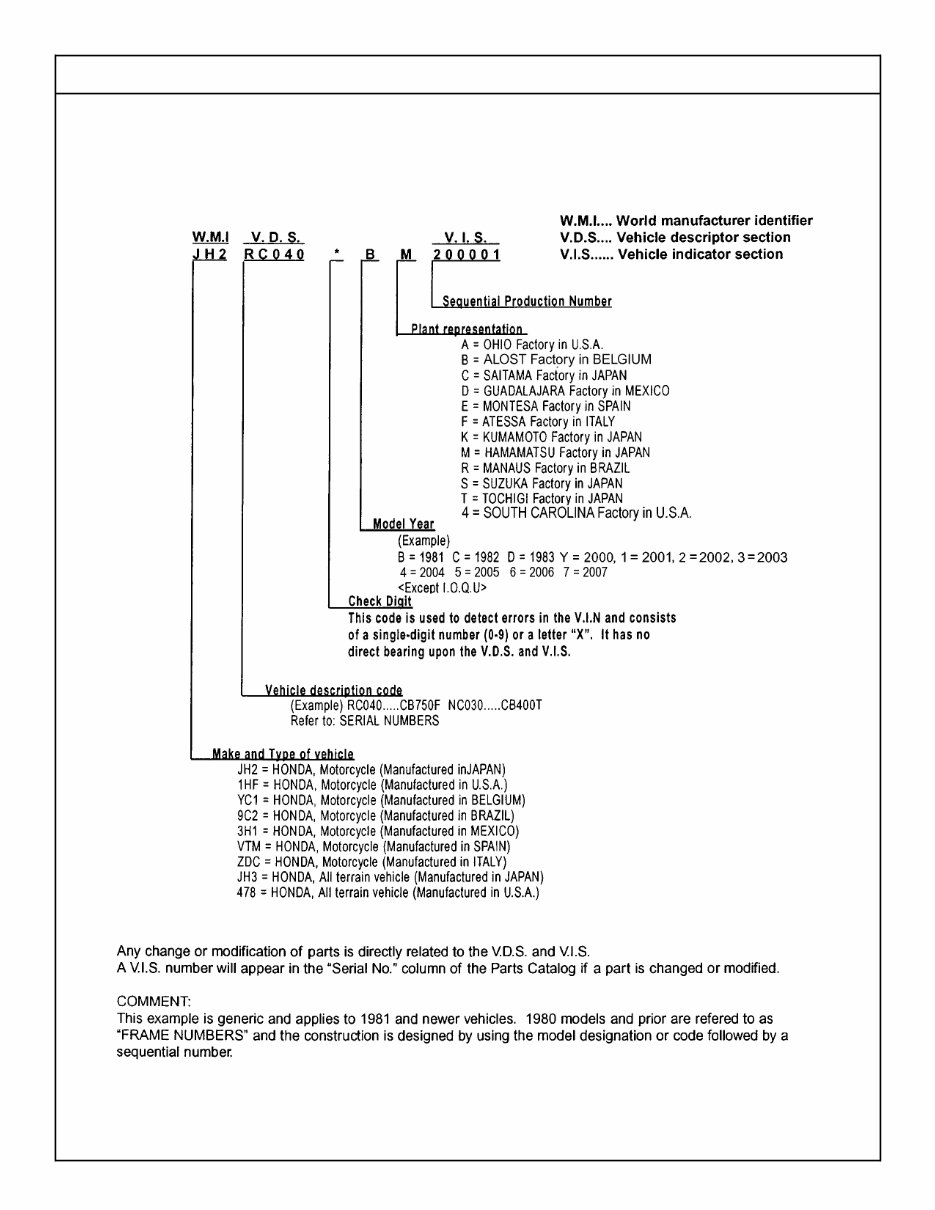

CONSTRUCTION OF VEHICLE IDENTIFICATION NUMBER
8 2007 American Honda Motor Co., Inc. JUNE, 2007
goldwingdocs.com
COLOR TABLE
JUNE, 2007 2007 American Honda Motor Co., Inc. 9

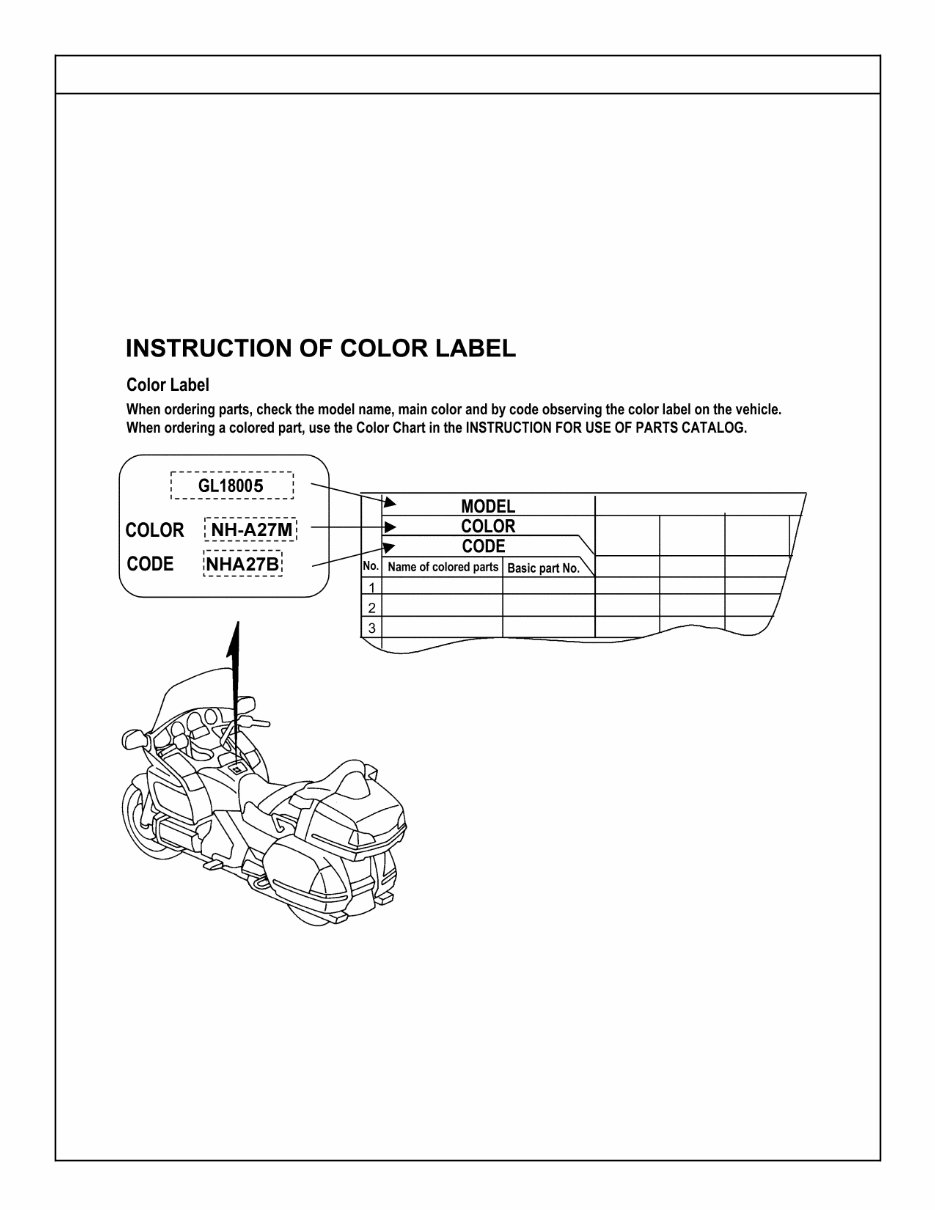

When ordering a colored part:
1. Confirm the color code for the required part from the color table according to the part name and color type.
2. Select the corresponding part number from the appropriate PAGE/GRID.
3. Parts marked "X" are unused.
4. "*" = Basic Part Number, no extension (i.e. ZA, ZB).
GL1800’05 2005
No.
COLOR CODE
BASE COLOR
NHA27B
Billet silver
metallic
NHA27M
NHA29
Arctic
white
NHA29
NHA45
Portland
gray
metallic
NHA45M
PB356
Nova blue
metallic
PB356M
R287
Bloodstone
red
metallic
R287M
Y130B
Pearl hot
rod yellow
Y130P
A
R
E
A
DESCRIPTION BASIC PART NO.
1 BODY, L. SADDLEBAG 81411-MCA-000 ZR ZQ ZU ZT ZM ZD
2 BODY, R. SADDLEBAG 81211-MCA-000 ZR ZQ ZU ZT ZM ZD
3 BOX, TRUNK 81111-MCA-000 ZR ZQ ZU ZT ZM ZD
4 CLIP, PANEL FIXING 91549-MW0-790 ZA ZA ZA ZA ZA ZA
5 COVER B, L. ARMREST 82430-MCA-000 ZA ZA ZA ZA ZA ZA
6 COVER B, R. ARMREST 82330-MCA-000 ZA ZA ZA ZA ZA ZA
7 COVER SET, L. SIDE 83700-MCA-000 ZR ZQ ZU ZT ZM ZD
8 COVER SET, R. SIDE 83600-MCA-000 ZR ZQ ZU ZT ZM ZD
9 COVER, L. PILLION STEP
(LOWER)
50817-MCA-000 ZA ZA ZA ZA ZA ZA
10 COVER, L. PILLION STEP
HOLDER
50741-MCA-000 ZA ZA ZA ZA ZA ZA
11 COVER, L. PIVOT PLATE 50415-MCA-000 ZA ZA ZA ZA ZA ZA
12 COVER, L. WELD BEAD 83713-MCA-000 ZB ZB ZB ZB ZB ZB
13 COVER, R. PILLION STEP
(LOWER)
50717-MCA-000 ZA ZA ZA ZA ZA ZA
14 COVER, R. PILLION STEP
HOLDER
50740-MCA-000 ZA ZA ZA ZA ZA ZA
15 COVER, R. PIVOT PLATE 50410-MCA-000 ZA ZA ZA ZA ZA ZA
16 COVER, R. WELD BEAD 83613-MCA-000 ZB ZB ZB ZB ZB ZB
17 COVER, TRUNK (LOWER) 81141-MCA-000 ZR ZQ ZU ZT ZM ZD
18 COWL, CENTER (INNER) 64501-MCA-000 ZA ZA ZA ZA ZA ZA
19 COWL, FR. (LOWER) 64302-MCA-000 ZA ZA ZA ZA ZA ZA
20 COWL, FR. CENTER 64216-MCA-000 ZR ZQ ZU ZT ZM ZD
21 COWL, L. (INNER) 64503-MCA-000 ZR ZQ ZU ZT ZM ZD
22 COWL, L. SIDE
FROM: -------- TO: 5A406308
64292-MCA-000 ZR ZQ ZU ZT ZM ZD
23 COWL, L. SIDE
FROM: 5A406309 TO: --------
64292-MCA-010 ZR ZQ ZU ZT ZM ZD
24 COWL, R. (INNER) 64502-MCA-000 ZR ZQ ZU ZT ZM ZD
25 COWL, R. SIDE
FROM: -------- TO: 5A406308
64282-MCA-000 ZR ZQ ZU ZT ZM ZD
26 COWL, R. SIDE
FROM: 5A406309 TO: --------
64282-MCA-010 ZR ZQ ZU ZT ZM ZD
27 CUSHION, L. ARMREST 82440-MCA-000 ZA ZA ZA ZA ZA ZA
28 CUSHION, R. ARMREST 82340-MCA-000 ZA ZA ZA ZA ZA ZA
29 EMBLEM, FR. GARNISH 64180-MCA-A40 ZA ZC ZE ZD ZB ZF
30 EMBLEM, KEY 35113-MCA-A41 ZA ZC ZE ZD ZB ZF
31 EMBLEM, RR. TRUNK 81127-MCA-A40 ZA ZC ZE ZD ZB ZF
goldwingdocs.com
COLOR TABLE
10 2007 American Honda Motor Co., Inc. JUNE, 2007
GL1800’05 2005
No.
COLOR CODE
BASE COLOR
NHA27B
Billet silver
metallic
NHA27M
NHA29
Arctic
white
NHA29
NHA45
Portland
gray
metallic
NHA45M
PB356
Nova blue
metallic
PB356M
R287
Bloodstone
red
metallic
R287M
Y130B
Pearl hot
rod yellow
Y130P
A
R
E
A
DESCRIPTION BASIC PART NO.
32 EMBLEM, RR. TRUNK 87111-MCA-A40 ZA ZC ZE ZD ZB ZF
33 FENDER A, FR. 61101-MCA-000 ZR ZQ ZU ZT ZM ZD
34 FENDER A, RR. 80100-MCA-000 ZR ZQ ZU ZT ZM ZD
35 FENDER B, FR. 61103-MCA-000 ZR ZQ ZU ZT ZM ZD
36 FRAME
FROM: -------- TO: 5A406308
50100-MCA-030 ZA ZA ZA ZA ZA ZA
37 FRAME
FROM: 5A406309 TO: --------
50100-MCA-040 ZA ZA ZA ZA ZA ZA
38 GARNISH SET, SCREEN (WL) 64120-MCA-A40 ZG ZJ ZN ZK ZH ZM
39 GRIP, L. PASSENGER 84155-MCA-000 ZA ZA ZA ZA ZA ZA
40 GRIP, R. PASSENGER 84150-MCA-000 ZA ZA ZA ZA ZA ZA
41 HOUSING, L. 88122-MCA-000 ZK ZA ZP ZM ZE ZN
42 HOUSING, R. 88112-MCA-000 ZK ZA ZP ZM ZE ZN
43 KEY, BLANK 35121-MCA-A40 ZA ZC ZE ZD ZB ZF
44 LABEL, COLOR 87565-MCA-A40 ZA ZC ZE ZD ZB ZF
45 LID SET, TRUNK (WL)
FROM: -------- TO: 5A407828
81125-MCA-A40 ZG ZJ ZN ZK ZH ZM
46 LID SET, TRUNK (WL)
FROM: 5A407829 TO: --------
81125-MCA-A41 ZG ZJ ZN ZK ZH ZM
47 LID, L. SADDLEBAG 81421-MCA-000 ZR ZQ ZU ZT ZM ZD
48 LID, R. SADDLEBAG 81221-MCA-000 ZR ZQ ZU ZT ZM ZD
49 LID, SHELTER 83153-MCA-000 ZR ZQ ZU ZT ZM ZD
50 LOCK SET 35010-MCA-A40 ZA ZC ZE ZD ZB ZF
51 LOUVER, L. SIDE COWL 64295-MCA-000 ZR ZQ ZU ZT ZM ZD
52 LOUVER, R. SIDE COWL 64285-MCA-000 ZR ZQ ZU ZT ZM ZD
53 MIRROR ASSY., L. BACK 88120-MCA-A00 ZR ZQ ZU ZT ZM ZG
54 MIRROR ASSY., R. BACK 88110-MCA-A00 ZR ZQ ZU ZT ZM ZG
55 MOLDING, L. COWL TRIM 64214-MCA-000 ZR ZQ ZU ZT ZM ZD
56 MOLDING, L. RR. SADDLEBAG 81471-MCA-000 ZR ZQ ZU ZT ZM ZD
57 MOLDING, L. RR. SADDLEBAG
(LOWER)
81482-MCA-000 ZR ZQ ZU ZT ZM ZD
58 MOLDING, L. SADDLEBAG SIDE 81461-MCA-000 ZR ZQ ZU ZT ZM ZD
59 MOLDING, L. SADDLEBAG SIDE
(LOWER)
81481-MCA-000 ZR ZQ ZU ZT ZM ZD
60 MOLDING, L. TRUNK SIDE 81162-MCA-000 ZR ZQ ZU ZT ZM ZD
61 MOLDING, R. COWL TRIM 64204-MCA-000 ZR ZQ ZU ZT ZM ZD
62 MOLDING, R. RR. SADDLEBAG 81271-MCA-000 ZR ZQ ZU ZT ZM ZD
63 MOLDING, R. RR. SADDLEBAG
(LOWER)
81282-MCA-000 ZR ZQ ZU ZT ZM ZD
64 MOLDING, R. SADDLEBAG SIDE 81261-MCA-000 ZR ZQ ZU ZT ZM ZD
65 MOLDING, R. SADDLEBAG SIDE
(LOWER)
81281-MCA-000 ZR ZQ ZU ZT ZM ZD
66 MOLDING, R. TRUNK SIDE 81161-MCA-000 ZR ZQ ZU ZT ZM ZD
