1980-1983 Honda GL1100 Gold Wing Service & Repair Manual

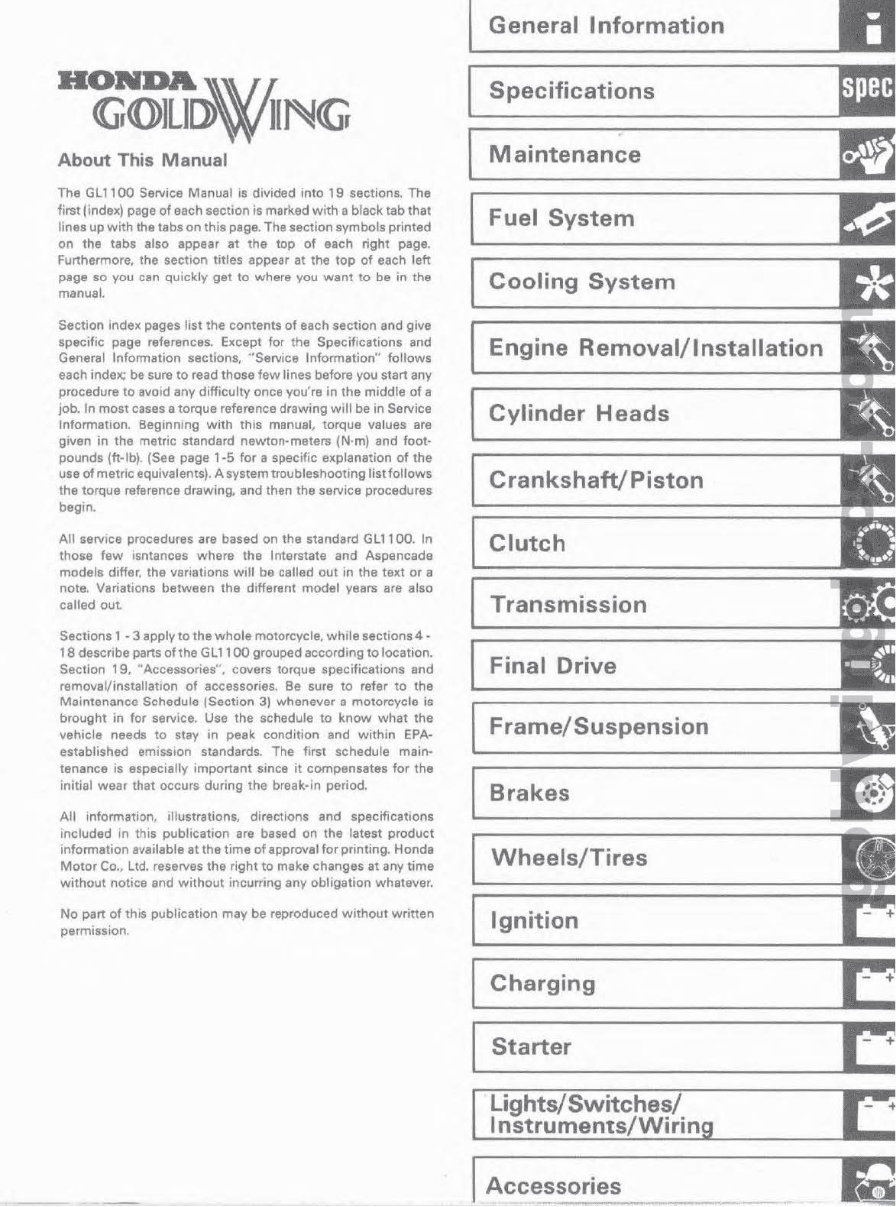

&ONDAlVl GOJLJ[J\\Y JING About This Manual The GL 1100 Service Manual is divided into 19 sections. The first (index) page of each section is marked with a black tab that lines up with the tabs on this page. The section symbols printed on the tabs also appear at the top of each right page. Furthermore, the section titles appear at the top of each left page so you can quickly get to where you want to be in the manual. Section index pages list the contents of each section and give specific page references. Except for the Specifications and General Information sections, ··service Information" follows each index; be sure to read those few lines before you start any procedure to avoid any difficulty once you' re in the middle of a job. In most cases a torque reference drawing will be in Service Information. Beginning with this manual, torque values are given in the metric standard newton-meters (N·m) and foot· pounds (ft· lb). (See page 1 ·5 for a specific explanation of the use of metric equivalents). A system troubleshooting list follows the torque reference drawing, and then the service procedures begin. All service procedures are based on the standard Gll 100. In those few isntances where the Interstate and Aspencade models differ, the variations will be called out in the text or a note. Variations between the different model years are also called out Sections 1 • 3 apply to the whole motorcycle, while sections 4 - 18 describe parts of the GL 1100 grouped according to location. Section 1 9, "Accessories", covers torque specifications and removal/installation of accessories. Be sure to refer to the Maintenance Schedule !Section 3) whenever a motorcycle is brought in for service. Use the schedule to know what the vehicle needs to stay in peak condition and within EPA- established emission standards. The first schedule maintenance is especially important since it compensates for the initial wear that occurs during the break-in period. All information, illustrations. directions and specifications included in this publication are based on the latest product information available at the time of approval for printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation whatever. No part of this publication may be reproduced without written permission. I General Information E I Specifications I Maintenance I Fuel System I Cooling System I Engine Removal/Installation I Cylinder Heads Crankshaft/Piston Clutch Transmission Final Drive Frame/Suspension Brakes Wheels/Tires Ignition r-•} Charging r- •} Starter r-•} Lights/ Switches I nstruments/Wiri n Accessories _____ ....... ..... ____ .. _
