Honda 929 Fireblade Parts list Service Manual

2000 HONDA 929RR PARTS INFO & DRAWINGS

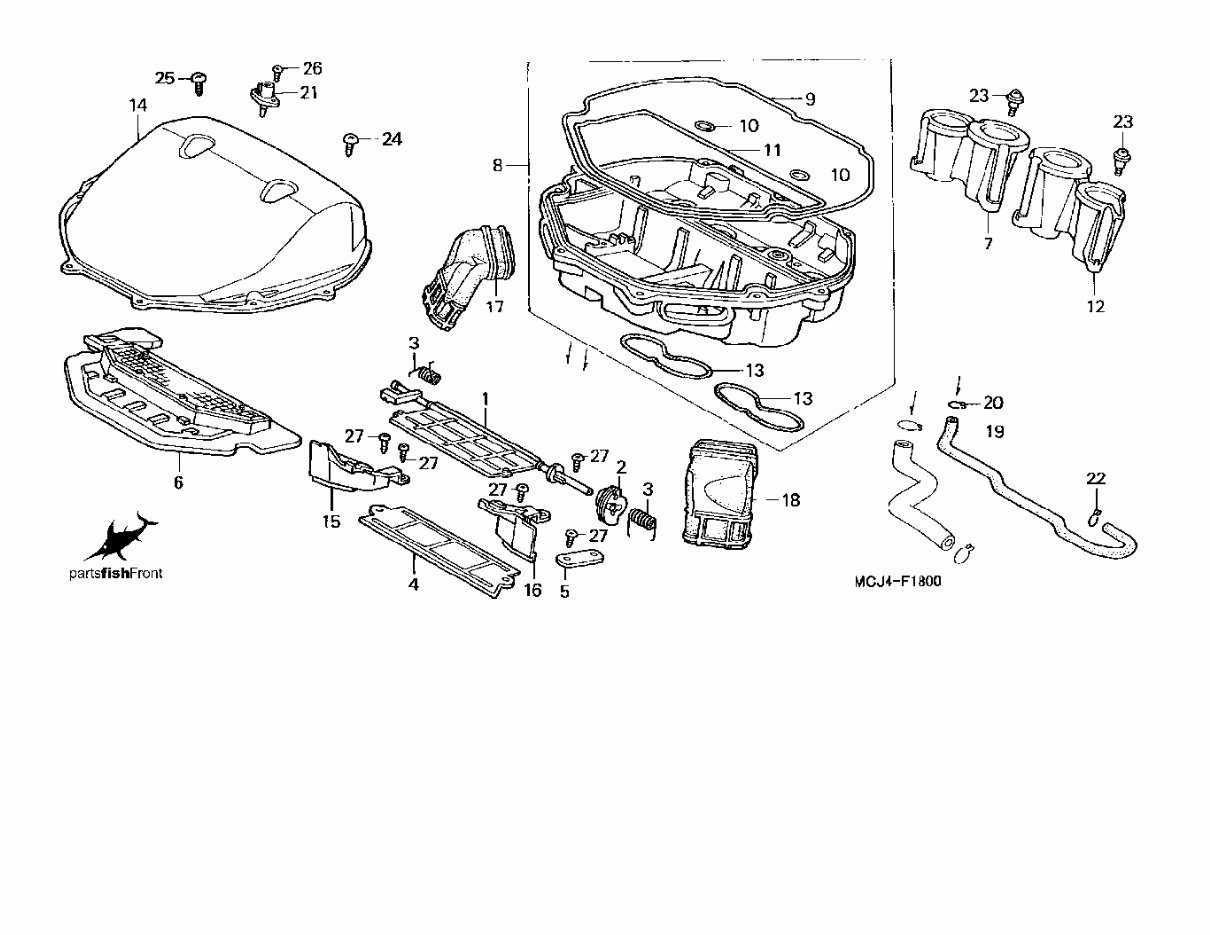

No. Part No. Description 1  17204-MCJ-003  VALVE COMP., AIR CON  2  17206-MCJ-003  PULLEY, AIR CONTROL  3  17207-MCJ-000  SPRING, AIR CONTROL  4  17208-MCJ-003  PLATE, DUCT (INNER)  5  17209-MCJ-003  PLATE SET, PULLEY  6  17210-MCJ-003  ELEMENT, AIR CLEANER  7  17215-MCJ-000  FUNNEL, R. AIR  8  17221-MCJ-003  HOUSING, AIR CLEANER  9  17222-MCJ-003  SEAL A, A/CLNR HSG  10  17223-MAT-300  SEAL B, A/CLNR HSG  11  17224-MCJ-003  SEAL C, A/CLNR HSG  12  17225-MCJ-000  FUNNEL, L. AIR  13  17226-MCJ-003  SEAL, A/CLNR HSG  14  17231-MCJ-003  COVER, AIR CLEANER  15  17235-MCJ-003  DUCT, R. AIR CLEANER  16  17245-MCJ-003  DUCT, L. AIR CLEANER  17  17251-MCJ-003  DUCT, R. AIR CLEANER  18  17261-MCJ-003  DUCT, L. AIR CLEANER  19  17551-MCJ-000  TUBE, BREATHER  20  17724-102-700  CLIP, SUB-TANK HOSE  21  37880-P05-A00  SENSOR ASSY., TA  22  90646-657-000  CLIP (16MM)  23  91508-MM5-000  SCREW, PAN (5MM)  24  93903-254G0  SCREW, TAP (5X20)  25  93903-24520  SCREW, TAP (4X20)  26  93911-25420  SCREW, TAP (5X16)  27  93913-24220  SCREW, TAP (4X12)  100  90004-GHB-660  BOLT, FLANGE (6X22) 

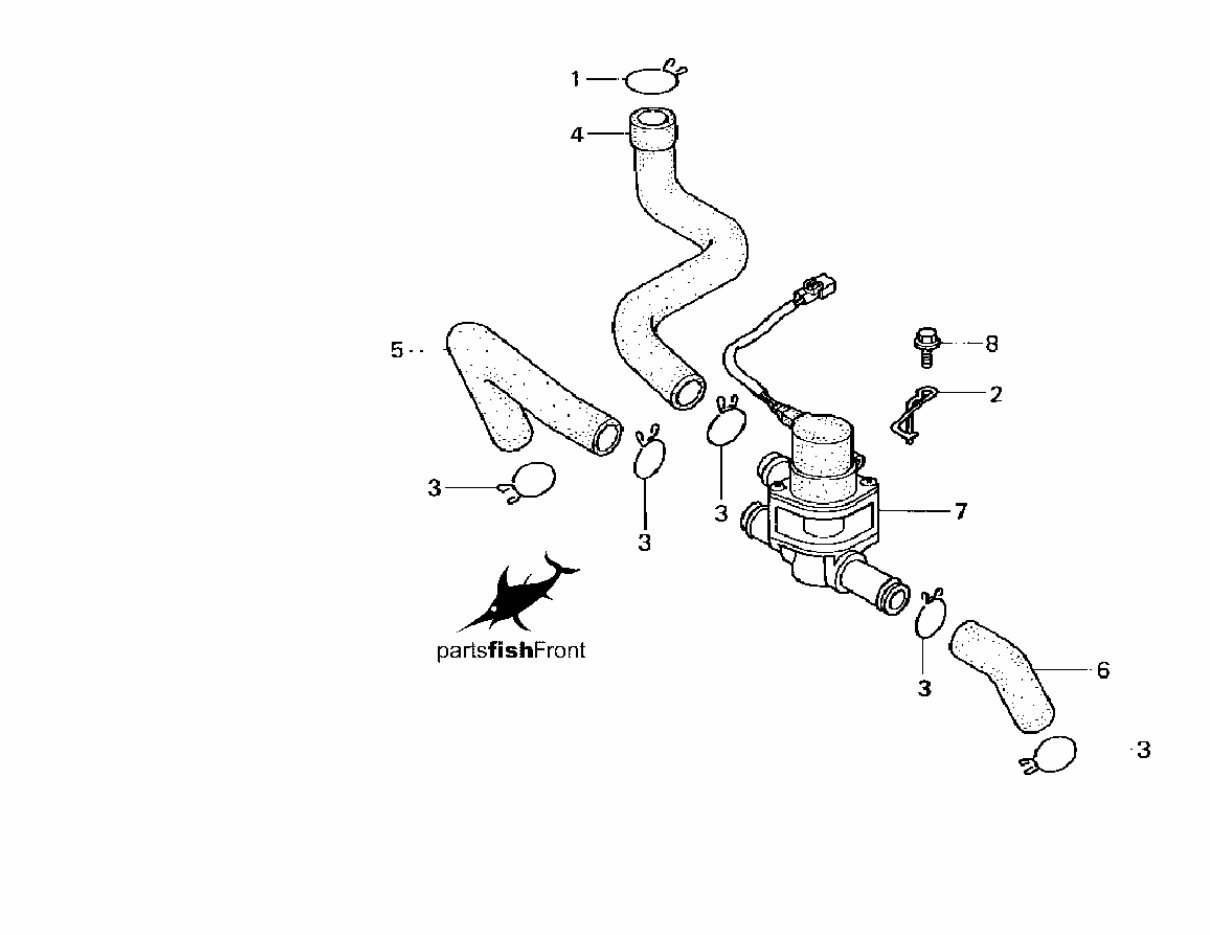

No. Part No. Description 1  15772-GB5-670  CLIP, DRAIN TUBE  2  17269-MCJ-000  STAY, AIR INJECTION  3  17369-KB4-670  CLIP, BREATHER TUBE  4  17460-MCJ-000  TUBE A, AIR SUCTION  5  17465-MCJ-000  TUBE, R. AIR SUCTION  6  17466-MCJ-000  TUBE, L. AIR SUCTION  7  36450-MBG-003  VALVE ASSY.  8  96001-06020-00  BOLT, FLANGE (6X20) 
