1998 Honda CBR900RR Parts Catalog

1998 HONDA 900RR PARTS INFO & DRAWINGS

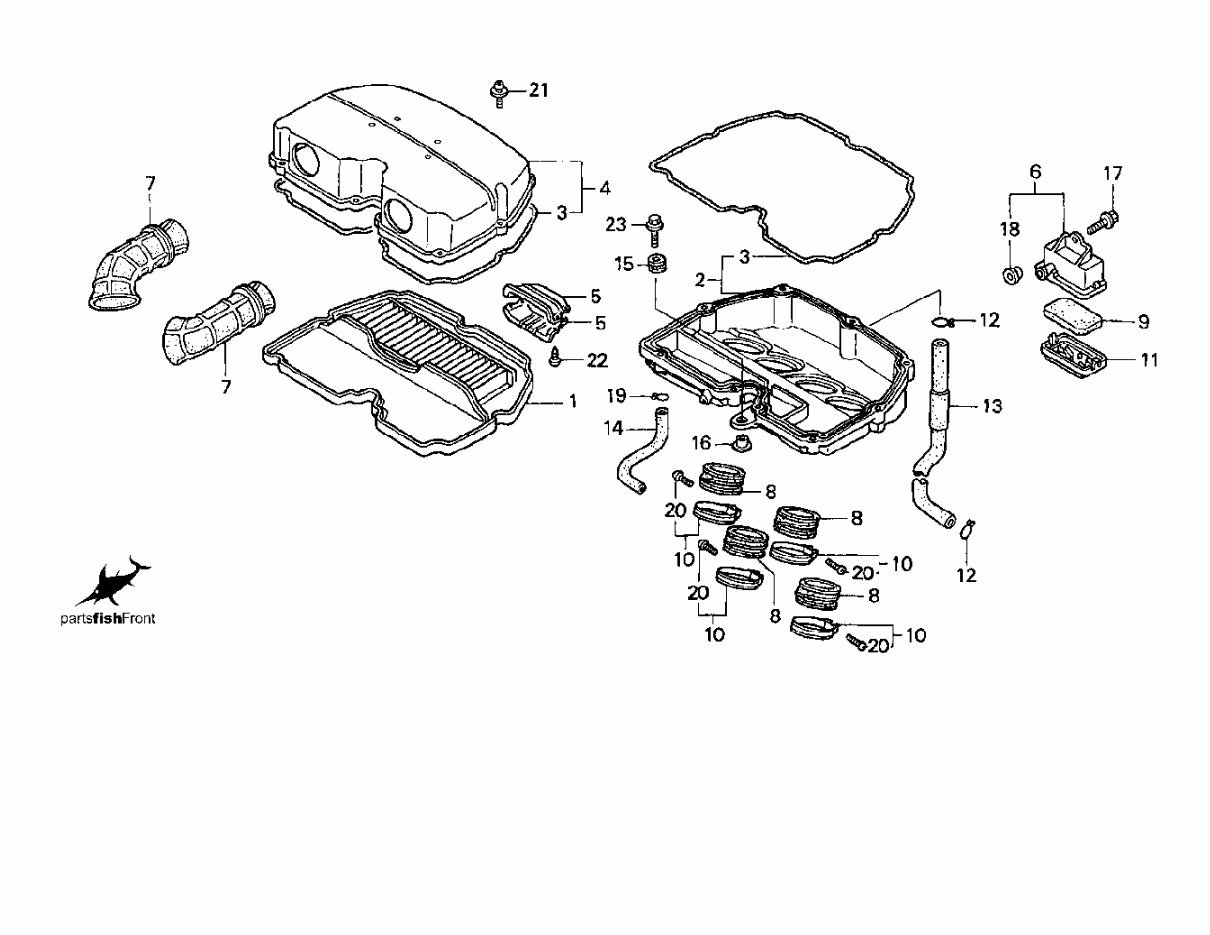

1998 HONDA CBR900RR AIR CLEANER   CLICK BELOW FOR MORE INFO No. Part No. Description 1  17210-MW0-000  ELEMENT, AIR CLEANER  2  17221-MW0-750  HOUSING, AIR CLEANER  3  17222-MW0-300  SEAL, A/CLNR HSG  4  17231-MW0-000  COVER, A/CLNR HSG  5  17235-MW0-000  DUCT, A/CLNR (INNER)  6  17251-KT8-000  CASE, SUB A/CLNR  7  17251-MW0-000  DUCT  8  17253-MW0-300  TUBE  9  17254-KAZ-000  FILTER, SUB A/CLNR  10  17255-MN1-670  BAND  11  17256-MM4-000  COVER, SUB A/CLNR  12  17369-KB4-670  CLIP, BREATHER TUBE  13  17460-MW0-750  HOSE, AIR SUCTION  14  17551-MW0-000  TUBE, BREATHER  15  80101-165-000  RUBBER, RR.  16  84706-163-670  COLLAR  17  90004-GHB-620  BOLT, FLANGE (6X14)  18  90522-028-000  WASHER  19  90646-657-000  CLIP (16MM)  20  93500-04025-0G  SCREW, PAN (4X25)  21  93891-05016-07  SCREW-WASHER (5X16)  22  93913-24220  SCREW, TAP (4X12)  23  96300-06018-00  BOLT, FLANGE (6X18) 

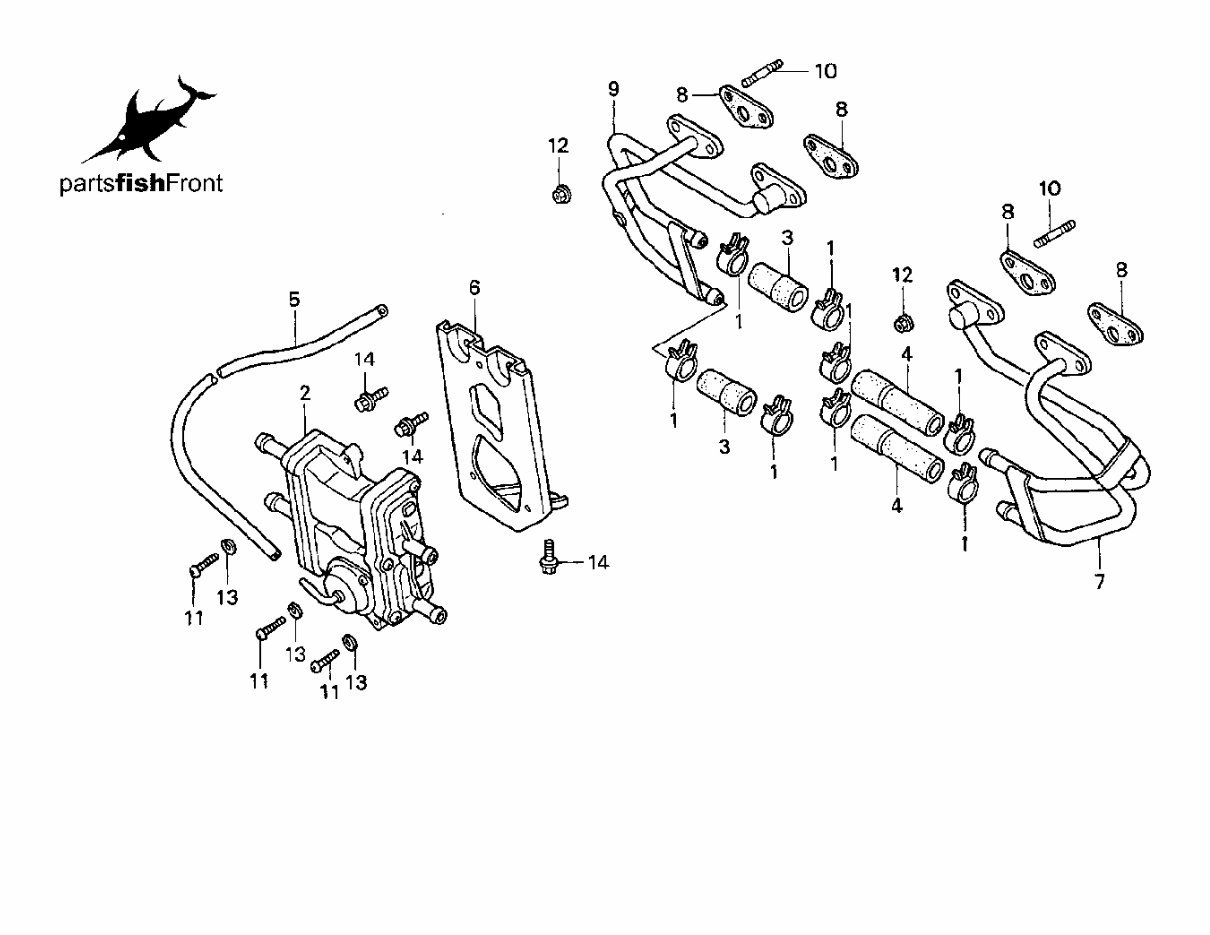

1998 HONDA CBR900RR AIR SUCTION VALVE CLICK BELOW FOR MORE INFO No. Part No. Description 1  16968-MC7-000  CLIP B, FUEL HOSE  2  18600-MW0-751  VALVE, AIR SUCTION  3  18614-MW0-750  TUBE, AIR PIPE  4  18616-MT3-730  HOSE  5  18617-MW0-750  TUBE, CONTROL  6  18625-MW0-750  BRACKET COMP.  7  18640-MAS-L00  PIPE COMP., L. AIR  8  18647-MW0-750  GASKET  9  18650-MAS-L00  PIPE COMP., R. AIR  10  90033-MV9-770  BOLT, STUD (6X18)  11  93500-05018-0A  SCREW, PAN (5X18)  12  94050-06020  NUT, FLANGE (6MM)  13  94111-05000  WASHER, SPRING (5MM)  14  95701-06014-00  BOLT, FLANGE (6X14) 

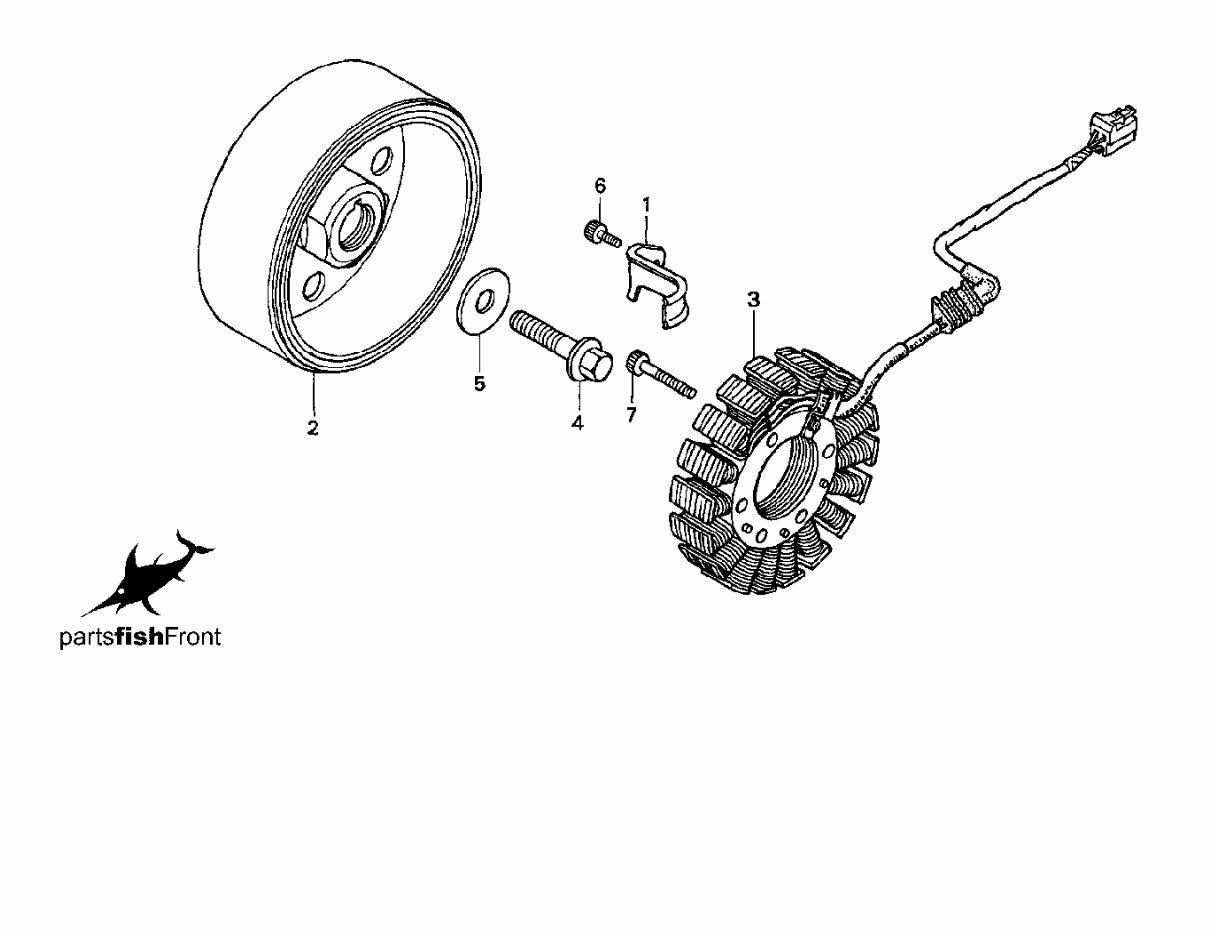

1998 HONDA CBR900RR ALTERNATOR CLICK BELOW FOR MORE INFO No. Part No. Description 1  11333-MV9-670  CLAMP  2  31110-MAS-E01  FLYWHEEL COMP.  3  31120-MAS-004  STATOR COMP.  4  90023-MV9-670  BOLT, FLANGE (10MM)  5  90405-KT7-000  WASHER (10.5X27)  6  96600-06012-00  BOLT, SOCKET (6X12)  7  96600-06032-00  BOLT, SOCKET (6X32) 

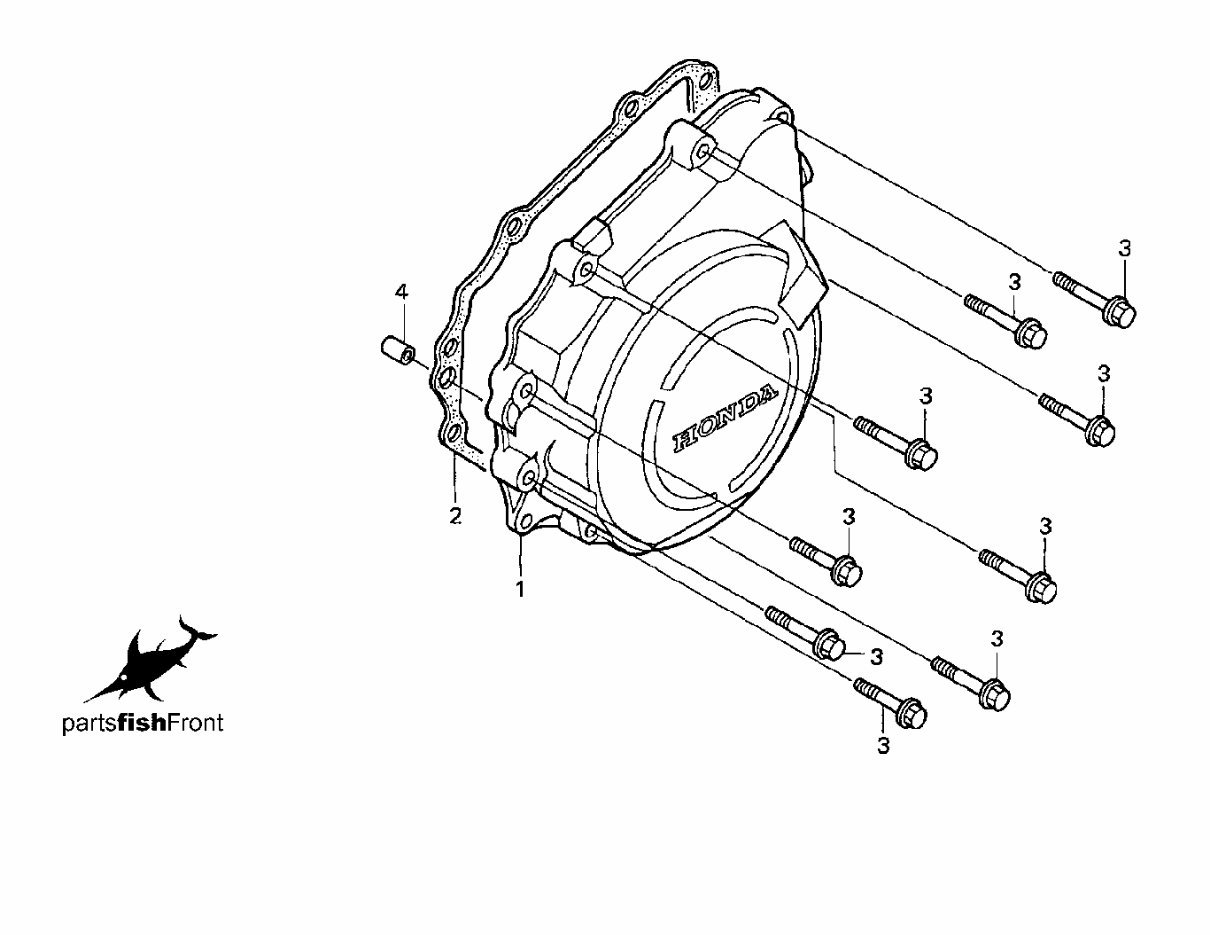

1998 HONDA CBR900RR ALTERNATOR COVER CLICK BELOW FOR MORE INFO No. Part No. Description 1  11321-MAS-000  COVER, ALTERNATOR  2  11392-MV9-670  GASKET  3  90005-GHB-680  BOLT, FLANGE (6X28)  4  94301-10160  PIN, DOWEL (10X16) 

1998 HONDA CBR900RR BATTERY CLICK BELOW FOR MORE INFO No. Part No. Description 1  31500-MN4-678  BATTERY (YTX9-BS)  2  32401-MW0-000  CABLE  3  32406-KAZ-000  COVER  4  32410-MW0-000  CABLE, STARTER MOTOR  5  32411-253-000  COVER  6  32414-MW0-000  COVER  7  32601-MW0-000  CABLE  8  35850-MR5-007  SWITCH ASSY.  9  35856-KBH-000  RUBBER, SHOCK  10  90111-MR5-000  BOLT, SOCKET (5X9)  11  90683-SA0-003  CLIP (25MM)  12  95012-17001  BAND F, BATTERY  13  98200-33000  FUSE, BLADE (30A) 
