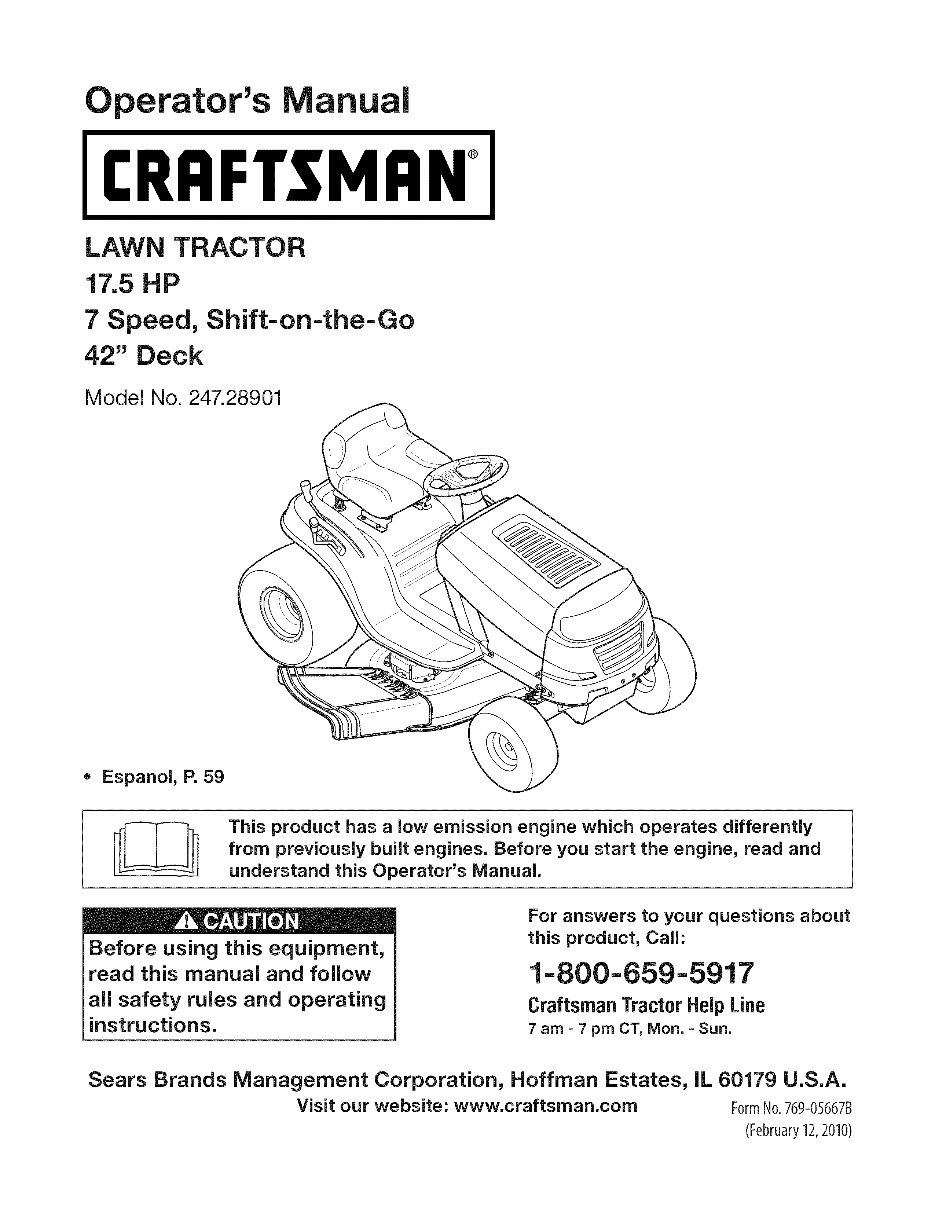

perator's I:RAFrSMAN ° LAWN TRACTOR 17.5 HP 7 Speed, Shift-on=the=Go 42" Deck Model No. 247.28901 • Espanol, P. 59 This product has a low emission engine which operates differently from previously built engines. Before you start the engine, read and understand this Operator's Manual. Before using this equipment, read this manual and follow all safety rules and operating instructions. For answers to your questions about this product, Call: 1-800=659=5917 Craftsman Tractor Help Line 7 am = 7 pm CT, Mort. =Sun. Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. Visit our website: www.craftsman.com FormNo.769-05667B (February 12,2010)

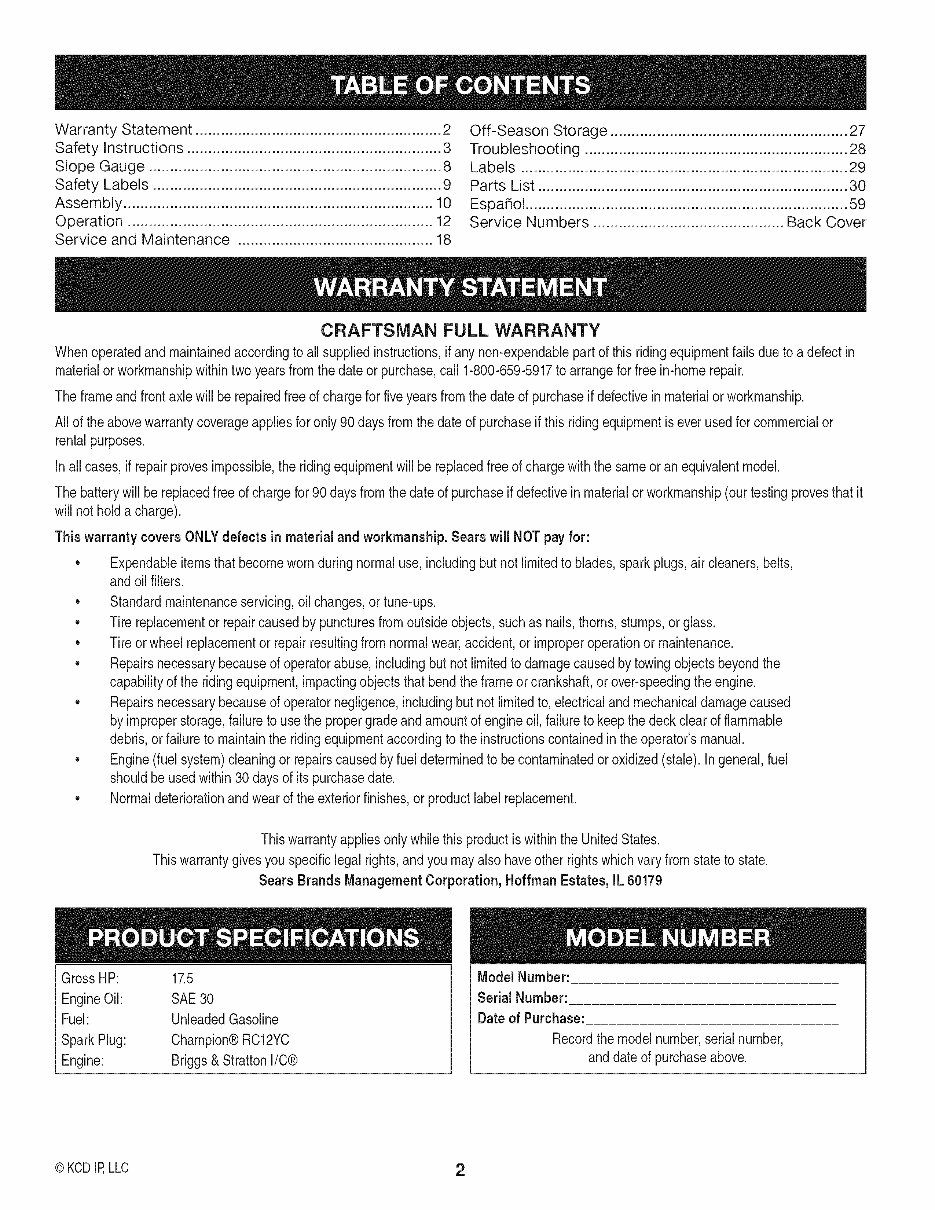

Off-Season Storage ........................................................ 27 Trou bleshooting .............................................................. 28 Labels ............................................................................. 29 Parts List ......................................................................... 30 Espafiol ............................................................................ 59 Service Numbers ............................................. Back Cover CRAFTSMAN FULL WARRANTY Whenoperatedand maintainedaccordingtoallsuppliedinstructions, if any non-expendablepartof thisridingequipmentfailsdueto a defect in materialor workmanshipwithintwo yearsfromthedate orpurchase,call 1-800-659-5917 to arrangefor free in-home repair. Theframe and frontaxle will be repairedfreeof chargefor five yearsfrom the dateof purchase if defective in materialor workmanship. All of the abovewarrantycoverageappliesfor only90 daysfromthe dateof purchase if this ridingequipment iseverusedfor commercialor rentalpurposes. In all cases, if repairproves impossible, the ridingequipmentwill be replacedfree of chargewiththe sameoran equivalentmodel. The batterywill be replacedfree of chargefor 90 daysfromthe dateof purchaseif defective in materialorworkmanship(ourtestingprovesthat it will nothold a charge). Thiswarranty coversONLYdefects in material and workmanship. Sears will NOT payfor: o o o o Expendableitemsthat becomewornduringnormaluse, includingbutnot limitedto blades,spark plugs,air cleaners,belts, and oil filters. Standardmaintenanceservicing,oilchanges,ortune-ups. Tire replacement or repaircausedby puncturesfromoutsideobjects,suchas nails,thorns,stumps,or glass. Tireor wheelreplacement or repairresultingfromnormalwear,accident,or improper operationor maintenance. Repairsnecessarybecauseof operatorabuse,includingbutnot limitedto damagecausedby towingobjectsbeyondthe capabilityof the ridingequipment,impactingobjectsthatbendtheframeorcrankshaft,or over-speeding the engine. Repairsnecessarybecauseof operatornegligence, includingbut not limitedto,electricalandmechanicaldamagecaused by improper storage,failureto use the propergradeand amountof engineoil, failureto keepthe deckclear of flammable debris,orfailureto maintainthe ridingequipmentaccordingto the instructionscontained inthe operator'smanual. Engine(fuelsystem)cleaningor repairscausedbyfuel determinedto becontaminatedoroxidized(stale).In general,fuel shouldbeusedwithin30daysof itspurchasedate. Normaldeteriorationandwearof the exteriorfinishes,or productlabelreplacement. Thiswarrantyappliesonly whilethis productiswithinthe UnitedStates. This warrantygivesyou specificlegal rights,and you mayalso haveotherrightswhich vary from stateto state. Sears Brands ManagementCorporation, HoffmanEstates, IL 60179 Gross HP: 17.5 EngineOil: SAE30 Fuel: UnleadedGasoline SparkPlug: Champion®RC12YC Engine: Briggs& StrattonI/C® Model Number: Serial Number: Dateof Purchase: Recordthe modelnumber,serialnumber, anddateof purchaseabove. © KCD IR LLC 2

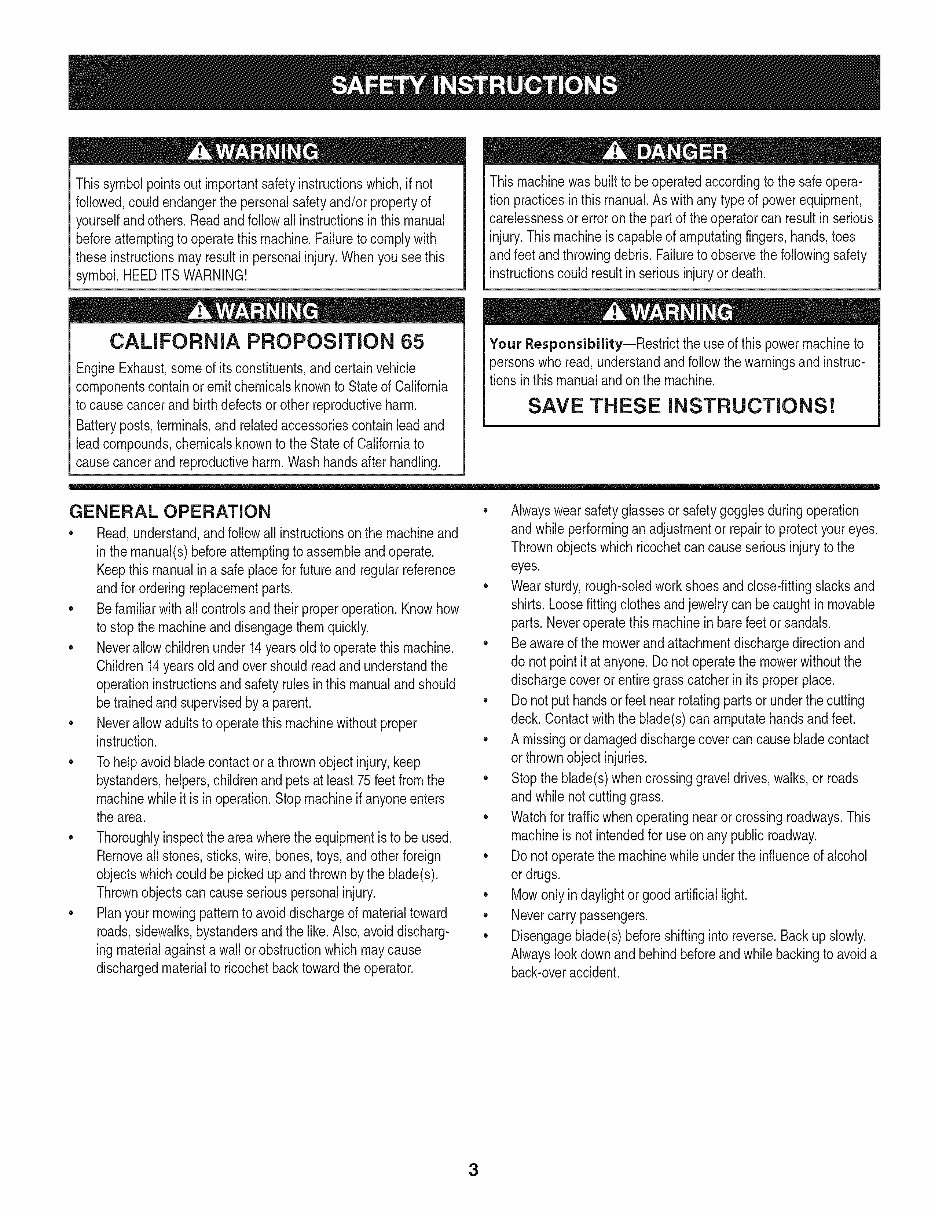

Thissymbolpointsout importantsafetyinstructionswhich,if not followed,couldendangerthepersonalsafetyand/orpropertyof yourselfandothers. Readandfollowall instructionsin thismanual beforeattemptingto operatethismachine.Failureto complywith theseinstructionsmayresultin personalinjury.Whenyou seethis symbol,HEEDITSWARNING! CALIFORNIA PROPOSITION 65 EngineExhaust,someof itsconstituents,andcertainvehicle componentscontainoremitchemicalsknownto Stateof California to causecancerandbirthdefectsorother reproductiveharm. Batteryposts,terminals,andrelatedaccessoriescontainleadand leadcompounds,chemicalsknowntotheStateof Californiato causecancerandreproductiveharm.Washhandsafterhandling. This machinewas builtto be operatedaccordingto the safeopera- tion practicesinthis manual.As withanytypeof powerequipment, carelessnessorerroron the partof the operatorcan resultin serious injury.Thismachineis capableof amputatingfingers,hands,toes andfeetandthrowingdebris.Failureto observethe followingsafety instructionscouldresultin seriousinjuryor death. Your Responsibility--Restrict the useof this powermachineto personswho read,understandandfollowthewarningsand instructions in this manualand on the machine. SAVE THESE INSTRUCTIONS! GENERAL OPERATION • Read,understand,andfollowall instructionson themachineand in themanual(s)beforeattemptingto assembleandoperate. Keepthis manualin a safe placefor futureand regularreference and for orderingreplacement parts. • Befamiliarwithall controlsandtheir properoperation.Knowhow to stopthe machineanddisengagethemquickly. • Neverallowchildrenunder 14 yearsold to operatethis machine. Children14yearsoldandover shouldreadandunderstandthe operationinstructionsandsafetyrulesinthismanualandshould be trainedand supervisedbya parent. • Neverallowadultsto operatethis machinewithoutproper instruction. • Tohelp avoidbladecontactor a thrownobjectinjury, keep bystanders,helpers,childrenandpetsat least75feetfromthe machinewhile it is in operation.Stopmachineif anyoneenters the area. • Thoroughlyinspectthe areawherethe equipmentis to be used. Removeall stones,sticks,wire, bones,toys,and otherforeign objectswhich couldbe pickedup and thrownby the blade(s). Thrownobjectscan causeseriouspersonalinjury. • Planyour mowingpatternto avoiddischargeof materialtoward roads,sidewalks,bystandersandthe like.Also,avoiddischarg- ingmaterialagainstawall orobstructionwhichmaycause dischargedmaterialto ricochetbacktowardtheoperator. • Alwayswear safetyglassesor safetygogglesduringoperation andwhileperformingan adjustmentor repairto protectyoureyes. Thrownobjectswhich ricochetcancause seriousinjuryto the eyes. • Wearsturdy,rough-soledworkshoesandclose-fittingslacksand shirts.Loosefittingclothesand jewelry canbe caughtin movable parts.Neveroperatethis machinein bare feet or sandals. • Beawareof the mowerandattachmentdischargedirectionand do not pointit at anyone.Donot operatethe mowerwithoutthe dischargecoverorentiregrasscatcherin its properplace. Donot put handsor feet near rotatingpartsor underthe cutting deck. Contactwiththe blade(s)can amputatehandsandfeet. A missingor damageddischargecovercan causebladecontact or thrownobject injuries. • Stoptheblade(s)whencrossinggraveldrives,walks,or roads and while notcuttinggrass. • Watchfor trafficwhenoperatingnearorcrossingroadways.This machineis not intendedfor useonany public roadway. • Donot operatethe machinewhile underthe influenceof alcohol or drugs. • Mowonly in daylightor good artificiallight. Nevercarrypassengers. • Disengageblade(s)beforeshiftingintoreverse.Backup slowly. Alwayslookdownand behindbeforeand while backingto avoida back-overaccident. 3

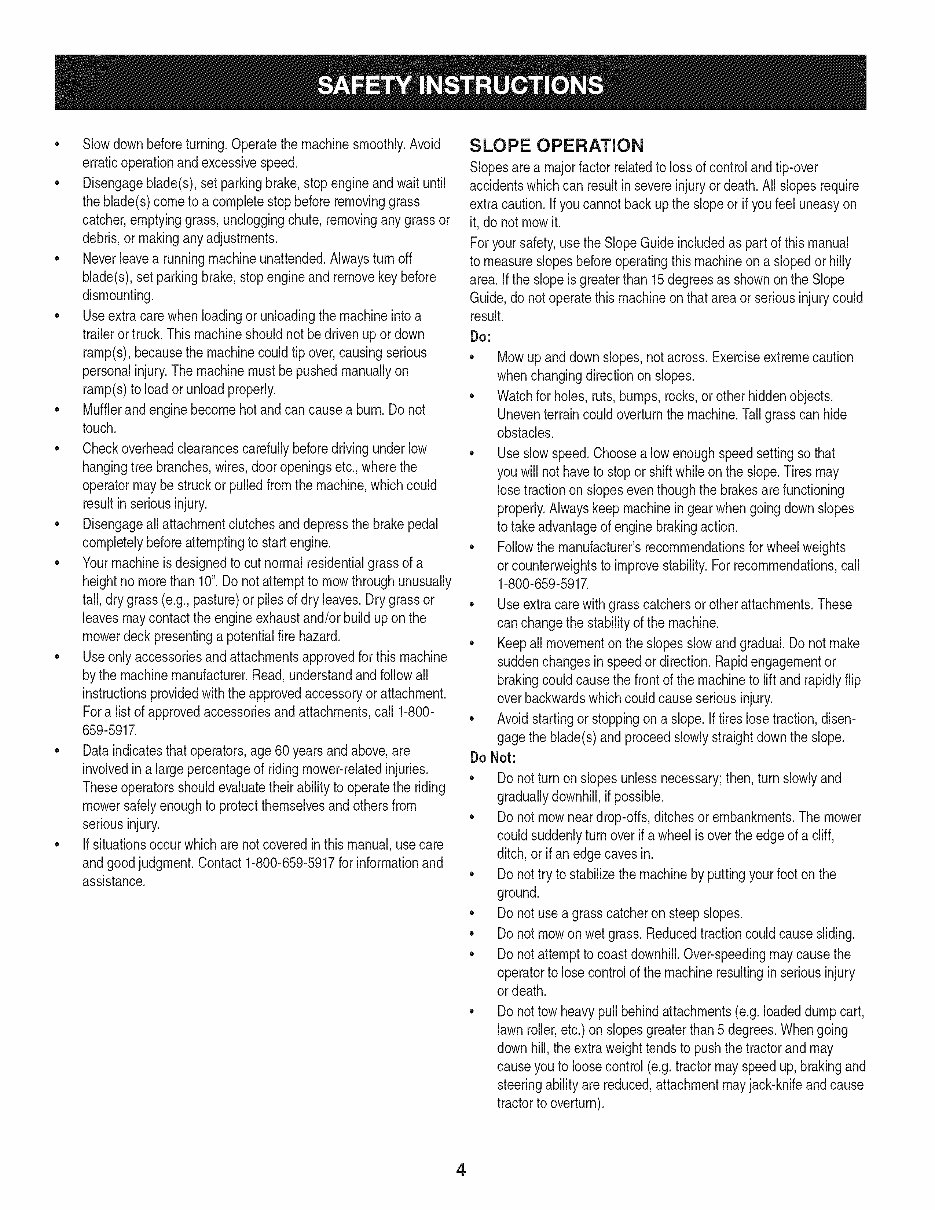

• Slowdownbeforeturning.Operatethemachinesmoothly.Avoid erraticoperationandexcessivespeed. Disengageblade(s),set parkingbrake,stopengine and wait until the blade(s)cometo a completestopbeforeremovinggrass catcher,emptyinggrass,uncloggingchute,removinganygrassor debris,or makinganyadjustments. Neverleavearunningmachineunattended.Alwaysturnoff blade(s),set parkingbrake,stopengine and removekey before dismounting. Use extracare whenloadingor unloadingthe machineintoa traileror truck. This machineshouldnot be drivenup or down ramp(s),becausethe machinecouldtip over,causingserious personalinjury.Themachinemustbe pushedmanuallyon ramp(s)to loador unloadproperly. Mufflerand engine becomehotand can causea burn.Do not touch. Checkoverheadclearancescarefullybeforedrivingunderlow hangingtree branches,wires,dooropeningsetc.,wherethe operatormaybestruckor pulledfromthe machine,whichcould result in seriousinjury. Disengageallattachmentclutchesanddepressthe brakepedal completelybeforeattemptingtostartengine. Yourmachineisdesignedto cut normalresidential grass of a heightno morethan 10".Do not attemptto mowthroughunusually tall, dry grass (e.g.,pasture)or piles of dry leaves.Dry grass or leavesmaycontactthe engineexhaustand/or build up on the mowerdeckpresentinga potentialfire hazard. Useonlyaccessoriesandattachmentsapprovedforthis machine by the machinemanufacturer. Read,understandandfollowall instructionsprovidedwiththeapprovedaccessoryor attachment. Fora list ofapprovedaccessoriesandattachments,call 1-800- 659-5917. Dataindicatesthatoperators,age60yearsandabove,are involvedin a largepercentageof ridingmower-related injuries. Theseoperatorsshouldevaluatetheirabilityto operatethe riding mowersafelyenoughto protectthemselvesandothersfrom seriousinjury. If situationsoccurwhich are not coveredin this manual,usecare and goodjudgment.Contact1-800-659-5917 forinformationand assistance. SLOPE OPERATION Slopesare a majorfactorrelatedto loss of controland tip-over accidentswhichcan result in severeinjuryor death.All slopes require extra caution.If youcannot back up the slopeor if youfeel uneasyon it, do not mowit. Foryoursafety,use the SlopeGuide includedas partof this manual to measureslopesbeforeoperatingthis machineona slopedor hilly area. If the slopeis greaterthan15 degreesas shownon the Slope Guide,do notoperatethis machineon that area or seriousinjurycould result. Do: o Mowupanddown slopes,not across.Exerciseextremecaution whenchangingdirectionon slopes. • Watchfor holes,ruts,bumps,rocks,or other hiddenobjects. Uneventerraincouldoverturnthe machine.Tallgrasscan hide obstacles. Useslow speed.Choosea lowenoughspeedsettingso that you will nothaveto stop or shiftwhileon the slope.Tires may lose tractionon slopeseventhoughthe brakesarefunctioning properly.Alwayskeepmachinein gearwhen goingdownslopes to takeadvantageof enginebrakingaction. • Followthemanufacturer'srecommendations for wheelweights or counterweights to improvestability.Forrecommendations, call 1-800-659-5917. • Useextracarewithgrasscatchersor otherattachments.These can changethe stabilityof the machine. Keepallmovementonthe slopesslowandgradual.Do not make suddenchangesinspeedor direction.Rapidengagementor brakingcouldcausethe front of the machineto lift and rapidlyflip overbackwardswhich couldcauseseriousinjury. • Avoidstartingor stoppingon a slope. If tires losetraction,disen- gage the blade(s)and proceedslowlystraightdownthe slope. Do Not: • Donot turnon slopesunlessnecessary;then, turnslowlyand graduallydownhill,if possible. • Donot mow neardrop-offs,ditchesor embankments. The mower could suddenlyturnover if a wheelis overthe edgeof a cliff, ditch,or if an edge cavesin. • Donot try to stabilizethe machineby puttingyourfooton the ground. • Donot usea grass catcheron steepslopes. • Donot mowon wet grass.Reducedtractioncouldcausesliding. • Donot attemptto coastdownhill.Over-speedingmaycausethe operatorto lose controlof the machineresultingin seriousinjury or death. • Donot towheavypull behindattachments(e.g.loadeddumpcart, lawn roller,etc.)on slopesgreaterthan5 degrees.Whengoing down hill,the extraweighttends to pushthe tractorand may causeyou to loosecontrol (e.g.tractormay speedup, brakingand steeringabilityarereduced,attachmentmayjack-knifeandcause tractorto overturn). 4

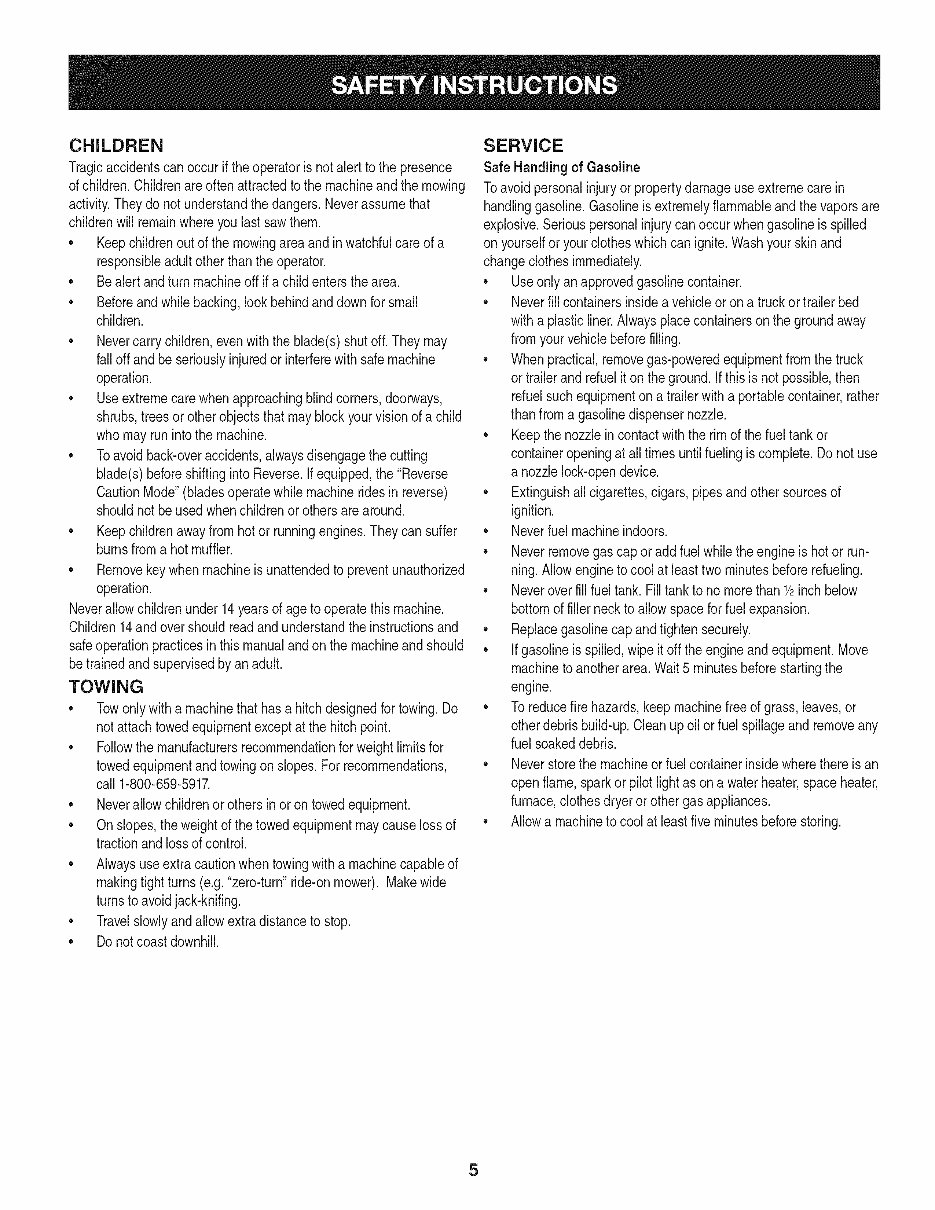

CHILDREN Tragicaccidentscanoccur if the operator is notalert to the presence of children.Childrenareoftenattractedto the machineandthe mowing activity.Theydo notunderstandthe dangers.Neverassumethat childrenwill remainwhereyou lastsawthem. • Keepchildrenout of the mowingareaand inwatchfulcare of a responsibleadultotherthanthe operator. • Be alert and turnmachineoff if a childentersthe area. • Beforeand whilebacking,lookbehindand downfor small children. Nevercarry children,evenwith the blade(s)shut off.They may fall off and be seriously injured or interfere with safe machine operation. • Useextremecarewhenapproachingblindcorners,doorways, shrubs,trees or otherobjectsthat may block yourvisionof a child whomayrun into the machine. Toavoidback-overaccidents,alwaysdisengagethecutting blade(s)beforeshiftingintoReverse.Ifequipped,the "Reverse CautionMode"(bladesoperatewhilemachineridesin reverse) shouldnotbe usedwhenchildrenor othersare around. Keepchildrenaway from hotor runningengines.They cansuffer burnsfroma hotmuffler. • Removekeywhenmachineisunattendedto preventunauthorized operation. Neverallowchildrenunder 14 yearsof age to operatethis machine. Children14andovershouldreadandunderstandthe instructions and safeoperationpractices in thismanualandon the machineandshould be trainedand supervisedbyan adult. TOWING Towonlywith a machinethat hasa hitch designedfor towing.Do not attachtowedequipmentexceptat the hitchpoint. Followthemanufacturersrecommendation forweightlimitsfor towedequipmentandtowingonslopes.For recommendations, call 1-800-659-5917. Neverallowchildrenor othersin or on towedequipment. On slopes,theweightof thetowed equipmentmaycause lossof tractionandlossof control. Alwaysuseextra cautionwhentowingwith a machinecapableof makingtightturns(e.g."zero-turn"ride-onmower). Makewide turnsto avoidjack-knifing. Travelslowlyand allowextradistanceto stop. Do notcoastdownhill. SERVICE SafeHandlingof Gasoline Toavoidpersonal injury orpropertydamageuse extremecarein handlinggasoline.Gasolineisextremelyflammableandthe vaporsare explosive.Seriouspersonal injury canoccurwhengasolineis spilled on yourselforyour clotheswhichcan ignite. Washyourskin and changeclothesimmediately. • Useonly anapprovedgasolinecontainer. Neverfill containers inside a vehicleor on a truckor trailer bed witha plasticliner.Alwaysplacecontainerson the groundaway from yourvehiclebeforefilling. Whenpractical,removegas-poweredequipmentfromthetruck or trailerand refuel it on theground.Ifthis isnotpossible,then refuelsuchequipmentona trailerwitha portablecontainer,rather than froma gasolinedispensernozzle. Keepthe nozzleincontactwith the rim of the fueltank or containeropeningat all timesuntilfuelingiscomplete.Donot use a nozzlelock-opendevice. Extinguishall cigarettes,cigars,pipesandothersourcesof ignition. • Neverfuel machineindoors. Neverremovegascap or add fuelwhilethe engineis hotor running.Allowengineto coolat least two minutesbeforerefueling. Neveroverfill fuel tank. Filltankto no morethan 1/2 inchbelow bottomof filler neckto allowspace forfuel expansion. • Replacegasolinecap andtightensecurely. • If gasolineis spilled,wipeit off the engineandequipment.Move machineto anotherarea.Wait5 minutesbeforestartingthe engine. • To reducefire hazards,keepmachinefree of grass,leaves,or otherdebrisbuild-up.Cleanup oilor fuel spillageandremoveany fuel soakeddebris. • Neverstorethe machineor fuelcontainerinside wherethere isan open flame,sparkor pilotlight as on a waterheater,spaceheater, furnace,clothesdryeror othergasappliances. Allowa machineto coolat least five minutesbeforestoring.

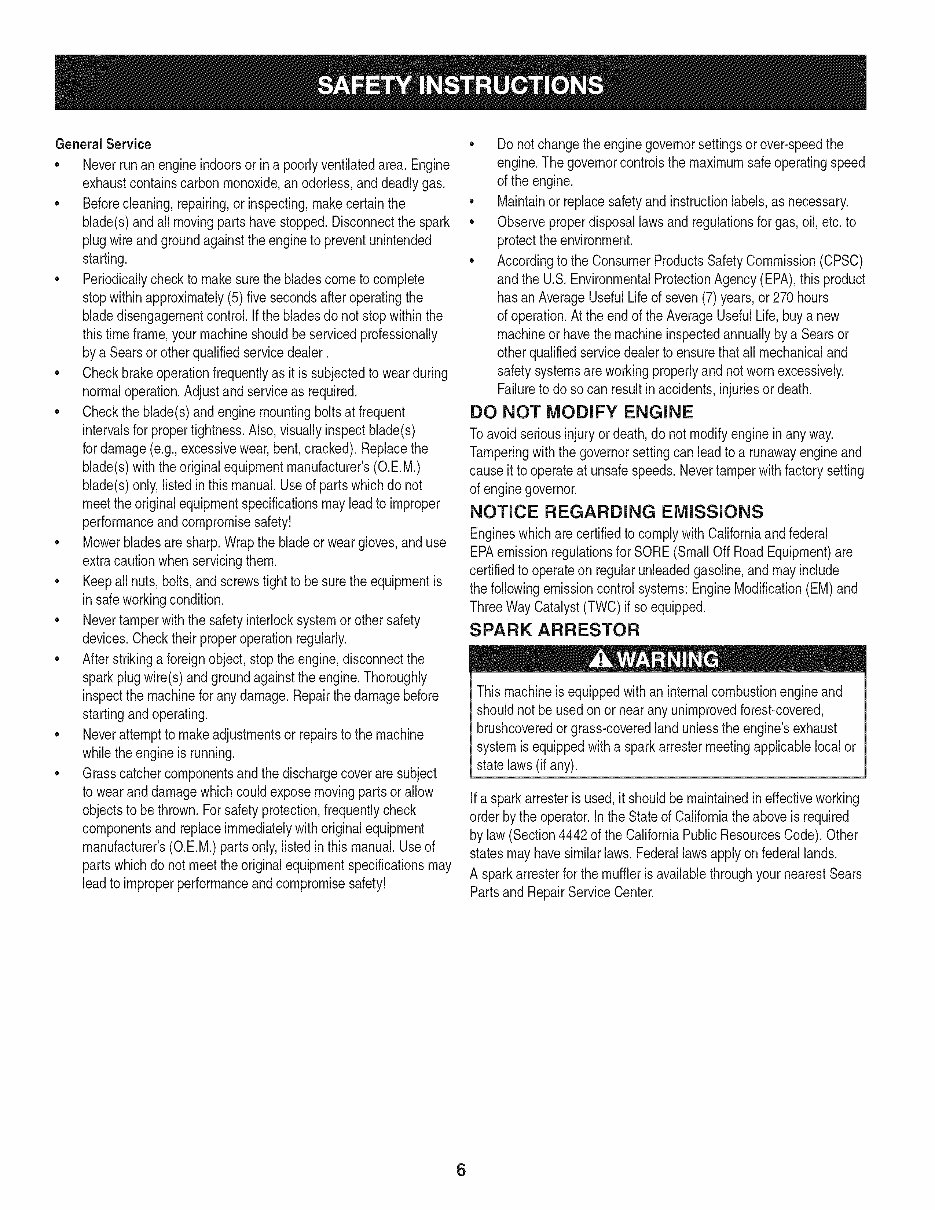

General Service • Never runanengine indoors orinapoorly ventilated area. Engine exhaust contains carbon monoxide, anodorless, anddeadly gas. • Before cleaning, repairing, orinspecting, make certain the blade(s) andallmoving partshave stopped. Disconnect thespark plugwireandground against theengine toprevent unintended starting. • Periodically check tomake sure theblades come tocomplete stopwithin approximately (5)fiveseconds after operating the blade disengagement control. Iftheblades donotstopwithin the this time frame, your machine should beserviced professionally byaSears orother qualified service dealer. • Check brake operation frequently asitissubjected towear during normal operation. Adjust andservice asrequired. • Check theblade(s) andengine mounting bolts atfrequent intervals forproper tightness. Also, visually inspect blade(s) fordamage (e.g., excessive wear, bent, cracked). Replace the blade(s) with theoriginal equipment manufacturer's (O.E.M.) blade(s) only, listed inthismanual. Useofpartswhich donot meet theoriginal equipment specifications may lead toimproper performance andcompromise safety! • Mower blades aresharp. Wrap thebladeorwear gloves, anduse extra caution whenservicing them. • Keep allnuts, bolts, andscrews tight tobesure theequipment is in safeworkingcondition. • Nevertamperwiththe safetyinterlocksystemor othersafety devices.Checktheir properoperationregularly. • Afterstrikinga foreignobject,stopthe engine,disconnectthe spark plugwire(s) and groundagainstthe engine.Thoroughly inspectthe machinefor anydamage.Repairthe damagebefore startingandoperating. • Neverattemptto makeadjustmentsor repairsto the machine whilethe engineis running. • Grasscatchercomponentsandthedischargecoverare subject to wearand damagewhich couldexposemovingparts or allow objectsto bethrown.Forsafetyprotection,frequentlycheck componentsandreplaceimmediatelywithoriginalequipment manufacturer's(O.E.M.)partsonly,listedinthis manual.Useof partswhichdo not meetthe originalequipmentspecificationsmay leadtoimproperperformanceandcompromisesafety! • Donot changethe enginegovernorsettingsorover-speedthe engine.The governorcontrolsthe maximumsafeoperatingspeed of the engine. Maintainor replacesafetyandinstructionlabels,as necessary. • Observeproperdisposallawsandregulationsfor gas,oil, etc.to protecttheenvironment. • Accordingtothe ConsumerProductsSafetyCommission(CPSC) andthe U.S.Environmental ProtectionAgency(EPA),thisproduct has an AverageUsefulLifeof seven(7) years,or 270 hours of operation.At the endof the AverageUsefulLife,buy anew machineor havethe machineinspected annuallybya Searsor otherqualifiedservicedealerto ensurethatall mechanicaland safetysystemsareworkingproperlyandnot wornexcessively. Failureto doso can resultin accidents, injuries or death. DO NOT MODIFY ENGINE Toavoid seriousinjuryor death,do notmodifyengine in anyway. Tamperingwiththe governorsettingcanleadto a runawayengineand causeit to operateat unsafespeeds.Nevertamperwithfactorysetting of enginegovernor. NOTICE REGARDING EMISSIONS Engineswhicharecertifiedto complywithCaliforniaandfederal EPAemissionregulationsforSORE(SmallOffRoadEquipment)are certifiedto operateon regularunleadedgasoline,andmayinclude thefollowingemissioncontrolsystems:EngineModification(EM)and ThreeWayCatalyst(TWO)if so equipped. SPARK ARRESTOR This machine is equippedwithaninternalcombustionengineand shouldnotbe usedon or near anyunimprovedforest-covered, brushcoveredorgrass-covered land unlessthe engine'sexhaust systemisequippedwitha sparkarrestermeetingapplicablelocalor statelaws (if any). If a sparkarresteris used,it shouldbe maintained in effectiveworking orderby the operator.Inthe Stateof Californiatheaboveis required by law (Section4442of the CaliforniaPublicResourcesCode).Other states mayhavesimilarlaws.Federallaws applyon federallands. A sparkarresterfor the muffler isavailablethroughyournearestSears Partsand RepairServiceCenter. 6

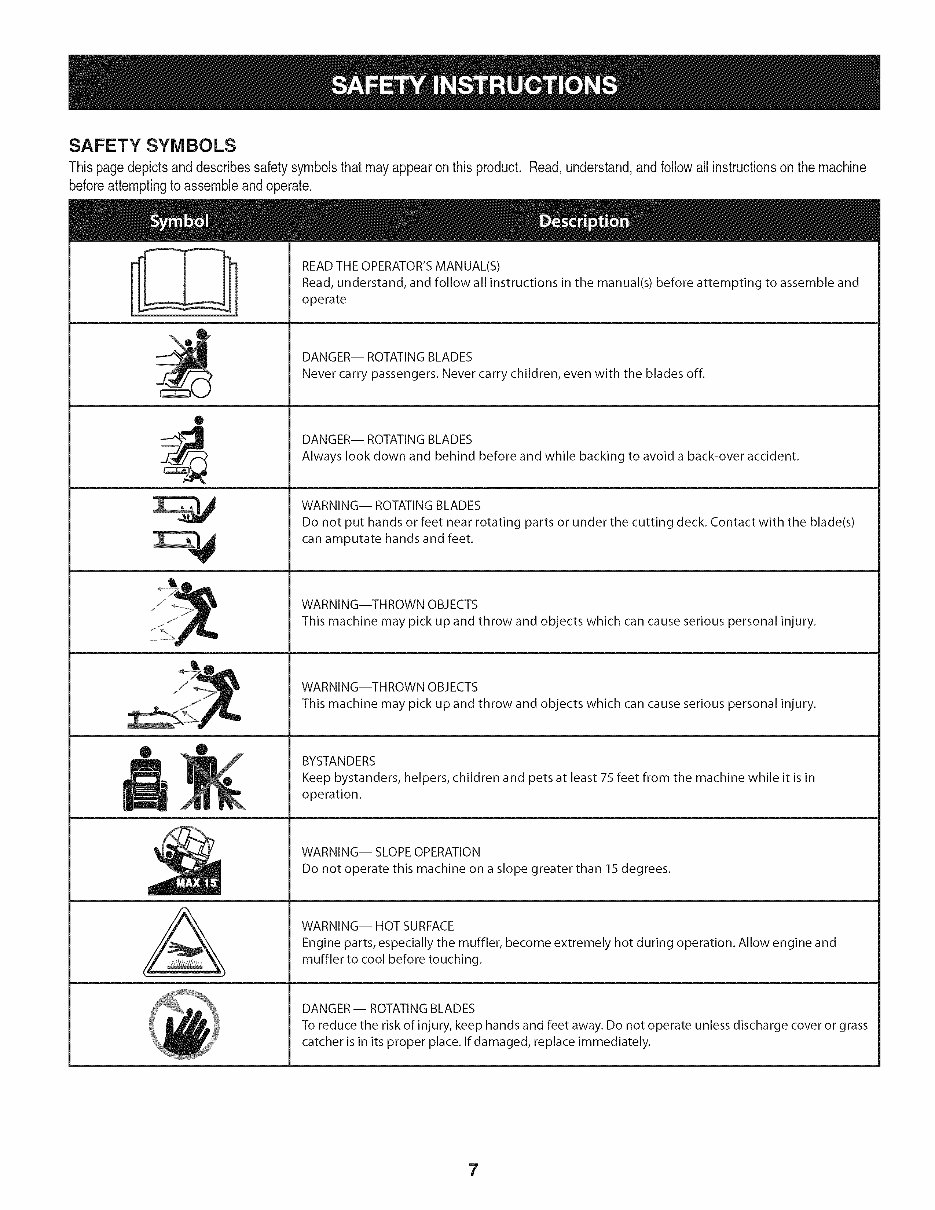

SAFETY SYMBOLS Thispagedepictsanddescribessafetysymbolsthatmayappearonthis product. Read,understand,andfollowall instructions on the machine beforeattemptingto assembleandoperate. 0 A READ THE OPERATOR'S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate DANGER-- ROTATING BLADES Never carry passengers. Never carry children, even with the blades off. DANGER-- ROTATING BLADES Always look down and behind before and while backing to avoid a back-over accident. WARNING-- ROTATING BLADES Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. WARNING--THROWN OBJECTS This machine may pick up and throw and objects which can cause serious personal injury. WARNING--THROWN OBJECTS This machine may pick up and throw and objects which can cause serious personal injury. BYSTANDERS Keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation. WARNING-- SLOPE OPERATION Do not operate this machine on a slope greater than 15 degrees. WARNING-- HOT SURFACE Engine parts, especially the muffler, become extremely hot during operation. Allow engine and muffler to cool before touching. DANGER-- ROTATING BLADES To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover or grass catcher is in its proper place. If damaged, replace immediately. 7

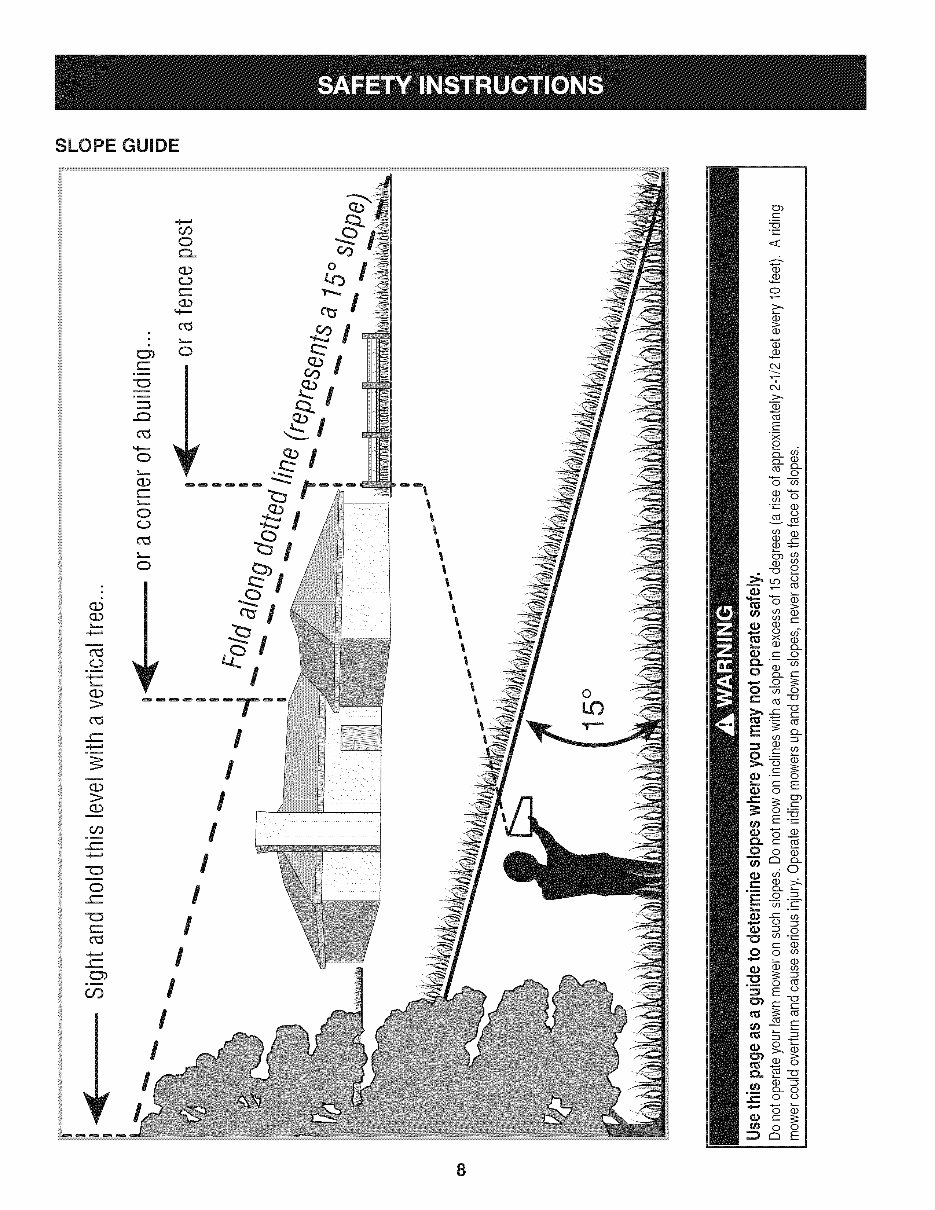

SLOPE GUIDE }=.== m (=) }==== G.) 1> 0_3 _== (3) OO _== C:) _= _== 0_3 =,F=_ 03 _== c_3 %,==,== C) }=== (1) _== }==,== C) (=3 c_3 }==== C) _r Or) C;) (=) (== CL) %,==,= c_3 }==== C) _r I I I I I I I Dm m_ I I i I I I I ! I l l l l l l l l 0 c E Q 8 o (.... "'O C3, (1) (1) & 1>-. 03 E x o cL (1) 03 cL o co "_--- (D 03 O v_ _2 --_ o cz o 03 "o o _E (-" 03 o_ CZ3cL o__ _._o o 8

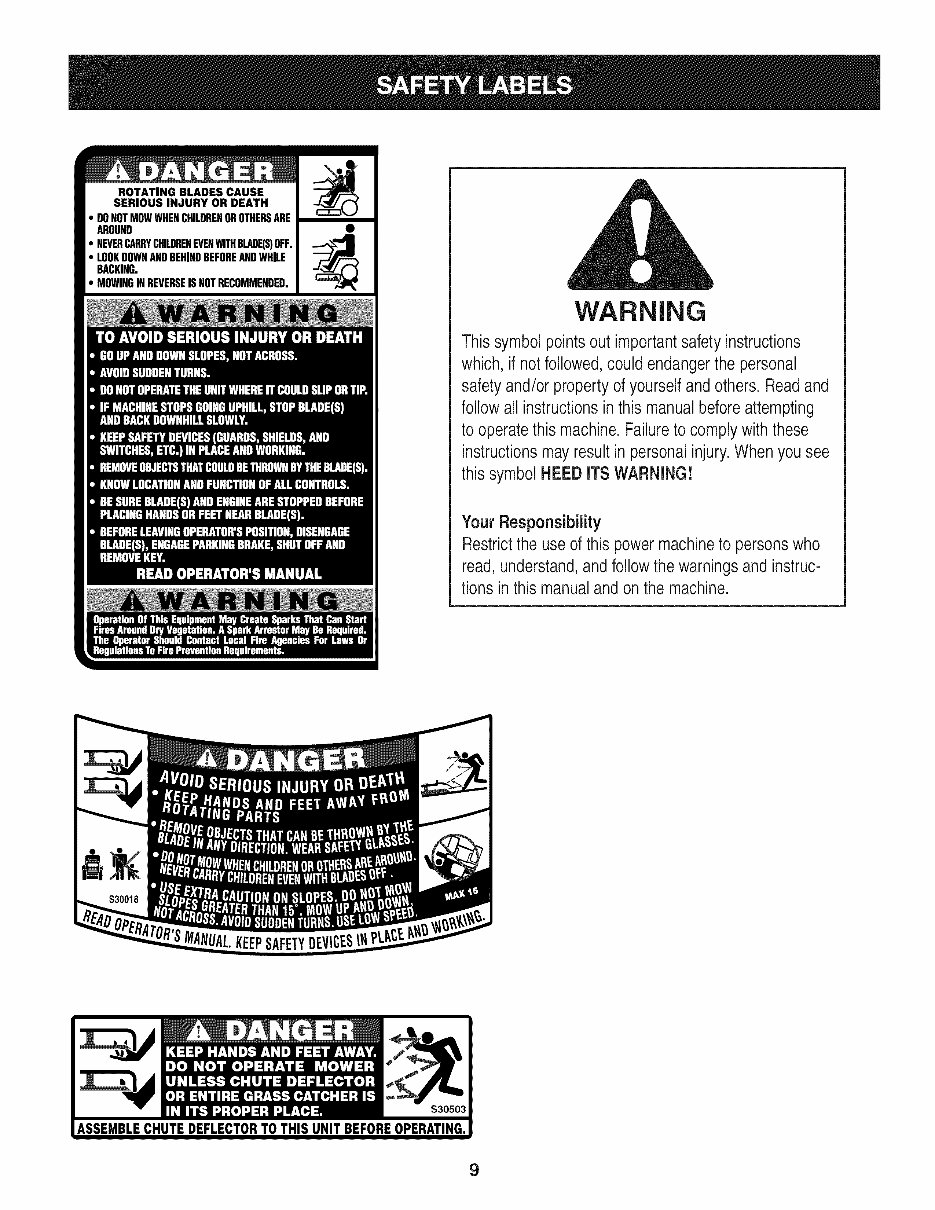

ROTATING BLADES CAUSE SERIOUS INJURY OR DEATH DONOTMOWWHENCHILDREN OROTHERS ARE AROUND NEVER CARRY CHILDREN EVENWITHBLADE(S) OFF. LOOKDOWNANDBEHINDBEFORE ANDWHILE BACKING. MOWING INREVERSE ISNOTRECOMMENDED. WARNING This symbol points out important safety instructions which, if not followed, could endangerthe personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.When you see this symbol HEED ITS WARNING! Your Responsibility Restrict the use of this power machine to persons who read, understand, and follow the warnings and instructions in this manual and on the machine. 9

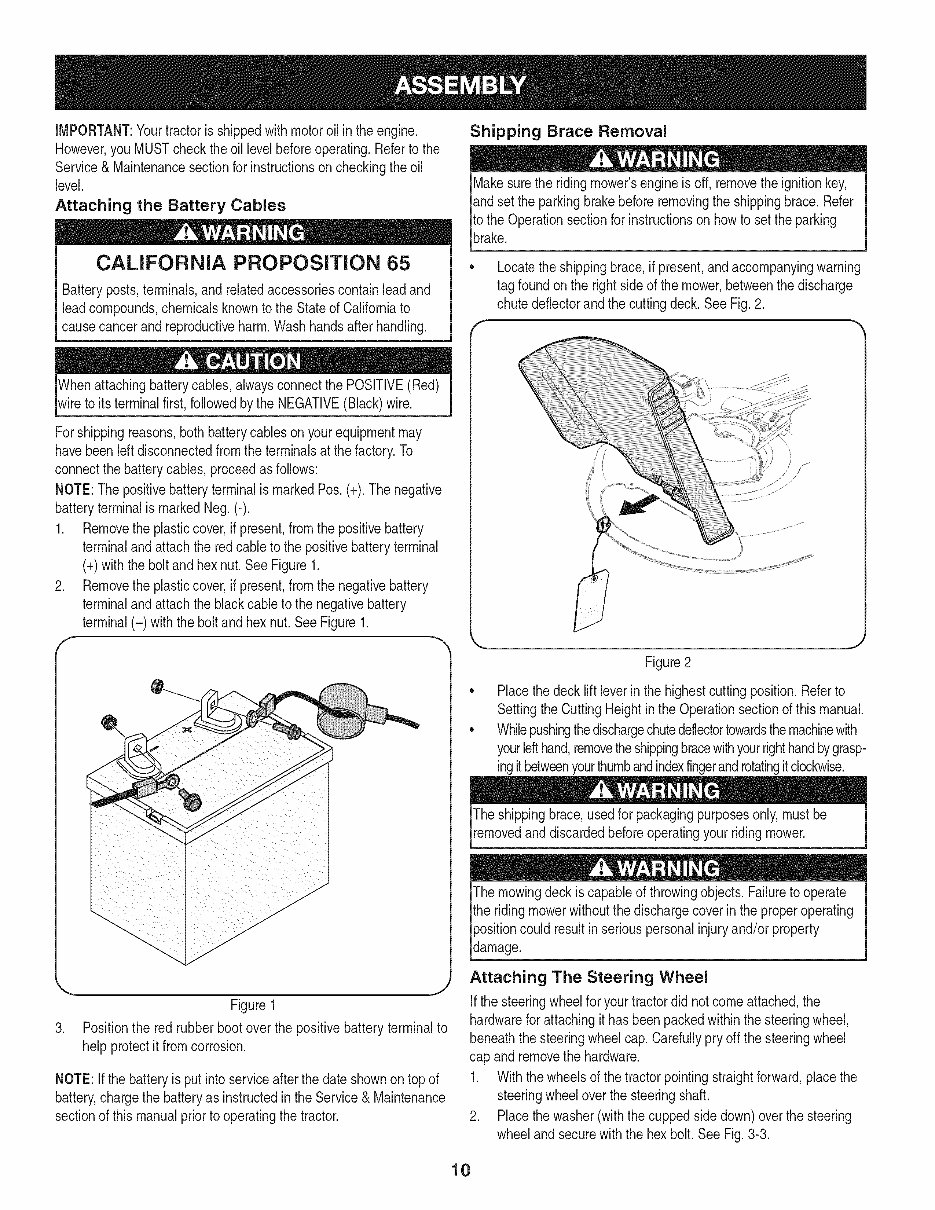

IMPORTANT: Yourtractoris shippedwith motoroil in theengine. However,you MUSTcheckthe oil levelbeforeoperating.Referto the Service& Maintenancesectionforinstructionson checkingtheoil level. Attaching the Battery Cables CALIFORNIA PROPOSITION 65 Batteryposts,terminals,andrelatedaccessoriescontainleadand leadcompounds,chemicalsknowntotheStateof Californiato causecancerandreproductiveharm.Washhandsafterhandling. Whenattachingbatterycables,alwaysconnectthePOSITIVE(Red) wireto its terminalfirst,followedby the NEGATIVE(Black)wire. Forshippingreasons,bothbatterycables on yourequipmentmay havebeenleftdisconnectedfromthe terminalsat the factory.To connectthe batterycables,proceedasfollows: NOTE:Thepositivebatteryterminalis markedPos. (+).The negative batteryterminalis markedNeg.(-). 1. Removethe plasticcover,if present,fromthe positivebattery terminaland attachthe redcableto the positivebatteryterminal (+)with the bolt and hexnut. See Figure1. 2. Removethe plasticcover,if present,fromthe negativebattery terminaland attachthe blackcableto the negativebattery terminal(-) with the bolt and hex nut. See Figure1. f J Figure1 3. Positionthe red rubber boot over the positivebatteryterminal to help protectit from corrosion. NOTE:If thebatteryis put into serviceafter the dateshownon topof battery,chargethe batteryas instructedinthe Service& Maintenance sectionof this manualpriorto operatingthe tractor. Shipping Brace Removal Makesurethe ridingmower'sengineis off, removetheignitionkey, andset the parkingbrakebeforeremovingthe shippingbrace.Refer Itothe Operationsectionfor instructionsonhowto setthe parking lbrake. • Locatetheshippingbrace,ifpresent,andaccompanyingwarning tag foundon the rightsideof the mower,betweenthe discharge chutedeflectorandthe cuttingdeck. SeeFig.2. // Figure2 Placethe deck lift leverin the highestcuttingposition.Referto Setting theCuttingHeightin the Operationsectionof this manual. Whilepushing thedischargechuteddlectortowards themachinewith yourlefthand,remove theshippingbracewithyourrighthandbygrasp- ingitbetweenyourthumbandindexfingerandrotating itclockwise. The shippingbrace,usedfor packagingpurposesonly,mustbe removedanddiscardedbeforeoperatingyourridingmower. The mowingdeck iscapableof throwingobjects.Failureto operate the ridingmowerwithoutthe dischargecoverin the properoperating Ipositioncould resultin seriouspersonalinjuryand/orproperty ldamage. Attaching The Steering Wheel If the steeringwheelfor yourtractordid notcome attached,the hardwarefor attachingit has beenpackedwithinthe steeringwheel, beneaththe steeringwheelcap.Carefullypry off the steeringwheel cap andremovethe hardware. 1. Withthe wheelsof the tractorpointingstraightforward,placethe steeringwheeloverthe steeringshaft. 2. Placethe washer(withthe cuppedsidedown)overthe steering wheeland securewith the hex bolt. See Fig.3-3. 10
