1970 Fisher Body Service manual

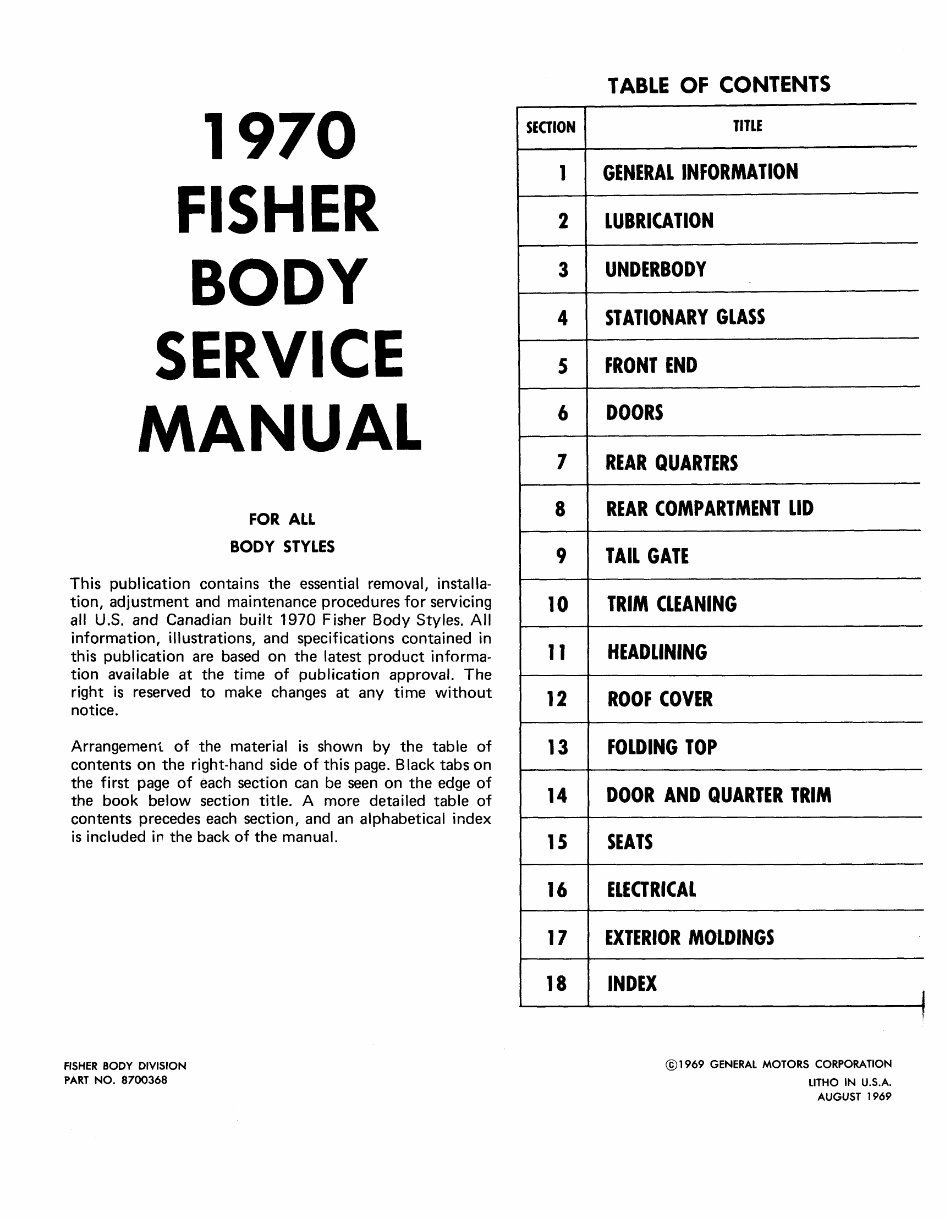

TABLE OF CONTENTS 1970 FISHER BODY SERVICE MANUAL FOR ALL BODY STYLES This publication contains the essential removal, installa tion, adjustment and maintenance procedures for servicing all U.S. and Canadian built 1970 Fisher Body Styles. All information, illustrations, and specifications contained in this publication are based on the latest product informa tion available at the time of publication approval. The right is reserved to make changes at any time without notice. Arrangement of the material is shown by the table of contents on the right-hand side of this page. Black tabs on the first page of each section can be seen on the edge of the book below section title. A more detailed table of contents precedes each section, and an alphabetical index is included ir the back of the manual. SECTION TITLE 1 GENERAL INFORMATION 2 LUBRICATION 3 UNDERBODY 4 STATIONARY GLASS 5 FRONT END 6 DOORS 7 REAR QUARTERS 8 REAR COMPARTMENT LID 9 TAIL GATE 10 TRIM CLEANING 11 HEADLINING 12 ROOF COVER 13 FOLDING TOP 14 DOOR AND QUARTER TRIM 15 SEATS 16 ELECTRICAL 17 EXTERIOR MOLDINGS 18 INDEX FISHER BODY DIVISION PART NO. 8700368 ©1 969 GENERAL MOTORS CORPORATION LITHO IN U.S.A. AUGUST 1969

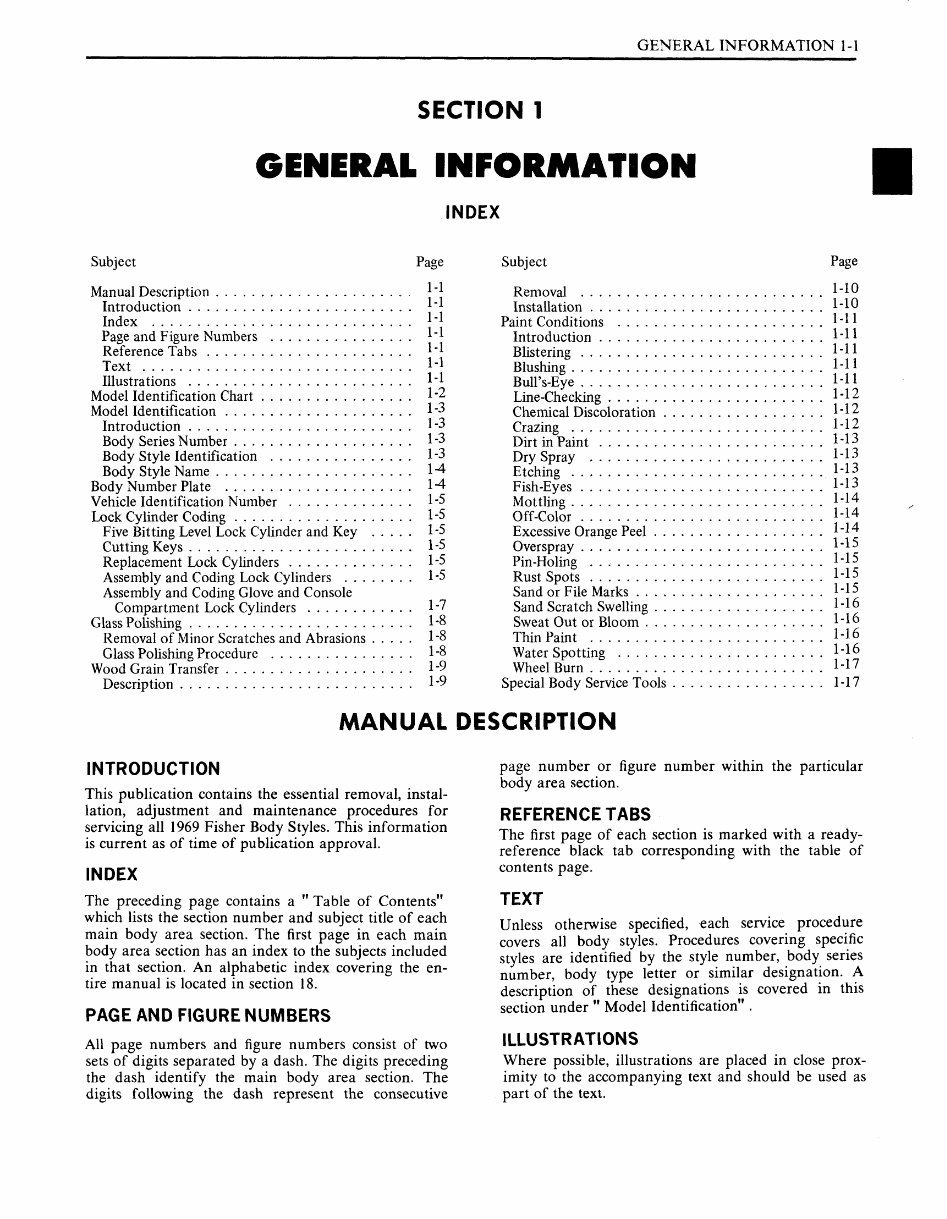

SECTION 1 GENERAL INFORMATION 1-1 GENERAL INFORMATION INDEX Subject Page Manual Description Introduction Index Page and Figure Numbers Reference Tabs Text Illustrations Model Identification Chart Model Identification Introduction Body Series Number Body Style Identification Body Style Name Body Number Plate Vehicle Identification Number Lock Cylinder Coding Five Bitting Level Lock Cylinder and Key Cutting Keys Replacement Lock Cylinders Assembly and Coding Lock Cylinders Assembly and Coding Glove and Console Compartment Lock Cylinders Glass Polishing Removal of Minor Scratches and Abrasions Glass Polishing Procedure Wood Grain Transfer Description Subject Page 11 Removal 1-1 Installation Paint Conditions 1-1 Introduction 1_i Blistering 1.1 Blushing 11 Bull’s-Eye 1.2 Line-Checking 1-3 Chemical Discoloration 1-3 Crazing 1-3 Dirt in Paint 1-3 Dry Spray 14 Etching 14 Fish-Eyes 15 Mottling 1-5 Off-Color 1-5 Excessive Orange Peel 1-5 Overspray 1-5 Pin-Holing 15 Rust Spots Sand or File Marks 1-7 Sand Scratch Swelling 1-8 Sweat Out or Bloom 1-8 Thin Paint 1-8 Water Spotting 1-9 Wheel Burn 1-9 Special Body Service Tools 1-10 1-10 1-11 1.11 1-11 1-11 1-11 1-12 1.12 1-12 1-13 1-13 1-13 1-13 1-14 1-14 1-14 1-15 1-15 1-15 1-15 1-16 1-16 1-16 1-16 1-17 1-17 MANUAL DESCRIPTION INTRODUCTION This publication contains the essential removal, instal lation, adjustment and maintenance procedures for servicing all 1969 Fisher Body Styles. This information is current as of time of publication approval. INDEX The preceding page contains a "Table of Contents" which lists the section number and subject title of each main body area section. The first page in each main body area section has an index to the subjects included in that section. An alphabetic index covering the en tire manual is located in section 18. PAGE AND FIGURE NUMBERS All page numbers and figure numbers consist of two sets of digits separated by a dash. The digits preceding the dash identify the main body area section. The digits following the dash represent the consecutive page number or figure number within the particular body area section. REFERENCE TABS The first page of each section is marked with a ready- reference black tab corresponding with the table of contents page. TEXT Unless otherwise specified, each service procedure covers all body styles. Procedures covering specific styles are identified by the style number, body series number, body type letter or similar designation. A description of these designations is covered in this section under" Model Identification" ILLUSTRATIONS Where possible, illustrations are placed in close prox imity to the accompanying text and should be used as part of the text.

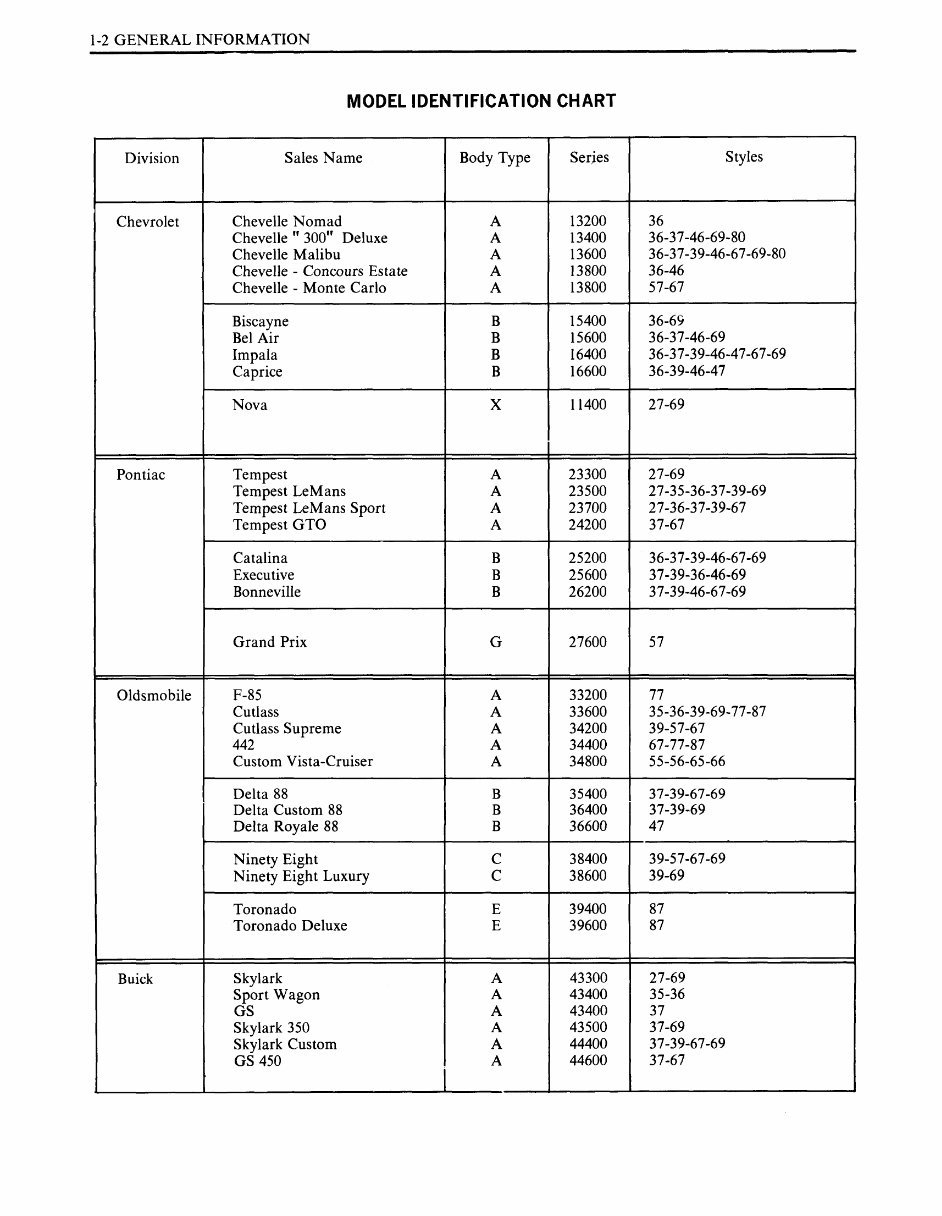

1-2 GENERAL INFORMATION MODEL IDENTIFICATION CHART Division Sales Name Body Type Series Styles Chevrolet , Chevelle Nomad Chevelle " 300" Deluxe Chevelle Malibu Chevelle - Concours Estate Chevelle - Monte Carlo A A A A A 13200 13400 13600 13800 13800 36 36-37-46-69-80 36-37-39-46-67-69-80 36-46 57-67 Biscayne Bel Air Impala Caprice B B B B 15400 15600 16400 16600 36-69 36-37-46-69 36-37-39-46-47-67-69 36-39-46-47 Nova X 11400 27-69 Pontiac Tempest Tempest LeMans Tempest LeMans Sport Tempest GTO A A A A 23300 23500 23700 24200 27-69 27-35-36-37-39-69 27-36-37-39-67 37-67 Catalina Executive Bonneville B B B 25200 25600 26200 36-37-39-46-67-69 37-39-36-46-69 37-39-46-67-69 Grand Prix G 27600 57 Oldsmobile F-85 Cutlass Cutlass Supreme 442 Custom Vista-Cruiser A A A A A 33200 33600 34200 34400 34800 77 35-36-39-69-77-87 39-57-67 67-77-87 55-56-65-66 Delta 88 Delta Custom 88 Delta Royale 88 B B B 35400 36400 36600 37-39-67-69 37-39-69 47 Ninety Eight Ninety Eight Luxury C C 38400 38600 39-57-67-69 39-69 Toronado Toronado Deluxe E E 39400 39600 87 87 Buick Skylark Sport Wagon GS Skylark 350 Skylark Custom GS 450 A A A A A A 43300 43400 43400 43500 44400 44600 27-69 35-36 37 37-69 37-39-67-69 37-67

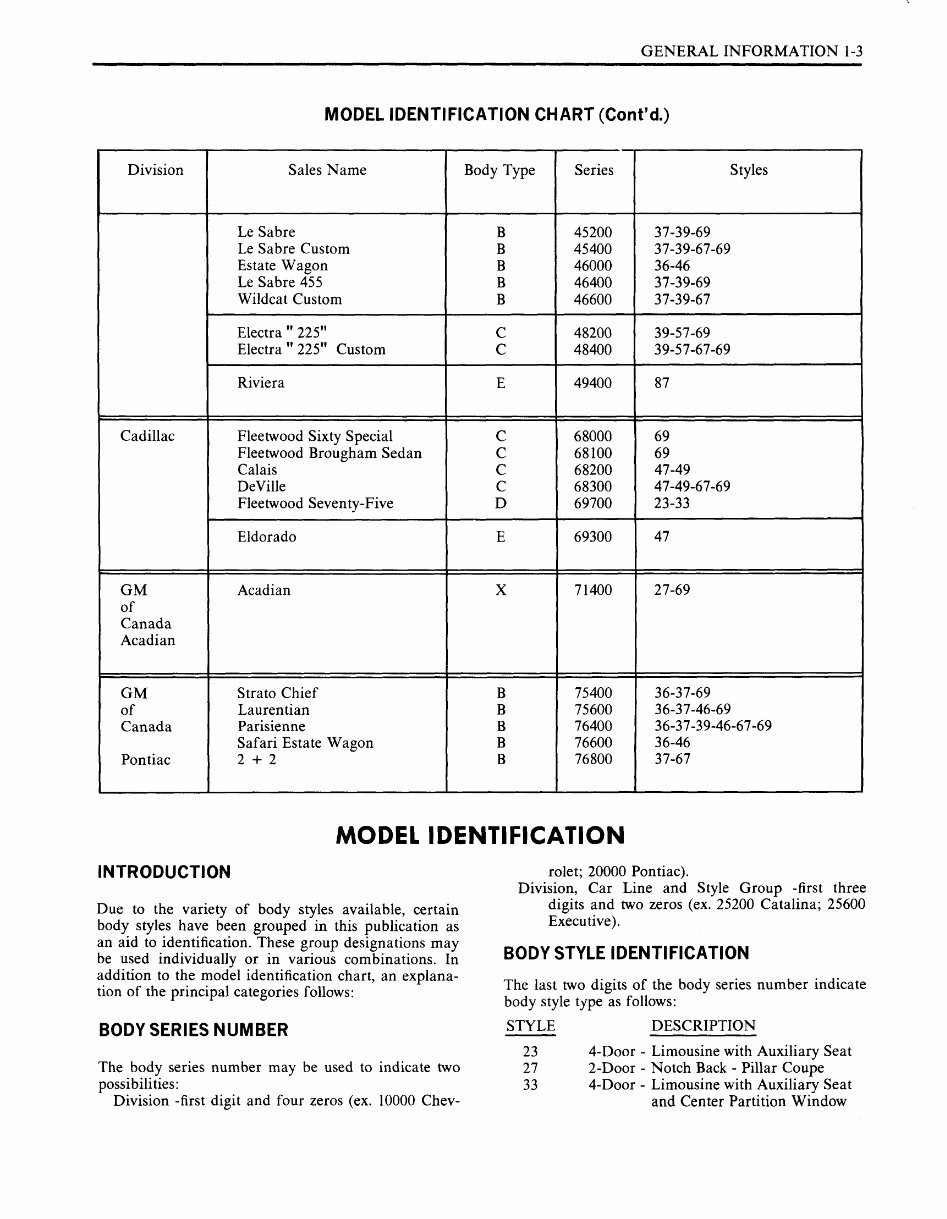

GENERAL INFORMATION 1-3 MODEL IDENTIFICATION CHART Cont’d. Division Sales Name Body Type Series Styles Le Sabre Le Sabre Custom Estate Wagon Le Sabre 455 Wildcat Custom B B B B B 45200 45400 46000 46400 46600 37-39-69 37-39-67-69 36-46 37-39-69 37-39-67 Electra" 225" Electra "225" Custom C C 48200 48400 39-57-69 39-57-67-69 Riviera E 49400 87 Cadillac Fleetwood Sixty Special Fleetwood Brougham Sedan Calais DeVille Fleetwood Seventy-Five C C C C D 68000 68100 68200 68300 69700 69 69 47-49 47-49-67-69 23-33 Eldorado E 69300 47 GM of Canada Acadian Acadian X 71400 27-69 GM of Canada Pontiac Strato Chief Laurentian Parisienne Safari Estate Wagon 2 + 2 B B B B B 75400 75600 76400 76600 76800 36-37-69 36-37-46-69 36-37-39-46-67-69 36-46 37-67 MODEL IDENTIFICATION INTRODUCTION Due to the variety of body styles available, certain body styles have been grouped in this publication as an aid to identification. These group designations may be used individually or in various combinations. In addition to the model identification chart, an explana tion of the principal categories follows: BODY SERIES NUMBER The body series number may be used to indicate two possibilities: rolet; 20000 Pontiac. Division, Car Line and Style Group -first three digits and two zeros ex. 25200 Catalina; 25600 Executive. BODY STYLE IDENTIFICATION The last two digits of the body series number indicate body style type as follows: STYLE DESCRIPTION 23 4-Door - Limousine with Auxiliary Seat 27 2-Door - Notch Back - Pillar Coupe 33 4-Door - Limousine with Auxiliary Seat and Center Partition Window Division -first digit and four zeros ex. 10000 Chev

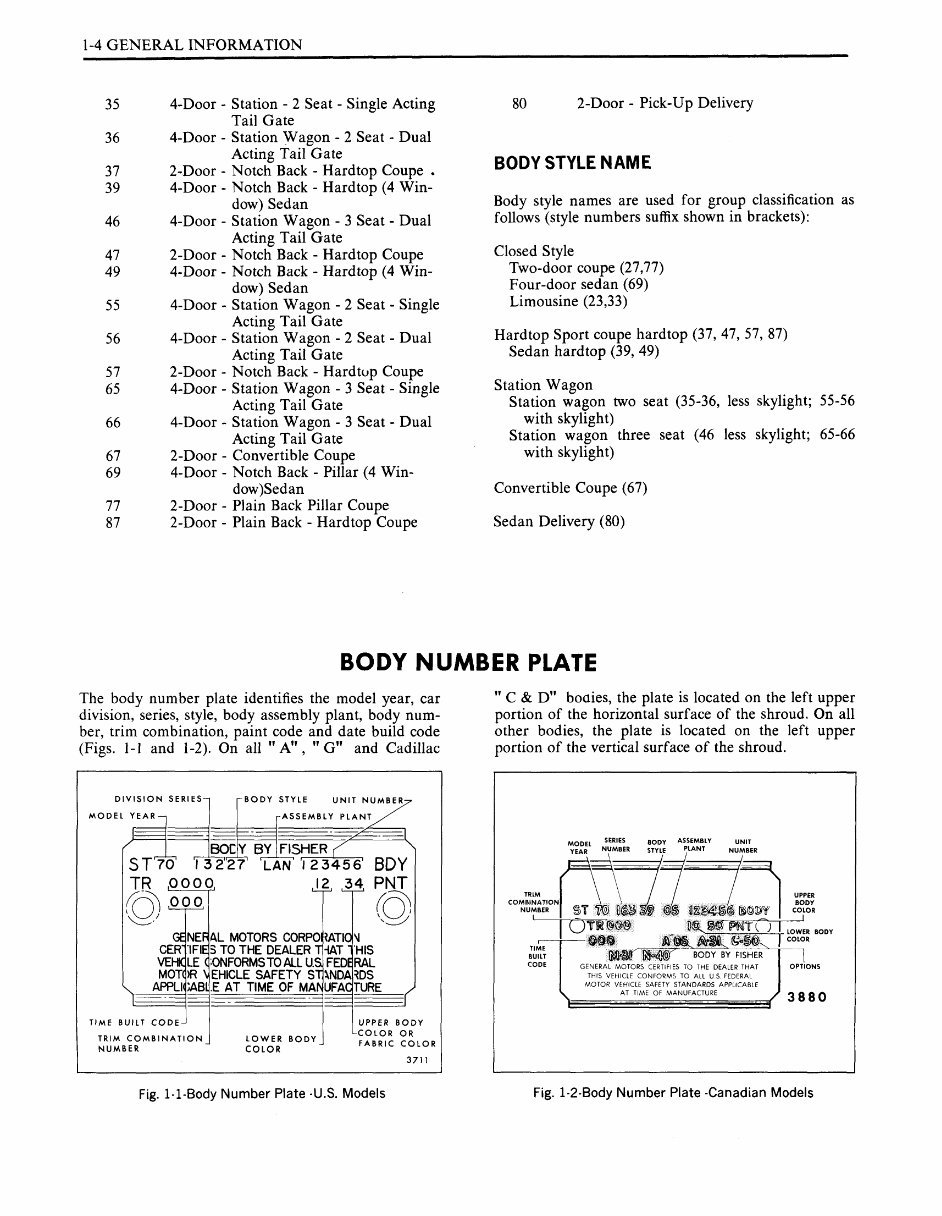

1-4 GENERAL INFORMATION 35 4-Door - Station - 2 Seat - Single Acting Tail Gate 36 4-Door - Station Wagon - 2 Seat - Dual Acting Tail Gate 37 2-Door - Notch Back - Hardtop Coupe 39 4-Door - Notch Back - Hardtop 4 Win dow Sedan 46 4-Door - Station Wagon - 3 Seat - Dual Acting Tail Gate 47 2-Door - Notch Back - Hardtop Coupe 49 4-Door - Notch Back - Hardtop 4 Win dow Sedan 55 4-Door - Station Wagon - 2 Seat - Single Acting Tail Gate 56 4-Door - Station Wagon - 2 Seat - Dual Acting Tail Gate 57 2-Door - Notch Back - Hardtop Coupe 65 4-Door - Station Wagon - 3 Seat - Single Acting Tail Gate 66 4-Door - Station Wagon - 3 Seat - Dual Acting Tail Gate 67 2-Door - Convertible Coupe 69 4-Door - Notch Back - Pillar 4 Win dowSedan 77 2-Door - Plain Back Pillar Coupe 87 2-Door - Plain Back - Hardtop Coupe 80 2-Door - Pick-Up Delivery BODY STYLE NAME Body style names are used for group classification as follows style numbers suffix shown in brackets: Closed Style Two-door coupe 27,77 Four-door sedan 69 Limousine 23,33 Station Wagon Station wagon two seat 35-36, less with skylight Station wagon three with skylight Convertible Coupe 67 Sedan Delivery 80 BODY NUMBER PLATE The body number plate identifies the model year, car division, series, style, body assembly plant, body num ber, trim combination, paint code and date build code Figs. 1-I and 1-2. On all "A", "G" and Cadillac 2LAN456BDY TR 0000. PNT © Gi- NEF AL MOTORS CORPO ATIC CER 1FIE S TO THE DEALER 1 4AT HIS VEH LE ;ONFORMSTO ALL U.S FEDI RAL MOT R ‘I EHICLE SAFETY Si NDA DS APPLI AB .E AT TIME OF MA UFA TURE - -- Hardtop Sport coupe hardtop 37, 47, 57, 87 Sedan hardtop 39, 49 skylight; 55-56 seat 46 less skylight; 65-66 "C & D" bocties, the plate is located on the left upper portion of the horizontal surface of the shroud. On all other bodies, the plate is located on the left upper portion of the vertical surface of the shroud. DIVISION SERIES- MODEL rBOD’’ STYLE UNIT NUMBER ASSEMBLY PLANT TIME BUILT CODE TRIM COMBINATION NUMBER LOWER BODY COLOR UPPER BODY -COLOR OR FABRIC COLOR 3711 Fig. 1-1-Body Number Plate -U.S. Models Fig. 1-2-Body Number Plate -Canadian Models

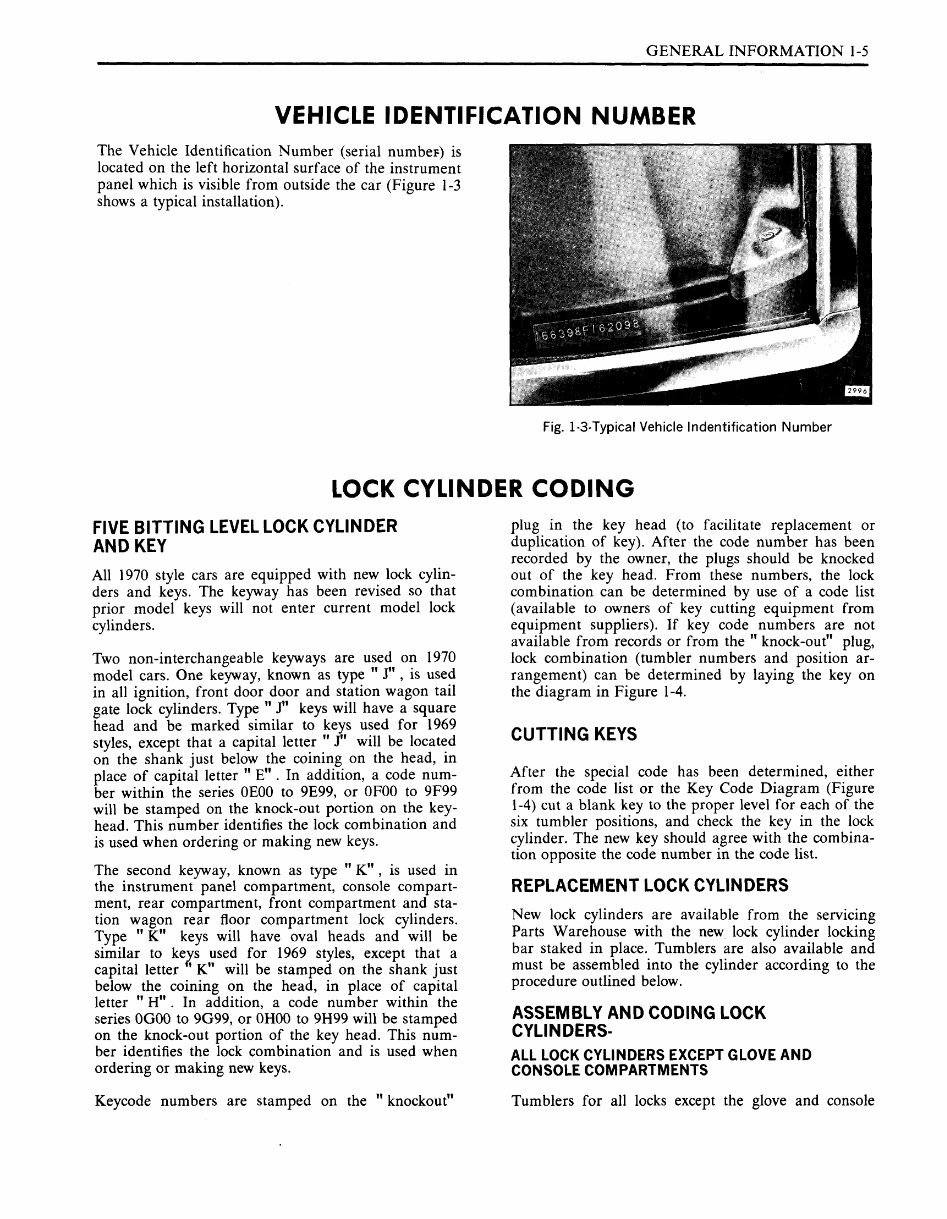

GENERAL INFORMATION 1-5 VEHICLE IDENTIFICATION NUMBER The Vehicle Identification Number serial numbeF is located on the left horizontal surface of the instrument panel which is visible from outside the car Figure 1-3 shows a typical installation. LOCK CYLINDER CODING FIVE BITTING LEVEL LOCK CYLINDER AND KEY All 1970 style cars are equipped with new lock cylin ders and keys. The keyway has been revised so that prior model keys will not enter current model lock cylinders. Two non-interchangeable keyways are used on 1970 model cars. One keyway, known as type "J", is used in all ignition, front door door and station wagon tail gate lock cylinders. Type "J" keys will have a square head and be marked similar to keys used for 1969 styles, except that a capital letter "J" will be located on the shank just below the coining on the head, in place of capital letter "E" . In addition, a code num ber within the series OEOO to 9E99, or OFOO to 9F99 will be stamped on the knock-out portion on the key- head. This number identifies the lock combination and is used when ordering or making new keys. The second keyway, known as type "K", is used in the instrument panel compartment, console compart ment, rear compartment, front compartment and sta tion wagon rear floor compartment lock cylinders. Type "K" keys will have oval heads and will be similar to keys used for 1969 styles, except that a capital letter "K" will be stamped on the shank just below the coining on the head, in place of capital letter "H" . In addition, a code number within the series OGOO to 9G99, or OHOO to 9H99 will be stamped on the knock-out portion of the key head. This num ber identifies the lock combination and is used when ordering or making new keys. plug in the key head to facilitate replacement or duplication of key. After the code number has been recorded by the owner, the plugs should be knocked out of the key head. From these numbers, the lock combination can be determined by use of a code list available to owners of key cutting equipment from equipment suppliers. If key code numbers are not available from records or from the "knock-out" plug, lock combination tumbler numbers and position ar rangement can be determined by laying the key on the diagram in Figure 1-4. CUTTING KEYS After the special code has been determined, either from the code list or the Key Code Diagram Figure 1-4 cut a blank key to the proper level for each of the six tumbler positions, and check the key in the lock cylinder. The new key should agree with the combina tion opposite the code number in the code list. REPLACEMENT LOCK CYLINDERS New lock cylinders are available from the servicing Parts Warehouse with the new lock cylinder locking bar staked in place. Tumblers are also available and must be assembled into the cylinder according to the procedure outlined below. ASSEMBLY AND CODING LOCK CYLINDERS ALL LOCK CYLINDERS EXCEPT GLOVE AND CONSOLE COMPARTMENTS Fig. 1-3-Typical Vehicle lndentification Number Keycode numbers are stamped on the "knockout" Tumblers for all locks except the glove and console

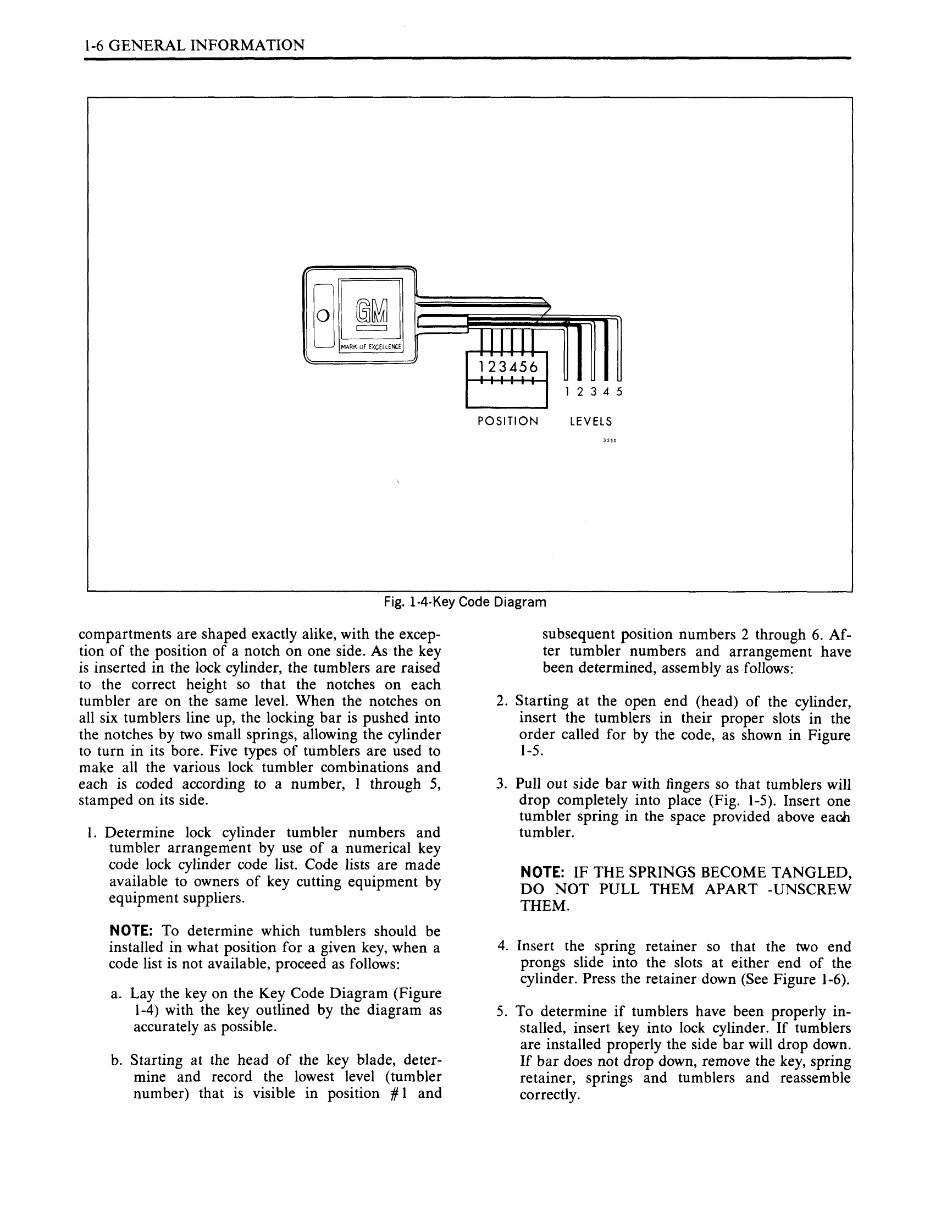

1-6 GENERAL INFORMATION compartments are shaped exactly alike, with the excep tion of the position of a notch on one side. As the key is inserted in the lock cylinder, the tumblers are raised to the correct height so that the notches on each tumbler are on the same level. When the notches on all six tumblers line up, the locking bar is pushed into the notches by two small springs, allowing the cylinder to turn in its bore. Five types of tumblers are used to make all the various lock tumbler combinations and each is coded according to a number, 1 through 5, stamped on its side. 1. Determine lock cylinder tumbler numbers and tumbler arrangement by use of a numerical key code lock cylinder code list. Code lists are made available to owners of key cutting equipment by equipment suppliers. NOTE: To determine which tumblers should be installed in what position for a given key, when a code list is not available, proceed as follows: a. Lay the key on the Key Code Diagram Figure 1-4 with the key outlined by the diagram as accurately as possible. b. Starting at the head of the key blade, deter mine and record the lowest level tumbler number that is visible in position 1 and subsequent position numbers 2 through 6. Af ter tumbler numbers and arrangement have been determined, assembly as follows: 2. Starting at the open end head of the cylinder, insert the tumblers in their proper slots in the order called for by the code, as shown in Figure 1-5. 3. Pull out side bar with fingers so that tumblers will drop completely into place Fig. 1-5. Insert one tumbler spring in the space provided above eath tumbler. NOTE: IF THE SPRINGS BECOME TANGLED, DO NOT PULL THEM APART -UNSCREW THEM. 4. Insert the spring retainer so that the two end prongs slide into the slots at either end of the cylinder. Press the retainer down See Figure 1-6. 5. To determine if tumblers have been properly in stalled, insert key into lock cylinder. If tumblers are installed properly the side bar will drop down. If bar does not drop down, remove the key, spring retainer, springs and tumblers and reassemble correctly. POSITION LEVELS Fig. 1-4.Key Code Diagram

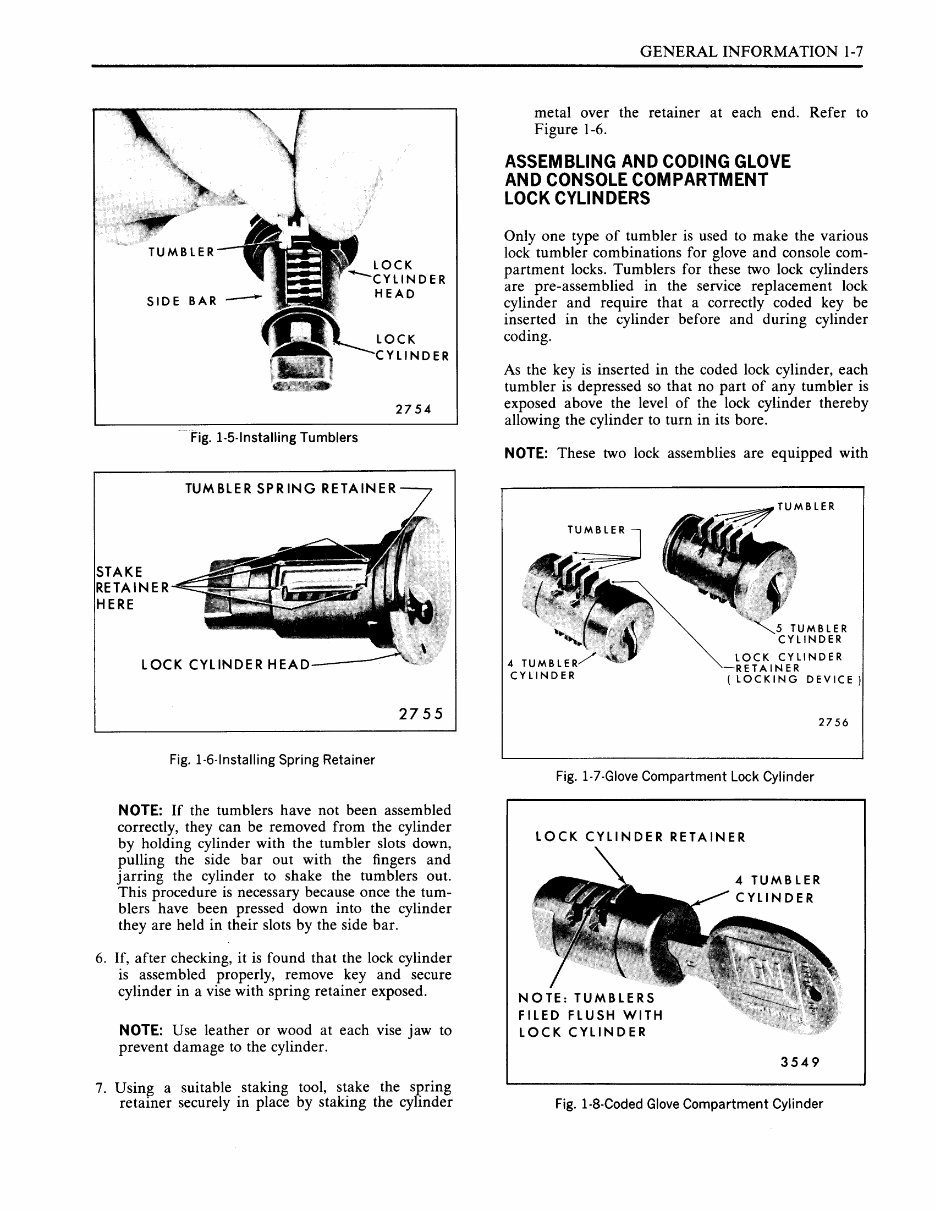

GENERAL INFORMATION 1-7 Fig. 1-6-Installing Spring Retainer NOTE: If the tumblers have not been assembled correctly, they can be removed from the cylinder by holding cylinder with the tumbler slots down, pulling the side bar out with the fingers and jarring the cylinder to shake the tumblers out. This procedure is necessary because once the tum blers have been pressed down into the cylinder they are held in their slots by the side bar. 6. If, after checking, it is found that the lock cylinder is assembled properly, remove key and secure cylinder in a vise with spring retainer exposed. NOTE: Use leather or wood at each vise jaw to prevent damage to the cylinder. 7. Using a suitable staking tool, stake the spring retainer securely in place by staking the cylinder metal over the retainer at each end. Refer to Figure 1-6. ASSEMBLING AND CODING GLOVE AND CONSOLE COMPARTMENT LOCK CYLINDERS Only one type of tumbler is used to make the various lock tumbler combinations for glove and console com partment locks. Tumblers for these two lock cylinders are pre-assemblied in the service replacement lock cylinder and require that a correctly coded key be inserted in the cylinder before and during cylinder coding. As the key is inserted in the coded lock cylinder, each tumbler is depressed so that no part of any tumbler is exposed above the level of the lock cylinder thereby allowing the cylinder to turn in its bore. NOTE: These two lock assemblies are equipped with Fig. 1-7-Glove Compartment Lock Cylinder LOCK CYLINDER RETAINER 4 TUMBLER CYLINDER Fig. 1-5-Installing Tumblers TUMBLER SPRING RETAINER STAKE RE TA IN E R- HERE LOCK CYLINDER HEAD- TUMBLER TUMBLER CYLINDER LOCK CYLINDER -RETAINER LOCKING DEVICE 4 TUMBLER-A’ CYLINDER 2755 2756 / NOTE: TUMBLERS FILED FLUSH WITH LOCK CYLINDER 3549 Fig. 1-8-Coded Glove Compartment Cylinder

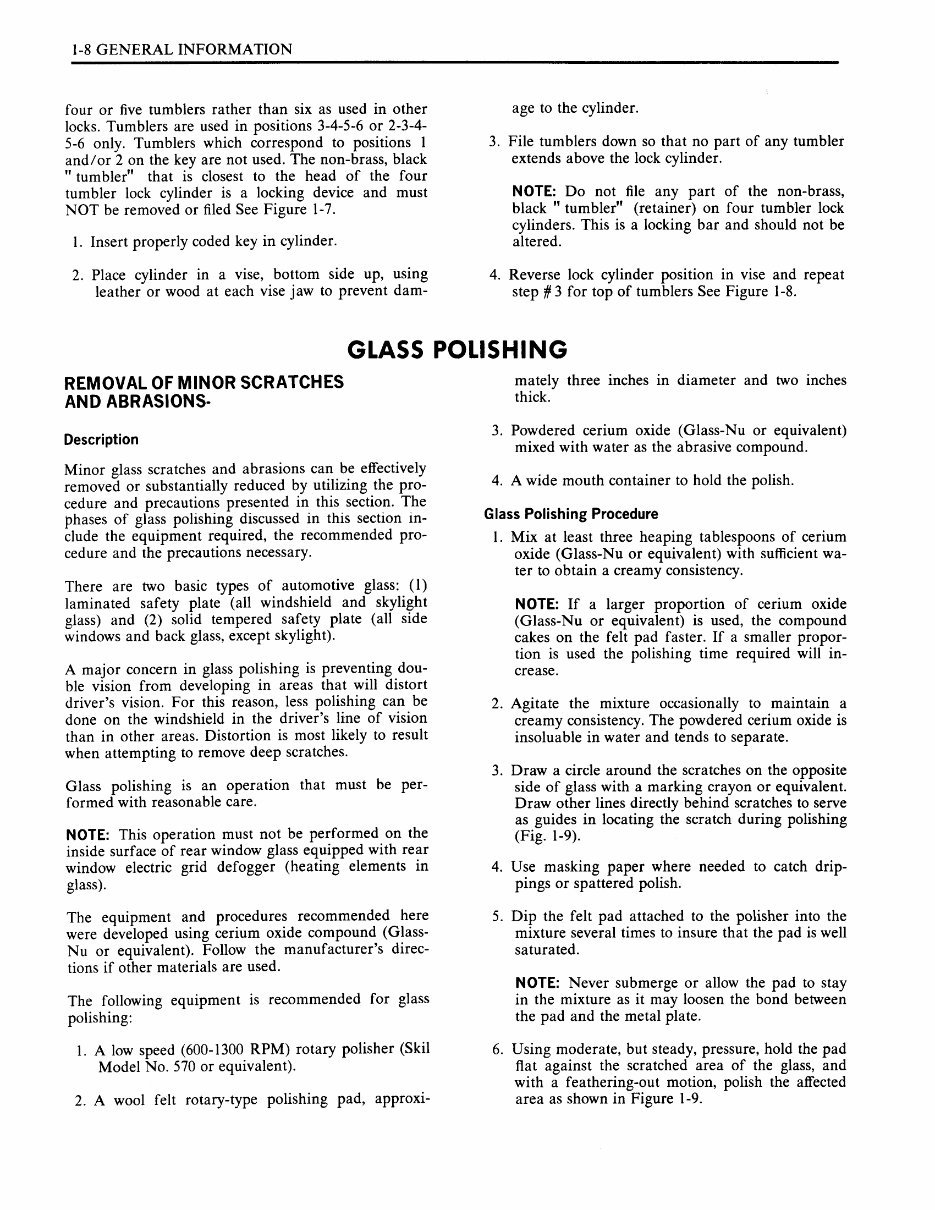

1-8 GENERAL INFORMATION four or five tumblers rather than six as used in other locks. Tumblers are used in positions 3-4-5-6 or 2-3-4- 5-6 only. Tumblers which correspond to positions 1 and/or 2 on the key are not used. The non-brass, black "tumbler" that is closest to the head of the four tumbler lock cylinder is a locking device and must NOT be removed or filed See Figure 1-7. 1. Insert properly coded key in cylinder. 2. Place cylinder in a vise, bottom side up, using leather or wood at each vise jaw to prevent damage to the cylinder. 3. File tumblers down so that no part of any tumbler extends above the lock cylinder. NOTE: Do not file any part of the non-brass, black "tumbler" retainer on four tumbler lock cylinders. This is a locking bar and should not be altered. 4. Reverse lock cylinder position in vise and repeat step 3 for top of tumblers See Figure 1-8. GLASS POLISHING REMOVAL OF MINOR SCRATCHES AND ABRASIONS- Description Minor glass scratches and abrasions can be effectively removed or substantially reduced by utilizing the pro cedure and precautions presented in this section. The phases of glass polishing discussed in this section in clude the equipment required, the recommended pro cedure and the precautions necessary. There are two basic types of automotive glass: 1 laminated safety plate all windshield and skylight glass and 2 solid tempered safety plate all side windows and back glass, except skylight. A major concern in glass polishing is preventing dou ble vision from developing in areas that will distort driver’s vision. For this reason, less polishing can be done on the windshield in the driver’s line of vision than in other areas. Distortion is most likely to result when attempting to remove deep scratches. Glass polishing is an operation that must be per formed with reasonable care. NOTE: This operation must not be performed on the inside surface of rear window glass equipped with rear window electric grid defogger heating elements in glass. The equipment and procedures recommended here were developed using cerium oxide compound Glass Nu or equivalent. Follow the manufacturer’s direc tions if other materials are used. The following equipment is recommended for glass polishing: 1. A low speed 600-1300 RPM rotary polisher Skil Model No. 570 or equivalent. mately three inches in diameter and two inches thick. 3. Powdered cerium oxide Glass-Nu or equivalent mixed with water as the abrasive compound. 4. A wide mouth container to hold the polish. Glass Polishing Procedure 1. Mix at least three heaping tablespoons of cerium oxide Glass-Nu or equivalent with sufficient wa ter to obtain a creamy consistency. NOTE: If a larger proportion of cerium oxide Glass-Nu or equivalent is used, the compound cakes on the felt pad faster. If a smaller propor tion is used the polishing time required will in crease. 2. Agitate the mixture occasionally to maintain a creamy consistency. The powdered cerium oxide is insoluable in water and tends to separate. 3. Draw a circle around the scratches on the opposite side of glass with a marking crayon or equivalent. Draw other lines directly behind scratches to serve as guides in locating the scratch during polishing Fig. 1-9. 4. Use masking paper where needed to catch drip pings or spattered polish. 5. Dip the felt pad attached to the polisher into the mixture several times to insure that the pad is well saturated. NOTE: Never submerge or allow the pad to stay in the mixture as it may loosen the bond between the pad and the metal plate. 6. Using moderate, but steady, pressure, hold the pad flat against the scratched area of the glass, and with a feathering-out motion, polish the affected area as shown in Figure 1-9. 2. A wool felt rotary-type polishing pad, approxi
