ELECTRONIC TYPEWRITER
PARTS REFERENCE LIST
MODEL:AX410/GX100
AX400
REVISED EDITION March,2000
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS
Revision No. : marked on the printed circuit board.
B48J300 - 1 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in March, 2000.
4. Parts are subject to change in design without prior notice.
CONTENTS
1 . PAPER METER ASSEMBLY .................................................................... 1
2 . PLATEN MECHANISM............................................................................. 1
3 . CHASSIS ATTACHMENTS ...................................................................... 3
4 . MOTOR.................................................................................................... 3
5 . CARRIER MECHANISM........................................................................... 5
6 . COVERS .................................................................................................. 7
7 . LABELS.................................................................................................... 9
8 . CASES ................................................................................................... 11
9 . DETECTOR............................................................................................ 11
10 . MAIN PCB ASSEMBLY ........................................................................ 13
11 . PS PCB ASSEMBLY ............................................................................ 17
12-1 . KEYBOARD MECHANISM (USA RETURN KEY) .............................. 19
12-2A . FUNCTION KEYS GERMAN........................................................... 21
12-2B . CHARACTER KEYS GERMAN ....................................................... 21
12-3A . FUNCTION KEYS GBR.ENG.......................................................... 22
12-3B . CHARACTER KEYS GBR.ENG ...................................................... 22
12-4A . FUNCTION KEYS FRENCH............................................................ 23
12-4B . CHARACTER KEYS FRENCH ........................................................ 23
12-5A . FUNCTION KEYS RUSSIAN........................................................... 24
12-5B . CHARACTER KEYS RUSSIAN ....................................................... 24
12-6A . FUNCTION KEYS RUSSIAN CBM.................................................. 25
12-6B . CHARACTER KEYS RUSSIAN CBM .............................................. 25
12-7A . FUNCTION KEYS TURKISH........................................................... 26
12-7B . CHARACTER KEYS TURKISH ....................................................... 26
12-8A . FUNCTION KEYS ZAF ................................................................... 27
12-8B . CHARACTER KEYS ZAF ................................................................ 27
12-9A . FUNCTION KEYS DUTCH .............................................................. 28
12-9B . CHARACTER KEYS DUTCH .......................................................... 28
12-10A . FUNCTION KEYS DANISH ........................................................... 29
12-10B . CHARACTER KEYS DANISH ....................................................... 29
12-11A . FUNCTION KEYS SWEDISH........................................................ 30
12-11B . CHARACTER KEYS SWEDISH .................................................... 30
12-12A . FUNCTION KEYS LATIN GREEK ................................................. 31
12-12B . CHARACTER KEYS LATIN GREEK ............................................. 31
12-13A . FUNCTION KEYS ITALY .............................................................. 32
12-13B . CHARACTER KEYS ITALY........................................................... 32
12-14A . FUNCTION KEYS BELGIAN ......................................................... 33
12-14B . CHARACTER KEYS BELGIAN ..................................................... 33
12-15A . FUNCTION KEYS BELGIAN 2 ...................................................... 34
12-15B . CHARACTER KEYS BELGIAN 2 .................................................. 34
12-16A . FUNCTION KEYS FINNISH .......................................................... 35
12-16B . CHARACTER KEYS FINNISH....................................................... 35
12-17A . FUNCTION KEYS PORTUGUESE................................................ 36
12-17B . CHARACTER KEYS PORTUGUESE ............................................ 36
12-18A . FUNCTION KEYS RUMANIAN...................................................... 37
12-18B . CHARACTER KEYS RUMANIAN .................................................. 37
12-19A . FUNCTION KEYS ESTONIAN ...................................................... 38
12-19B . CHARACTER KEYS ESTONIAN................................................... 38
12-20A . FUNCTION KEYS NORWEGIAN .................................................. 39
12-20B . CHARACTER KEYS NORWEGIAN .............................................. 39
12-21A . FUNCTION KEYS ICELANDIC...................................................... 40
12-21B . CHARACTER KEYS ICELANDIC .................................................. 40
12-22A . FUNCTION KEYS LATVIAN.......................................................... 41
12-22B . CHARACTER KEYS LATVIAN ...................................................... 41
13.1. KEYBOARD MECHANISM (EUROPE RETURN KEY)........................ 42
13-2A . FUNCTION KEYS CHE................................................................... 44
13-2B . CHARACTER KEYS CHE ............................................................... 44
13-3A . FUNCTION KEYS CHE 2 ................................................................ 45
13-3B . CHARACTER KEYS CHE 2 ............................................................ 45
13-4A . FUNCTION KEYS HUNGALIAN...................................................... 46
13-4B . CHARACTER KEYS HUNGALIAN .................................................. 46
13-5A . FUNCTION KEYS E.SPANISH ....................................................... 47
13-5B . CHARACTER KEYS E.SPANISH.................................................... 47
13-6A . FUNCTION KEYS BULGALIAN ...................................................... 48
13-6B . CHARACTER KEYS BULGALIAN ................................................... 48
13-7A . FUNCTION KEYS YUG/LATIN........................................................ 49
13-7B . CHARACTER KEYS YUG/LATIN .................................................... 49
13-8A . FUNCTION KEYS CZECH .............................................................. 50
13-8B . CHARACTER KEYS CZECH .......................................................... 50
13-9A . FUNCTION KEYS POLISH ............................................................. 51
13-9B . CHARACTER KEYS POLISH.......................................................... 51
13-10A . FUNCTION KEYS YUG/CYRILLIC ................................................ 52
13-10B . CHARACTER KEYS YUG/CYRILLIC ............................................ 52
14 .KBCUFUUNIT LIST ............................................................................... 53
15 . PRINTED MATTERS ............................................................................ 54
16 . PACKING MATERIALS ........................................................................ 56
17 . ADJUSTMENT TOOLS ........................................................................ 58
-1-
MODEL MODEL AX410,100/GX100 51V-211-031

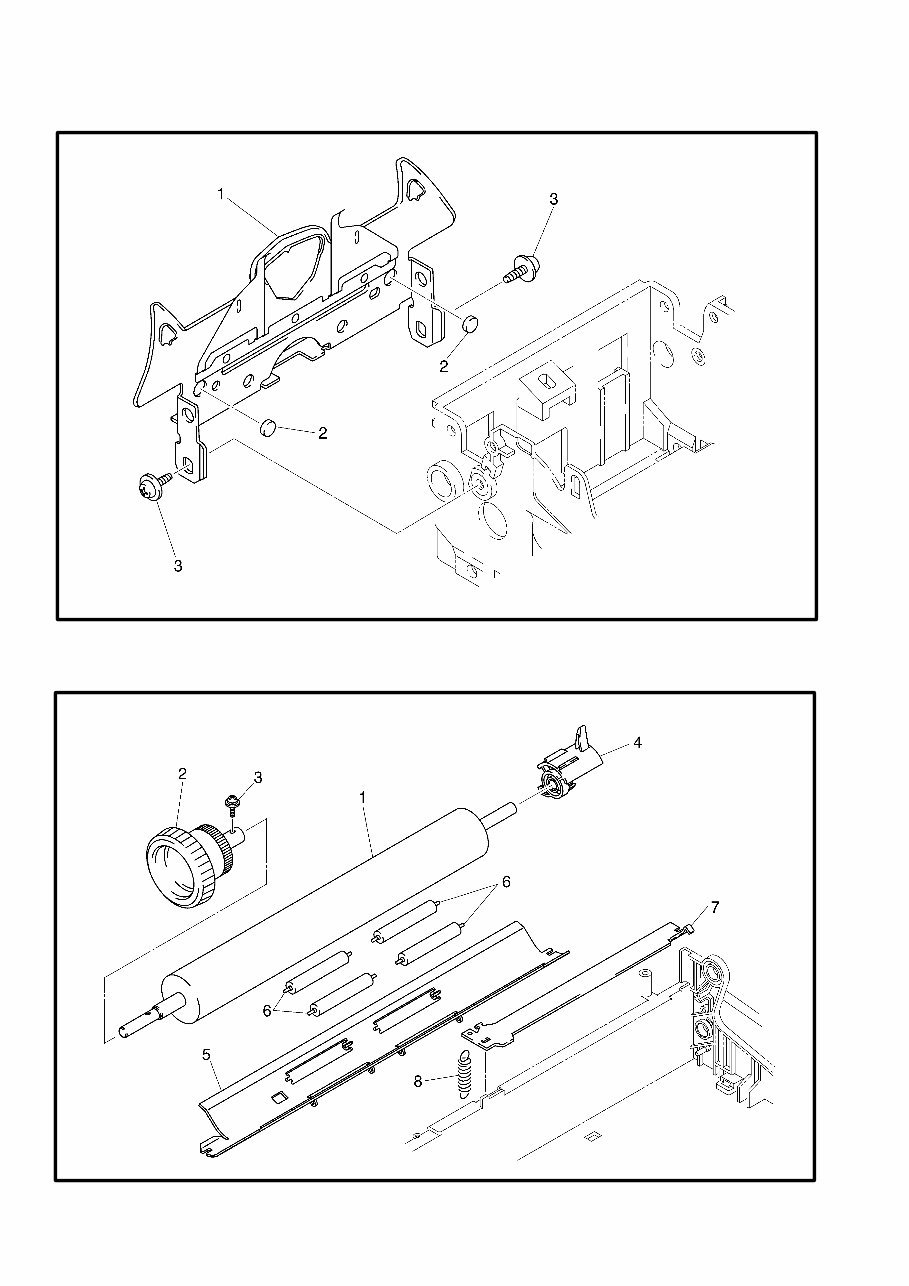

1 . PAPER METER ASSEMBLY
MODEL MODEL AX410,100/GX100 51V-211-016
2 . PLATEN MECHANISM
-2-
1 . PAPER METER ASSEMBLY
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-2 UC5242001 1PAPER METER ASSY
1 UC4899001 1PAPER METER SUB ASSY
2 UC5240001 2PW CASSETTE PAD RUBBER
3 UC5139001 2SCREW, PAN(WASHER) M4X6DA
MODEL AX410,100/GX100 51V-211-016
2 . PLATEN MECHANISM
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UR0007001 1PLATEN 12S MVO
2 UC4823019 1PLATEN KNOB L GRAY1109
2 UC4823023 1PLATEN KNOB L GRAY1267(PL100,RS150)
2 UC4823031 1PLATEN KNOB L WHITE1397
3 U22702001 1SCREW, PAN (S/P WASHER) M3X10
4 UC4824021 1PAPER RELEASE LEVER
5 UC5318001 1PAPER PAN ASSY TF
6 U05656001 4PAPER HOLD ROLLER
7 UC4828000 1PAPER PAN HOLD PLATE
8 UC4829001 1SPRING, EXTENSION
MODEL AX410,100/GX100 51V-211-031
-3-
MODEL AX410,100/GX100 51V-211-054

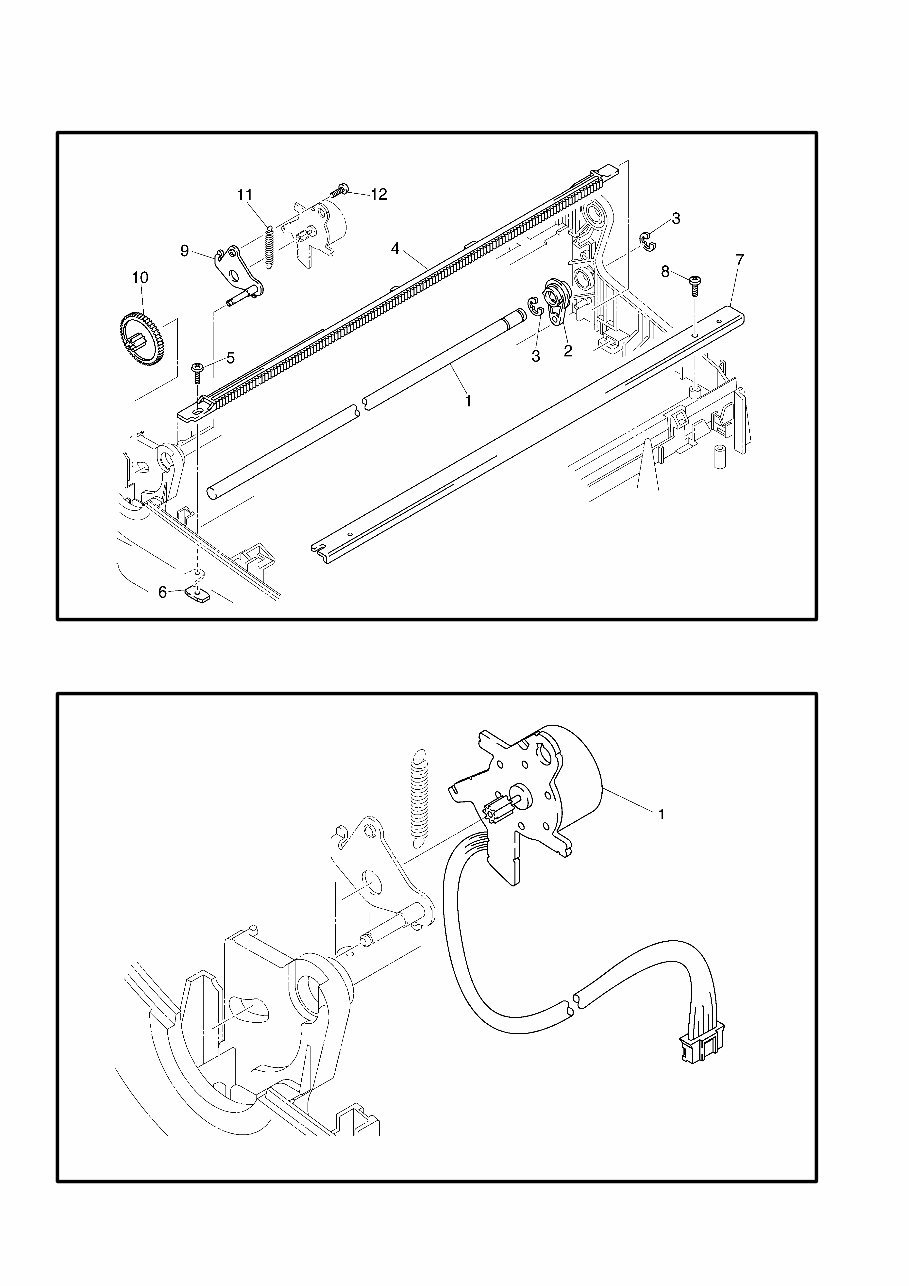

3 . CHASSIS ATTACHMENTS
MODEL AX410,100/GX100 51V-211-034
4 . MOTOR
-4-
3 . CHASSIS-ATTACHMENTS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UC5026001 1HEAD GUIDE SHAFT
2 UA4215000 1CARRIER RAIL BEARING B
3 048070345 2RETAINING RING, E7
4 UC4830000 1RACK
5 U22702001 1SCREW, PAN (S/P WASHER) M3X10
6 UC4902001 1PLATE NUT 3
7 UC4833000 1GUIDE RAIL
8 085361015 1TAPTITE, BIND B M3.5X10
9 UC4834001 1LF GEAR HOLDER SUB ASSY
10 UC4837000 1PAPER FEED IDLE GEAR
11 UC4838001 1SPRING, EXTENSION
12 060260405 1SCREW, BIND M2.6X4
MODEL AX410,100/GX100 51V-211-034
4 . MOTOR
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UC5001001 1PAPER FEED MOTOR
MODEL AX410,100/GX100 51V-211-054
-5-
MODEL AX410,100/GX100 51V-211-043

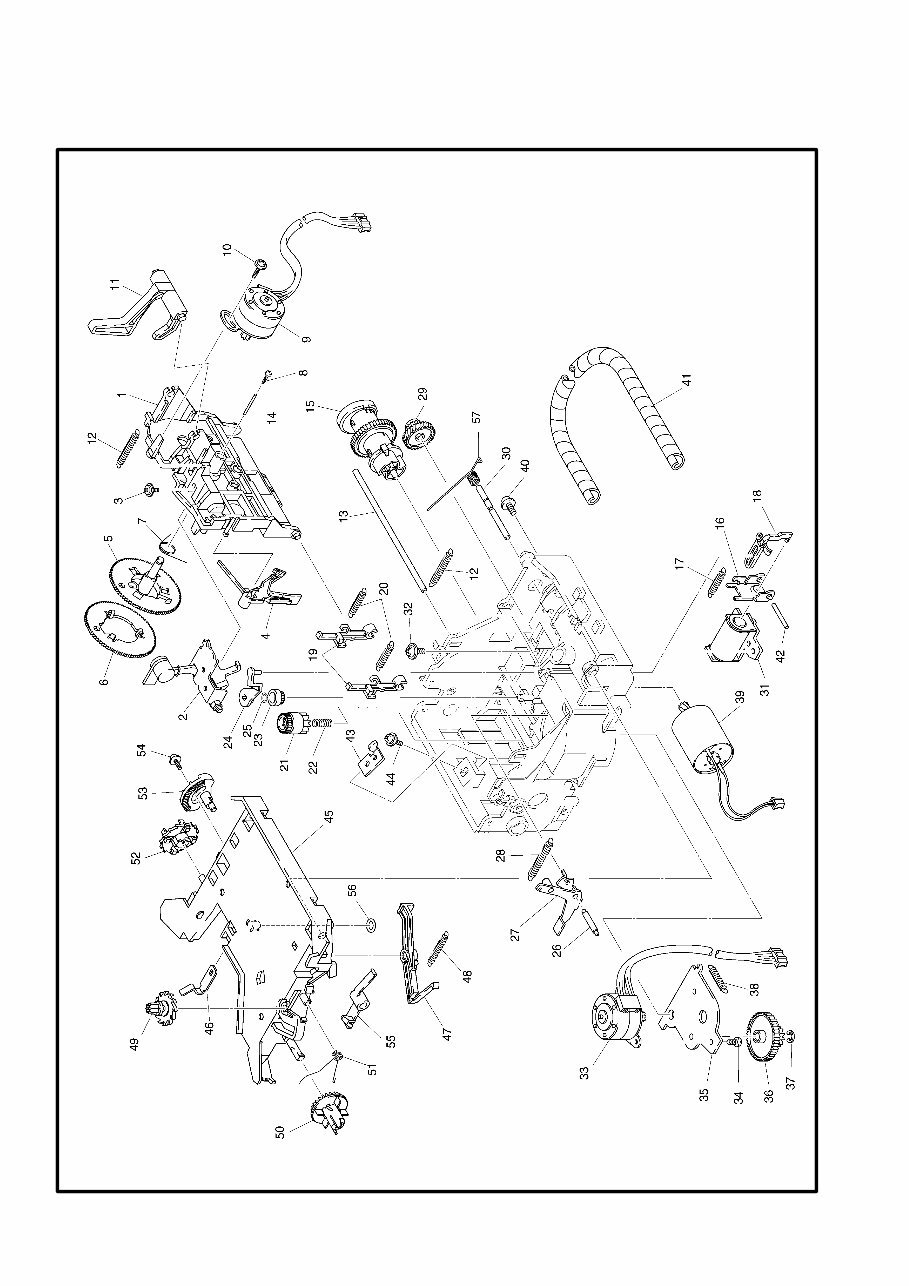

5 . CARRIER MECHANISM
