TECHNICAL INFORMATION ARGUMENT DOC-SAV-303 Index: A Issued by: P. Cailleux Date: 26/06/06 Recipients: subsidiaries, dealers Copy: spw, after sales service, mo, sales, marketing, tc 18/11/08 N° : 1612 CODE : 100 14 DATE : 18/11/08 ACCEPTED UNDER WARRANTY Yes No Code A Code B Code C A = Compulsory and immediate B = Modification to be made C = For information modification during maintenance visit * MACHINES CONCERNED: Subject: REPLACING THE STARTER MOTOR AND CABLE + BATTERY edition of the 13/10/08 Cancel and replaces the edition of the 23/06/08 Addition of machines (MT/MLT 523 - MLA 628) For the above-mentioned machines, a complete kit is required to adapt the new starter motor, using the enclosed procedure. After-Sales Service TIME REQUIRED FOR MODIFICATION: 1.75 hour(s) *: The improvements to be realized during a maintenance visit (Code B) are warranted for a 12 month period from the issue date of the technical information. WEIGHT: - 1 kg 1 to 5 kg 5 to 10 kg 10 to 25 kg + 25 Kg This bulletin is for the use of our distributors' Technical Services departments, is strictly confidential and may not be communicated to third parties without express authorisation from MANITOU's After-Sales Service. SAFETY NOTICE Instructions in the SERVICE BULLETINS assume that the engineer has a good knowledge of safety procedures and has been trained in the maintenance and repair of equipment. If you do not understand the information contained in this bulletin, ask your supervisor or contact MANITOU'S AFTER-SALES SERVICE for advice. REMEMBER SAFETY MUST COME FIRST. MLT 5/6/7/8/9/10 E2 MT 5/7/9/10/12/13/14/17/ E2 ML 635 E2 MLB E2- MLA MT 14-18 PRIVILEGE

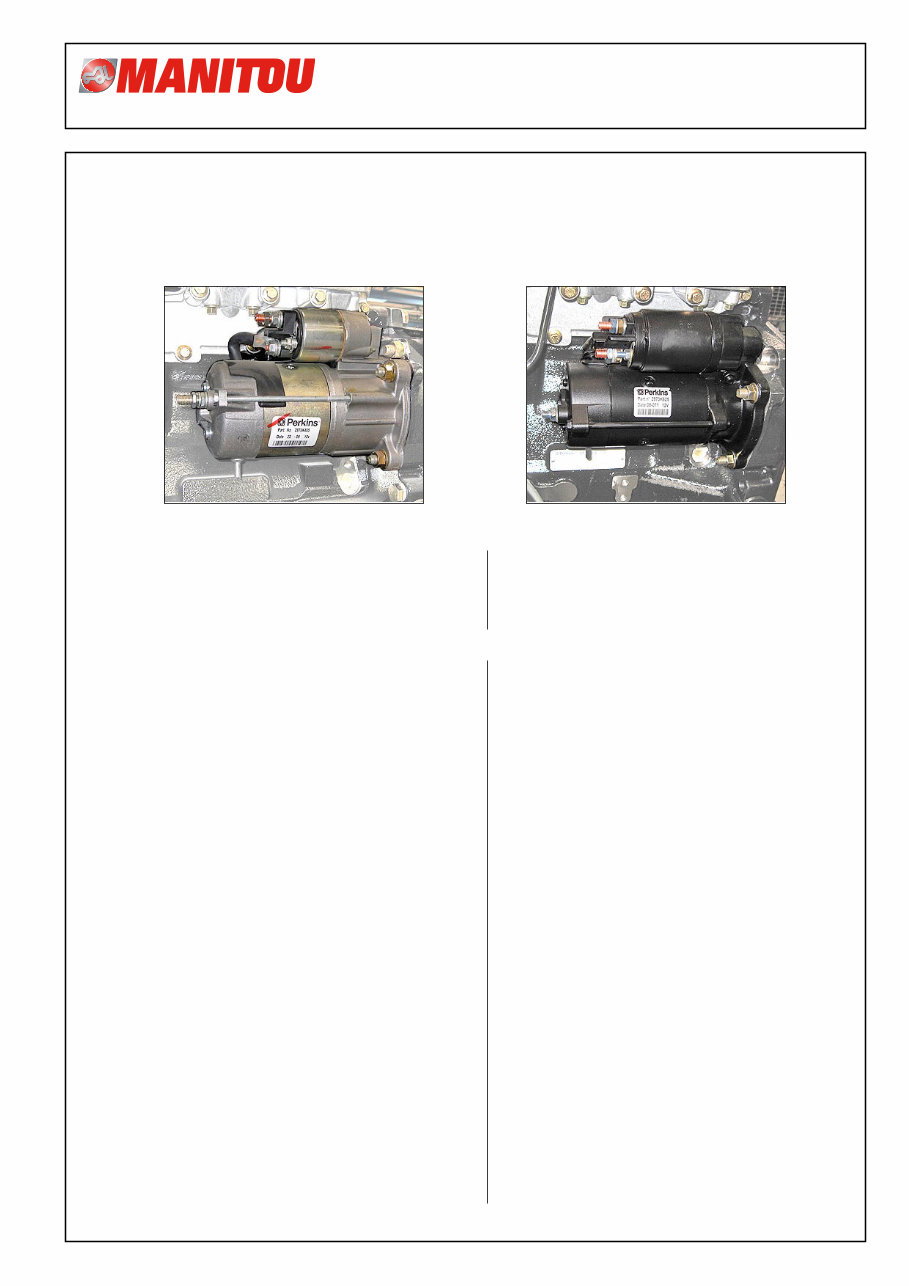

TECHNICAL DATA N° : 1612 CODE : 100 14 PAGE : 2/6 B - 13/10/2008 REPLACING STARTER MOTOR AND «PLUS CABLE» BATTERY MLT 523 TURBO SB E2 MLT 523 TURBO MONO ULTRA SB E2 MT 523 TURBO SB E2 MT 523 TURBO MONO ULTRA SB E2 MLT 630 TURBO SB E2 MLT 630 TURBO SC E2 MLT 630 120 LSU SB E2 MLT 634 TURBO LSU SB E2 MLT 634 TURBO LSU SC E2 MLT 634 120 LSU SB E2 MLT 634 120 LSU SC E2 MLT 634 120 LSU POWERSHIFT SB E2 MLT 634 120 LSU POWERSHIFT SC E2 MLT 731 TURBO SB E2 MLT 731 TURBO SC E2 MLT 731 TURBO LSU SB E2 MLT 731 TURBO LSU SC E2 MLT 735 120 LSU S2 E2 MLT 735 120 LSU S3 E2 MLT 735 120 LSU POWERSHIFT S2 E2 MLT 735 120 LSU POWERSHIFT S3 E2 MLT 741 120 LSU S2 E2 MLT 741 120 LSU S3 E2 MLT 741 120 LSU POWERSHIFT S2 E2 MLT 741 120 LSU POWERSHIFT S3 E2 MLT 742 TURBO S2 E2 MLT 742 TURBO S3 E2 MLT 742 H TURBO LSU S2 E2 MLT 742 H TURBO LSU S3 E2 Old starter New starter In series from machine N° 258 716 Models MLT and MT 523 SA E2 are not concerned with this IT

TECHNICAL DATA N° : 1612 CODE : 100 14 PAGE : /6 B - 13/10/2008 MT 728 SB E2 MT 728 SC E2 MT 732 SB E2 MT 732 SC E2 MT 732 TURBO SC E2 MT 928 SB E2 MT 928 SC E2 MT 932 SB E2 MT 932 SC E2 MT 932 SC E2 MT 932 TURBO SC E2 MT 1030 S S2 E2 MT 1030 S S3 E2 MT 1030 S TURBO S2 E2 MT 1030 S TURBO S3 E2 MT 1033 H L TURBO S2 E2 MT 1033 H L TURBO S3 E2 ML 635 TURBO S3 E2 MLT 845 H TURBO LSU S2 E2 MLT 845 120 LSU S3 E2 MLT 940 L 120 LSU S3 E2 MT 940 L TURBO S3 E2 MLT 1035 L TURBO LSU S3 E2 MT 1235 HS TURBO S2 E2 MT 1235 S3 E2 MT 1235 S TURBO S3 E2 MT 1235 S TURBO ULTRA S3 E2 MT 1240 L TURBO S3 E2 MT 1240 L TURBO ULTRA S3 E2 MT 1335 HSL TURBO S2 E2 MT 1335 HSL TURBO MONO ULTRA ORH S2 E2 MT 1335 HSL TURBO ULTRA ORH RC S2 E2 MT 1335 SL S3 E2 MT 1335 SL TURBO S3 E2 MT 1340 SL TURBO S3 E2 MT 1340 SL TURBO ULTRA S3 E2 MT 1340 SL TURBO MONO ULTRA ORH S3 E2 MT 1340 SL TURBO ULTRA ULTRA ORH RC S2 MT 1435 HSL TURBO S2 E2 MT 1435 HSL TURBO ULTRA S2 E2 MT 1435 HSL TURBO MONO ULTRA ORH S2 E2 MT 1435 HSL TURBO ULTRA ORH RC S2 E2 MT 1435 SL S3 E2 MT 1435 SL TURBO S3 E2 MT 1440 SL S3 E2 MT 1440 SL TURBO S3 E2 In series from machine N° 258 716

TECHNICAL DATA N° : 1612 CODE : 100 14 PAGE : 4/6 B - 13/10/2008 MT 1440 SL TURBO ULTRA S3 E2 MT 1440 SL TURBO MONO ULTRA ORH S3 E2 MT 1440 SL TURBO ULTRA ORH RC S3 E2 MT 1740 SL TURBO S3 E2 MT 1740 SL TURBO ULTRA S3 E2 MT 1740 SL TURBO MONO ULTRA ORH S3 E2 MT 1740 SL TURBO ULTRA ORH RC S3 E2 MT 1745 HSL TURBO ULTRA S2 E2 MT 1745 SL TURBO ULTRA ORH RC S2 E2 MT 1436 R PRIVILEGE MT 1440 PRIVILEGE MT 1440 A PRIVILEGE MT 1440 EP PRIVILEGE MT 1840 PRIVILEGE MT 1840 R PRIVILEGE MT 1840 A PRIVILEGE MT 1840 EP PRIVILEGE MLB 625 TURBO S1 E2 MLB 625 TURBO CONFORT S1 E2 MLB 625 TURBO EX S1 E2 MLB 625 TURBO CONFORT EX S1 E2 MLA 628 TURBO POWERSHIFT S3 E2 In series from machine N° 258 716 In series from machine N° In series from machine N° 253 578

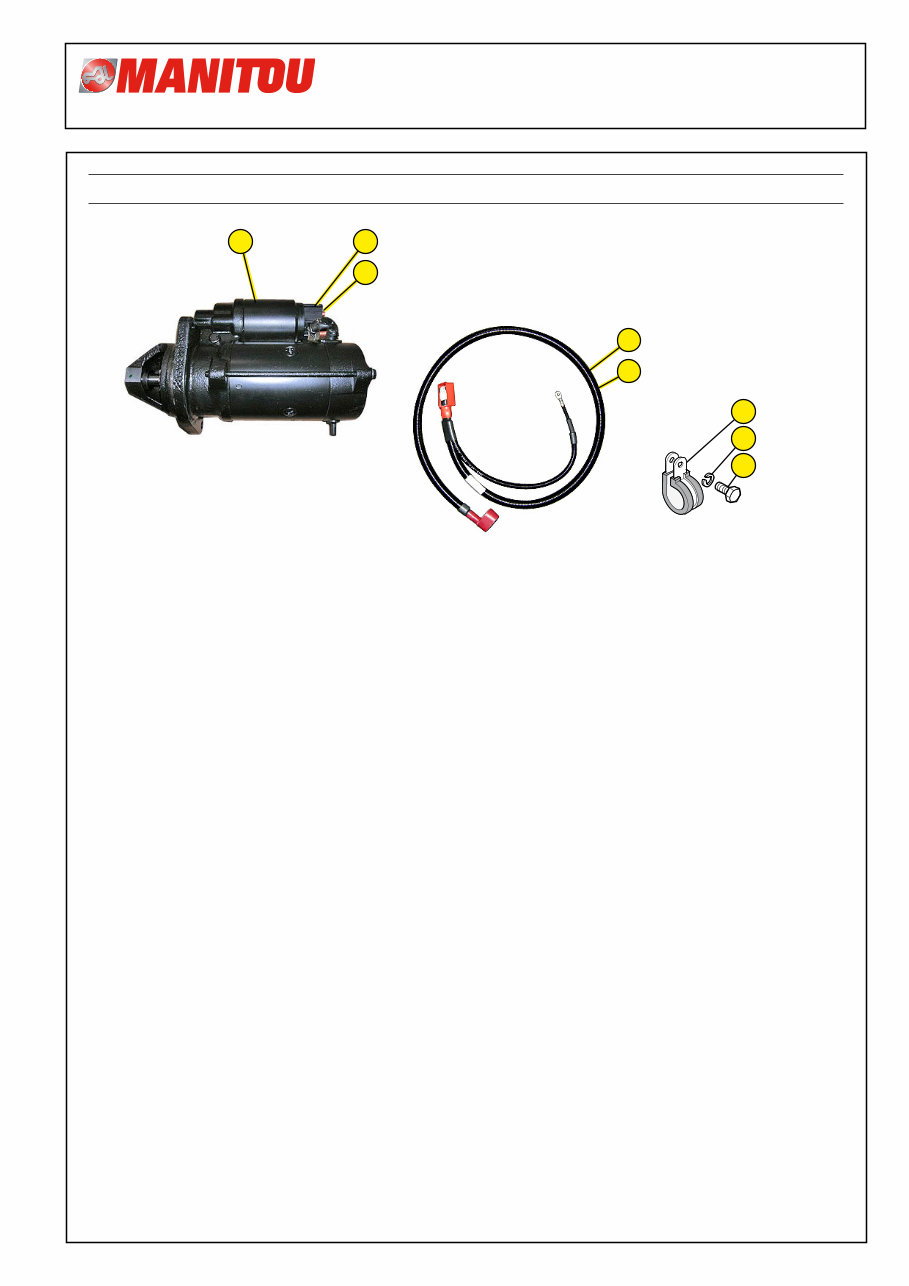

TECHNICAL DATA N° : 1612 CODE : 100 14 PAGE : /6 B - 13/10/2008 Parts required COMPLETE KIT REF. 748 442 (For all trucks except MLB / MLT/MT 2 SB E2 and MLA 628 E2 models) 1 starter Ref. 781 686 Item 1 1 cable Ref. 268 649 Item 2 1 RSGU collar Ref. 86 506 Item 4 1 screw HM 8_20 galvanised Ref. 42 347 Item 5 1 washer W8 galvanised Ref. 42 325 Item 6 COMPLETE KIT REF. 748 44 (Only for MLB) 1 starter Ref. 781 686 Item 1 1 cable Ref. 268 744 Item 3 Only for MLT/MT 2 SB E2 1 starter Ref. 781 910 Item 7 Only for MLA 628 .. E2 1 starter Ref. 781 742 Item 8  6 4 2  Only for MLB 7 Only for MLT/MT 523 SB E2 1 8 Only for MLA 628 .. E2
