New Holland LM850 Telehandler Master Illustrated Parts List Manual Book

How To Use Figure Search 1). Locate the figure list index at the beginning of manual examples: 01A01 FRONT WHEEL ASSEMBLY - 2100,2110,2120,2150,2300,2310,3055,3100,3120,3150,3190,3300,3310,3550,4140 01A01[C] FRONT WHEEL ASSEMBLY, W/16" WHEELS - 3400, 3500, 3550, 4400, 4500, 4410, 5100, 5200, 5190, 7100, 7200 01B01 STANDARD REAR WHEELS - 2000, 4100 & 3000 EXCEPT 3550 01B01[A] STANDARD REAR WHEELS - 3500, 3550, 5000, 7000, 4000 EXCEPT 4110 01B02 POWER ADJUSTABLE REAR WHEELS - 2000, 3000, 4140 Use the “search” feature in adobe to jump to the figure number. Press Ctrl key, and letter F on the keyboard, at the same time. This will bring up the “search” feature in Adobe Acrobat. Then simply type in the figure number you wish to locate, and press enter. Adobe takes you immediately to that page!

Figure Search for LM850 TELEHANDLER (7/99- ) Figure Search for LM850 TELEHANDLER (7/99- ) 0.0041A[01] CODE TABLE 00.1[01] MAINTENANCE PARTS 01.02.1[01] ENGINE 02.02.3[01] FAN AND FAN DRIVE 02.04.3/A[01] FUEL LINES 02.15.1[01] MUFFLER 02.17.0[01] RADIATOR 02.19.1/A[01] AIR FILTER 03.28.0/B[01] GEARBOX, COMPONENTS C4675 03.28.0/B[01A] GEARBOX, COMPONENTS D4675 03.28.0/C[01] GEARBOX, COMPONENTS C4675 03.28.0/C[01A] GEARBOX, COMPONENTS D4675 03.28.0/D[01] TRANSFER BOX 03.28.0/E[01A] ELECTRIC CONTROL VALVE D4670 03.28.0[01] GEARBOX 03.28.3[01] ANGLE RETURN BOX 03.38.6[01] POWER TAKE-OFF ENGINE - ANGLE RETURN BOX 04.38.1[01] POWER TAKE-OFF, FRONT AXLE 04.40.0/0A[01] FRONT AXLE - C2103 04.40.0/0B[01] CASING, FRONT AXLE - C2103 04.40.0/0C[01] POWER TAKE-OFF, FRONT AXLE - C2103 04.40.0/0D[01] REDUCTION GEAR, FRONT AXLE - C2103 04.40.0/0F[01] BRAKE DISCS, FRONT AXLE - C2103 04.40.0/0G[01] STEERING SYSTEM, FRONT AXLE - C2103 04.40.0/1[01] FRONT AXLE - D2103 04.40.0/1A[01] CASING, FRONT AXLE - D2103 04.40.0/1B[01] DIFFERENTIAL, FRONT AXLE - D2103 04.40.0/1C[01] REDUCTION GEAR, FRONT AXLE - D2103 04.40.0/1D[01] BRAKE DISCS, FRONT AXLE - D2103 04.40.0/1E[01] STEERING SYSTEM, FRONT AXLE - D2103 04.40.0/1F[01] FRONT AXLE, SUPPORT - D2103 05.38.4[01] POWER TAKE-OFF, REAR AXLE 05.44.0/0A[01] REAR AXLE - C2103 05.44.0/0B[01] CASING, REAR AXLE - C2103 05.44.0/0C[01] DIFFERENTIAL, REAR AXLE - C2103 05.44.0/0D[01] REDUCTION, REAR AXLE - C2103 05.44.0/0E[01] BRAKE DISCS, REAR AXLE - C2103 05.44.0/0F[01] STEERING SYSTEM, REAR AXLE - C2103 05.44.0/1[01] REAR AXLE - D2103 05.44.0/1A[01] CASING, REAR AXLE - D2103 05.44.0/1B[01] DIFFERENTIAL, REAR AXLE - D2103 05.44.0/1C[01] REDUCTION, REAR AXLE - D2103 05.44.0/1D[01] BRAKE DISCS, REAR AXLE - D2103 05.44.0/1E[01] STEERING SYSTEM, REAR AXLE - D2103 05.44.0/1F[01] REAR AXLE, SUPPORT - D2103 06.75.0[01] ELECTRICITY - ENGINE, TRANSMISSION 06.75.1[01] ELECTRICITY, RELAY AND PRINTED CIRCUIT 06.75.2/D[01] ELECTRIC CIRCUIT Page 1

Figure Search for LM850 TELEHANDLER (7/99- ) Figure Search for LM850 TELEHANDLER (7/99- ) 06.75.2/F[02] ELECTRIC CIRCUIT 06.75.2/G[01] ELECTRIC CIRCUIT, COLD COUNTRIES 06.75.2[01] ELECTRICITY, ACCESSORIES 06.91.1[02] ELECTRICITY, CAB 06.91.4[01] LIGHTING SYSTEM 07.08.5/C[01] CYLINDER, TELESCOPIC, EXTERNAL 07.08.5/D[02] CYLINDER, TELESCOPIC, INTERNAL 07.11.1/A[01] LIFT CYLINDER, LH 07.11.1/B[01] LIFT CYLINDER, RH 07.11.2[01] CYLINDER, HYDRAULIC 07.11.3[01] HYDRAULIC CIRCUIT, LIFTING 07.21.5[01] CYLINDER, COMPENSATION 07.22.1[01] CYLINDER, LEVELLING SYSTEM 07.22.2[01] HYDRAULIC CIRCUIT, LEVELLING SYSTEM 07.44.1[01] CYLINDER, LOCKING REAR AXLE 07.44.2[01] CYLINDER, LOCKING REAR AXLE 07.82.4[01] MAIN VALVE, DISTRIBUTION 07.82.6/A[01] HYDRAULIC, PRINCIPAL CIRCUIT 07.82.6/C[01] HYDRAULIC CIRCUIT, STEERING SYSTEM 07.82.6/F[01] HYDRAULIC CIRCUIT FOR TELESCOPE 07.82.6/J[01] HYDRAULIC CIRCUIT, BOOM 07.82.8/A[01] HYDRAULIC CIRCUIT, BOOM CONTROL 07.95.5[01] STEERING VALVE 08.83.0/A[01] SHEET, METAL 08.83.0[01] SHEET, METAL 08.87.0[01] FENDERS 09.07.2/B[01] BOOM 09.12.9/ 2[01] FORK, EXTENSION 10.10.1[01] PEDALS AND LINKAGE 10.37.4[01] HANDBRAKE 10.37.6[01] BRAKE CIRCUIT 10.85.1/A[01] SEAT 10.85.1[01] SEAT 10.87.7/A[01] CAB FRAME 10.87.7[01] CAB FRAME 10.92.0/A[01] CAB, COMPONENTS 10.92.0/B[01] CAB, COMPONENTS 10.92.0/C[01] CAB, COMPONENTS 10.92.0/D[01] CAB, COMPONENTS 10.92.0/E[01] CAB, COMPONENTS 10.92.0/F[01] CAB, COMPONENTS 10.92.0/G[01] CAB, COMPONENTS 10.92.0/H[01] CAB, COMPONENTS 10.92.0/I[01] CAB, WINDOWS 10.92.0/J[01] CAB, WINDOWS 10.92.0/K[01] AIR CONDITIONING, KIT 10.92.0/L[01] HEATER, KIT 10.92.0[01] CAB, COMPONENTS Page 2

Figure Search for LM850 TELEHANDLER (7/99- ) Figure Search for LM850 TELEHANDLER (7/99- ) 10.93.5[01] STEERING WHEEL AND DASHBOARD 11.49.4[01] WHEELS 12.21.5[01] FRAME - COUNTERWEIGHT 18.157[01] PRE- FILTER 18.216[01] TOOLS FOR WHEELS 18.752[01] WORK LIGHTS, REAR 18.761[01] BOOM WORKING LIGHTS 18.764[01] REVOLVING FLASH LIGHT 18.802[01] GRILLE SHIELD 18.866[01] SEAT 18.883/884[01] WINDSCREEN WIPER, UPPER Page 3

LM850 TELEHANDLER (7/99- ) 0.0041A[01] CODE TABLE

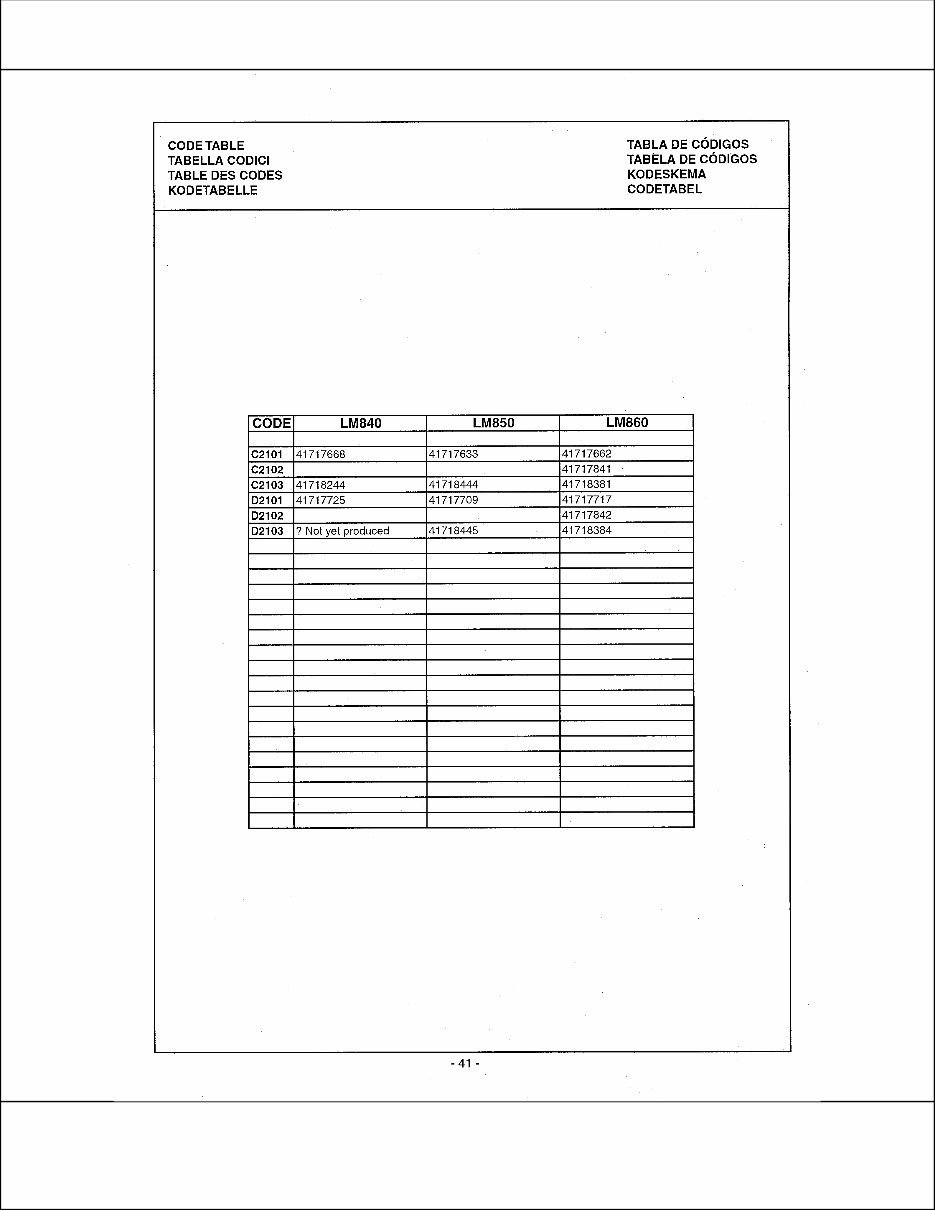

Ref Part Number Qty Description LM850 TELEHANDLER (7/99- ) 0.0041A[01] CODE TABLE

LM850 TELEHANDLER (7/99- ) 00.1[01] MAINTENANCE PARTS

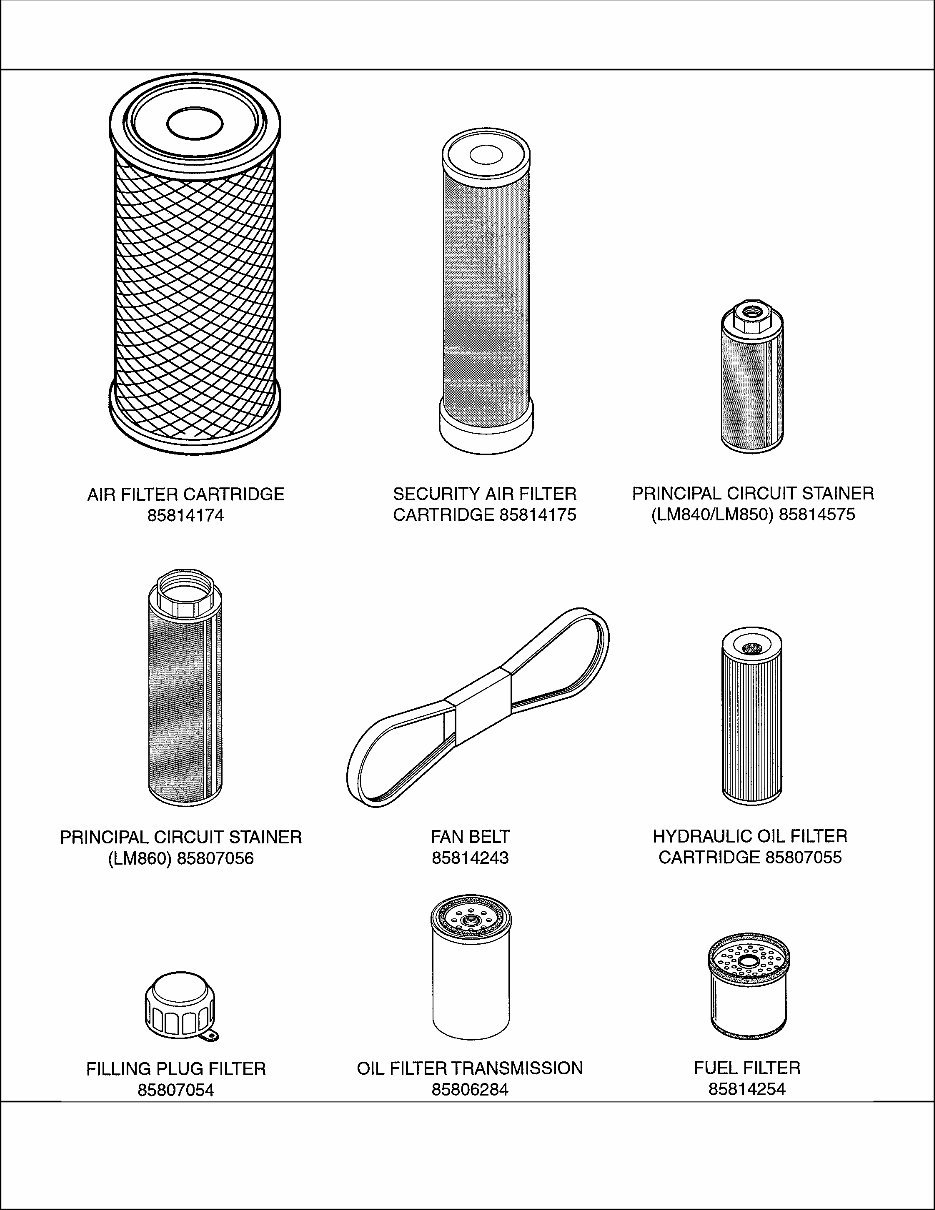

Ref Part Number Qty Description LM850 TELEHANDLER (7/99- ) 00.1[01] MAINTENANCE PARTS 1 85814174 1 FILTER, ELEMENT, 2 85814175 1 FILTER, ELEMENT, 3 85814575 1 FILTER, STRAINER, , FOR LM840-850 ONLY 4 85807056 1 FILTER, STRAINER, , FOR LM860 ONLY 5 85816348 1 BELT, TRANSMISSION, 6 85807055 1 FILTER, HYDRAULIC OIL, 7 85807054 1 CAP, 8 85817004 1 FILTER, 9 83937061 1 FILTER, FUEL,

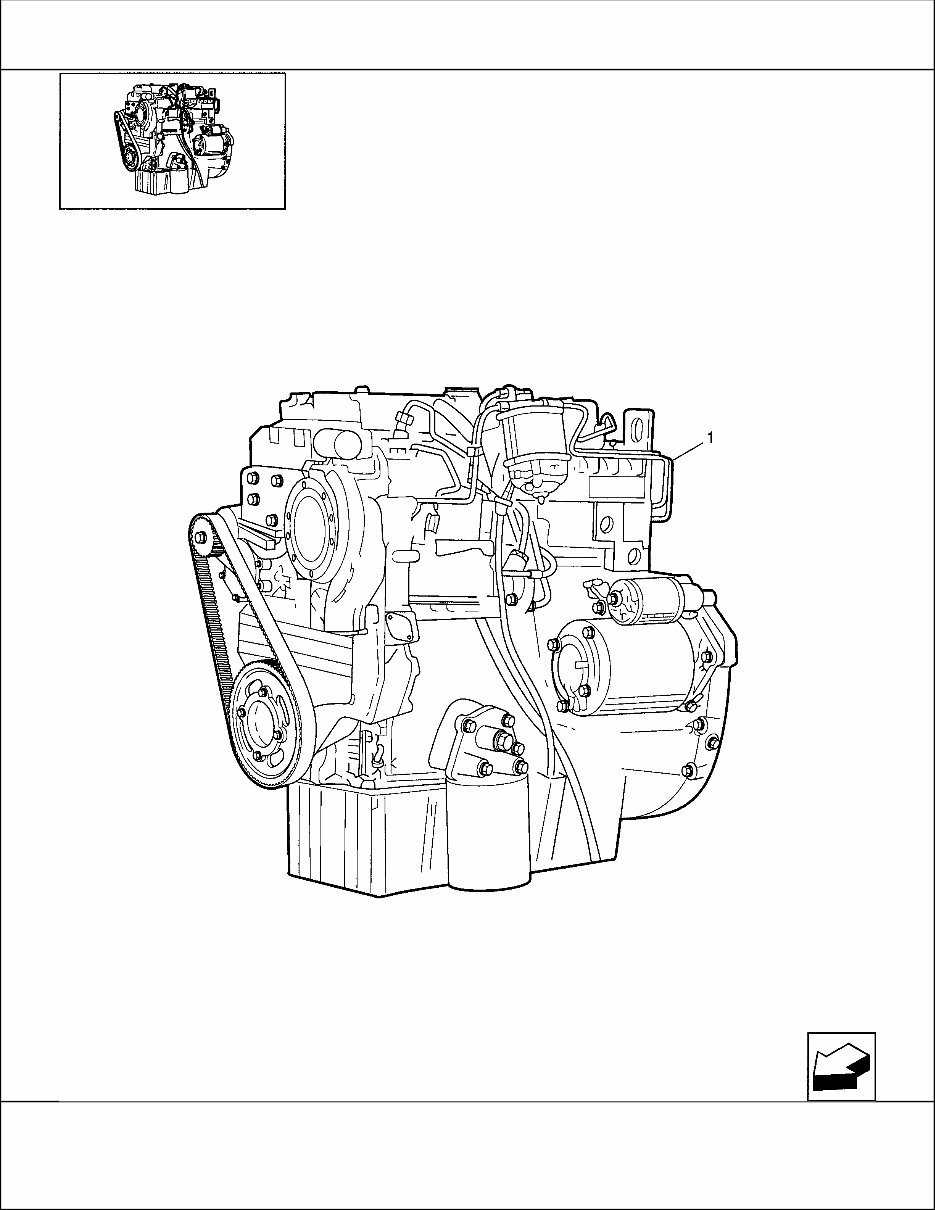

LM850 TELEHANDLER (7/99- ) 01.02.1[01] ENGINE
