New Holland CE LM840, LM850, LM860 Operators Manual
What's Included?
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual


LM840
LM850
LM860
86587045 6/99

140
ª 1999 NEW HOLLAND NORTH AMERICA, INC.
TO THE OWNER:
The warranty coverage that is extended to your telehandler is explained in the Warranty and Limitation of
Liability form. Your dealer will provide you with a copy of the warranty and retain a copy which you have
signed. After you read the warranty, ask your dealer to explain any points that you may not understand.
The telehandler was designed to power and propel itself. It is intended to stack, load, and move material in
normal and customary applications.
Do not modify or alter or permit anyone else to modify or alter this telehandler or any of its components or any
telehandler function without first consulting an authorized New Holland dealer. If you have any questions
regarding telehandler modifications, contact New Holland Construction, 245 E. North Ave., Carol Stream, IL
60188.
Your safety and the safety of those around you depends upon the care and good judgment you use while
operating this equipment. Read the safety precautions carefully.
After you have operated the telehandler for 50 hours, take your telehandler and this manual to your selling
dealer. He will perform the factory recommended 50-hour service. You will be responsible for the cost of
lubricants, fluids, filters and other items replaced as part of normal maintenance. Prior to taking the
telehander to your selling dealer for service, it is recommended that you contact them to determine any other
charges for which you may be responsible.
All data given in this book is subject to product variations. Dimensions and weights are approximate only and
the illustrations do not necessarily show machines in standard condition. For exact information about any
particular telehandler, please consult your New Holland dealer.
CAUTION: THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO READ AND FOLLOW THE INSTRUCTIONS. BE CAREFUL!
CAUTION: PICTURES IN THIS MANUAL MAY SHOW PROTECTIVE SHIELDING OPEN OR REMOVED
TO BETTER ILLUSTRATE A PARTICULAR FEATURE OR ADJUSTMENT.
BE CERTAIN, HOWEVER, TO CLOSE OR REPLACE ALL SHIELDING BEFORE OPERATING THE MA-
CHINE.
IMPROVEMENTS
New Holland North America, Inc. is continually striving to improve its products. We reserve the right to make
improvements or changes when it becomes practical and possible to do so, without incurring any obligation
to make changes or additions to the equipment sold previously.

0- - 1
CONTENTS
SAFETY 0-2 ............................................................
SECTION 1 - GENERAL INFORMATION 1-1 ...............................
SECTION 2 - OPERATION 2-1 ............................................
SECTION 3 - LUBRICATION AND MAINTENANCE 3-1 ......................
SECTION 4 - TROUBLESHOOTING 4-1 ...................................
SECTION 5 - SPECIFICATIONS 5-1 .......................................
INDEX 5-13 ..............................................................
PREDELIVERY SERVICE 5-15 .............................................
DELIVERY REPORT 5-19 .................................................
50-HOUR SERVICE 5-23 .................................................

0- - 2
PRECAUTIONARY
STATEMENTS
PERSONAL SAFETY
Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION”,
“WARNING”, and “DANGER”) followed by specific instructions. These precautions are intended for the
personal safety of you and those working with you. Please take the time to read them.
CAUTION: THE WORD “CAUTION” IS USED WHERE A SAFE BEHAVIORAL PRACTICE AC-
CORDING TO OPERATING AND MAINTENANCE INSTRUCTIONS AND COMMON SAFETY
PRACTICES WILL PROTECT THE OPERATOR AND OTHERS FROM ACCIDENT INVOLVEMENT.
WARNING: THE WORD “WARNING” DENOTES A POTENTIAL OR HIDDEN HAZARD WHICH HAS
A POTENTIAL FOR SERIOUS INJURY. IT IS USED TO WARN OPERATORS AND OTHERS TO EX-
ERCISE EVERY APPROPRIATE MEANS TO AVOID A SURPRISE INVOLVEMENT WITH MACHIN-
ERY.
DANGER: THE WORD “DANGER” DENOTES A FORBIDDEN PRACTICE IN CONNECTION WITH
A SERIOUS HAZARD.
FAILURE TO FOLLOW THE “CAUTION”, “WARNING”, AND “DANGER” INSTRUCTIONS MAY
RESULT IN SERIOUS BODILY INJURY OR DEATH.
MACHINE SAFETY
Additional precautionary statements (“ATTENTION” and “IMPORTANT”) are followed by specific in-
structions. These statements are intended for machine safety.
ATTENTION: The word “ATTENTION” is used to warn the operator of potential machine damage if a
certain procedure is not followed.
IMPORTANT: The word “IMPORTANT” is used to inform the reader of something he needs to know to
prevent minor machine damage if a certain procedure is not followed.

1-1
SECTION 1
GENERAL INFORMATION

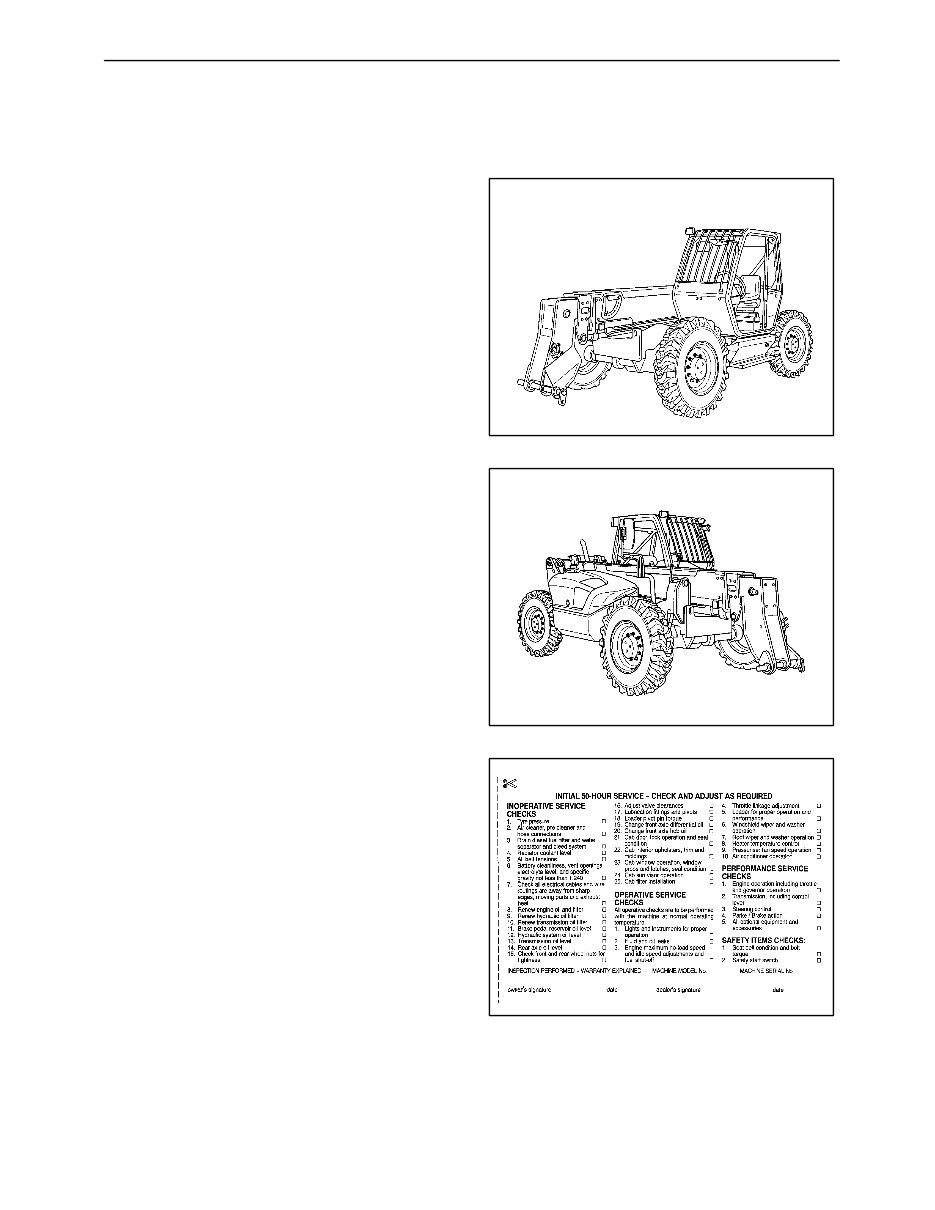

This manual has been prepared to assist you in
the correct procedure for running-in, driving,
operating and maintenance of your new
Telehandler.
Read this manual carefully and keep it in a
convenient place for future reference. If at any
time you require advice concerning your
machine, do not hesitate to contact your
authorized dealer. They have company trained
personnel, genuine manufacturer’s parts and the
necessary equipment to carry out all your service
requirements.
Your machine was designed to power and propel
itself and is intended for use in normal and
customary applications. It is also designed to
give maximum performance, economy and ease
of operation under a wide variety of operating
conditions.
Prior to delivery, the machine was carefully
inspected, both at the factory and by your dealer
to ensure that it reaches you in optimum
condition. To maintain this condition and ensure
trouble-free operation, it is important that the
routine services, as specified in Section 3, of this
manual, are carried out at the recommended
intervals.
FIRST 50 HOUR SERVICE
After you have operated the machine for 50 hours,
take your machine, together with this manual, to
your dealer. They can then perform the factory
recommended 50 hour service and complete the
service report sheets at the back of this book.
The first sheet is the dealer’s copy and should be
removed by the dealer after the service has been
carried out. The second copy is your record of the
service performed.
Ensure that you and the dealer sign both copies.
19991170
Figure 1-1
19991171
Figure 1-2
19991172
Figure 1-3

GENERAL INFORMATION
1-2

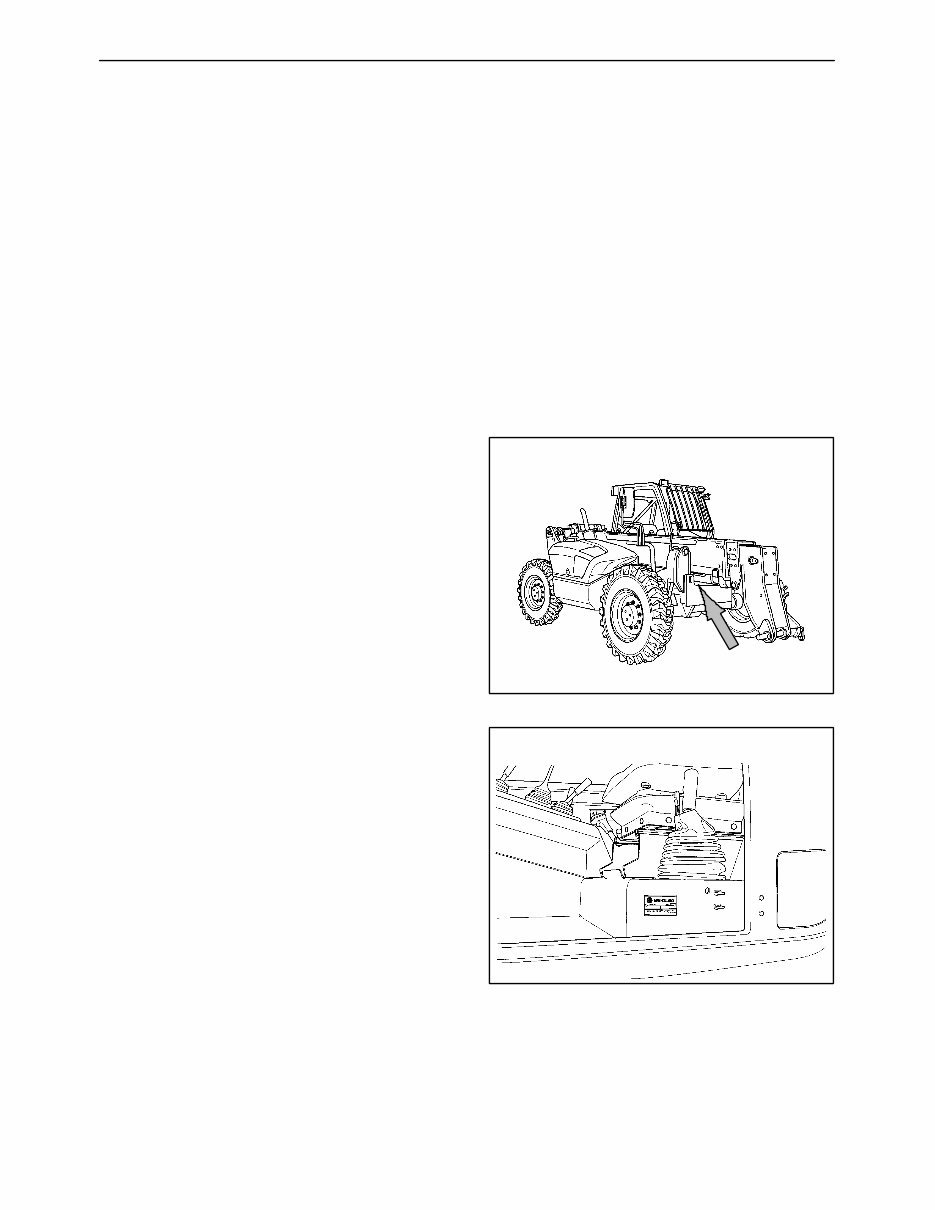

WARRANTY
Your machine is warranted according to the legal
rights in your country and the contractual
agreement with your selling dealer.
IMPORTANT: No warranty shall apply if the
machine has not been used, adjusted, or
maintained according to the instructions given in
this Operator’s Manual
PRODUCT IDENTIFICATION
Your machine and its major components are
identified by various numbers and letters for
recognition in After Sales Service. The following
information provides the locations of these
identification plates, stamped numbers and
examples of what can be found on your machine.
CHASSIS SERIAL NUMBER
The Serial Number is stamped at the front on the
top of the right hand main frame.
Example: *041716103*
NOTE: The Serial Number and identification
numbers of components may be required by
your dealer when requesting parts or service.
These numbers will also be required as an aid
to identifying the machine if it is ever stolen.
Keep them safe.
VEHICLE IDENTIFICATION PLATE
The machine identification plate is located on the left
hand of the seat pod. Record the data of your
machine below.
MODEL NUMBER __________________________
Example: *LM850*
UNIT SERIAL NO. __________________________
Example: *041716103*
19991171
Figure 1-4
19991173
Figure 1-5

GENERAL INFORMATION
1-3

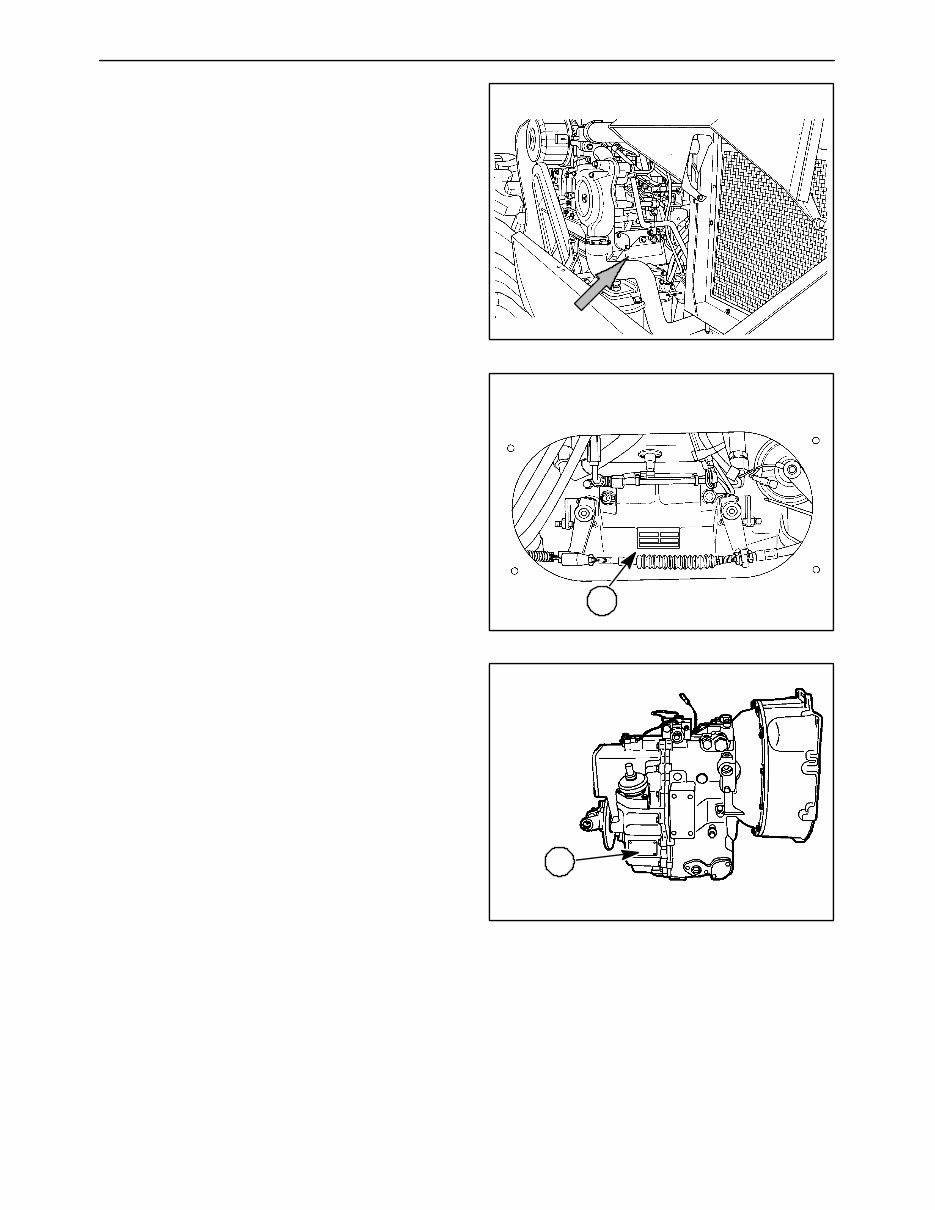

ENGINE IDENTIFICATION
The engine identification information is located
on the left hand side of the engine block. Record
the information below for quick reference.
ENGINE FAMILY _______________________
Example: *WPKXL 03.9AK1*
TYPE ________________________________
Example: *1985/2200/N*
SERIAL NO. ___________________________
Example: *AK80920U927273D*
FRONT AXLE IDENTIFICATION
The serial number and axle type is printed on the
plate, 1, located on the front of the axle housing.
Record the information below for quick
reference.
AXLE TYPE ____________________________
Example: *602-212-56/57*
SERIAL NO. ___________________________
DATE CODE ___________________________
TRANSMISSION IDENTIFICATION
4 X 4 POWER SHUTTLE
The serial number and type is printed on the
plate, 1, on the lower right side of the
transmission. Record the information below for
quick reference.
TYPE ________________________________
Example: *COM-T4-2012*
SERIAL NO. ___________________________
19991174
Figure 1-6
19991168
MANITOU
1
Figure 1-7
19991175
1
Figure 1-8

GENERAL INFORMATION
1-4

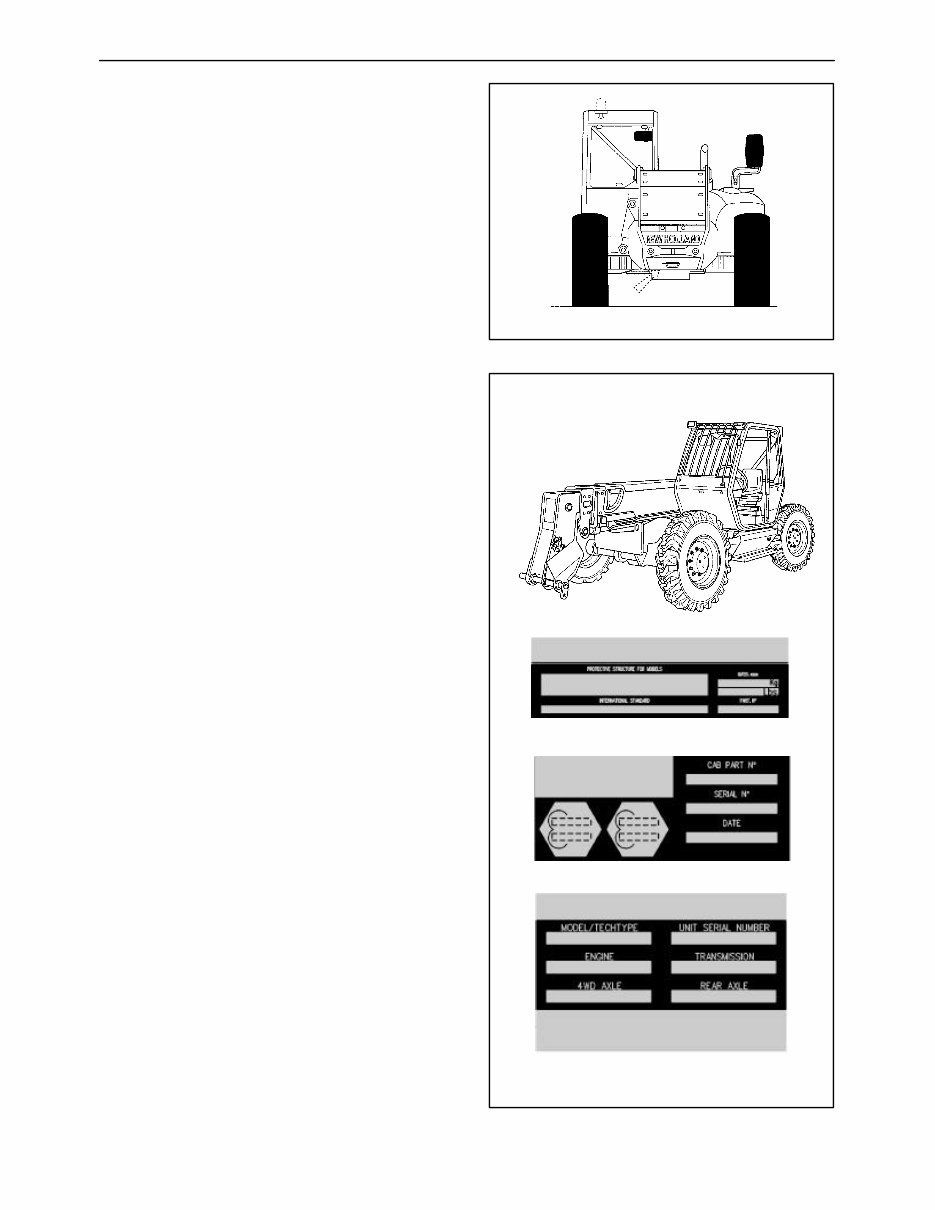

REAR AXLE IDENTIFICATION
The serial number is stamped on the plate
attached to the rear axle housing. Record the
serial number below for quick reference.
AXLE TYPE ____________________________
Example: *60221299/100*
SERIAL NO. ___________________________
DATE CODE ___________________________
IDENTIFICATION PLATES IN THE CAB
The Cab Identification Plate with serial number
and details are printed on the plate to the rear
left-hand side of the seat. Record the serial
number below for quick reference.
SERIAL NO. ___________________________
DATE CODE ___________________________
The ROPS and FOPS details are printed on the
certification plate and mounted with the Cab
Plate. Record the serial number below for quick
reference.
SERIAL NO. ___________________________
DATE CODE ___________________________
The Engine details are printed on the certification
plates and mounted with the Cab Plate. Record
the serial number below for quick reference.
SERIAL NO. ___________________________
DATE CODE ___________________________
19992895
Figure 1-9
19991170
Figure 1-10

GENERAL INFORMATION
1-5
ECOLOGICAL CONSIDERATIONS
The following are recommendations which may
be of assistance:
• Become acquainted with and ensure that you
understand the relative legislation applicable
to your country.
• Where no legislation exists, obtain
information from suppliers of oils, fuels,
antifreeze, cleaning agents, with regard to
their effect on man and nature and how to
safely store, use and dispose of these
substances.
HELPFUL HINTS
1. Avoid filling tanks using cans or
inappropriate pressurized fuel delivery
systems which may cause considerable
spillage.
2. In general, avoid skin contact with all fuels,
oils, acids, solvents, etc. Most of them
contain substances which can be harmful to
your health.
3. Modern oils contain additives. Do not burn
contaminated fuels and/or waste oils in
ordinary heating systems.
4. Avoid spillage when draining off used engine
coolant mixtures, engine, gearbox and
hydraulic oils, brake fluids, etc. Do not mix
drained brake fluids or fuels with lubricants.
Store them safely until they can be disposed
of in a proper way to comply with local
legislation and available resources.
5. Modern coolant mixtures, like antifreeze and
other additives, should be replaced every
two years. They should not be allowed to get
into the soil but should be collected and
disposed of safely.
6. Do not open the Air Conditioning system
yourself. Your Dealer / Air Conditioning
specialist has special equipment for
discharging and charging the system.
7. Repair any leaks or defects in the engine
cooling or hydraulic system immediately.
8. Do not increase the pressure in a
pressurized circuit as this may lead to a
catastrophic failure of the system
components.
9. Protect hoses during welding as penetrating
weld splatter may burn a hole or weaken
them, causing the loss of oils and coolants.
You're Reading a Preview
What's Included?
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$44.99
Viewed 76 Times Today
Loading...
Secure transaction
What's Included?
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$44.99
- The New Holland CE LM840, LM850, LM860 Telehandlers Operator's Manual is a comprehensive guide for operating and maintaining these powerful machines.
- It contains detailed instructions on safely and efficiently operating the LM840, LM850, and LM860 models, covering basic controls and advanced features.
- The manual also provides essential maintenance tips to ensure the telehandler runs smoothly, with guidance on regular servicing and inspections for optimal performance.
- Comprehensive safety guidelines are included to protect operators and others, covering the proper use of personal protective equipment and best practices for accident prevention.
- Detailed service information is available for troubleshooting and resolving any issues that may arise, with step-by-step instructions and illustrations for confident maintenance tasks.
- This manual is useful for both professional mechanics and DIY enthusiasts, providing valuable information for all operators of telehandlers.
