N° : 1206 CODE : 109 02 DATE : 01-09-03 ACCEPTED UNDER WARRANTY Yes No Code A Code B Code C A = Compulsory and immediate B = Modification to be made C = For information modification during maintenance visit MACHINES CONCERNED: MLT 630 / 731 Turbo Series B-2 – MLT 526 Compact Series A MLT 634 / 731 TURBO LSU S ERIES B-E2 – MLT 526 C OMPACT MONO–ULTRA SERIES A MLT 630 / 634 120 LSU S ERIES B-E2 – MLT 526 S ERIES A – MLT 526 TURBO(24’’) S ERIES A MLT 634 120 LSU PS S ERIES B-E2 – MLT 526 TURBO MONO-ULTRA (24’’) S ERIES A MT 732 / 932 SERIES B-E2 – MLT 526 T URBO SERIES A - MLT 526 TURBO M-U S ERIES A MLT 742 TURBO SERIES 2-E2 – MLT 526 TURBO COMPACT SERIES A MLT 741 120 LSU S ERIES 2-E2 – MLT 526 T URBO COMPACT MONO-ULTRA S ERIES A MLT 741 120 LSU PS S ERIES 2-E2 – M 26-2 S ERIES 2 - M 26-4 S ERIES 2 MLT 742 H LSU TURBO SERIES 2-E2 – M 30-2 S ERIES 2 – M 30-4 S ERIES 2 – M 40-4 S ERIES 2 MT 523 SERIES A + MONO – ULTRA SERIES A – M 50-4 S ERIES 2 – MC 30 S ERIES 2 MC 40/50/60/70 POWERSHIFT SERIES 2 – MC 60/70 TURBO POWERSHIFT SERIES 2 MLT 523 TURBO SERIES A – MLT 523 TURBO MONO-ULTRA SERIES A – MA 460/470 Subject: REPLACEMENT OF THE SPIRIT LEVEL REF: 239337 For machines prior to No. 188078 (with reference to the list on Page 5/5), you are recommended to replace the spirit level in accordance with the attached procedure on all machines exposed to long periods of direct sunlight. After-Sales Service. TIME REQUIRED FOR MODIFICATION : 1 hours WEIGHT: - of 1 kg 1 to 5 kg 5 to 10 kg 10 to 25 kg + of 25 Kg This bulletin is designed to provide information to all the Technical departments and should not be considered as an operation to be performed under the title of the GUARANTEE, unless otherwise stated. SAFETY NOTICE Instructions in the SERVICE BULLETINS assume that the engineer has a good knowledge of safety procedures and has been trained in the maintenance and repair of equipment. If you do not understand the information contained in this bulletin, ask your supervisor or contact MANITOU SERVICE for advice. REMEMBER SAFETY MUST COME FIRST.

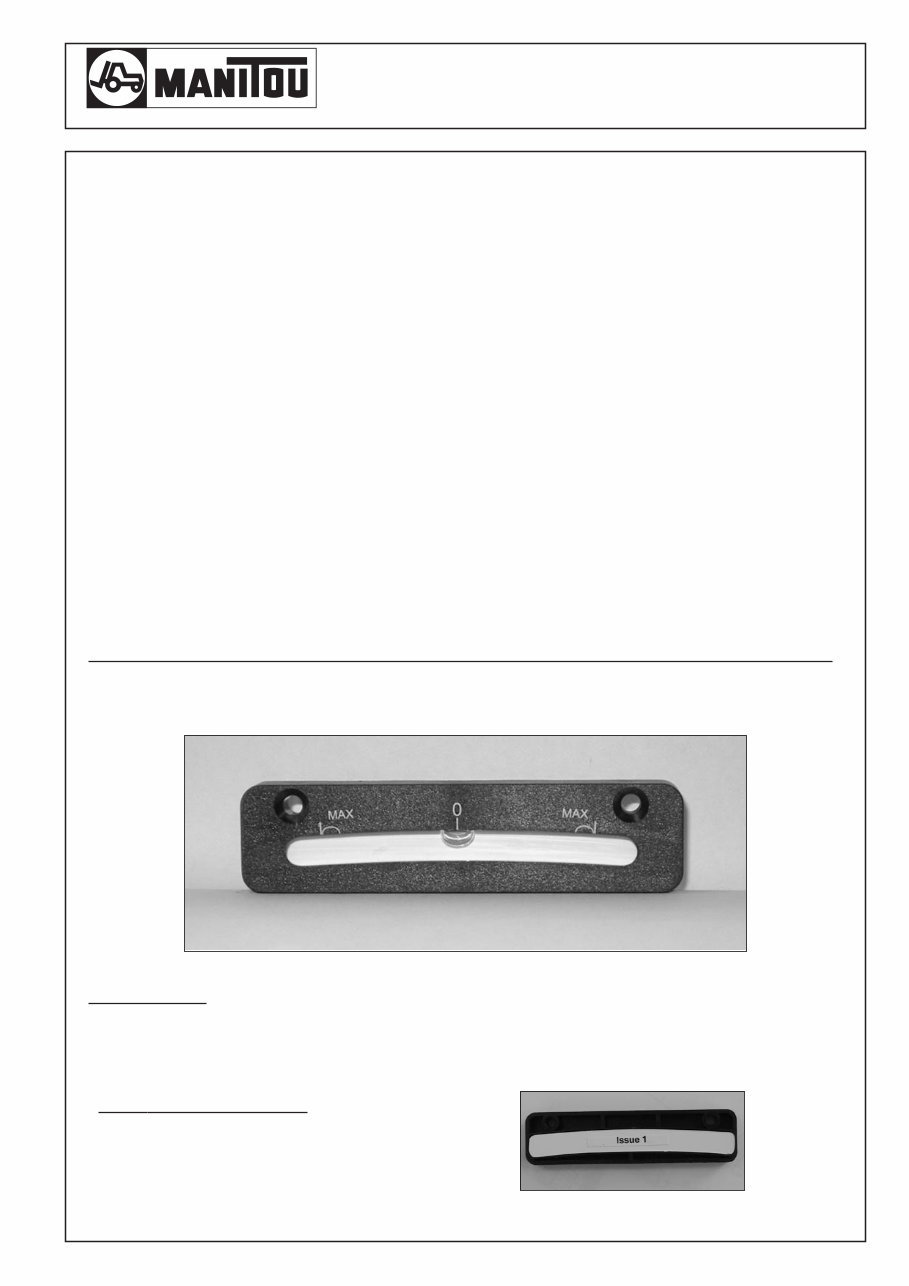

SPIRIT LEVEL REINFORCEMENT - REF. 239 337 Applied on assy. line from machine n° 188078 (except machine numbers given on page 5/5) (Also see page 5/5 for list of machines modified before shipping) Modifications - Glass reinforcement - thickness modification. - Change of liquid. - Identifi cation of new product : Marking " issue 1 " on rear of spirit level or " 10/07/03 " for 1st series 25-07-2003 TECHNICAL DATA N° 1206 CODE : 109 02 PAGE : 2/5 ® MLT 526 Compact Série A MLT 526 Compact Mono-Ultra Série A MLT 526 Série A MLT 526 Turbo (24") Série A MLT 526 Turbo Mono-Ultra (24") Série A MLT 526 Turbo Série A MLT 526 Turbo Mono-Ultra Série A MLT 526 Turbo Compact Série A MLT 526 Turbo Compact Mono-Ultra Série A M 26-2 Série 2 M 26-4 Série 2 M 30-2 Série 2 M 30-4 Série 2 M 40-4 Série 2 M 50-4 Série 2 MC 30 Série 2 MC 40/50/60/70 Powershift Série 2 MC 60/70 Turbo Powershift Série 2 MA 460 MA 470 Machines prior to N° 182516 fitted without spirit level Machines prior to N° 182330 fitted without spirit level MLT 630/731 Turbo Série B - E2 MLT 634/731 Turbo LSU Série B - E2 MLT 630/634 120 LSU Série B - E2 MLT 634 120 LSU PS Série B - E2 MT 732/932 Série B - E2 MLT 742 Turbo Série 2 - E2 MLT 741 120 LSU Série 2 - E2 MLT 741 120 LSU PS Série 2 - E2 MLT 742 H LSU Turbo Série 2 - E2 MLT 845 120 LSU Série 3 - E2 ML 635 Turbo Série 3 - E2 MT 523 Série A MT 523 Mono-Ultra Série A MLT 523 Turbo Série A MLT 523 Turbo Mono-Ultra Série A } }

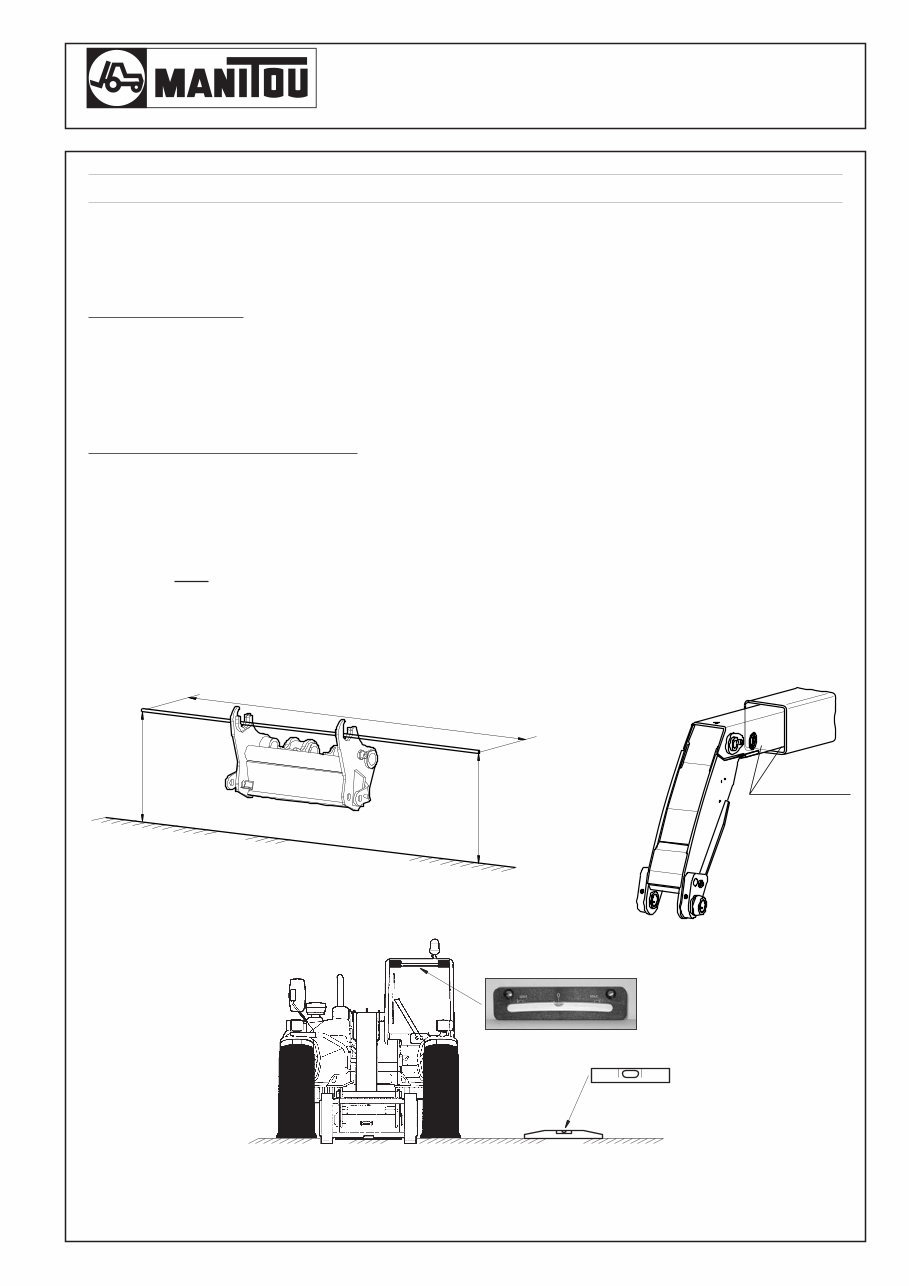

Spirit level adjustment procedure TESLESCOPIC FORK LIFT TRUCKS : TRUCK POSITION : 1 - Place fork lift truck on level with wheels straight. 2 - Check tyre pressure. 3 - If truck has an attachement, this must be centred in relation to telescope. VERIFICATION / ADJUSTMENT : 4 - Check carriage is horizontal : • Max 15 mm difference over between A and B (0,75% slope - 0,42 angle) (Fig. 2). • If fault is more than 15 mm, adjust horizontal position of carriage by placing shim(s) under lower from pad (Fig. 3). Note : In some cases, a shim needs to be inserted between chassi and front axle. 5 - Adjust level indicator fitted in cab (Fig. 4). 25-07-2003 TECHNICAL DATA N° 1206 CODE : 109 02 PAGE : 3/5 ® B A 2000 Fig. 2 Fig. 4 Fig. 3 Ground A ≠ B => 15 mm maxi Insert shim if error > 15 mm

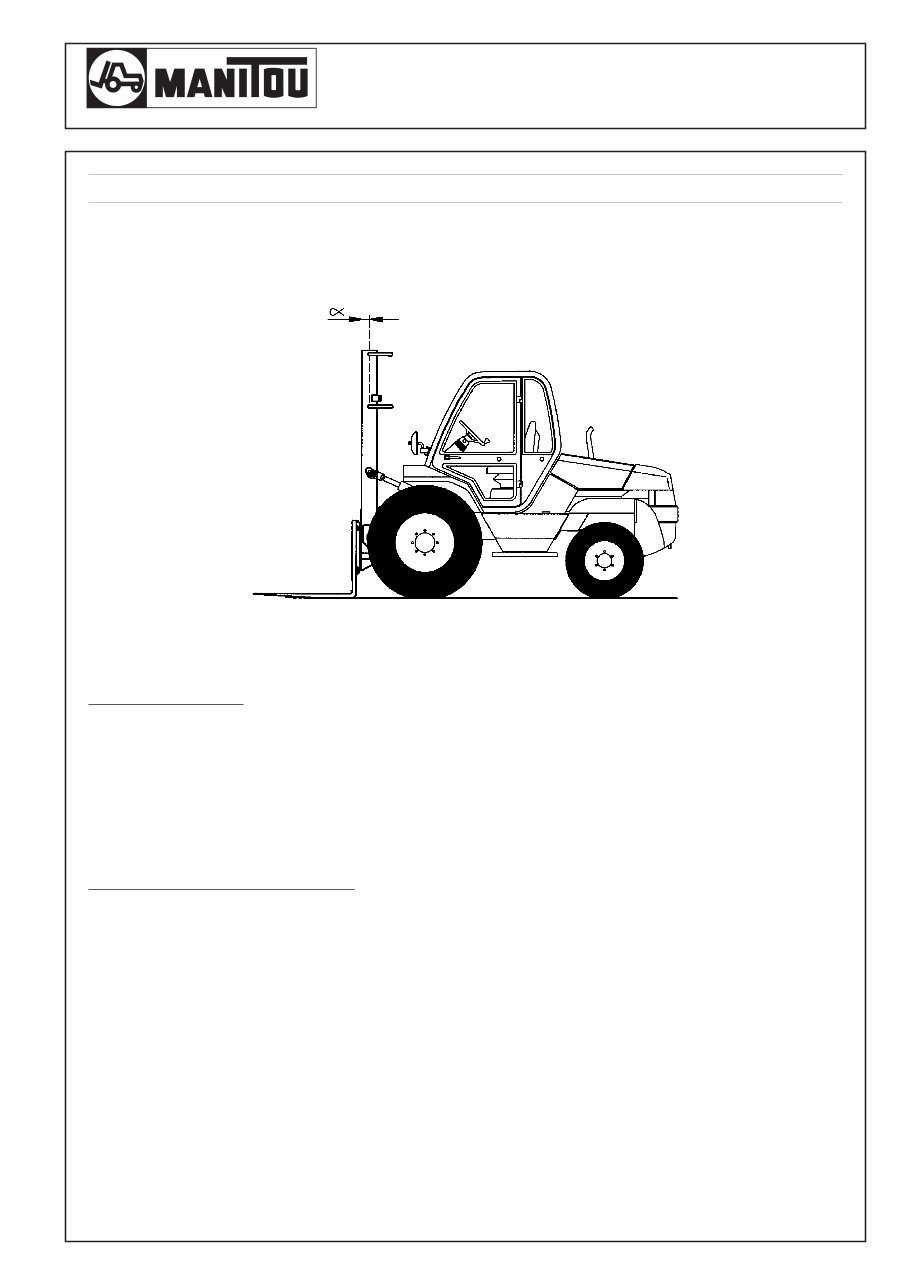

Spirit level adjustement procedure MAST FORK LIFT TRUCK : TRUCK POSITION : 1 - Place fork lift truck on level ground with wheels straight. 2 - Check tyre pressure. 3 - If truck has attachement, this must be centred in relation to carrige. VERIFICATION / ADJUSTMENT : 4 - Check that mast is vertical (angle α = 0°) (Fig. 5). 5 - Adjust level indicator fitted in cab. 25-07-2003 TECHNICAL DATA N° 1206 CODE : 109 02 PAGE : 4/5 ® Fig. 5

List of non modified machine numbers after N° 188078 : List of machine numbers modified before shipping : 25-07-2003 TECHNICAL DATA N° 1206 CODE : 109 02 PAGE : 5/5 ® 188079 188080 188081 188082 188087 188088 188089 188096 188097 188098 188099 188100 188106 188107 188108 188109 188110 188112 188114 188115 188116 188117 188118 188119 188120 188121 188122 188123 188130 188131 188133 188134 188135 188136 188137 183654 184930 184932 184949 184951 185041 185042 185738 185861 185866 185868 185869 185870 186072 186355 186356 186357 186362 186363 186899 186900 187547 187668 187670 188138 188139 188140 188141 188142 188143 188144 188151 188154 188155 188157 188158 188159 188160 188265 188266 188267 188268 188270 188272 188277 188278 188279 188321 188322 188323 188324 188327 188328 188329 188406 188407 188409 188410 188415 188416 188494 188568 188569 188573 188574 188575 188678 188679 188680 188681 188682 188701 188704 188708 188797 188811 188812 188813 188814 188815 188816 188817 188818 188819 188820 188821 188823 188824 188831 188832 188833 188834 188835 188836 188837 188838 188839 188840 188841 188842 188843 188844 188845 188847 188848 188849 188850 188851 188852 188855 188857 188858 188859 188860 188861 188862 188863 189206 189207 189209 189210 189215 189216 189217 189218 189219 189220 189222 189223 189224 189225 189226 189227 189231 189232 189245 189246 189247 189248 189249 189250 189251 189252 189253 189256 189257 189258 189260 189261 189264 189427 189428 189551 189564 189565 189566 189567 189568 189569 189570 189571 189618 189629 189630
