Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 540BM-2 00274001-00274019
9802/7400 \ A ATTACHMENTS \ A01 ATTACHMENTS

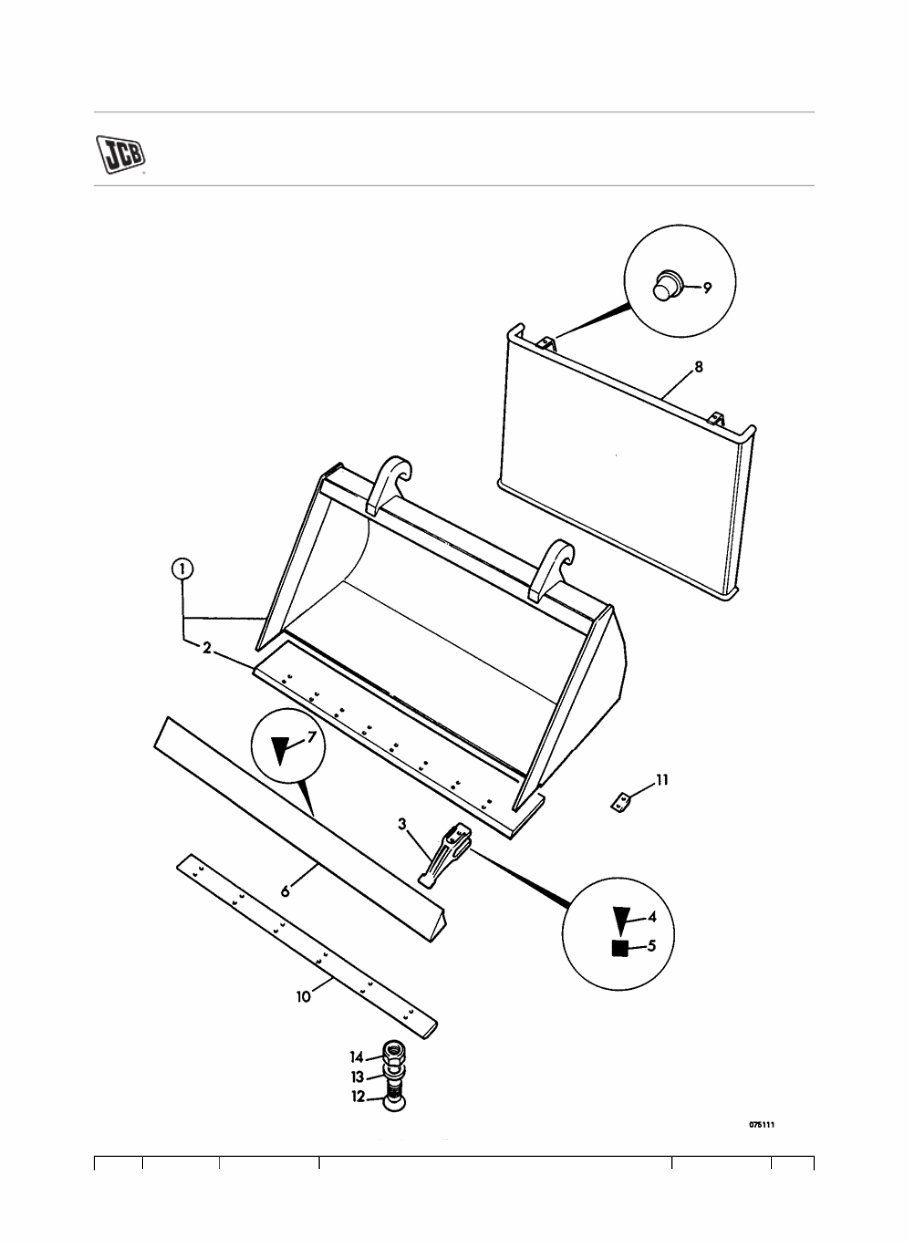

9802/7400 A1-1-2 SHOVEL 1.4CU.M. 2286MM (7'6") WIDE
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=5ca70a2...
Item Part # Change No Description Usage Code QTY
1 547/40800 Superseded Shovel 1.4 C.M. 1
1 NLA No Longer Available 1
2 :547/37701 Toeplate 2286mm wide 18 HOLES (Weld-In) 1
3 531/03205 Tooth 8
4 826/00303 Bolt Plough 16
5 1340/0701 Nut 16
6 108/66500 Guard tooth 1
7 1305/3418 Bolt 1
10 547/37801
Toeplate 2286mm wide 8 holes (Bolt-On) Reversible
Optional
1
11 510/67102
Plate Runner Wear Pad
Optional
2
12 826/00217
Ploughbolt 3/4UNF x 2-1/4"
Optional
8
13 1416/0011
Washer
Optional
8
14 1340/0702
Nut
Optional
8
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=5ca70a2...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 540BM-2 00274001-00274019
9802/7400 \ A ATTACHMENTS \ A01 ATTACHMENTS

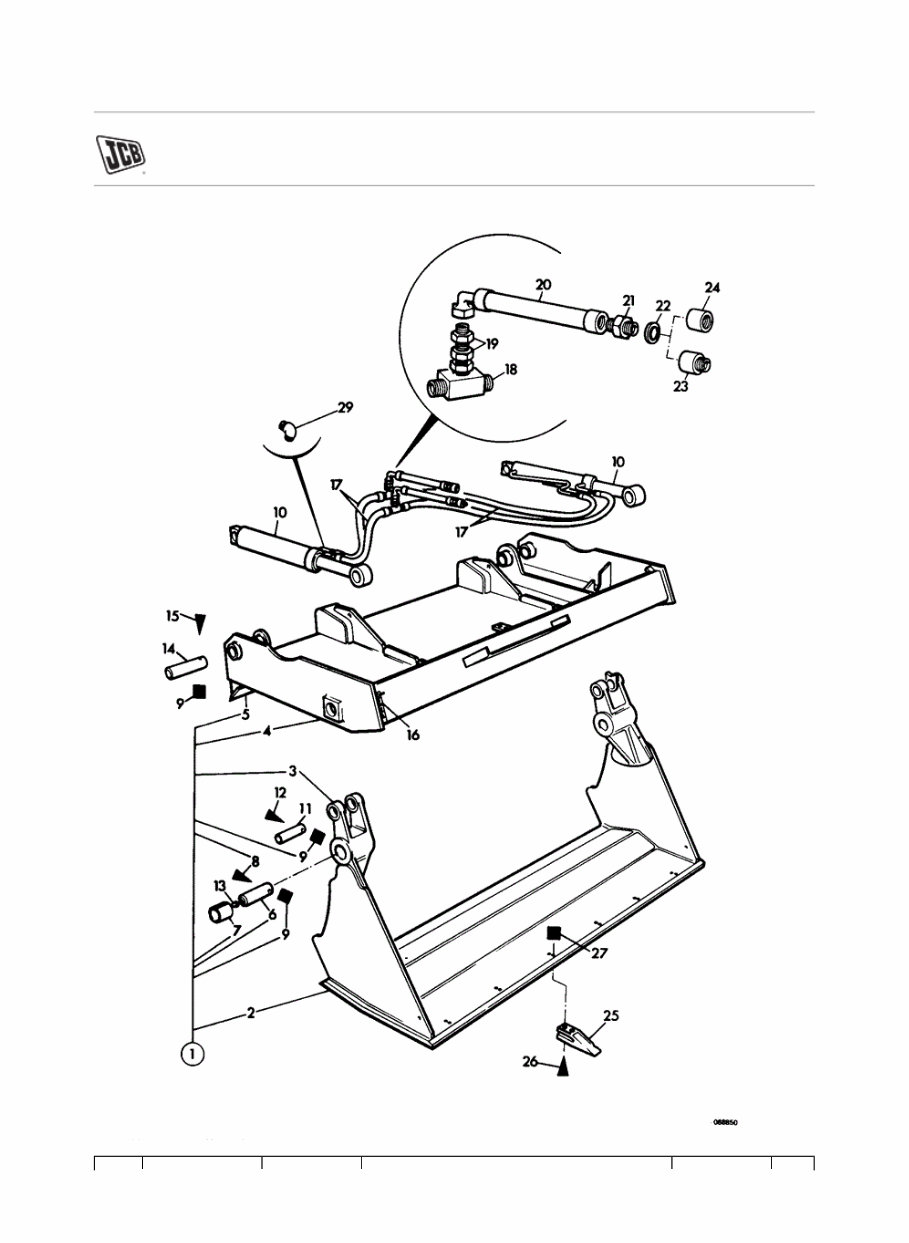

9802/7400 A1-3-1 SHOVEL, CLAM, 6 IN 1
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=a47575f...
Item Part # Change No Description Usage Code QTY
A 545/41200 Shovel clam 6 in 1 1
1 547/36700 Clam back blade assembly 1
2 :531/37900 Clam 1
2 :531/37903 Toeplate 1
3 :531/37902 Pivot casting 2
4 :547/36800 Blade dozer back 1
5 ::531/38111 Toeplate 2253mm wide No holes 1
6 :1019/2028 Pin pivot 44.4mm dia 213mm long 2
7 :1208/0025 Bush 2
8 :1305/3236 Bolt 2
9 :1340/0203 Nut 8
10 ****
'See Remark'
See Index E
2
11 1017/2004 Pin pivot 2
12 1305/3226 Bolt L=1.3/4" 2
13 1450/0001 Nipple Grease, Straight 1/8 BSP 2
14 1017/2018 Pin pivot 2
15 1305/3222 Bolt 2
16 817/00839 Label indicator 1
17 612/00400 Hose 3/8 BSP 1000 mm 4
18 816/00330 Connector Tee 2
19 816/10023 Adapter bulkhead 2
20 612/21200 Hose 3/8" BSP 520mm long 2
21 1604/0003 Adapter Male/Male 2
22 1406/0015 Washer Bonded 3/8" 2
23 45/902700 Superseded Coupling male 1
23 45/903200 Coupling Male 1
24 45/902600 Superseded Coupling female 1
24 45/903100 Coupling Female 1
25 531/03205 Tooth 8
26 826/00303 Bolt Plough 16
27 1340/0701 Nut 16
28 612/00200 Hose 4
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=a47575f...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 540BM-2 00274001-00274019
9802/7400 \ A ATTACHMENTS \ A01 ATTACHMENTS

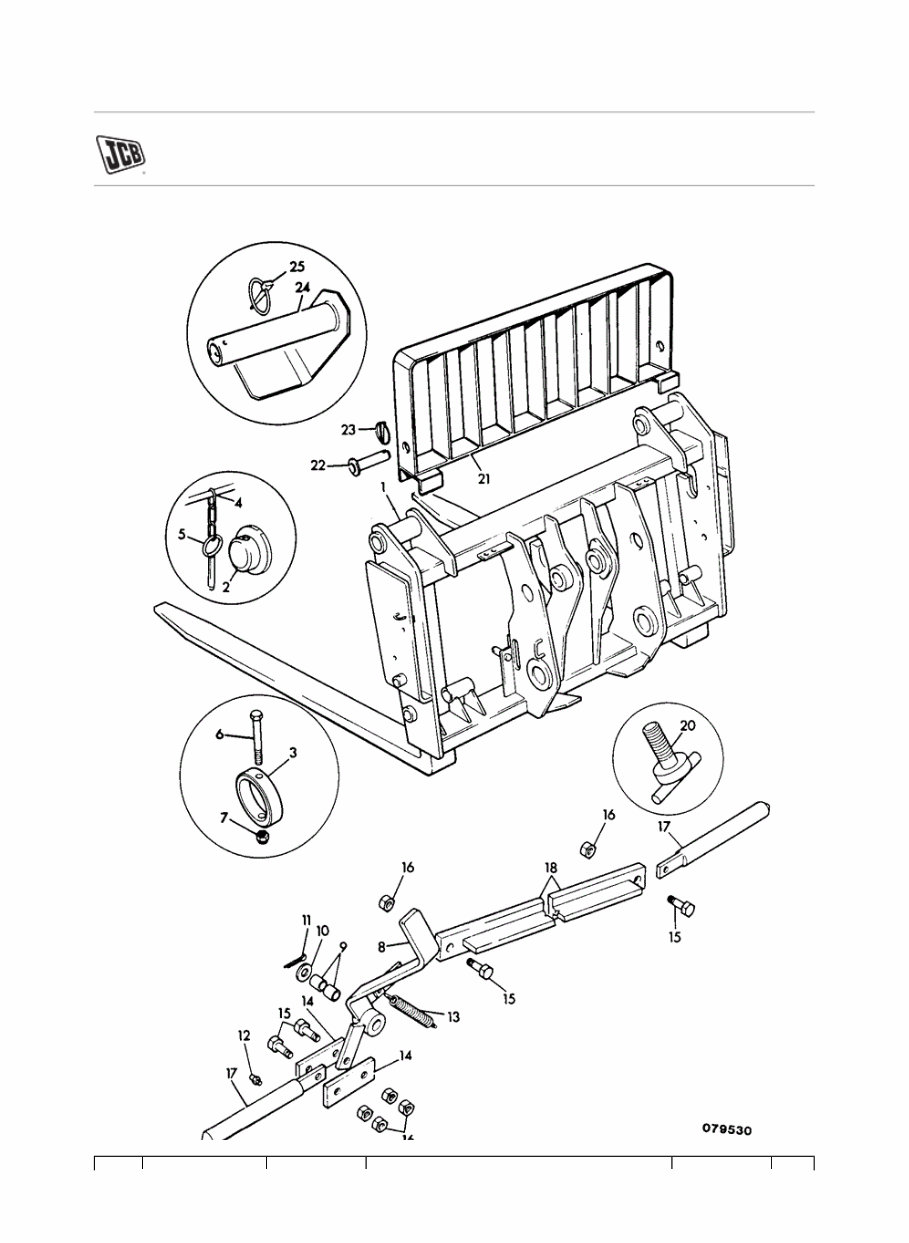

9802/7400 A1-4-1 CARRIAGE 'Q'FIT & FORKS
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=84f15ef ...
Item Part # Change No Description Usage Code QTY
1 547/21900 <M580088
Carriage 530B
530B
1
1 547/23700 <M OCT'85
Carriage
530B
1
1 547/24500
Carriage
530B
1
1 547/22400 Superseded
Carriage 540B
540B
1
1 547/24600
Carriage 540B
540B
1
2 150/13202
Pin pivot
530B
2
2 811/20018
Pin pivot 540B
540B
2
3 1089/6002
Collar
530B
4
3 1098/5001
Collar
540B
4
4 152/17501 Ring key 38mm diameter approx 2
5 826/00819
Pin lynch with chain
530B
2
5 547/22301
Kit-pin & chain
540B
2
6 1305/3226
Bolt L=1.3/4"
530B
2
6 1305/3430
Bolt
540B
2
7 1340/0203
Nut
530B
2
7 1340/0403
Nut
540B
2
8 547/22000 Lever 1
9 ::831/00035 Bush 1
10 1420/0012 Washer 1
11 2103/1111 Pin Split 1
12 1450/0001 Nipple Grease, Straight 1/8 BSP 2
13 814/00105 Spring 1
14 547/21802 Superseded Plate link 2
14 547/25301 Plate link 2
15 1305/0310 Bolt 4
16 1340/0302 Nut 8
17 547/21801 Pin locking 31.75mm diameter 2
18 547/22100 Link connecting 1
19 547/04200
Fork arm 120x60
540B
2
19 547/03800 Superseded
Arm fork
530B
2
19 547/09100
Fork 100W x 50T x 1067L
530B
2
19 547/04000 Superseded
Arm forks
530B
2
19 547/09300
Fork 100W x 50T x 1200L
530B
2
20 547/02900 Handle locking (Imperial) 2
21 547/17900 Guard load 1
22 911/15500 Pin pivot 2
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=84f15ef ...
23 826/00512 Pin Linch 2
24 153/57200
Link
530B
2
24 156/51400
Link fork retention
540B & 540BM
2
25 826/00512 Pin Linch 2
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=84f15ef ...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ TELESCOPIC HANDLERS (LOADALL) \ 540BM-2 00274001-00274019
9802/7400 \ A ATTACHMENTS \ A01 ATTACHMENTS

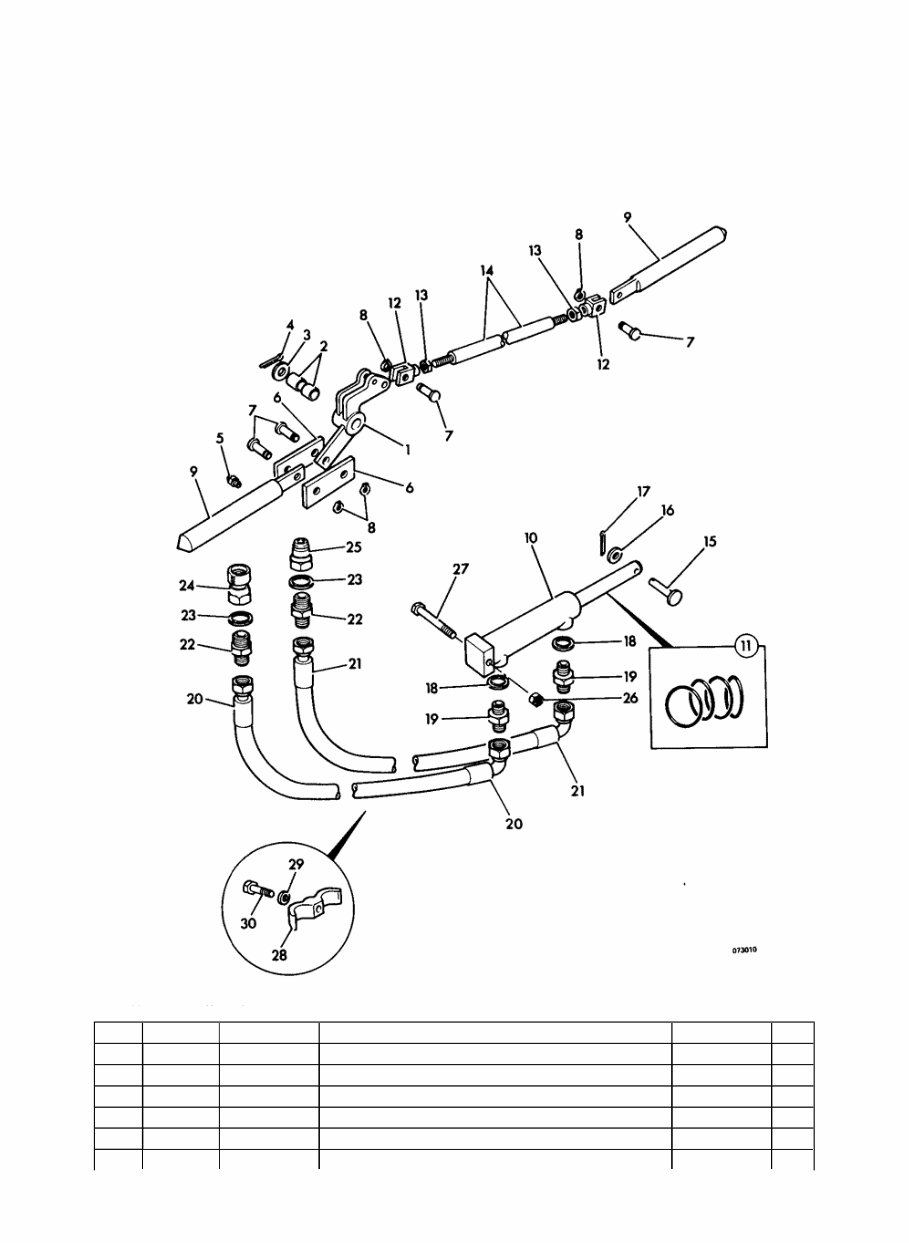

9802/7400 A1-5-1 INSTALLATION HYDRAULIC PIN LOCK
QUICKFIT CARRIAGE
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=ed45643...
Item Part # Change No Description Usage Code QTY
1 547/20700 <M Lever 1
1 547/25400 Lever hydraulic locking 1
2 831/00035 Bush 2
3 1420/0012 Washer 1
4 2103/1111 Pin Split 1
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=ed45643...
5 1450/0001 Nipple Grease, Straight 1/8 BSP 2
6 547/19503 Plate link 2
7 210/08005 Pin clevis 4
8 210/08006 Clip 4
9 547/19502 Pin Locking 25mm diameter 2
10 547/20800 Ram 1
11 :547/20900 Kit-seal 1
12 913/00011 Clevis 2
13 1370/0302Z Nut - Thin (M10) 2
14 547/19501 Link rod 1
15 2101/0108 Pin clevis 1
16 1411/0001Z Washer (1/4" Medium) 1
17 2103/0305 Pin Split 1/16 x 1/2 1
18 1406/0011 Washer Bonded (1/4") 2
19 1604/0002 Adapter 2
20 611/20200 Hose 1/4"BSP 1370mm 1
21 611/21400 Hose 1/4BSP x 900mm long 1
22 1606/0003 Adapter 2
23 1406/0015 Washer Bonded 3/8" 2
24 45/902600 Superseded Coupling female 1
24 45/903100 Coupling Female 1
25 45/902700 Superseded Coupling male 1
25 45/903200 Coupling Male 1
26 1340/0203 Nut 1
27 1305/3222 Bolt 1
28 821/00008 Clip 1
29 1410/0003 Washer 1
30 1305/0206 Superseded Bolt 1
30 1305/3214 Bolt 1
2016/8/22 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=ed45643...
