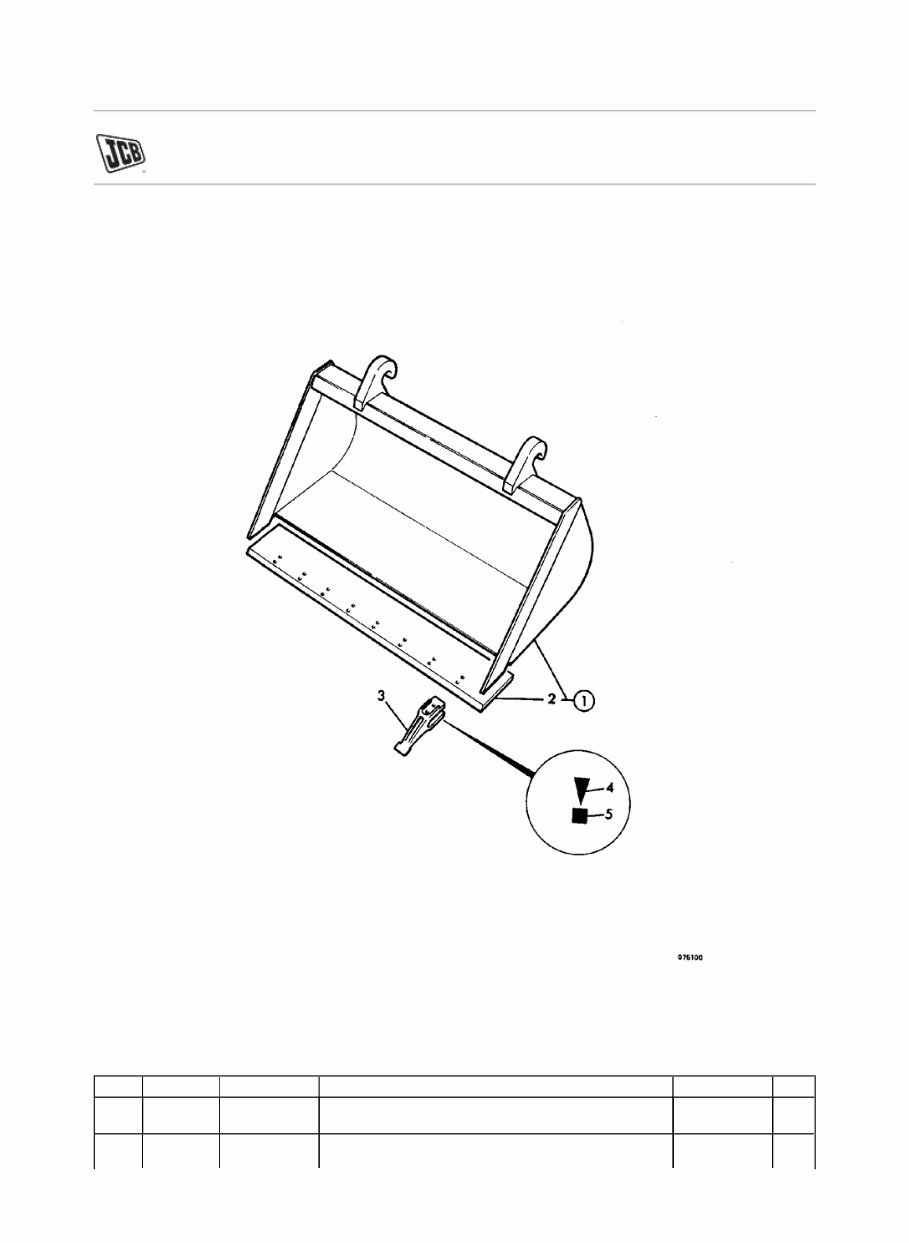

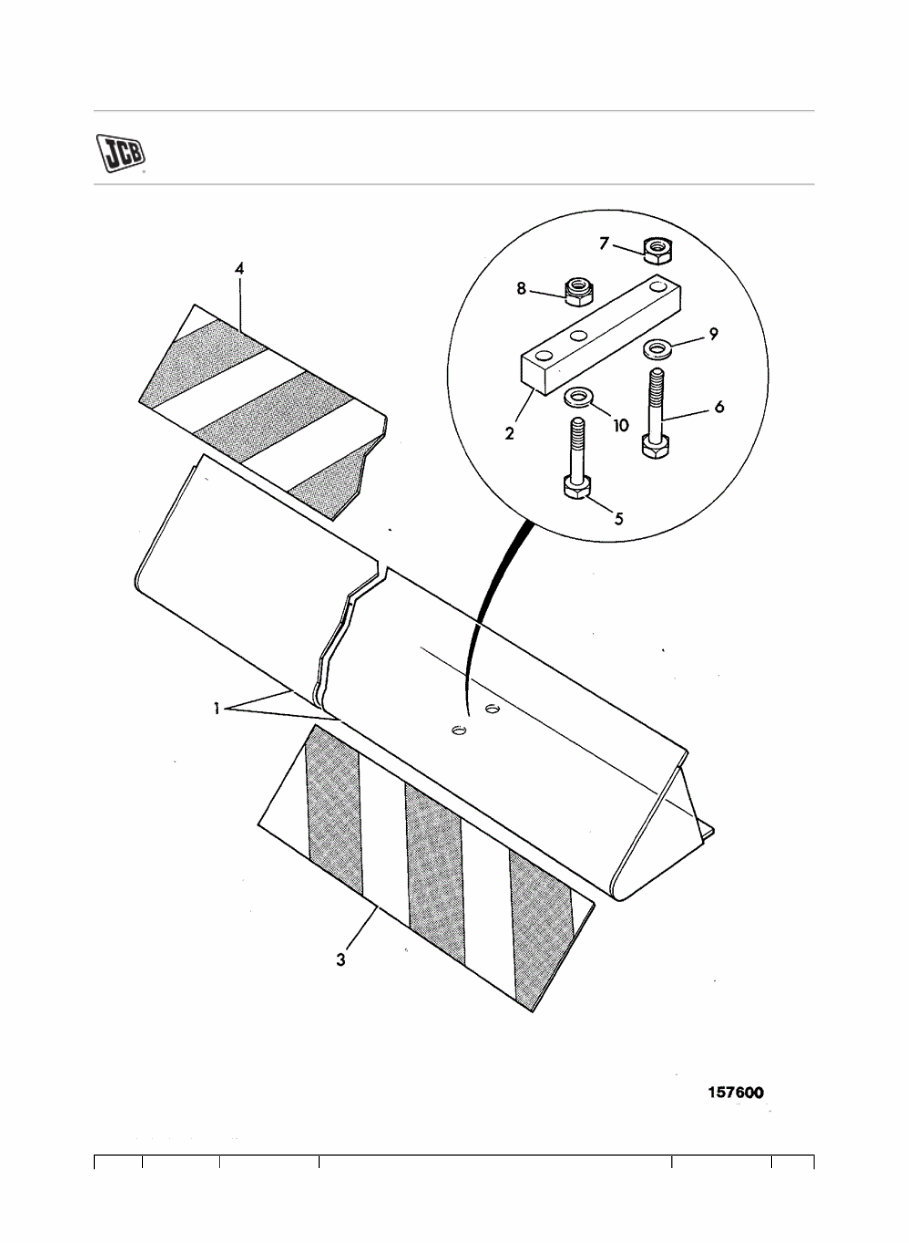

Item Part # Change No Description Usage Code QTY 1 545/46000 Guard toeplate For use with 1 cm shovels, with/without teeth 1 2 545/45701 Bracket Use when teeth are fitted 2 3 817/00054 Label outline sticker L.H. 1 4 817/00055 Label outline sticker R.H. 1 5 1305/0414Z Setscrew (1/2" UNF x 2") Use when teeth are fitted 4 6 1305/3418Z Bolt (M10 x 80) Use with teeth 2 6 1305/3416Z Bolt 1/2" x 2.1/4" long Use with bolt on toeplate 2 6 1305/0410Z Bolt 1/2" x 1.1/2" long Use with weld on toeplate. 2 7 1340/0401Z Nut (1/2" UNF) 2 8 1340/0403Z Nut lock Use when teeth are fitted 4 9 1411/0005Z Washer (1/2" Medium) 2 10 1411/0005Z Washer (1/2" Medium) Use when teeth are fitted 4 2016/8/19 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=614cc76...

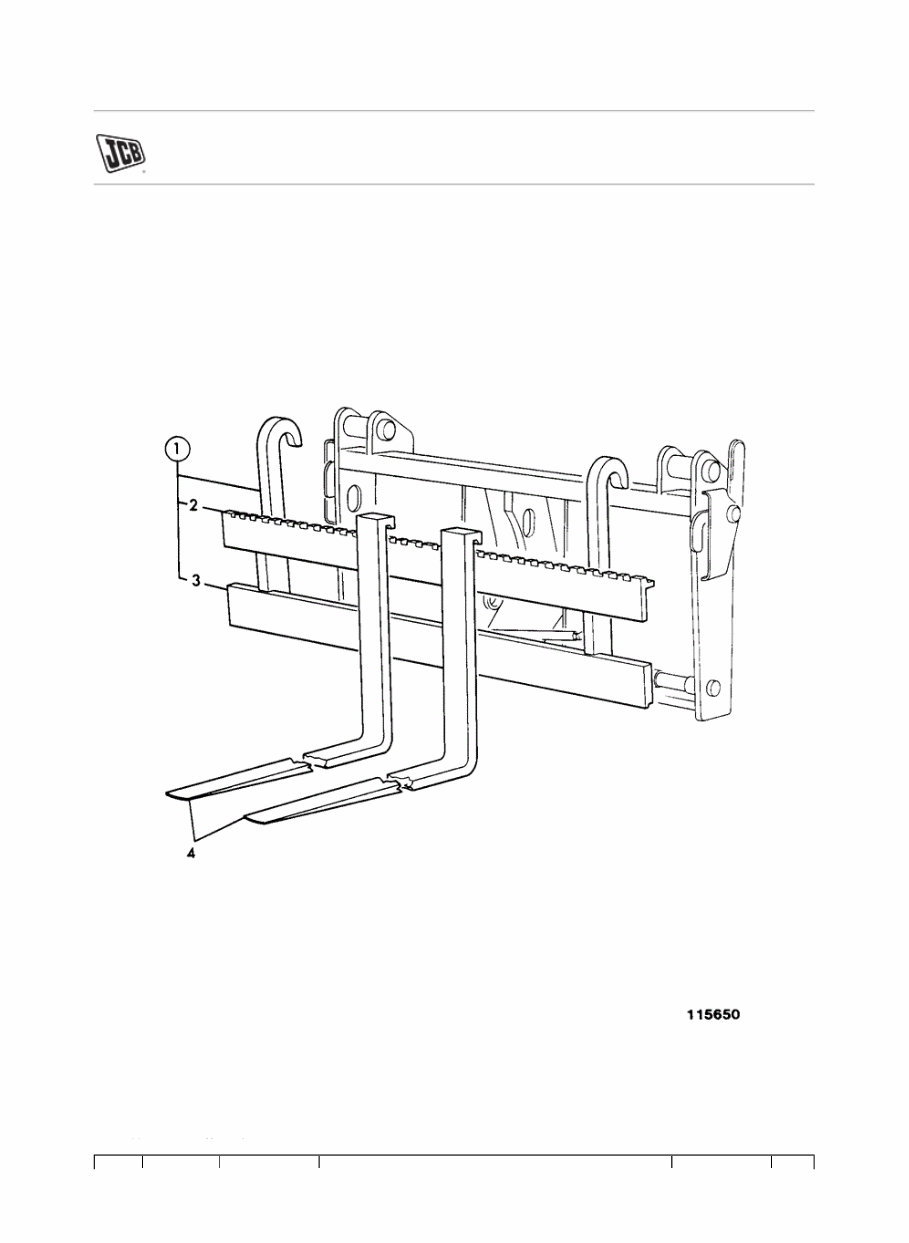

Item Part # Change No Description Usage Code QTY 1 545/40800 Frame 1500 mm 1 2 :547/40302 Plate stile top 1 3 :547/40303 Plate stile bottom 1 4 547/07900 Fork arm 100Wx50Tx1067L Class 3B 1 2016/8/19 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=2fe354d...

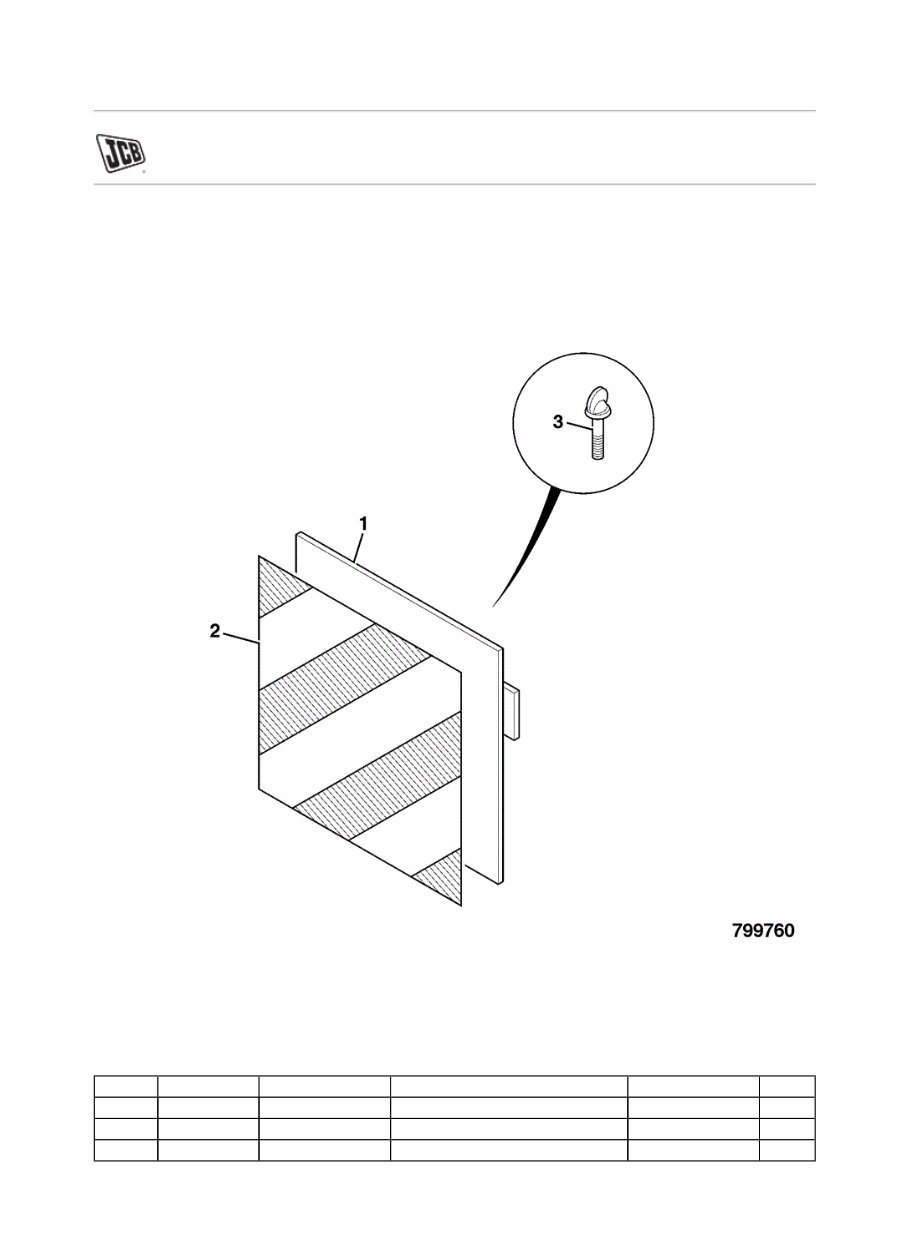

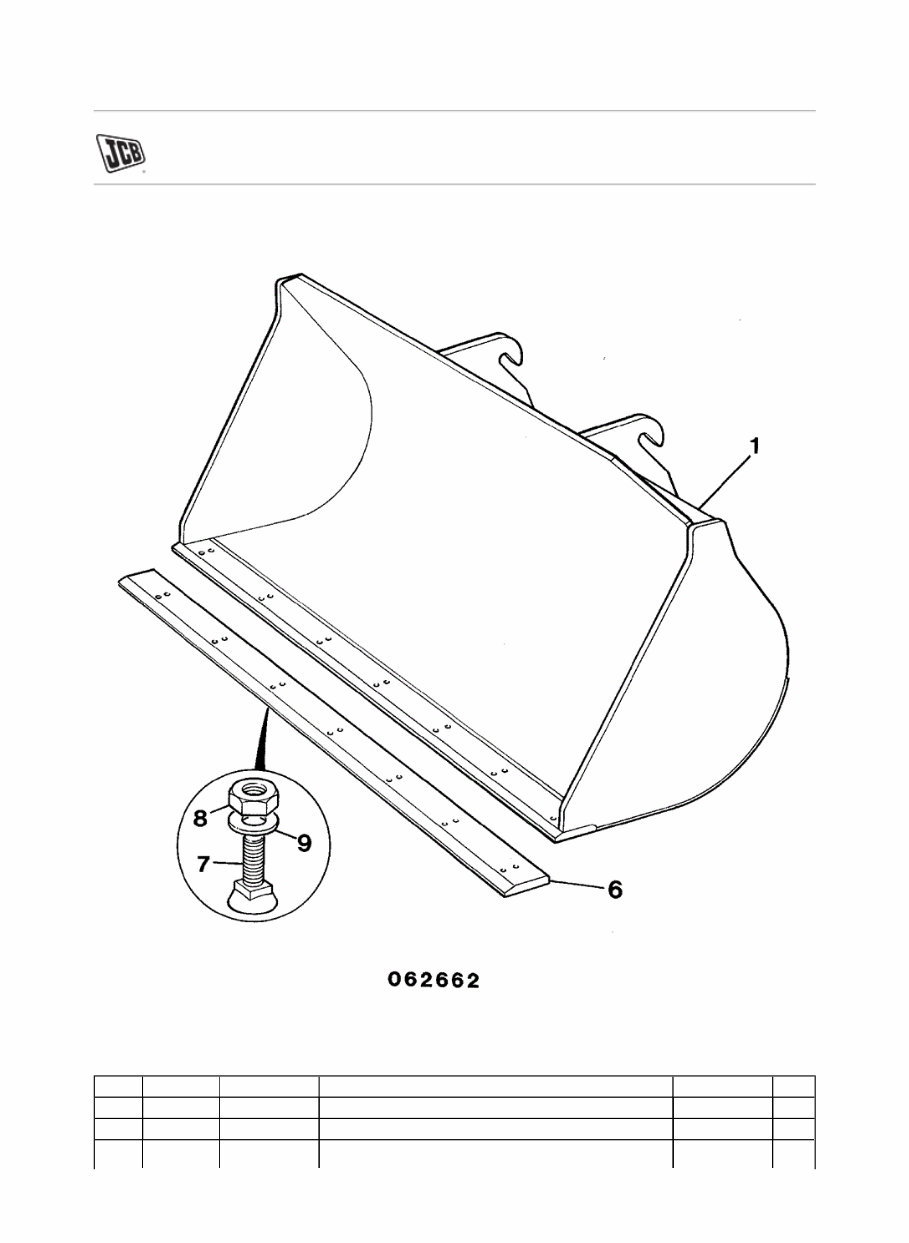

If you are facing issues with JCB 540-170 Telescopic Handlers (Loadall) maintenance or worried about potential failures, we have a solution for you. Our Parts Catalogue manual for the JCB 540-170 Telescopic Handlers (Loadall) is available electronically, offering rich and practical knowledge that is easy to access and carry. Whether you are at the site or home, this manual provides comprehensive information about the parts of JCB 540-170 Telescopic Handlers (Loadall) and serves as the perfect companion for your work.

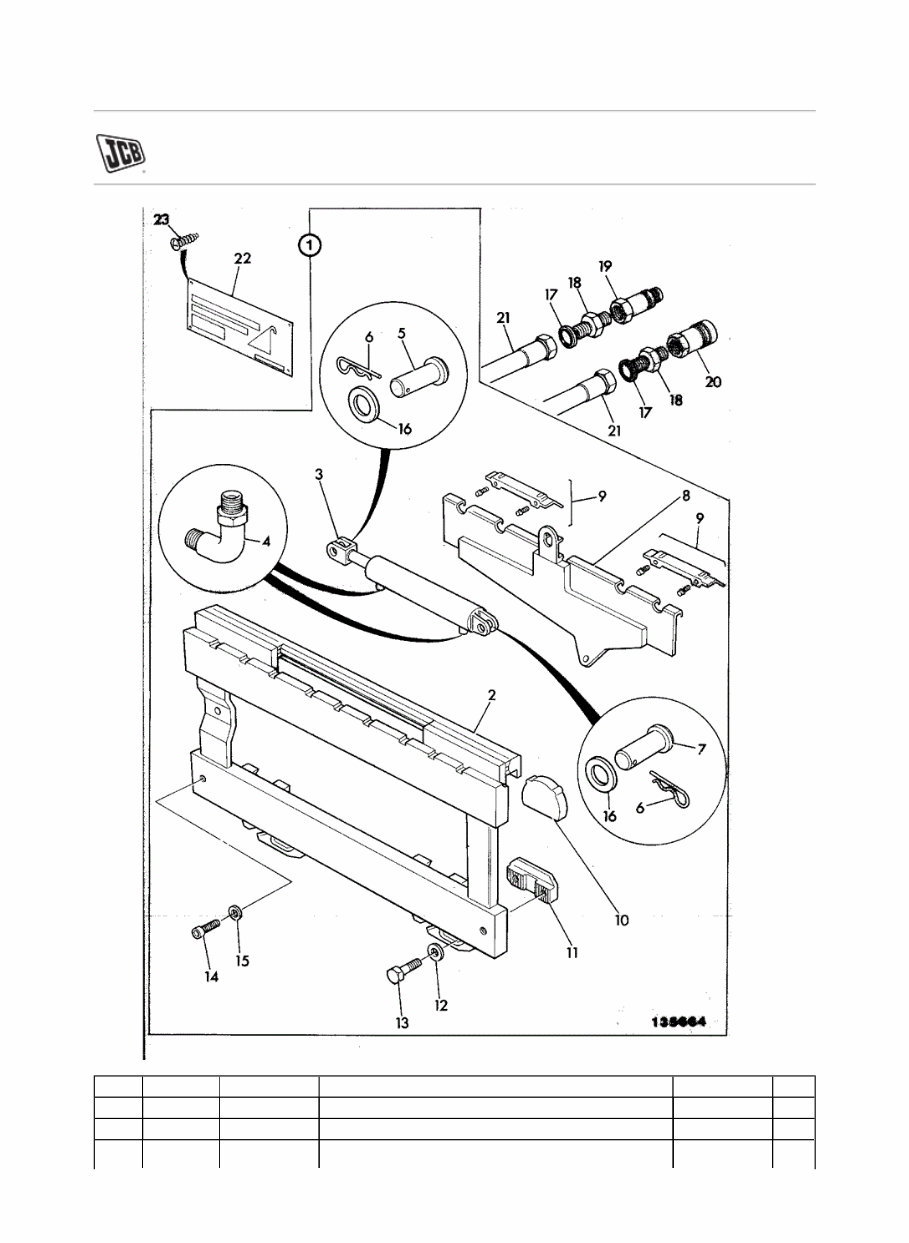

The manual focuses on every detail of JCB 540-170 Telescopic Handlers (Loadall) Parts, providing practical guidance through graphics to illustrate installation and adjustment details. It covers various aspects including Engine, Bodywork, Control, Brake, Transmission, Electrical, Hydraulics, and more.
