RS6-42 RS8-42 RS8-44 Telescopic Handlers Parts Manual Form No. 913217 Revision E January 2008 For machines with the following serial numbers: RS6-42; SN 14234 and before RS8-42/44; SN 16765 and before

913217/EP0108 PRINTED IN U.S.A. Introduction RS6-42/RS8-42/44 Telescopic Handler The Table of Contents pages list the page locations of various component groups on the machine. When ordering service parts, specify the part number, full description, quantity required, and the unit model and serial number. Model and serial numbers for this unit are stamped on a plate located inside the operator’s station. The serial number is also stamped on the top front of the frame. The following reference shows the breakdown of the serial number: “Right” and “left” are determined from a position standing behind the unit and facing the direction of travel. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any unit previously delivered. Grease fittings and common attaching hardware, such as cotter pins, set screws, woodruff keys, screws and nuts are included in the parts list, indented below the part they are associated with, but NOT illustrated, except where a particular routing or special fastening arrangement must be maintained. The hardware listed is for mounting purposes and is NOT included when the part is ordered for replacement. Standard attaching hardware torque values are provided on the inside back cover. Unless otherwise specified, all capscrews are Grade 5, cadmium or zinc plated; hexagon nuts for Grade 5 capscrews or bolts are Grade 5. RS642 J Y 01 13201 Model Year (Y=07, Z=08, etc.) Month Unit Number Engine NOTE: This parts manual identifies both standard and optional features for this model. Depending on the features of your machine, some of the items identified in the parts lists may, or may not be included with the machine.

PRINTED IN U.S.A. 1 913217/EP0108 RS6-42/RS8-42/44 Telescopic Handler Table of Contents Page Introduction Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Filter Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Decal Application and Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Decal Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Cab Standard Cab and Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Front and Rear Window - Enclosed Cab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Wiper / Front and Rear Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Top and Left Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Cab Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Instrument Panel, Switches, Fuses and Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Front and Rear Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Steering Column and Shifter Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Tri-Function Optoin Cab Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Brake Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Brake and Accelerator Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Cab Mounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Chassis, Covers and Tanks Outrigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Frame Level Cylinder Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Frame Stabilizing Cylinder Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Chassis Hoods and Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Fuel Tank / Battery Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Hydraulic Tank Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 PWP (Personnel Work Platform) Personnel Work Platform Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Radio Remote - Transmitter and Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Engine Engine - External Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Air Intake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Exhaust Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Radiator / Coolers Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 Transmission External Components and Driveshafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66 Converter Housing Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 Case and Plate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Torque Converter Grouup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Gear Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 Pump Drive Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Continued on next page.

913217/EP0108 2 PRINTED IN U.S.A. Transmission (continued) Charge Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77 Reverse Idler Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 Forward and Reverse Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 Third Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 First and Second Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Output Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 Control Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88 Drive Plate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Modulation Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91 Axles External Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 Brake and Steering Lines Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94 Steering and Center Housing / Front and Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 Differential / Front and Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98 Outer End / Front and Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 Brakes - Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102 Boom Components Outer Boom - Front Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 Outer Boom - Rear Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106 Outer Boom - Side Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108 Intermediate Boom - Front Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110 Intermediate Boom - Rear Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112 Intermediate Boom - Hose Tray Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114 Intermediate Boom - Chain Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116 Inner Boom - Front Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 Inner Boom - Rear Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 Dynattach ® Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122 Boom Hydraulics Extend Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124 Tilt Cylinder Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126 Slave Cylinder Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 Lift Cylinder Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130 Auxiliary Hydraulics Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132 Attachments Carriage Forks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134 Standard Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136 Fork Shift Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138 Rotate Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140 Swing Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144 180 O Swing Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146 180 O Manual Swing Work Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148 Log/Pipe Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 Continued on next page. Table of Contents RS6-42/RS8-42/44 Telescopic Handler Page

PRINTED IN U.S.A. 3 913217/EP0108 RS6-42/RS8-42/44 Telescopic Handler Table of Contents Page Attachments (continued) Truss Boom (including hydraulic winch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152 Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154 Work Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156 Hydraulics Hydraulic Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158 Steer Motor and Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160 Main Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162 Main Valve / Hydraulic Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164 Main Valve / Tri-Function Hydraulic Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166 Main Valve - Controls - Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174 Hydraulic Controls Section for Standard Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176 Hydraulic Controls Section for Standard Controllers with PWP (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . .184 Hydraulic Controls Section for Standard Controllers with Radio Remote PWP (Option) . . . . . . . . . . . . . . . .192 Hydraulic Controls Section for Tri-Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 Outrigger Main Valve / Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .212 Hydraulic Components Frame Level Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214 Stabilizing Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216 Lift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218 Boom Extend Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .220 Slave Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .222 Tilt Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .224 Outrigger Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .226 Fork Shift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228 Rotate Carriage Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230 Swing Carriage Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231 Hydraulic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232 Master Cylinder Brake Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233 Power Steer Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .234 Steer Select Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235 Priority Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236 Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .237 Pilot Apply Valve - Tri-Function Controller (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238 PWP Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239 Stabilizing Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240 Radio Remote Manifold (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242 Main Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244 Main Valve - Auxiliary Hydraulics Work Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246 Outrigger Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .248 Controller - Tilt/Frame Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250 Controller - Lift/Extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252 Controller - Outrigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .254 Controller - Auxiliary Hydraulics (also Level Valve for Tri-Function option) . . . . . . . . . . . . . . . . . . . . . . . . .256 Tri-Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258 Steer Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260 Numerical Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262

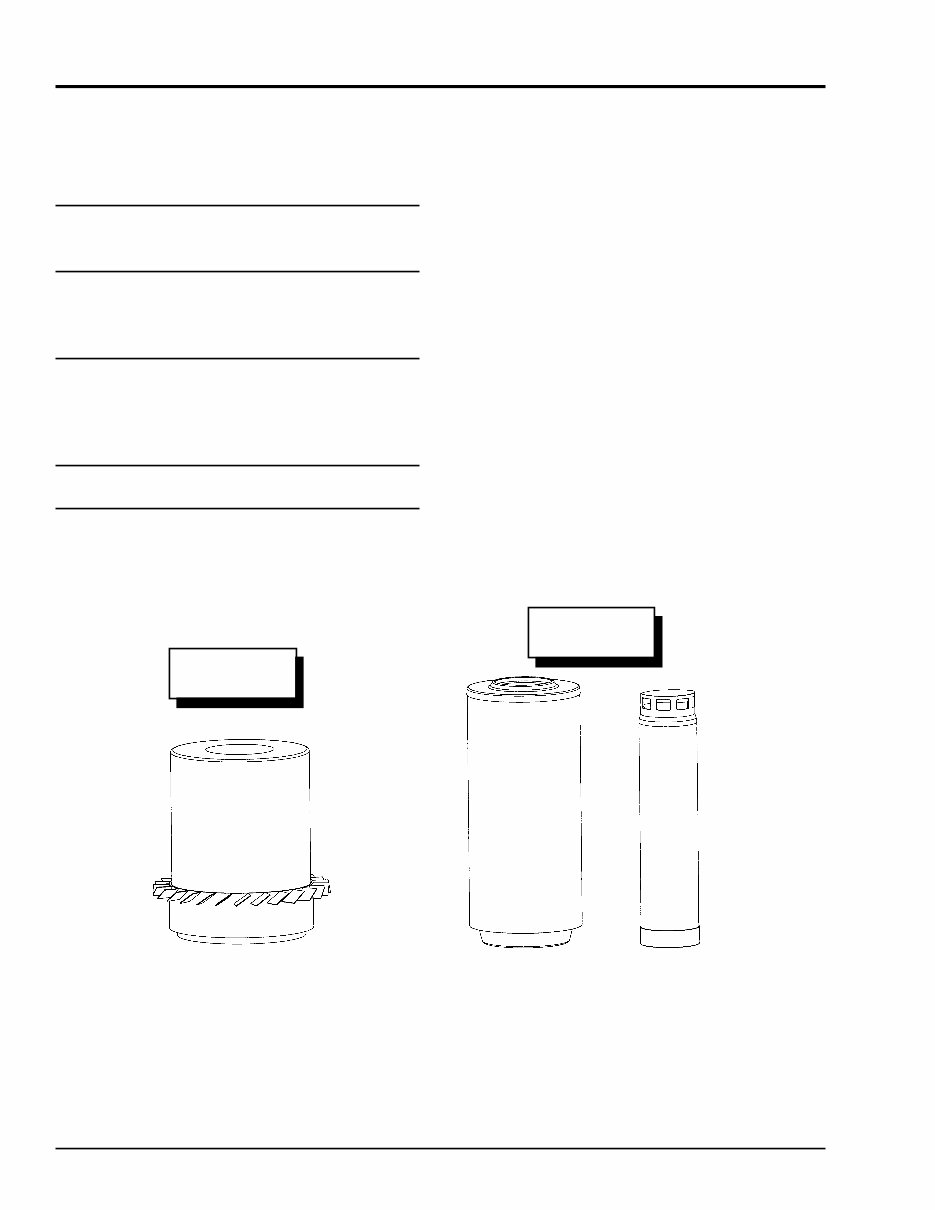

913217/EP0108 4 PRINTED IN U.S.A. Filters RS6-42/RS8-42/44 Telescopic Handler FILTER REFERENCE TYPE PART NUMBER Engine Oil Note a 102173 Engine Fuel Note b L98978 Note c 102174 Engine Air Note d Single Element L120037 Note e Primary (outer) 137498 Secondary (inner) 137501 Transmission Oil L99184 Hydraulic Oil L97489 Notes: a Use Dust Seal P/N 102742 as needed. b Used with 99 hp John Deere TIER II engine. (Units equipped with this engine use the manual accelerator pedal.) c Used with 115 hp John Deere TIER II engine. (Units equipped with this engine use the electronic accelerator pedal.) d Early units used one air filter; no secondary air filter. e Later units use two air fliters; a primary and a secondary filter. L120037 137498 137501 Early-Style Air Filter Later-Style Air Filter Single-Element Style Dual-Element Style RS6-42; Thru S/N 13296 RS8-42/44; Thru S/N 15390 RS6-42; S/N 13297 and UP RS8-42/44; S/N 15391 and UP

PRINTED IN U.S.A. 5 913217/EP0108 RS6-42/RS8-42/44 Telescopic Handler Decals GENERAL INFORMATION Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. For correct replacement of decals, compare the loca- tion illustrations to your machine before starting to refinish the unit. Check off each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustrations for replacement locations. If there is a decal on a part that is to be replaced, be sure that the decal is applied to the replacement part. NEW DECAL APPLICATION Before applying the new decals, surfaces must be free from dirt, dust, grease and other foreign material. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out decal surface. To apply a masked decal, first remove the backing paper. Then, properly orient and position the decal onto the clean mounting surface. After the decal is firmly applied and smoothly pressed down, remove the front covering paper. PAINT FINISH Use this list to order paint for refinishing: 167788 One Gallon Yellow 167789 6 (12 oz. Spray Cans) Yellow 167754 One Gallon Gun-Metal Gray 167753 6 (12 oz. Spray Cans) Gun-Metal Gray Decal Kits 102808 RS8-44 Telescopic Handler without PWP 102809 RS8-44 Telescopic Handler with PWP 102967 RS8-42 Telescopic Handler without PWP 102966 RS8-42 Telescopic Handler with PWP 102810 RS6-42 Telescopic Handler without PWP 102811 RS6-42 Telescopic Handler with PWP NOTE: Decals may be purchased in kits or individually. CAUTION ALWAYS read and follow the safety precau- tions on decals. Replace decals if they are damaged, or if the unit is repainted. If repaint- ing, BE SURE that all applicable decals are affixed in their proper locations. Boom Attachment Decals L65927 WARNING - PINCH POINT L65348 WARNING - WINCH L66042 WARNING - TRUSS BOOM TILT

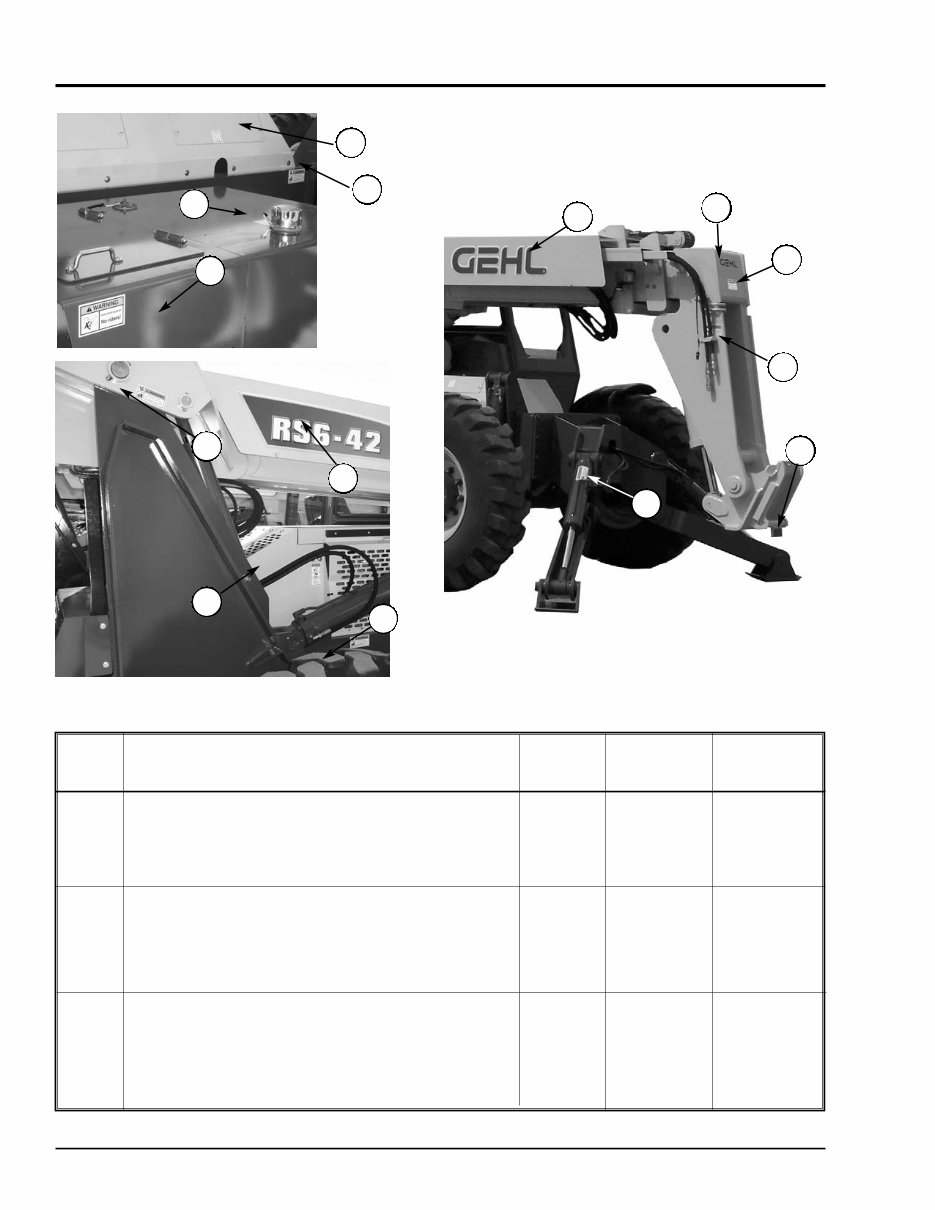

913217/EP0108 6 PRINTED IN U.S.A. Decals RS6-42/RS8-42/44 Telescopic Handler REF. DESCRIPTION RS8-44 RS8-42 RS6-42 NO. PART NO. PART NO. PART NO. 01 DANGER - HANDS OUT L70305 L70305 L70305 02 WARNING - PINCH POINT L65927 L65927 L65927 03 GEHL, 8.00” 102025 102025 102025 04 HYDRAULIC OIL FILL 137632 137632 137632 05 WARNING - NO RIDERS L65932 L65932 L65932 06 GEHL 2.00” 102026 102026 102026 07 DANGER-PERSONNEL INJURY (units without PWP) L65928 L65928 L65928 08 QUICKATTACH UNLOCKED L66613 L66613 L66613 09 DIESEL FUEL 137634 137634 137634 10 RS8 or RS6 RH 102805 102917 102803 DECAL LOCATIONS - FRAME AND BOOM 2 9 4 5 8 2 3 2 1 2 2 7 6 10

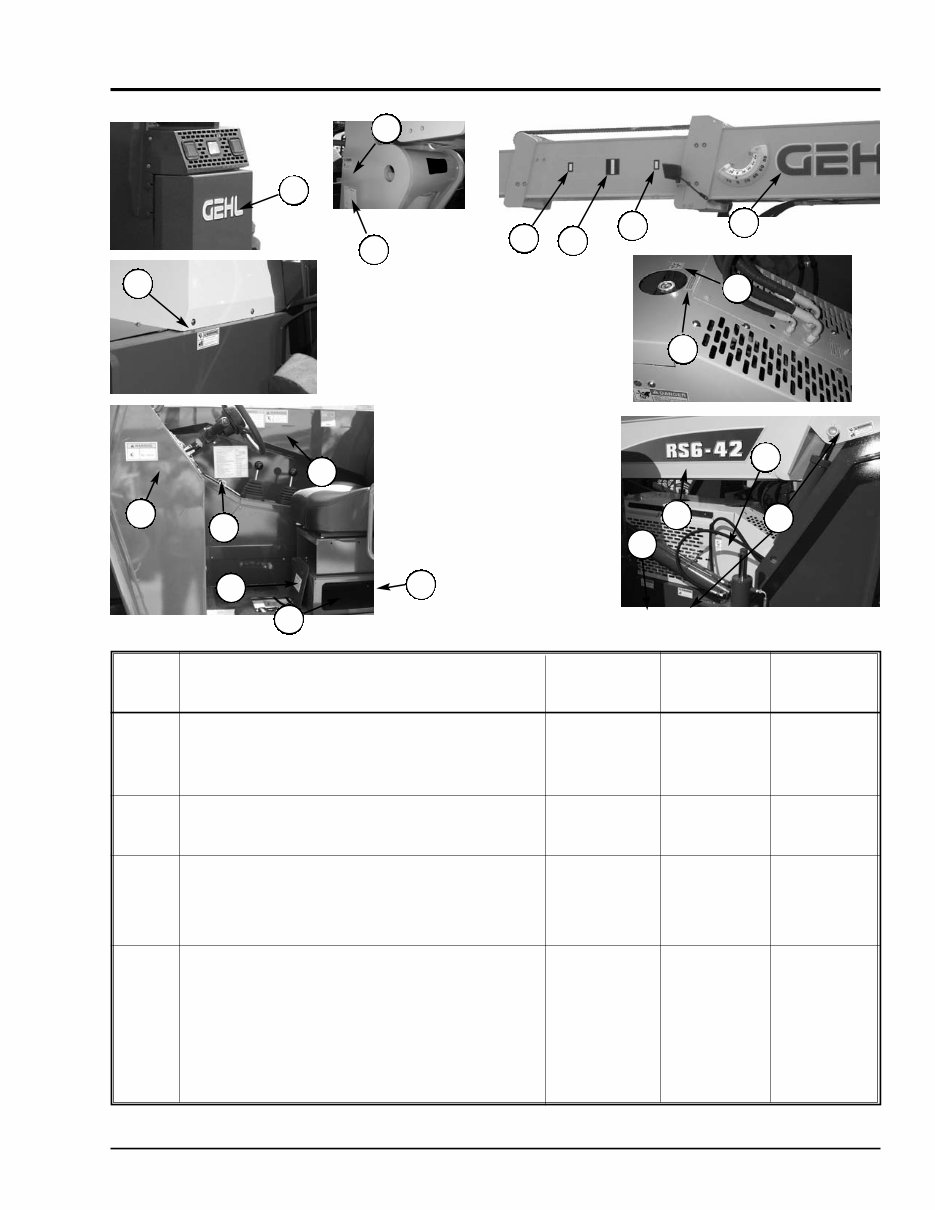

PRINTED IN U.S.A. 7 913217/EP0108 RS6-42/RS8-42/44 Telescopic Handler Decals REF. DESCRIPTION RS8-44 RS8-42 RS6-42 NO. PART NO. PART NO. PART NO. 01 DANGER - HANDS OUT L70305 L70305 L70305 02 WARNING - PINCH POINT L65927 L65927 L65927 03 WARNING - JUMP START L65933 L65933 L65933 04 GEHL, 5.00” 102027 102027 102027 05 QUICKATTACH DIAGRAM L65937 L65937 L65937 06 GEHL, 8.00” 102025 102025 102025 07 ANTI-FREEZE 056859 056859 056859 08 HALF ZONE MARKER (5 ea.) L62583 L62583 L62583 09 NO. “1” EXTENSION MARKER (1 ea.) L67719 L67719 L67719 NO. “2” EXTENSION MARKER (1 ea.) L67720 L67720 L67720 NO. “3” EXTENSION MARKER (1 ea.) L67721 L67721 L67721 NO. “4” EXTENSION MARKER (1 ea.) L67722 L67722 L67722 NO. “5” EXTENSION MARKER (1 ea.) L67723 L67723 L67723 10 COOLANT UNDER PRESSURE 072798 072798 072798 11 WARNING - NO RIDERS L65932 L65932 L65932 12 BRAKE FLUID L63474 L63474 L63474 13 OPERATOR MANUAL WARNING 100359 100359 100359 14 DANGER-PERSONNEL INJURY (units without PWP) L65928 L65928 L65928 16 LUBE CHART 102801 102801 102801 17 ROPS & FOPS CERTIFICATION 102800 102800 102800 18 RS8 or RS6 LH 102804 102916 102802 1 5 3 2 2 2 6 8 9 8 4 10 7 14 11 12 13 16 17 18

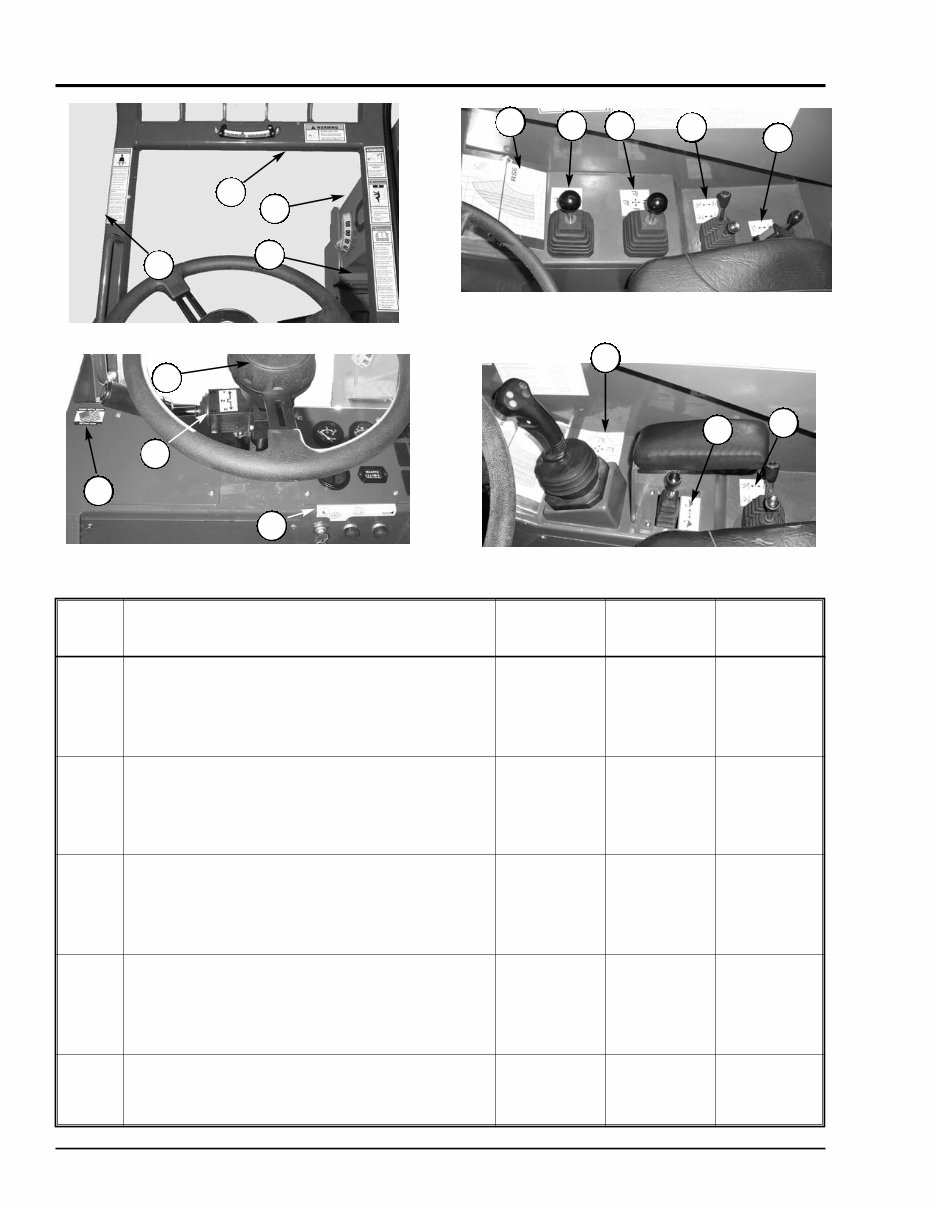

913217/EP0108 8 PRINTED IN U.S.A. Decals RS6-42/RS8-42/44 Telescopic Handler 6 1 2 15 3 5 4 12 7 8 9 10 11 Dual Joystick Control 11 15 14 Tri-function Joystick Control REF. DESCRIPTION RS8-44 RS8-42 RS6-42 NO. PART NO. PART NO. PART NO. 01 WARNING-TILT HAZZARD/GENERAL OPERATOR L70306 L70306 L70306 02 WARNING - CARRY LOAD LOW L65926 L65926 L65926 03 F-N-R SHIFT L68295 L68295 L68295 04 STEERING WHEEL 2.0” DIA. (early models only) 101545 101545 101545 05 MADE IN USA 140516 140516 140516 06 WARNING - PARK BRAKE/SEAT BELT 101506 101506 101506 07 STANDARD CARRIAGE LOAD CHART 102795 102918 102790 ROTATING CARRIAGE LOAD CHART 102796 102919 102791 BUCKET LOAD CHART 102797 102920 102792 TRUSS BOOM LOAD CHART 102798 102921 102793 WINCH LOAD CHART 102799 102922 102794 SWING CARRIAGE LOAD CHART 102806 102923 NA 180° SWING CARRIAGE 103770 103769 103768 08 ATTACHMENT TILT/FRAME LEVEL L63632 L63632 L63632 09 BOOM CONTROL L63631 L63631 L63631 10 OUTRIGGER CONTROL (Optional) 101658 101658 101658 11 AUXILIARY HYDRAULIC CONTROL (Optional) 102718 102718 102718 12 IGNITION/START/HORN 102717 102717 102717 13 DANGER-HI VOLT./MOVING PARTS L70307 L70307 L70307 14 JOYSTICK CONTROL 104215 104215 104215 15 FRAME LEVEL L63311 L63311 L63311
