REF. PART NO. Q.TY DESCRIPTION DESCRIZIONE DESIGNATION BENENNUNG DENOMINACIONES
1 273004900 4 Bearing Cuscinetto Palier Lager Cojinete
2 449015107 2 Self locking nut Dado
autobloccante
Écrou autobloquant Selbstsichernde
Mutter
Tuerca autobloqueo
♦3 277595500 2 Fork L=1000 Forca L=1000 Fourche L=1000 Gabeln L=1000 Horquilla L=1000
3 277340000 2 Fork L=1200 Forca L=1200 Fourche L=1200 Gabeln L=1200 Horquilla L=1200
4 277225600 1 Load guard Griglia reggicarico Grille de protection Ladegitter Rejilla-soporte carga
5 449021010 4 Elastic washer Rosetta elastica Rondelle souple Federring Arandela elástica
6 449001007 4 Screw Vite Vis Schraube Tornillo
7 273033400 4 Grease ftg. Ingrassatore Graisseur Schmierer Engrasador
8 273104200 8 Washer Rondella Rondelle Unterlegscheibe Arandela
9 277511400 2 Lever Leva Levier Hebel Palanca
10 277511500 2 Roll pin Spina elastica Goupille elastique Stekverbinder Enchufe
11 277511600 2 Spring Molla Ressort Feder Resorte
12 277511700 2 Shaft Perno Axe Stift Perno
13 273109900 2 Chain stretcher
(MR20Y)
Tendicatena
(MR20Y)
Tendeur de chaine
(MR20Y)
Kettenspanner
(MR20Y)
Tensor de cadena
(MR20Y)
13 273014200 2 Chain stretcher
(MR25Y)
Tendicatena
(MR25Y)
Tendeur de chaine
(MR25Y)
Kettenspanner
(MR25Y)
Tensor de cadena
(MR25Y)
14 273109800 2 Chain pÃn & split
pins (MR20Y)
Perno con copiglie
(MR20Y)
Axe avec goupilles
(MR20Y)
Stift mit Splint
(MR20Y)
Perno con pasador
(MR20Y)
14 273013900 2 Chain pÃn & split
pins (MR25Y)
Perno con copiglie
(MR25Y)
Axe avec goupilles
(MR25Y)
Stift mit Splint
(MR25Y)
Perno con pasador
(MR25Y)
15 273092600 2 Split pin Copiglia Goupille Splint Pasador
♦ Special version / Applicazione speciale / Application spécial / Sonderanwendung / Aplicaciones especiales
FIGURE DESCRIPTION/DESCRIZIONE/DESIGNATION/BENENNUNG/DENOMINACIONES
FIGURE 1 STEERING WHEEL
RUOTA ANTERIORE DI STERZO
ROUE DE GROUPE DE CONTRÔLE DE DIRECTION
VORDERES LENKRAD
RUEDA ANTERIOR DE VOLANTE (SHEET 1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01539Z)
FIGURE 2 FRONT STEERING WHEEL+ POTENTIOMETER ASS’Y /ASSIEME RUOTA ANTERIORE + POTENZIOMETRO
EINHEIT VORDERRAD + POTENTIOMETER
ENS. ROUE AVANT + POTENTIOMÈTRE
GRUPO RUEDA ANTERIOR + POTENCIOMETRO (SHEET 2)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 3 STEERING CYLINDER
MARTINETTO STERZO
CRIC DE GROUPE COMMANDE DE DIRECTION
HEBEBOCK LENKUNG
GATO MANUBRIO (SHEET 3)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 4 MAST TRAVEL TAB AND DOLLY
CARRO TRASLATORE E RULLIERA
CHARIOT DE TRANSFERT ET GALETS
VERSETZUNGSSCHLITTEN UND ROLLENWERK
CARRO TRANSLADOR Y RODILLOS (SHEET 4)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 5 MASTS
MONTANTI
MONTANTS
PFOSTEN
MONTANTES (SHEET 5)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 5.1 MASTS MR20-25Y WITH ADJUSTABLE FORKS (OPTION)
MONTANTI MR20-25Y CON FORCHE REGOLABILI (OPTIONAL)
MONTANTS MR20-25Y AVEC FOURCHE RÉGLABLE (OPTIONNEL)
PFOSTEN MR20-25Y MIT GABEL REGULIERBAR (WAHLFREI)
MONTANTES MR20-25Y Y HORQUILLA REGULABLE (OPCIONAL) (SHEET 5.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)

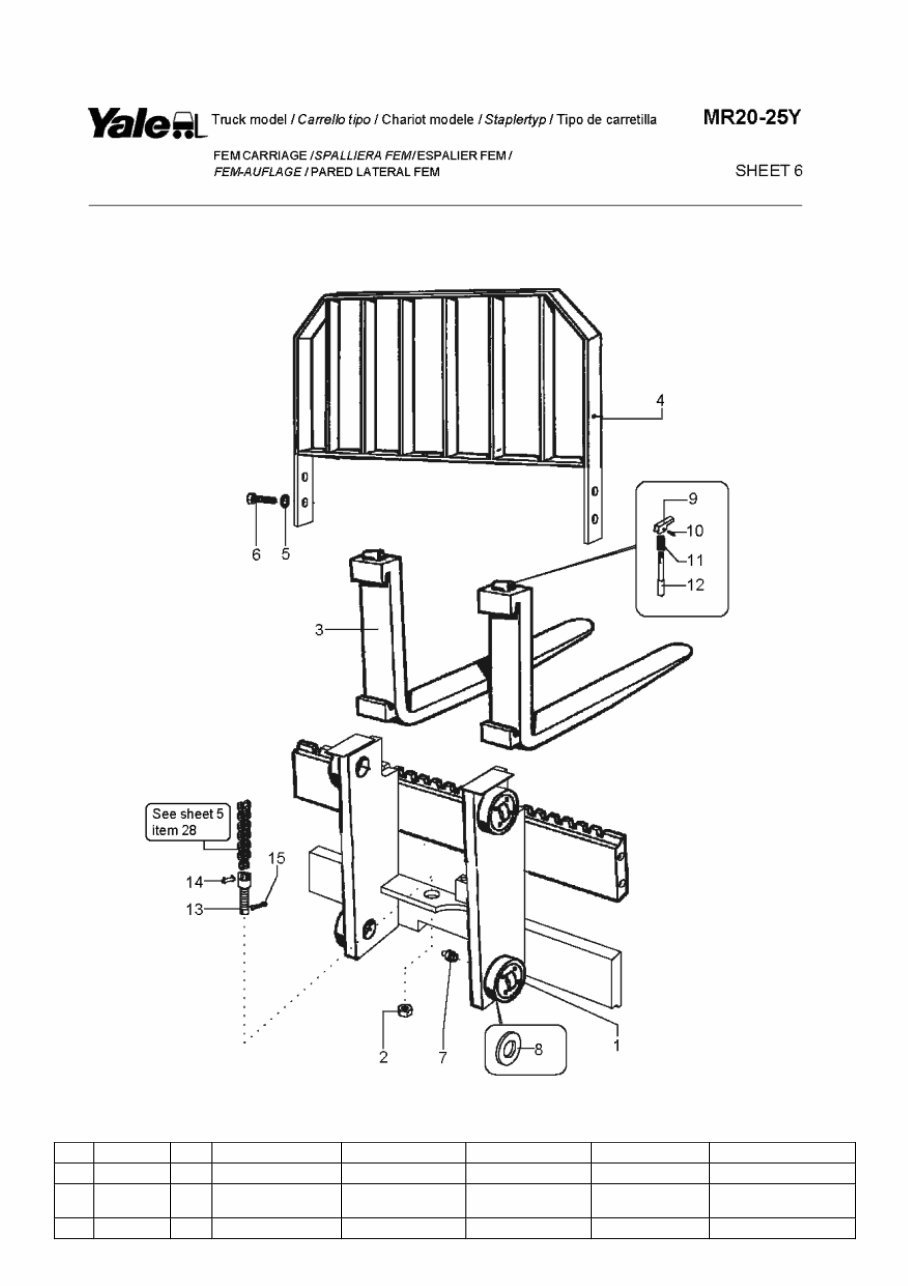

FIGURE 6 FEM CARRIAGE
SPALLIERA FEM
ESPALIER FEM
FEM-AUFLAGE
PARED LATERAL FEM (SHEET 6)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 6.1 CARRIAGE MR20-25Y WITH ADJUSTABLE FORKS (OPTION)
SPALLIERA MR20-25Y CON FORCHE REGOLABILI (OPTIONAL)
ESPALIER MR20-25Y AVEC FOURCHE RÉGLABLE (OPTIONNEL)
AUFLAGE MR20-25Y MIT GABEL REGULIERBAR (WAHLFREI)
PARED LATERAL MR20-25Y Y HORQUILLA REGULABLE (OPCIONAL) (SHEET 6.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 7 HYDRAULIC SYSTEM
IMPIANTO IDRAULICO
SYSTÈME HYDRAULIQUE
HYDRAULIKANLAGE
INSTALACION HIDRAULICA (SHEET 7)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 7.1 HYDRAULIC SYSTEM MR20-25Y WITH ADJUSTABLE FORKS (OPTION)
IMPIANTO IDRAULICO MR20-25Y CON FORCHE REGOLABILI (OPTIONAL)
SYSTÈME HYDRAULIQUE MR20-25Y AVEC FOURCHE RÉGABLE (OPTIONNEL)
HYDRAULIKANLAGE MR20-25Y MIT GABEL REGULIERBAR (WAHLFREI)
Truck model
Carrello tipo
Chariot modele
Staplertyp
Tipo de carretilla
MR20-25Y
A866T01539Z=>
INSTALACION HIDRAULICA MR20-25Y Y HORQUILLA REGULIABLE (OPCIONAL) (SHEET 7.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 8 DISTRIBUTOR
DISTRIBUTORE
DISTRIBUTEUR
VERTEILER
DISTRIBUIDOR (SHEET 8)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 8.1 DISTRIBUTOR MR20-25Y WITH ADJUSTABLE FORKS (OPTION)
DISTRIBUTORE MR20-25Y CON FORCHE REGOLABILI (OPTIONAL)
DISTRIBUTEUR MR20-25Y AVEC FOURCHE RÉGABLE (OPTIONNEL)
VERTEILER MR20-25Y MIT GABEL REGULIERBAR (WAHLFREI)
DISTRIBUIDOR MR20-25Y Y HORQUILLA REGULABLE (OPCIONAL) (SHEET 8.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 9 PRINCIPAL CYLINDER MR20Y
CILINDRO PRINCIPALE MR20Y
CYLINDRE PRINCIPAL MR20Y
HAUPTZYLINDER MR20Y
CILINDRO PRINCIPAL MR20Y (SHEET 9)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 9.1 PRINCIPAL CYLINDER MR25Y
CILINDRO PRINCIPALE PER MR25Y
CYLINDRE PRINCIPAL MR25Y
HAUPTZYLINDER MR25Y
CILINDRO PRINCIPAL MR25Y (SHEET 9.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 10 AUXILIARY CYLINDER MR20Y
CILINDRO AUSILIARIO MR20Y
CYLINDRE AUXILIAIRE MR20Y
HILFSZYLINDER MR20Y
CILINDRO AUXILIAR MR20Y (SHEET 10)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 10.1 AUXILIARY CYLINDER MR25Y
CILINDRO AUSILIARIO MR25Y
CYLINDRE AUXILIAIRE MR25Y
HILFSZYLINDER MR25Y
CILINDRO AUXILIAR MR25Y (SHEET 10.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 11 TRAVEL UPRIGHT CYLINDER
CILINDRO SLITTA
CYLINDRE DE CHEMINEMENT
ZYLINDER SCHLITTEN
CILINDRO DESLIZADERA (SHEET 11)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 12 TILTING CYLINDER
CILINDRO BRANDEGGIO
CYLINDRE D’INCLINAISON
ZYLINDER WENDUNG /CILINDRO AJUSTE (SHEET 12)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 13 LIFTING MOTOR
MOTORE SOLLEVAMENTO
MOTEUR POUR LEVÉE
MOTOR ANHEBUNG
MOTOR LEVANTAMIENTO (SHEET 13)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 14 ELECTRONIC SYSTEM
IMPIANTO ELETTRONICO
INSTALLATION ÉLECTRONIQUE
ELEKTRONIK
INSTALACION ELECTRONICA (SHEET 14)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 15 ELECTRONIC PANEL
PANNELLO ELETTRONICO
PANNEAU ÉLECTRONIQUE
SCHALTTAFEL ELEKTRONIKSTEUERUNG
TABLERO ELECTRONICO (SHEET 15)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 16 CONTROL PANELL
PANNELLO DI COMANDO
PANNEAU DE COMMANDE
STEUERTAFEL
TABLERO DE MANDO (SHEET 16)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 17 HYDRAULIC STEERING GROUP
GRUPPO STERZO IDRAULICO
GROUPE CONTRÔLE DE DIRECTION HYDRAULIQUE
EINHEIT SERVOLENKUNG
GRUPO SERVOMANUBRIO (SHEET 17)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 18 HYDRAULIC BRAKES SYSTEM
IMPIANTO FRENI
DISPOSITIF DES FREINS
BREMSANLAGE
SISTEMA FRENOS (SHEET 18)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 19 HYDRAULIC BRAKES SYSTEM
IMPIANTO FRENI
INSTALLATION FREINS
BREMSANLAGE
EQUIPO DE FRENOS (SHEET 19)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 20 PEDAL POTENTIOMETER GROUP
GRUPPO AZIONAMENTO POTENZIOMETRO
GROUPE ENTRAÎNEMENT POTENTIOMÈTRE
MIKROSCHALTER SPANNUNGSMESSER
GRUPO ACCIONAMIENTO POTENCIÓMETRO (SHEET 20)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 21 TRACTION GROUP
GRUPPO TRAZIONE
GROUPE DE TRACTION
ANTRIEBSEINHEIT
GRUPO TRACCION (SHEET 21)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 22 REDUCTION UNIT
RIDUTTORE
GETRIEBEMOTOR
REDUCTEUR
MOTOREDUCTOR (SHEET 22)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01537Z)
FIGURE 23 TRACTION MOTOR
MOTORE DI TRAZIONE
MOTEUR DE TRACTION
ANTRIEBSMOTOR
MOTOR DE TRACCION (SHEET 23)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 24 ADESIVE LABEL
TARGHETTE ADESIVE
AUTOCOLLANTS DE SEGNALISATION
SELBSTKLEBESCHILDER
TARJETAS ADHESIVAS (SHEET 24)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01539Z)
FIGURE 25 HYDRAULIC DIAGRAM
SCHEMA OLEODINAMICO
SCHEME HYDRAULIQUE
HYDRAULIKSCHALTPLAN
ESQUEMA OLEODINAMICO (SHEET 25)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 25.1 HYDRAULIC DIAGRAM MR20-25Y WITH ADJUSTABLE FORKS (OPTION)
SCHEMA OLEODINAMICO MR20-25Y CON FORCHE REGOLABILI(OPTIONAL)
SCHEME HYDRAULIQUE MR20-25Y AVEC FOURCHE RÉGABLE (OPTIONNEL)
HYDRAULIKSCHALTPLAN MR20-25Y MIT GABEL REGULIERBAR (WAHLFREI)
ESQUEMA OLEODINAMICO MR20-25Y Y HORQUILLA REGULIABLE (OPCIONAL) (SHEET 25.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 26 ELECTRONIC DIAGRAM
SCHEMA ELETTRONICO
SCHÉMA ÉLECTRONIQUE
ELEKTRONIKSCHALTPLAN
ESQUEMA ELECTRÓNICO (SHEET 26)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
FIGURE 26.1 ELECTRONIC DIAGRAM
SCHEMA ELETTRONICO
SCHÉMA ÉLECTRONIQUE
ELEKTRONIKSCHALTPLAN
ESQUEMA ELECTRÓNICO (SHEET 26.1)
(From serial N° / Da matr. / Du matr. / Ab. seriennummer / Desde la matr.: A866T01516W)
