Jungheinrich Electric Reach Truck ETM214-216, ETM320-325, ETV214-216, ETV320-325 Workshop Service Manual

These workshop service manuals are essential resources for anyone working with Jungheinrich Electric Reach Trucks, including professional mechanics and DIY enthusiasts. The manuals contain high-quality images, circuit diagrams, and detailed instructions for operating and repairing the trucks. They cover models such as ETM214, ETM216, ETM320, ETM325, ETV214, ETV216, ETV320, and ETV325, manufactured between December 2005 and September 2011. The language used in the manuals is English.

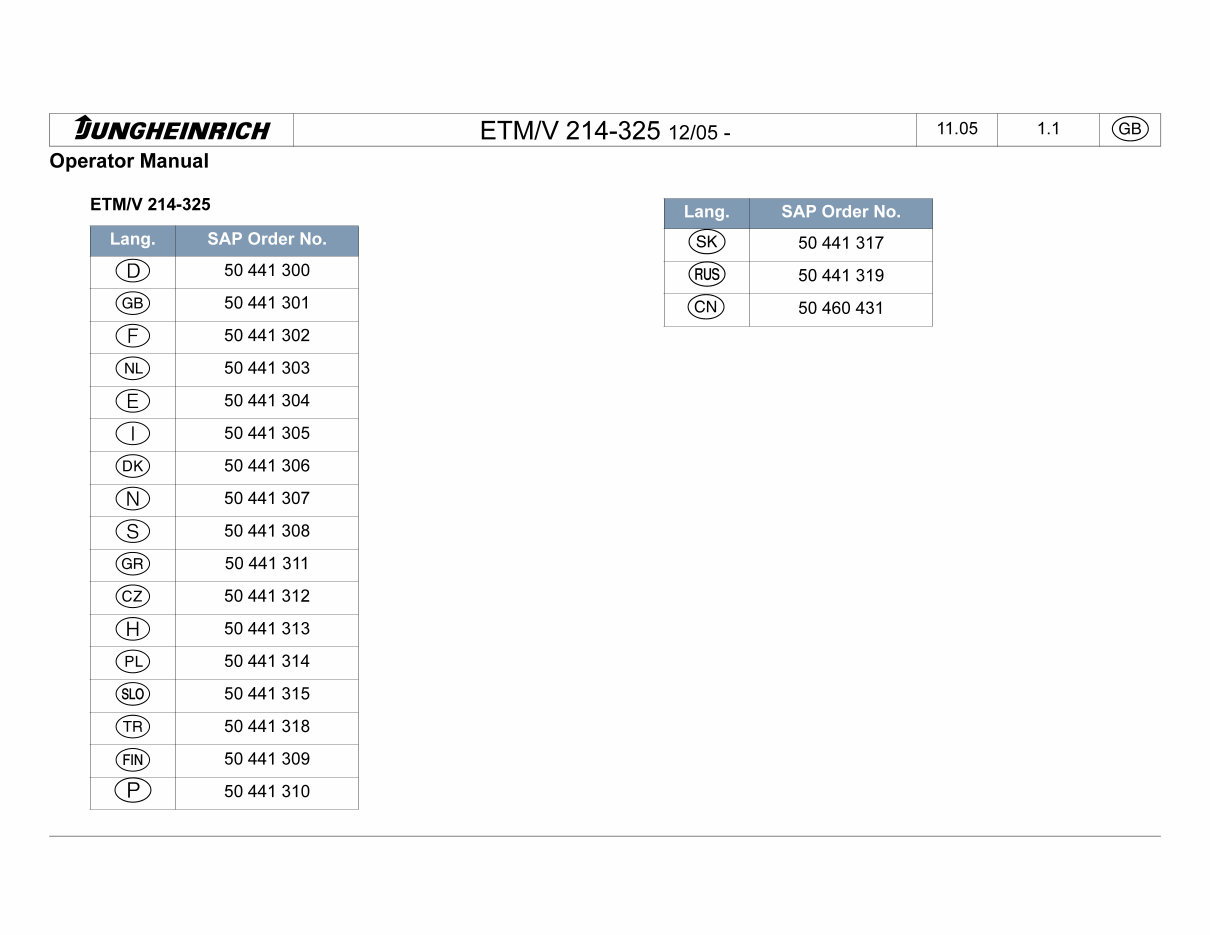

• Operating Manual (129 Pages)
• Service Manual (458 Pages)

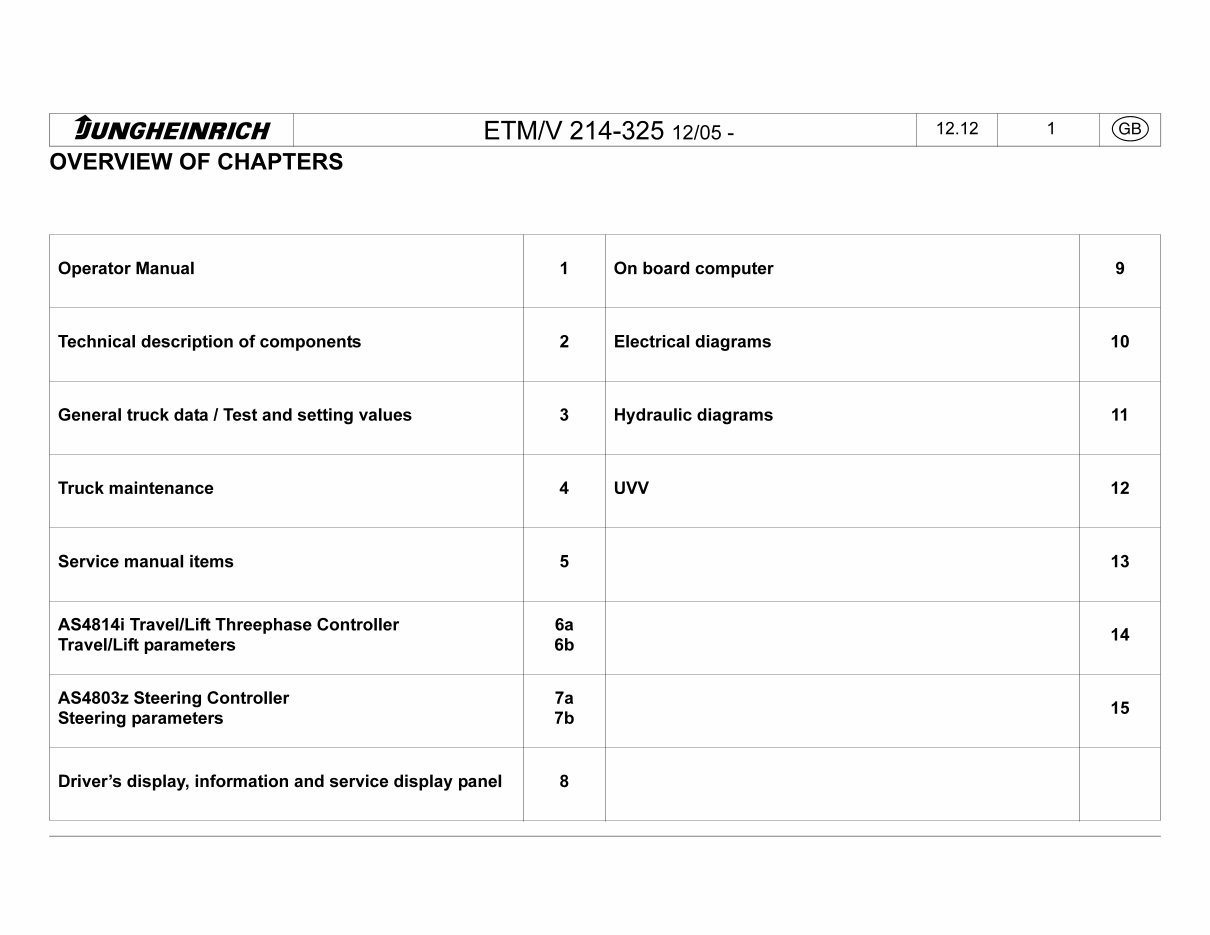

The manuals include comprehensive content such as:

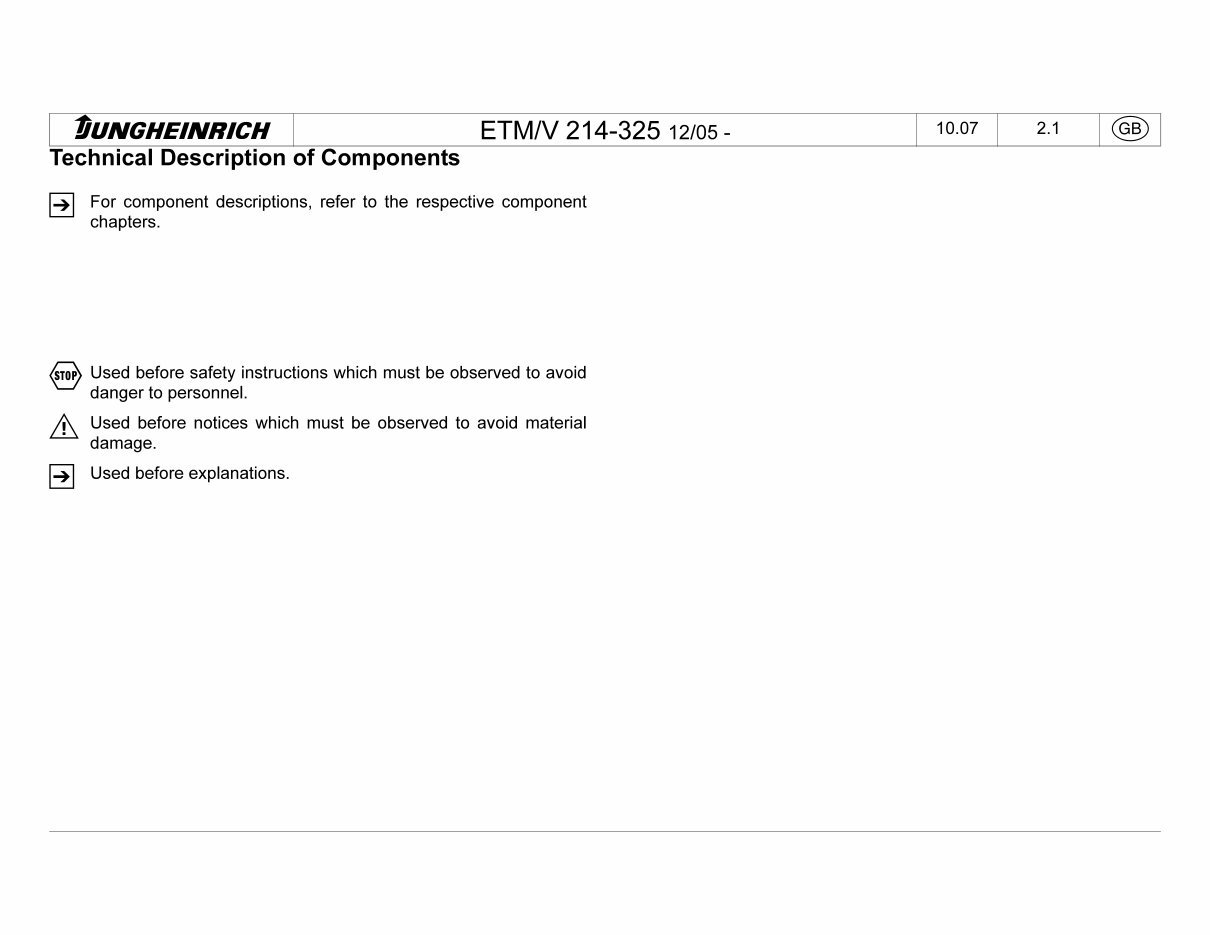

• Technical description of components

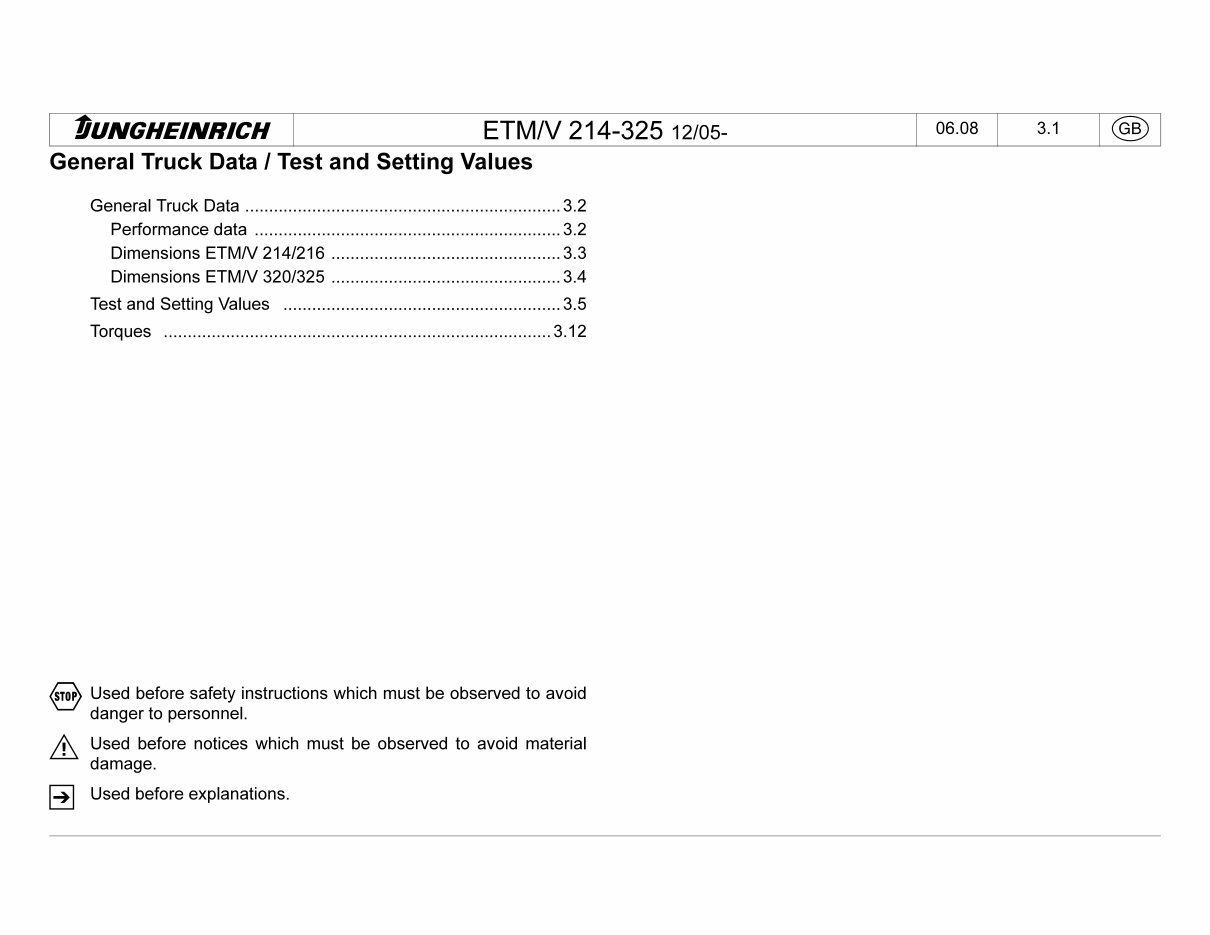

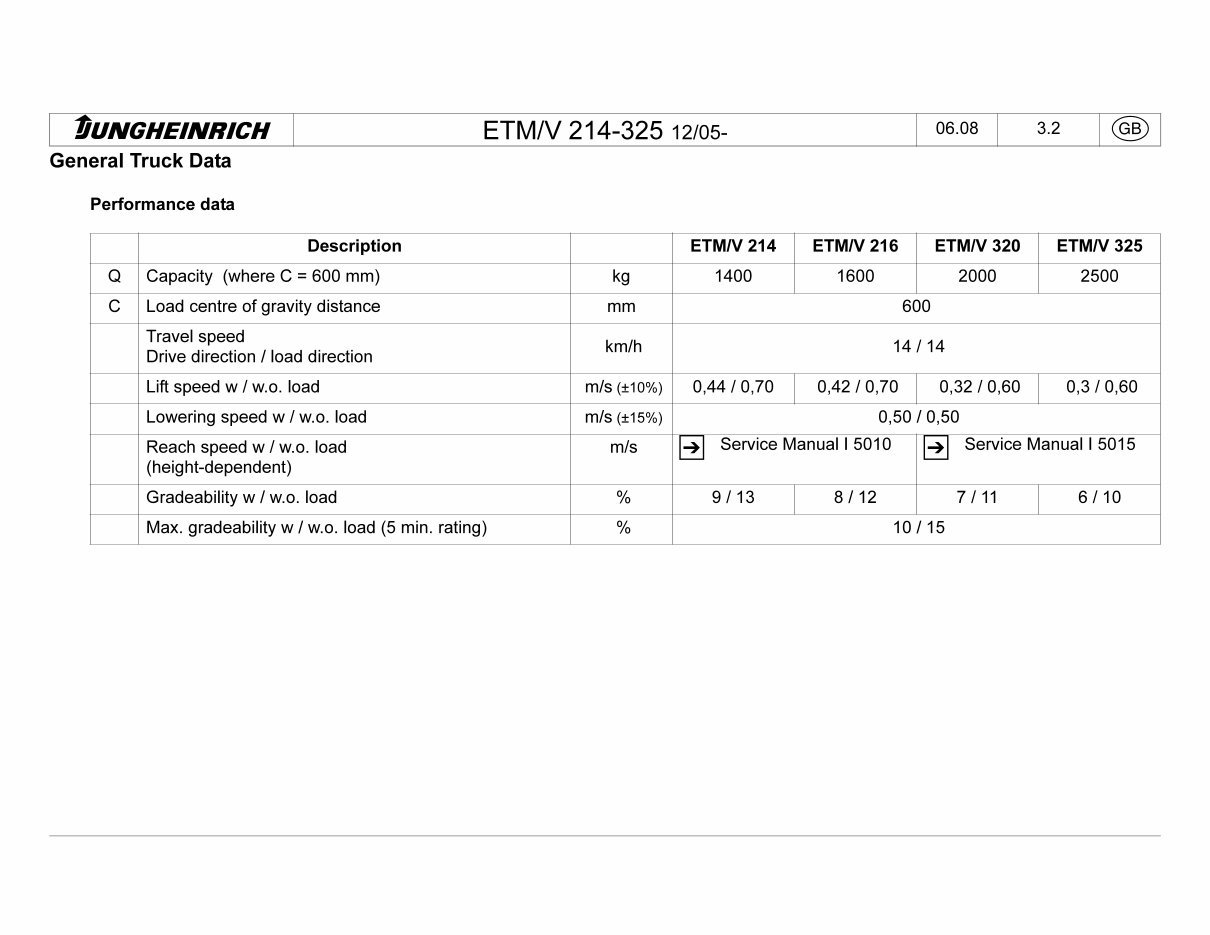

• General truck data and test values
• Truck maintenance
• Service manual items
• Colour Coding Key
• Electrical braking system and brake testing
• Hydraulic system adjustment and maintenance
• Proportional hydraulics adjustment
• Transmission and diagnostics
• Electrical and hydraulic diagrams

Additionally, the manuals provide instructions for various optional features such as "Sideshift in Central Position," "Horizontal Forks," "Lift Height Display / Rack Height Select," and "Weigher." They also include important notes on avoiding accidents and material damage during maintenance, test, and repair work on industrial trucks with electronic components. The detailed information on battery trolley adjustment, locking, and sensor system maintenance is also included. These manuals are invaluable for ensuring the proper operation and maintenance of Jungheinrich Electric Reach Trucks.
