1 INSTALLATION AND SETTINGS INSTALLATION AND SETTINGS BEFORE INSTALLATION��2 WEIGHT TABLE ��2 MACHINE ASSEMBLY ��3 LIST OF MATERIALS RECEIVED FROM THE DEALER �� 3 TRUCK UNLOADING �� 4 TOPPING UP THE OIL SUMP �� 5 BATTERY INSTALLATION ��6 LIST OF THE SETTINGS AND ADJUSTMENTS TO BE CARRIED OUT �� 9 BATTERY VOLTAGE SETTING ��9 VERIFY THE TRUCK USE CONDITIONS �� 11 SERVICE

2 INSTALLATION AND SETTINGS SERVICE BEFORE INSTALLATION Make sure in advance that all the tools required to unload the battery are readily available (bridge crane, lift truck, lift belts etc�)� Before delivering to the client it is very important to check the suitability of the place where the carriage is to be installed� WEIGHT TABLE Model Weight (excluding battery) Battery voltage/ capacity Battery weight min max kg V/Ah kg kg MS10 730 24/150 135 153 24/200 174 196 MS12 738 (1) 24/210 201 223 24/250 201 223 MS14 778 (2) 24/210 201 223 24/250 201 223 832 (2) 24/315 274 302 24/375 274 302 MS16 832 (2) 24/315 274 302 24/375 274 302 MS14 I�L� 933 (2) 24/315 254 280 24/375 276 306 MS16 I�L� 933 (2) 24/315 254 280 24/375 276 306 (1) +175 Kg for a three stage mast assembly (1) +115 Kg for a three stage mast assembly

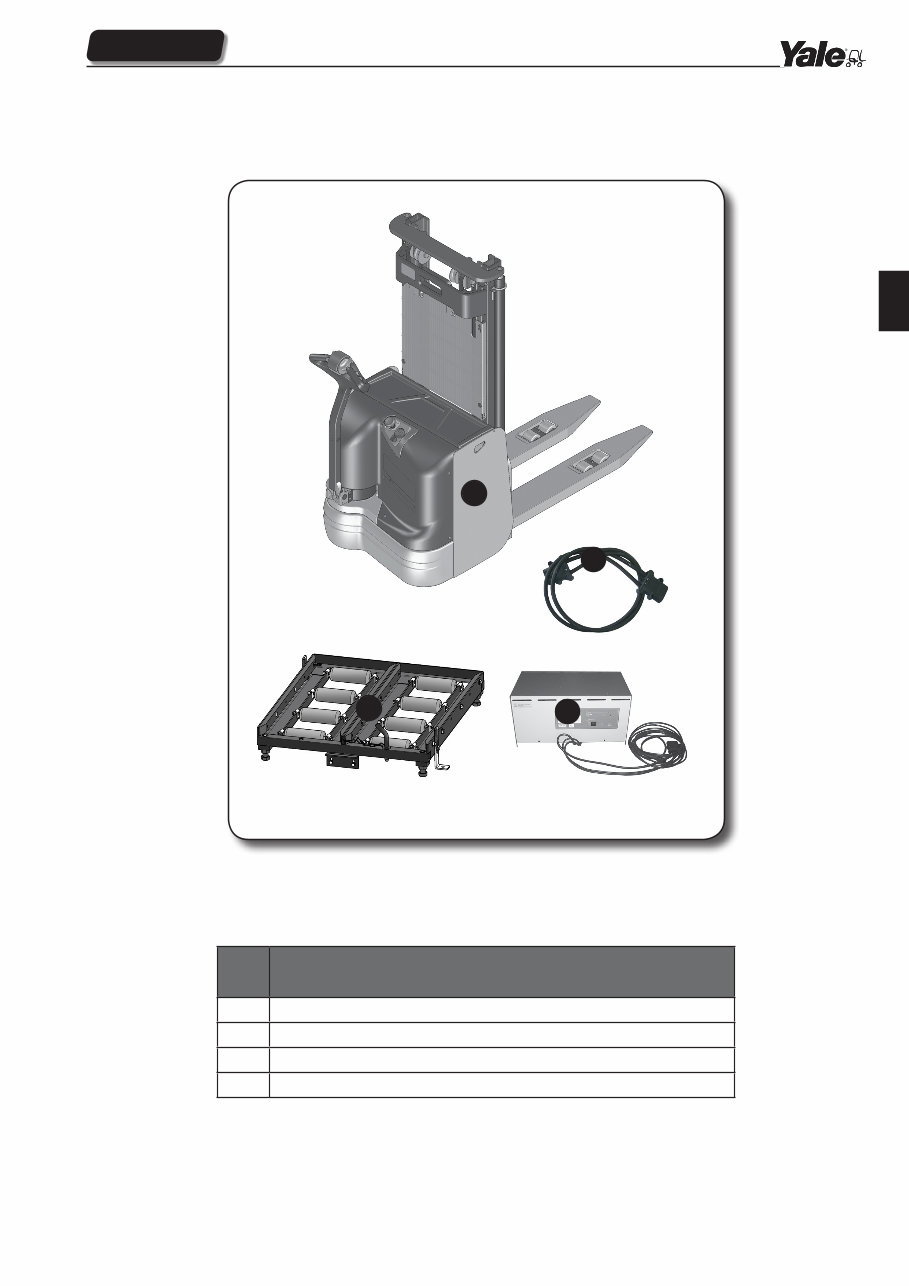

3 INSTALLATION AND SETTINGS MACHINE ASSEMBLY LIST OF MATERIALS RECEIVED FROM THE DEALER The materials received from the dealer may vary depending on the presence or absence of optional ac- cessories� Ref� Description 1 Base truck, assembled mast and forks� 2 Batter extension plug (with lateral extraction) 3 External battery charger 4 Rollerway for lateral battery removal (on request) 1 4 2 3 SERVICE

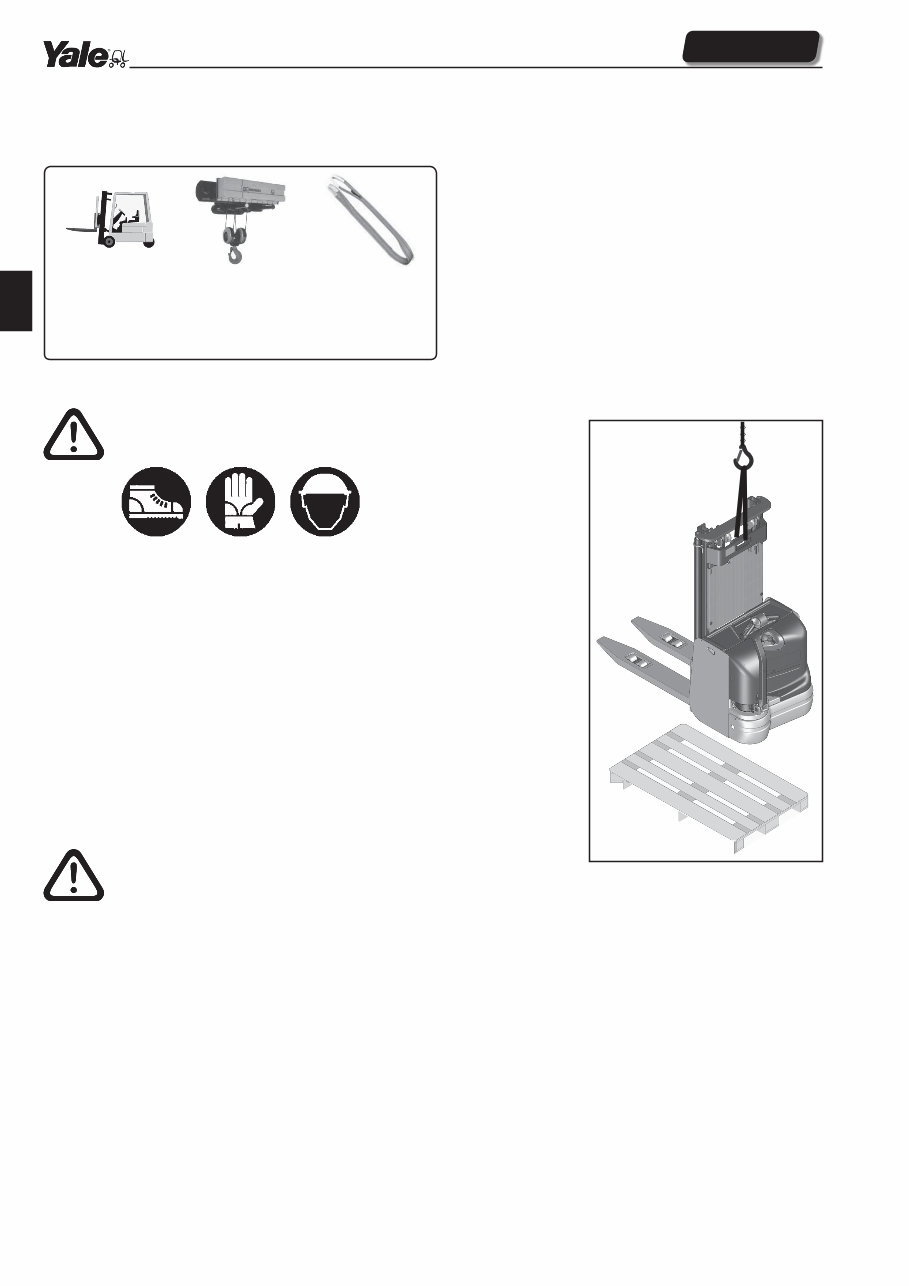

4 INSTALLATION AND SETTINGS TRUCK UNLOADING Equipment and tools fork lift truck load capacity 3000 kg bridge crane load capacity 3000 kg lift belt load capacity 3200 kg Procedure Before starting work, ensure that you are equipped with all suitable safety clothing� Phase 1 ELEVATOR TRUCK WITH 3000 kg load Load the pallet using the lift truck, raise it and carry it to a safe place, far from the passage of other vehicles and pedestrian trafﬁc. Phase 2 BRIDGE CRANE - LIFT BELT Remove the packaging� Harness the column with the lift belt (ﬁg.1)� Ensure that the bridge crane is positioned at right angles to the truck to be lifted� Hook the belt to the bridge crane, lift and position the truck gradually off the ground� Fig� 1 SERVICE

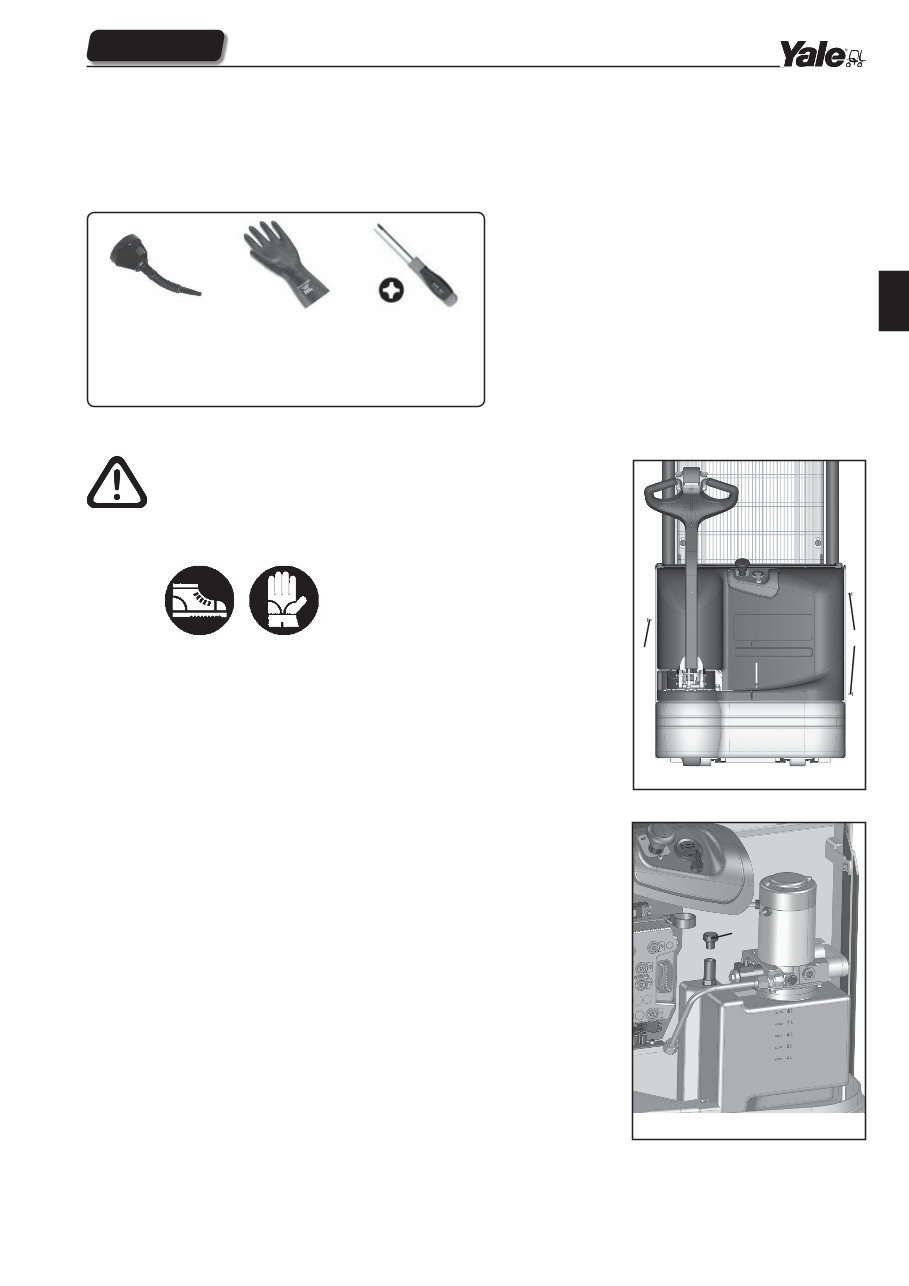

5 INSTALLATION AND SETTINGS TOPPING UP THE OIL SUMP Before topping up the oil in the hydraulic fluid tank make sure that the forks are completely lowered. Equipment and tools oil protecting gloves funnel large Philips screw driver Procedure Before starting work, ensure that you are equipped with all suitable safety clothing� Move the carriage to a safe place, away from areas of transit of other vehicles and the pedestrian route� Set the key switch to OFF and disconnect the battery� Phase 1 LARGE PHILIPS SCREW DRIVER Use the Philips screwdriver to unscrew and remove the fastening screws on the motor compartment cover (ref.A fig.1)� Open the engine cover� Phase 2 OIL PROTECTING GLOVES - FUNNEL Unscrew the oil sump cap (ref.B fig.2), place the funnel in the filler hole and top up the oil level� Make sure the tank is not too full� At the end of the operation screw the tank cap back on� Fig� 1 Fig� 2 A A A B SERVICE
